Steel Garage SW2 55

269 sq ft
$6,935.00 USD
$8,892.00 CAD
Cabin size197" x 197"
Roof boards26 gauge / .45mm
Size (sq ft)269
Wall height85"
Ridge height110"
Wall thickness26 gauge / .45mm

Model Documentation

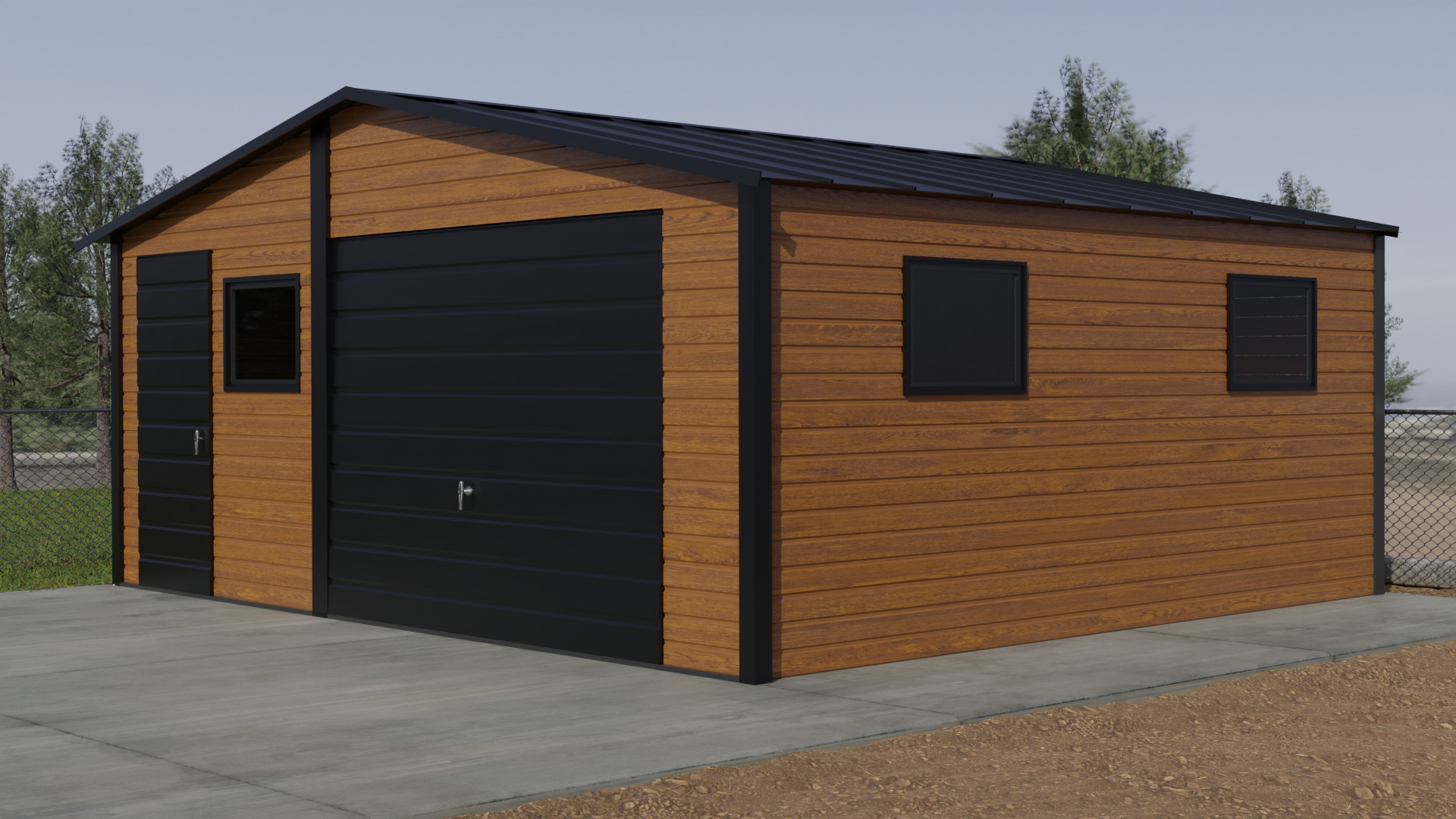

Steel Garage SW2 55

This model has a foot print of 16′ 4″ x 16′  4″.  An affordable “do-it-yourself” steel garage kit ideal for use in rural or urban regions.  Each kit is ready to mount on a concrete slab  with pre-fabricated sectional walls using horizontal galvanized colored steel. Our unique OAK woodgrain metal looks like wood siding and can blend in alongside any home. Walls have interlocking corners and come with easy to mount trusses, corner & joint caps, purlins & metal roof panels

Kit includes:

  • pre-built wall sections
  • roof trusses
  • purlins
  • roof panels
  • spring assisted overhead garage door with hardware
  • entry door with hardware
  • 3 single windows
  • assembly fasteners



Materials: Frame work, roof trusses, & purlins are galvanized box tubing 14 gauge (2mm) of varies sizing. Wall & roof panels are galvanized & painted 26 gauge (.45mm)

Assembly: This garage kit can be assembled by 3 people is less than 6 hours

Optional overhead doors: sectional or roll up doors available in any size by quote

Color options: White, Graphite, Oak woodgrain



Rating:  26lbs snow load & 100 mph wind load. Can be modified to meet any snow or wind load requirements
