Dallas

1300 sq ft
Premium Model
$75,743.00 USD
$97,105.00 CAD
FREE SHIPPING
Bedrooms4
Bathrooms2

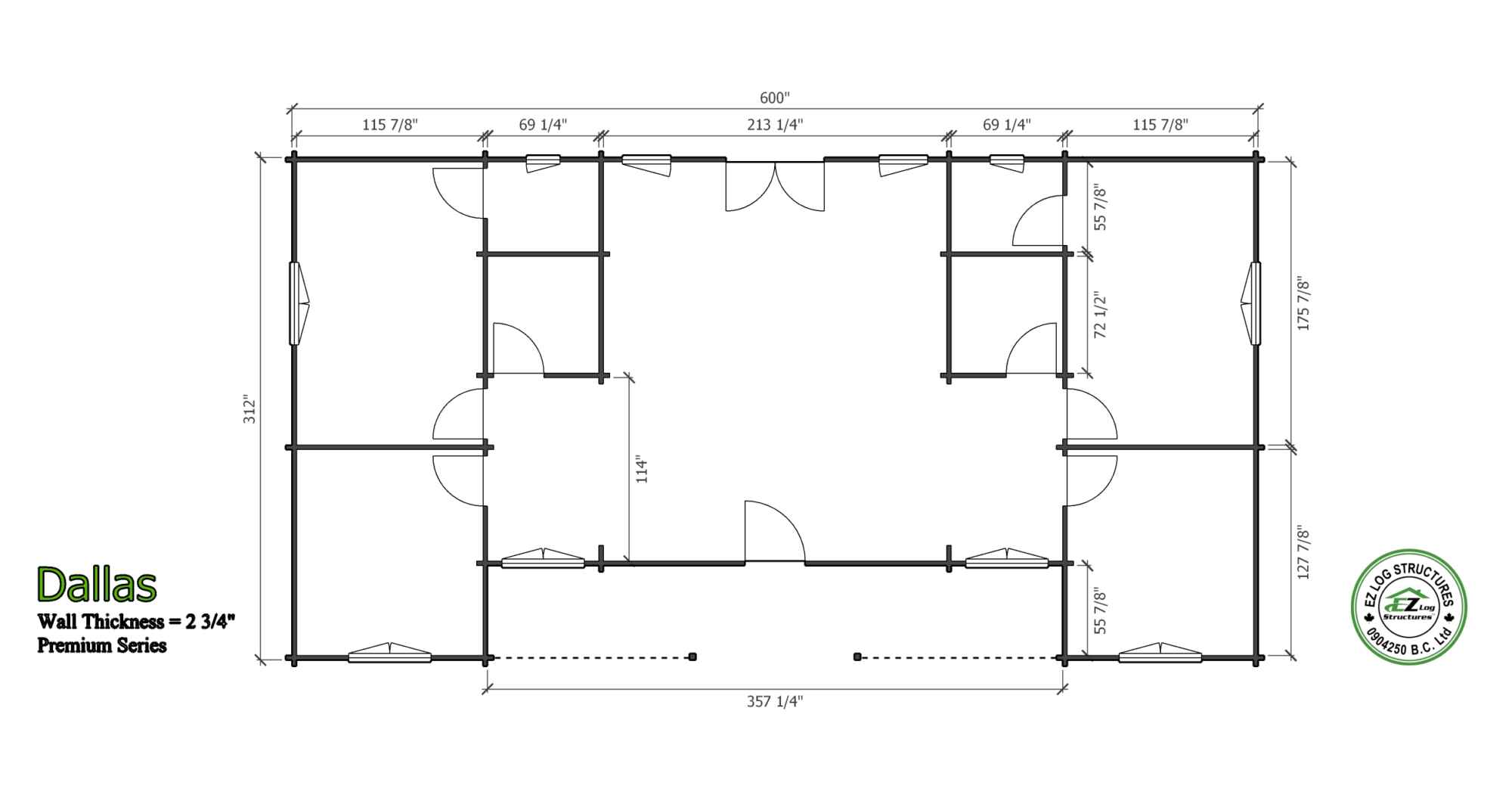

Cabin size600" x 312"
Roof pitch3/12 - 14D
Roof boards3/4"
Size (sq ft)1300
Wall height95"
Ridge height163"
Wall thickness2-3/4"

Model Documentation

FREE SHIPPING – some exceptions apply

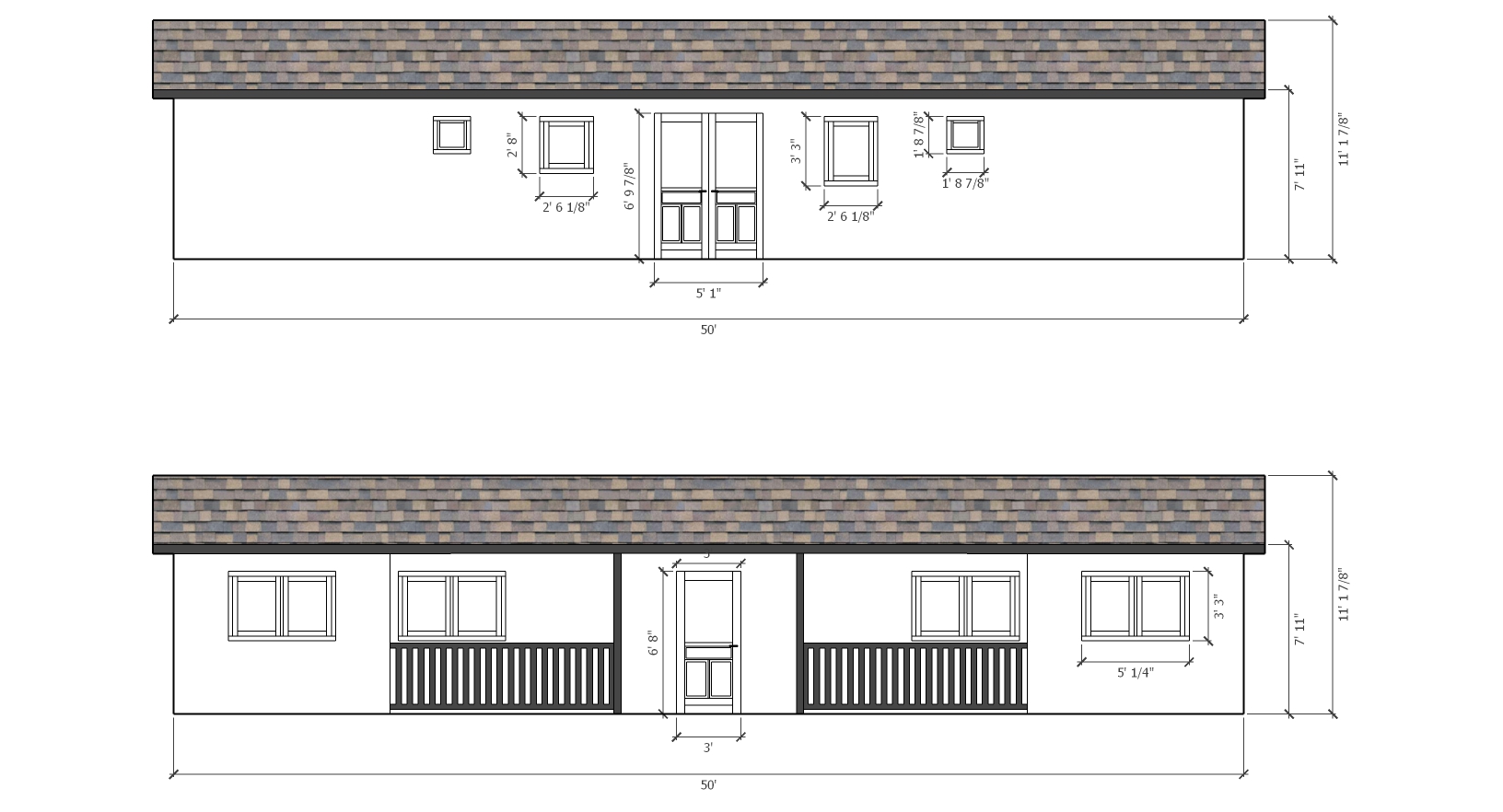

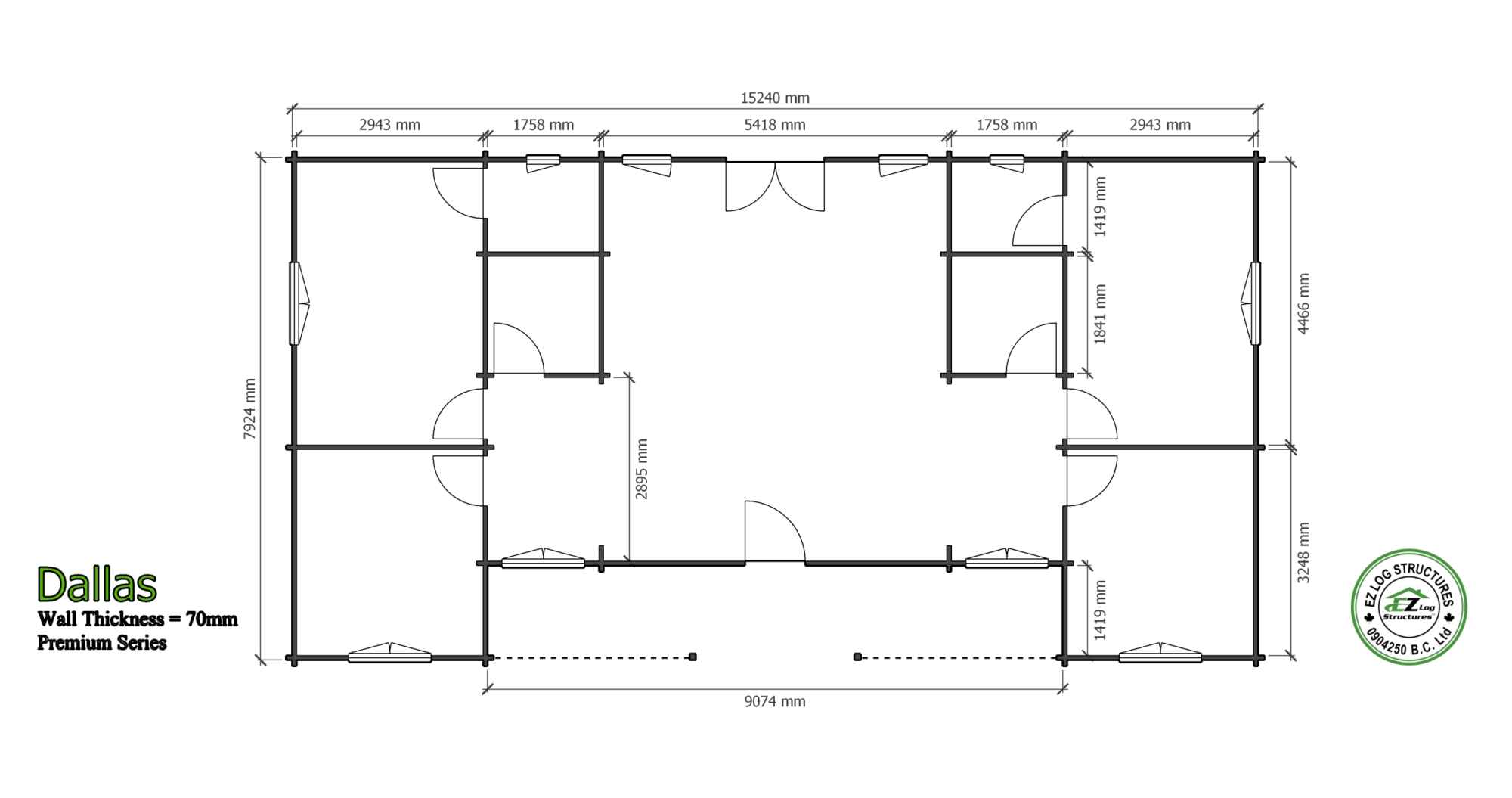

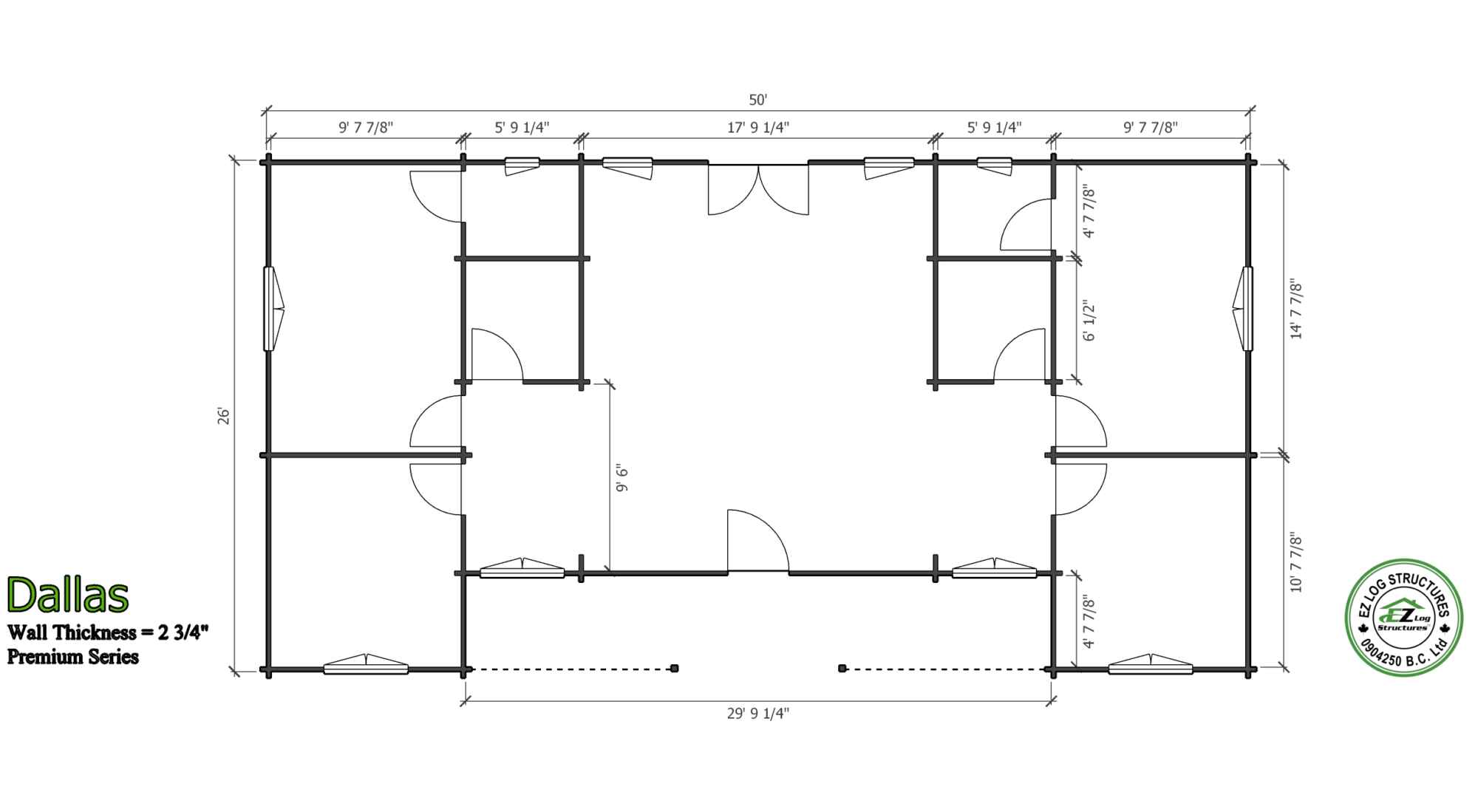

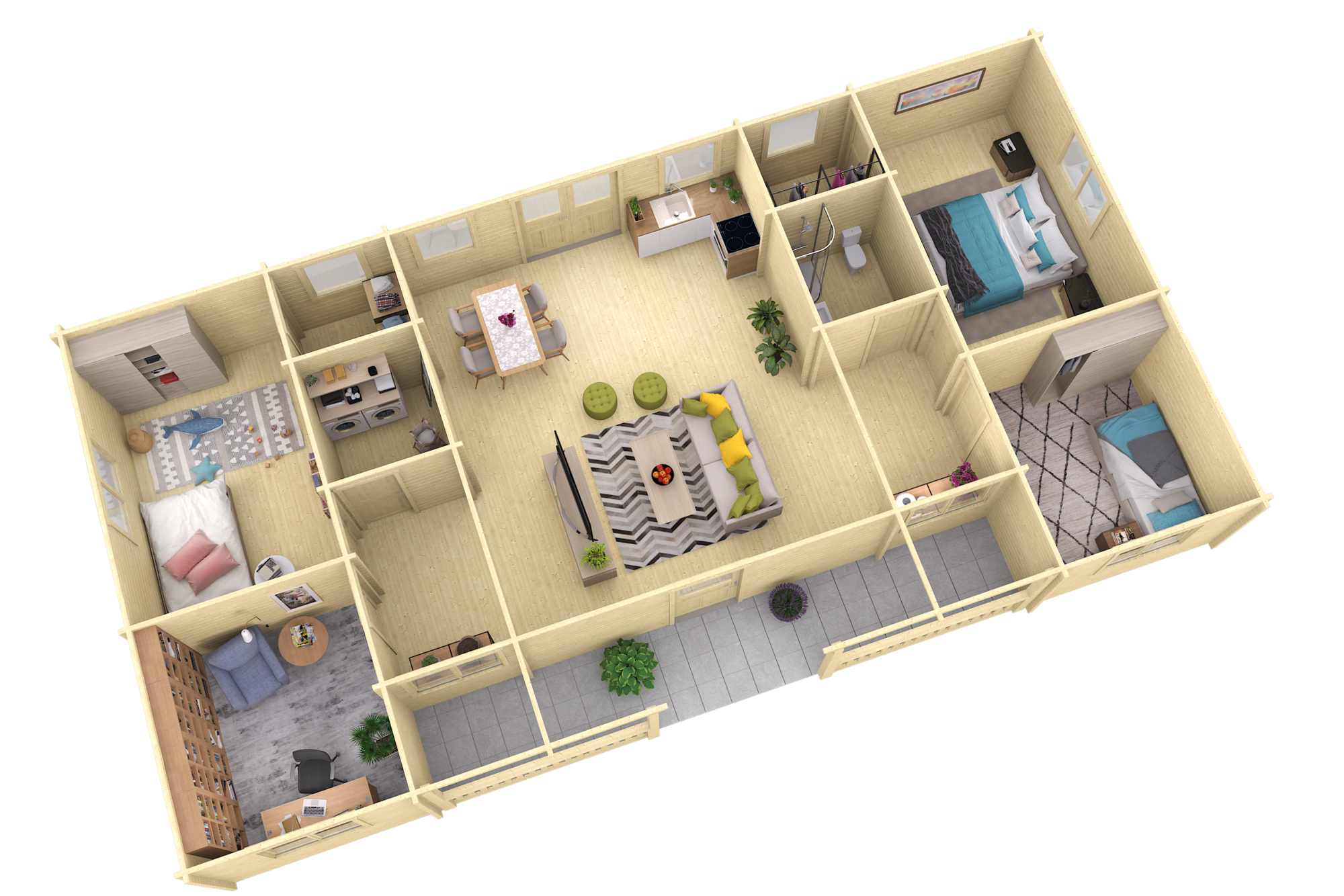

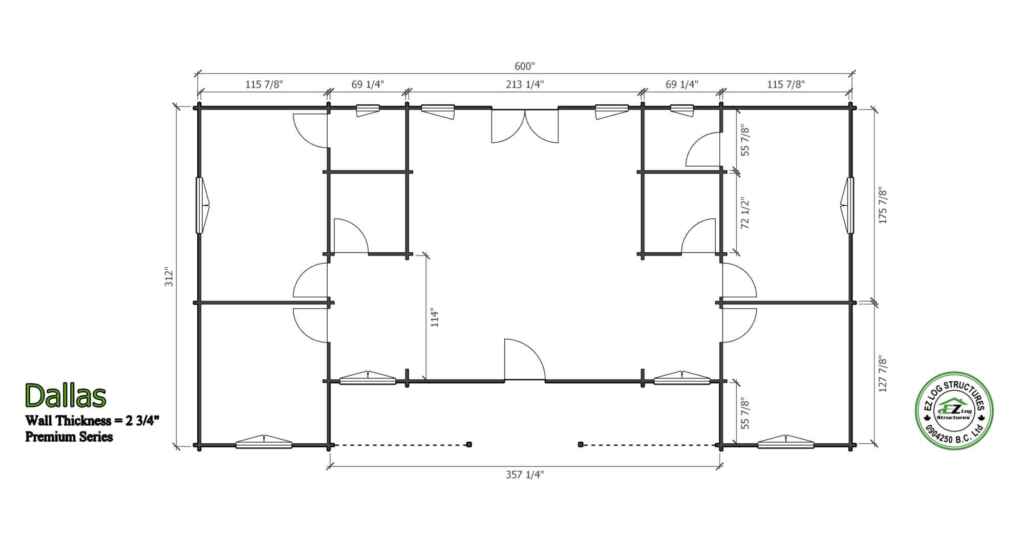

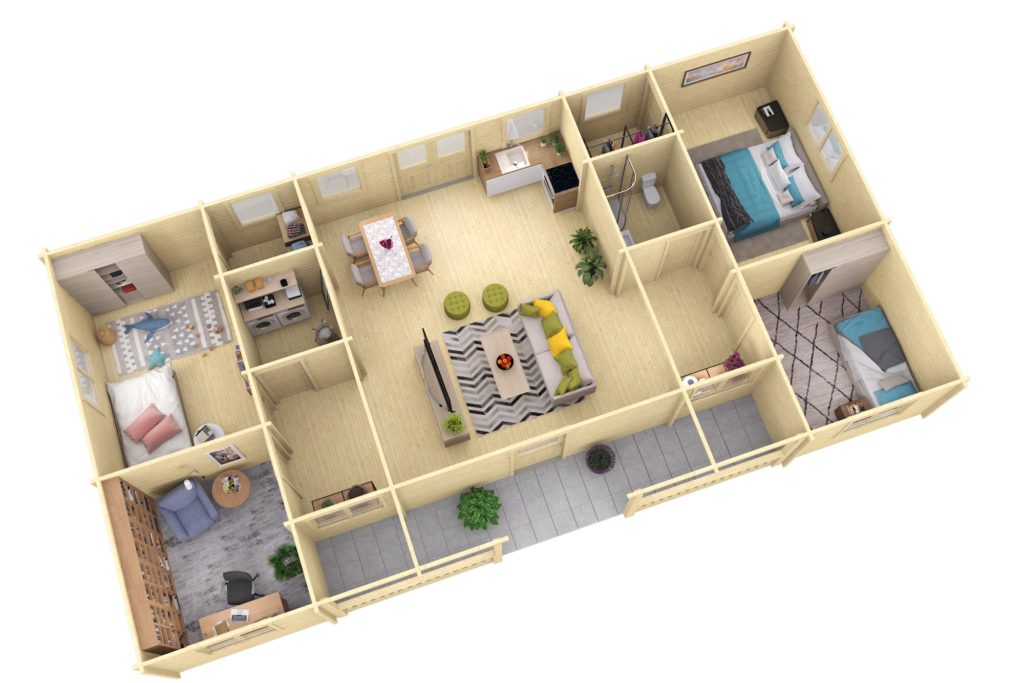

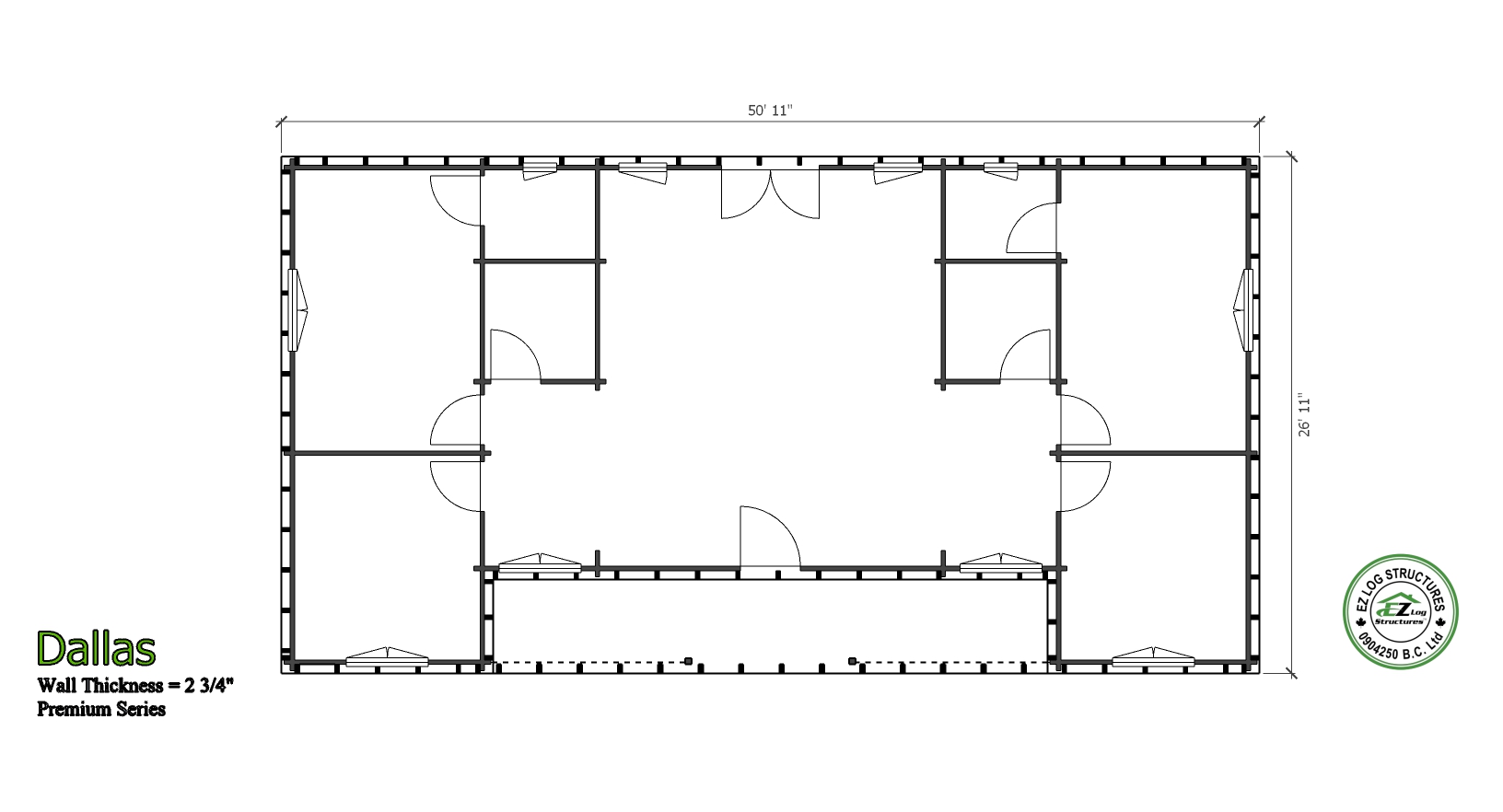

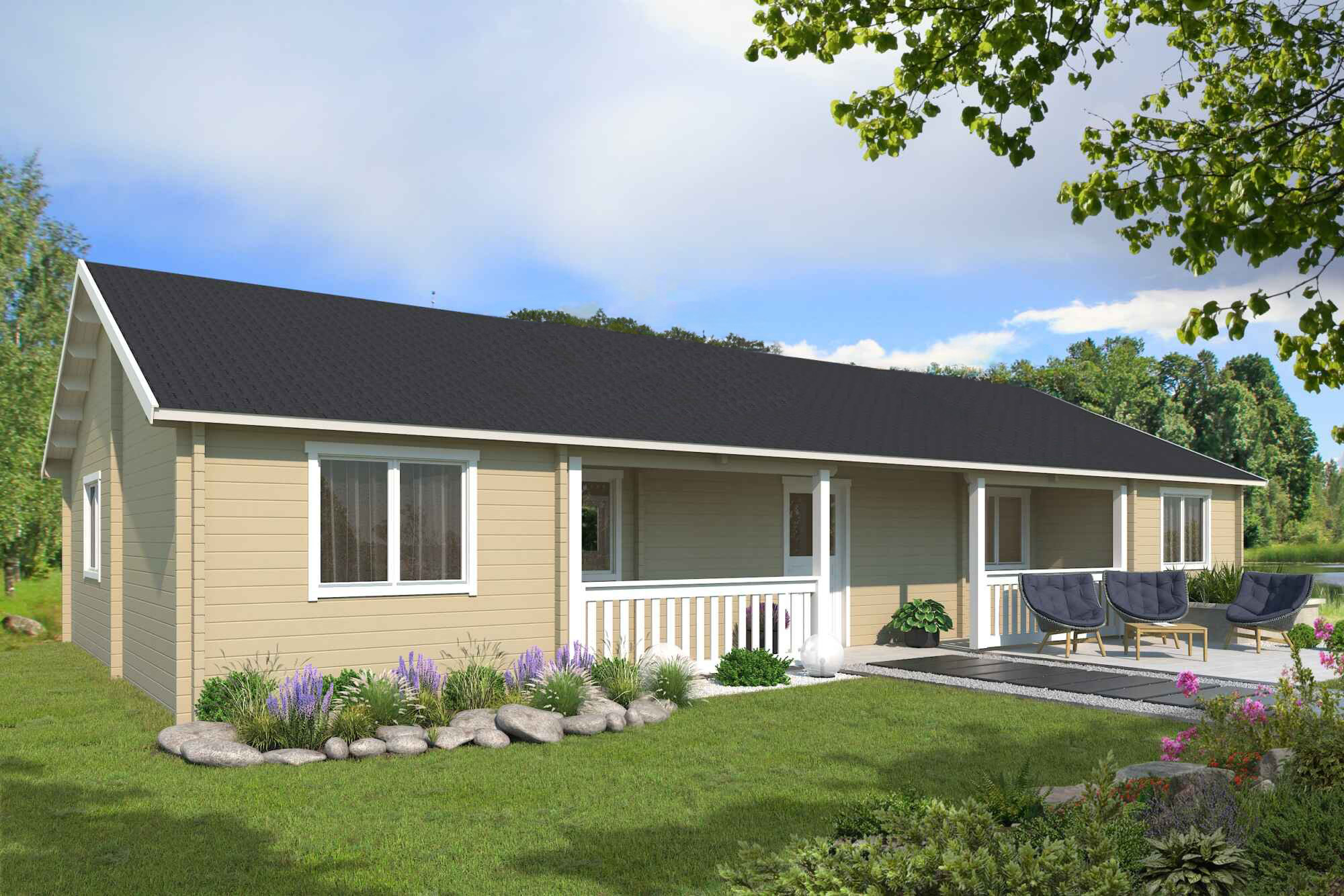

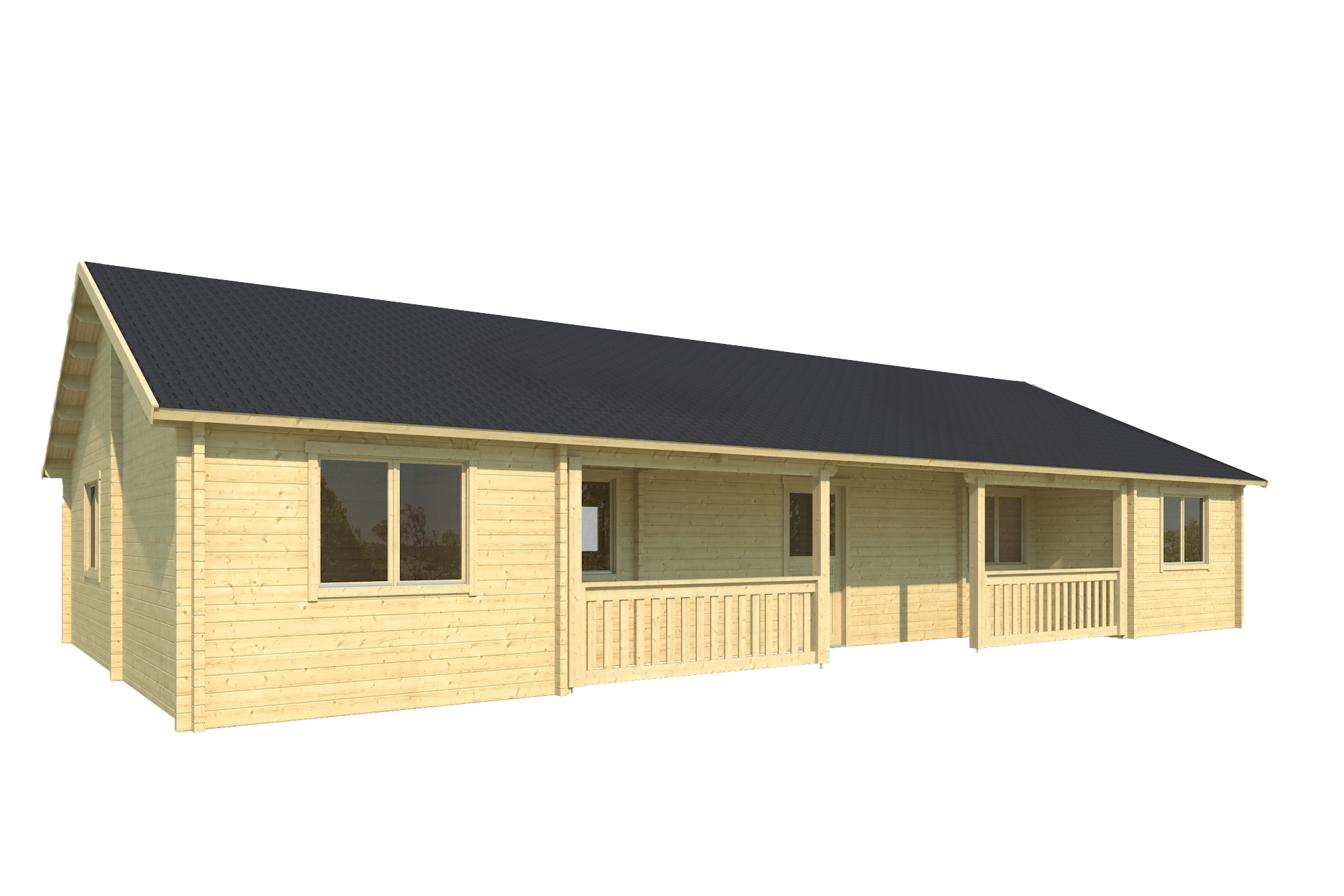

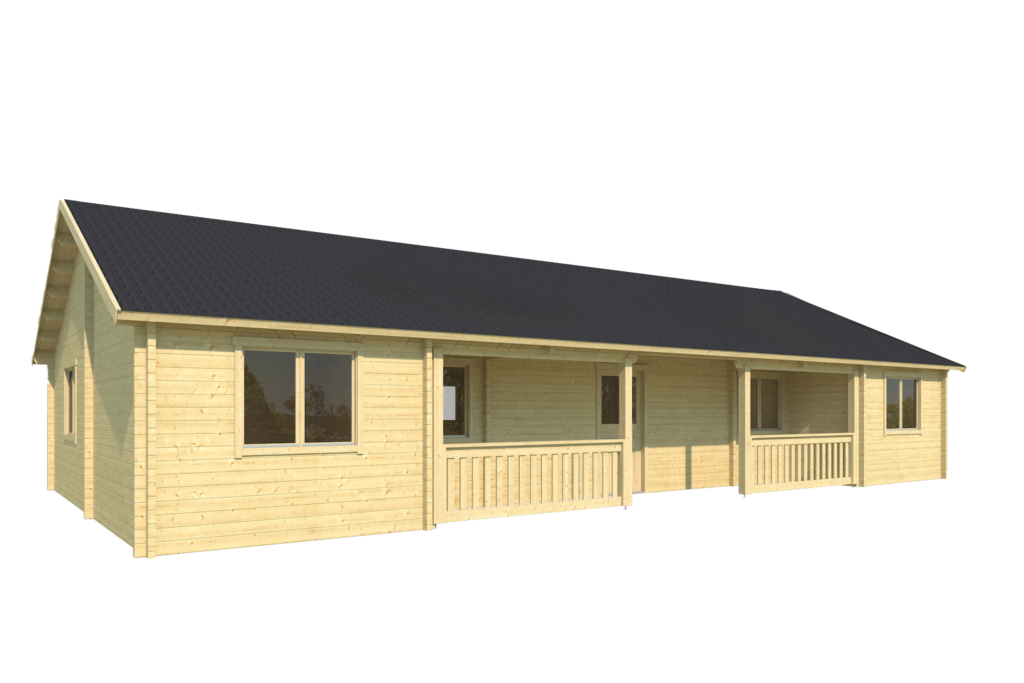

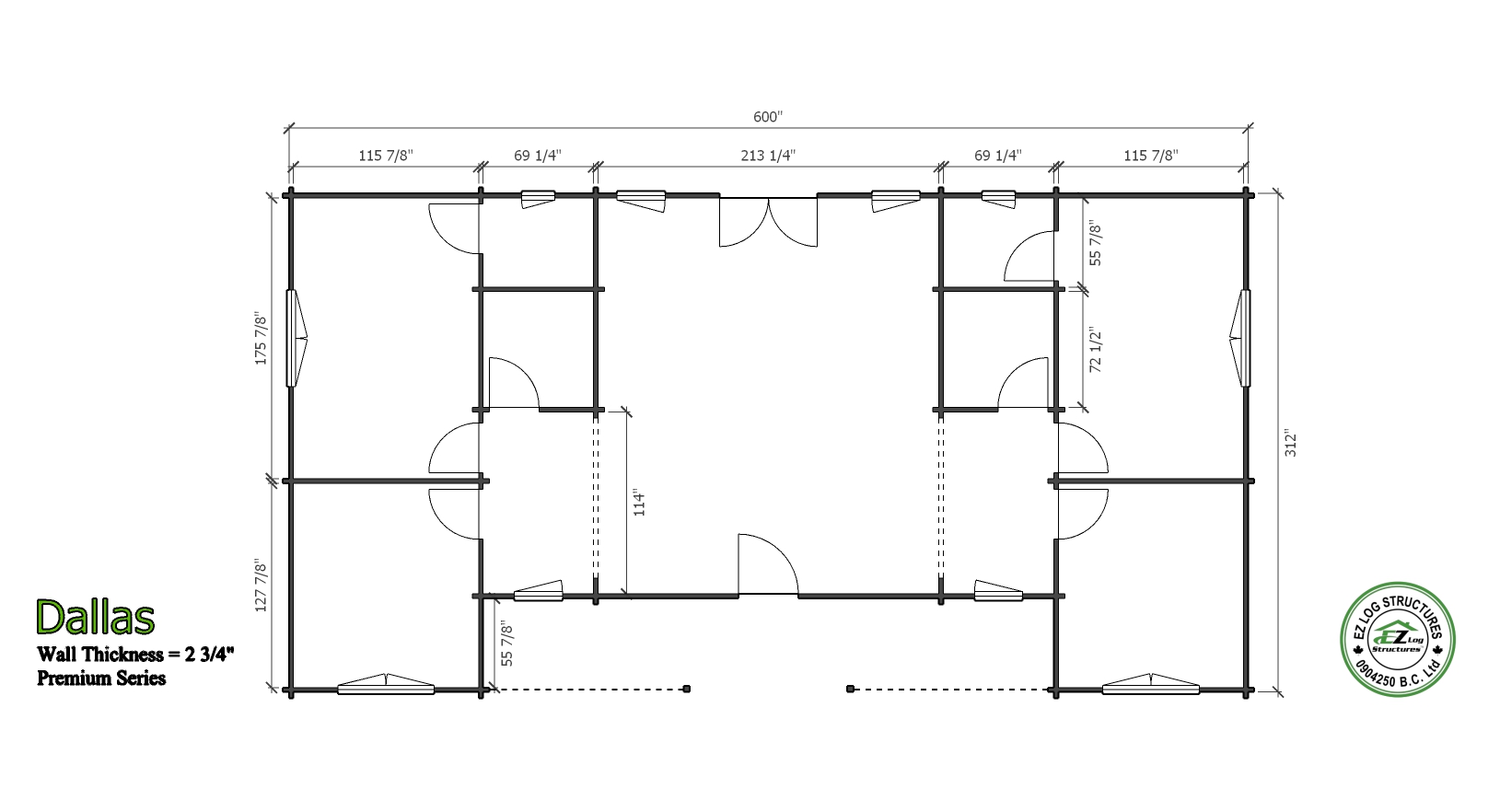

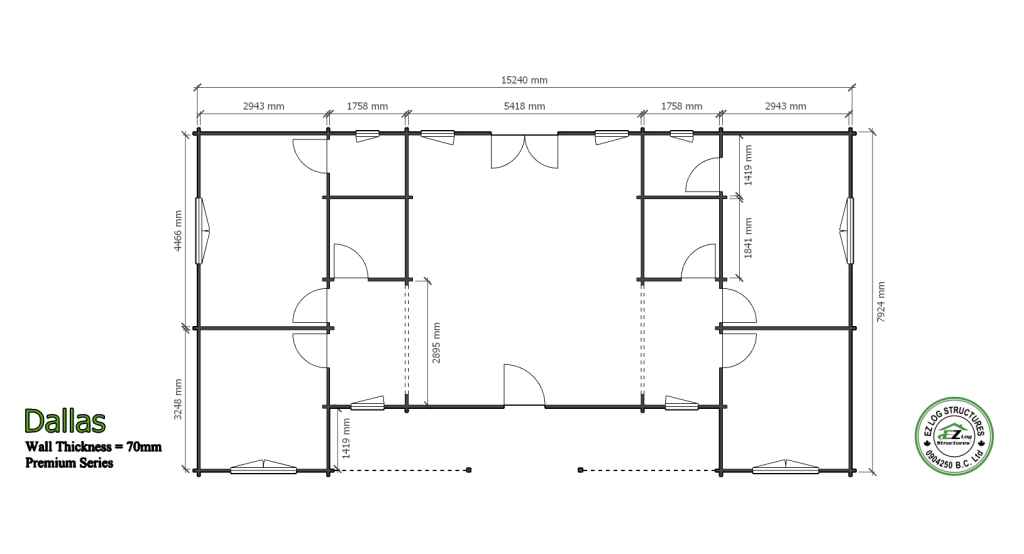

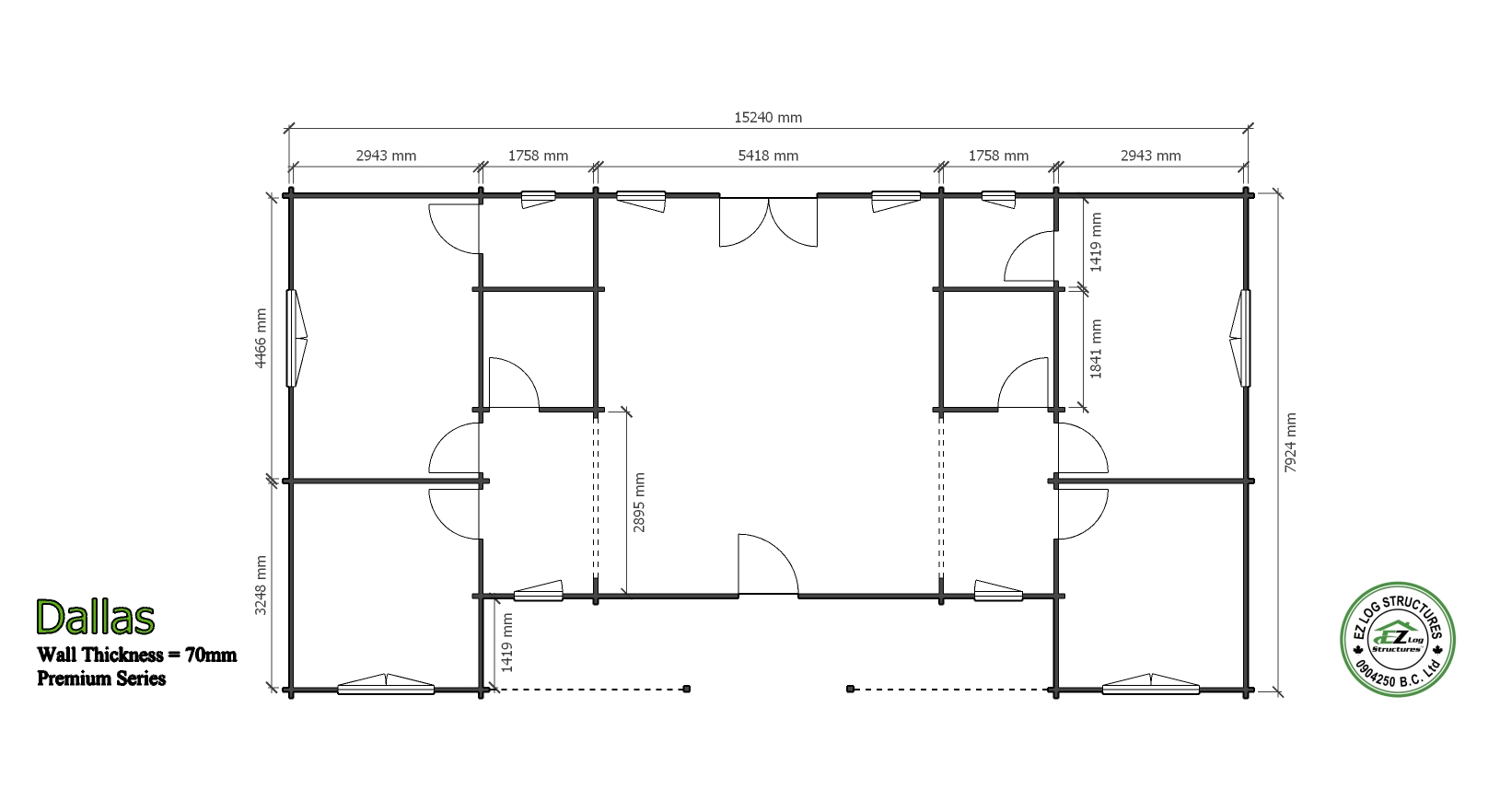

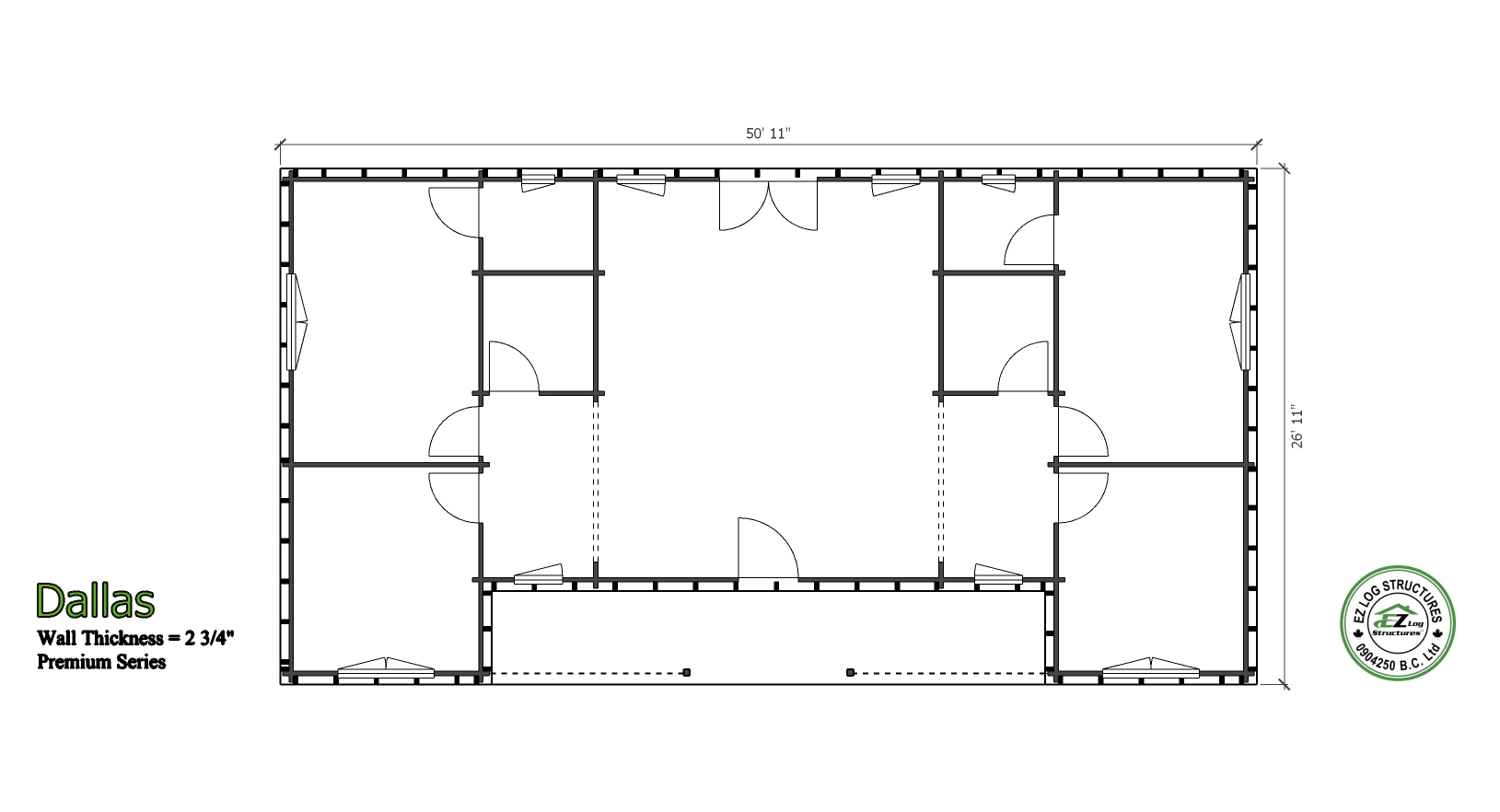

The Dallas is a manufactured home using 70mm (2-3/4″) thick solid walls.  This home has a footprint of 40′ x 26′ (1300 sq’) 4 bedrooms,  2 bathrooms  & vaulted/cathedral ceiling throughout. (sq footage is based the total footprint, living space could be less, see floor plans)

FREE STAMPED STRUCTURAL ENGINEERING – PREMIUM models include site specific stamped engineering drawings for structural integrity.  Drawings are reviewed, approved and stamped by a licensed engineering firm to ensure the building meets local requirements for roof and wind loads. Additional engineering services are available on request

WALL INSULATING KIT: Add 10% for the wall insulating kit including 2×4 studs, metal stud brackets plus 3/4″ wall cover boards for interior or exterior application. When insulating on the exterior the foundation must be larger
INTERIOR              EXTERIOR        Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.



Energy efficiency:  Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the overall thermal and comfort benefits

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

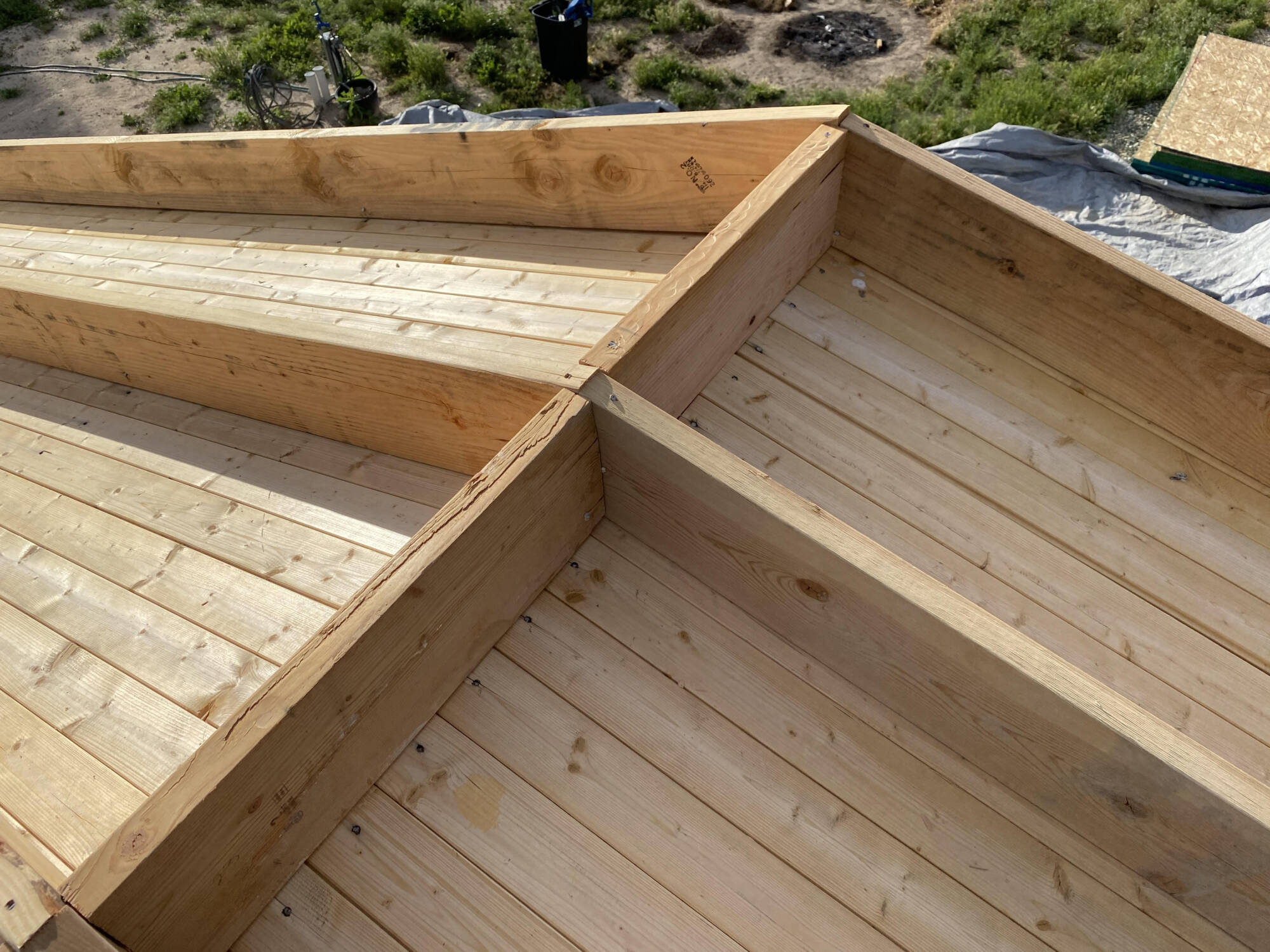

Insulating the roof: Apply locally supplied materials to add rafters over the tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof. These added rafters also increase the roof load capacity

OPTION A: Upgrade wood windows to triple glazed / Low E / Argon filled glass

  • USD regular price $ 1,498.00
  • CAD regular price $ 1,920.00



OPTION B: Upgrade wood windows to our exclusive maintenance free white PVC/Shutter windows with triple glazed / Low E / Argon filled glass plus exterior rolling shutters that are controlled from the interior. These unique windows provide added comfort and security. They improve the overall energy efficiency by keeping the heat out during the summer and the cold out in the winter. They also reduce outside noise levels and provide complete darkness for daytime sleepers. (See our Videos page)

  • USD regular price $ 3,120.00
  • CAD regular price $ 4,000.00

Assembly: The model can be assembled in approximately 14 days with 3 people

Tip: House wraps & vapor barriers are required in most regions when insulating

Building Codes: Premium series homes & cabins are manufactured to meet all structural requirements for building codes including, California Title 24, earthquake, heavy snow load regions and hurricane zones

Kit includes:

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components

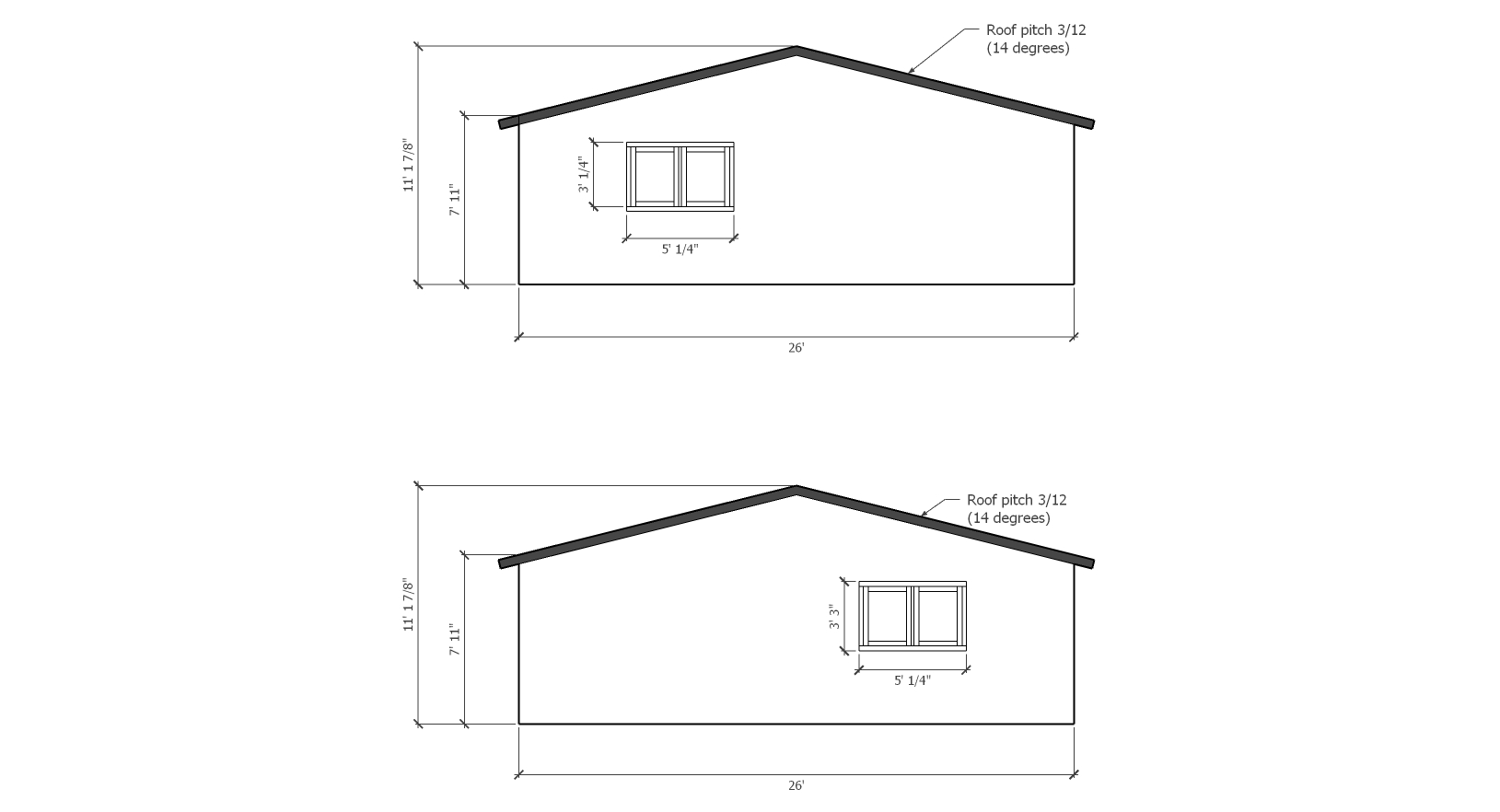

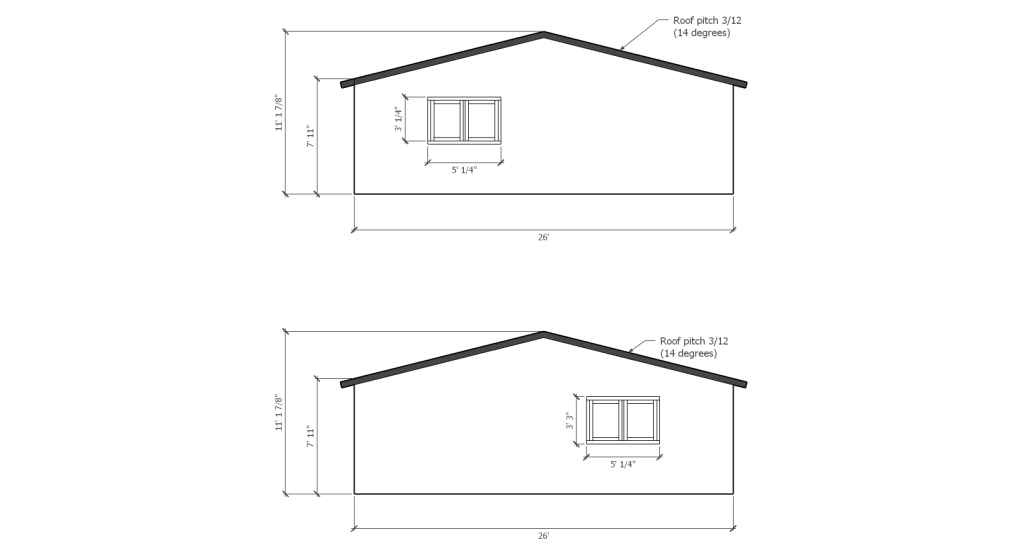

  • 3/12 roof pitch (14 degrees)

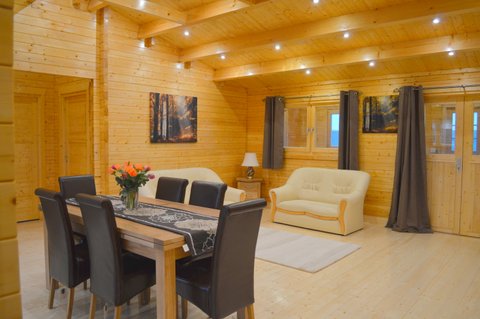

  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 8 interior doors 812mm x 2040mm (32″x80″)
  • 2 single wide wood windows 765mm x 990mm (30″x 39″)
  • 6 double wide wood windows 1530mm x 990mm (60″x 39″)
  • 2 single wide wood windows 530 x 530 (21″x 21″)
  • 1 exterior door with multi locking hardware 1/2 glass tempered 990mm x 2040mm (36″x80″)
  • 1 exterior double door 1550mm x 2040mm (61″ x 80″) 1/2 glass tempered
  • pre-built deck railings with vertical balustrades
  • adjustable posts
  • hardware for doors & windows
  • threaded steel storm rods for perimeter wall junctions
  • 2 spare wall logs/spare roof boards
  • 500 – 8″ log torque head log screws to connect first 2 rows,  top row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
