Steel Garage DW 77

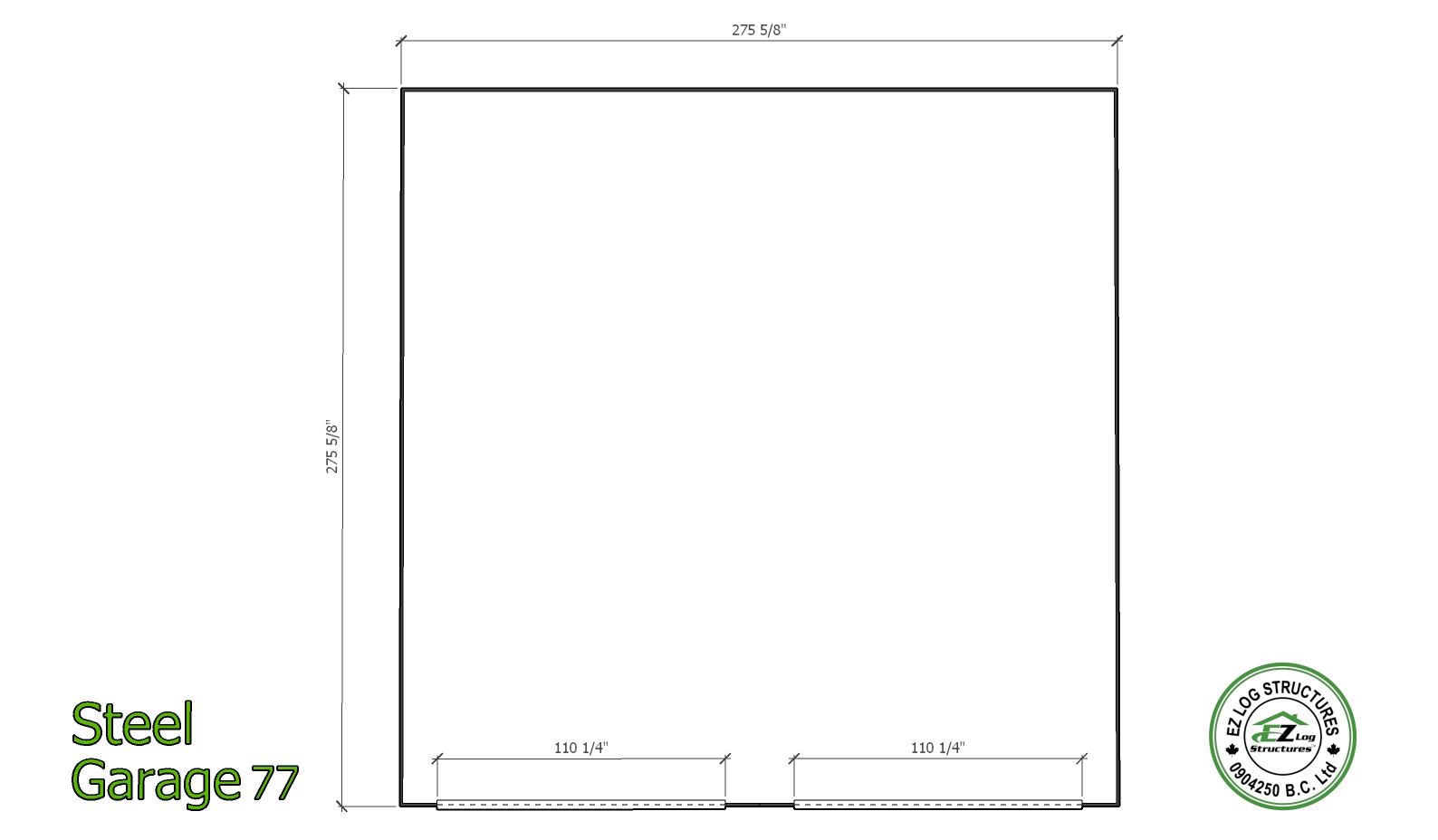

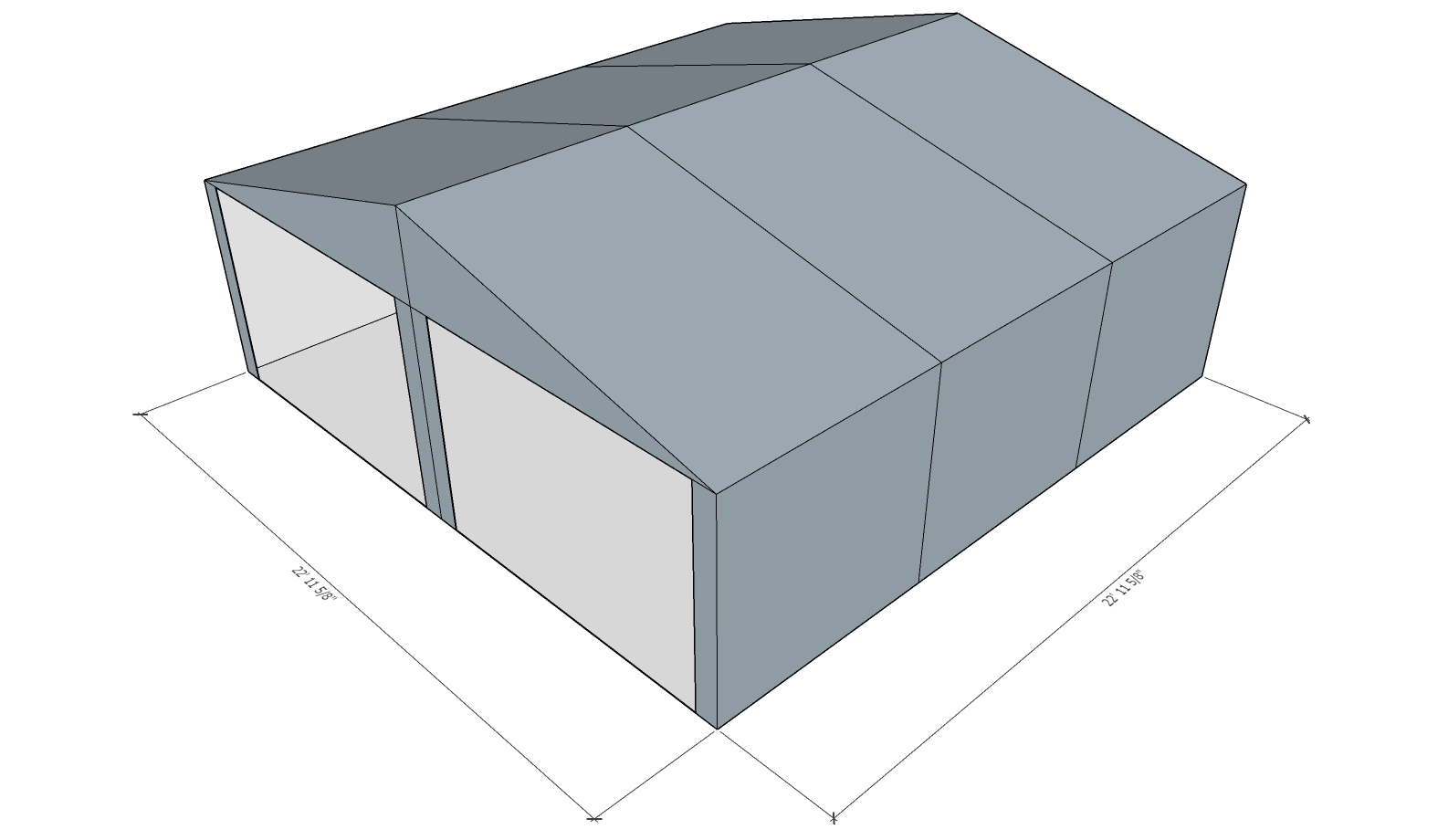

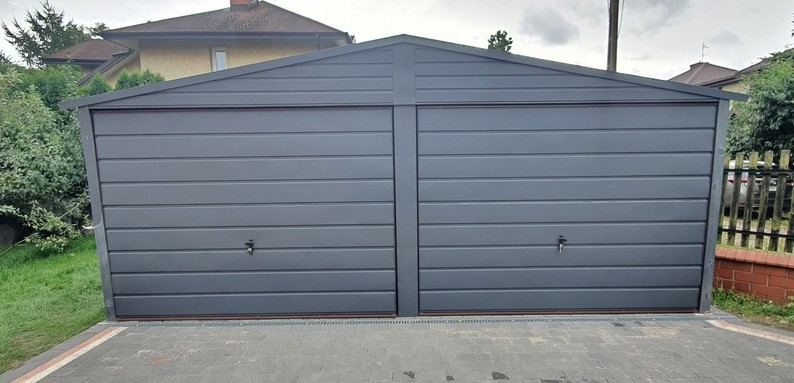

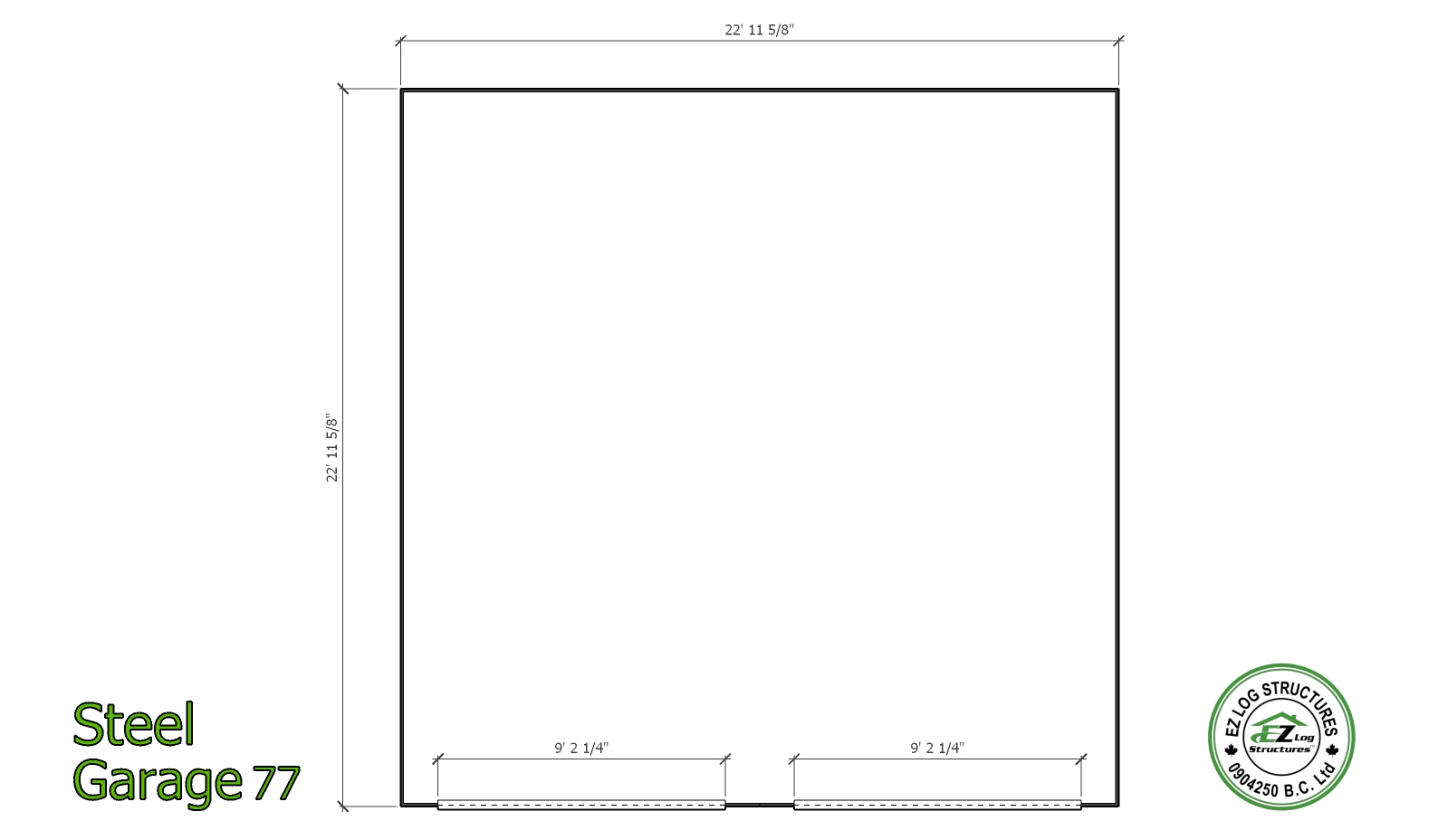

This model has a foot print of 22′ 10″ x 22′ 10″. An affordable “do-it-yourself” steel garage kit ideal for use in rural or urban regions.  Each kit is ready to mount on a concrete slab  with pre-fabricated sectional walls using horizontal galvanized colored steel. Our unique OAK woodgrain metal looks like wood siding and can blend in alongside any home. Walls have interlocking corners and come with easy to mount trusses, corner & joint caps, purlins & metal roof panels

Kit includes:

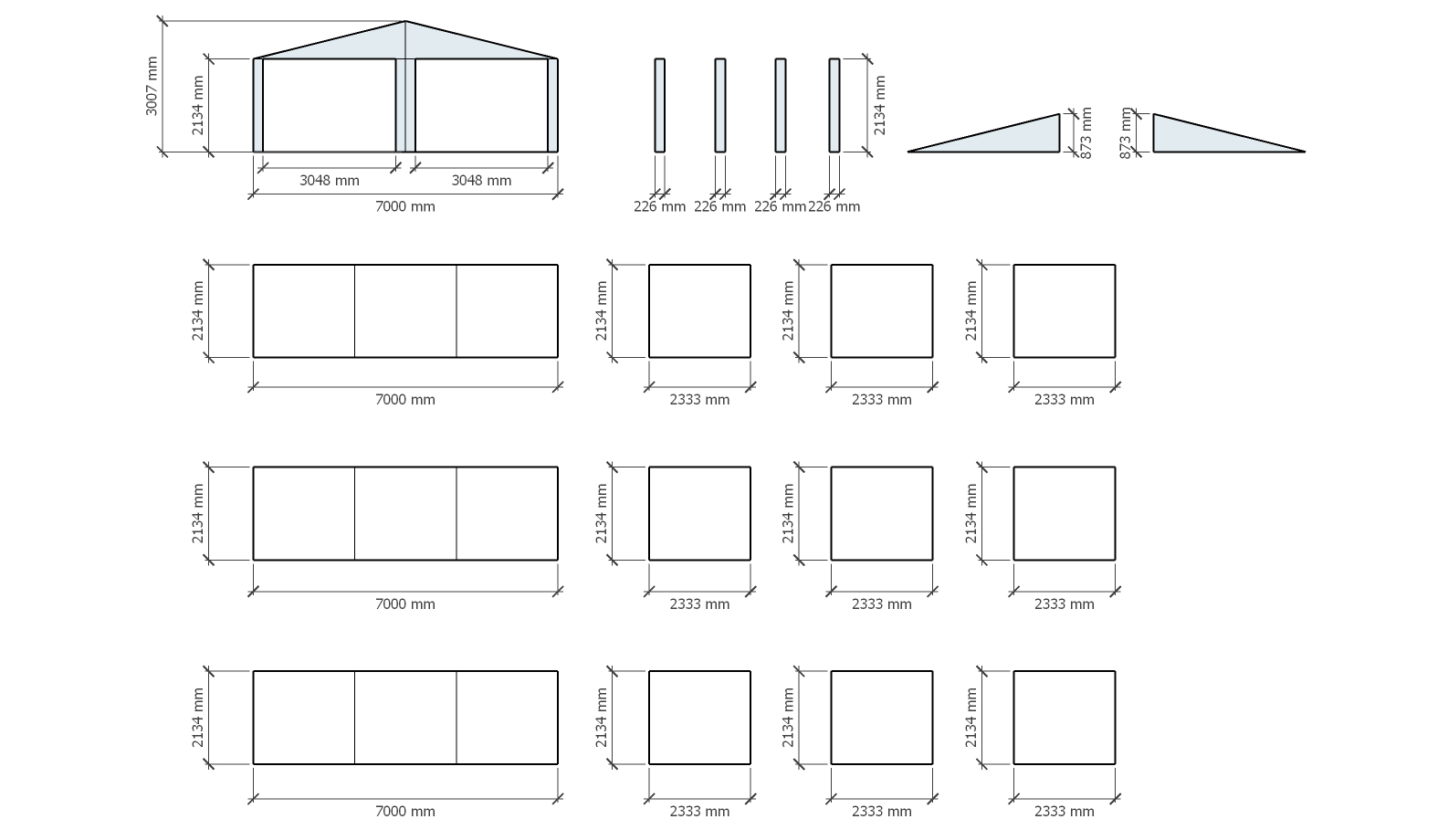

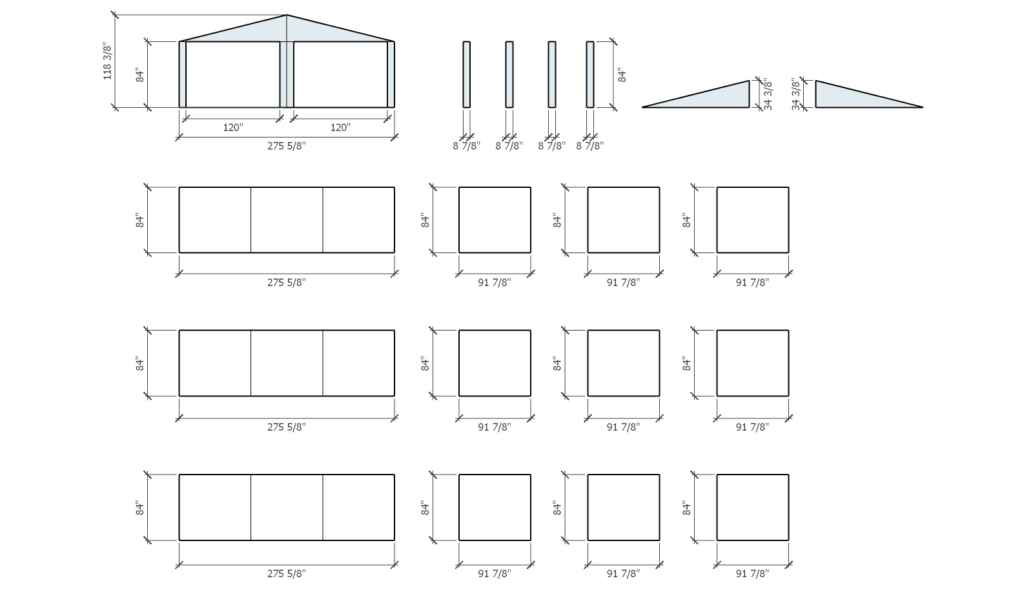

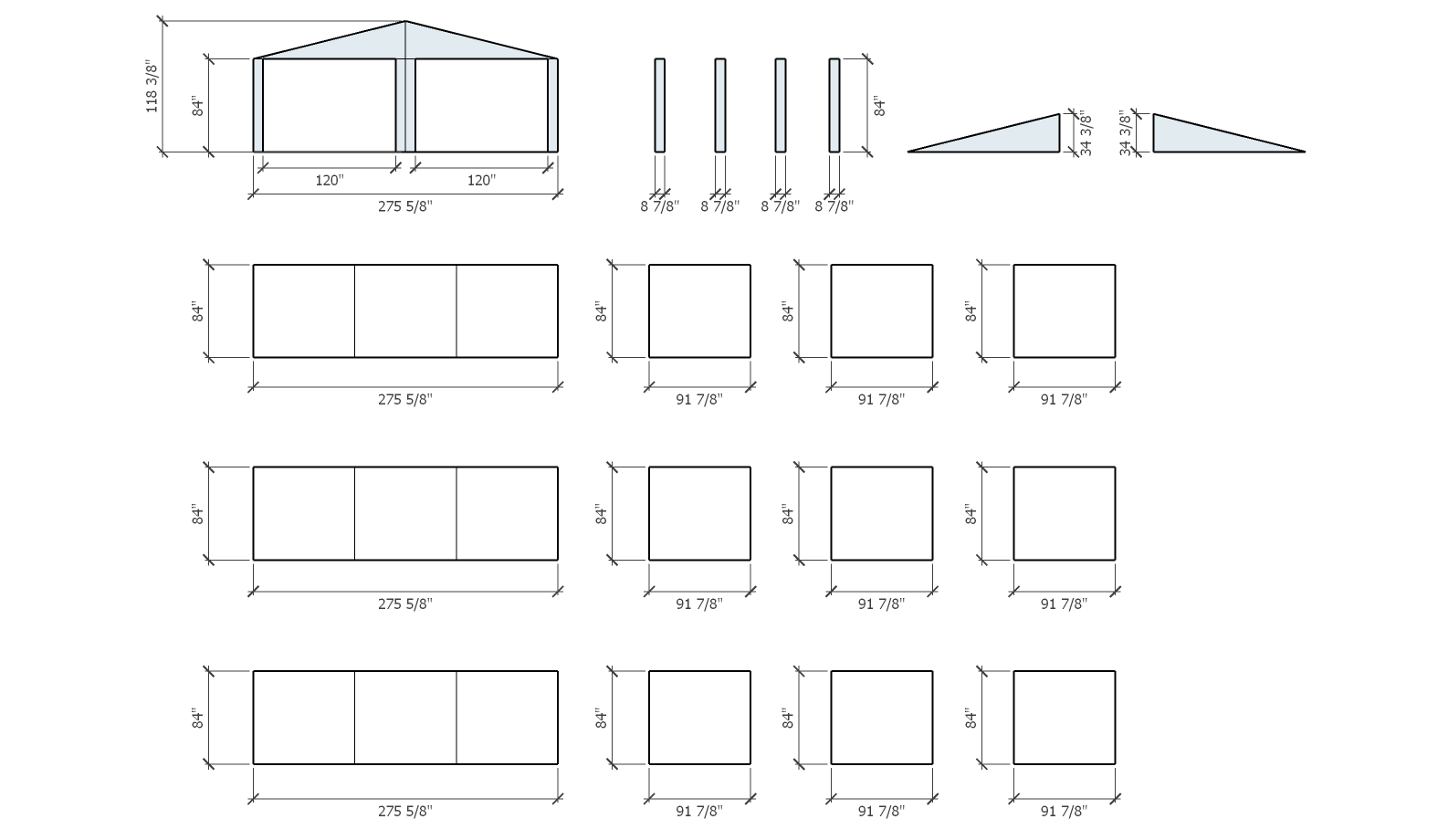

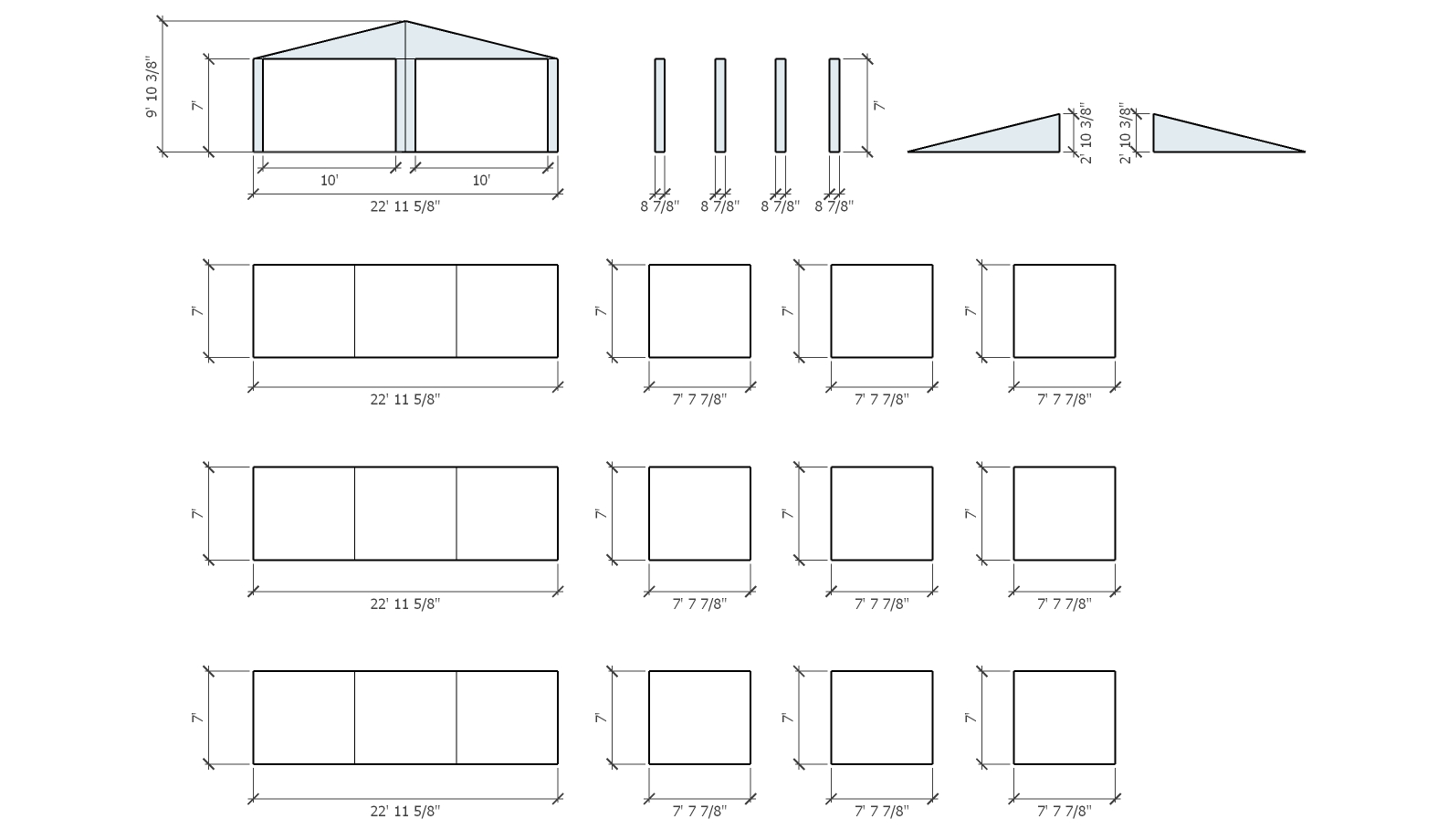

• pre-built wall sections,

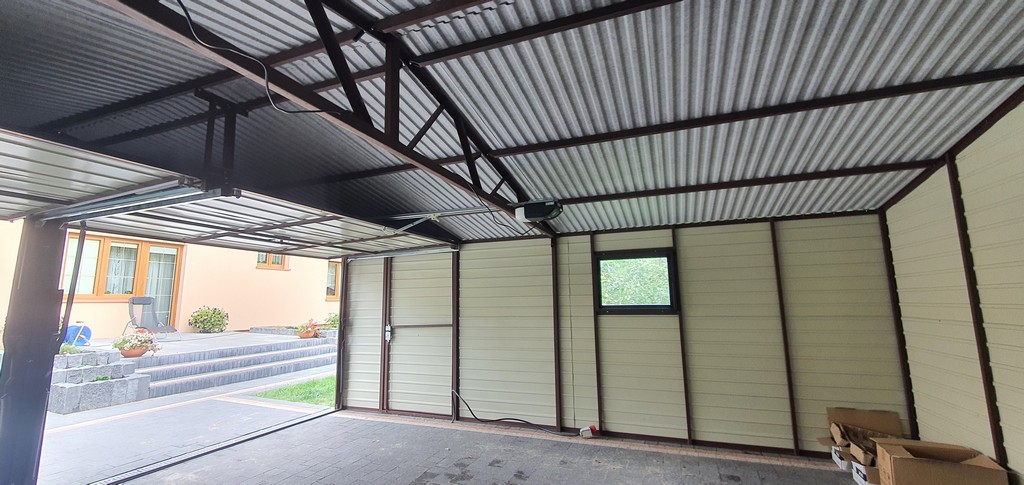

• roof trusses
• purlins
• roof panels

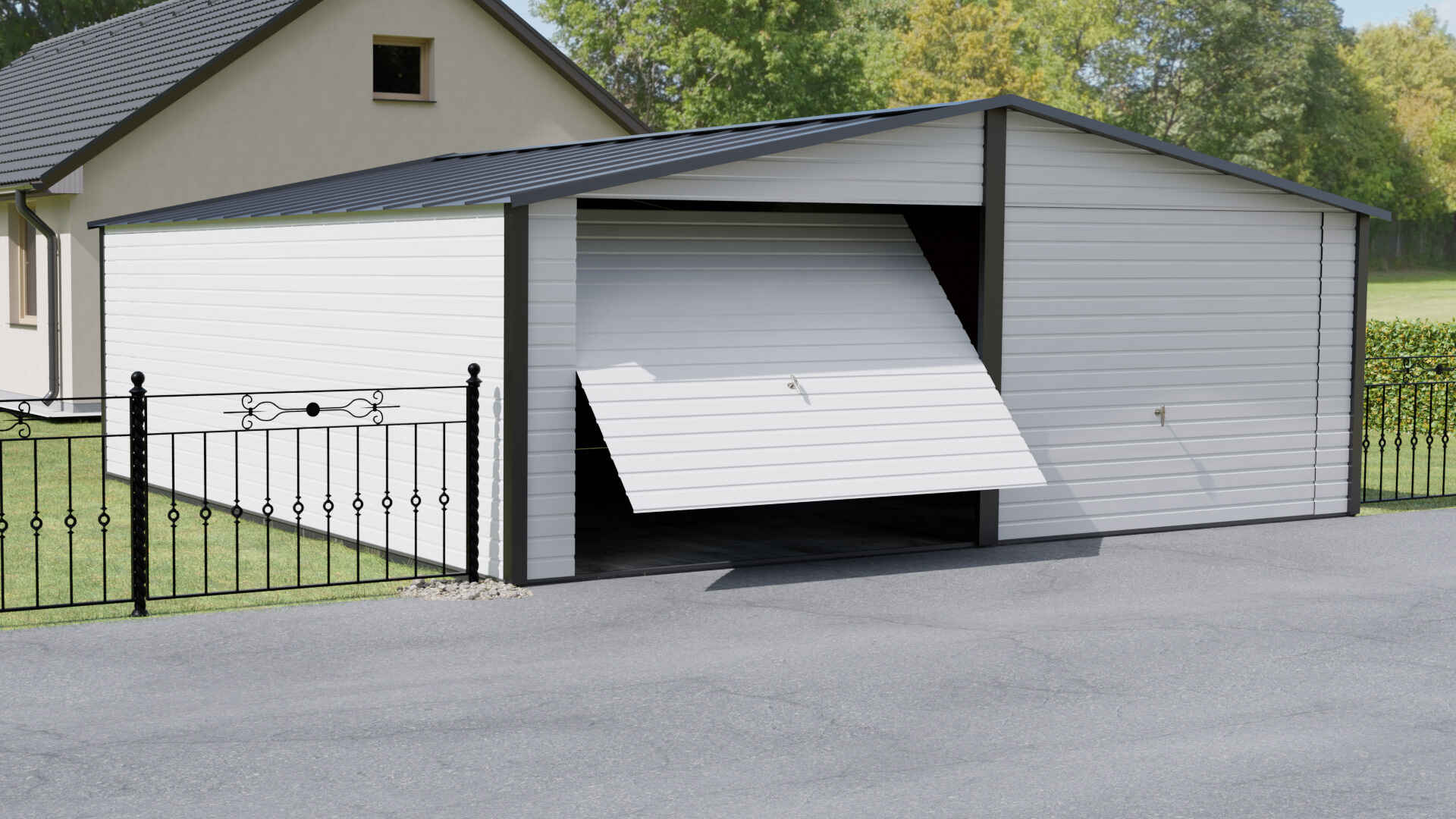

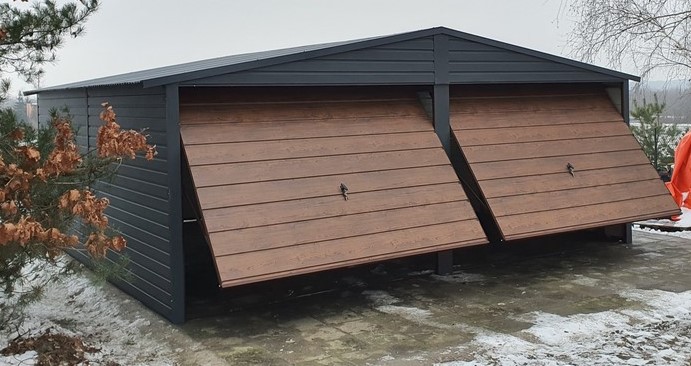

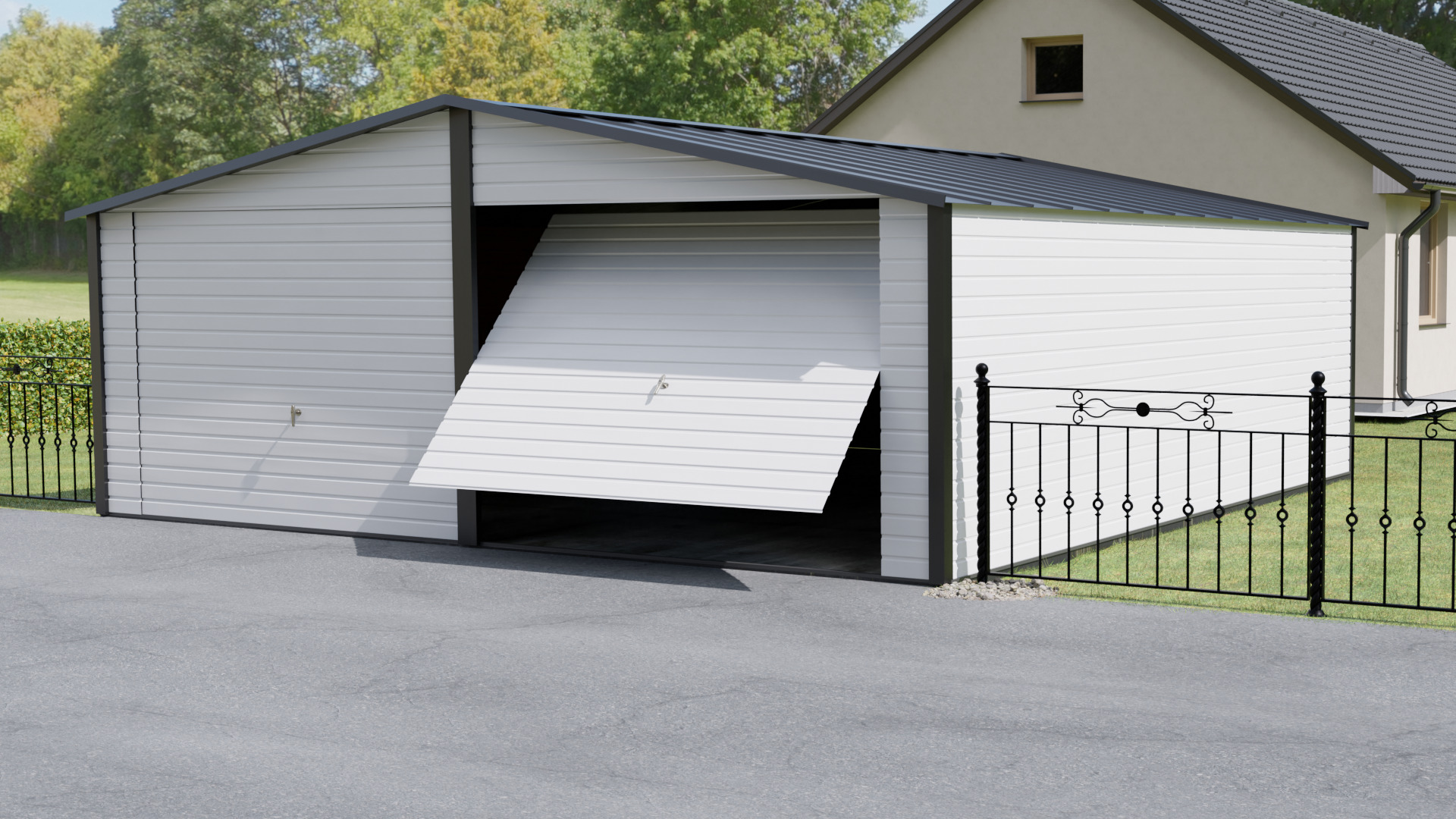

• 2 spring assisted overhead garage doors with hardware
• assembly fasteners

Materials: Frame work, roof trusses, & purlins are galvanized box tubing 12 gauge (2mm) of varies sizing. Wall & roof panels are galvanized & painted 26 gauge (.45mm)

Assembly: This garage kit can be assembled by 3 people is less than 6 hours

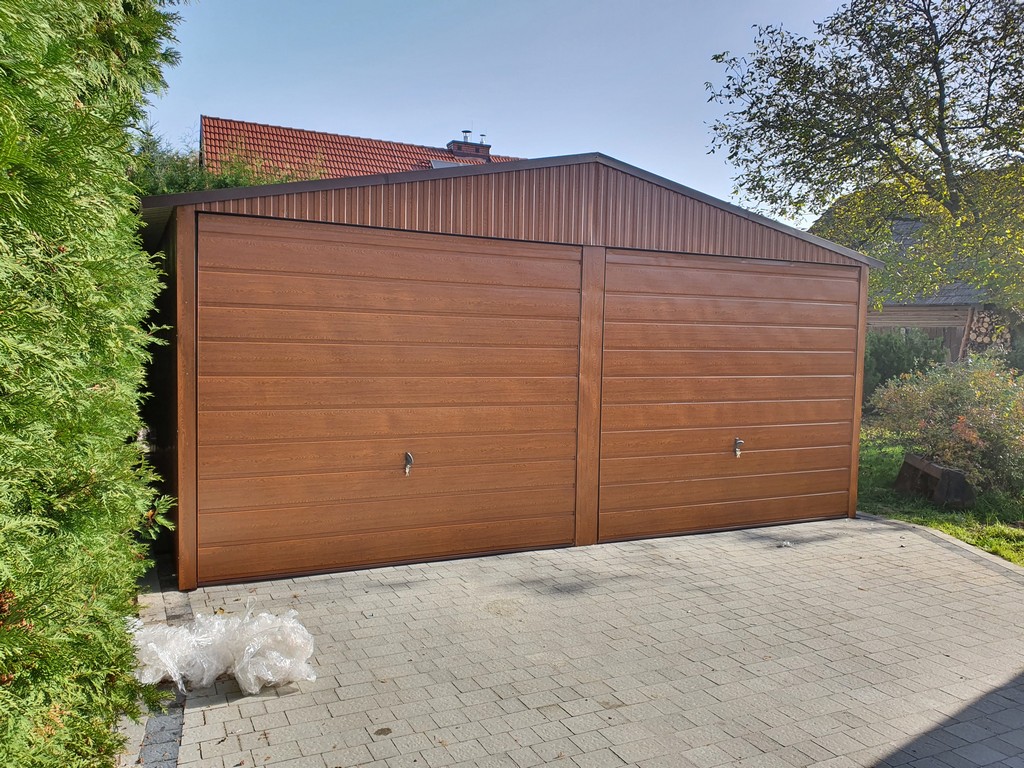

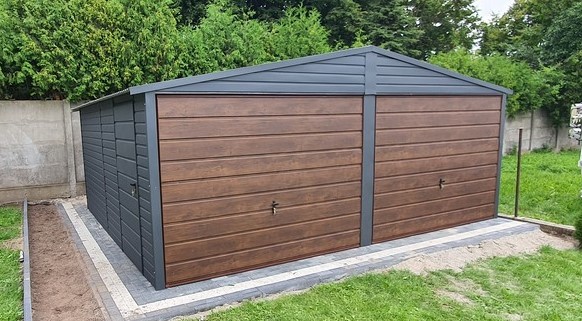

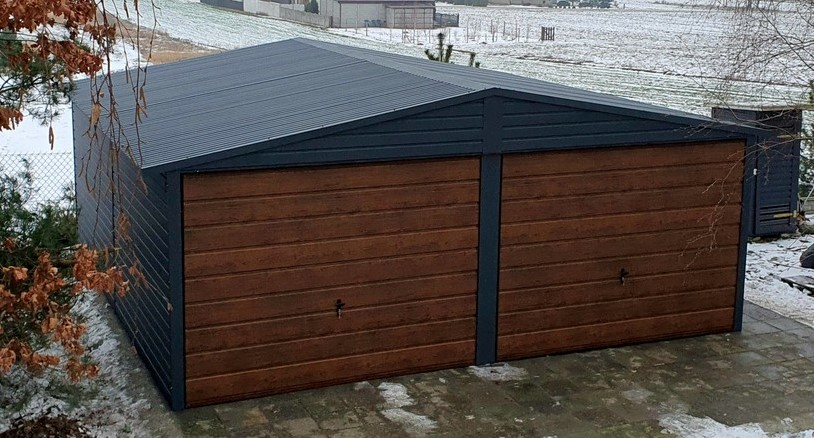

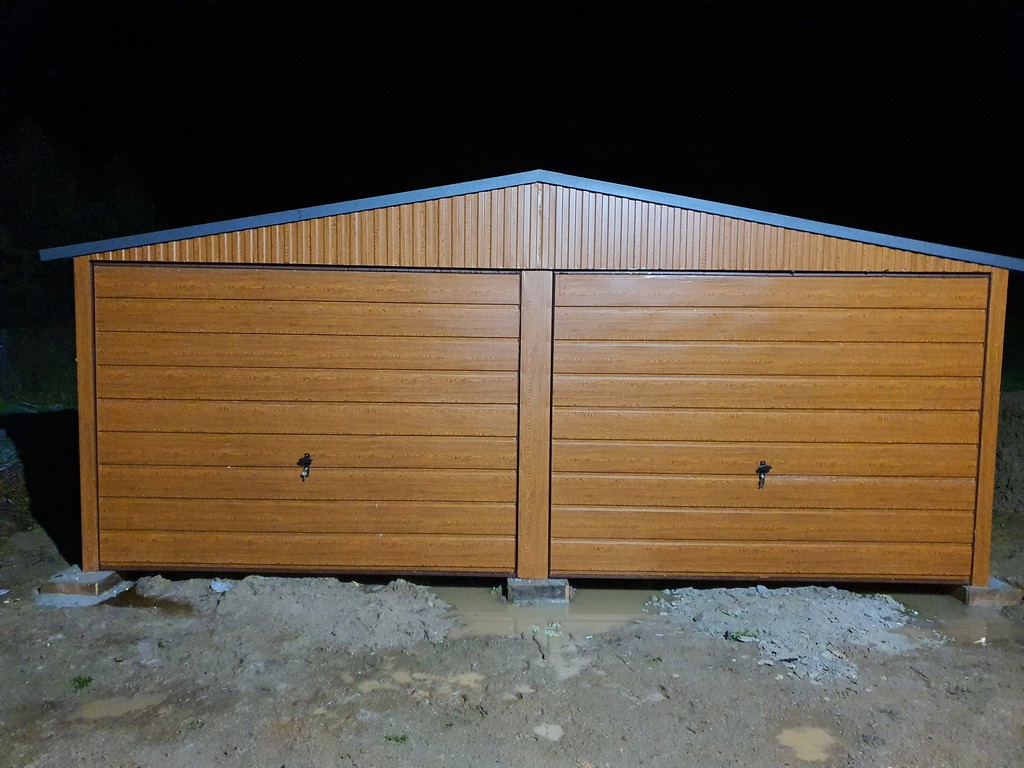

Color options: White, Graphite, Oak woodgrain

Rating:  26lbs snow load & 100 mph wind load. Can be modified to meet any snow or wind load requirements

NOTE: Sectional overhand doors or roll up doors are available by quote
