Kentucky

1024 sq ft
Premium Model
$76,510.00 USD
$98,091.00 CAD
FREE SHIPPING
Bedrooms2
Bathrooms1
Cabin size384" x 384"
Roof pitch6/12 - 27D
Roof boards3/4"
Size (sq ft)1024

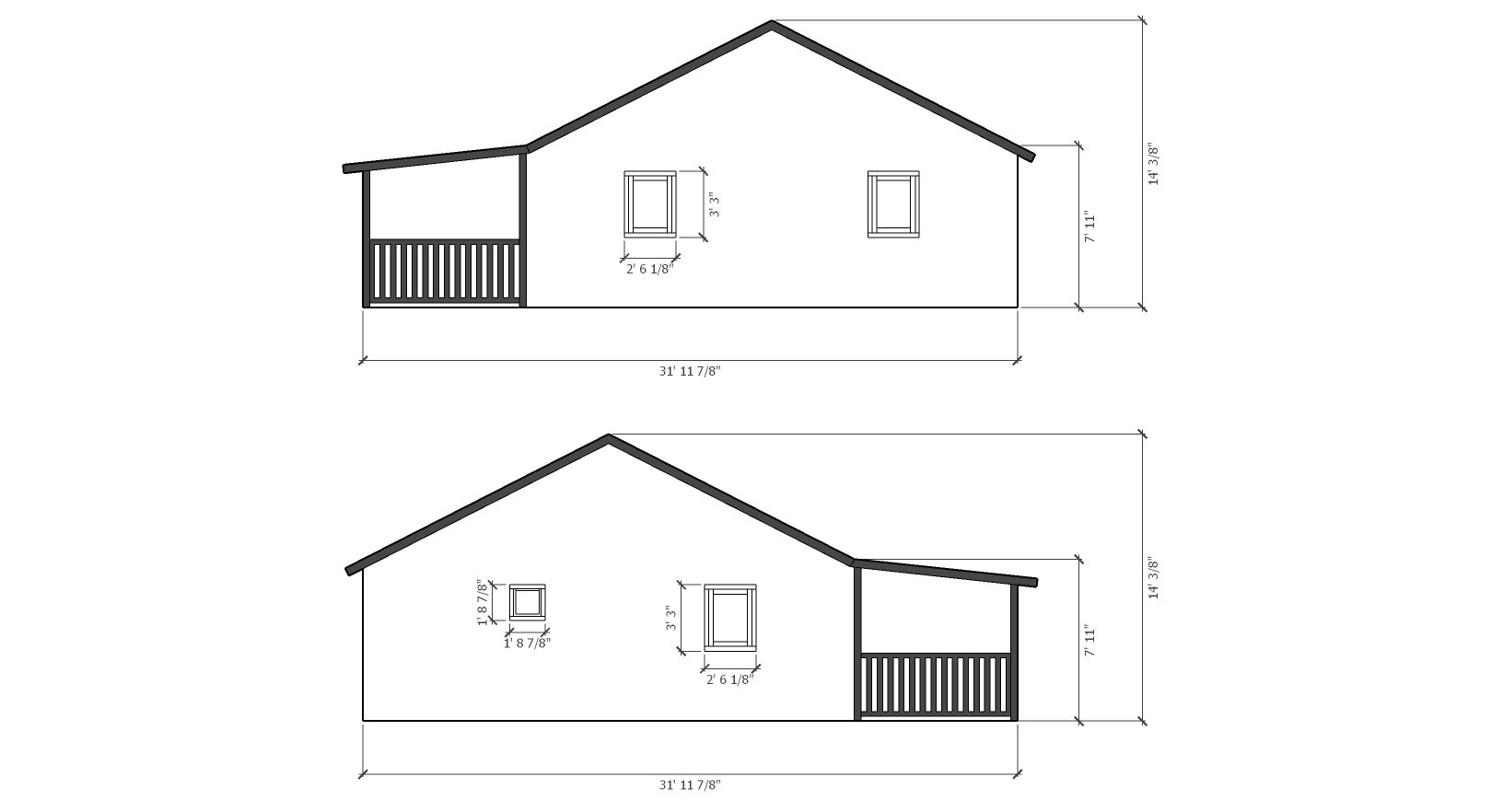

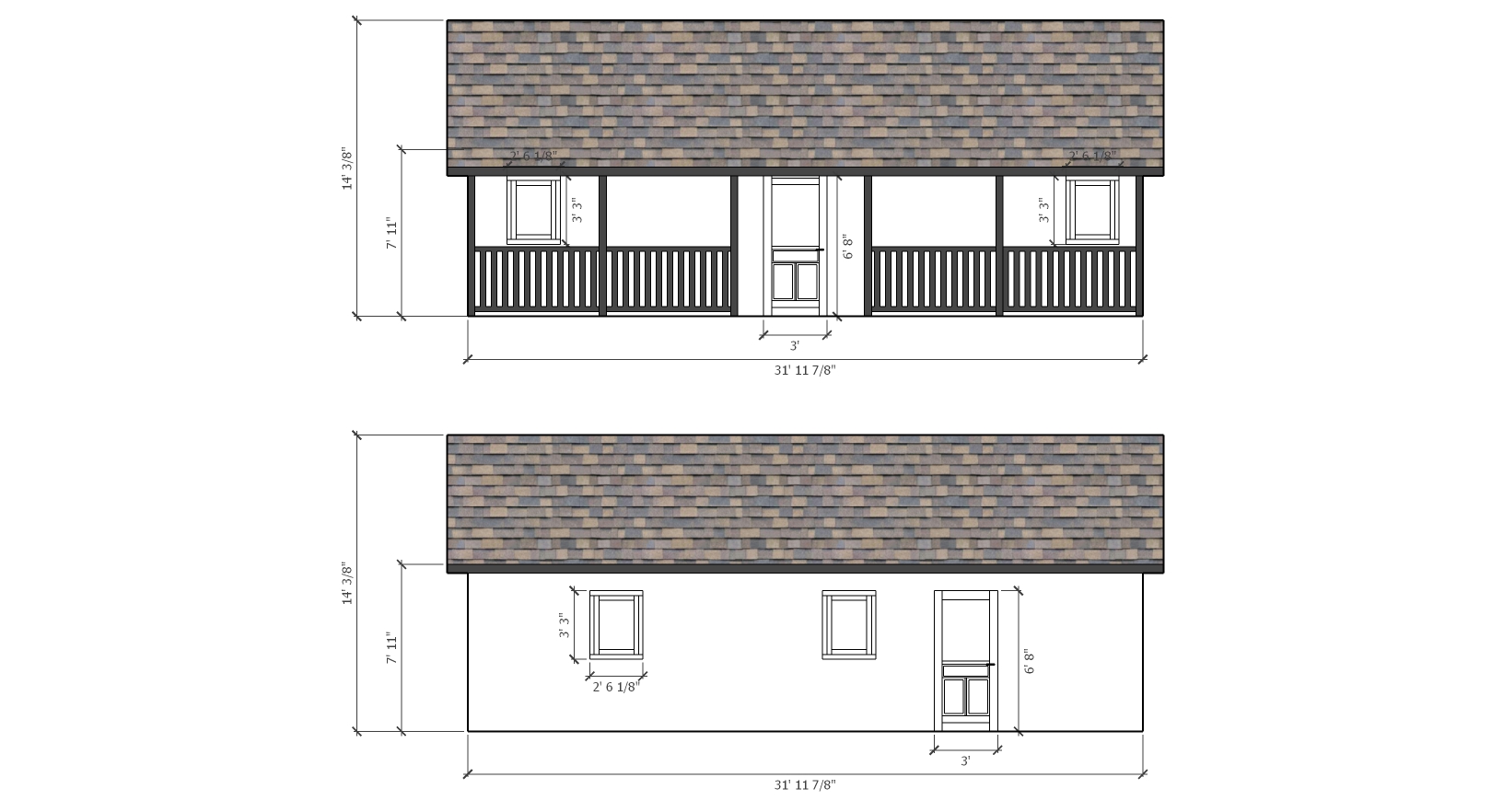

Wall height95"
Ridge height169"
Wall thickness2-34"

Model Documentation

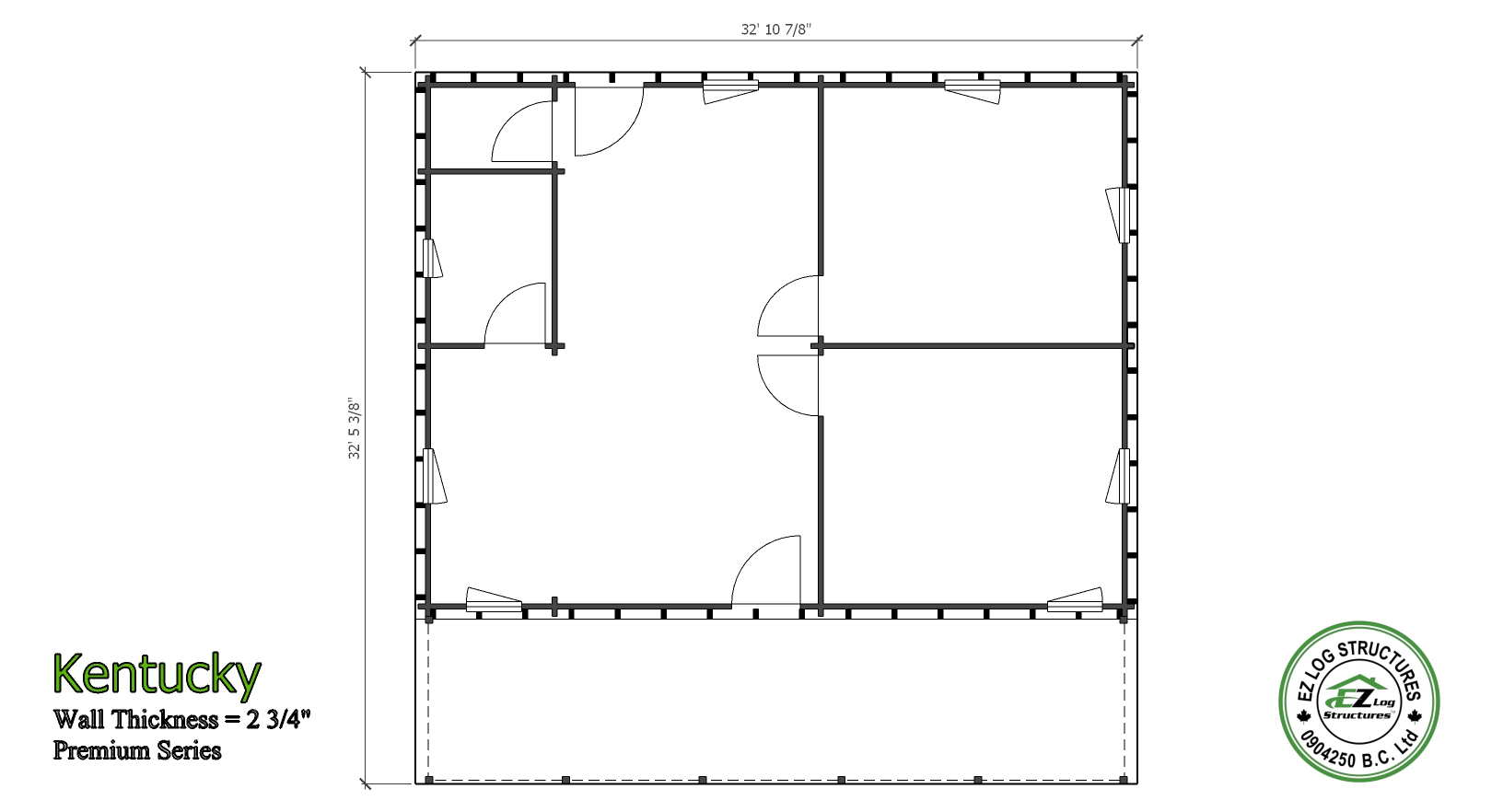

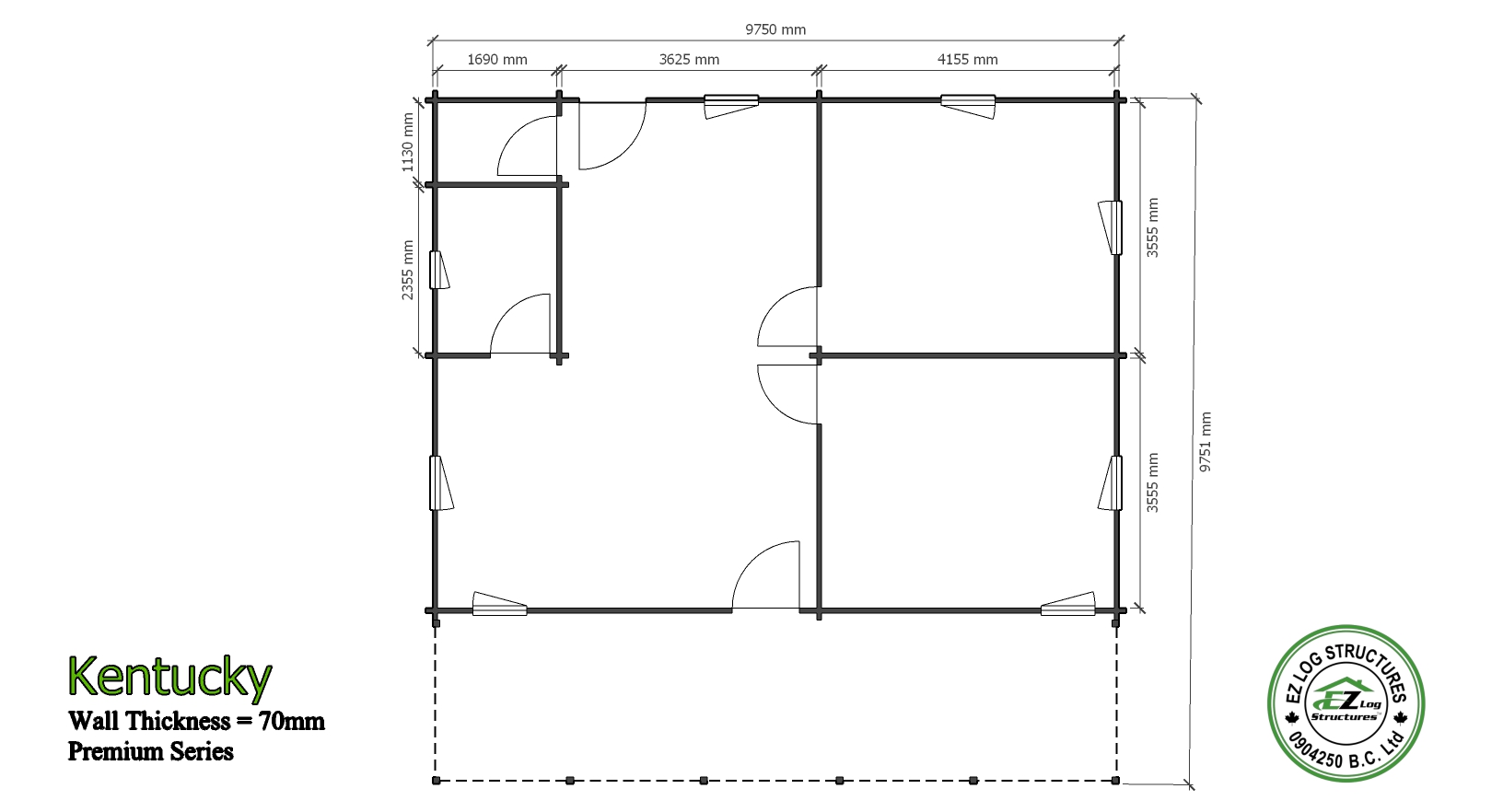

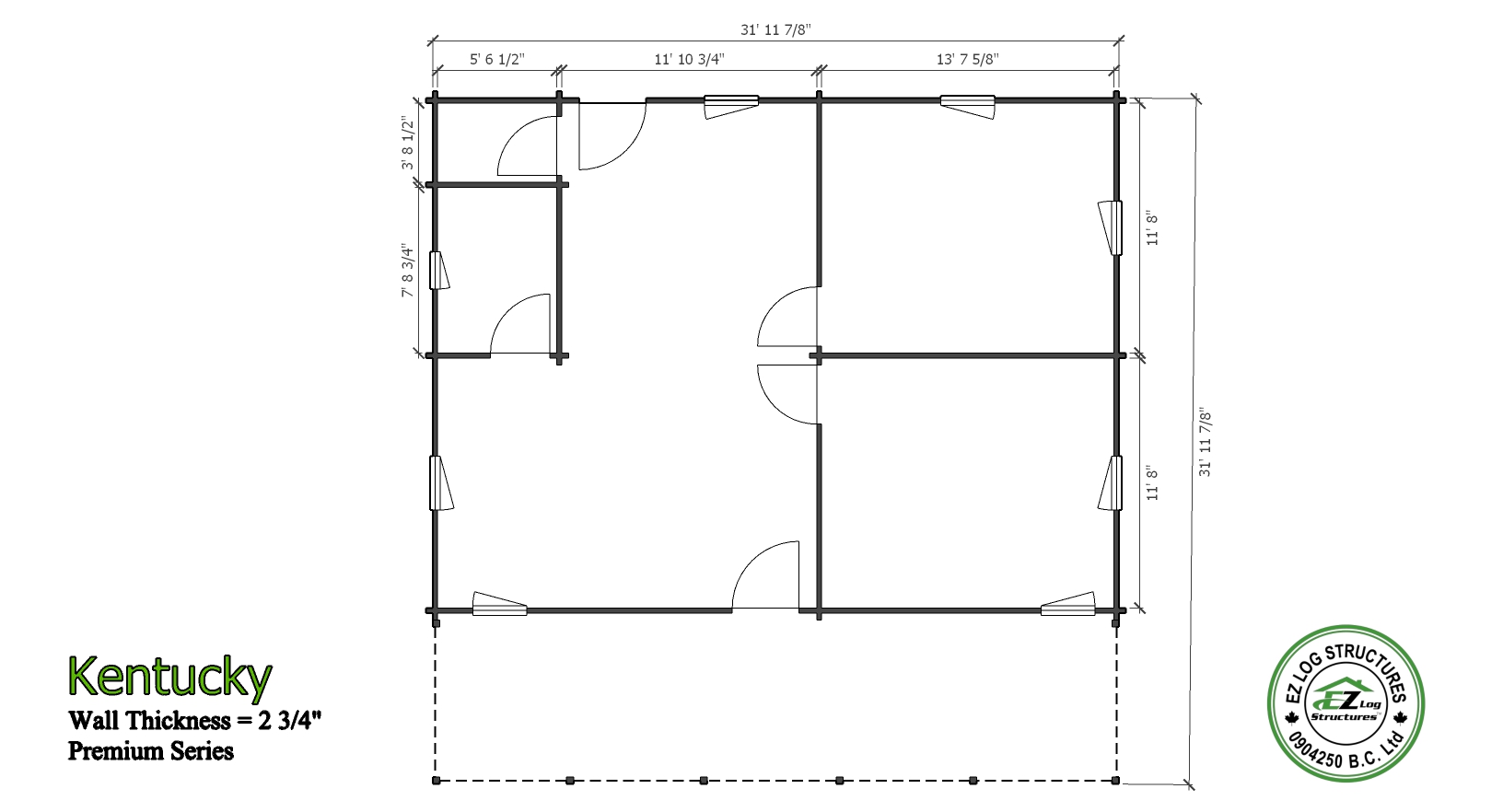

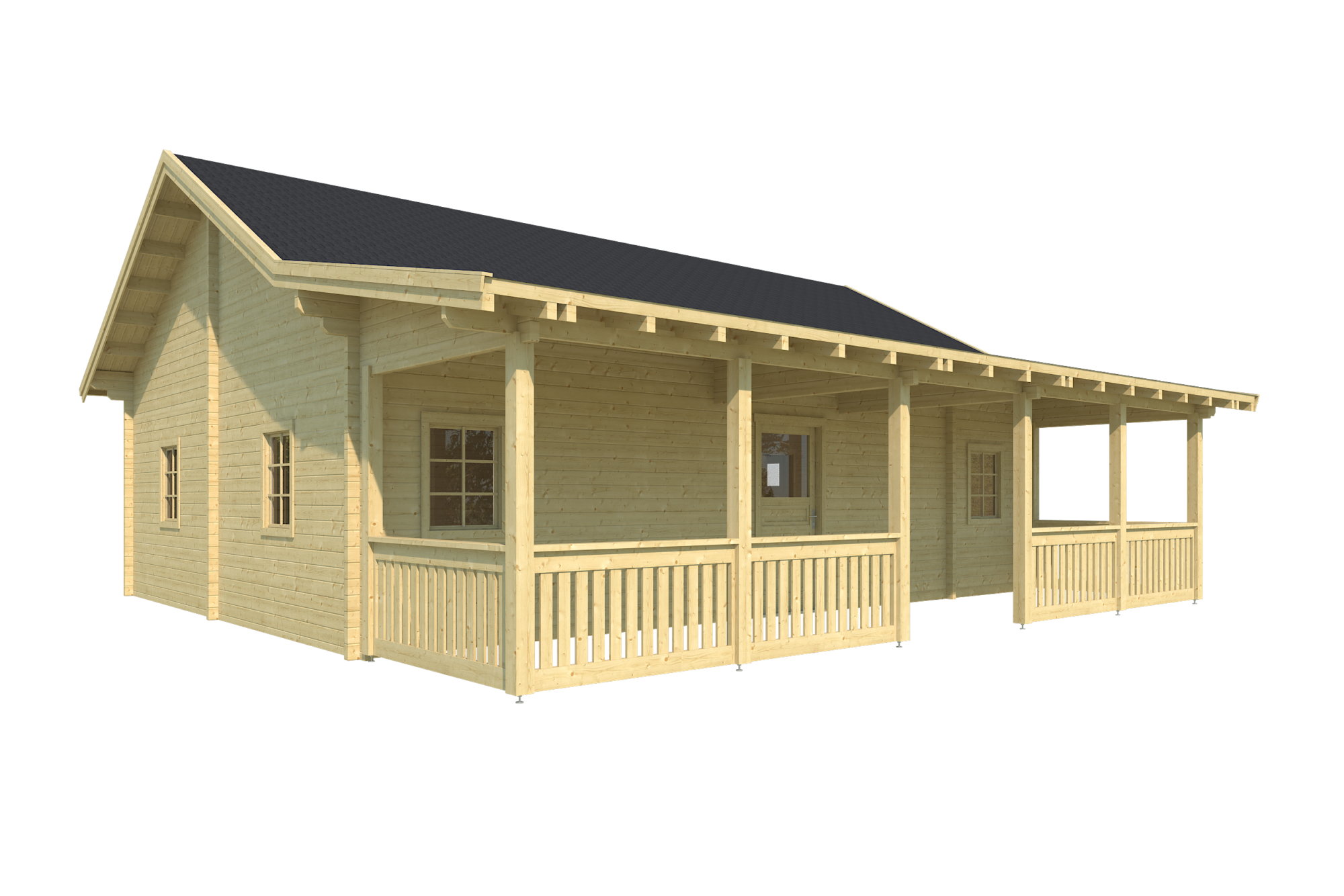

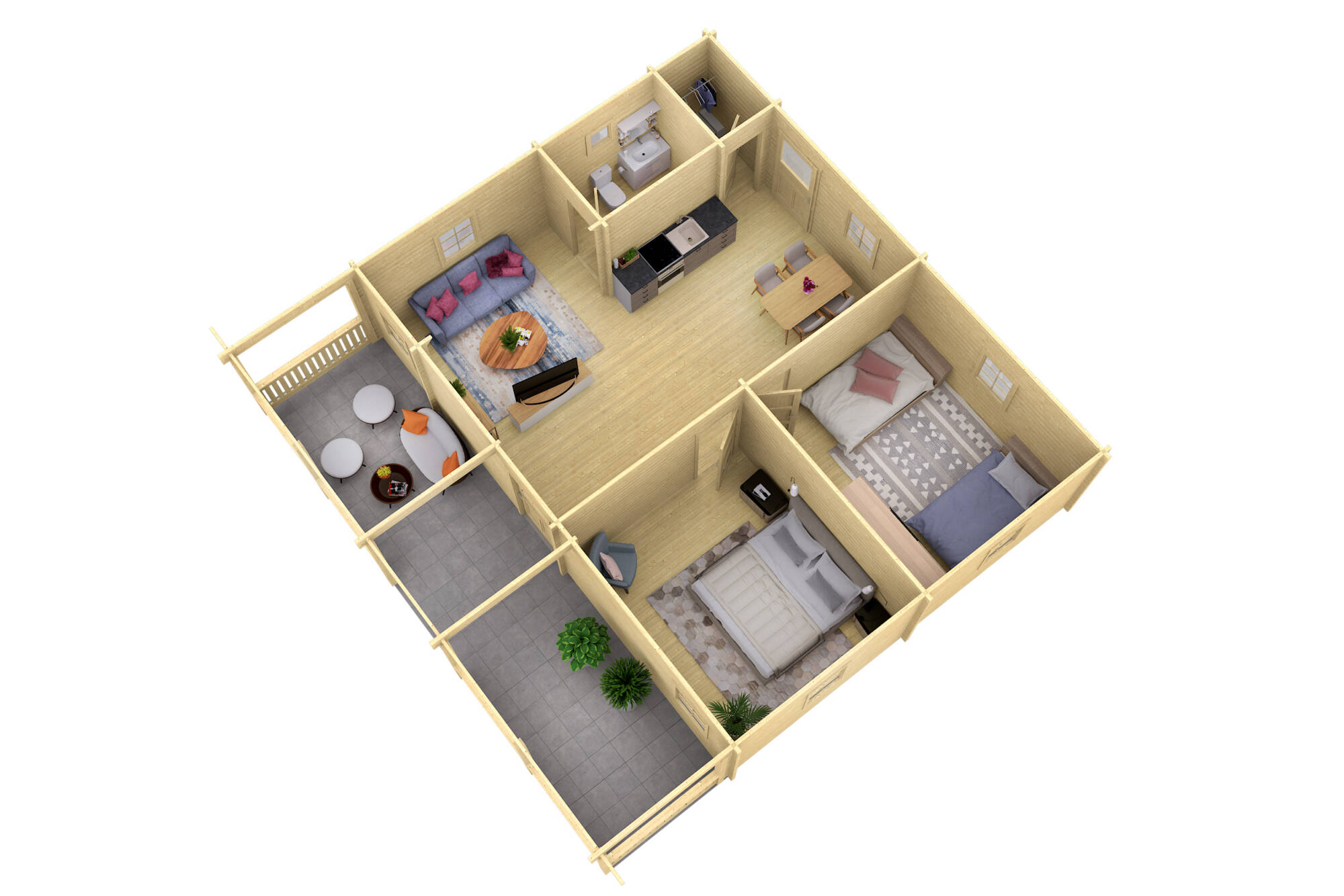

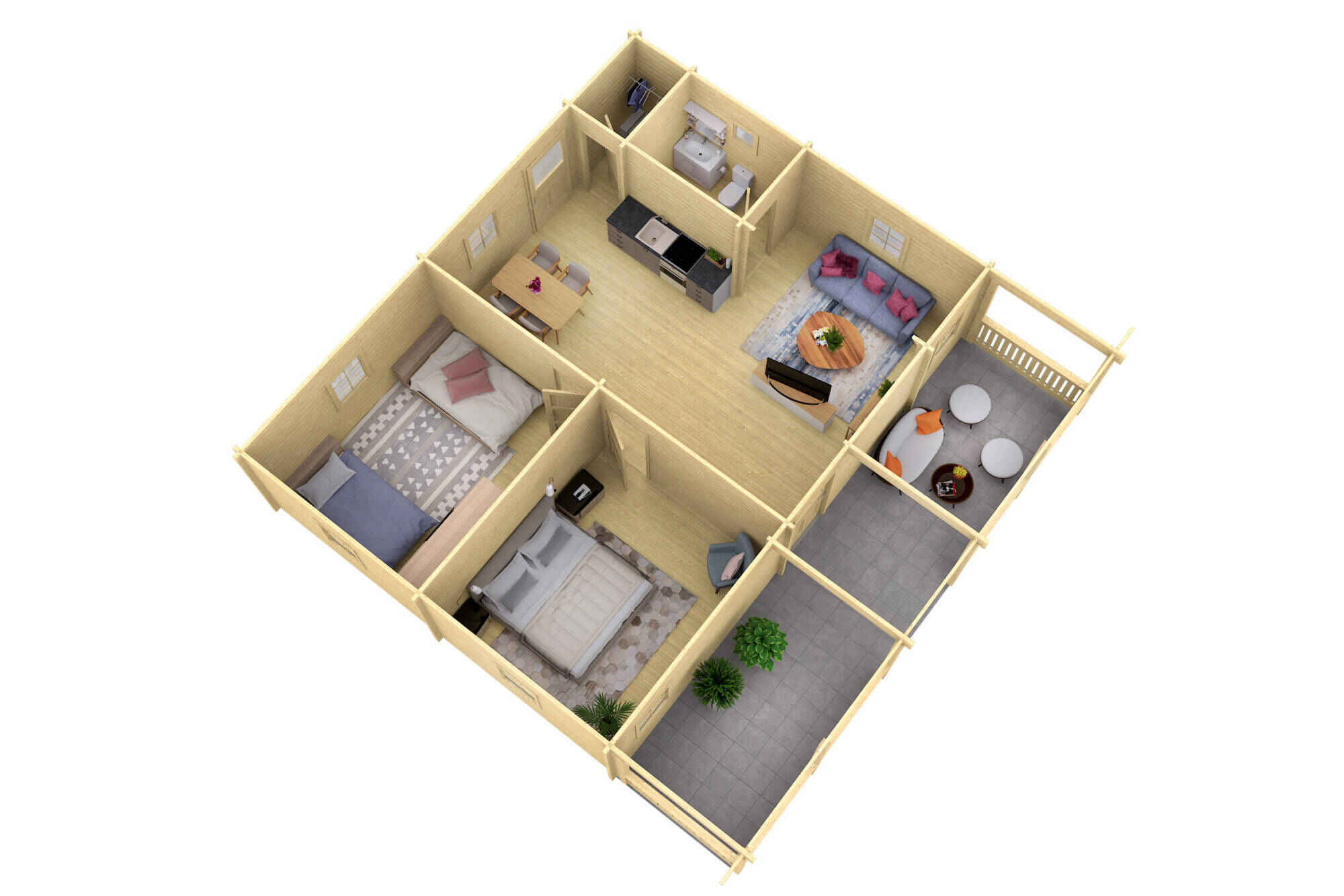

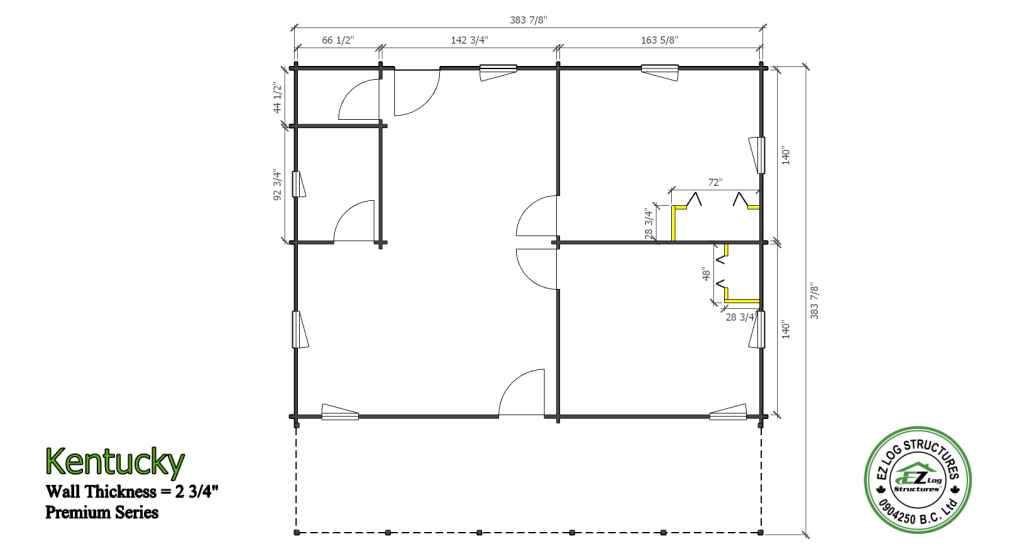

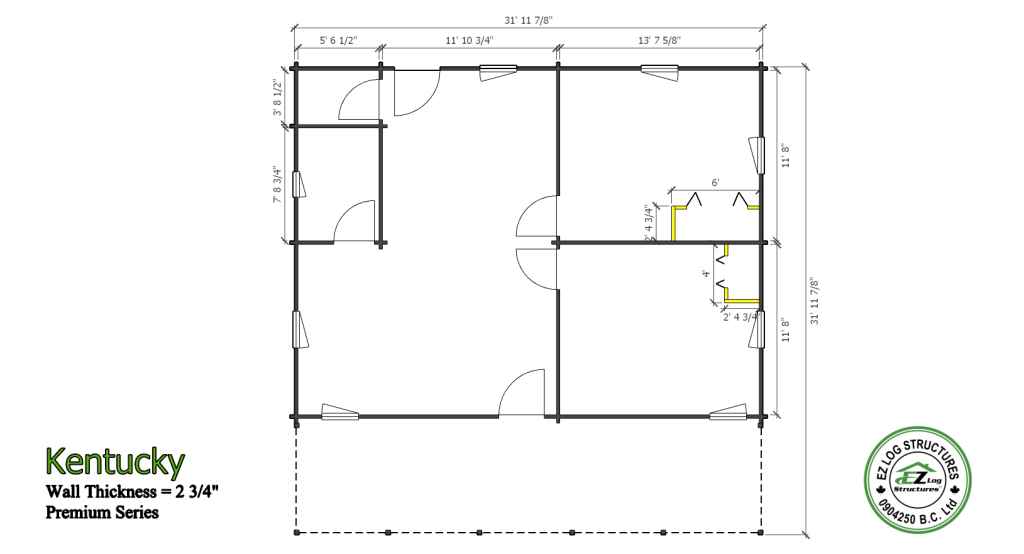

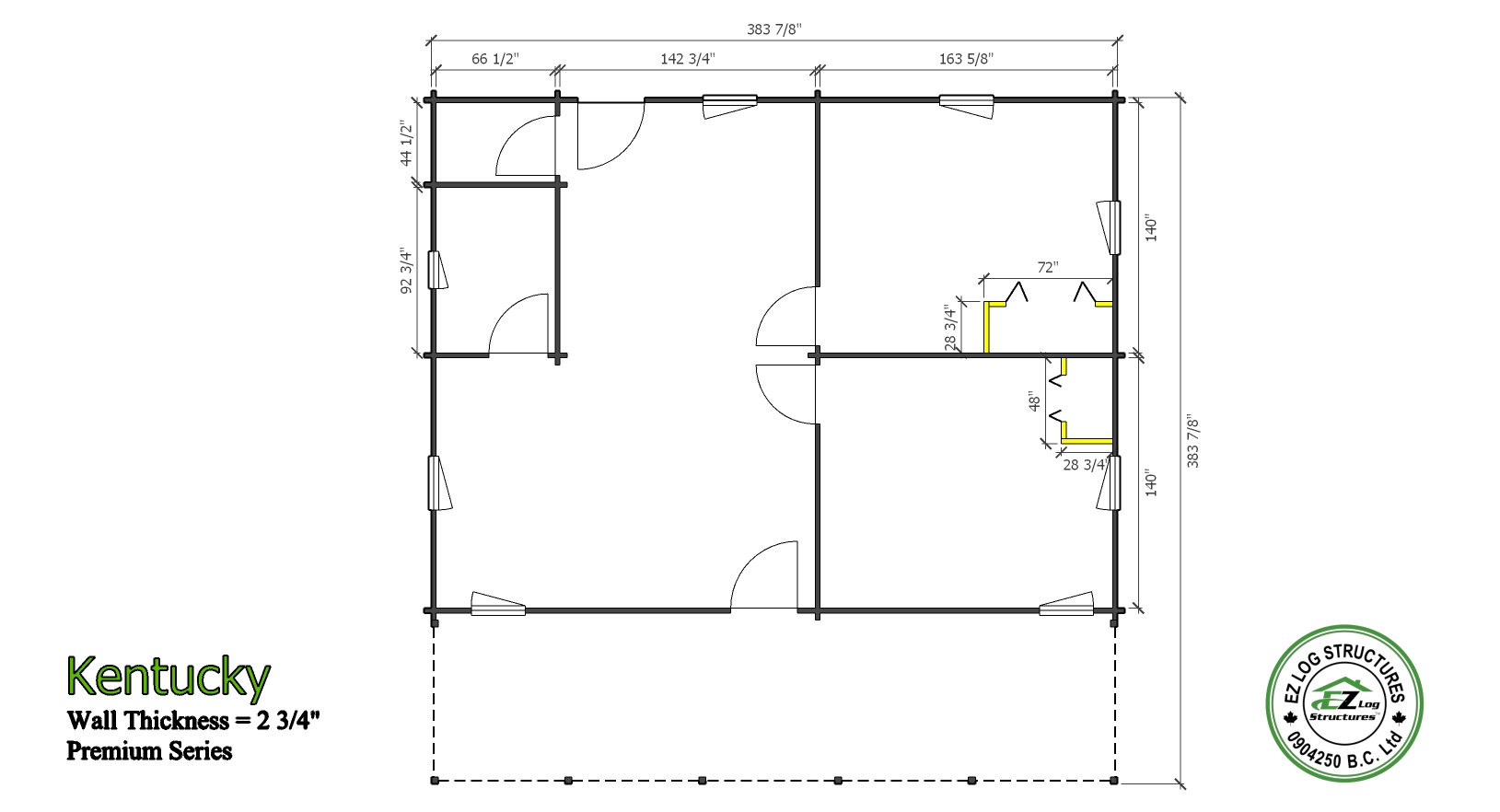

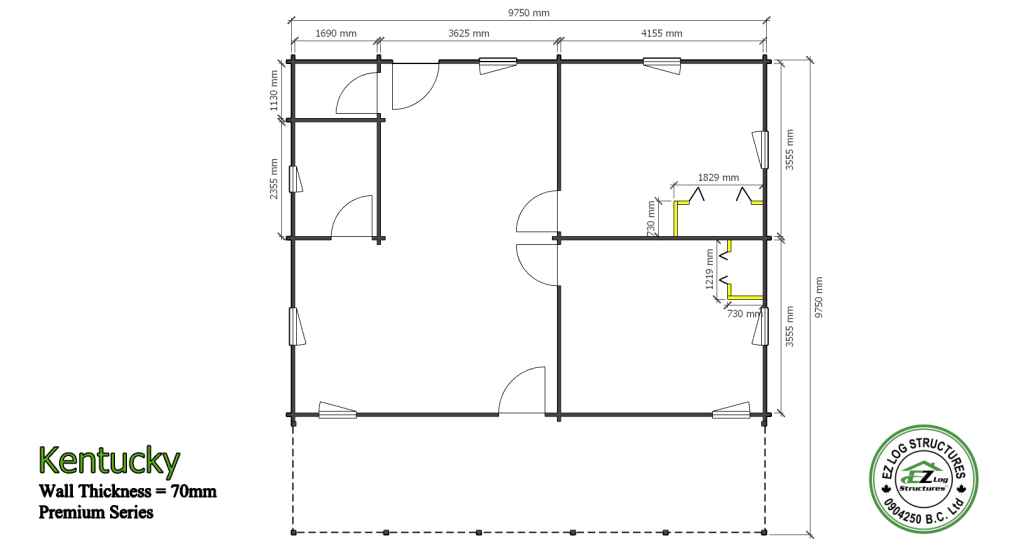

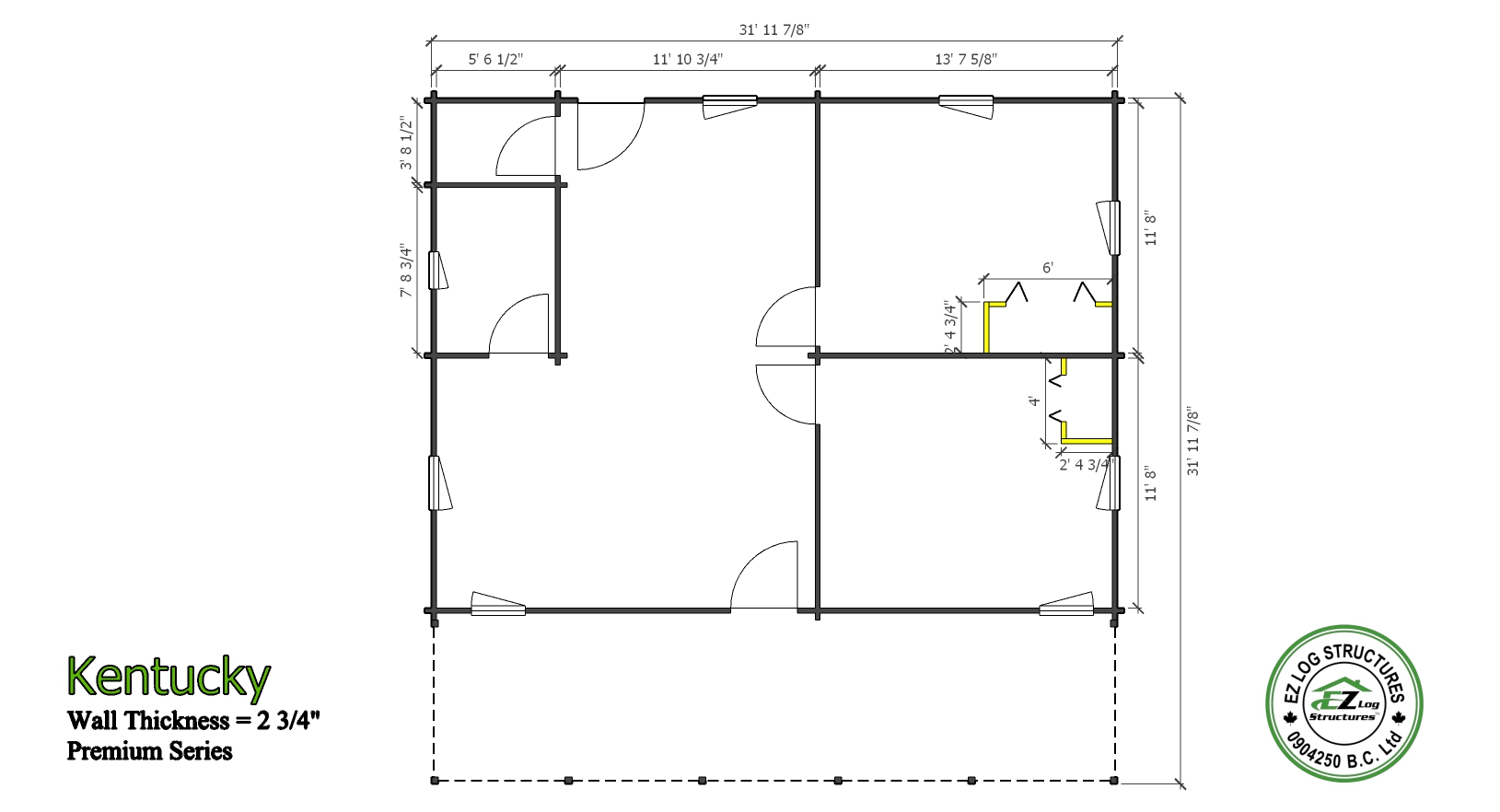

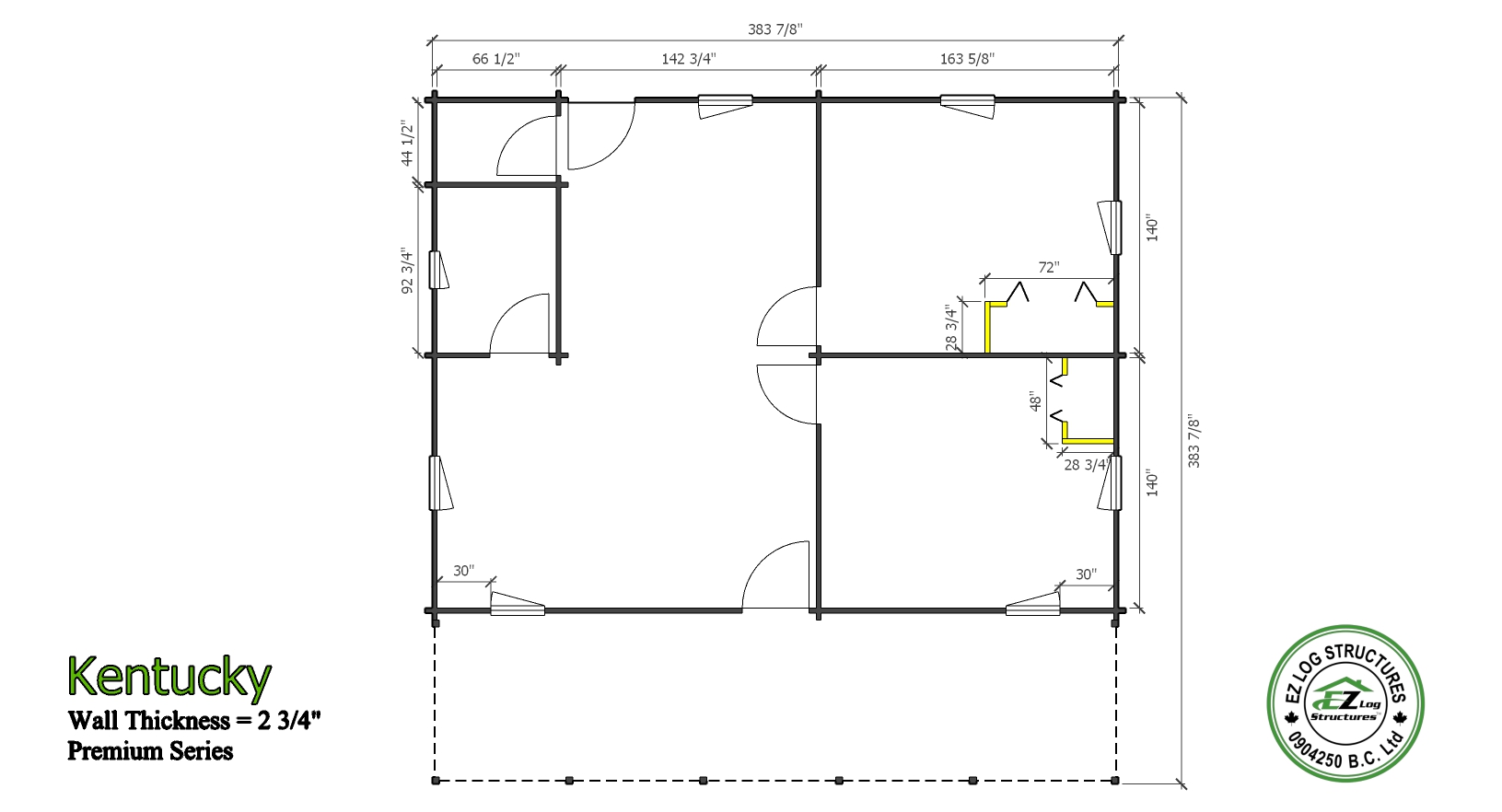

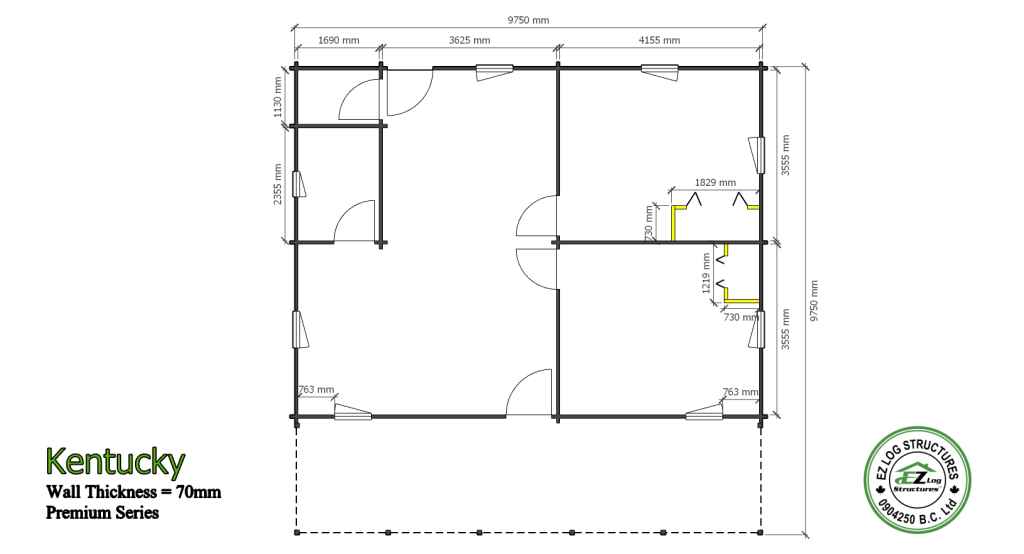

The KENTUCKY is a Premium model using 70mm (2 3/4″) wall logs.  The total footprint of this model is 32′ x 32′  for 1024 sq’ which includes the covered deck. The main building is 24′ x 32′ or 768 sq’ with 2 bedrooms, bathroom, utility room and a large open living area. The side wall height is just under 95″ with a ceiling height at the center of 16′.  The vaulted ceilings throughout provide a spacious open design. The front deck is 32′ x 8′ for a total of 256 sq’ of covered area to relax. Floor plans can be modified as needed. An optional loft over the 2 bedrooms would add storage space.

FREE STRUCTURAL ENGINEERING

PREMIUM models include site specific engineering stamped by a licensed engineering firm for roof and wind loads.

Exterior Stud & Siding Options:
Exterior build out kits include: 2×4 or 2×6 studs, stud fasteners, wood siding, corner blocks

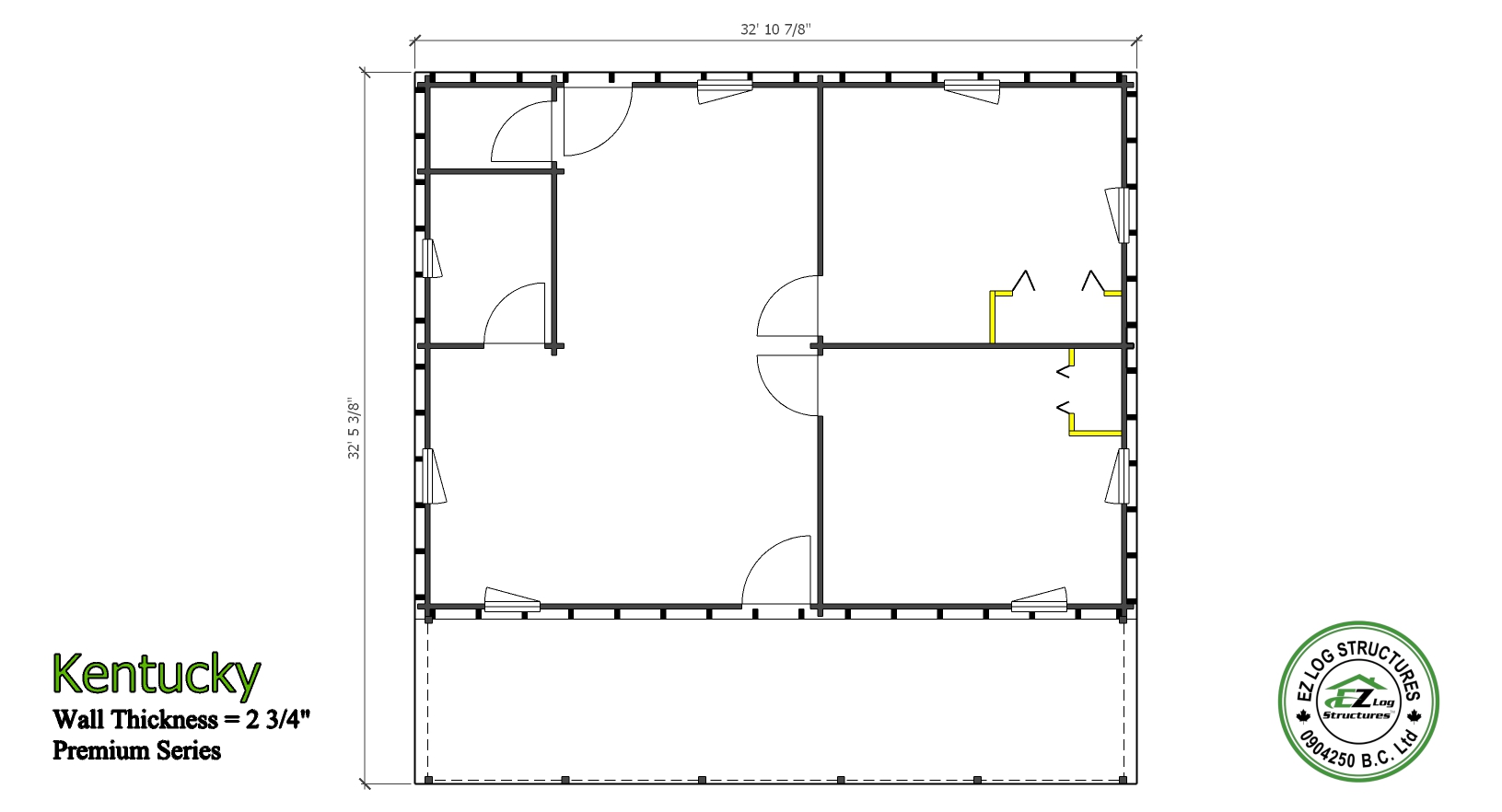

(Foundations must be larger to accommodate build out)
Semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm)
Add 10% to sale price
Full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm) Add 14% to sale price



Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

Energy efficiency:  Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the overall thermal and comfort benefits

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Insulating the roof: Apply locally supplied materials to add rafters over the tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof. These added rafters also increase the roof load capacity

OPTION A: Upgrade wood windows to triple glazed / Low E / Argon filled glass

  • USD regular price $ 749.00     USD sale price $ 674.00
  • CAD regular price $ 960.00     CAD sale price $ 864.00



OPTION B: Upgrade wood windows to our exclusive maintenance free white PVC/Shutter windows with triple glazed / Low E / Argon filled glass plus exterior rolling shutters that are controlled from the interior. These unique windows provide added comfort and security. They improve the overall energy efficiency by keeping the heat out during the summer and the cold out in the winter. They also reduce outside noise levels and provide complete darkness for daytime sleepers. (See our Videos page)

  • USD regular price $ 1,560.00      USD sale price $ 1,404.00
  • CAD regular price $ 2,000.00     CAD sale price $ 1,800.00

Assembly: The model can be assembled in approximately 9 days with 3 people

Tip: House wraps & vapor barriers are required in most regions when insulating

Building Codes: Premium series homes & cabins are manufactured to meet all structural requirements for building codes including, California Title 24, earthquake, heavy snow load regions and hurricane zones

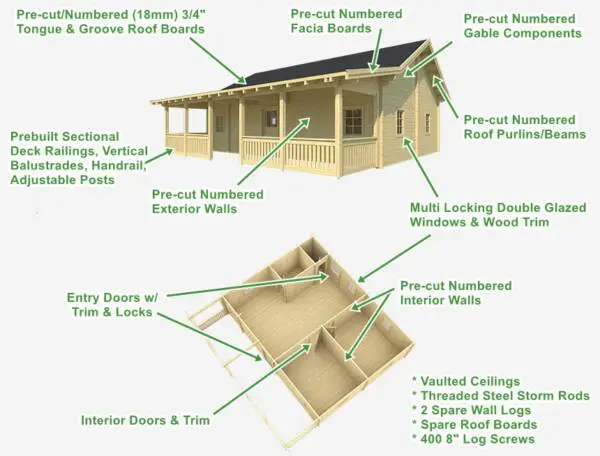

Kit includes:

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 3/12 roof pitch (14 degrees)
  • vaulted, cathedral ceilings

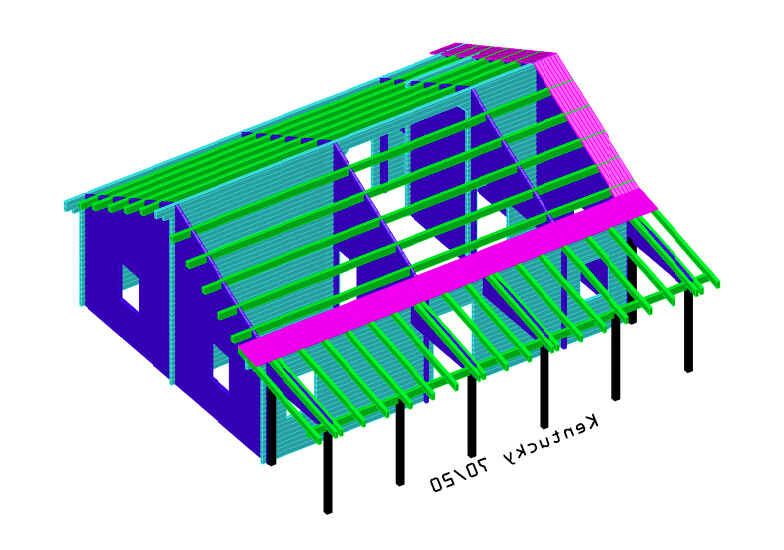

  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 4 interior doors 812mm x 2040mm (32″x80″)
  • 7 single wide wood windows 765mm x 990mm (30″x 39″)
  • 1 single wide wood windows 530 x 530 (21″x 21″)
  • 2 exterior doors, multi locking hardware, 1/2 glass tempered 990mm x 2040mm (36″x80″)
  • pre-built deck railings with vertical balustrades
  • adjustable posts
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
