Steel Garage 167

1183 sq ft
$29,868.00 USD
$38,293.00 CAD
Cabin size624" x 273"
Roof pitch3/12 - 14D
Size (sq ft)1183
Wall height132"
Ridge height166"

Model Documentation

Steel Garage 167

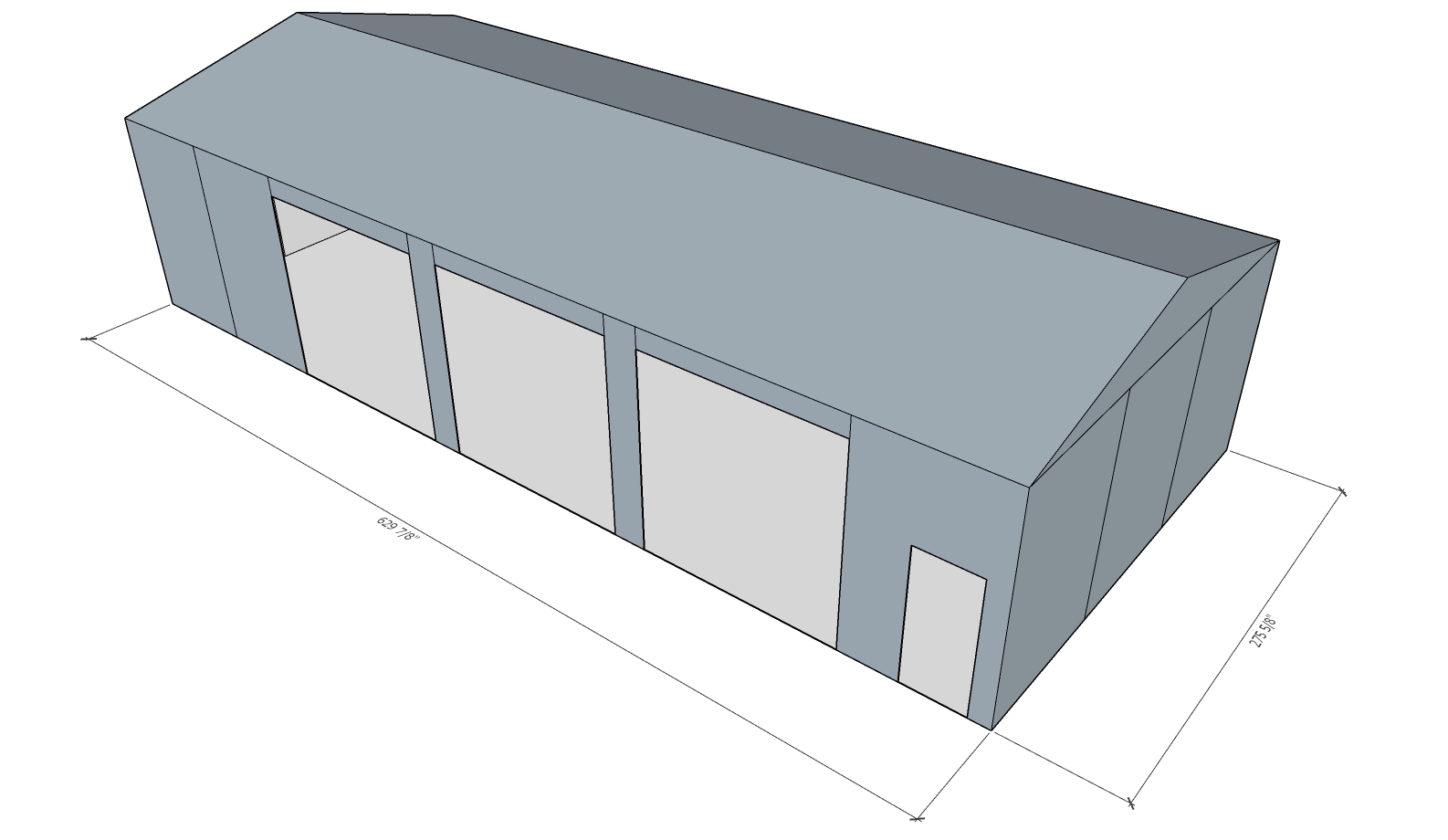

An affordable “do-it-yourself” metal structure that is ideal for use in rural or urban regions.  This 3 bay model has 3 windows on the back wall, entry door and 3 x 10′ x 10′ sectional overhead doors.

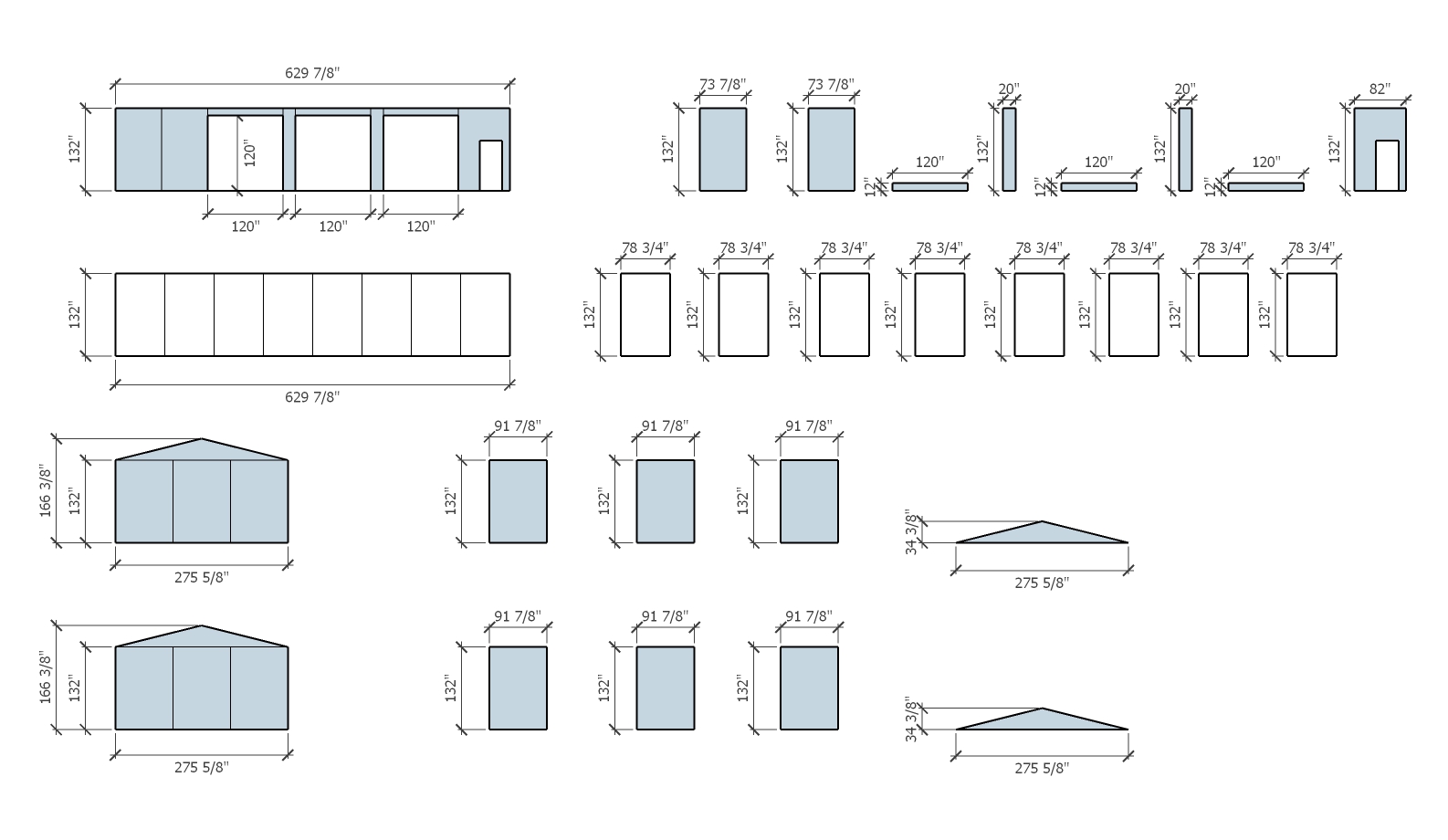

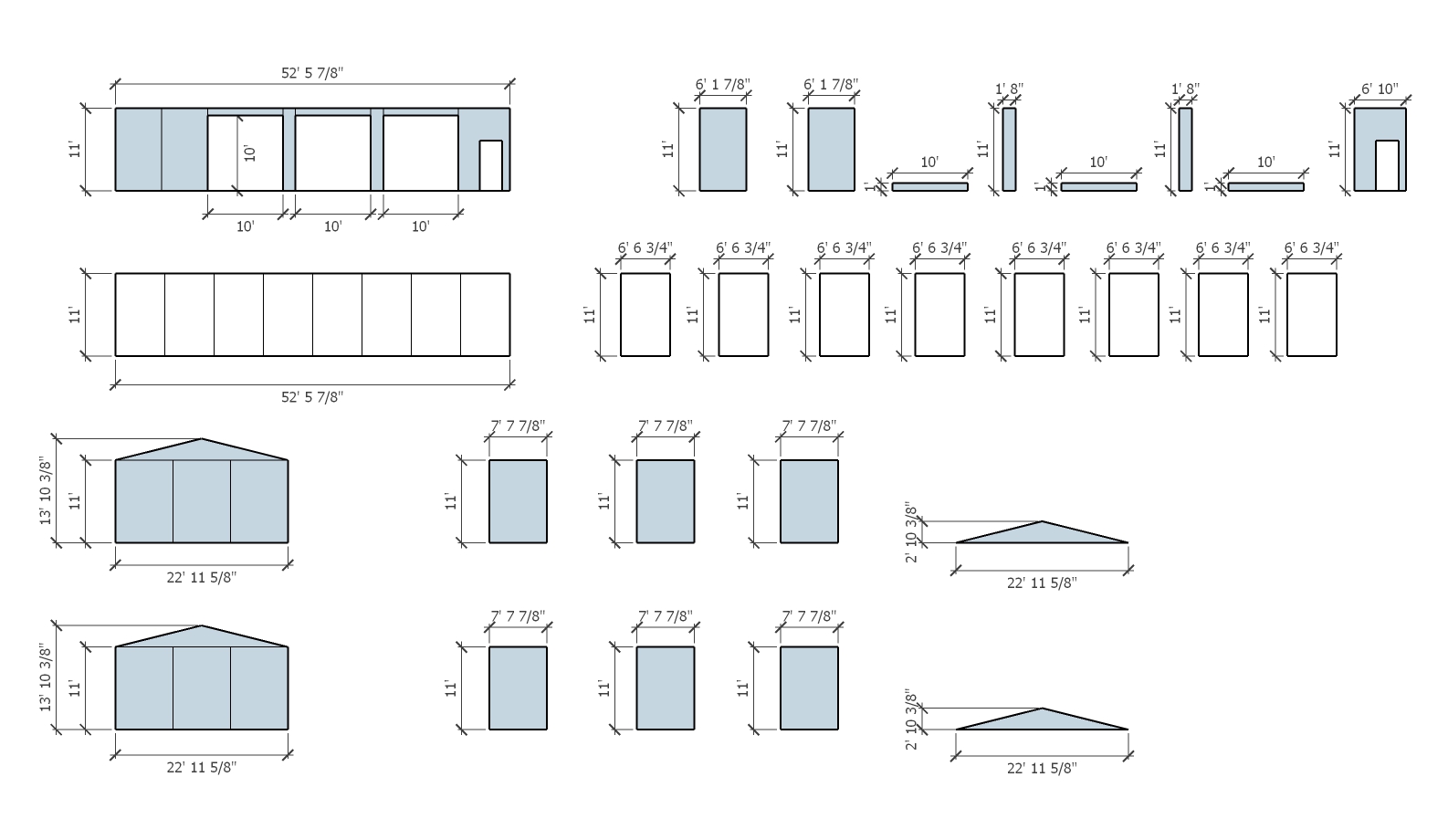

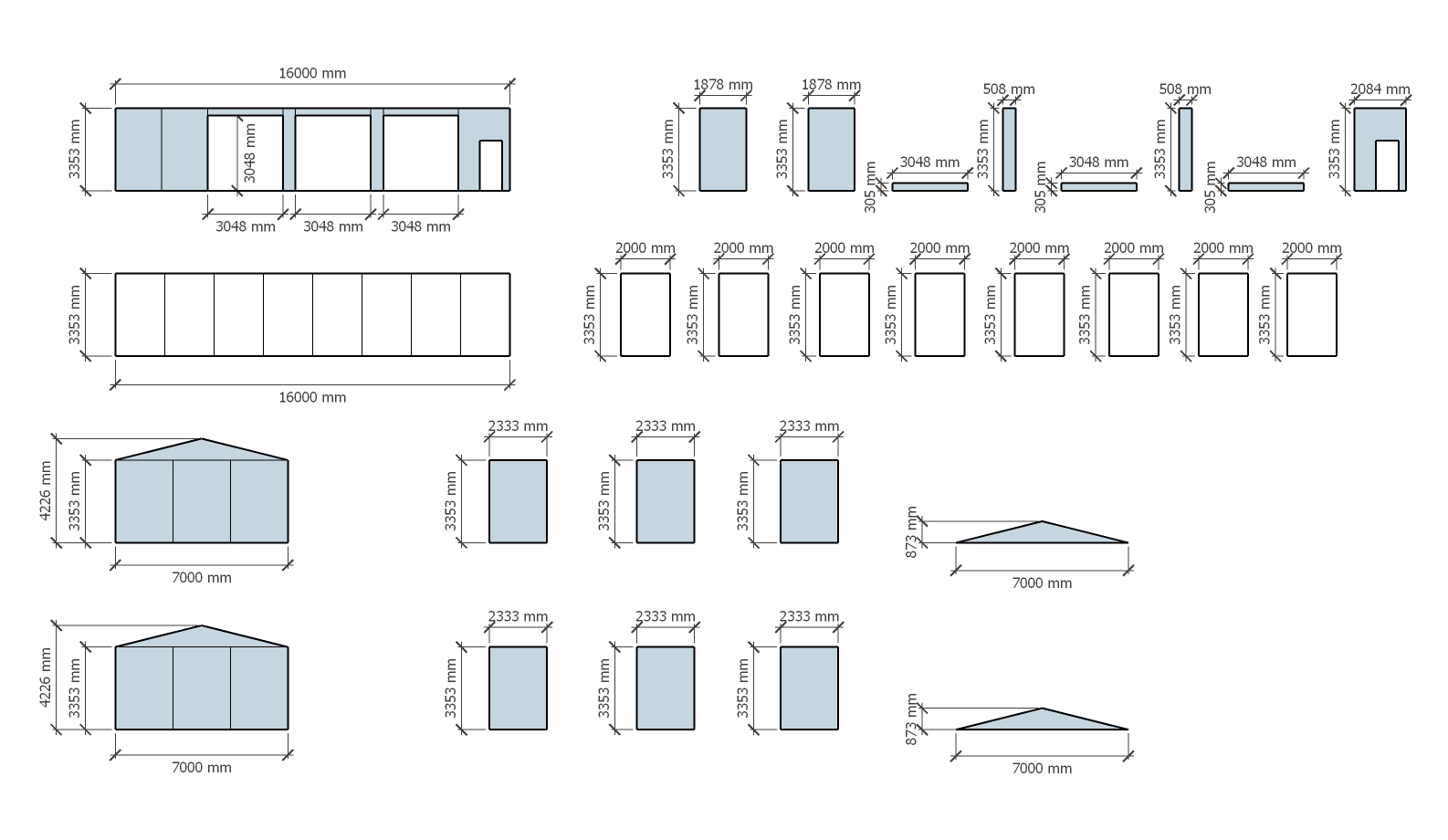

Each kit is ready to mount on a concrete slab with pre-fabricated walls using horizontal galvanized steel available in White, Graphite or a unique OAK woodgrain metal that looks like wood siding. Walls have interlocking corners and come with easy to mount trusses, purlins & metal roof panels.

Assembly: This garage kit can be assembled by 3 people in 3 days

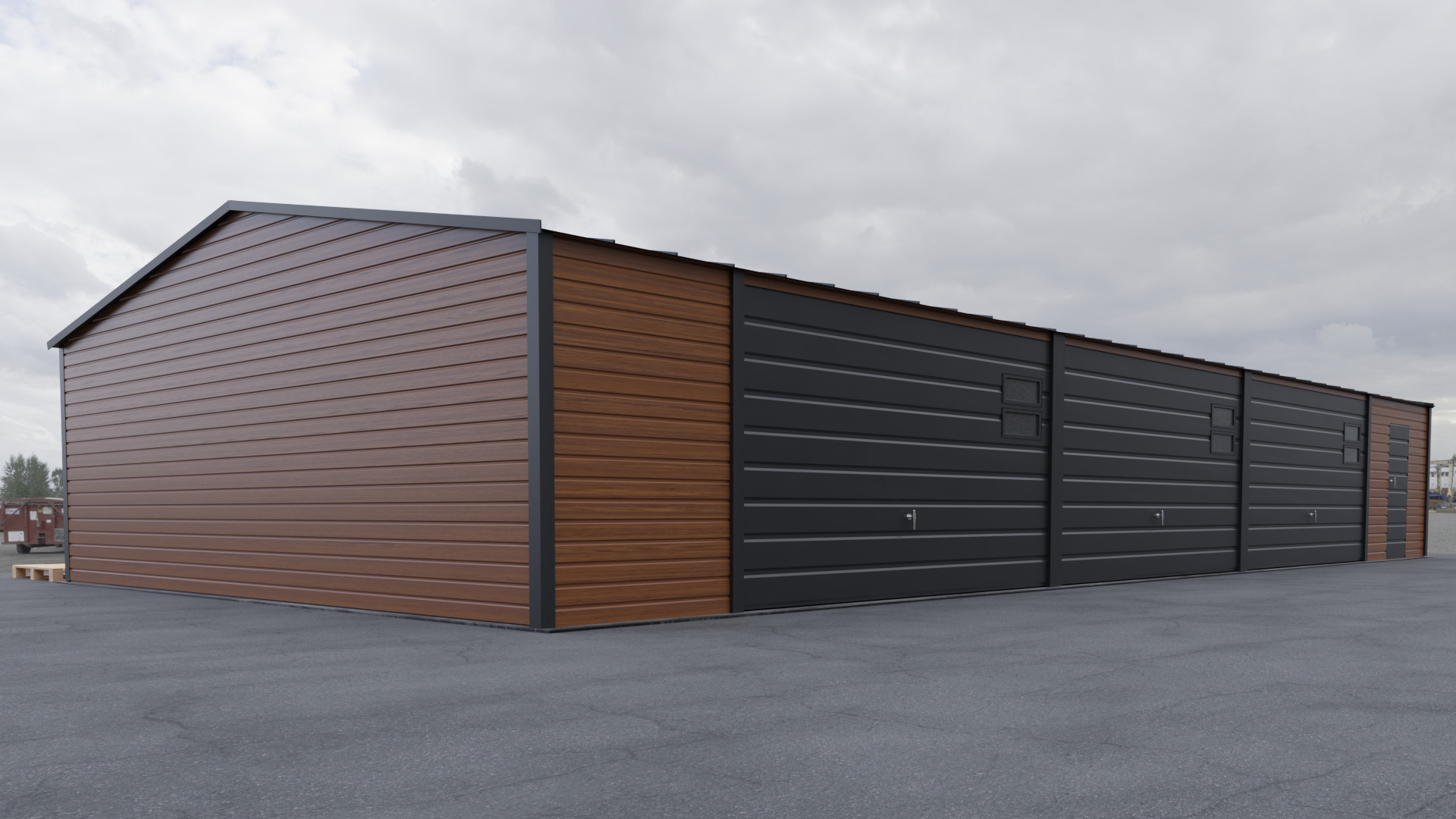

Color options: White, Graphite, Oak woodgrain

NOTE: all models over 160 sq’ are engineered for 26lbs snow load & 100 mile wind loads
