Woodham 2 Lofted

71,208.00 USD

130,148.00 CAD 94,945.00 CAD

  • Cabin size
    433" x 374"
  • Area
    1380 ft2
  • Roof pitch
    5/12
  • Roof boards
    3/4"
  • Attic
    95"
  • Wall height
    95"
  • Ridge height
    202"


Insulating Wiring Construction (PDF) Loading and Unloading (PDF)
Category:
REE SHIPPING – SOME EXCEPTIONS MAY APPLY
Sale price valid to April 30, 2023
(NOTE: sale pricing on this model is subject to change without notice)

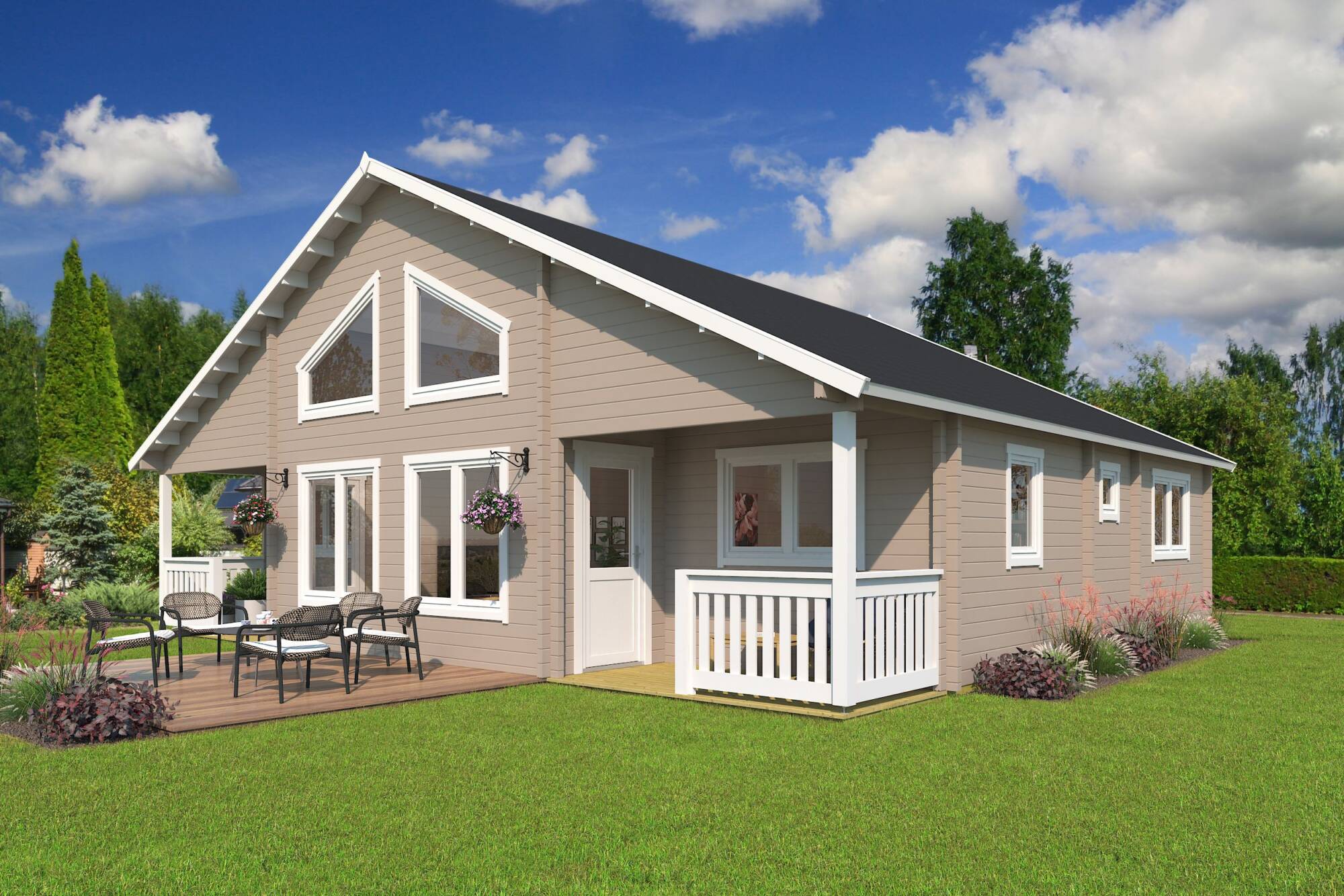

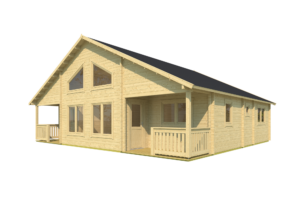

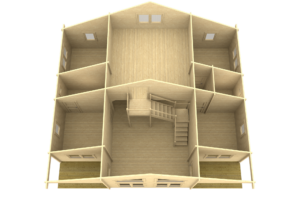

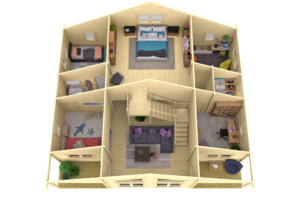

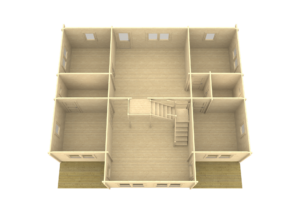

The Woodham 2  is a solid wood home using 70mm (2-3/4″) thick wall logs.  This model is the same as the Woodham 1 but with a loft & stairs, creating added living space. The total foot print is 433″ x 374″ – 1124 sq’ less the front covered deck area. A four or five bedroom model. with an open living space that has a vaulted/cathedral ceiling of just over 16′. The second level room can be made open with railings overlooking the lower living room at no charge. Modifications can also be made to the floor plan at NO CHARGE providing no additional materials are required.

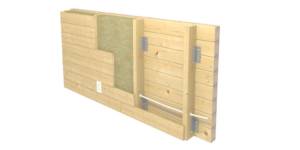

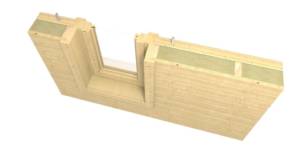

Insulating kit add 10%  – includes metal brackets for studs &  3/4″ T&G wall cover boards

Tip: Mineral wool  insulation is recommended  for log construction.  It’s impervious to moisture with a higher R-value per inch than fiberglass and is considered a GREEN building material, environmentally friendly insulation

The Woodham 2 can be assembled in 15 days or less with 4 people. The building passes structural requirements for building codes in all of North America

Kit includes:

  • FREE SHIPPING in USA (Except HI & AK)

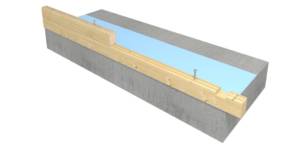

  • no floor ready to assemble on a concrete slab, wood floor over piers, crawl space or basement
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • vaulted, cathedral ceilings

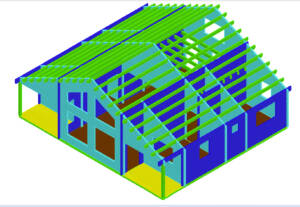

  • glulam purlins 3-7/8″ x 7-7/8″ pre-cut, numbered roof purlins/beams
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • prebuilt sectional deck railings, vertical balustrades, handrail, adjustable posts
  • pre-cut, numbered floor beams, 1-5/8″ T&G floor boards
  • stairs, railings to meet building codes
  • PREMIUM multi locking double glazed wood windows, hardware, trims
  • entry doors, locks, deadbolts, keys, trims
  • interior doors, hardware, trims
  • threaded steel storm rods for perimeter wall junctions or 7″ log screws
  • spare wall logs/spare roof boards

CALL 800-652-1065
