SHIPPING & STRUCTURAL ENGINEERING INCLUDED

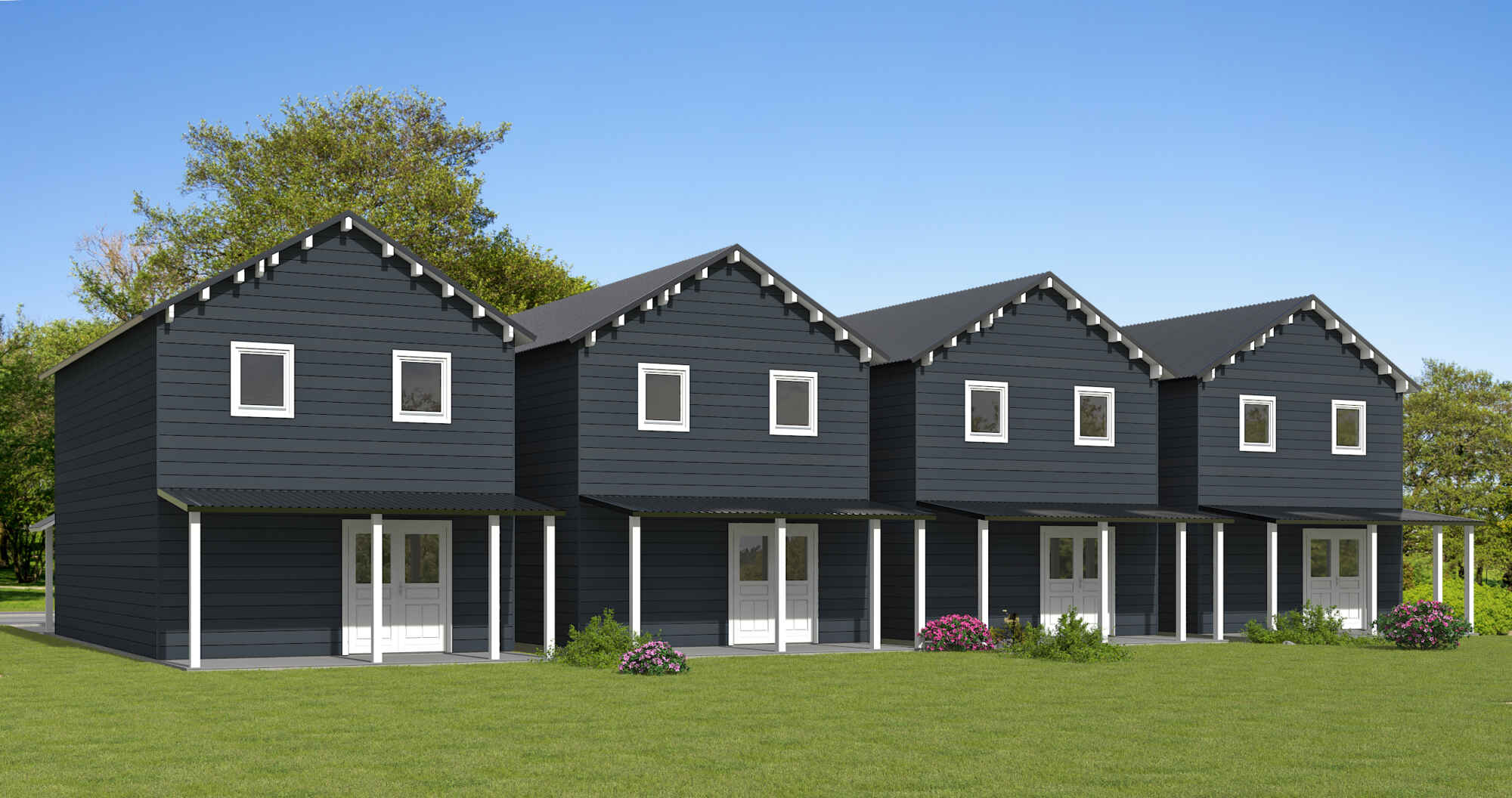

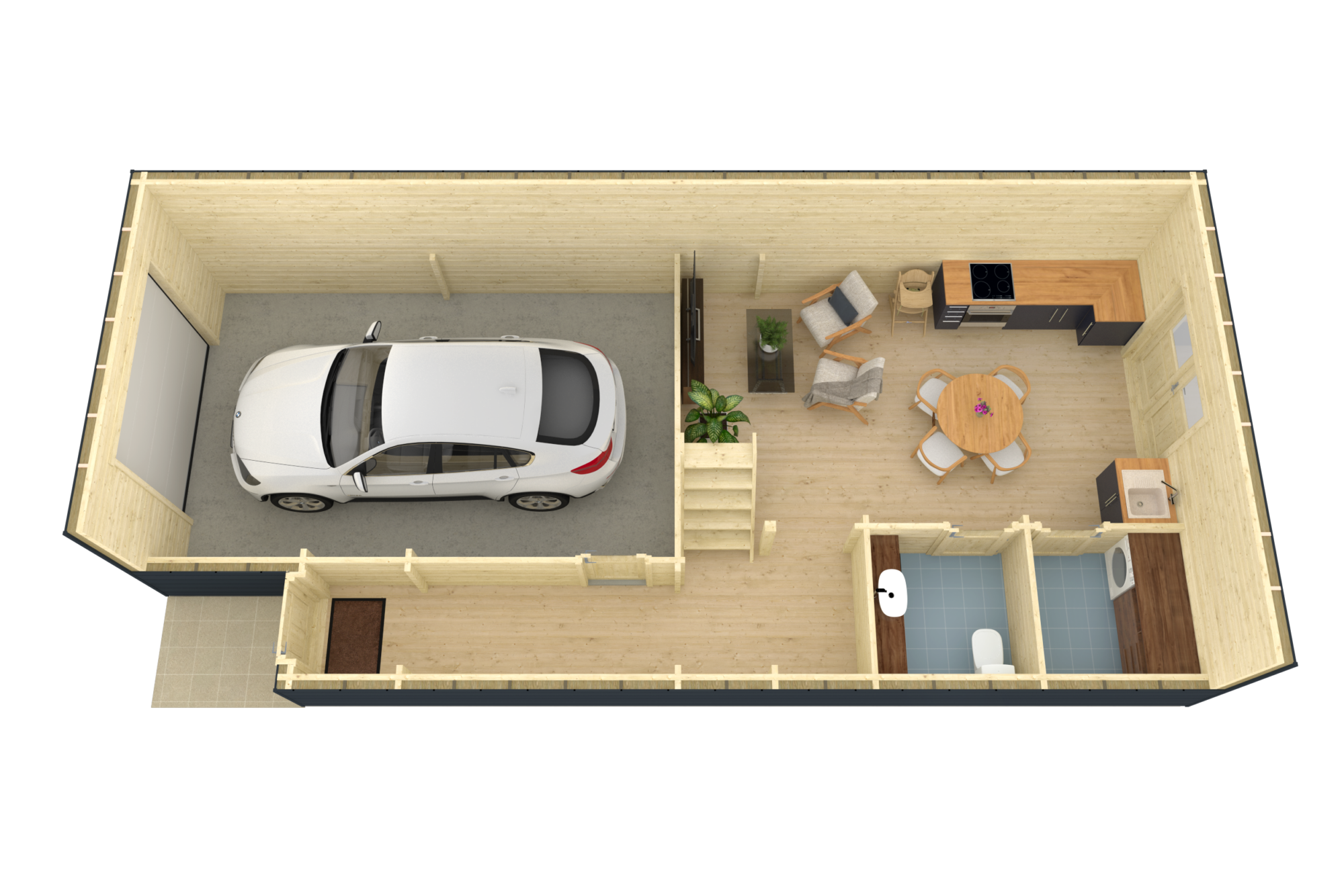

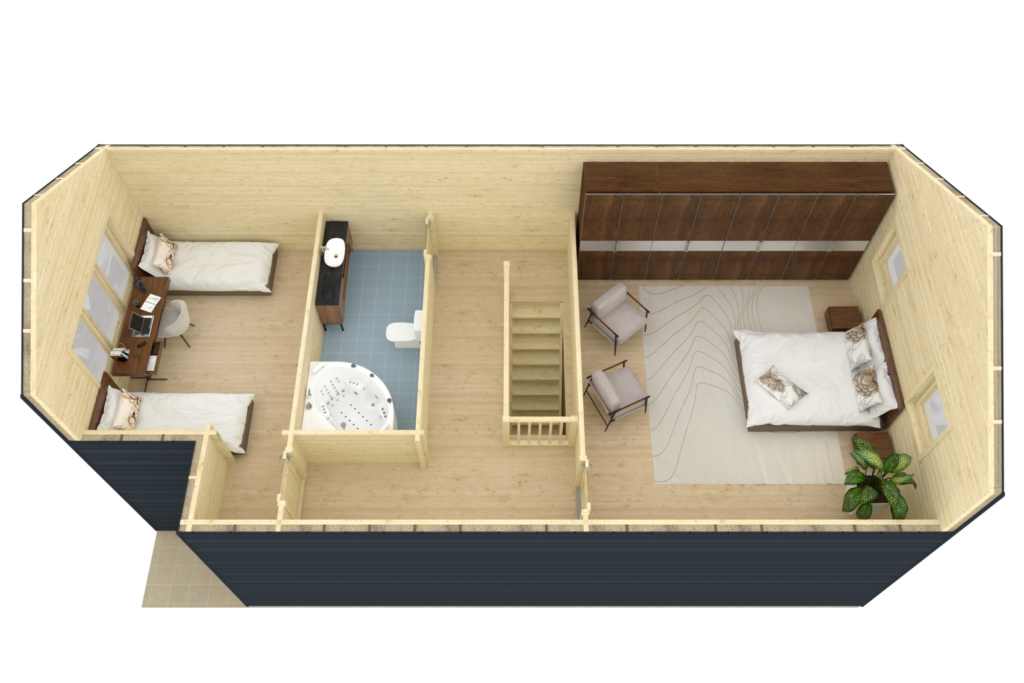

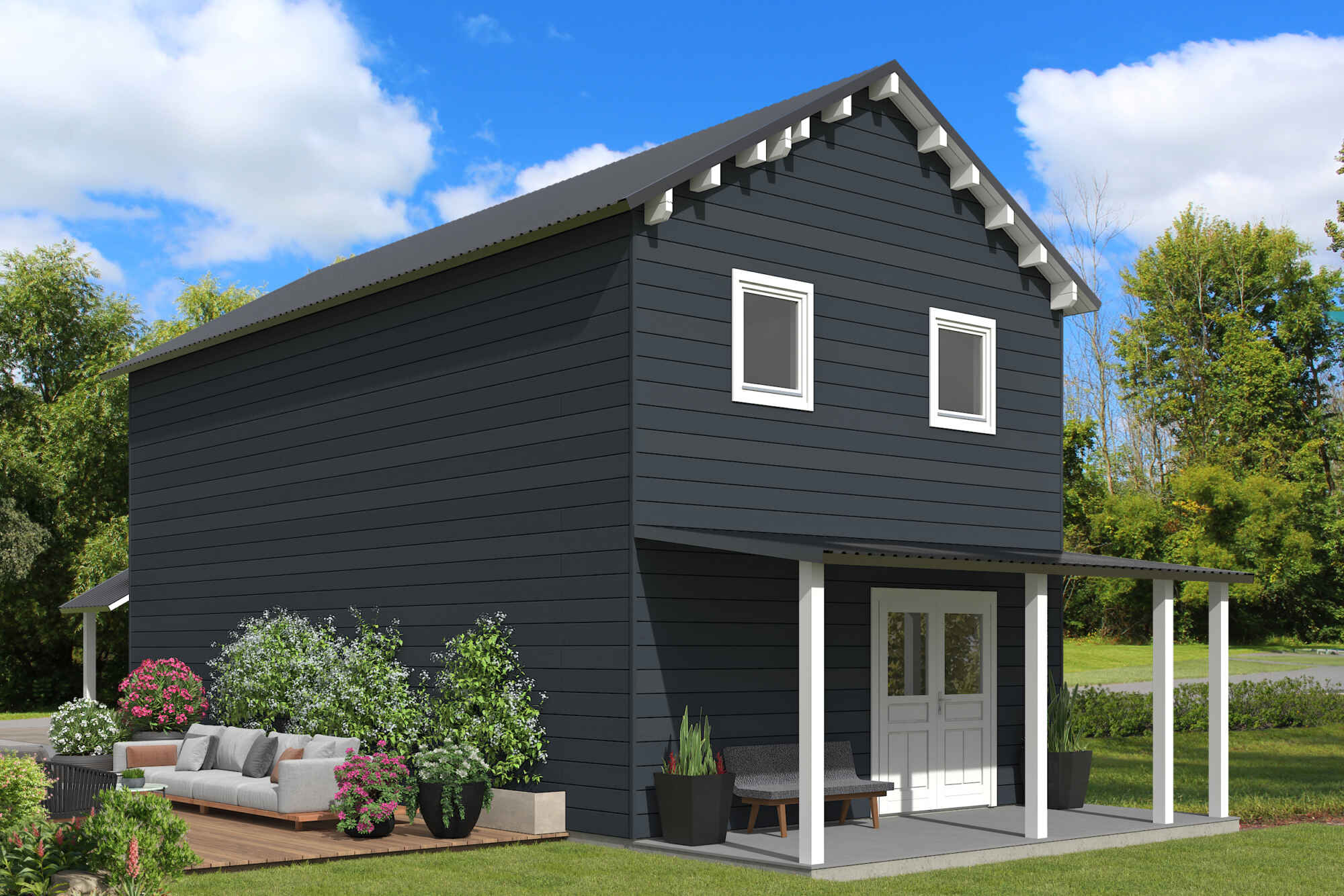

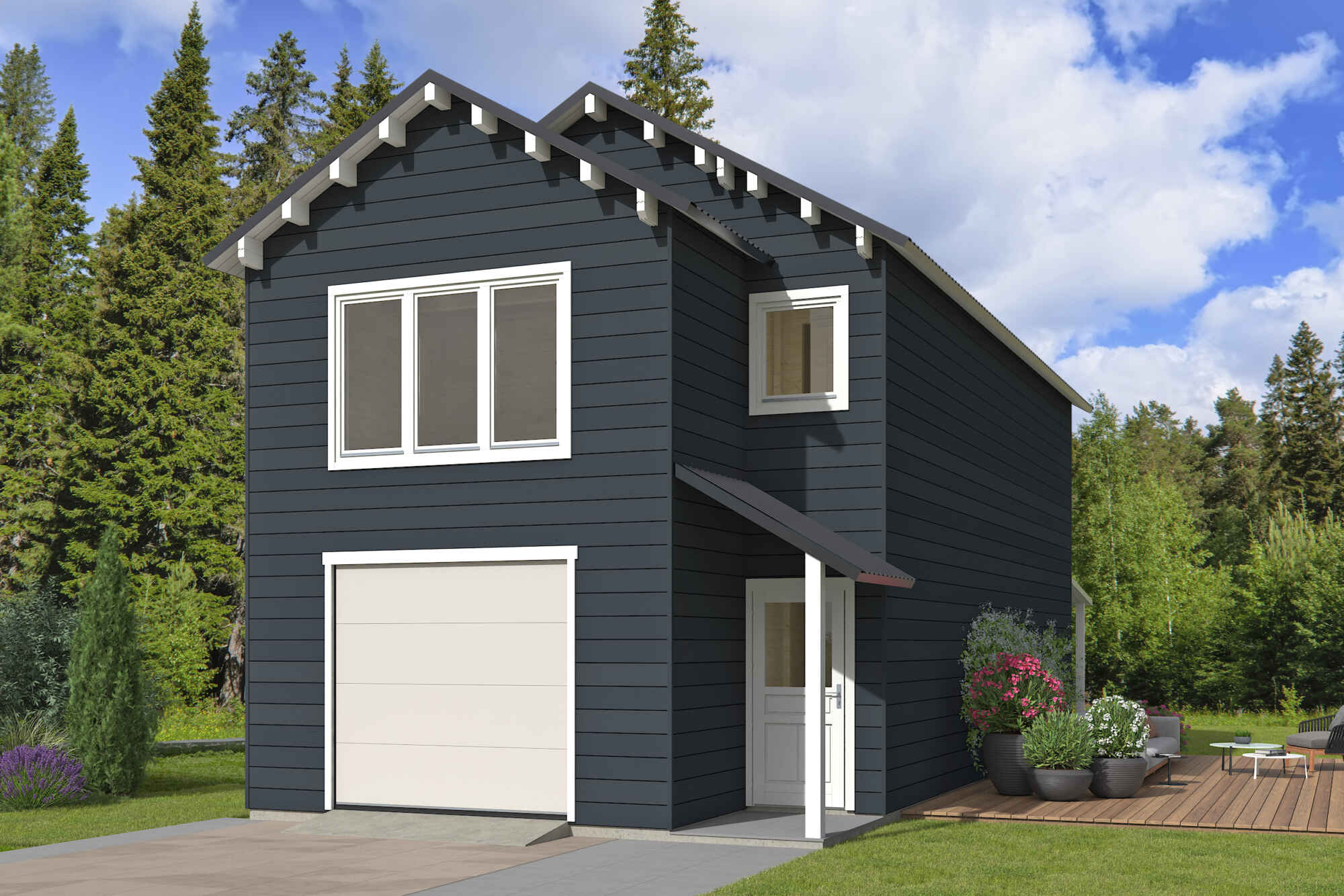

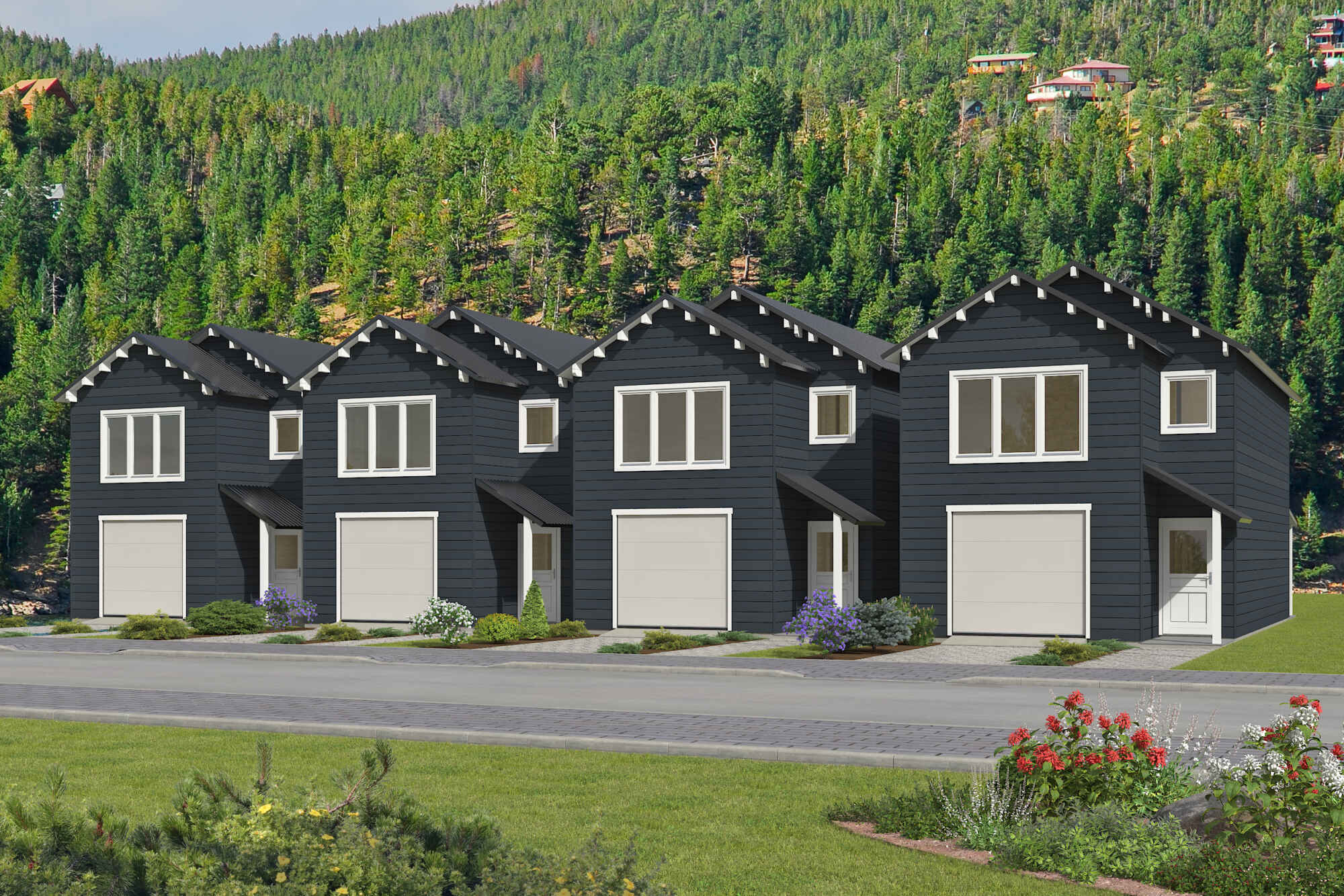

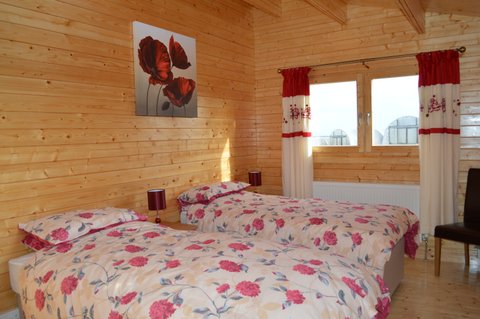

Albert Townhouse is an ideal example of what we can can offer for urban housing whether it’s a townhouse, row housing, condominiums, or single family dwellings. This building assembles fast with the option of maintenance free exterior with an all natural wood interior. This model has 2 bedrooms, 2 bathrooms, garage and a back covered deck. A great alternative form of construction that is less than conventional framing, stronger, and more energy efficient
- ready to assemble on a concrete slab or wood foundation
- pre-cut, numbered exterior walls
- pre-cut, numbered interior walls
- pre-cut, numbered gable components
- vaulted, cathedral ceilings
- sidewall height main floor 95″ (2413mm)
- roof pitch 4/12 (18 degrees)
- pre-cut 4″ x 8″ (100mm x 200mm) glulam roof purlins/beams, spaced 22″ (558mm) or less
- pre-cut, numbered 3/4″ (18mm) tongue & groove roof boards
- pre-cut, numbered fascia boards
- 3007 total sq’ of wall area
- 1975 sq’ of exterior wall surface
- 172 lineal’ per row
- 893 sq’ roof area (83 sq’ meters)
- 6 interior doors 32″x 80″ (812mm x 2040mm), hardware
- 3 single wide wood windows 30″x 39″ (765mm x 990mm)
- 1 triple wide wood window 90″x 39″ (2295mm x 990mm)
- 1 exterior door 36″x 80″ (990mm x 2040mm) 1/2 glass tempered, multi locking hardware
- 1 exterior double door 61″x 80″ (1550mm x 2040mm) 1/2 glass tempered, multi locking hardware
- deck posts, railing with vertical balustrades
- 2 spare wall logs/spare roof boards
- 3,300 – 8″ log screws to connect each row, gable components, purlins
- packaged/wrapped for sequence of assembly
- FREE SHIPPING

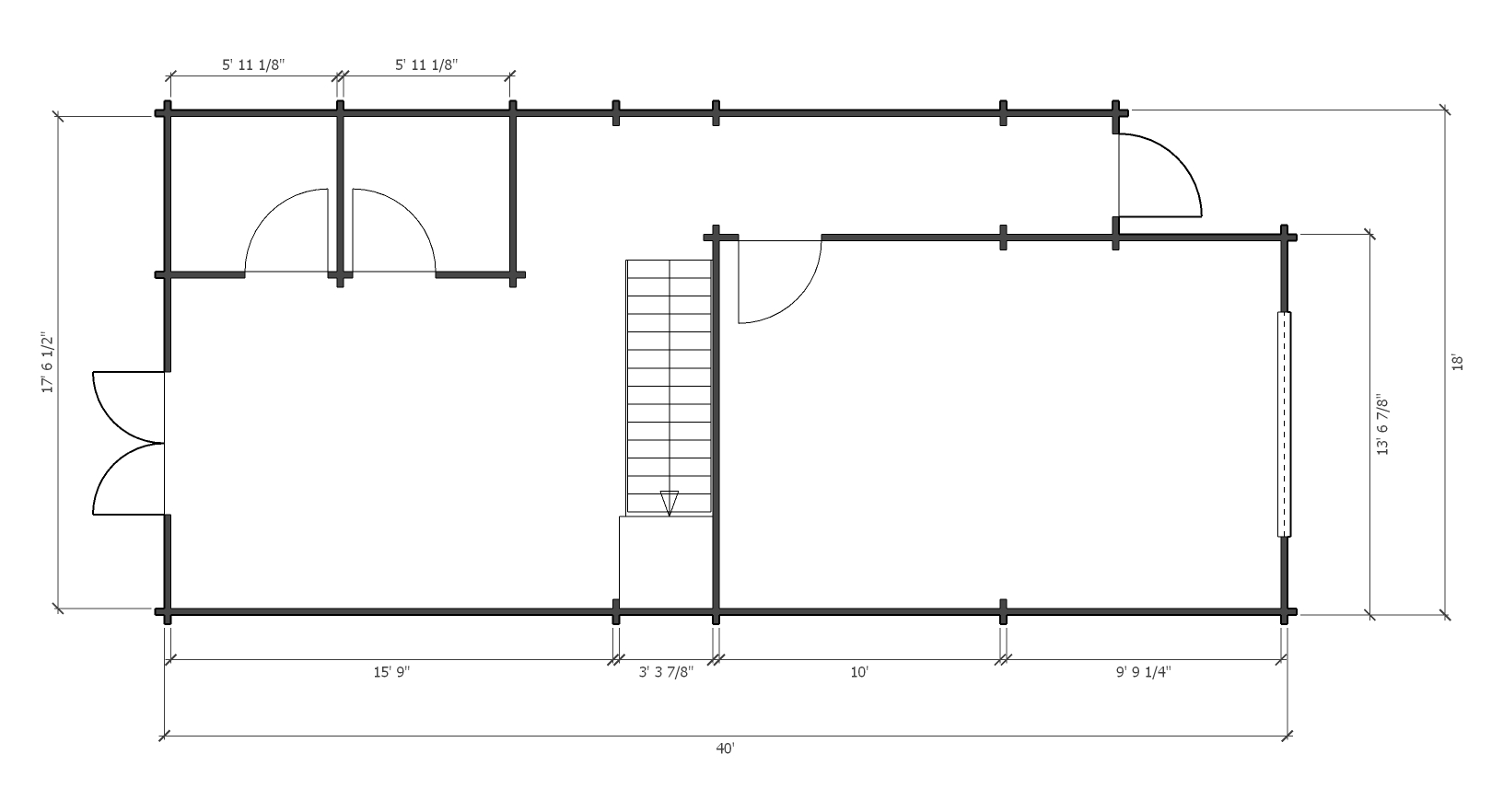

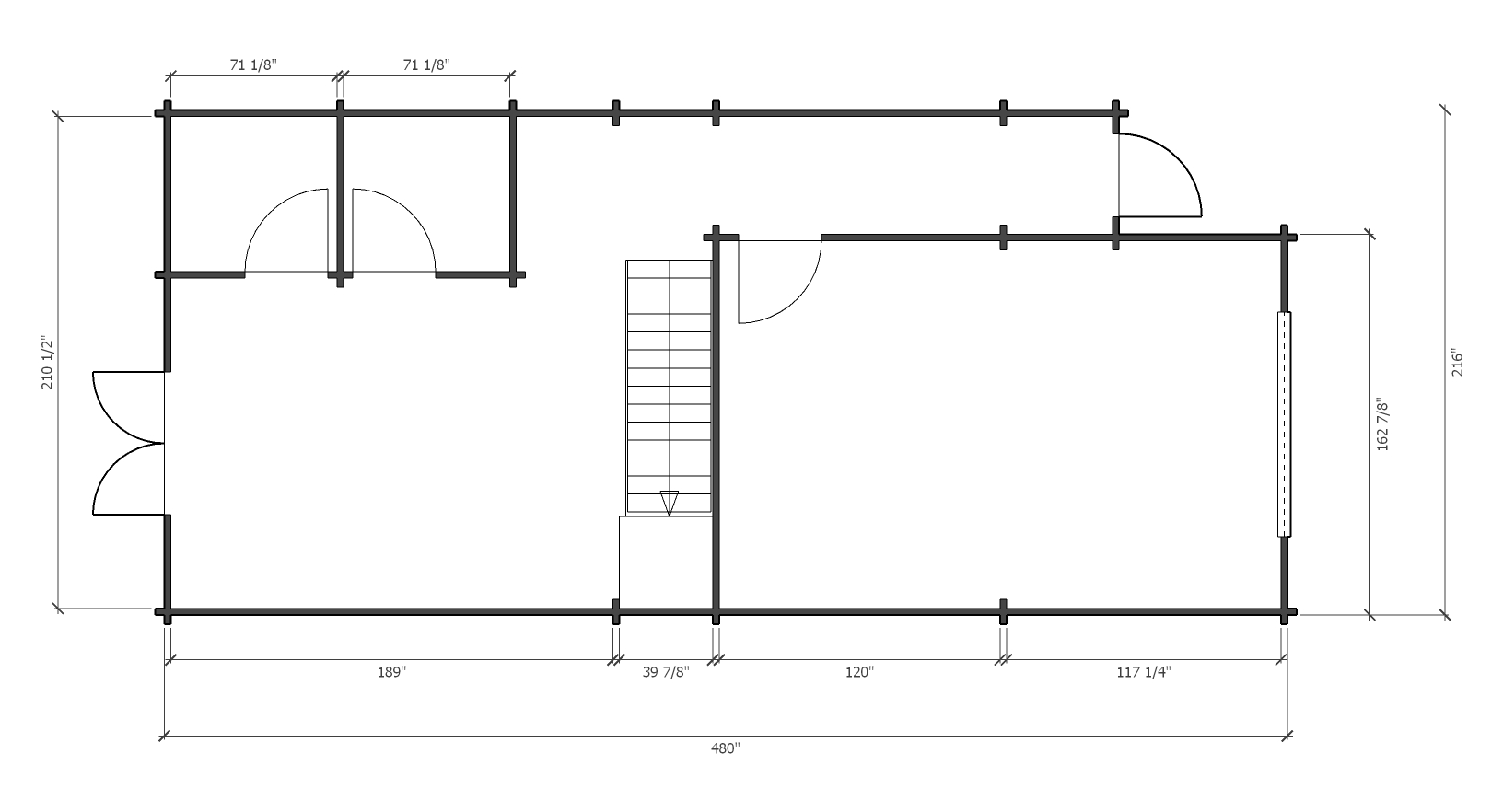

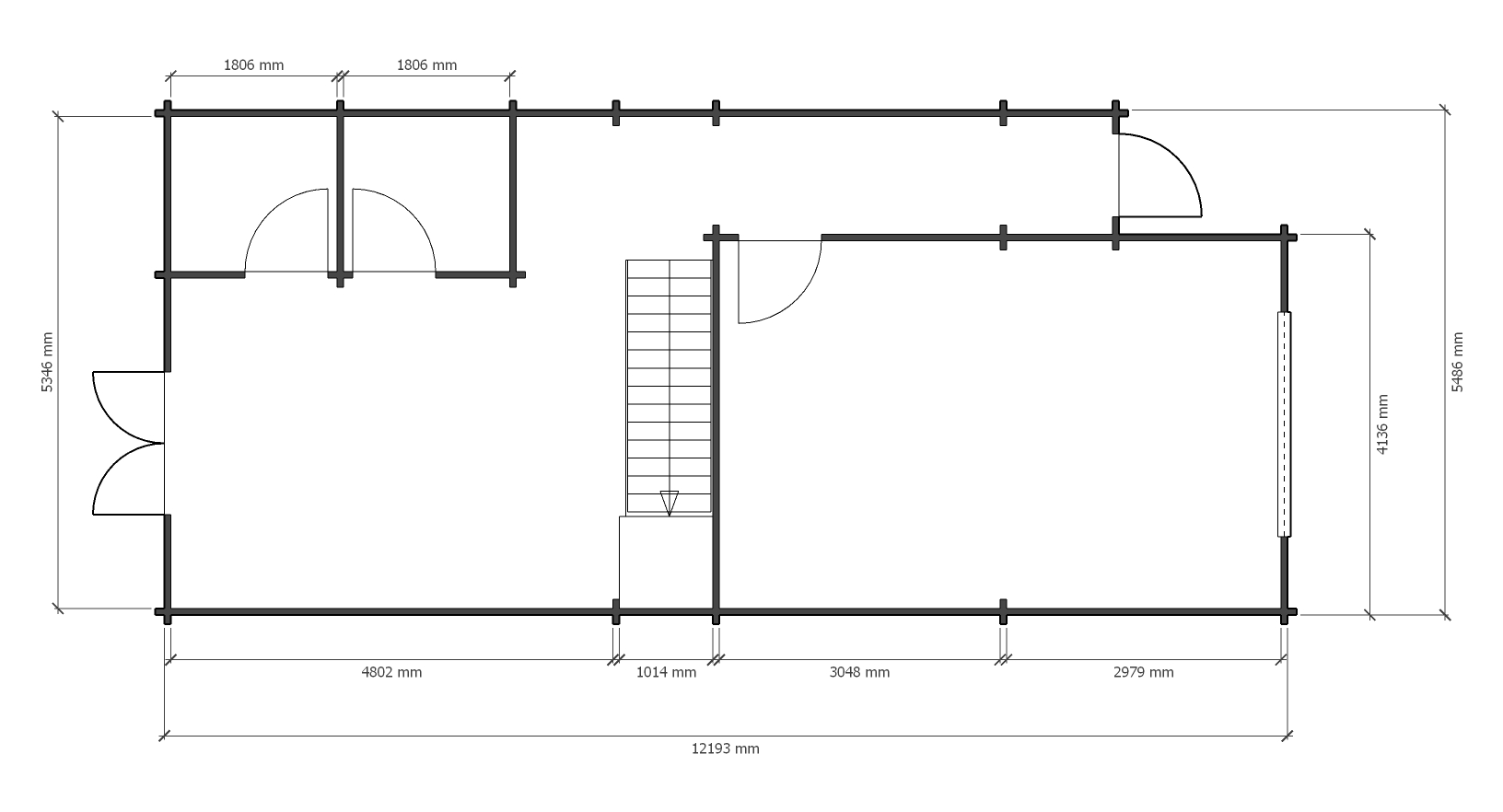

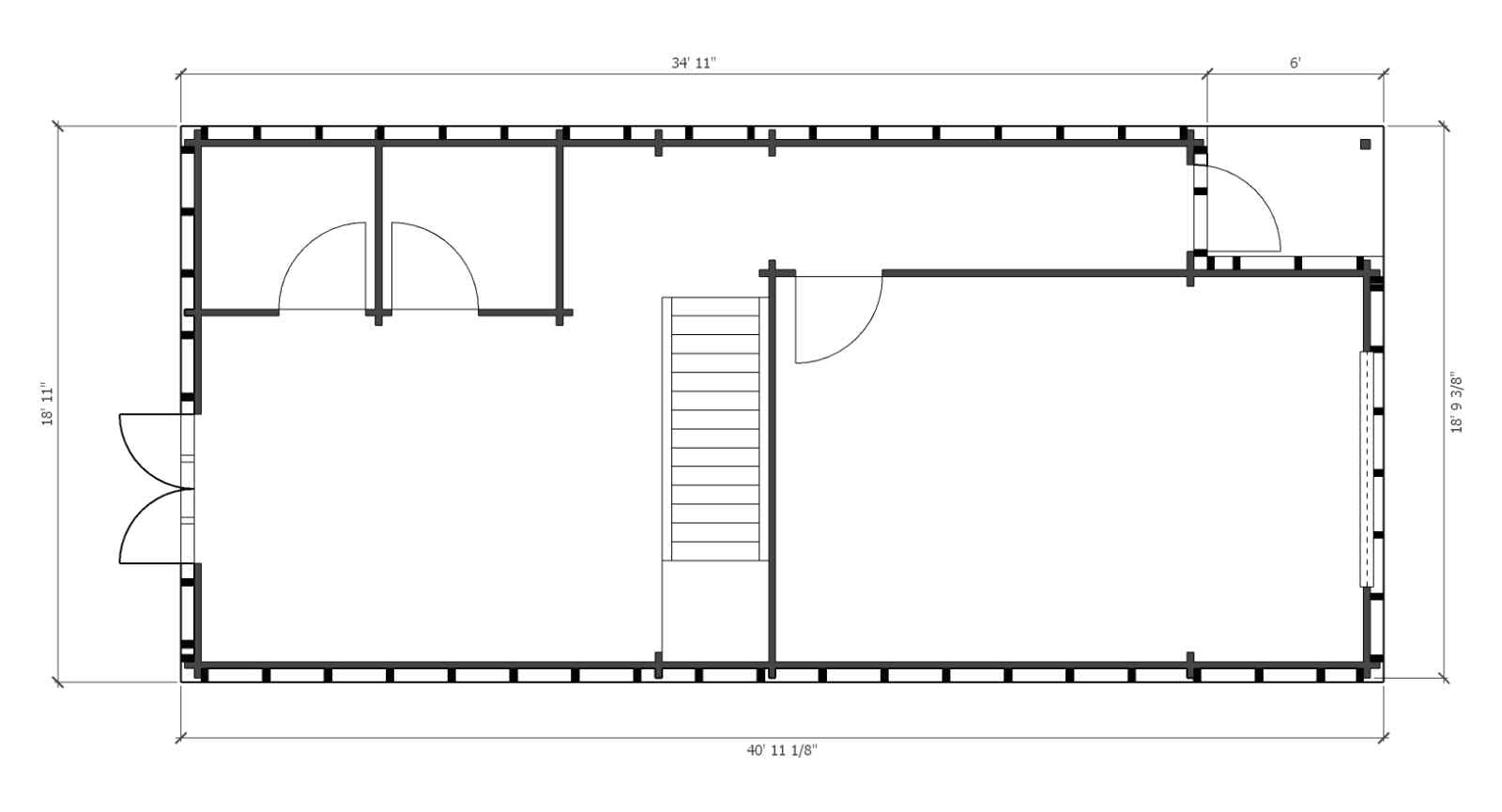

- FOUNDATION SIZE DRAWING
- STAMPED STRUCTURAL ENGINEERING
SIDING OPTIONS (click here for more information on siding)
Choose from 3 types of EZ Log siding to cover the exterior of your home. Our siding installs over the exterior studs, without the need for plywood. Each kit includes siding, corner blocks, trims
Option 1) Max semi D-Log wood siding 3/4″ x 5-1/8″ (18mm x 130mm) Add – $ 9,619.00 USD | $ 11,594.00 CAD
Option 2) Otoczak full D-Log wood siding 1-1/8″ x 5-1/8″ (28mm x 130mm) Add – $ 15,743.00 USD | $ 18,962.00 CAD
Option 3) Vox extruded maintenence free PVC polymer siding 5/16″ x 13″ (7mm x 330mm) Add – $ 26,804.00 USD | $ 32,197.00 CAD
WINDOW OPTIONS (click here for more information on windows)
Option 1) Upgrade all wood windows to triple glazed/Low E/Argon gas filled (6 sash)
Add – $816.00 USD
Add – $960.00 CAD
Option 2) Upgrade all wood windows with our exclusive white PVC/Shutter windows with triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)
Add – $2,160.00 CAD
Option 3) Buildings can be ordered without windows or doors. Rough openings will be created for locally supplied windows & doors
