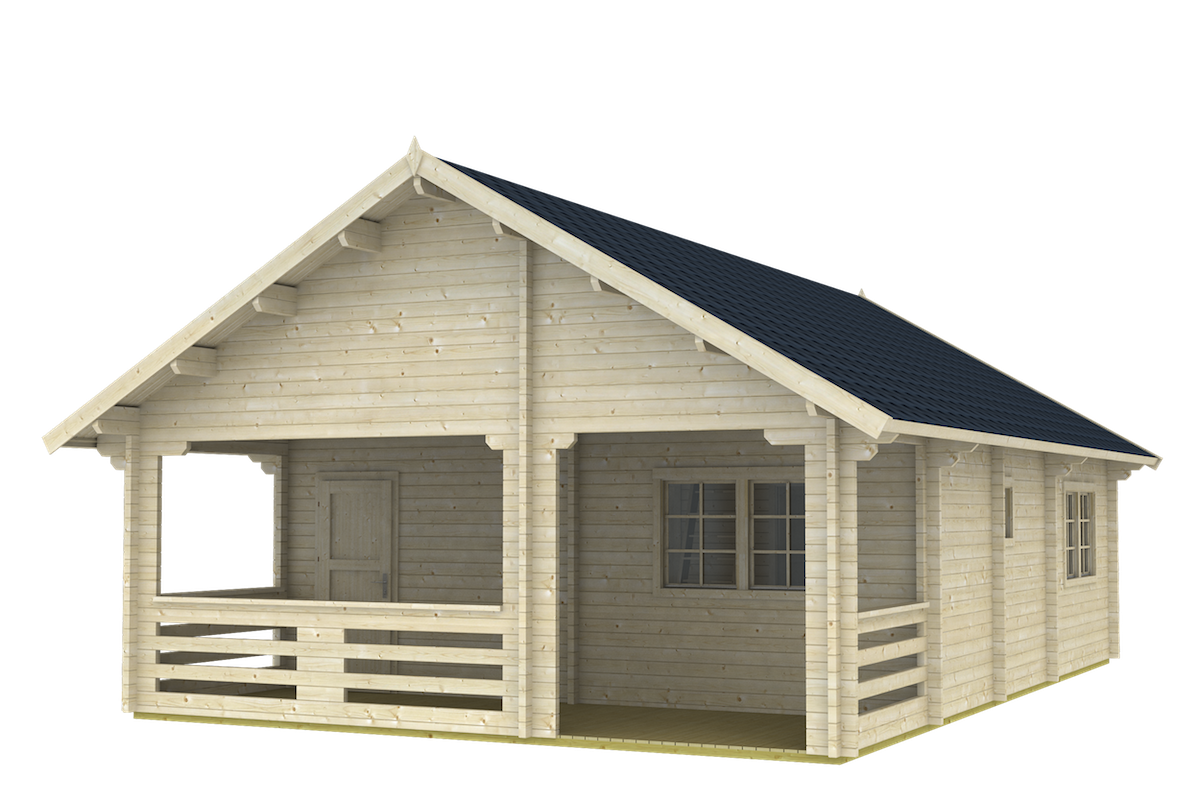

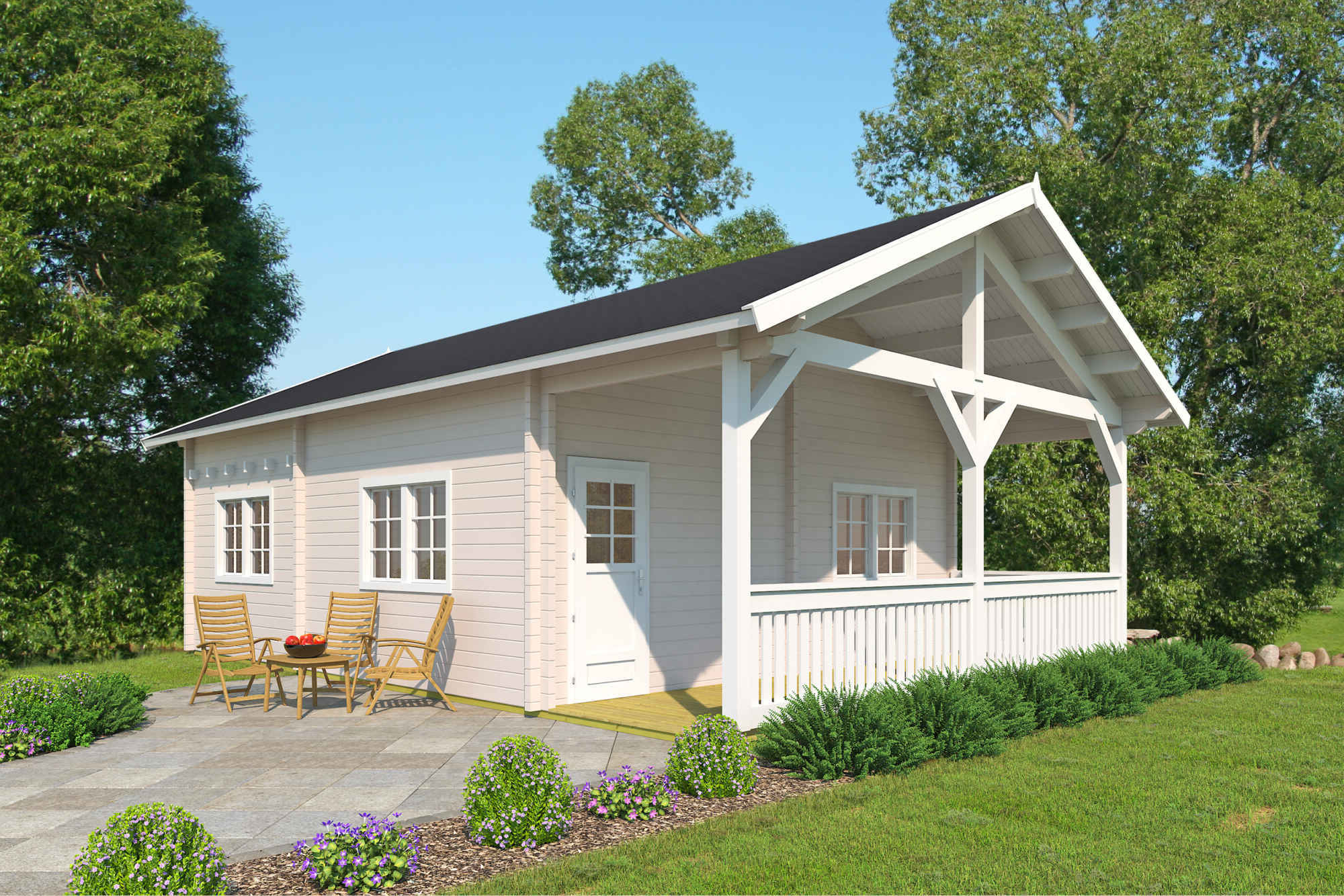

Banff Lofted

612 sq ft
Premium Model
$53,895.00 USD
$63,406.00 CAD
FREE SHIPPING

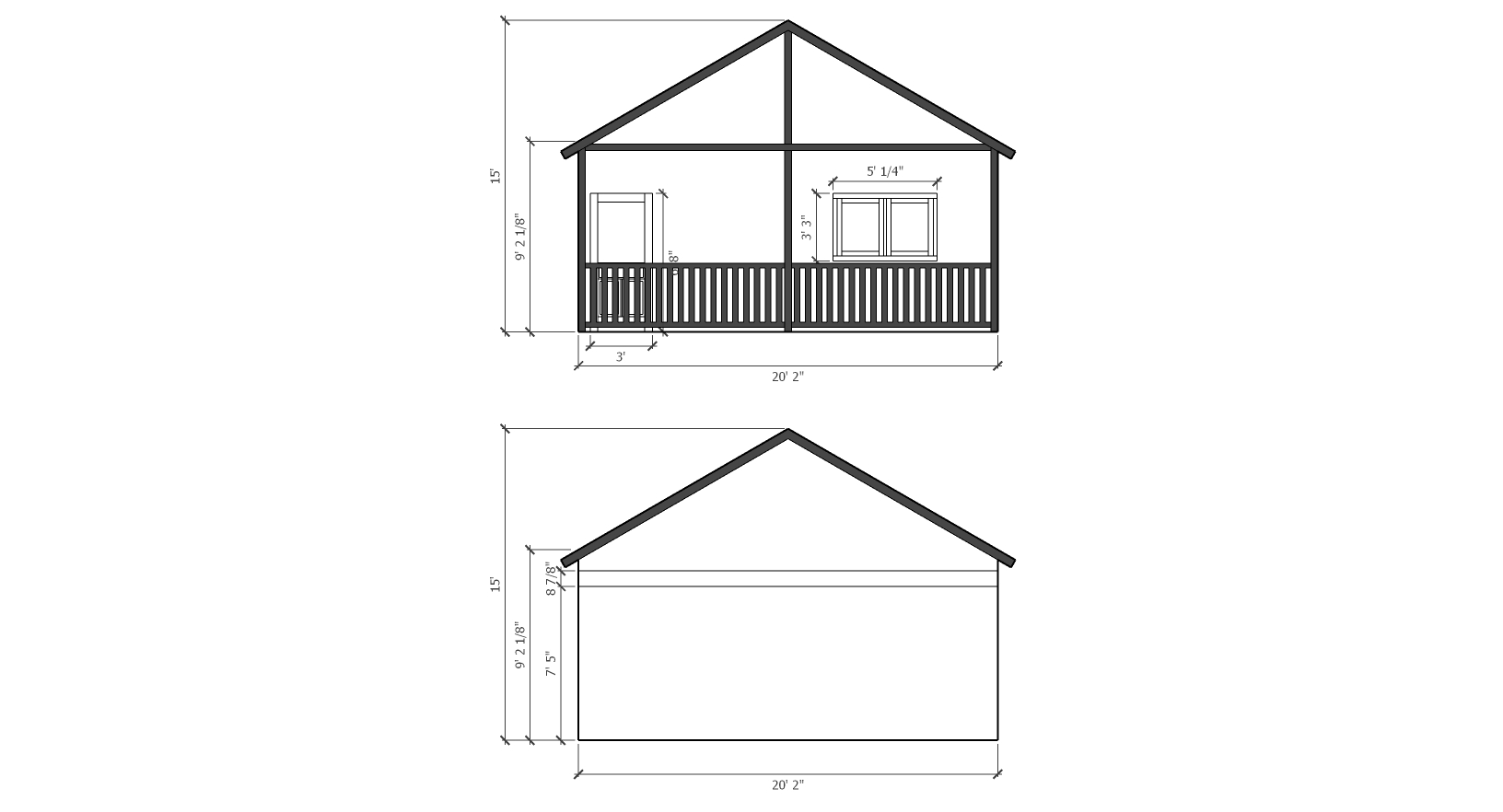

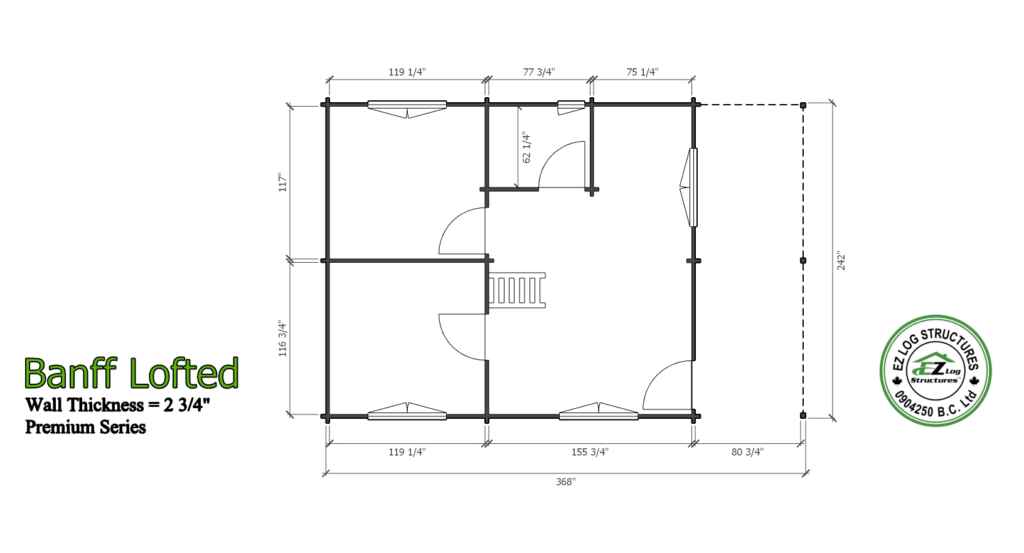

Cabin size242" x 364"
Roof pitch7-12
Roof boards3/4"
Wall height95"
Ridge height168"
Wall thickness2 3/4”

Model Documentation

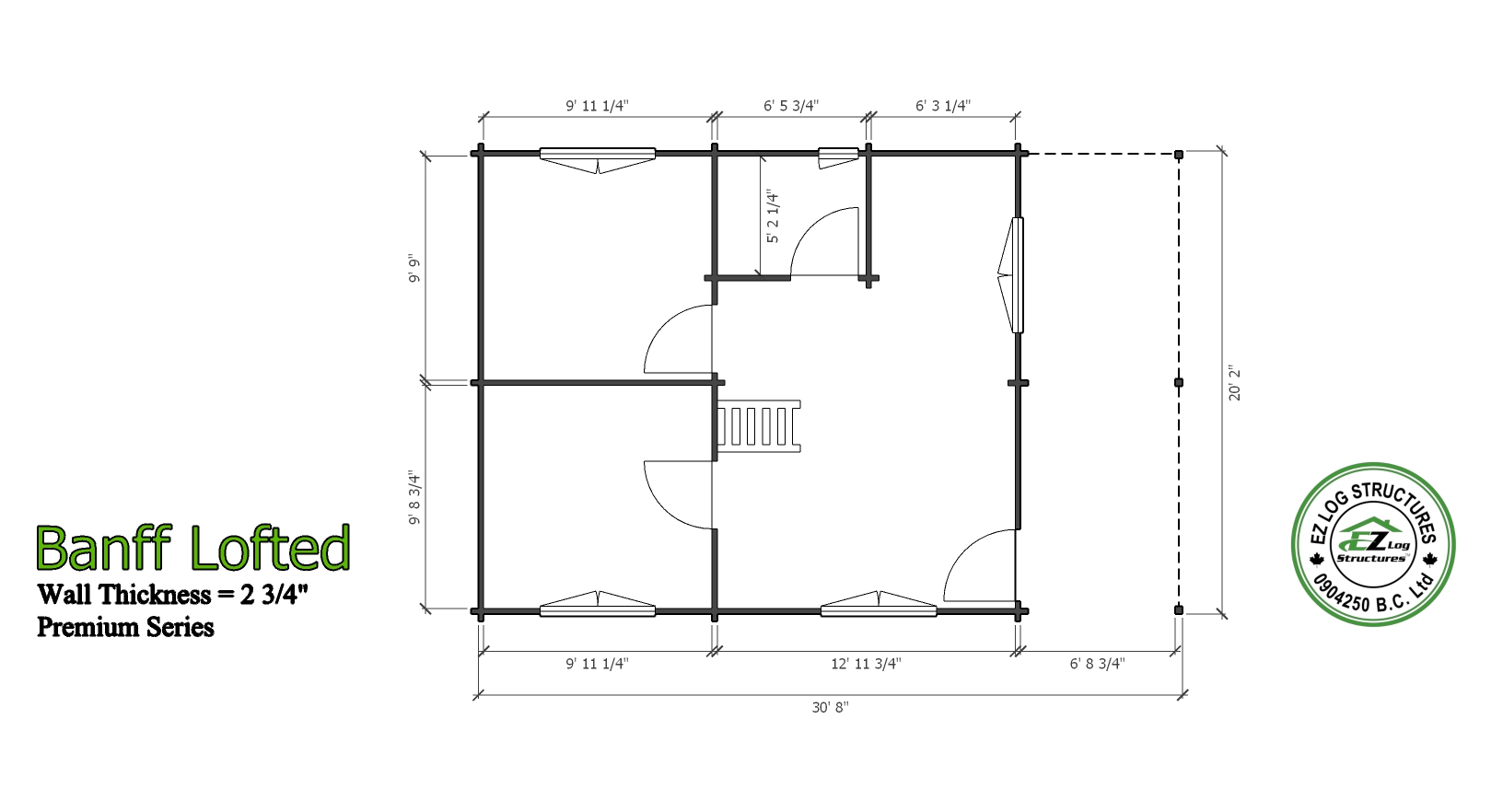

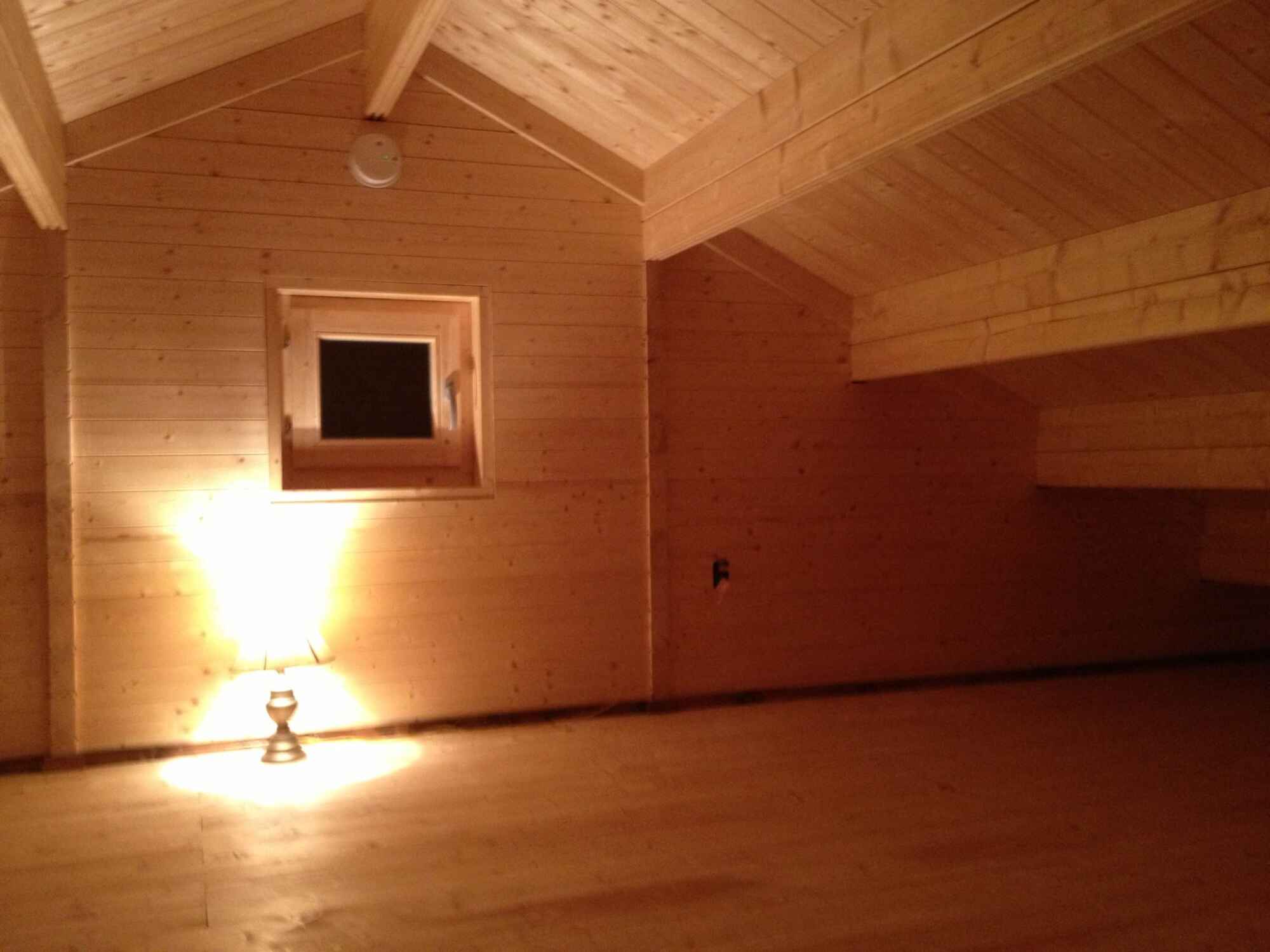

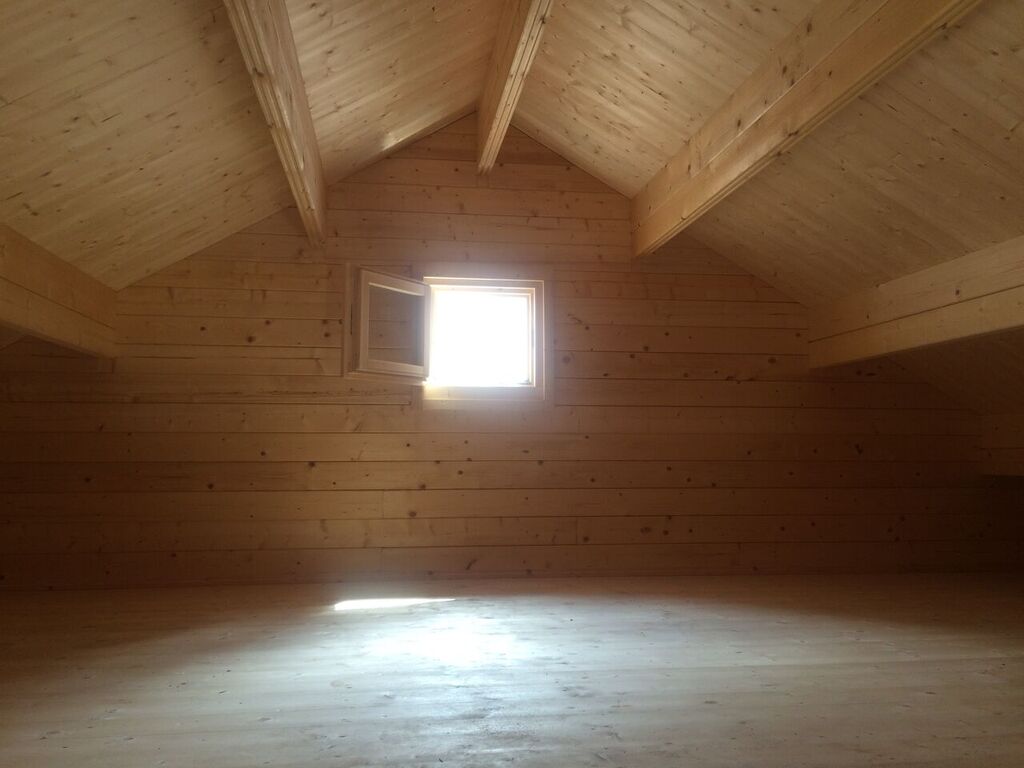

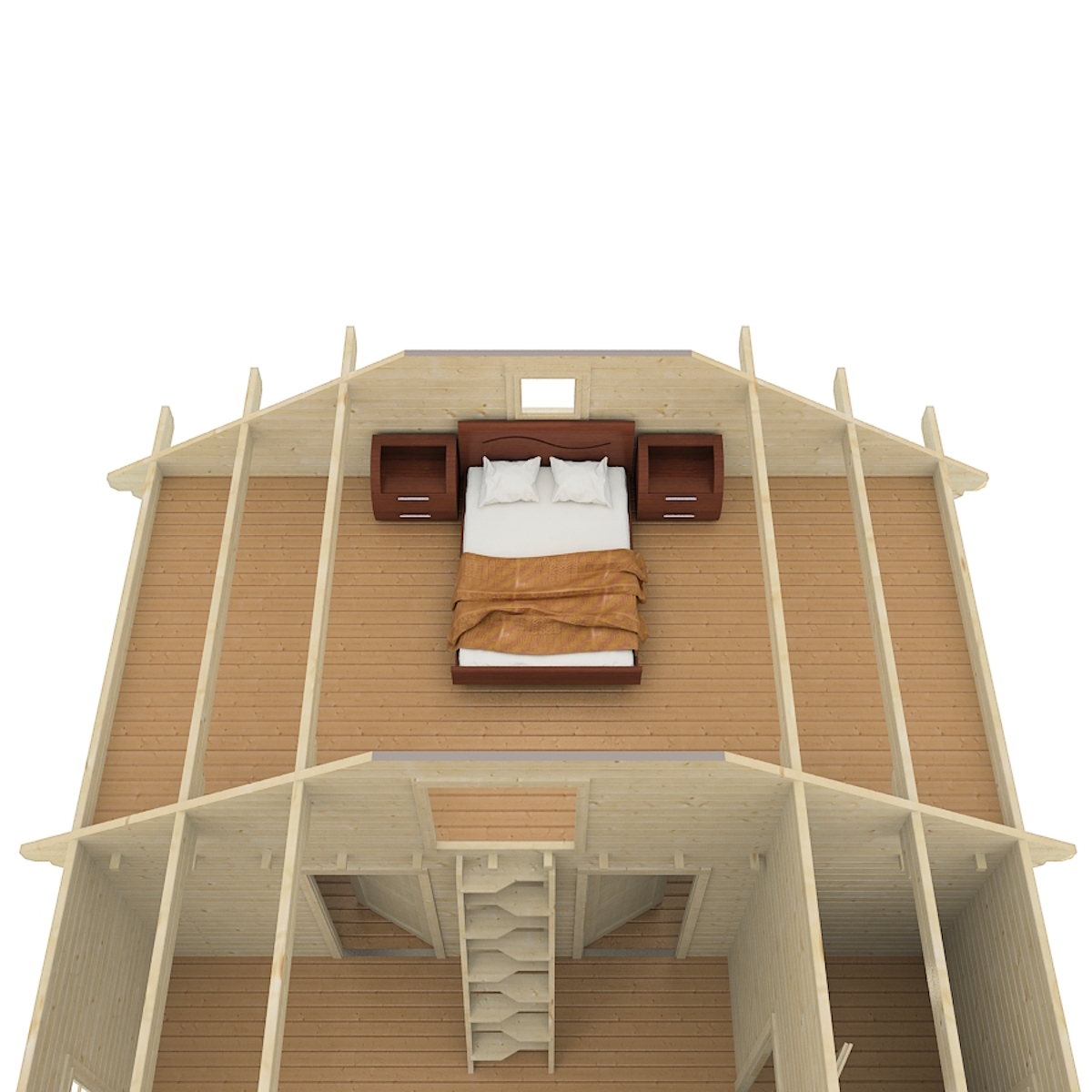

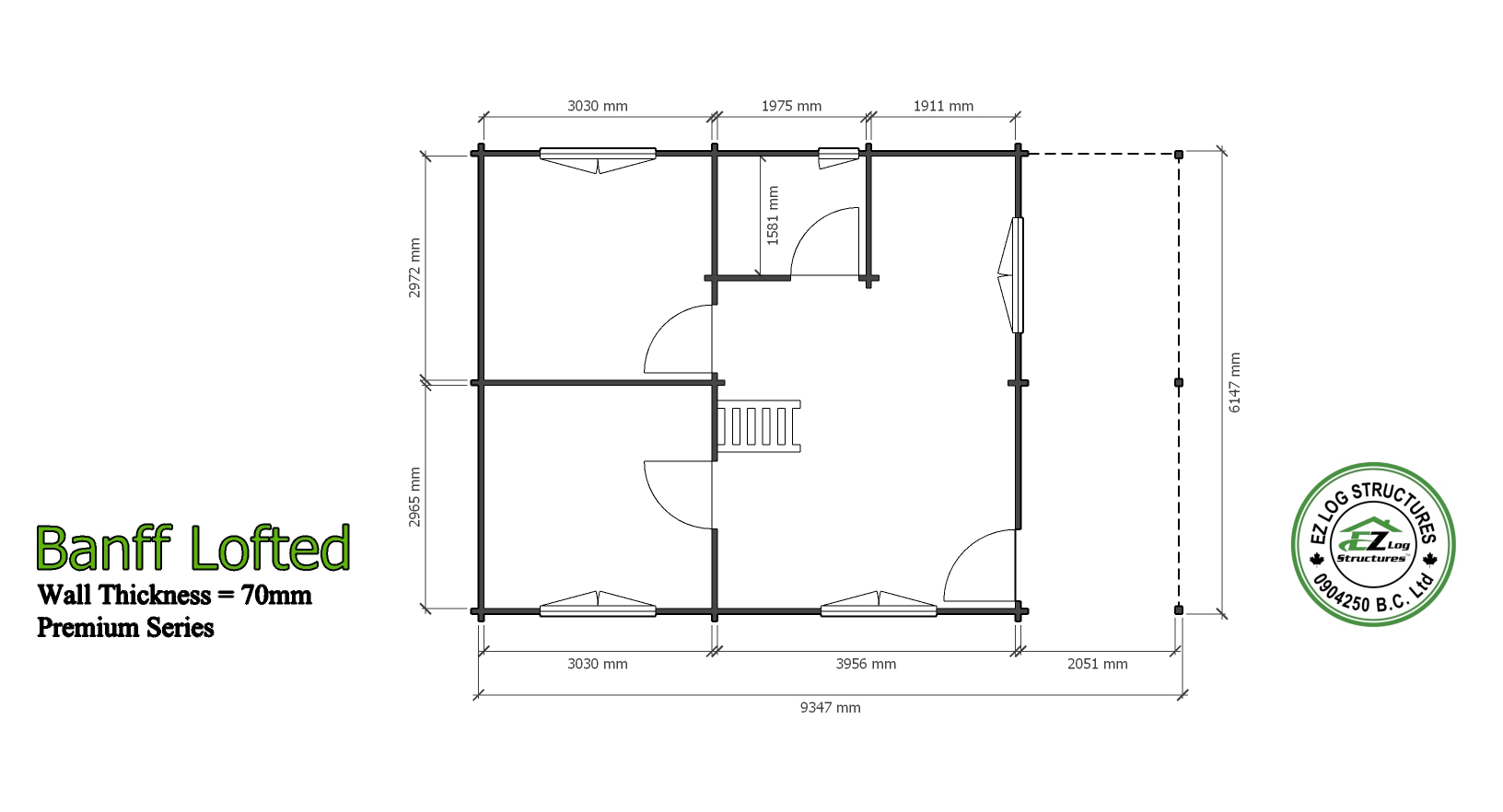

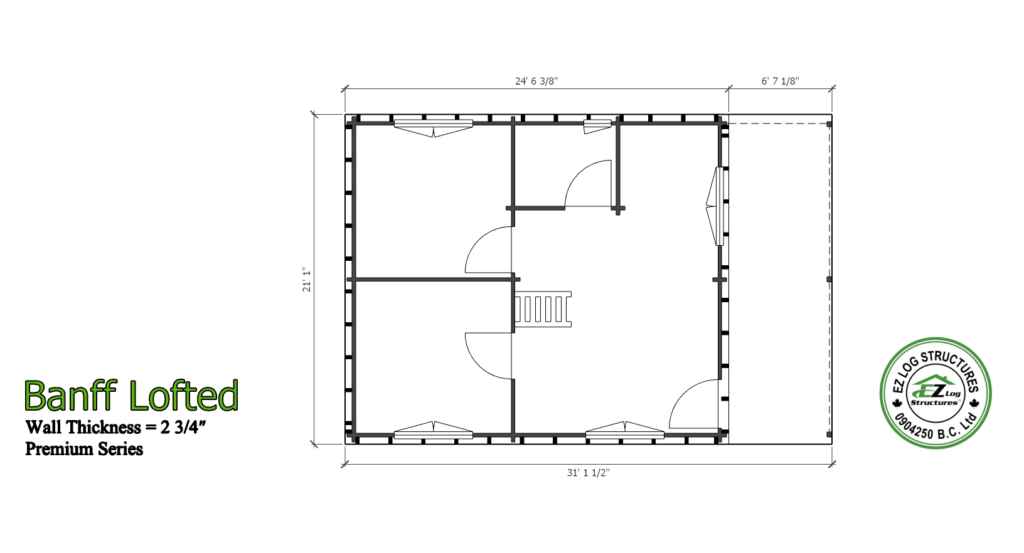

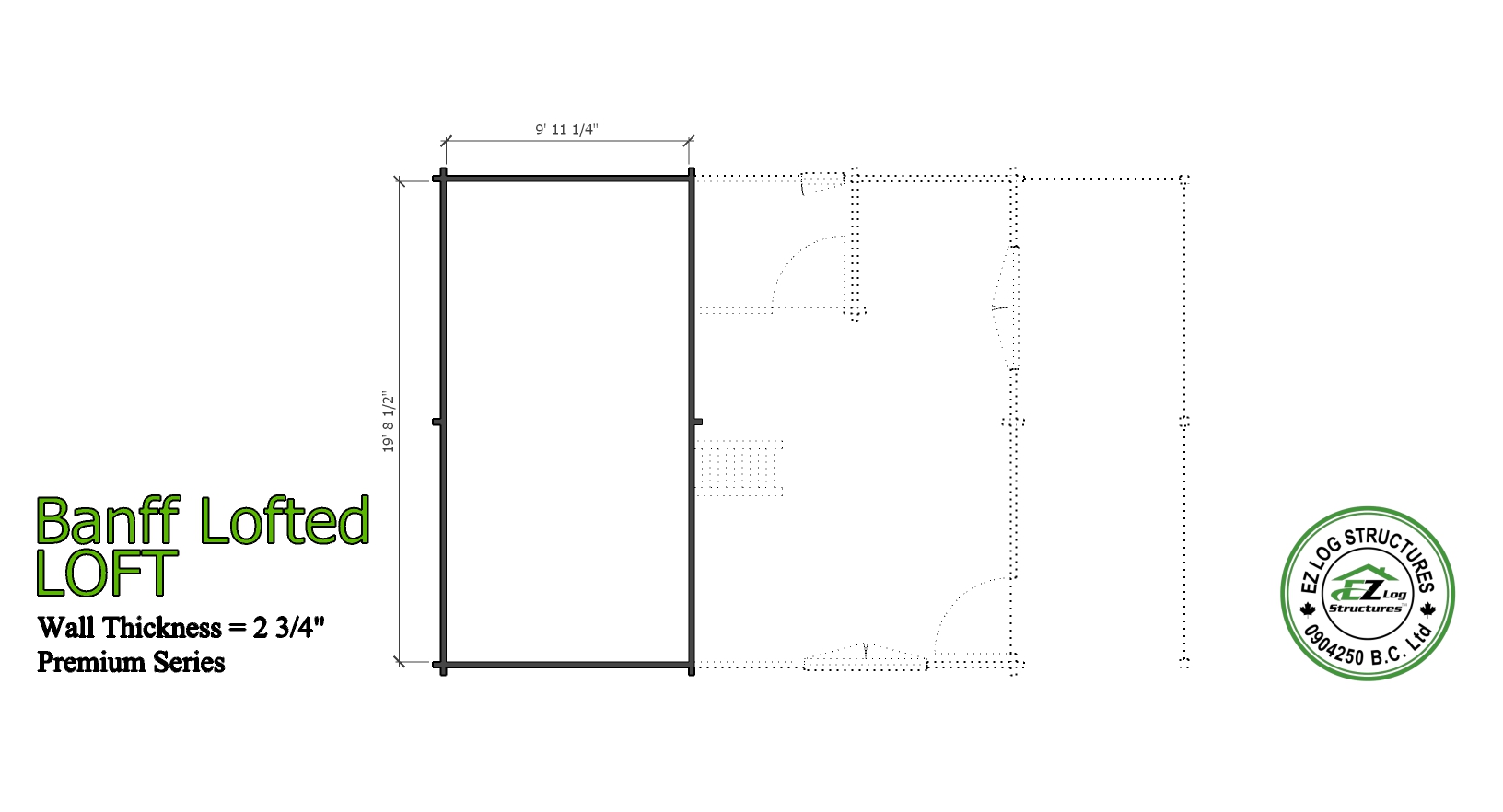

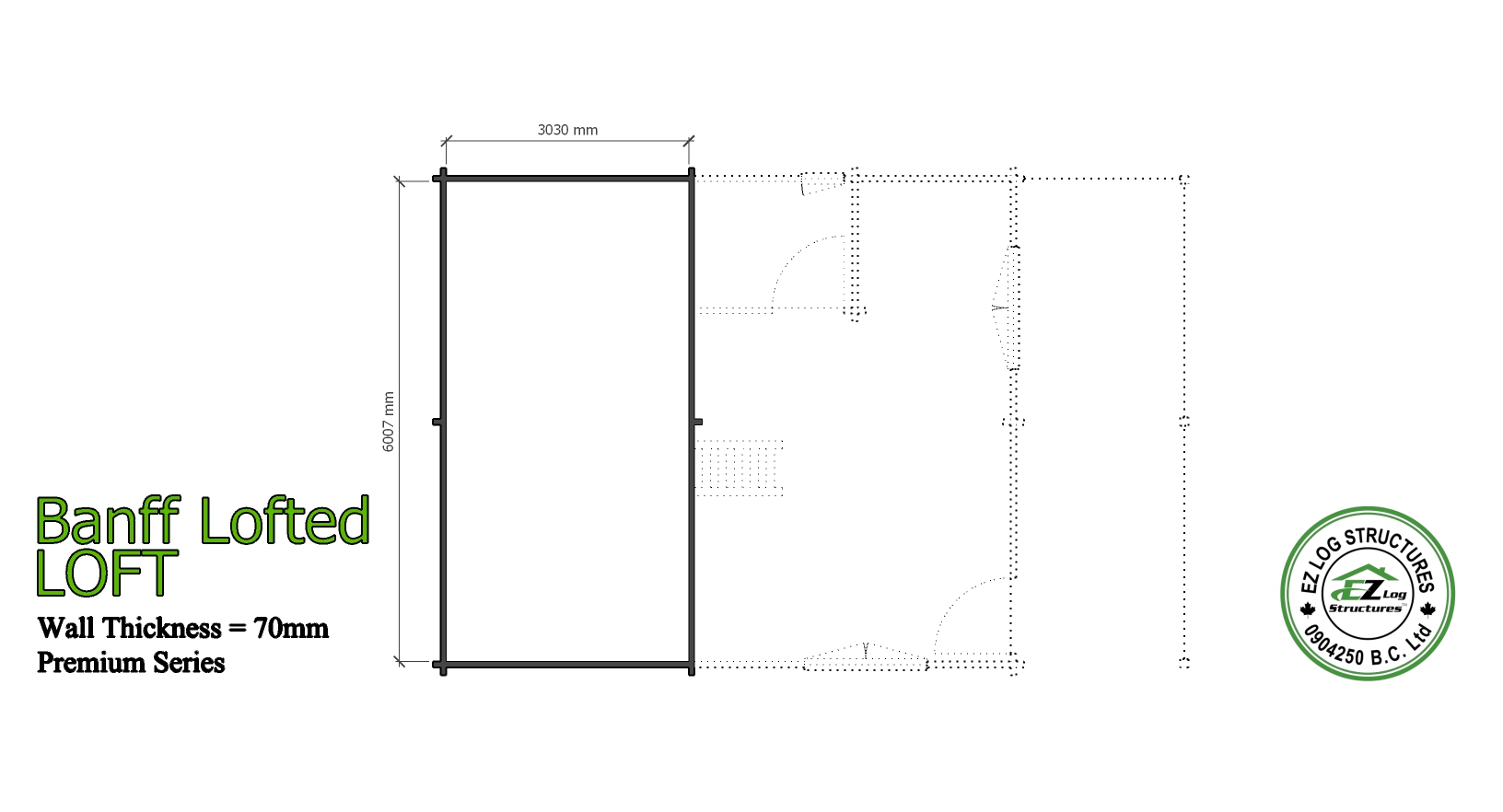

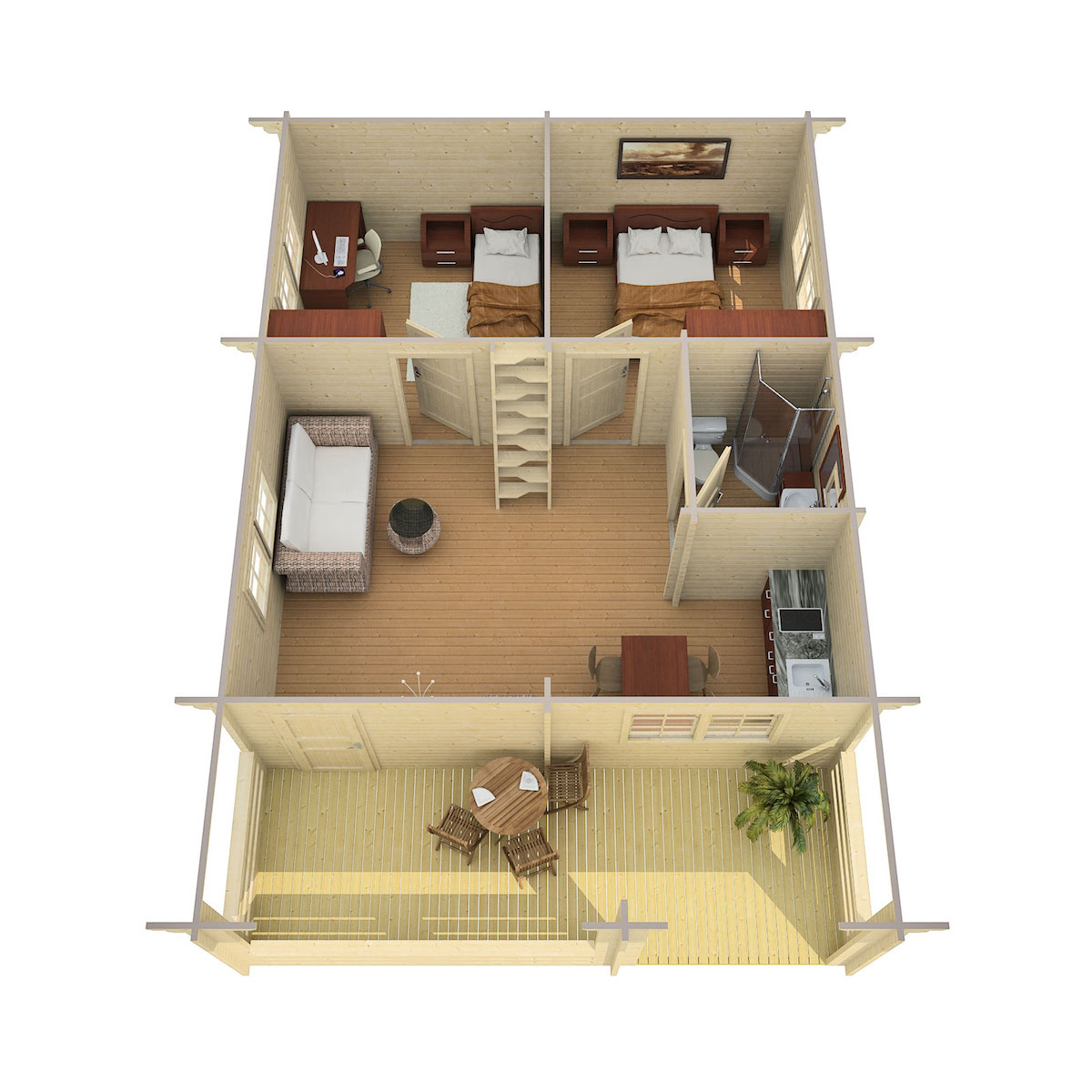

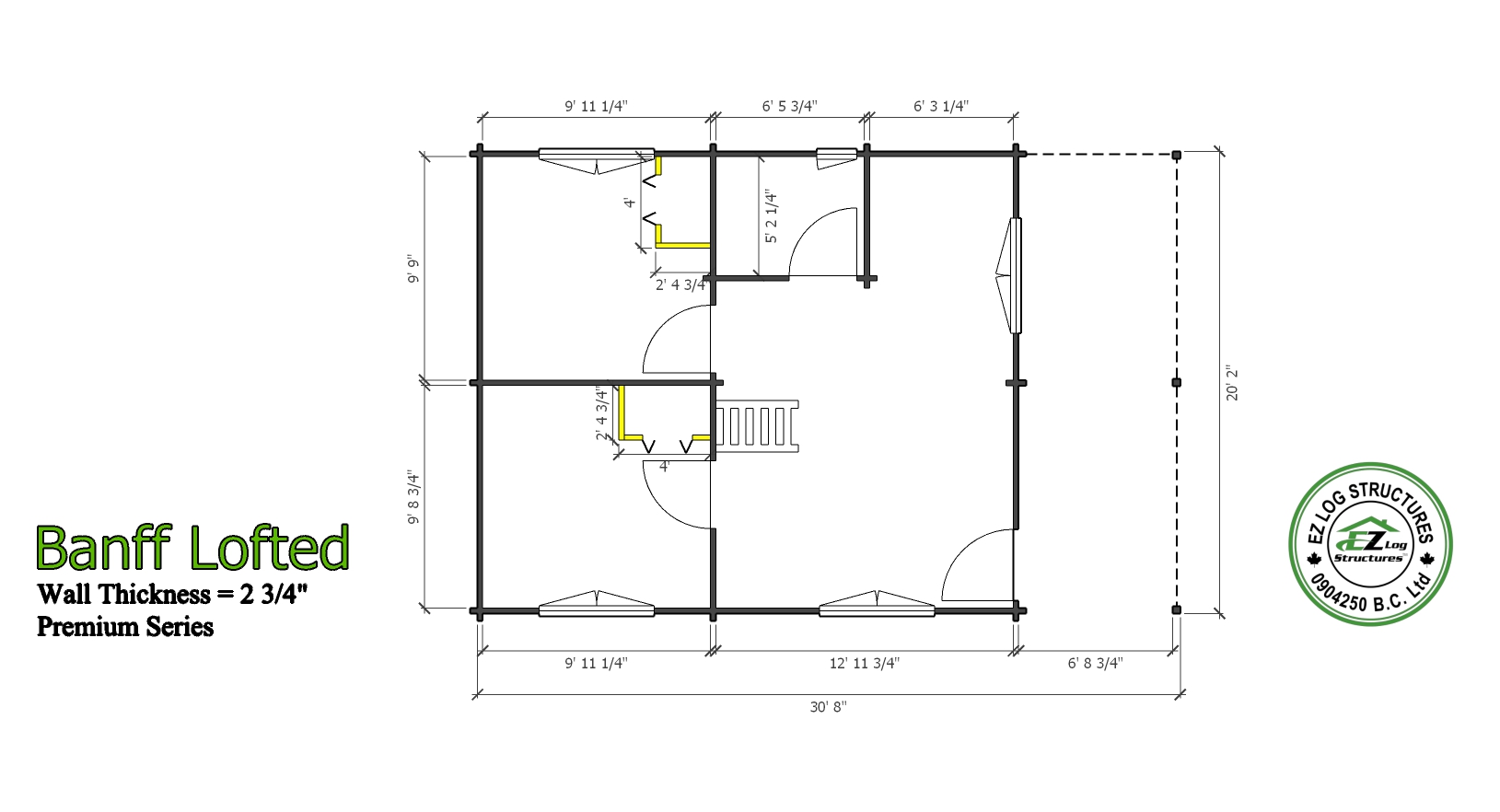

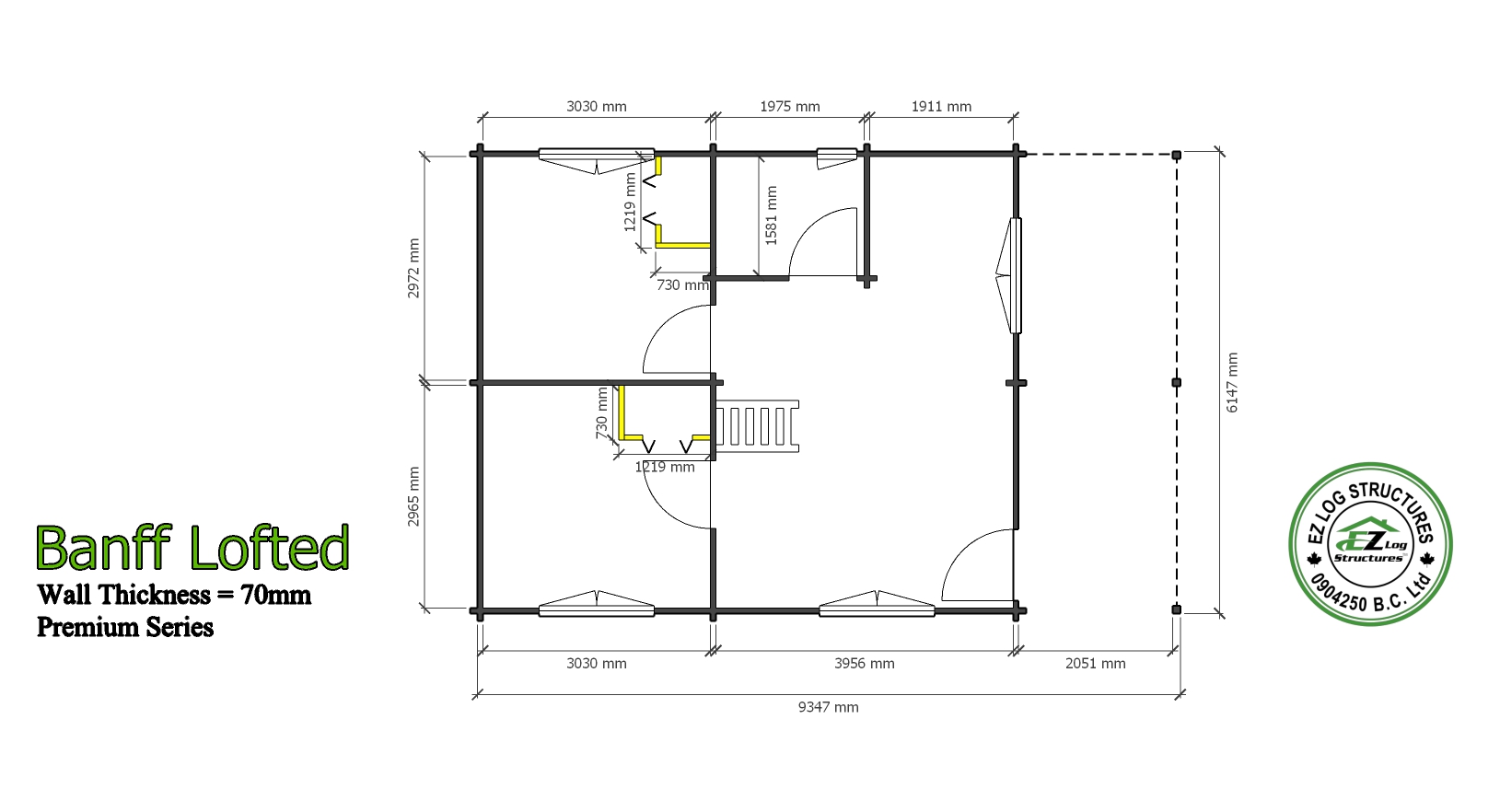

BANFF Premium  has 70mm (2-3/4) thick wall logs. The footprint is 242″ x 364″ for a total of  612 sq’ on the main level and 195 sq’ loft over the bedrooms. The main cabin area is 475 sq’ and the covered deck area is 134 sq’ . The cabin is ideal getaway or rental opportunity with 2 bedrooms, bathroom and a small usable loft.

Wall insulating kit: includes metal brackets & 3/4″ tongue & groove wall cover boards made of matching wood.  Install studs using the brackets and then apply the interior wall cover boards over the studs. Add 10% to the selling price.

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Exceptional energy efficiency:  2-3/4″ solid wood walls have a tested thermal mass rating of R-12 and add R-15 mineral wool insulation to achieve R-27 in the walls

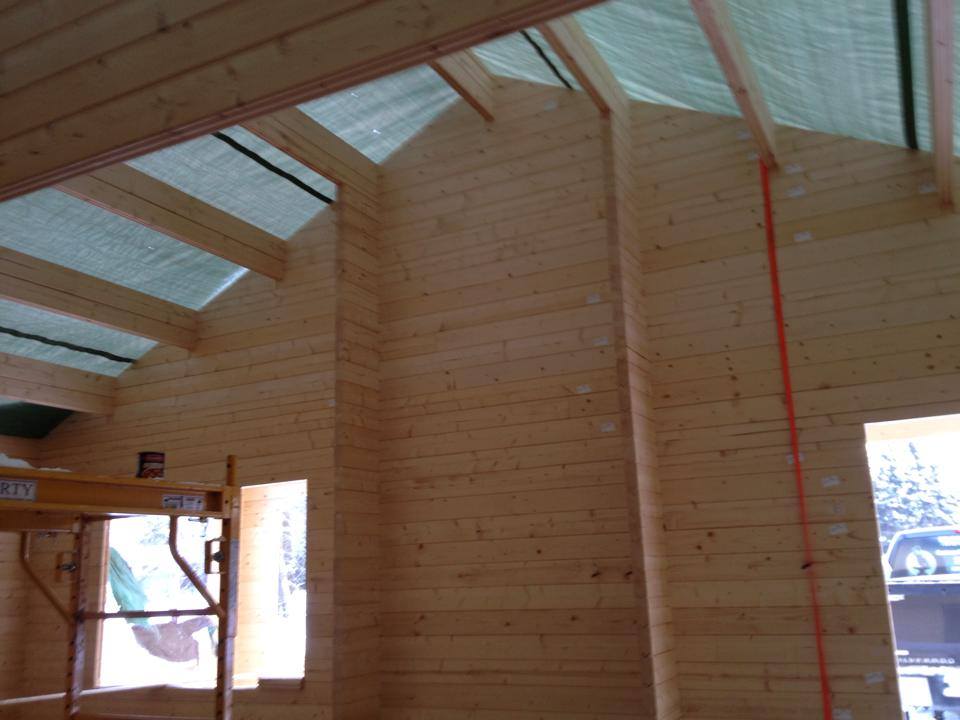

Insulating the roof: This is done using locally supplied materials over the supplied tongue & groove roof boards. Build up to the required depth to house insulation and install metal roofing or shingles. High density spray foam provides maximum benefits,  highest R-value for thickness & is water proof

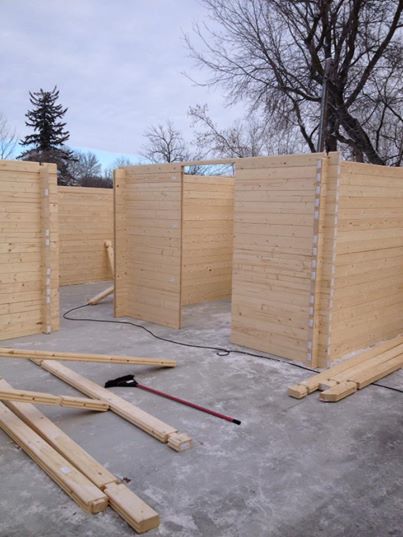

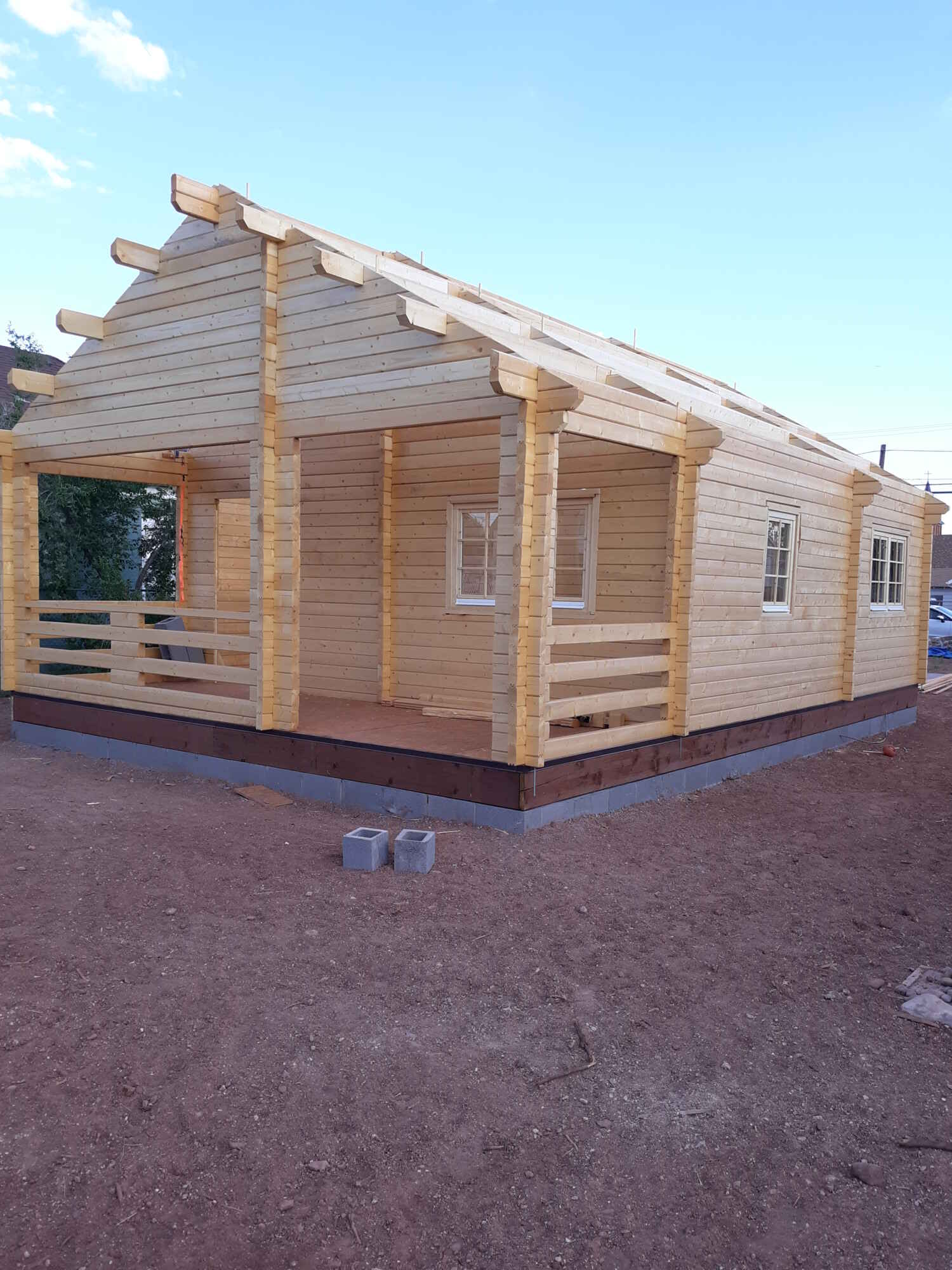

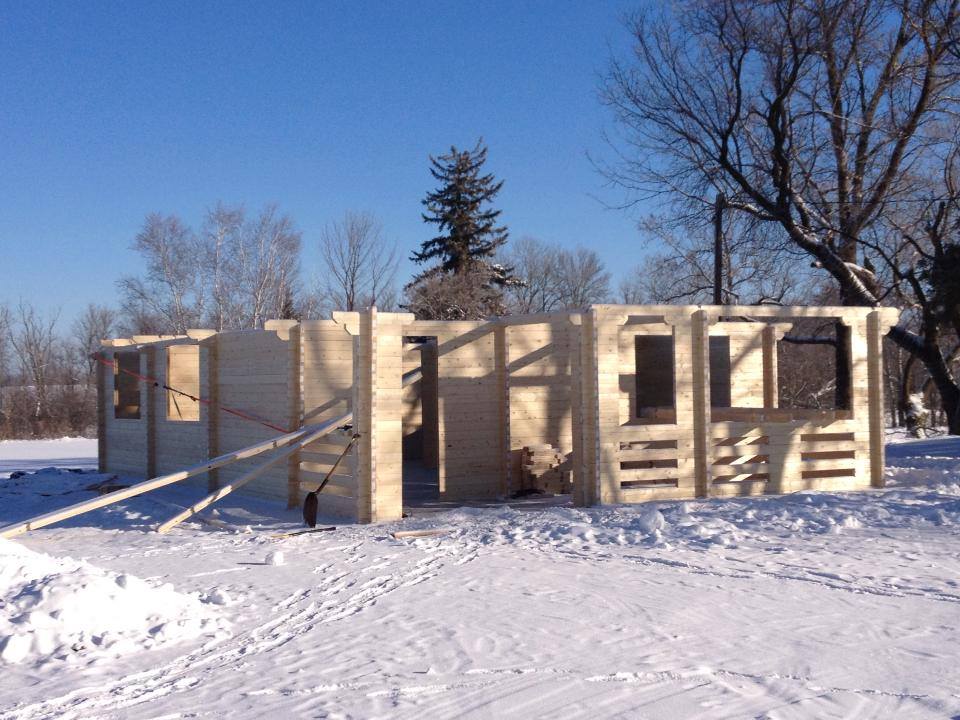

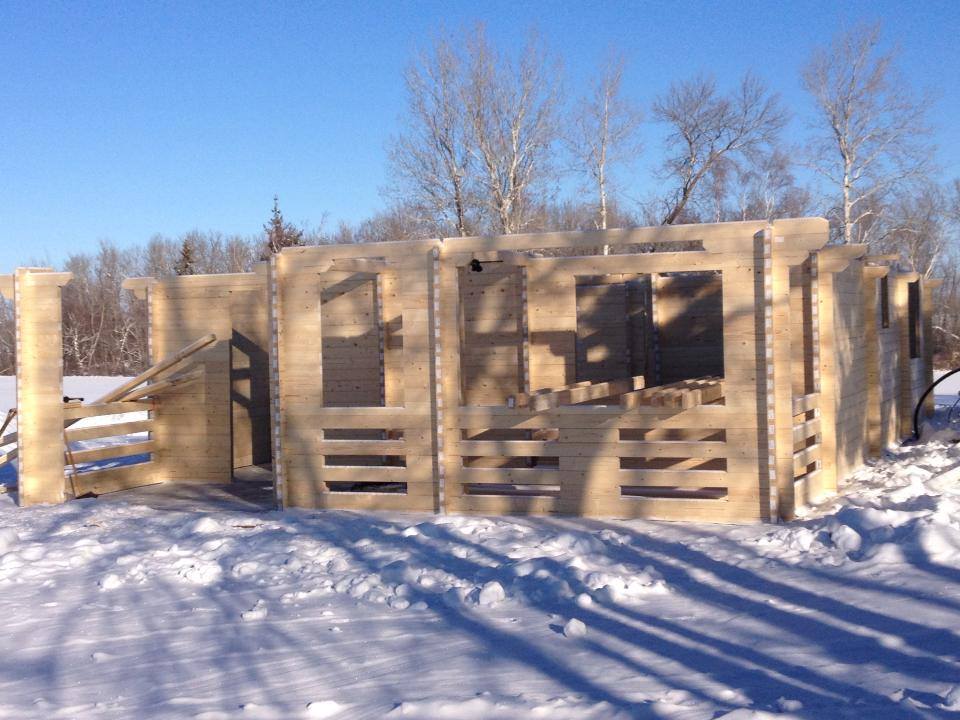

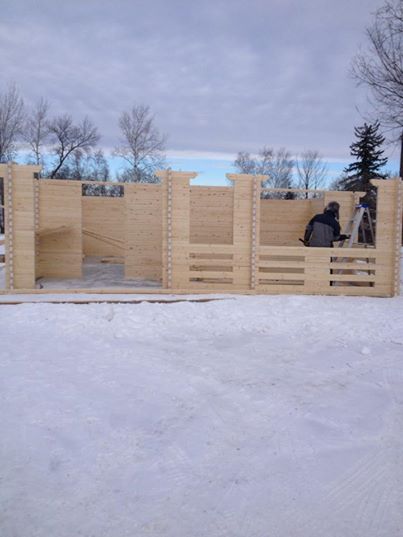

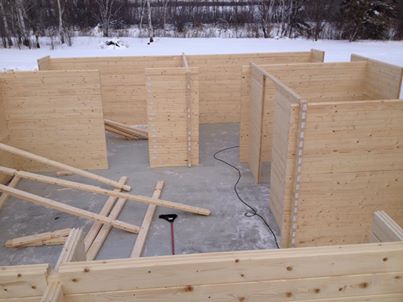

Assembly: This model can be assembled in 8 days or less with 3 people. Kit is ready to assemble on a wood floor or concrete slab

Building Codes:  Passes structural codes in USA and Canada.

Tip: House wraps & vapor barriers are required when insulating. Vapor barriers are installed on the warm side of walls, IE: interior of the studs for cold climates, exterior of studs for hot climates

Structural Engineering: Kit includes in-house structural engineering, some regions may require a local engineer to stamp drawings

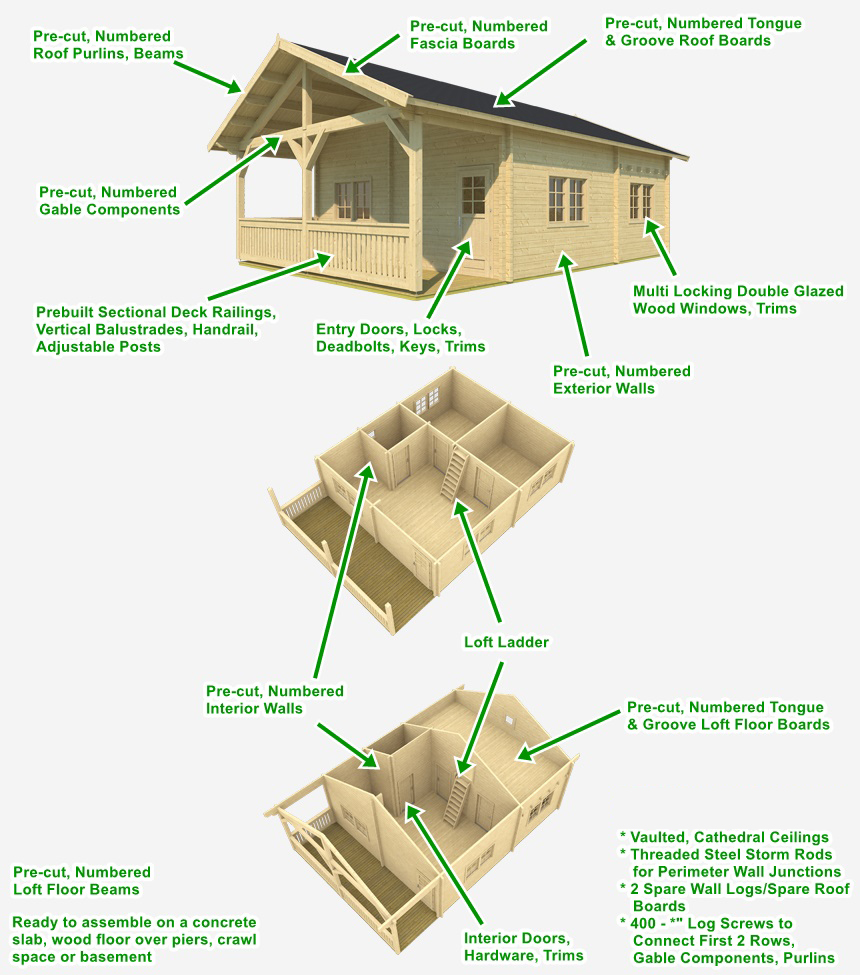

Kit includes:

  • IN-HOUSE STRUCTURAL DRAWINGS

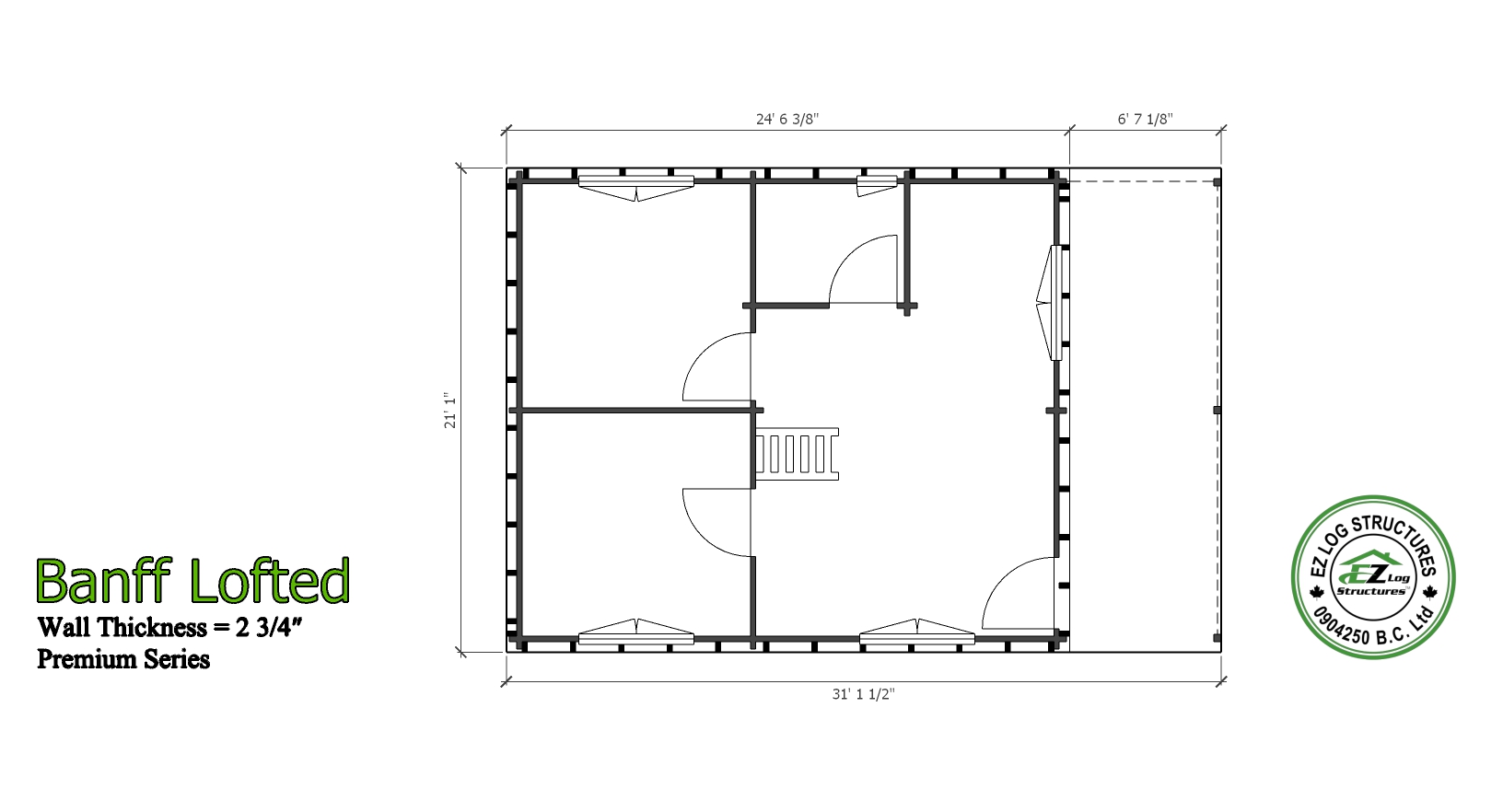

  • no floor ready to assemble on a concrete slab, wood floor over piers, crawl space or basement

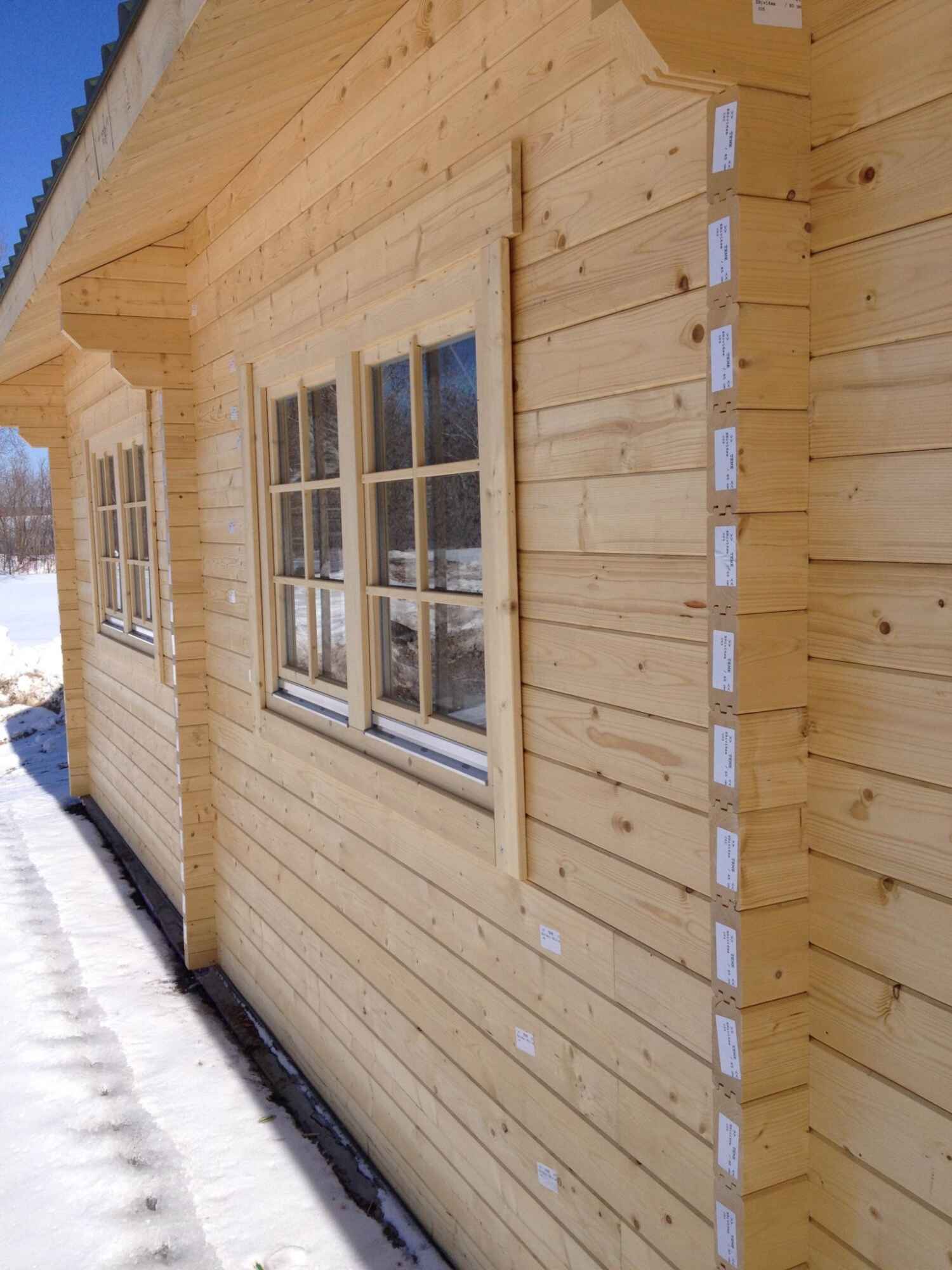

  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • vaulted, cathedral ceilings
  • pre-cut, numbered roof purlins, beams
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered loft floor beams
  • pre-cut, numbered 28mm (1-1/8′) tongue & groove loft floor boards

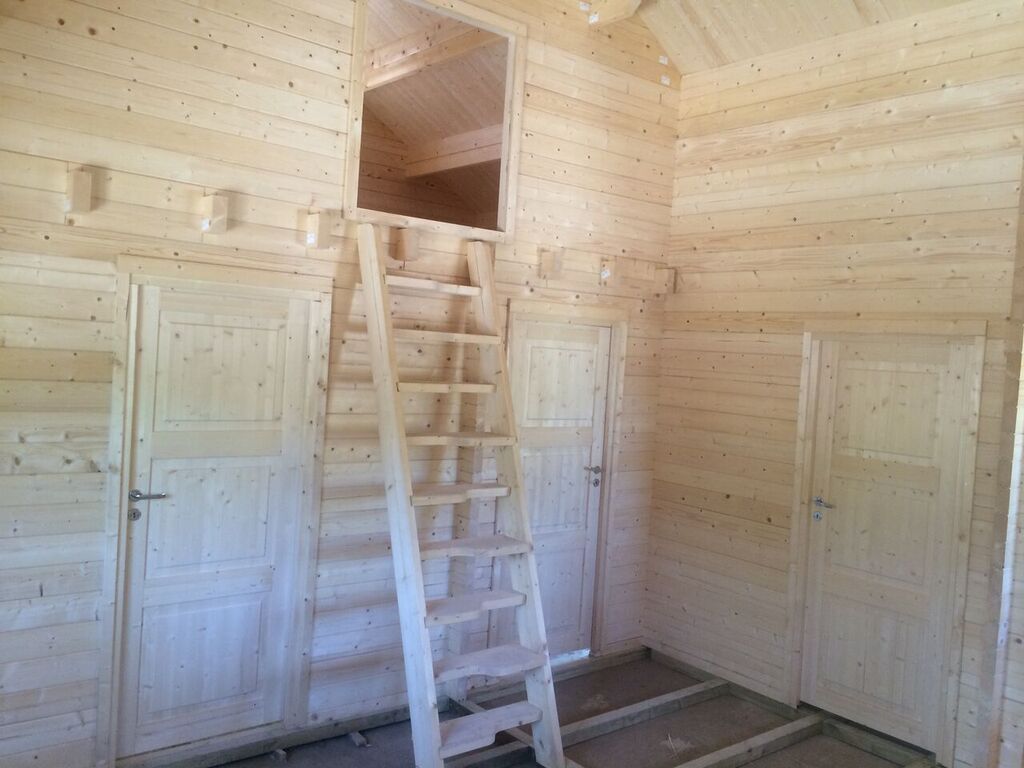

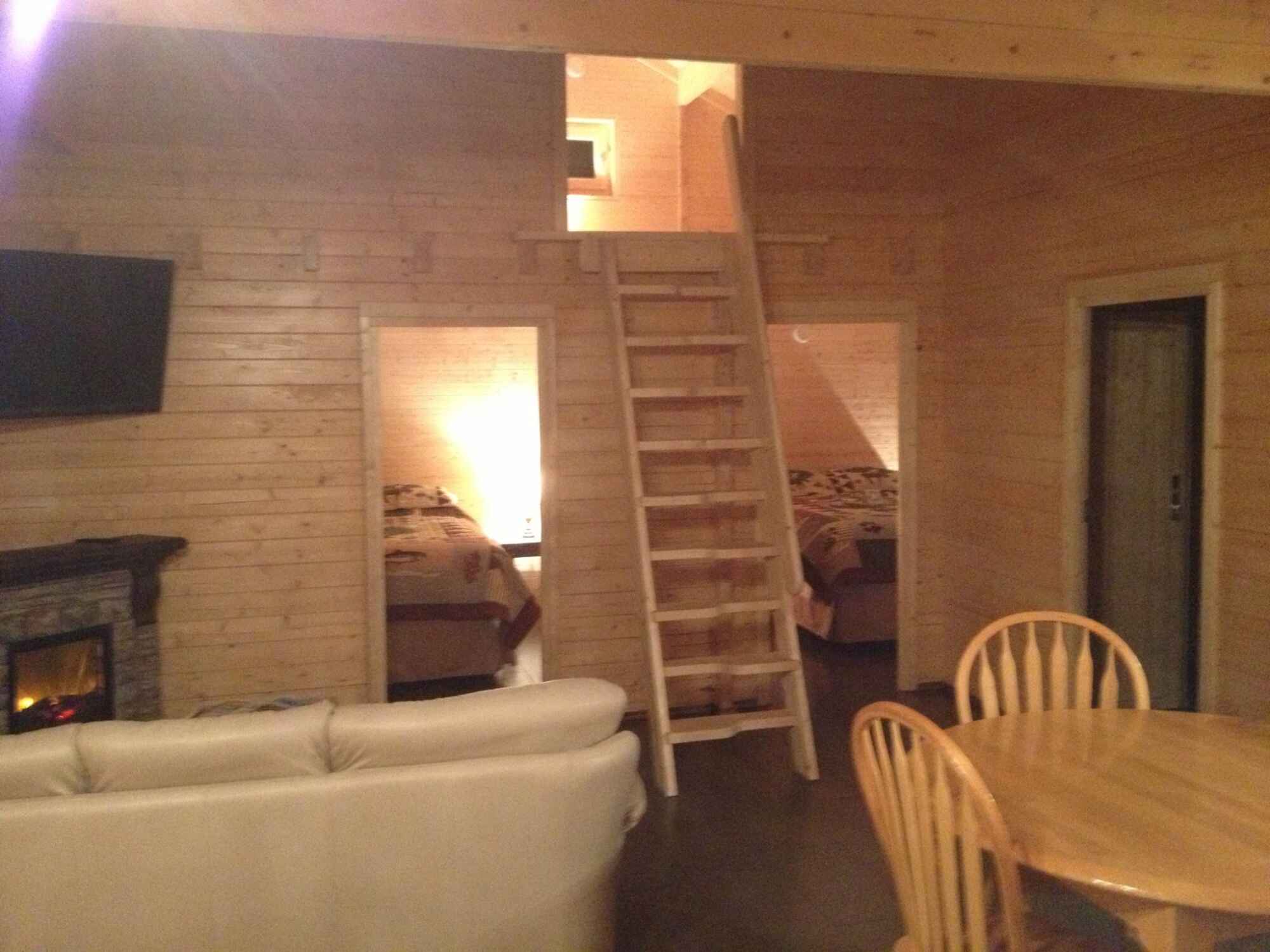

  • loft ladder
  • pre-cut, numbered fascia boards
  • prebuilt sectional deck railings, vertical balustrades, handrail, adjustable posts
  • multi locking double glazed wood windows, trims
  • entry doors, locks, deadbolts, keys, trims

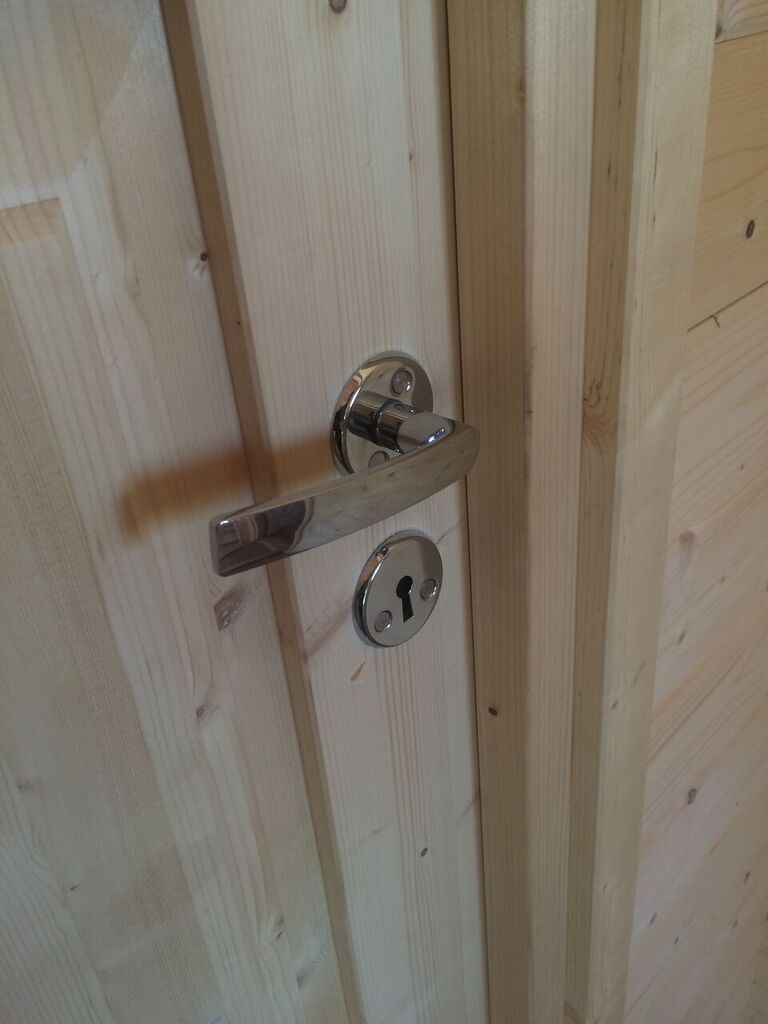

  • interior doors, hardware, trims
  • threaded steel storm rods for perimeter wall junctions
  • 2 spare wall logs, spare roof boards
  • 400- 8″ log screws to connect first 2 rows, gable components, purlins
