Chehalis

167 sq ft
Premium Model
$18,572.00 USD
$23,811.00 CAD
FREE SHIPPING
Bedrooms1
Cabin size219" x 110"
Roof pitch3/12 - 14D
Roof boards3/4"
Size (sq ft)167
Wall height89"
Ridge height103"
Wall thickness2-3/4”

Model Documentation

FREE SHIPPING – some exceptions apply

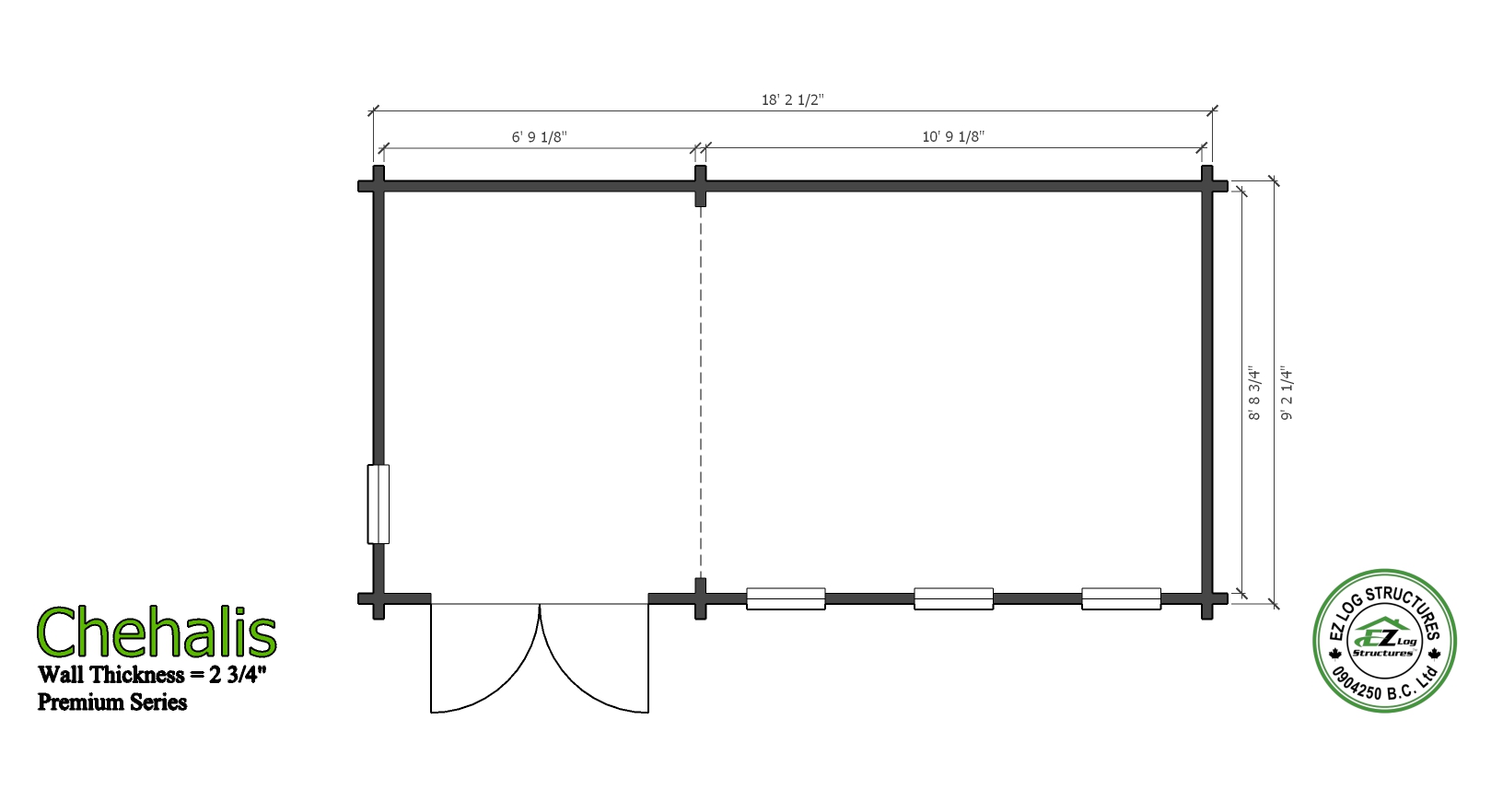

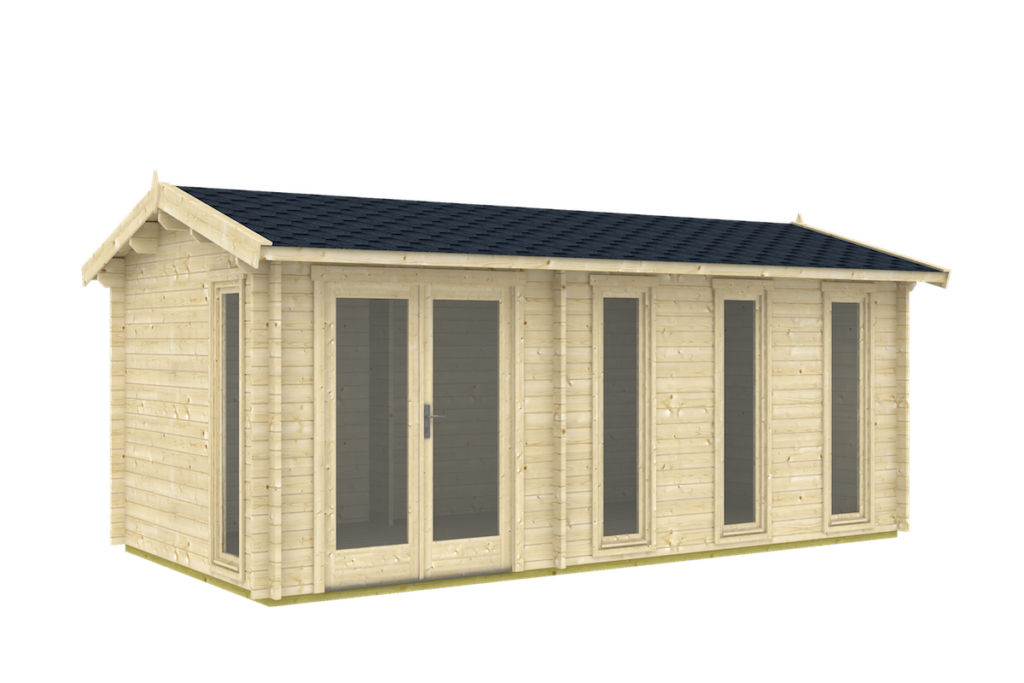

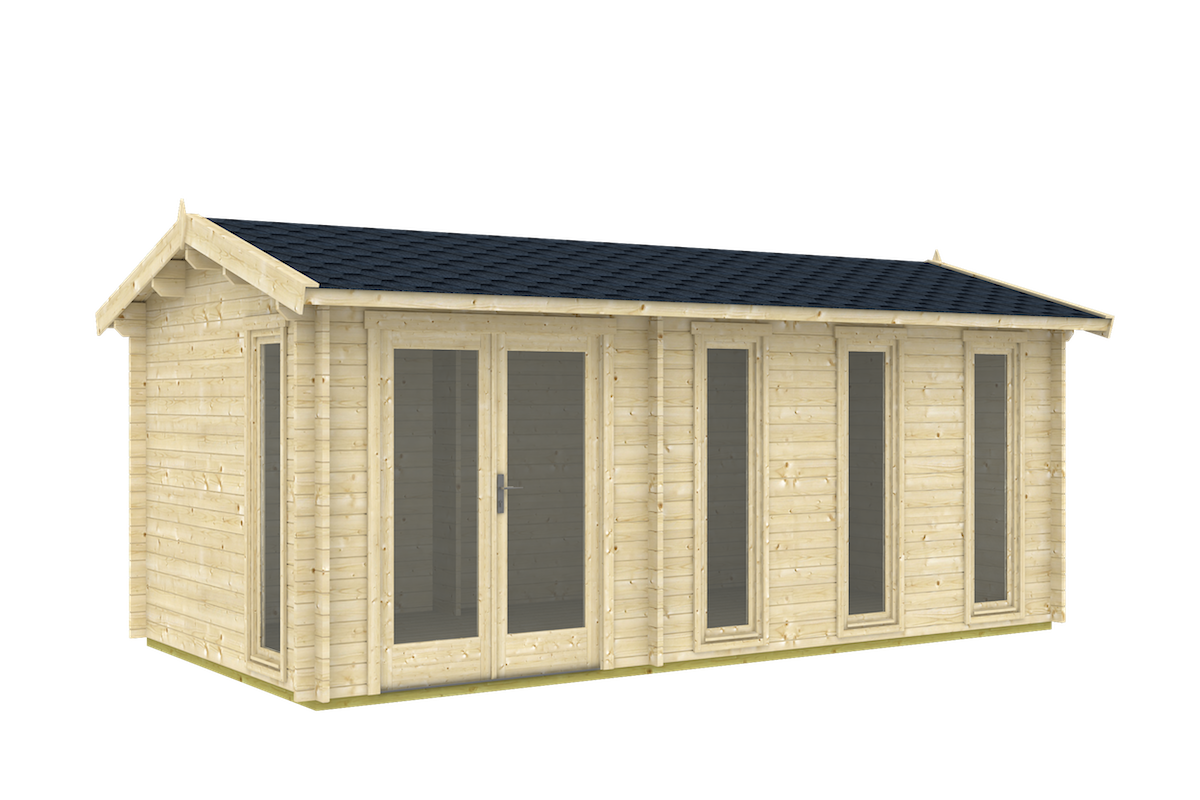

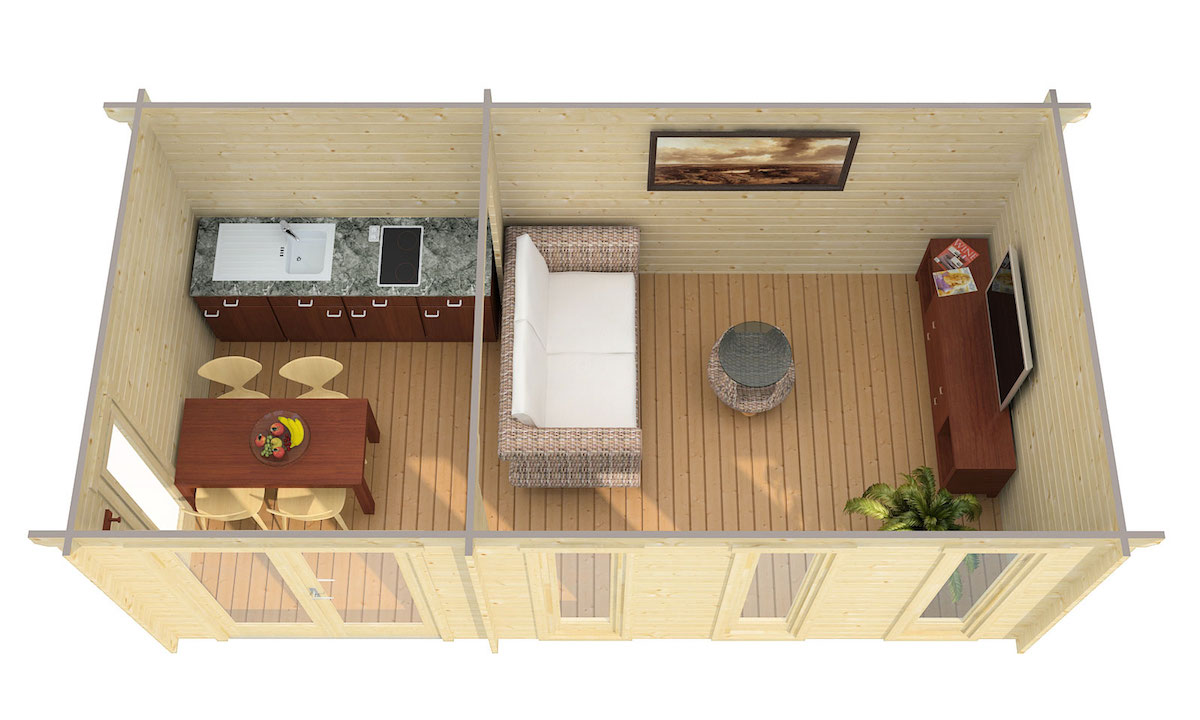

Chehalis is a 1 room cabin, ideal for the lake property, office or guest cabin in the yard. It has vaulted/cathedral ceilings throughout. (sq footage is based the total footprint, living space could be less, see floor plans)

FREE STRUCTURAL ENGINEERING

PREMIUM models include site specific engineering stamped by a licensed engineering firm for roof and wind loads.

Exterior Stud & Siding Options:
Exterior build out kits include: 2×4 or 2×6 studs, stud fasteners, wood siding, corner blocks
(Foundations must be larger to accommodate build out)
Semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm)
Add 10% to sale price
Full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm) Add 14% to sale price

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

Energy efficiency:  Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the overall thermal and comfort benefits

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Insulating the roof: Apply locally supplied materials to add rafters over the tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof. These added rafters also increase the roof load capacity

OPTION A: Upgrade wood windows to triple glazed / Low E / Argon filled glass

  • USD regular price $ 377.00
  • CAD regular price $ 480.00



OPTION B: Upgrade wood windows to maintenance free white PVC windows with triple glazed / Low E / Argon filled glass. NOTE: Exterior rolling shutters are NOT available on this model

  • USD regular price $ 702.00
  • CAD regular price $ 900.00



Assembly: The model can be assembled in approximately 2 days with 2 people

Tip: House wraps & vapor barriers are required in most regions when insulating

Building Codes: Premium series homes & cabins are manufactured to meet all structural requirements for building codes including, California Title 24, earthquake, heavy snow load regions and hurricane zones

Kit includes:

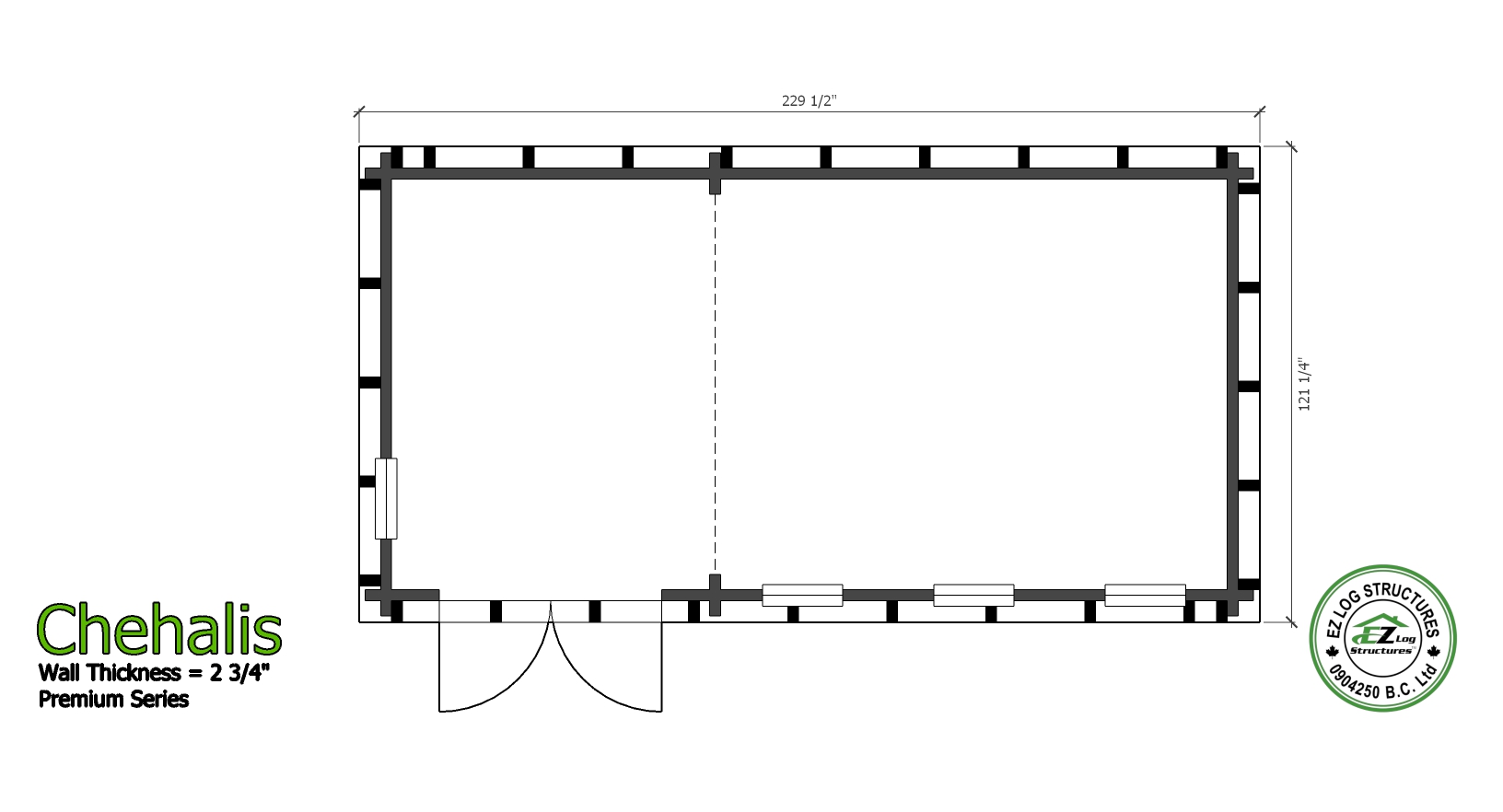

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 3/12 roof pitch (14 degrees)
  • vaulted, cathedral ceilings
  • pre-cut 100mm x 200mm (4″x8″) numbered glulam floor beams, spaced 558mm (22″) or less
  • pre-cut loft floor boards 28mm (1-18″)
  • pre-cut, numbered fascia boards
  • 4 single wide wood windows 515mm x 1890mm (20″x 74″)
  • 1 exterior double door 1550mm x 2040mm (61″ x 80″) full glass tempered, multi locking hardware
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
