Fergus 3

360 sq ft
Premium Model
$30,757.00 USD
$39,432.00 CAD
Rooms
Bedrooms1
Bathrooms1
Cabin sizes
Cabin size360" x 144"
Roof & floor
Roof pitch3/12 - 14D
Roof boards3/4"
Package, area, vol ect.
Size (sq ft)360
Volume980

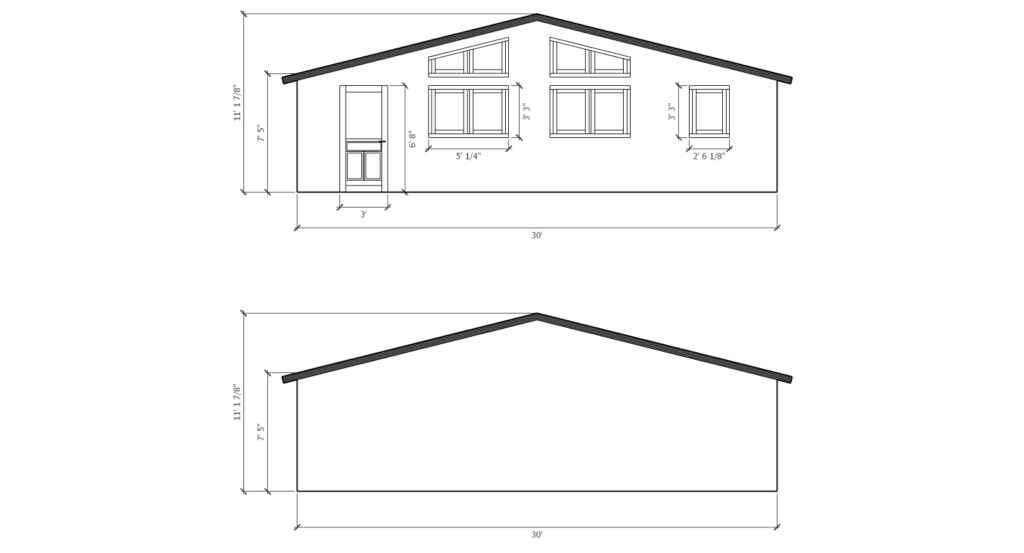

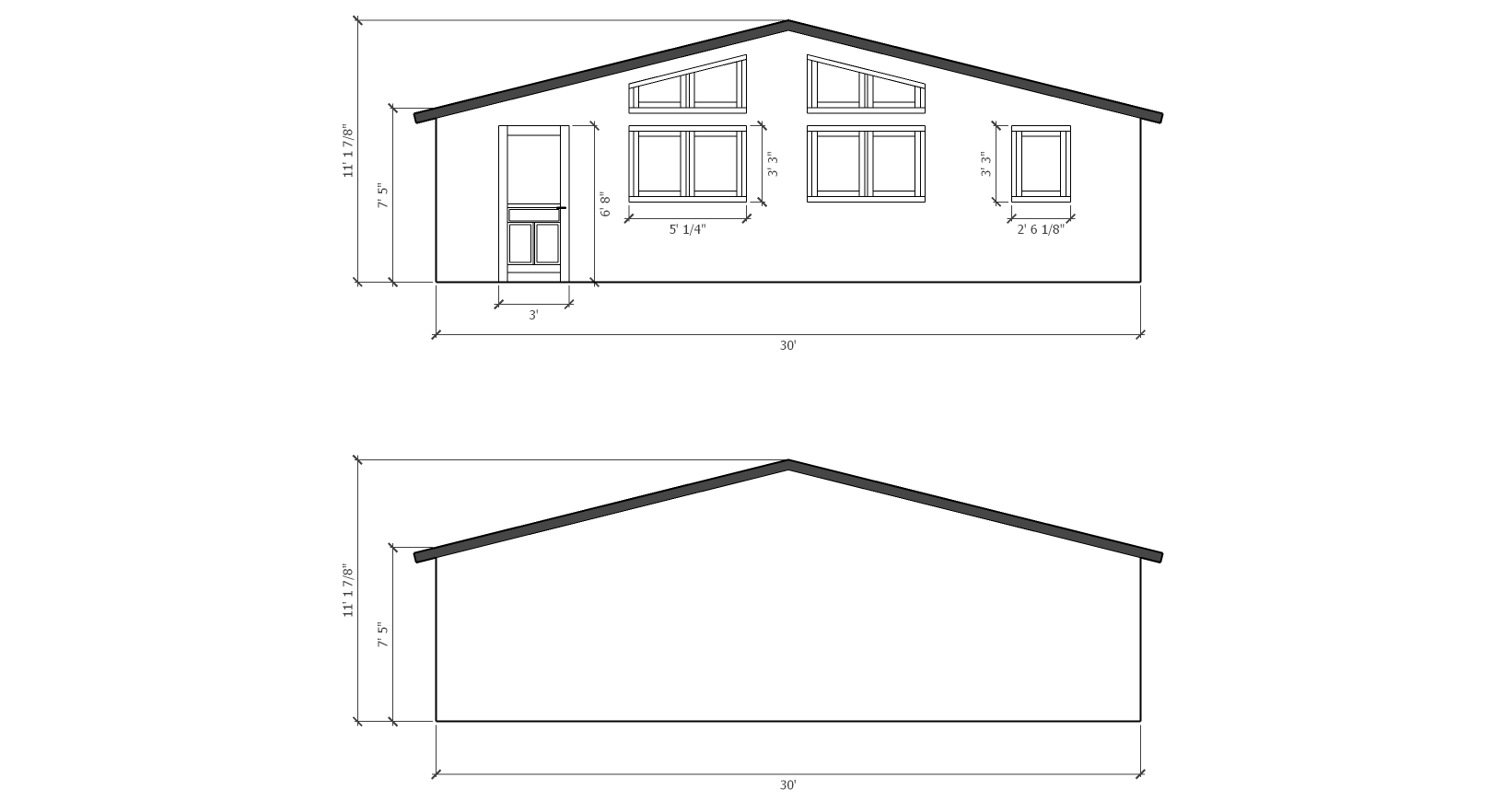

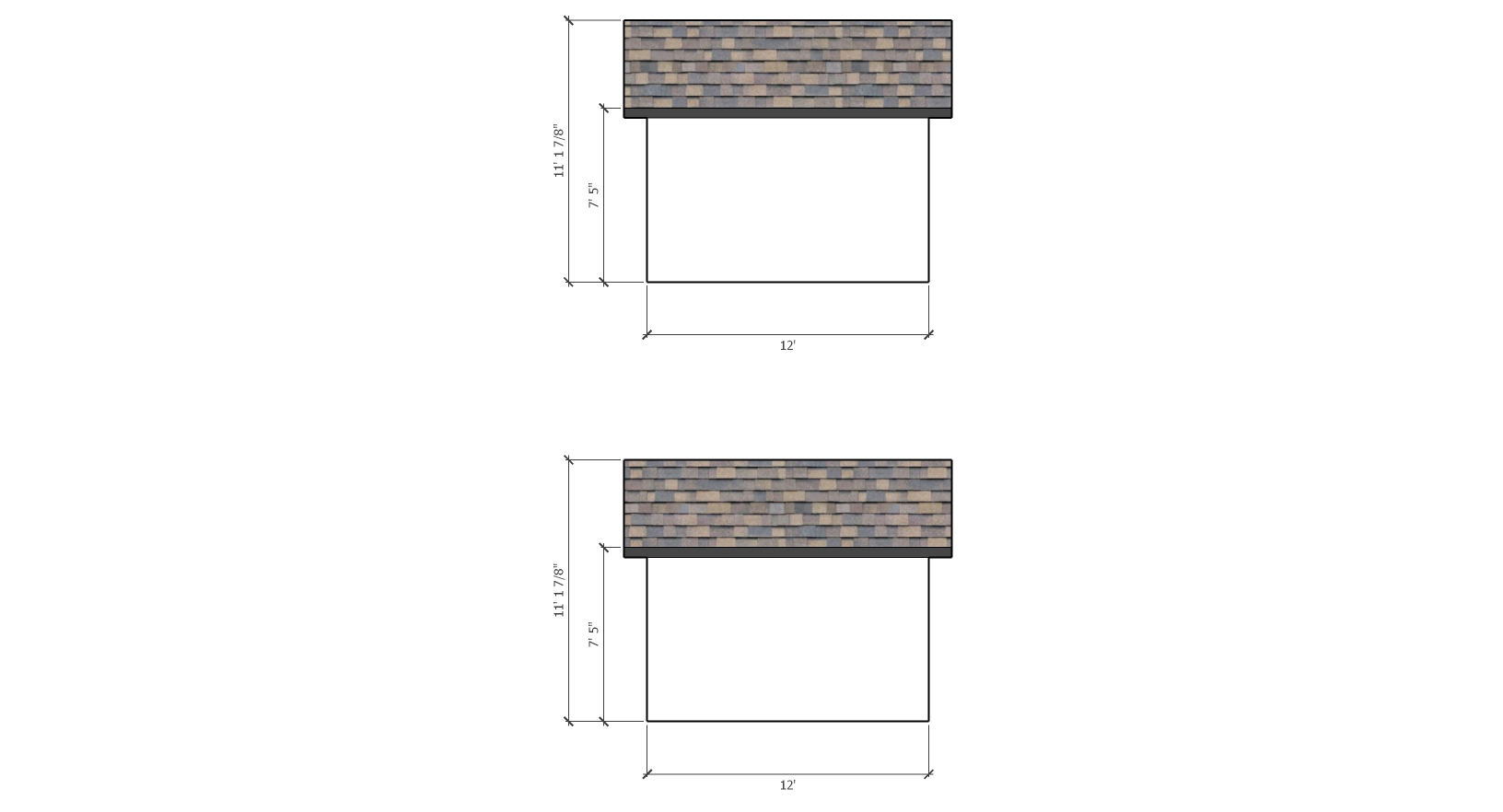

Wall height89"
Ridge height133"
Wall thickness2-3/4"
Contact Us
LOADING & UNLOADING
ASSEMBLY & INSULATING
TIPS FOR ASSEMBLY

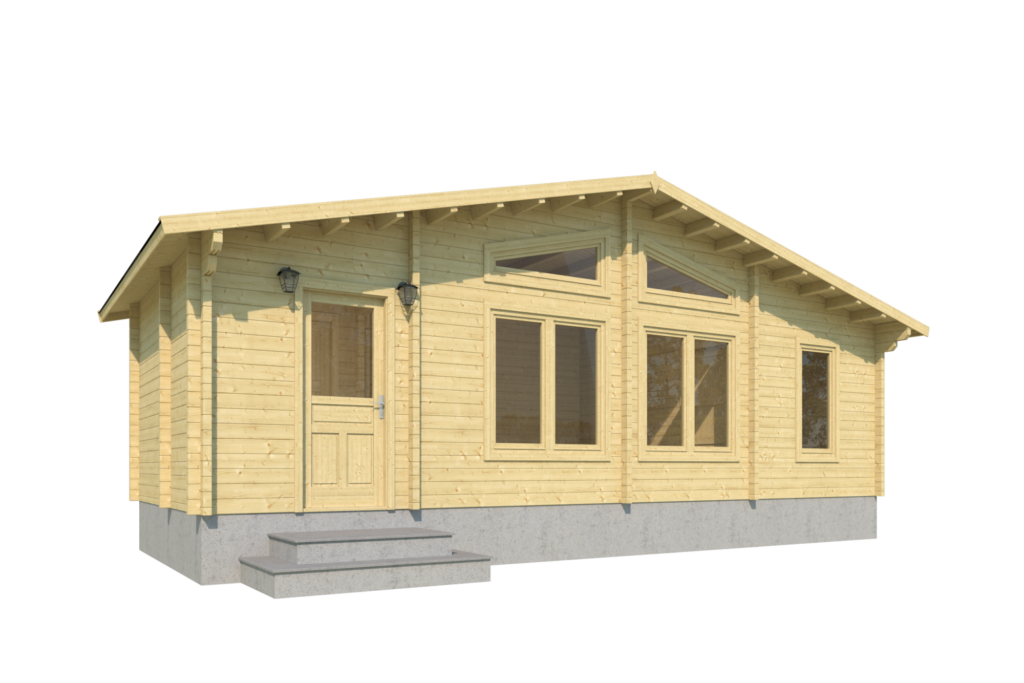

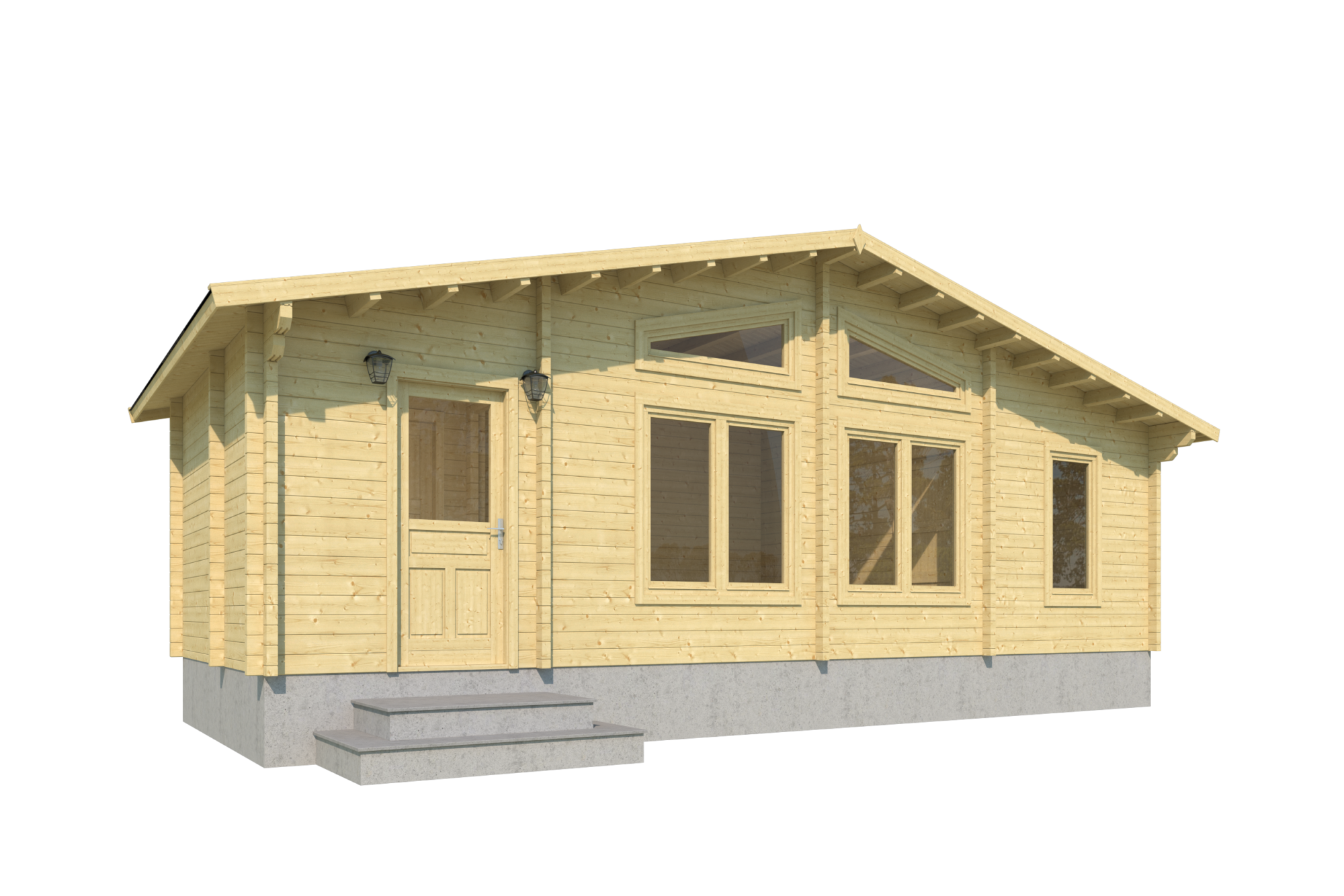

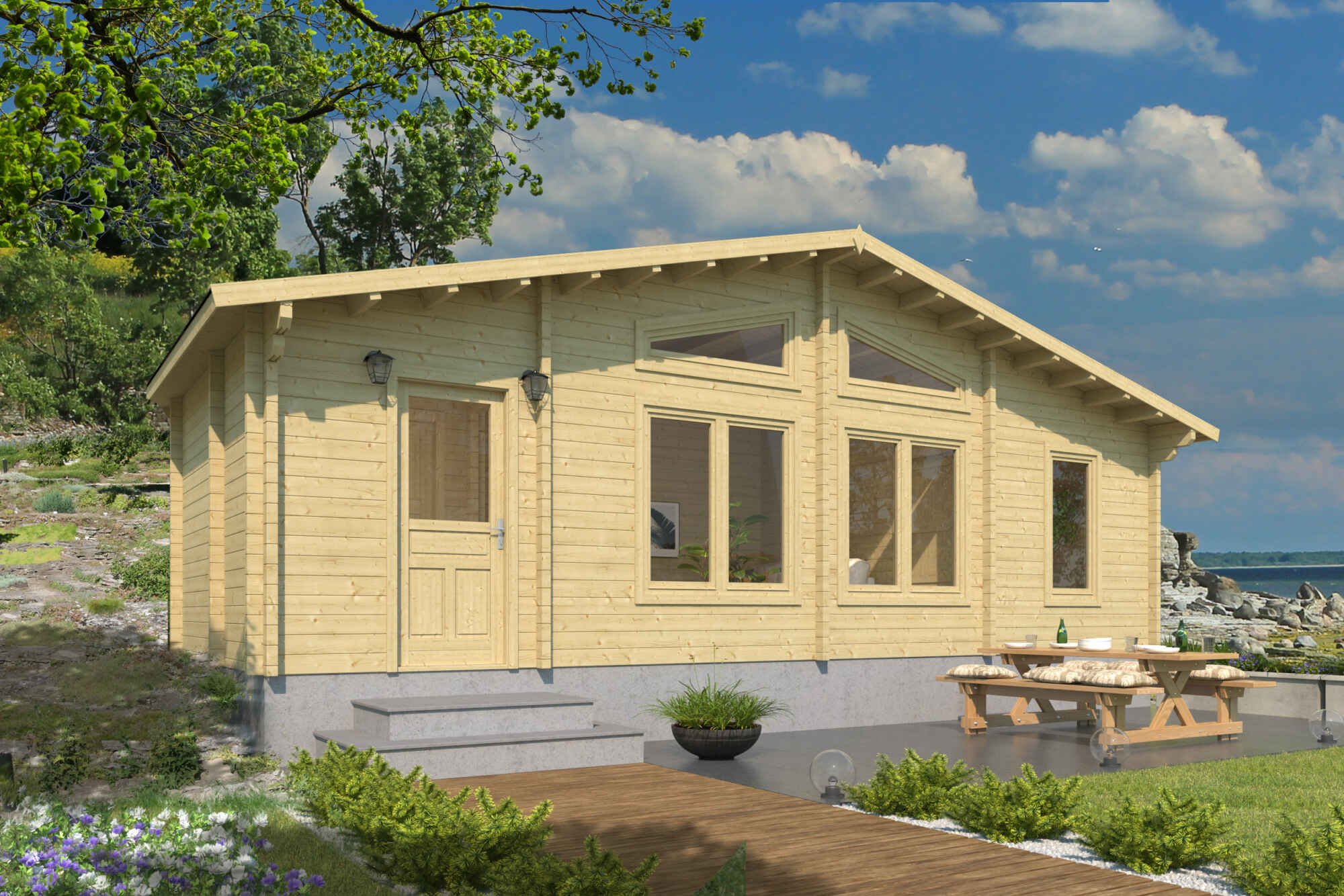

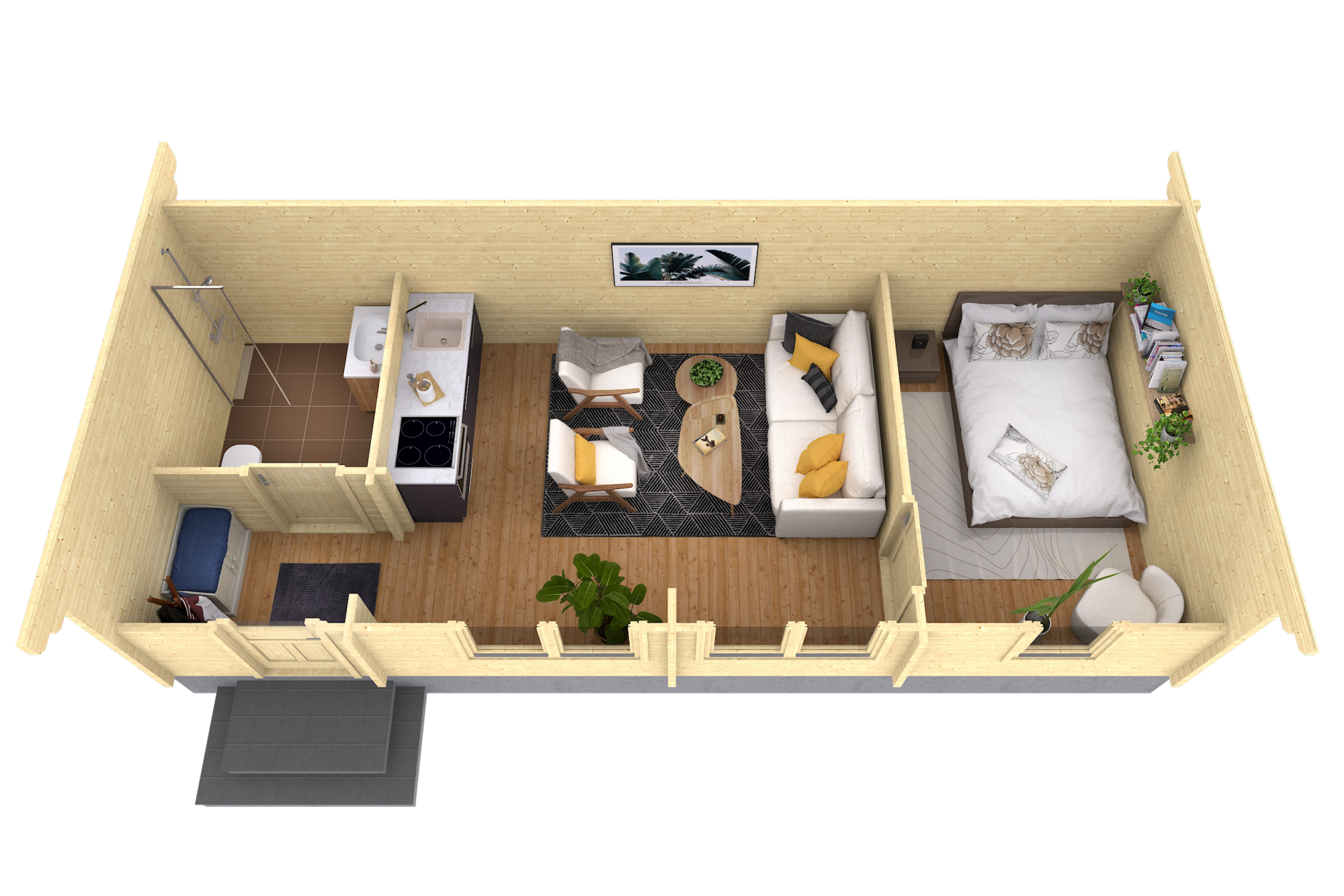

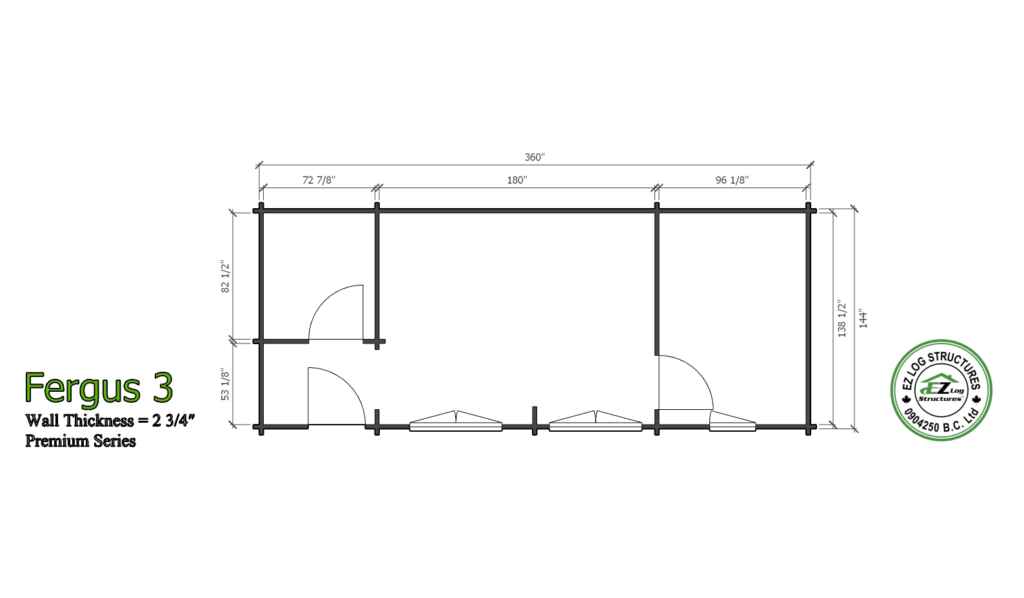

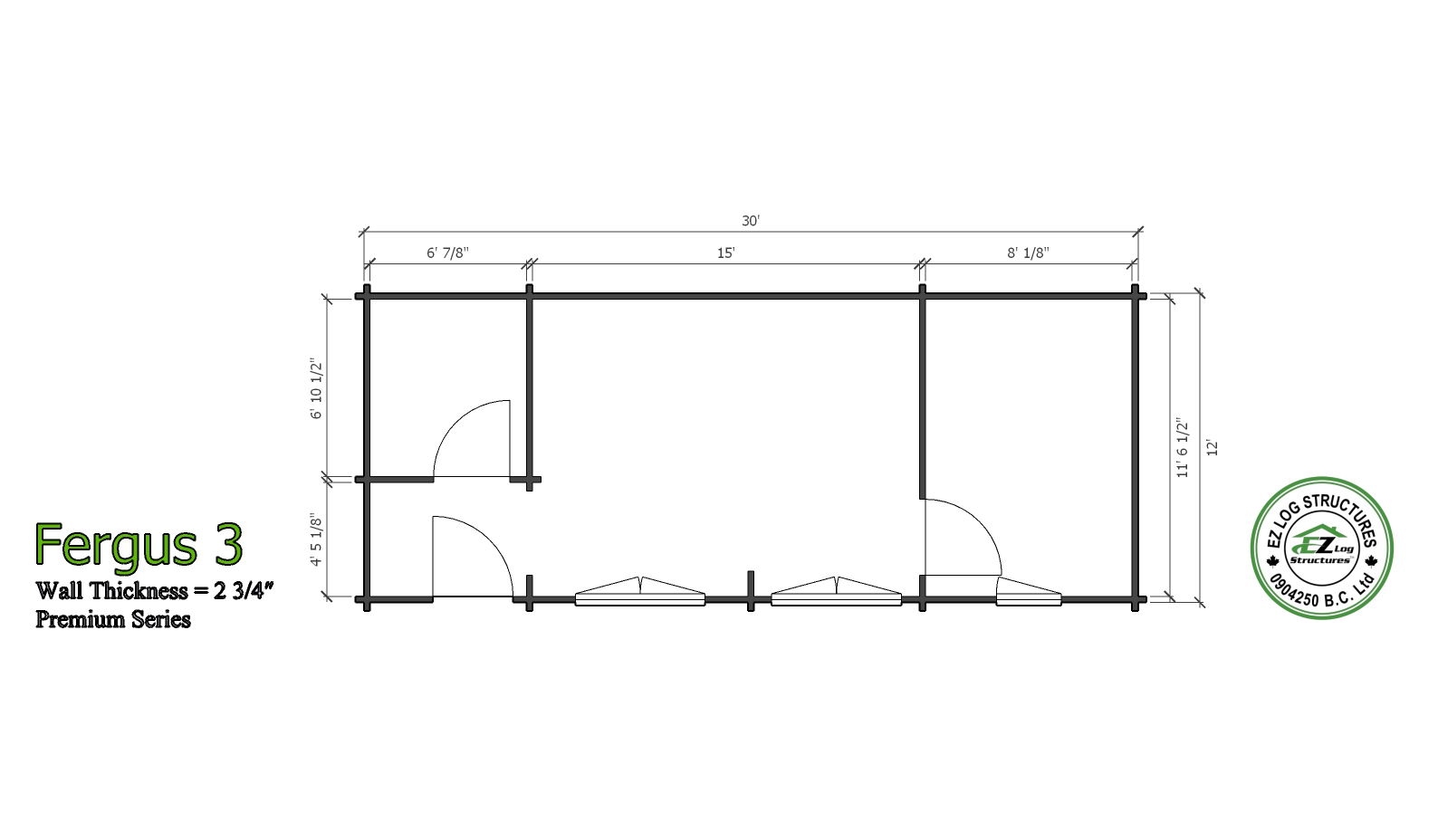

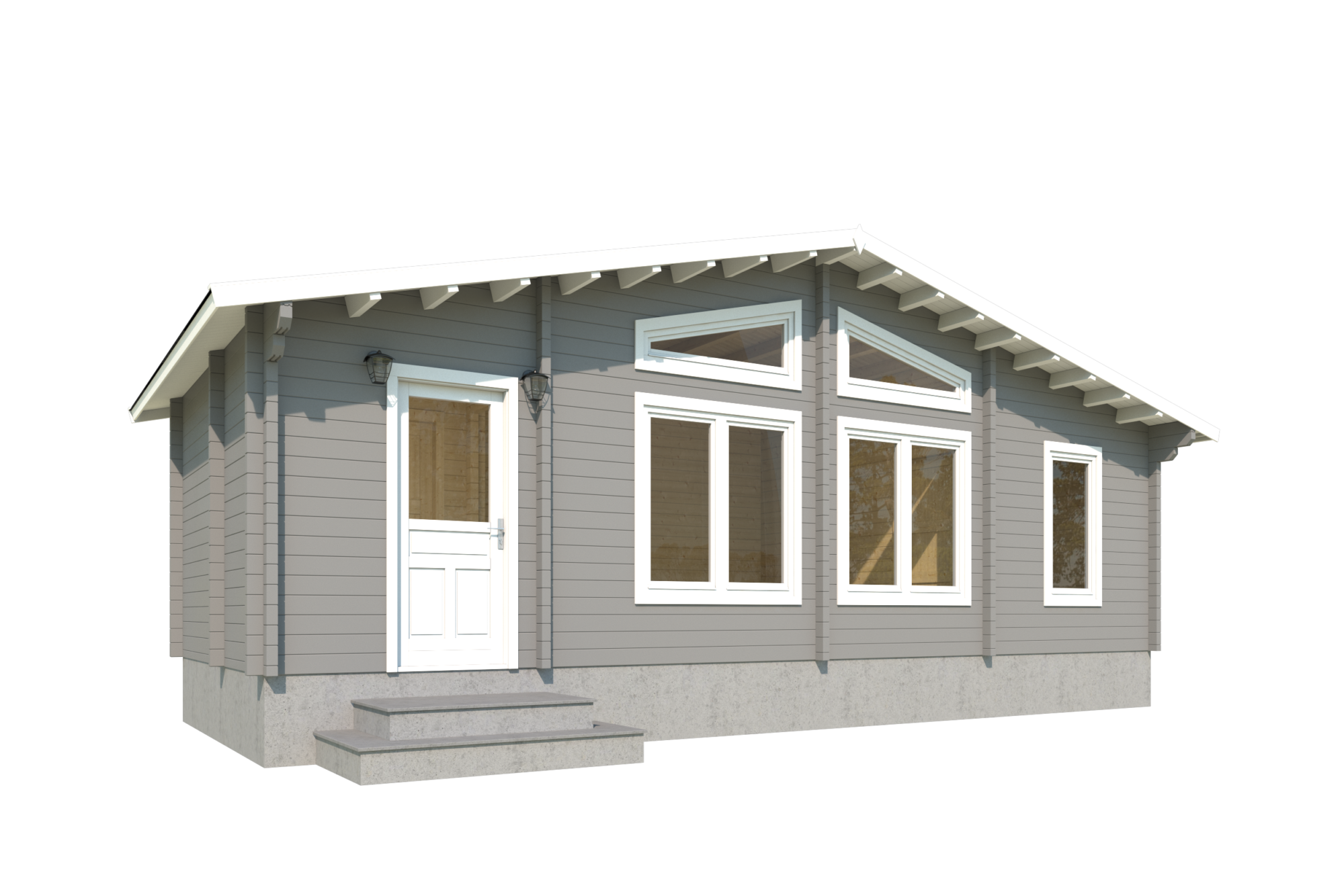

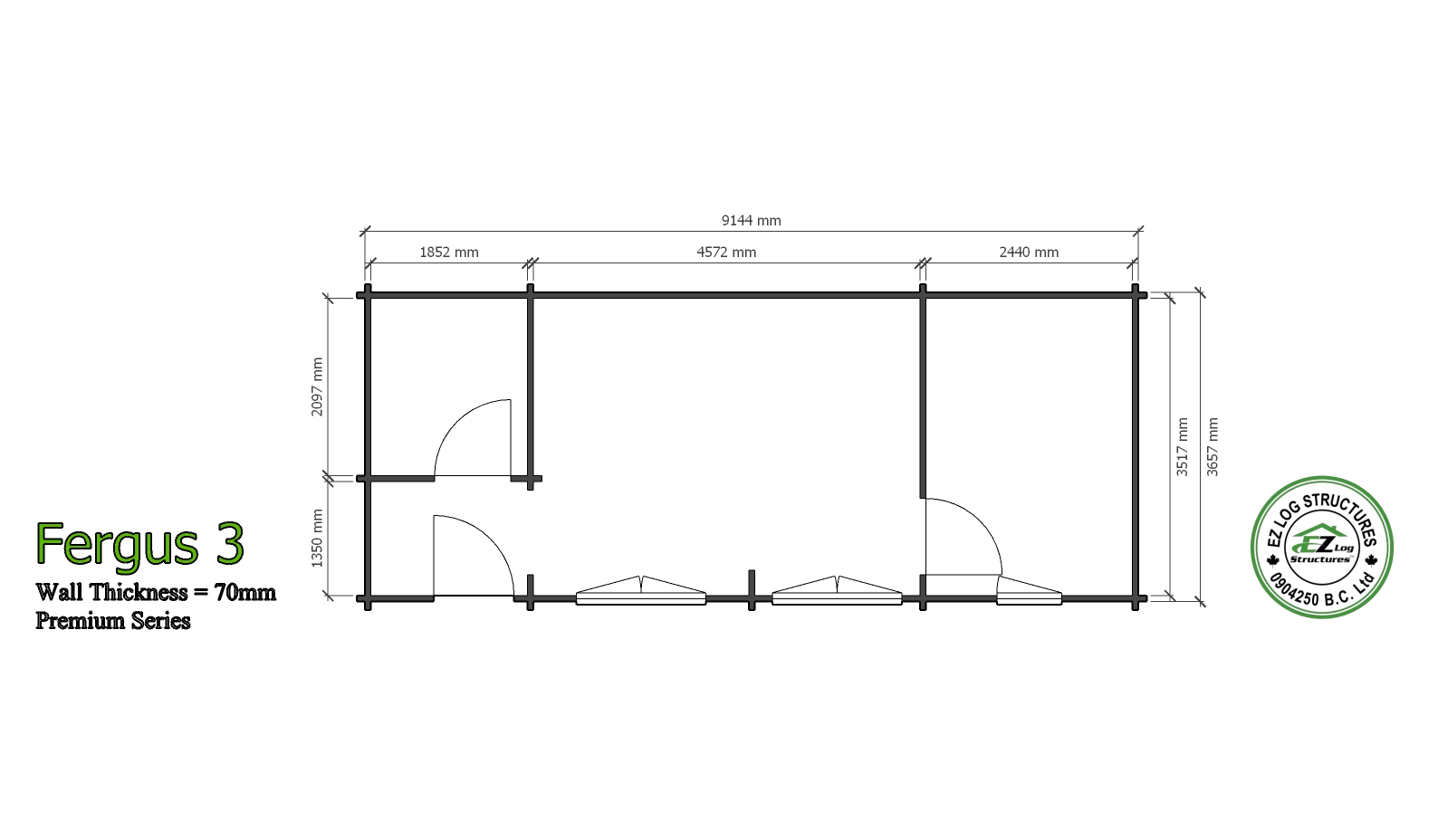

Fergus 3 is an ideal modern tiny home at 30′ x 12′ – 360 sq’, 1 bedroom, 1 bathroom with an open living space. The vaulted/cathedral ceilings provide a grand interior throughout the entire home



Kit includes:
  • ready to assemble on a concrete slab or wood foundation
  • pre-cut numbered exterior walls (70mm) 2 3/4″
  • pre-cut numbered interior walls (70mm) 2 3/4″
  • pre-cut, numbered gable components
  • 3/12 roof pitch (14 degrees)
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) numbered roof purlins, beams, spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 980 total sq’ of wall area
  • 735 sq’ of exterior wall surface
  • 108 lineal’ per row
  • 2 interior doors 812mm x 2040mm (32″x80″)
  • 1 single wide wood window 765mm x 1530mm (30″x 60″)
  • 2 double wide wood windows 1530mm x 1530mm (60″x 60″)
  • 2 rake/angled windows 1530mm x 762mm (60″x30″)
  • 1 exterior door 950mm x 2080mm (36″x80″) 1/2 glass tempered
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped for sequence of assembly
  • SHIPPING request a quote

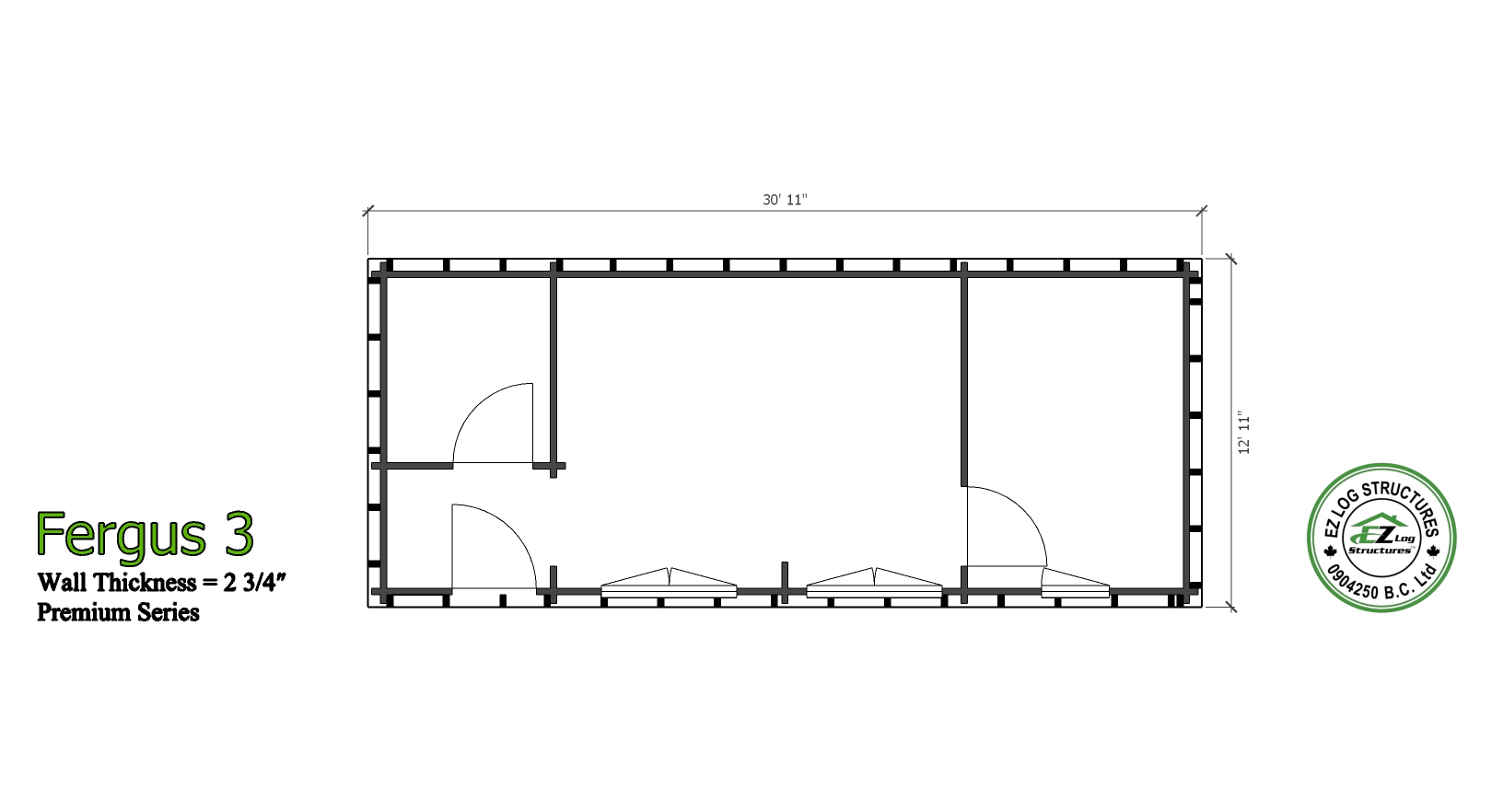

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING

EXTERIOR STUD & SIDING KITS

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.



We offer 3 types of siding kits to cover the exterior of the home or cabin: EZ Log Semi D-Log tongue & groove wood siding, EZ Log Full D-Log tongue & groove wood siding & a heavy duty maintenance free extruded PVC polymer siding



Each kit includes: 2×6 studs, stud screws, siding, corner blocks, trims & extending the roof overhang 6″













1) ADD 10% – Semi D-Log siding (Max)  3/4″ x 5-1/8″ (18mm x 130mm)

































2) ADD 14% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)

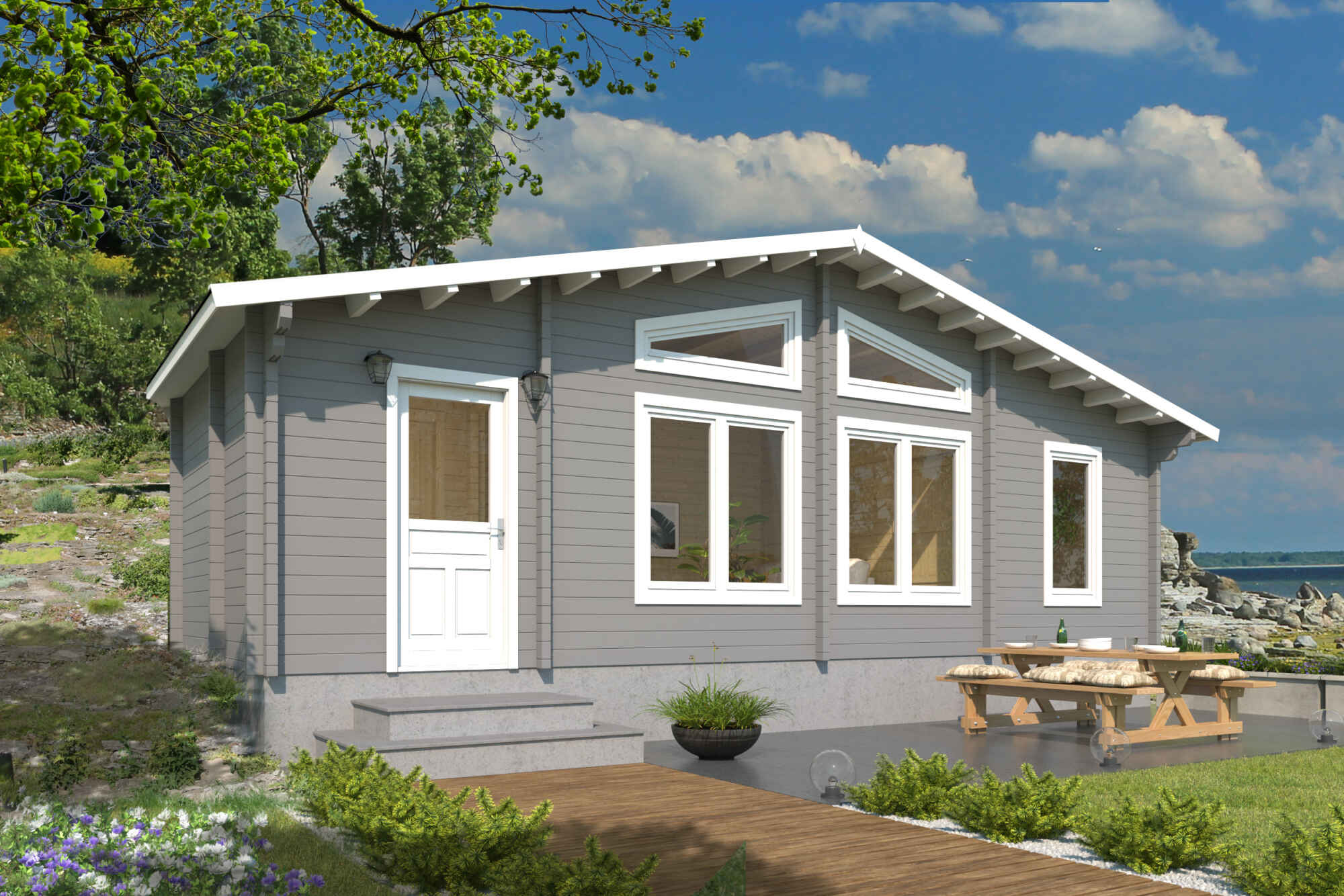

Elevation siding in three options: brown wood imitation, gray wood imitation, and beige wood imitation, offering a variety of finishes that replicate the look of natural wood. PVC polymer siding.













3) ADD 20% – Vox extruded prefinished PVC polymer siding 5/16″ x 13″ (7mm x 330mm)





























































































































PVC siding can be applied horizontally or vertically












Window Options:
































































1) Kit includes double glazed residential grade wood windows. To upgrade all windows to triple glazed/Low E/Argon gas filled (7 sash)


Add – $ 764.00 USD


Add – $ 980.00 CAD














OR





PVC window - white frame. PVC window with built-in external shutters. Shutter window.





2) Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)


Add – $ 1,638.00 USD


Add – $ 2,100.00 CAD
