Request A Quote

Garage 1420

280 sq ft
Premium Model
$9,844.00 USD
$12,005.00 CAD
Exterior

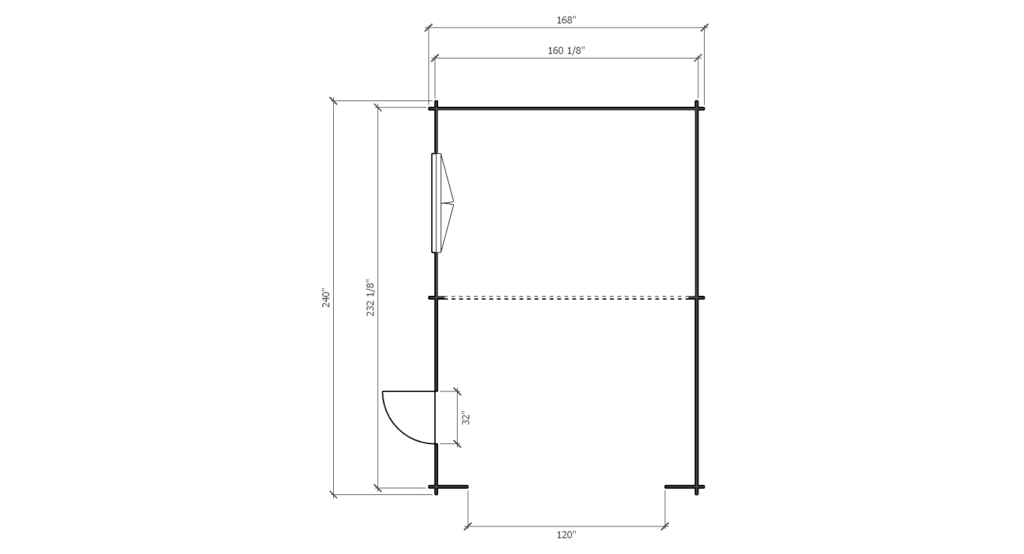

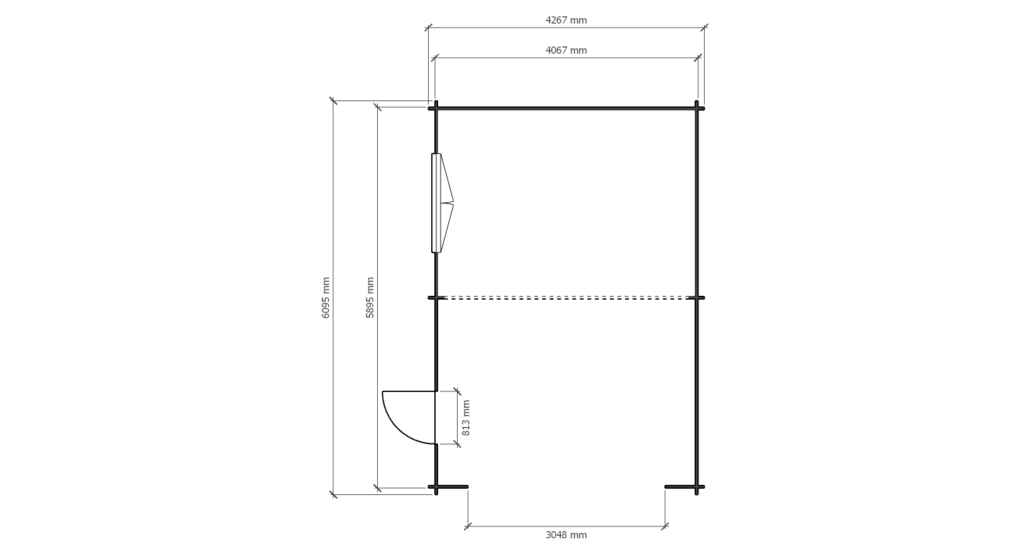

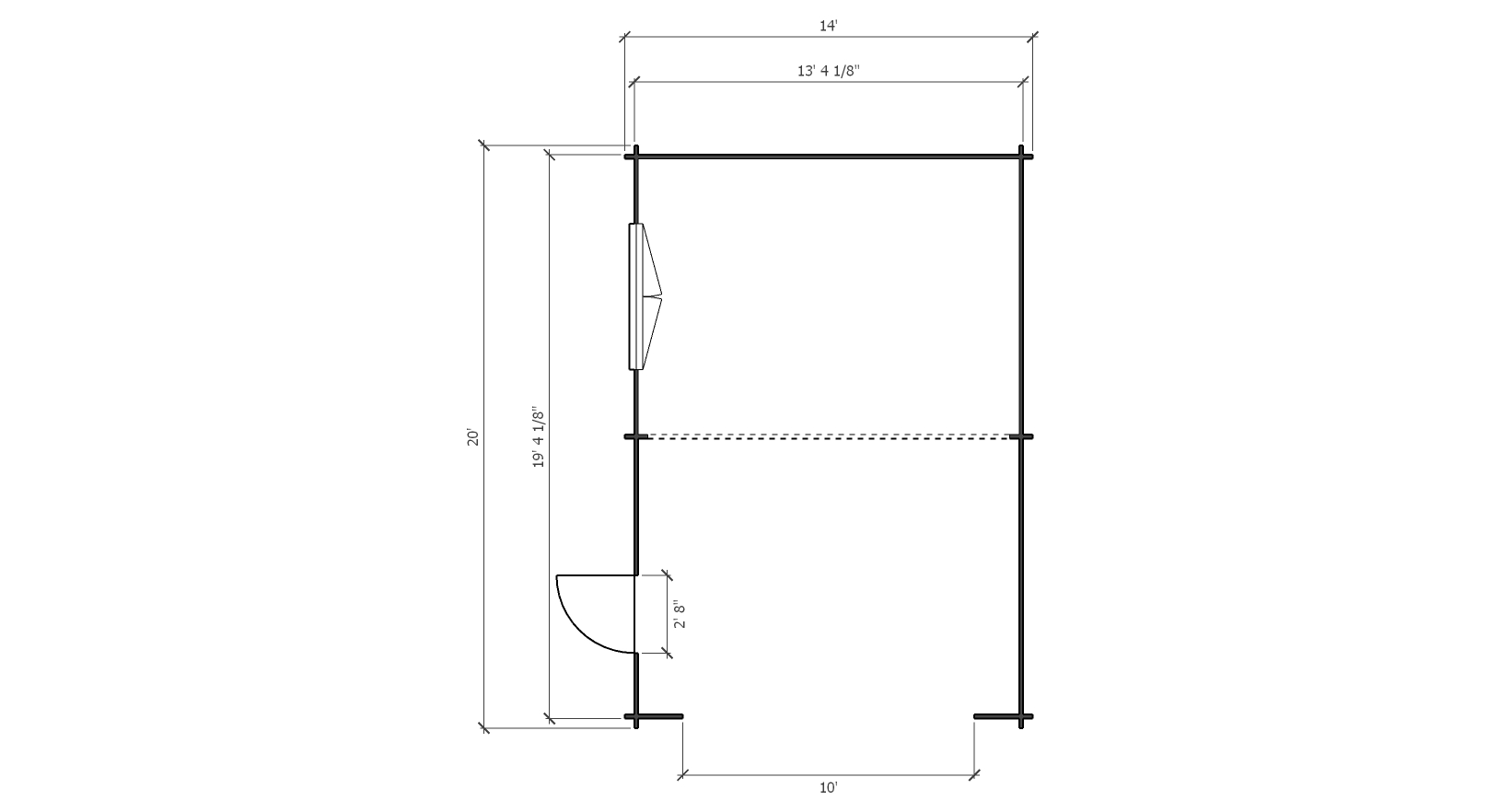

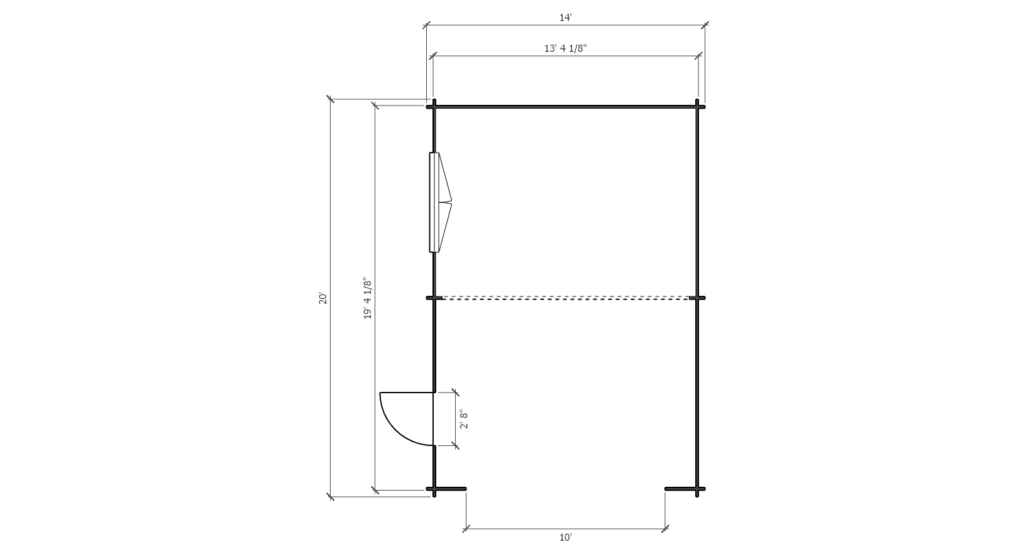

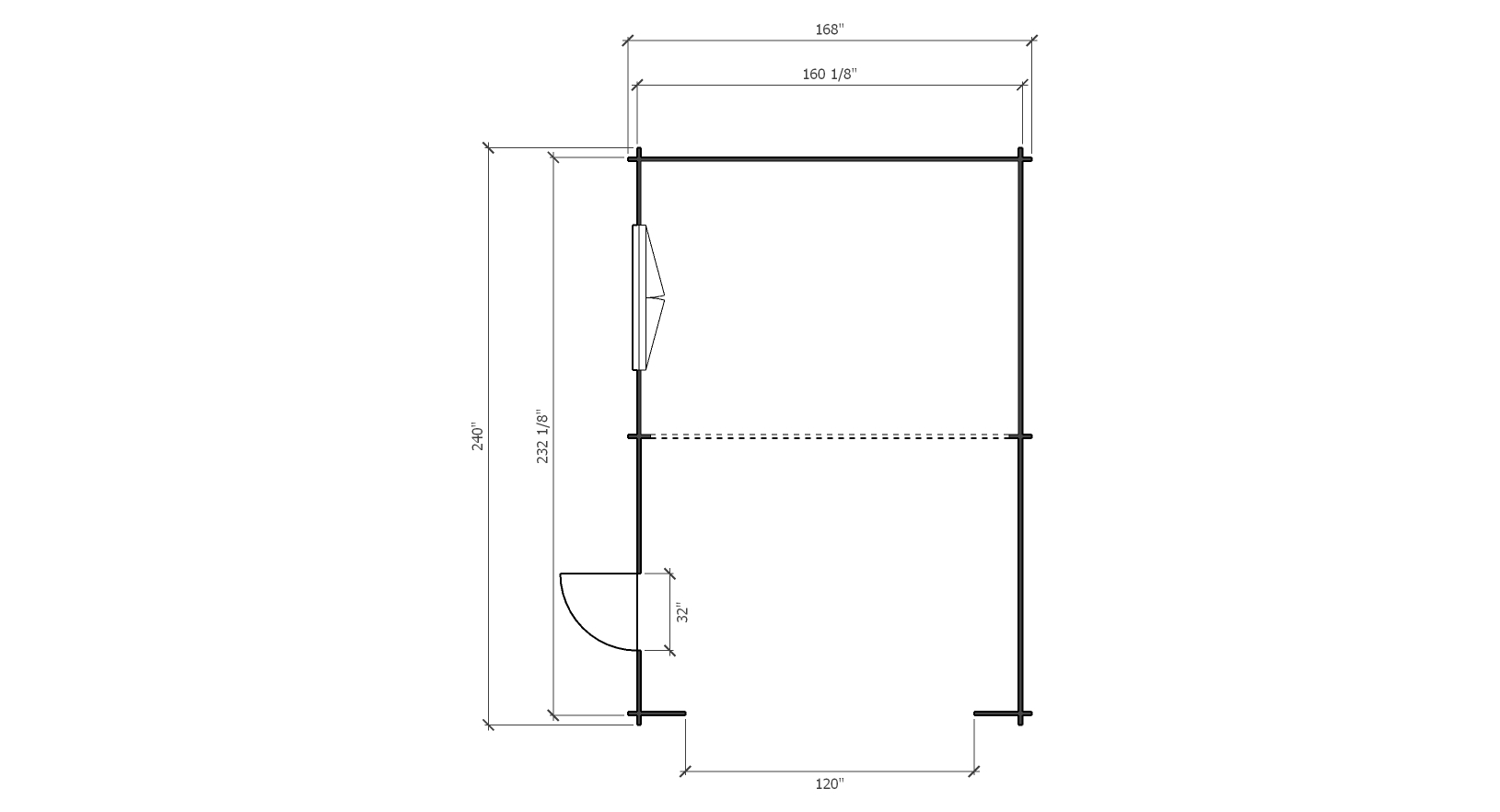

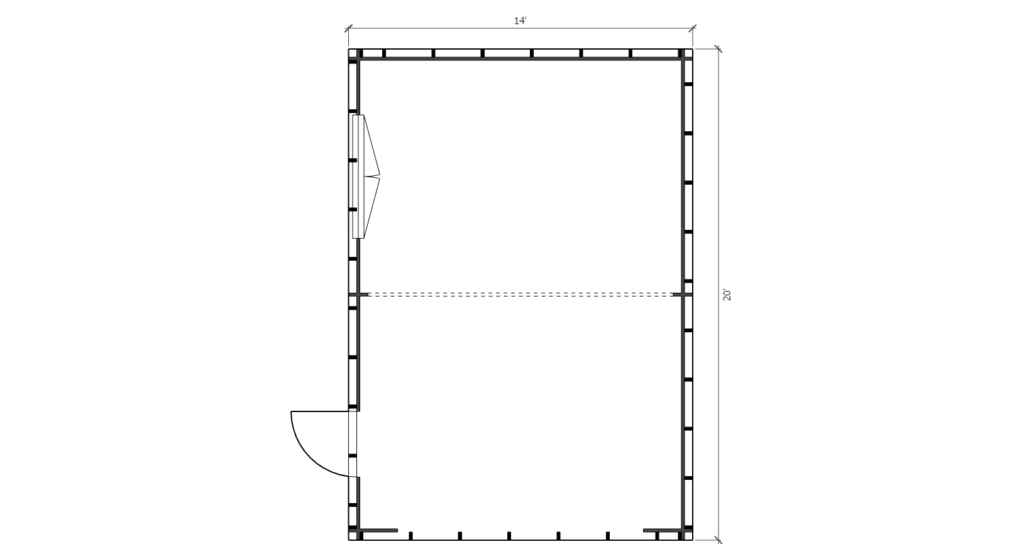

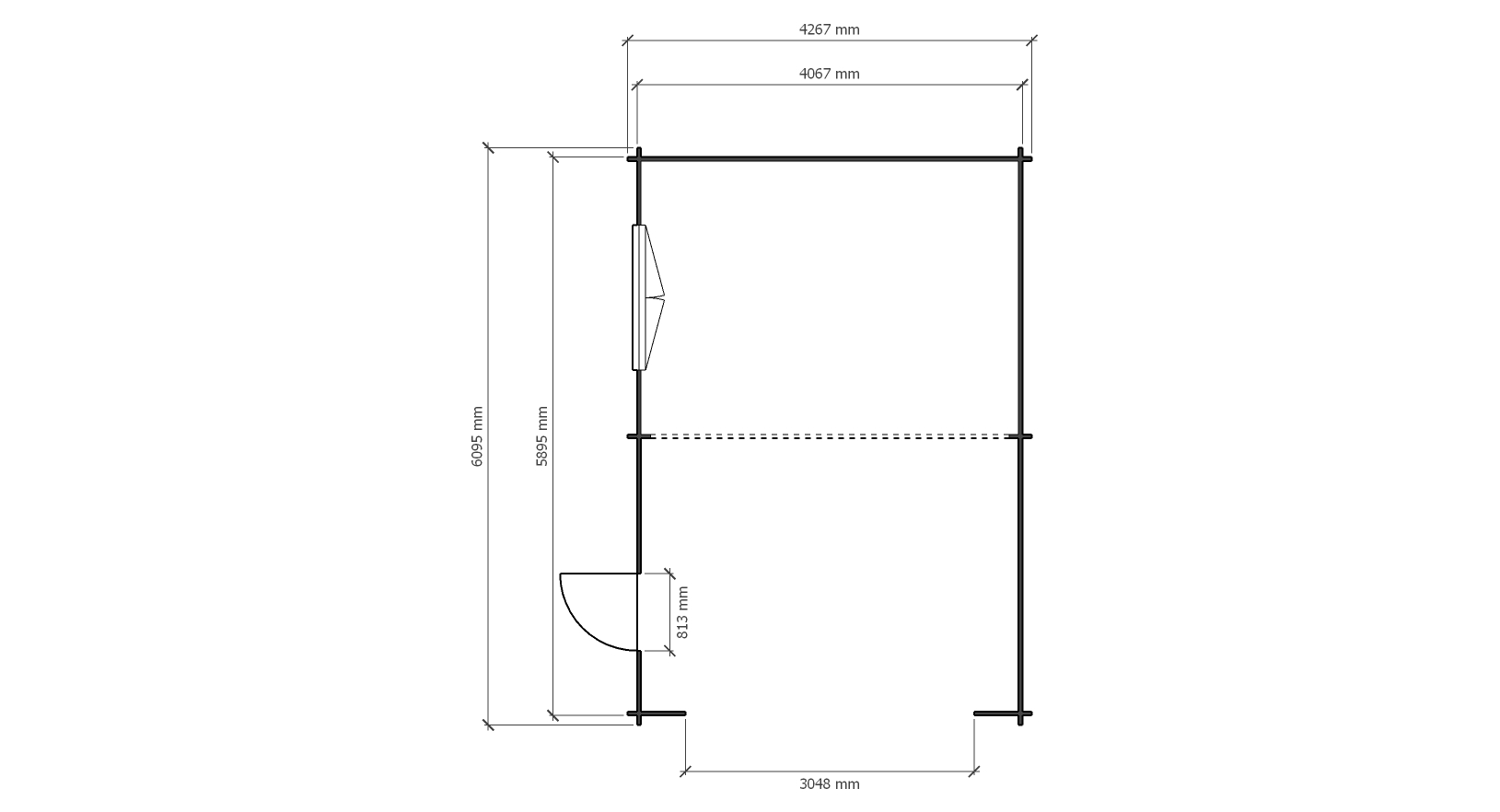

Exterior dimension168" x 240"
Roof & floor
Roof pitch4/12 - 18D
Package, area, vol ect.

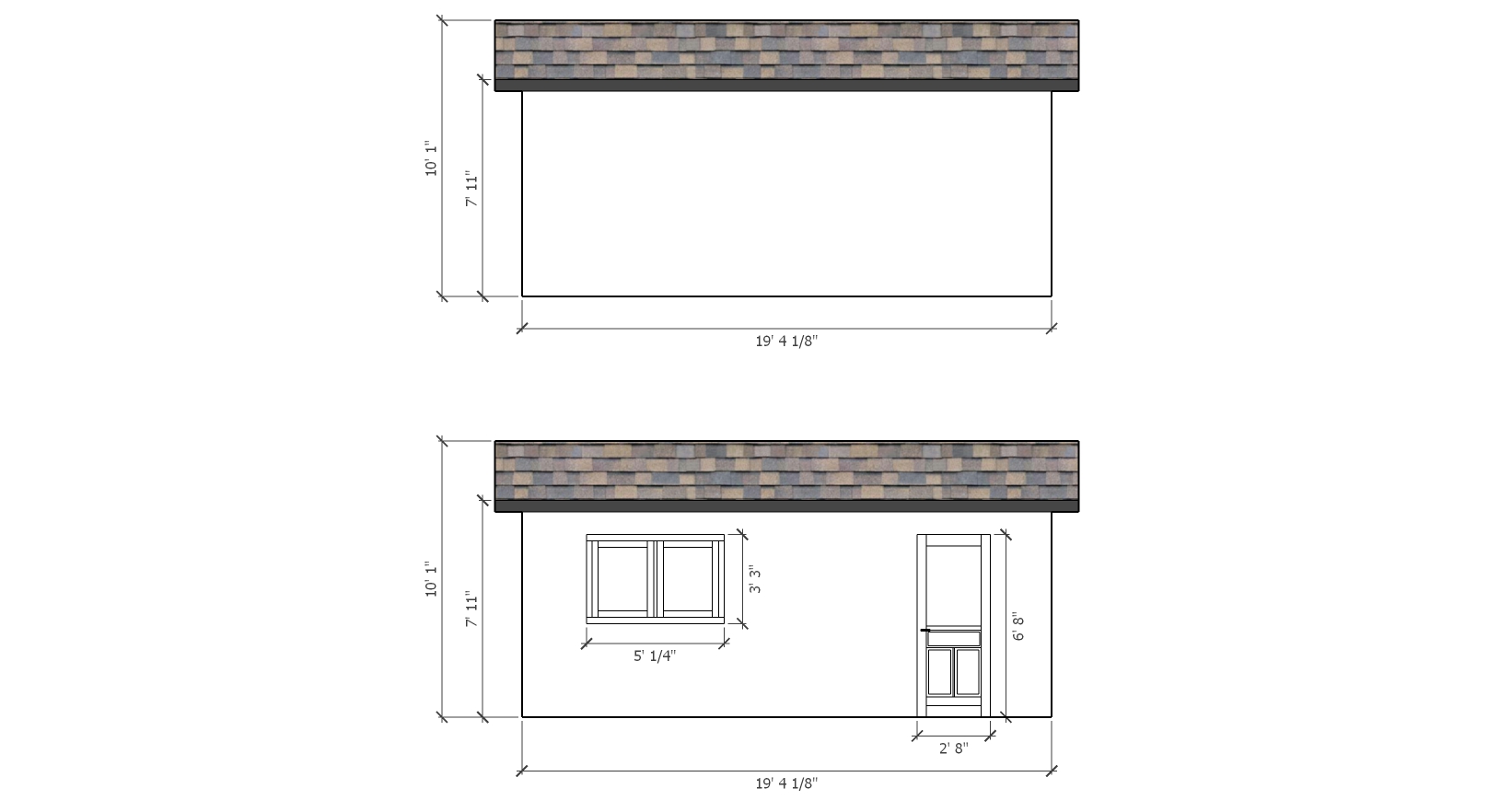

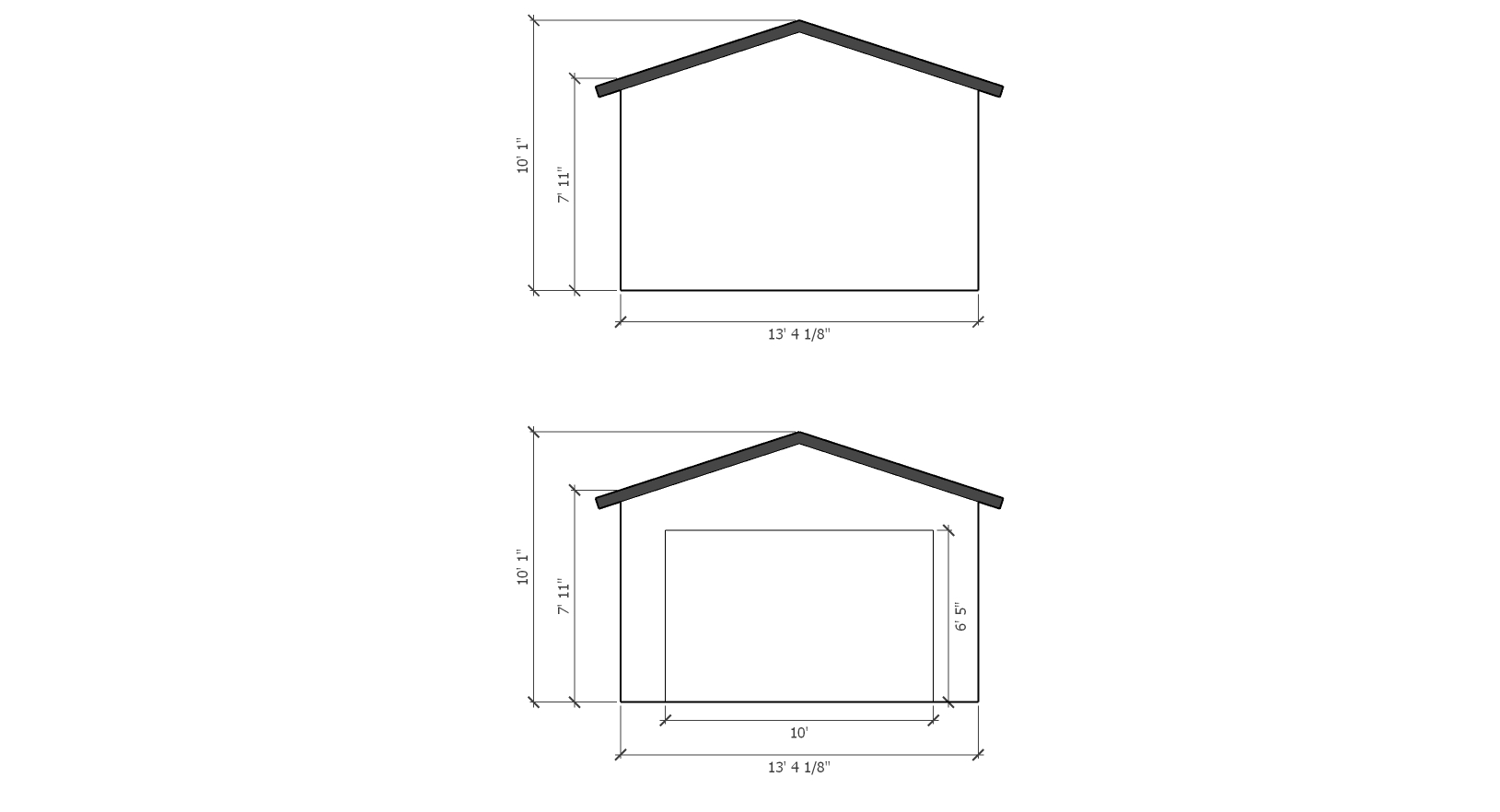

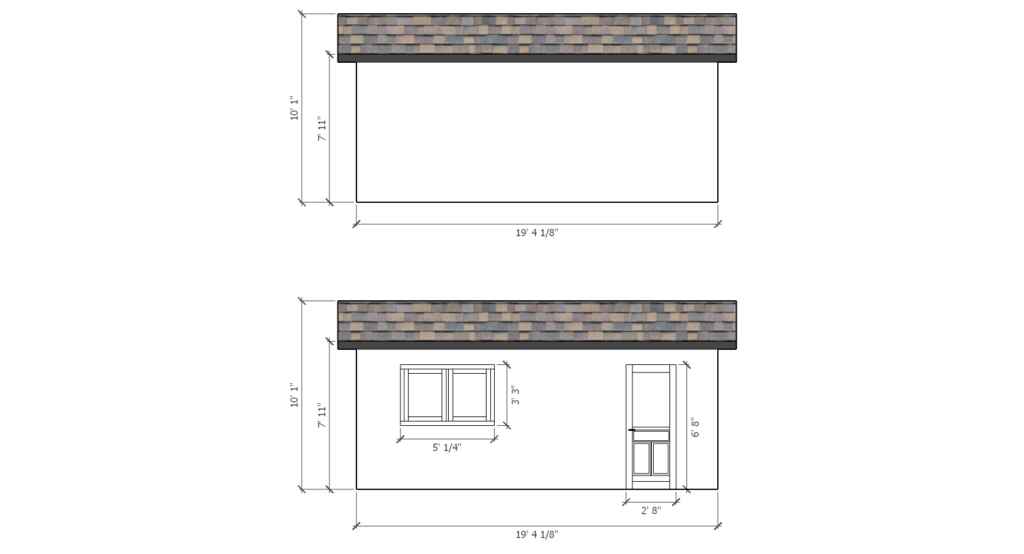

Wall height95"
Contact Us

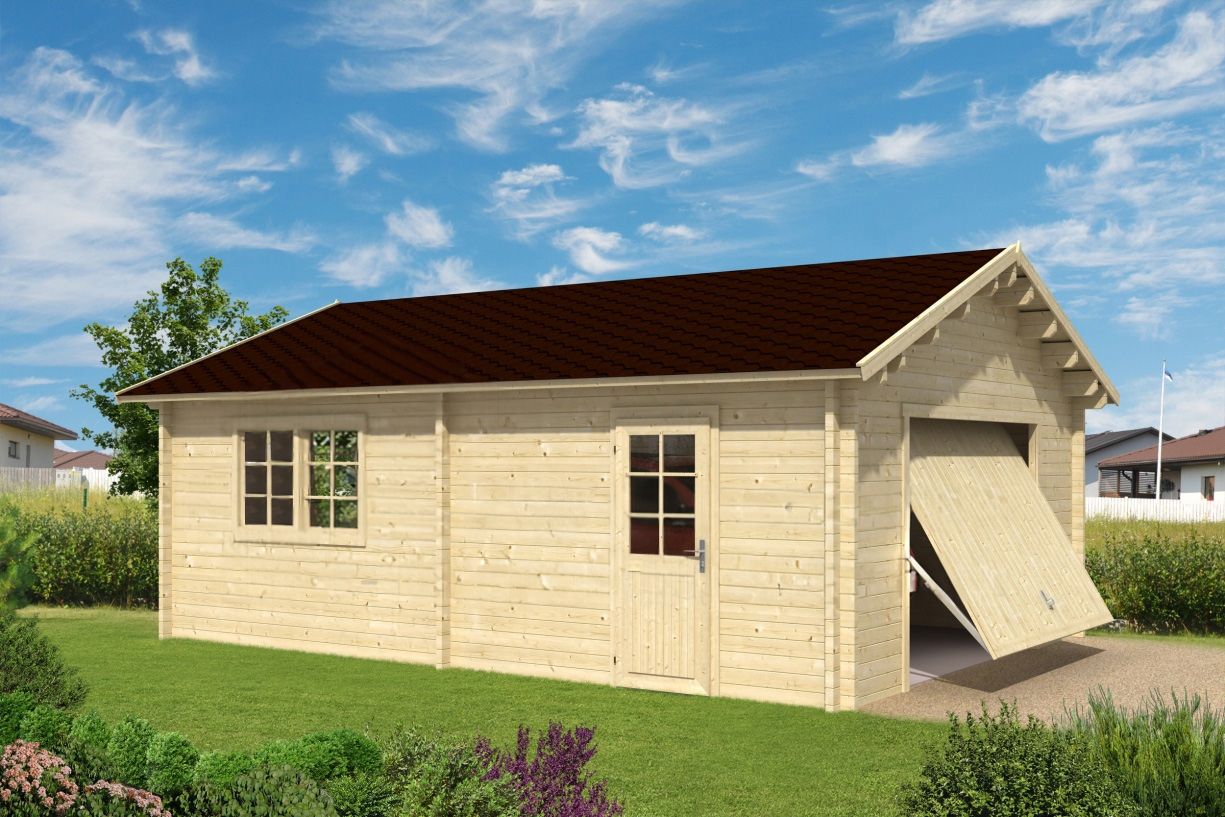

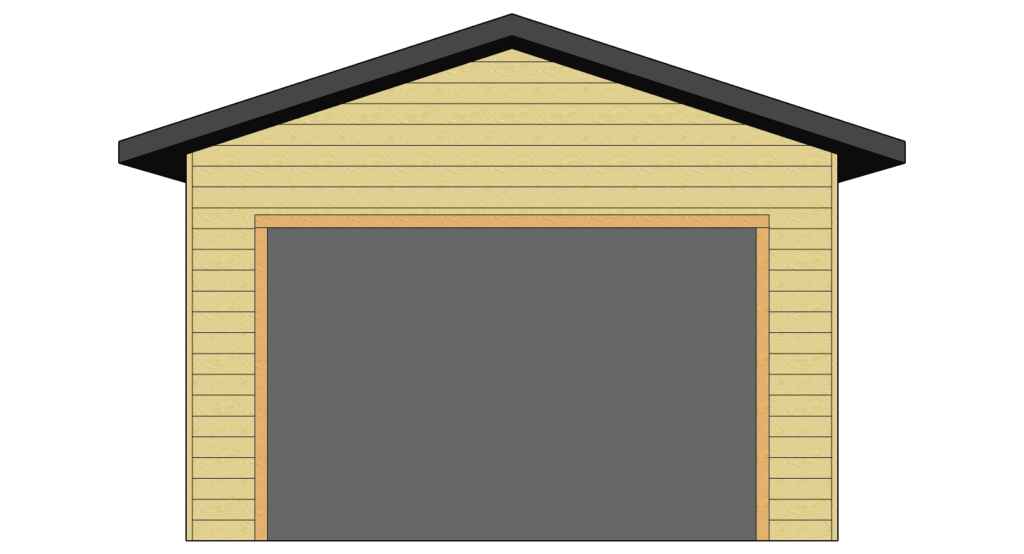

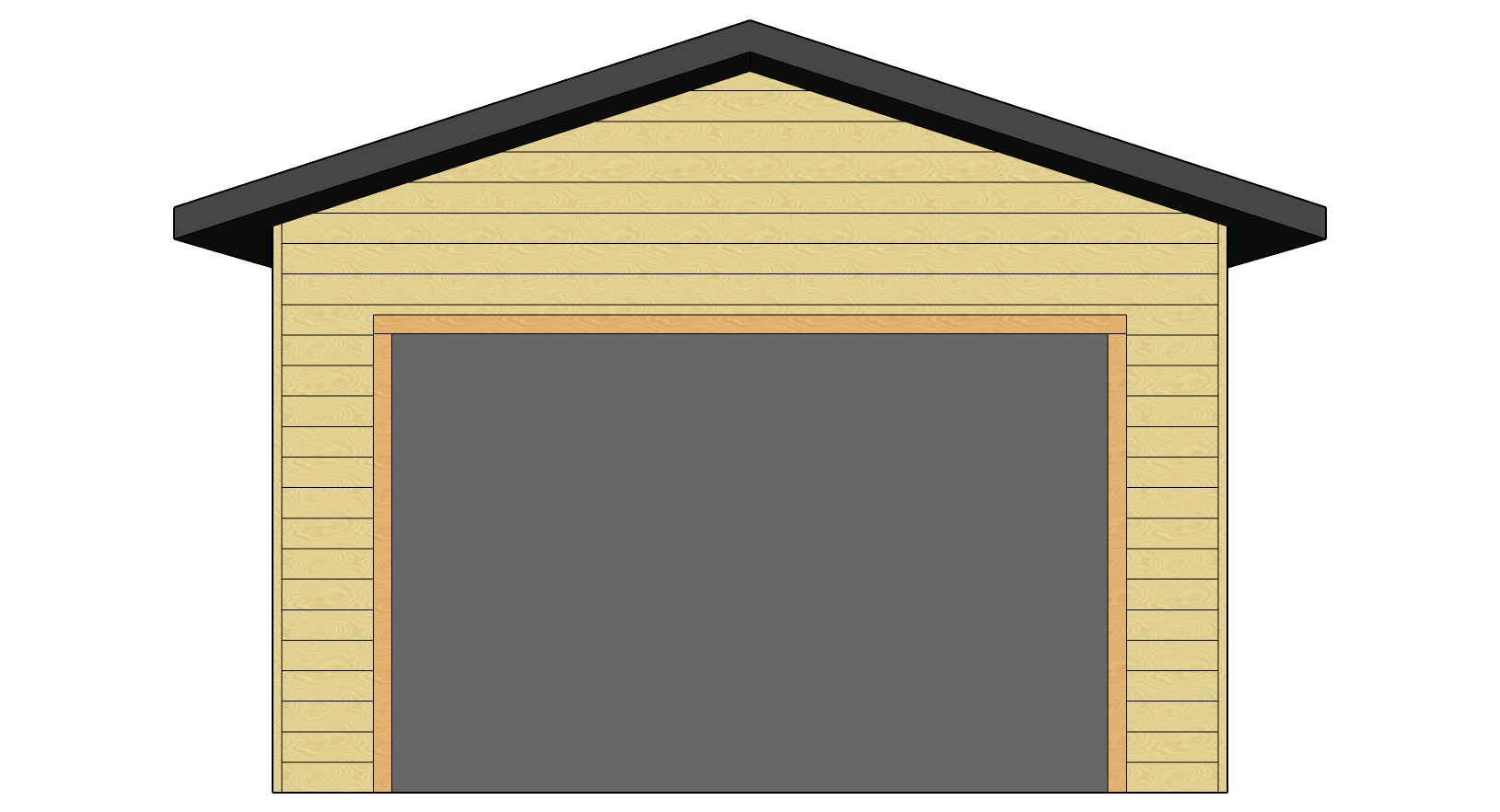

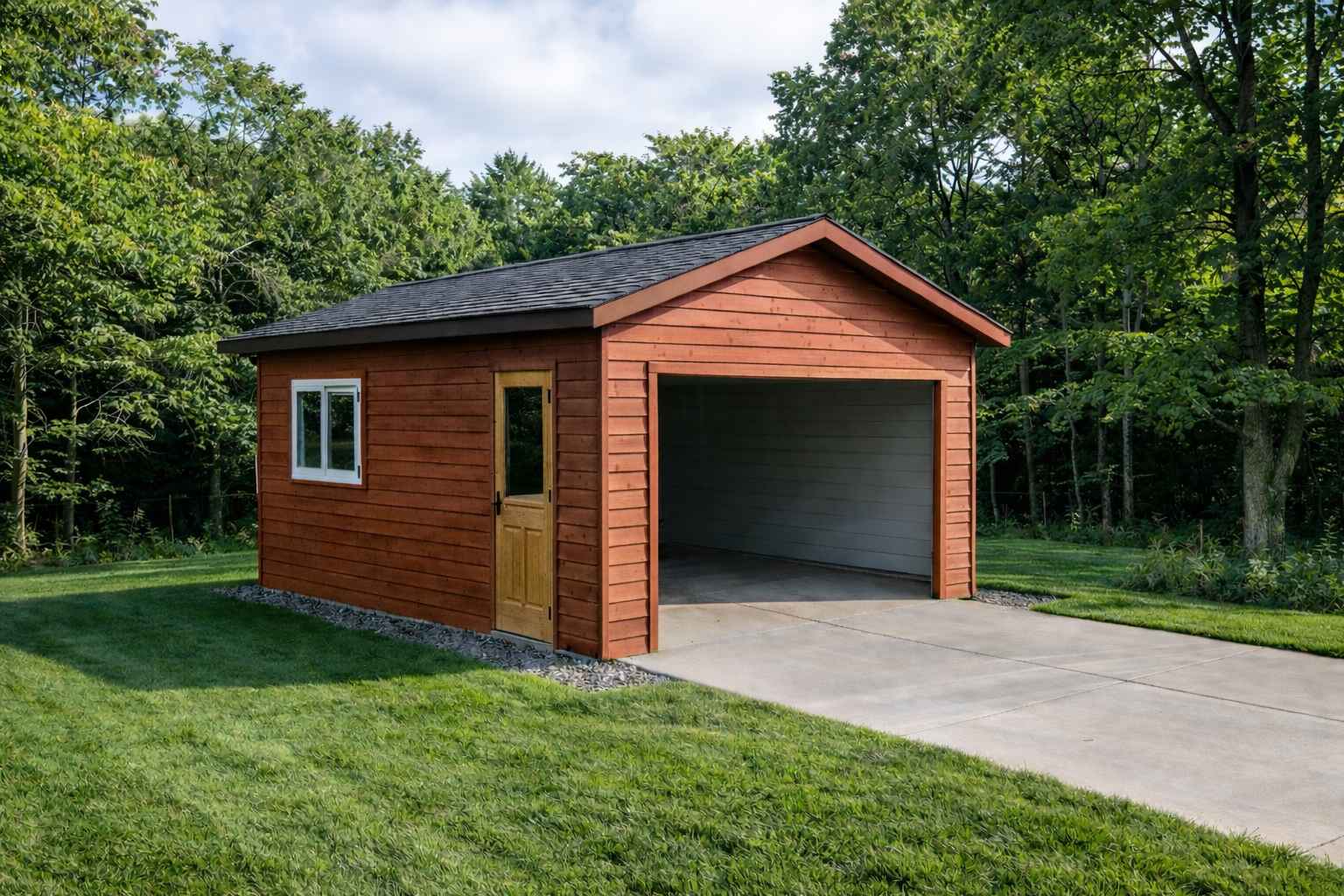

Garage 1420  is a single car garage with solid wood walls using 1-5/8″ x 4-3/8″ (40mm x 113mm) components.  Once assembled, studs & siding are applied to the exterior.  We offer 2 types of tongue & groove Pine siding plus an extruded PVC maintenance free siding.  The main feature of our garages is the all wood interior with vaulted/cathedral ceilings, ready to hang your tools



Kit includes:

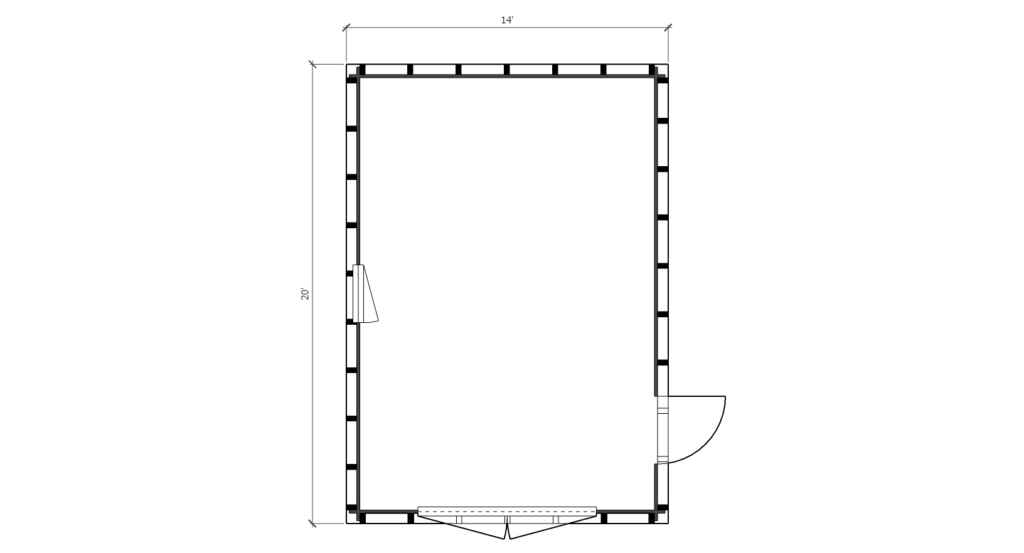

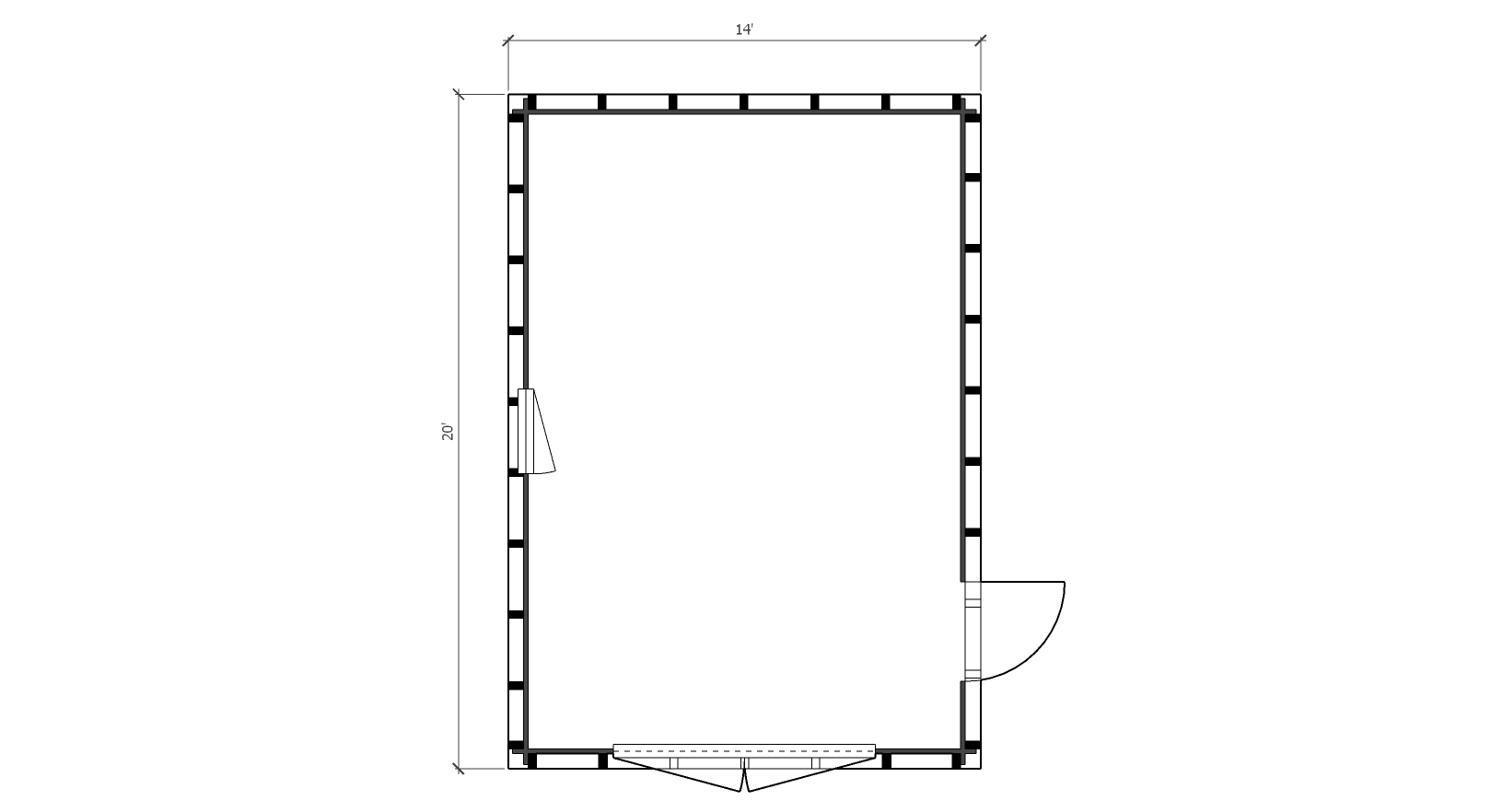

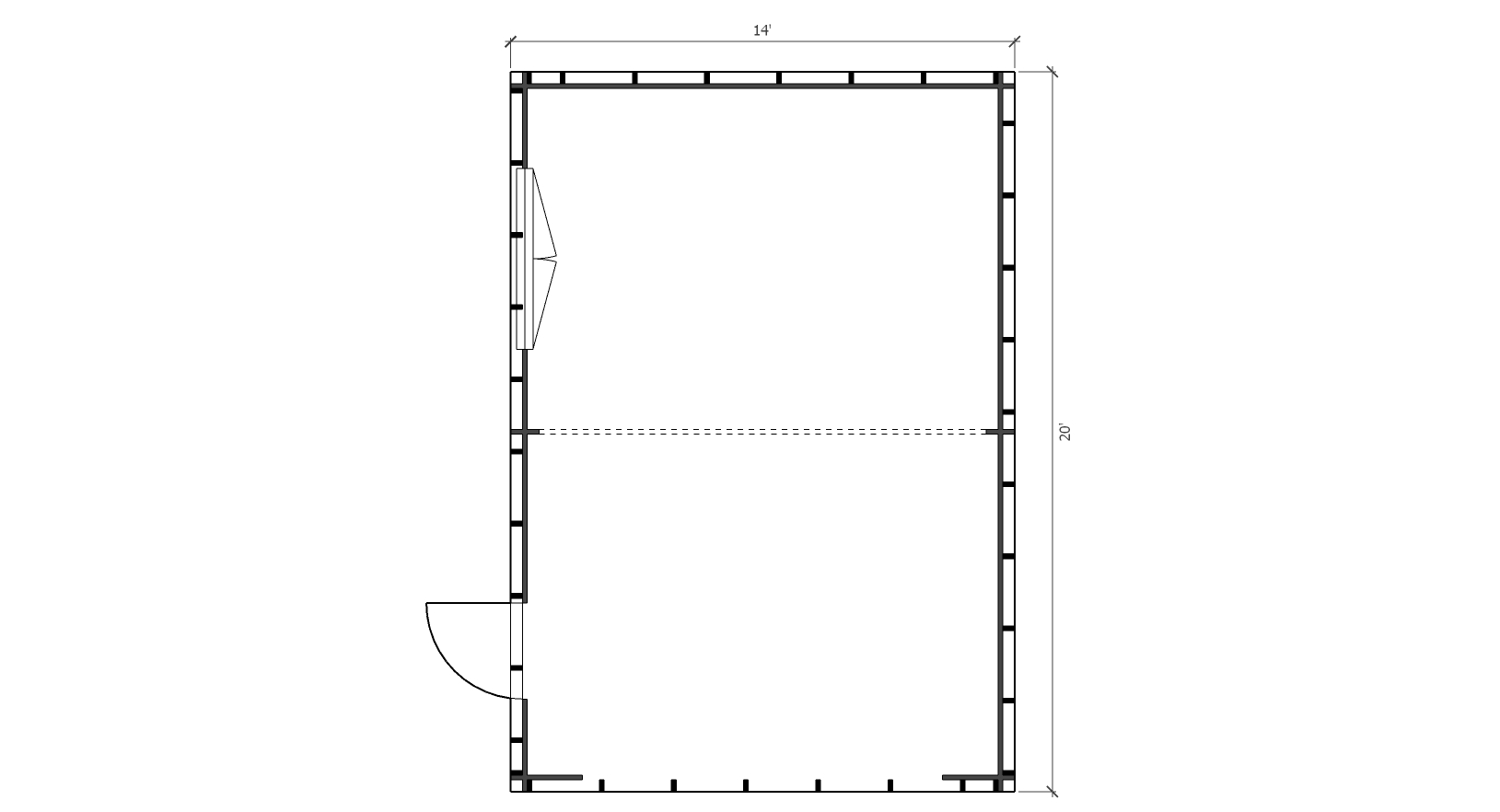

  • ready to assemble on a concrete slab
  • treated starter plate 1-5/8″ x 5-1/8″ (40mm x 129mm)
  • 1-5/8” x 4-3/8″ (40mm x 113mm) tongue & groove logs
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • sidewall height 95″ (2413mm)
  • 2-3/4” x 9-1/4” (70mm x 235mm) glulam roof purlins/beams, spaced 22″ (558mm) or less

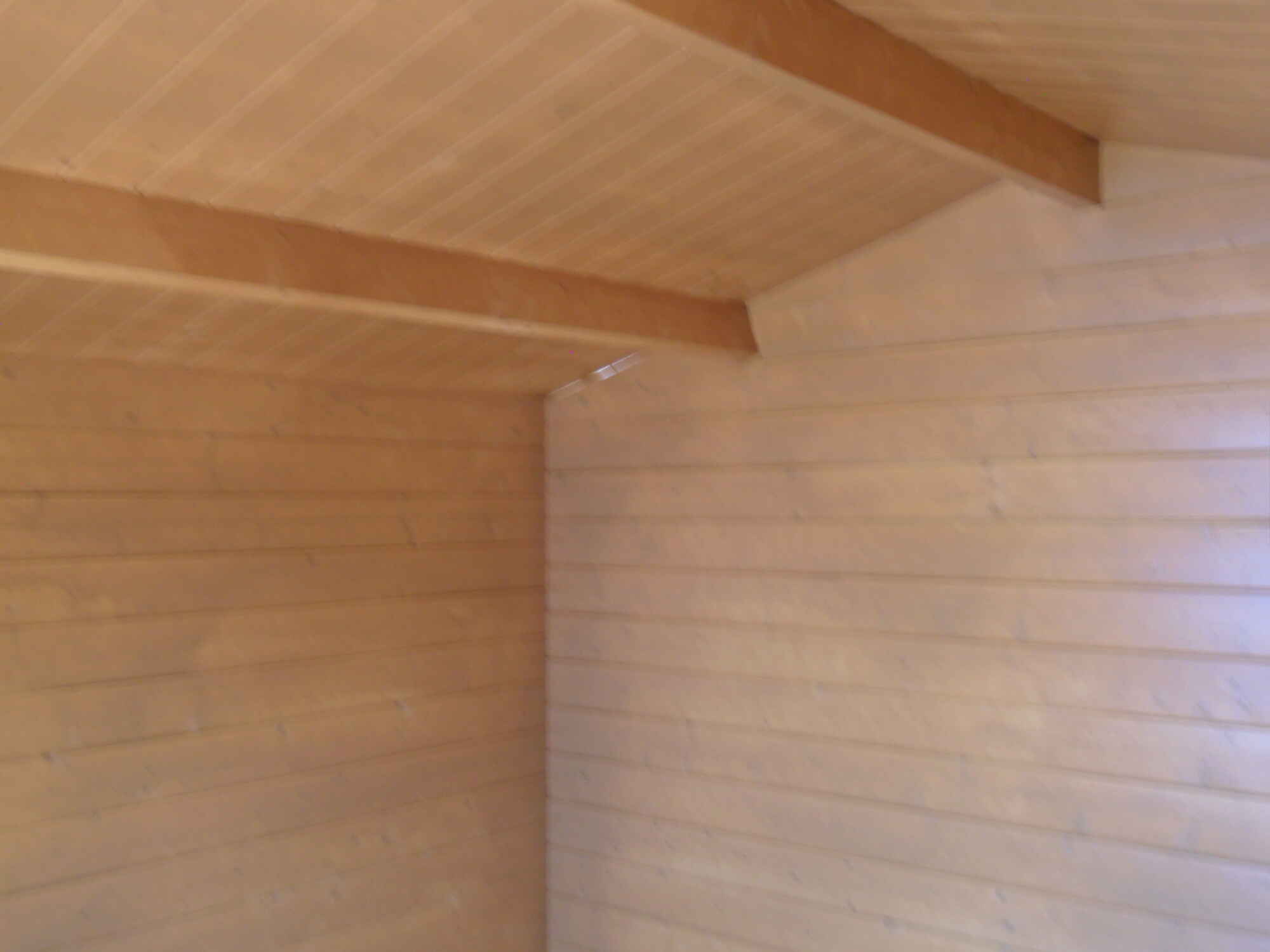

  • vaulted, cathedral ceilings
  • roof pitch 4/12 (18 degrees)
  • roof overhang 12” (300mm)
  • center gable
  • metal joist/purlin hangers for center gable
  • pre-cut, numbered ¾″ (18mm) tongue & groove roof boards
  • pre-cut, numbered fascia boards

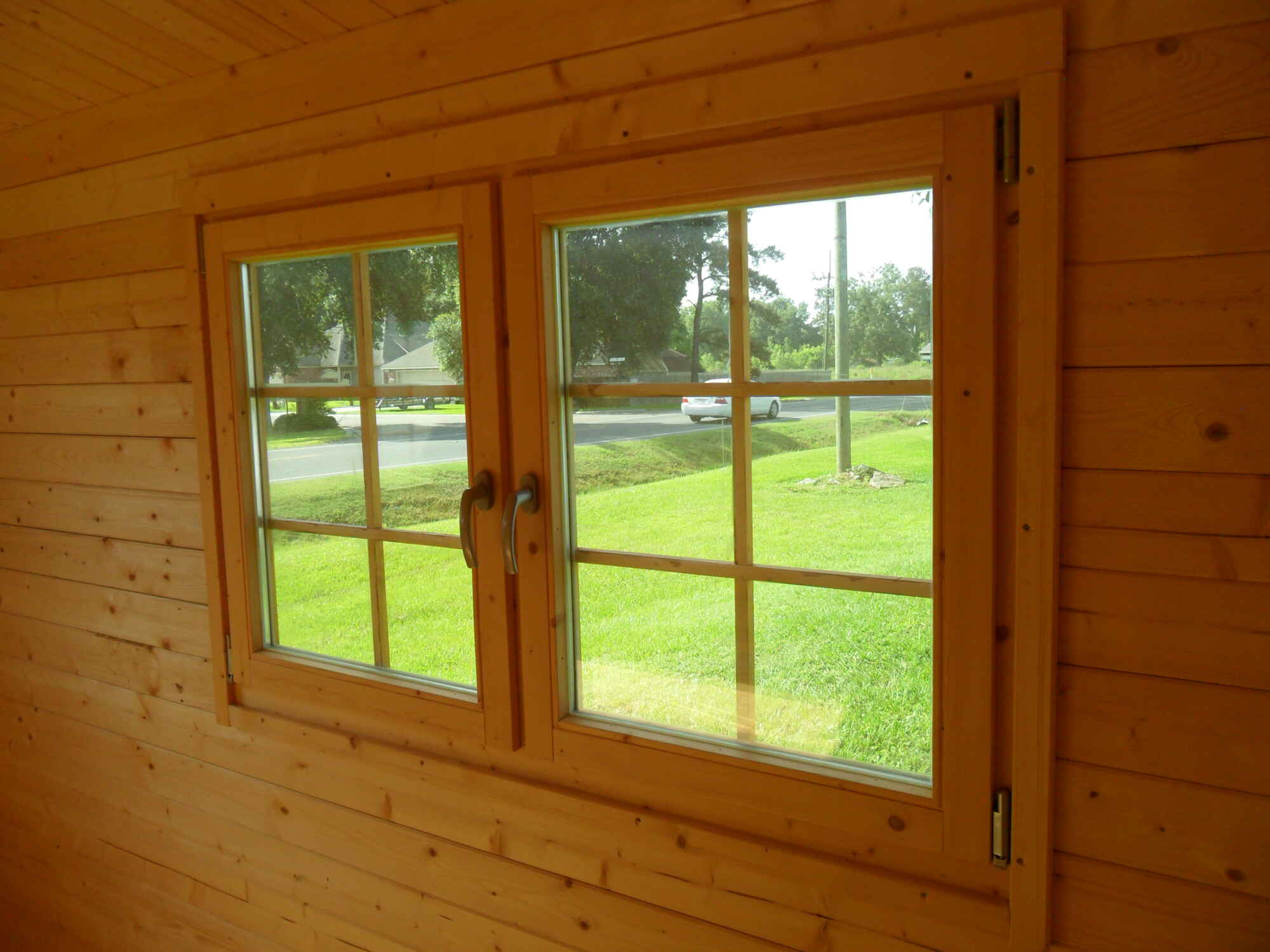

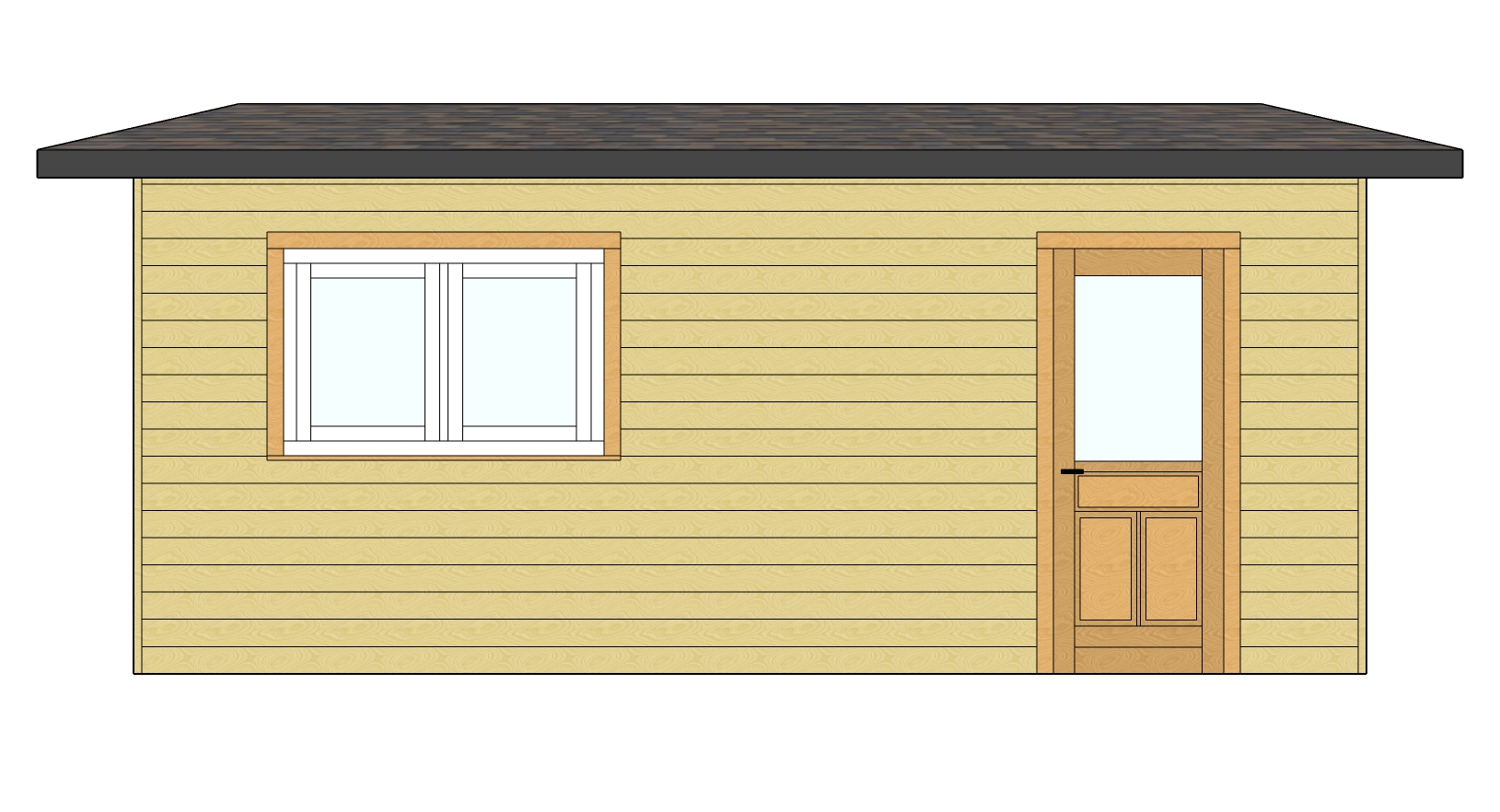

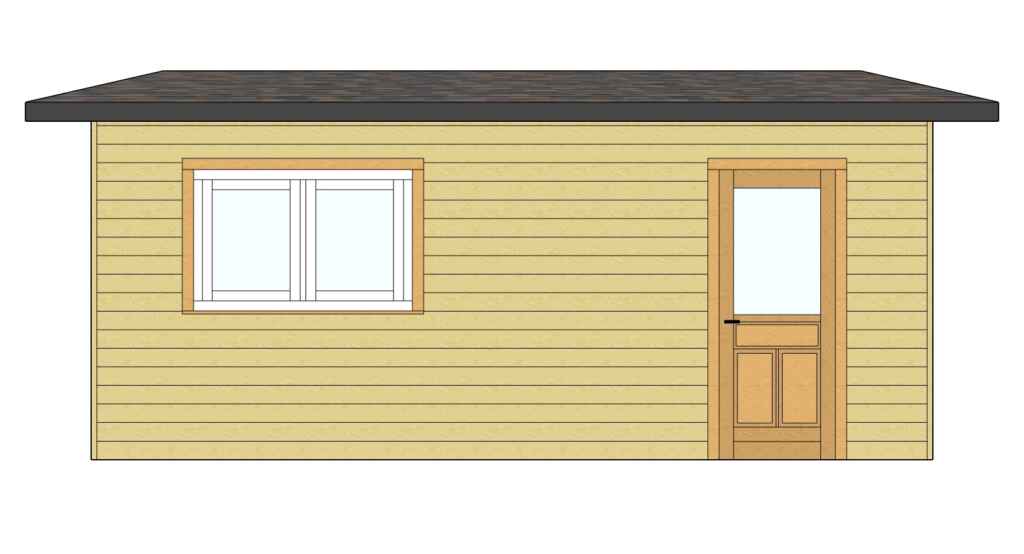

  • 1 – double wide wood windows 60″x39″ (1530mm x 990mm)
  • 1 – entry door 1/2 glass tempered 32″ x 80″ (813mm x 2033mm)
  • 546 sq’ of exterior wall surface
  • 66 lineal’ per row
  • 500 – 6″ log screws to connect each row, gable components, purlins
  • GARAGE OVERHEAD DOORS NOT INCLUDED
  • STAMPED STRUCTURAL ENGINEERING included when a siding kit is applied. The vertical studs are required to meet structural requirements for building codes. Stud and siding can be purchased locally





EXTERIOR 2×4 STUD & SIDING KITS

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.



Exterior 2×4 stud/siding kits include your choice of 3 siding types to cover the exterior of the garage. EZ Log Semi D-Log tongue & groove pine siding, EZ Log Full D-Log tongue & groove pine siding or a heavy duty maintenance free extruded PVC polymer siding, complete with all the trims. Each kit includes 2×4 studs for 22″ spacing with screws to mount the studs on the exterior

















1) ADD 18% – Semi D-Log siding (Max)  3/4″ x 5-1/8″ (18mm x 130mm)

































2) ADD 26% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)




















Elevation siding in three options: brown wood imitation, gray wood imitation, and beige wood imitation, offering a variety of finishes that replicate the look of natural wood. PVC polymer siding.













3) ADD 55% – Vox extruded prefinished PVC polymer siding 5/16″ x 13″ (7mm x 330mm)







PVC siding can be installed horizontally or vertically









Window & Door Options :































If you prefer to use locally supplied windows and entry doors deduct the following:


Double wide wood windows (60″ x 39″) deduct:              $ 372.00 USD      $ 454.00 CAD


Single wide wood windows (30″ x 39″) deduct:                $ 276.00 USD      $ 337.00 CAD


Single wide wood entry door (32″ x 80″) deduct:             $ 372.00 USD      $ 454.00 CAD
