Garage 1624  is a single car garage with solid wood walls using 1-5/8″ x 4-3/8″ (40mm x 113mm) components.  Once assembled, studs & siding can be applied to the exterior.  We offer 2 types of tongue & groove Pine siding plus an extruded PVC maintenance free siding.  The main feature of our garages is the all wood interior with vaulted/cathedral ceilings, ready to hang your tools

Kit includes:

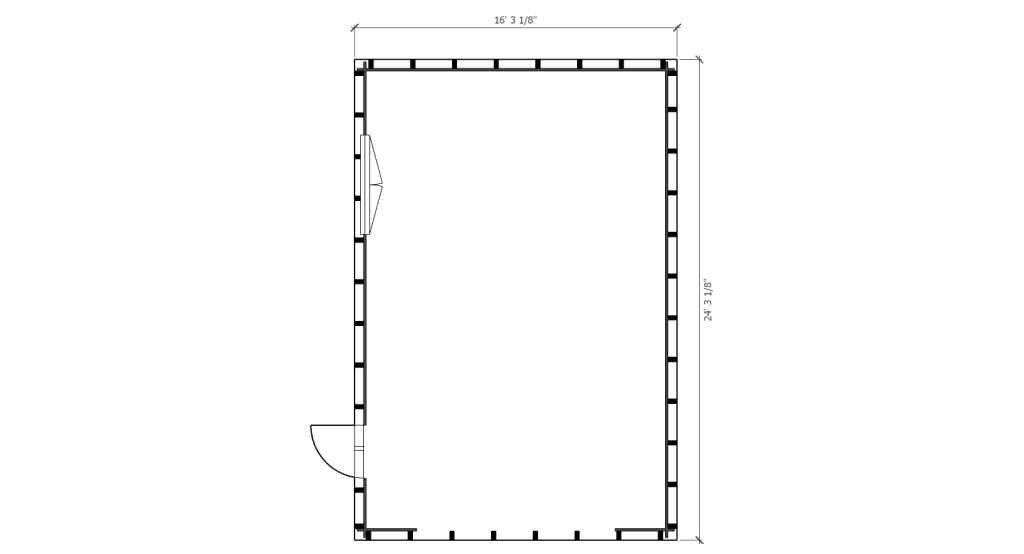

• ready to assemble on a concrete slab
• treated starter plate 1-5/8″ x 5-1/8″ (40mm x 129mm)
• 1-5/8” x 4-3/8″ (40mm x 113mm) tongue & groove logs
• pre-cut, numbered exterior walls
• pre-cut, numbered interior walls
• pre-cut, numbered gable components
• 2-3/4” x 9-1/4” (70mm x 235mm) glulam roof purlins/beams, spaced 22″ (558mm) or less
• vaulted, cathedral ceilings
• roof pitch 1.5/12 (6 degrees)
• roof overhang 12” (300mm)
• metal joist/purlin hangers for center gable
• pre-cut, numbered ¾″ (18mm) tongue & groove roof boards
• pre-cut, numbered fascia boards

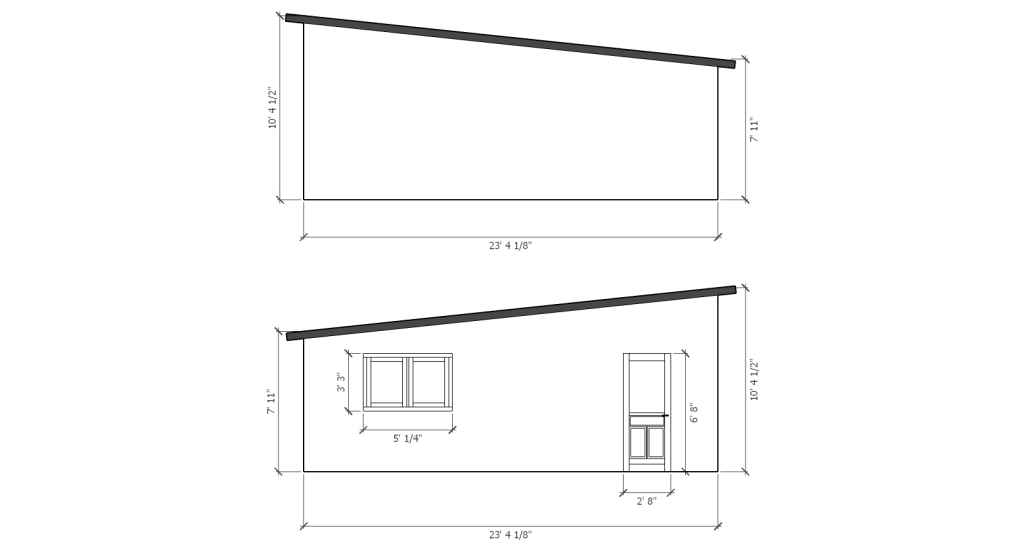

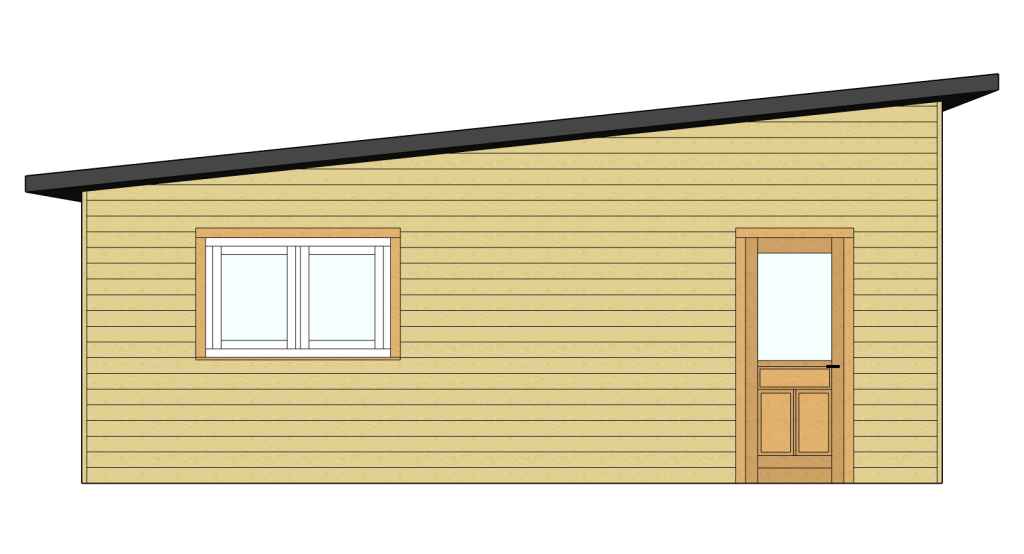

• 1 – double wide wood windows 60″x39″ (1530mm x 990mm)
• 1 – entry door 1/2 glass tempered 32″ x 80″ (813mm x 2033mm)
• 707 sq’ of exterior wall surface
• 78 lineal’ per row
• 600 – 6″ log screws to connect each row, gable components, purlins
• GARAGE OVERHEAD DOORS NOT INCLUDED
• STAMPED STRUCTURAL ENGINEERING INCLUDED

If you prefer to use locally supplied windows and entry doors deduct the following:

Double wide wood windows (60″ x 39″) deduct:              $ 386.00 USD      $ 454.00 CAD

Single wide wood windows (30″ x 39″) deduct:                $ 286.00 USD      $ 337.00 CAD

Single wide wood entry door (32″ x 80″) deduct:             $ 386.00 USD      $ 454.00 CAD
