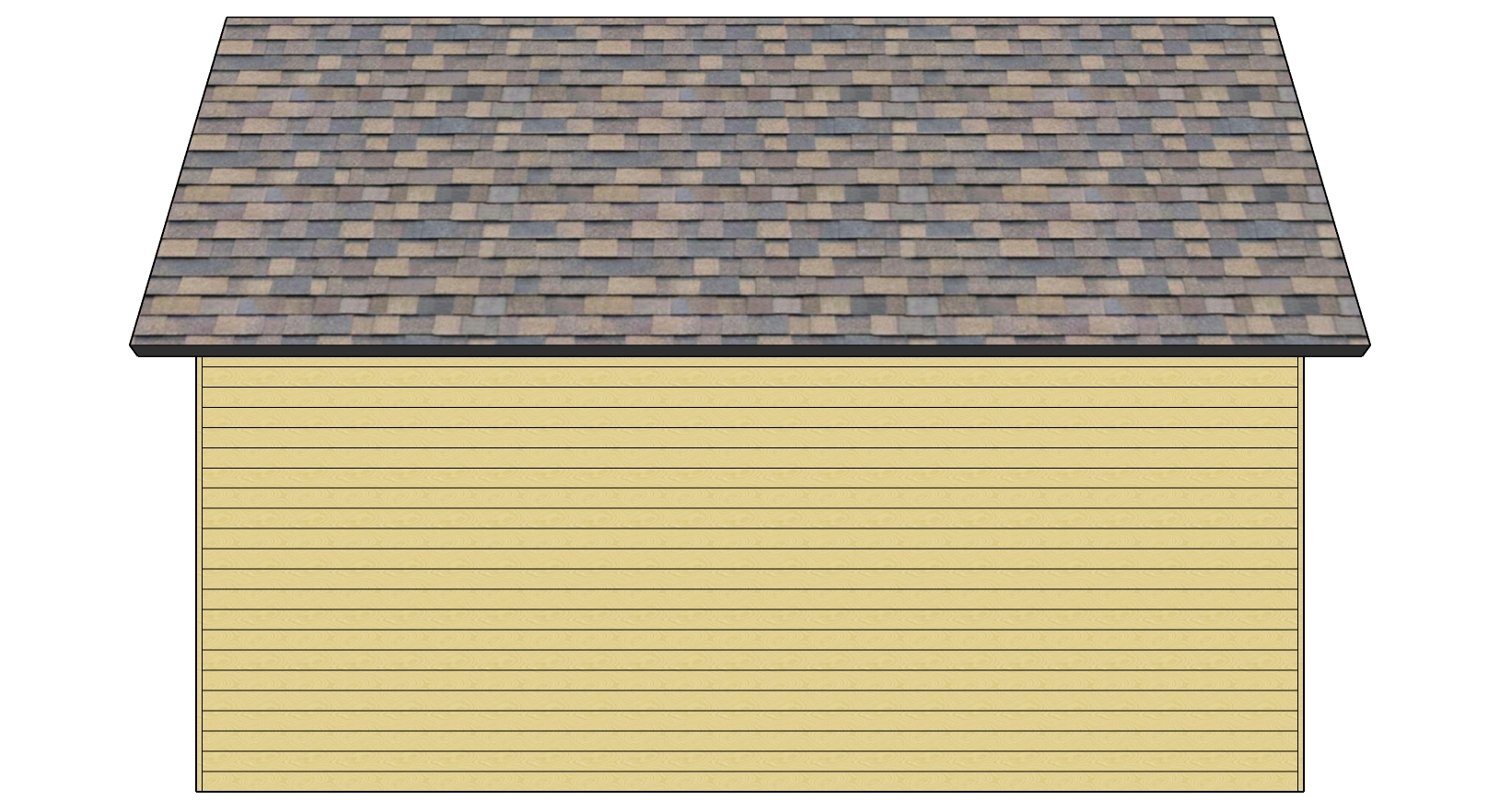

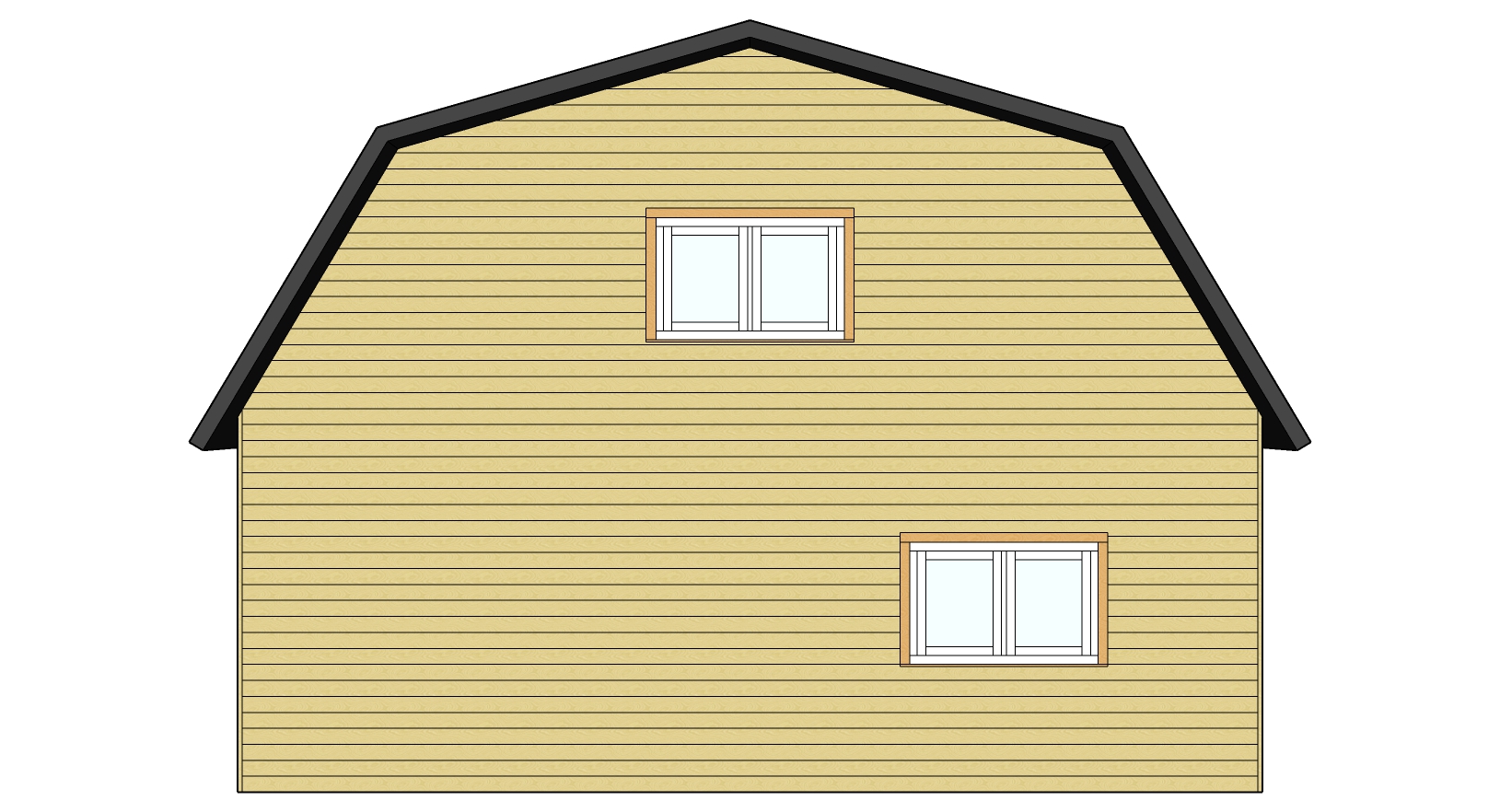

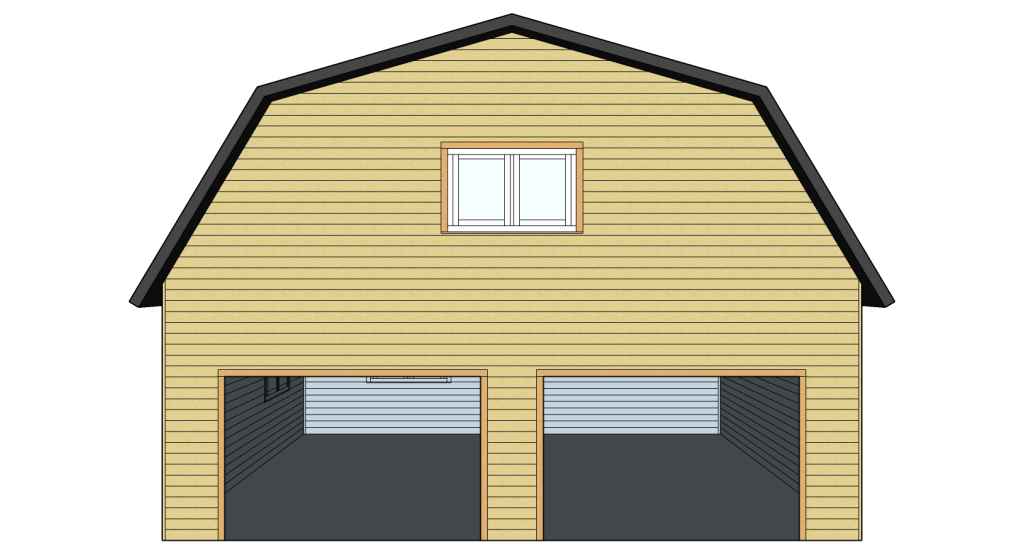

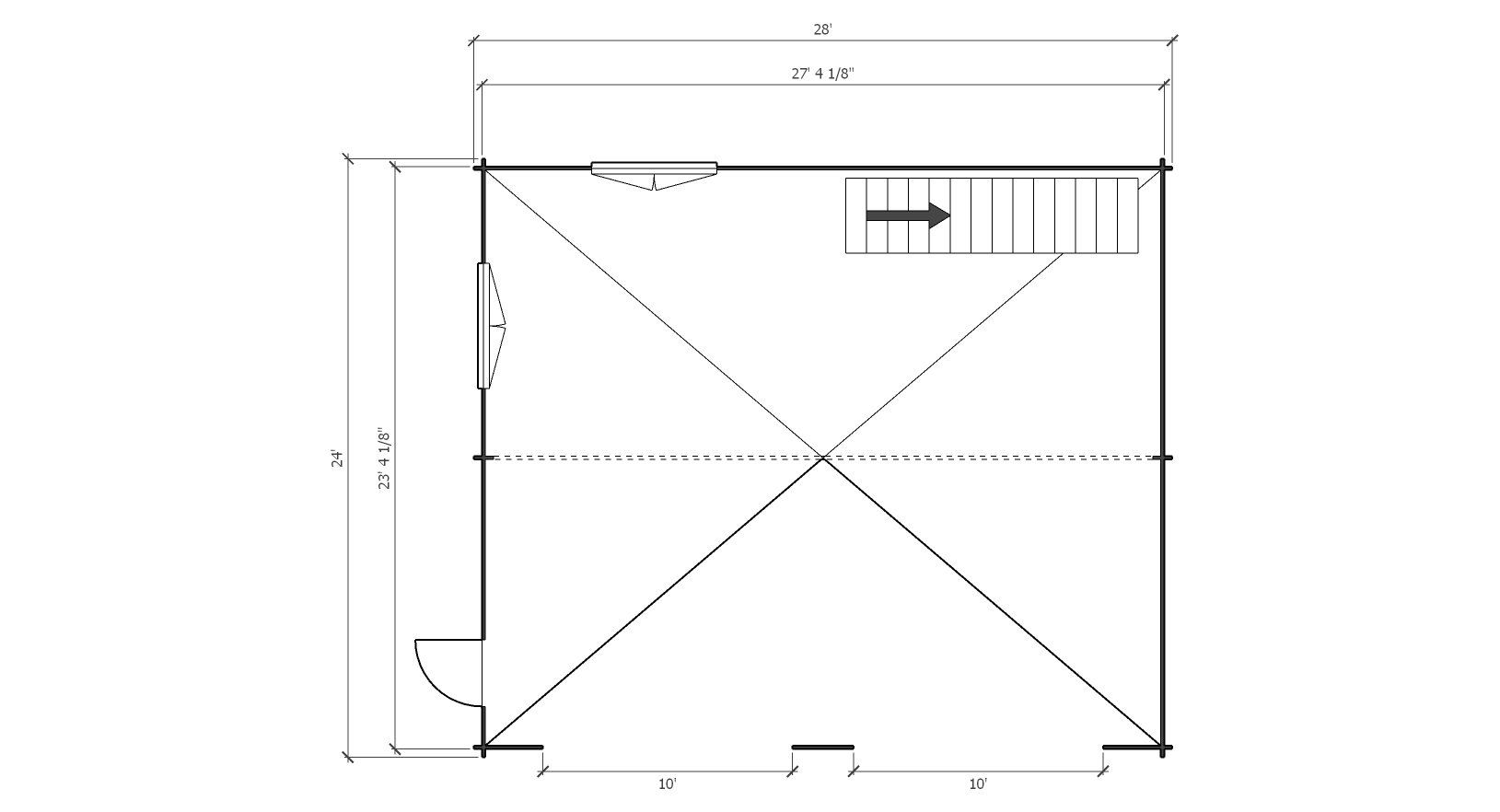

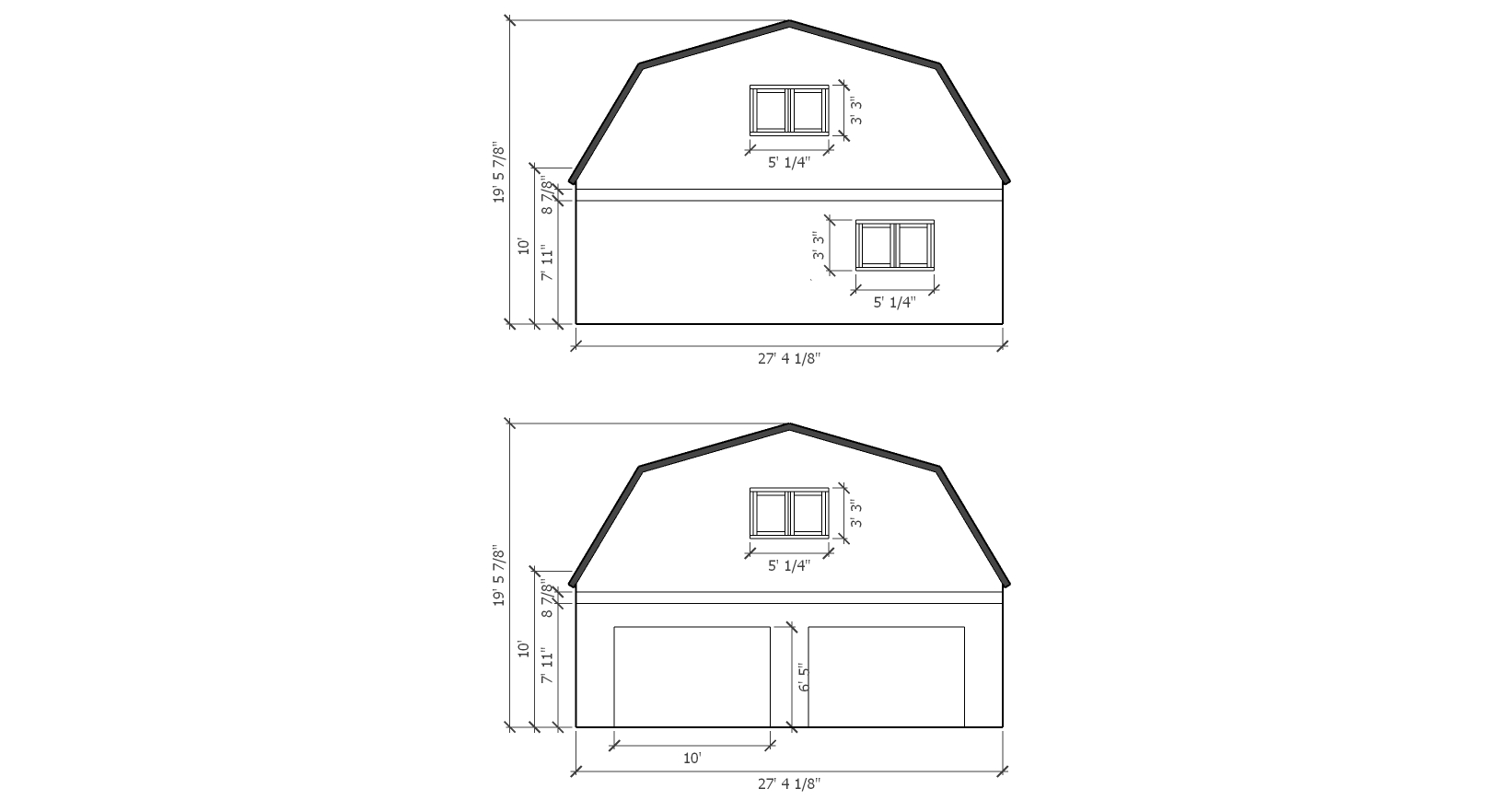

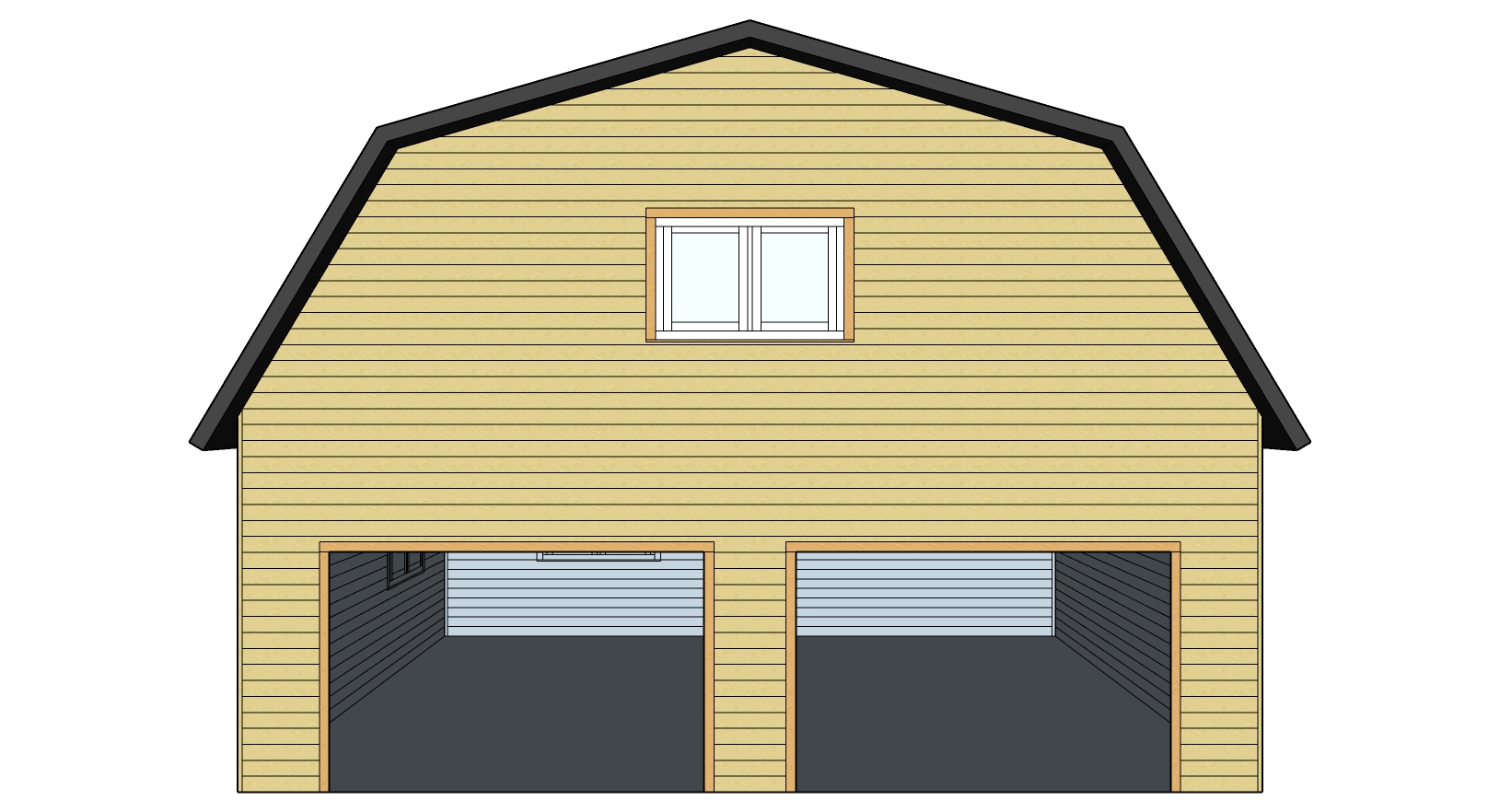

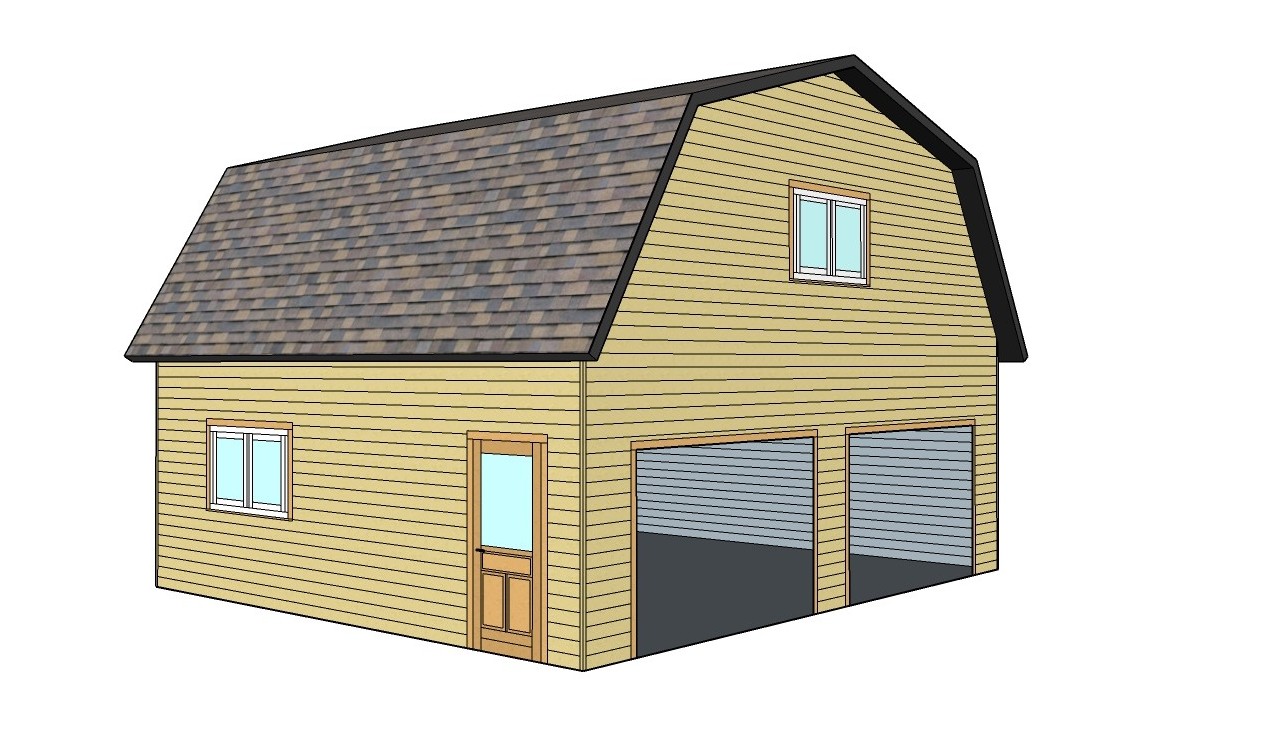

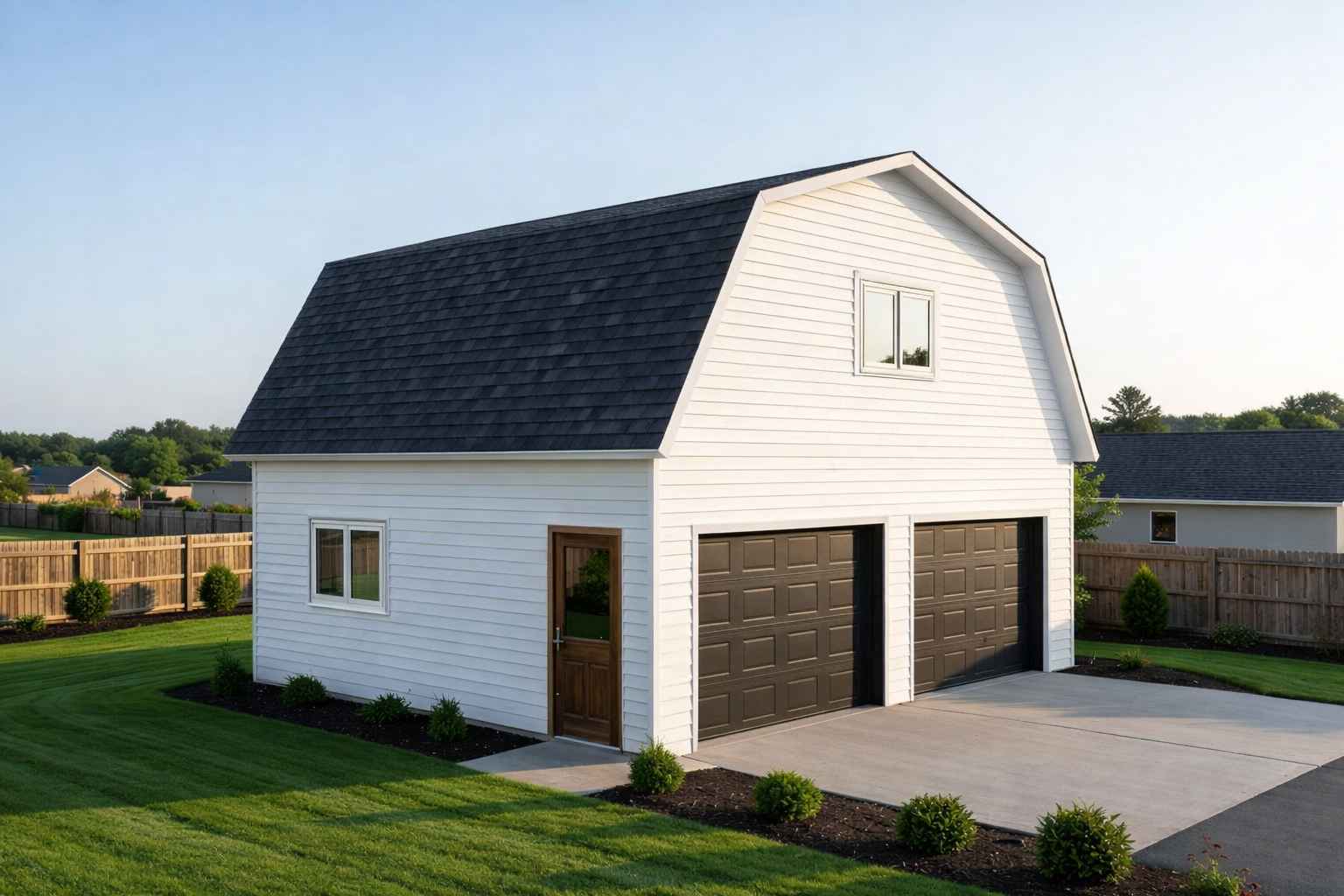

Garage 2428 G Lofted uses a precut number stackable system to build the main structure. The result is a 2 car garage with a gambrel roof and a second level loft which is accessed using a loft ladder. There is over 1300 sq’ of usable space when combining the lower and upper level. The upper level has a dividing wall with a large opening to create 2 rooms. Once assembled studs & siding can be applied to the exterior. We offer 2 types of tongue & groove Pine siding plus an extruded PVC maintenance free siding. The main feature of our garages is the all wood interior with vaulted/cathedral ceilings, ready to hang your tools
Kit includes:

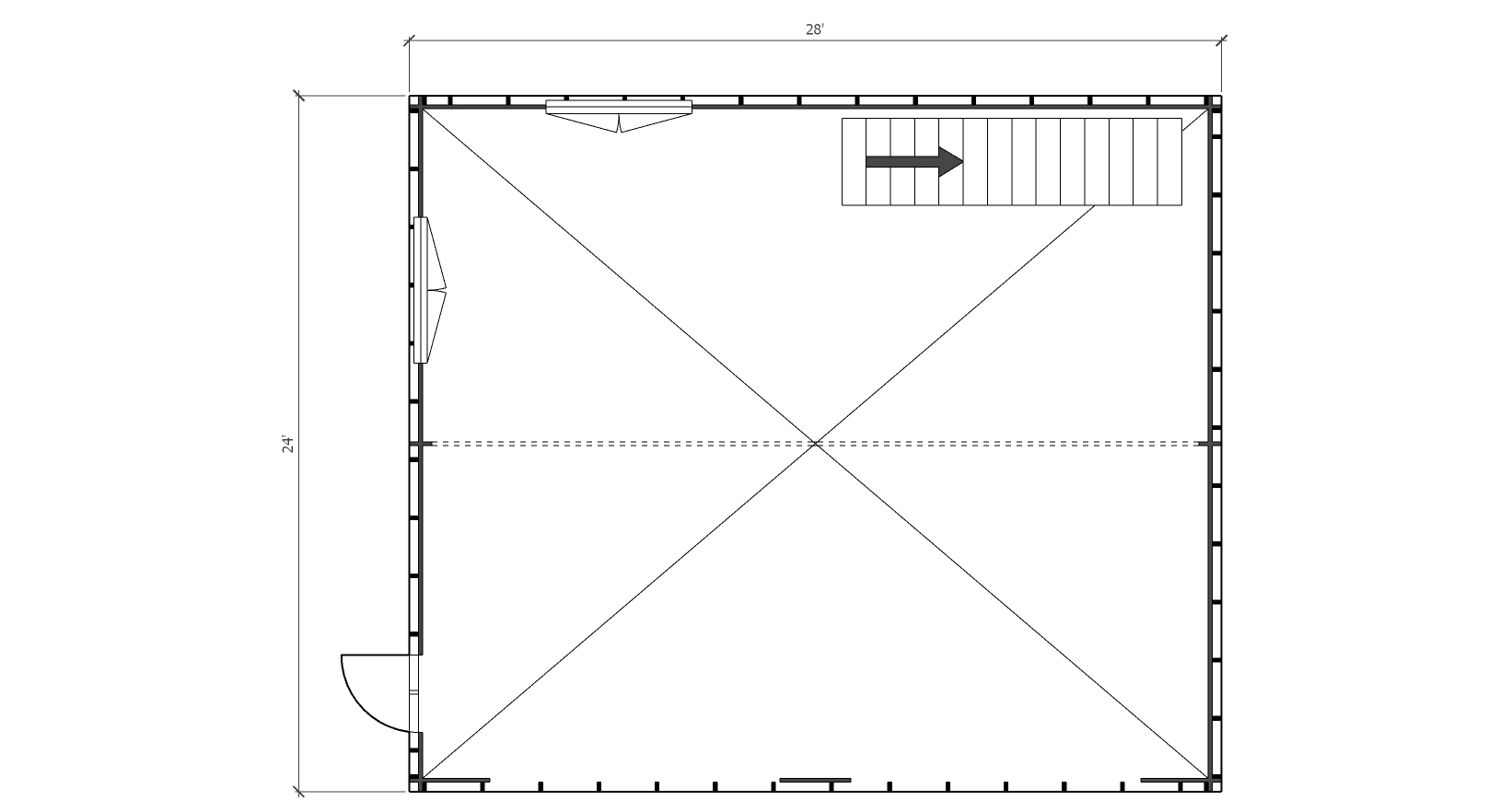

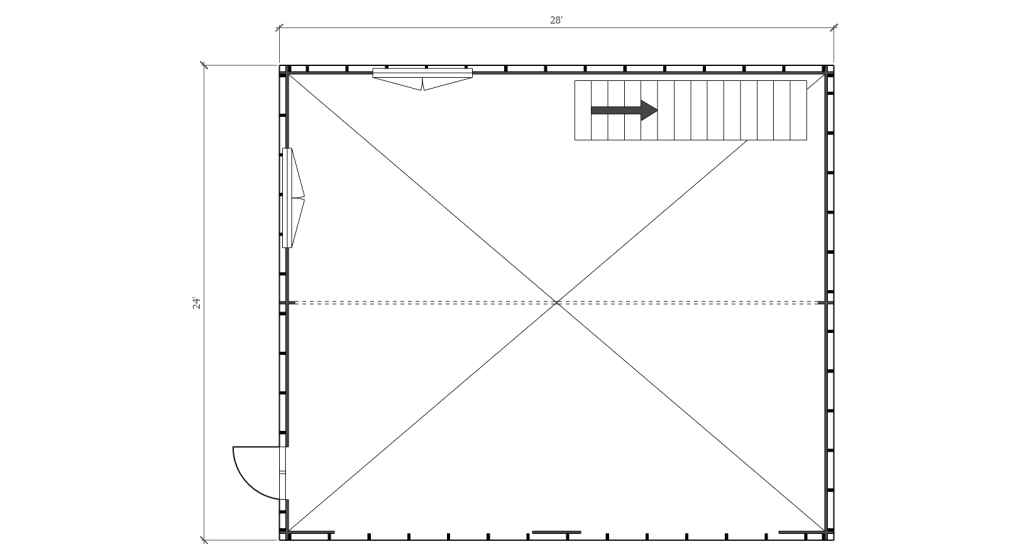

- ready to assemble on a concrete slab
- treated starter plate 1-5/8″ x 5-1/8″ (40mm x 129mm)
- 1-5/8” x 4-3/8″ (40mm x 113mm) tongue & groove logs
- pre-cut, numbered exterior walls
- pre-cut, numbered interior walls
- pre-cut, numbered gable components

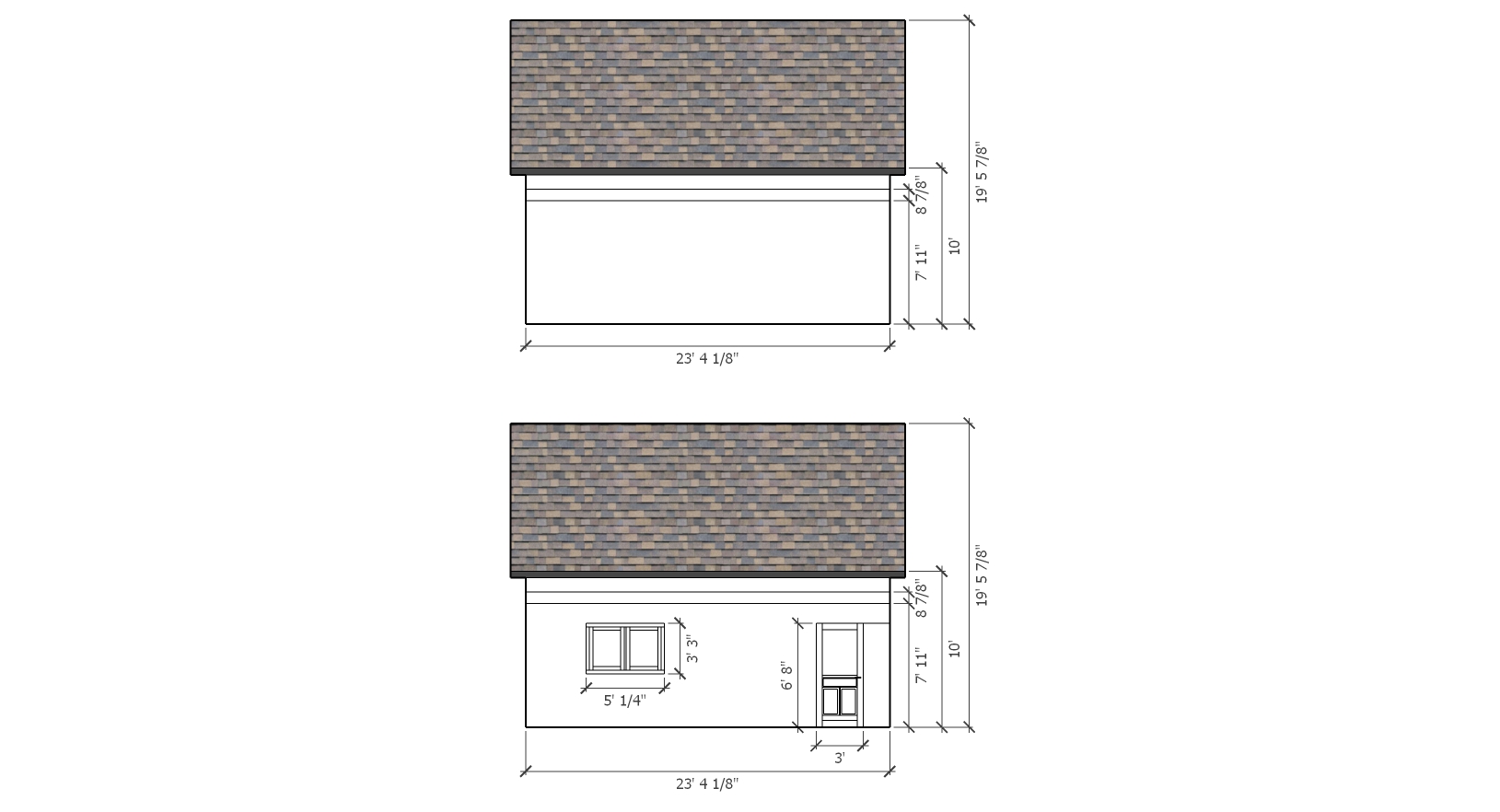

- sidewall height 95″ (2413mm) to underside of loft floor beams
- loft ladder
- 2-3/4” x 9-1/4” (70mm x 235mm) glulam floor beams, spaced 22″ (558mm) or less
- vaulted, cathedral ceilings
- 2-3/4” x 9-1/4” (70mm x 235mm) glulam roof purlins/beams, spaced 22″ (558mm) or less
- roof overhang 12” (300mm)
- center gable in loft with opening
- metal joist/purlin hangers for center gable
- pre-cut, numbered ¾″ (18mm) tongue & groove roof boards
- pre-cut, numbered fascia boards
- 4 – double wide wood windows 60″x39″ (1530mm x 990mm)
- 1 – entry door 1/2 glass tempered 32″ x 80″ (813mm x 2033mm)
- 1544 total sq’ of wall area
- 1381 sq’ of exterior wall surface
- 124 lineal’ per row
- 2000 – 6″ log screws to connect each row, gable components, purlins
- GARAGE OVERHEAD DOORS NOT INCLUDED
- STAMPED STRUCTURAL ENGINEERING INCLUDED
SIDING OPTIONS (click here for more information on siding)
Choose from 3 types of EZ Log siding to cover the exterior of your home. Our siding installs over the exterior studs, without the need for plywood. Each kit includes siding, corner blocks, trims
Option 1) Max semi D-Log wood siding 3/4″ x 5-1/8″ (18mm x 130mm) Add – $ 6,725.00 USD | $ 8,106.00 CAD
Option 2) Otoczak full D-Log wood siding 1-1/8″ x 5-1/8″ (28mm x 130mm) Add – $ 11,006.00 USD | $ 13,257.00 CAD
Option 3) Vox extruded maintenence free PVC polymer siding 5/16″ x 13″ (7mm x 330mm) Add – $ 20,231.00 USD | $ 24,374.00 CAD
If you prefer to use locally supplied windows and entry doors deduct the following:
Double wide wood windows (60″ x 39″) deduct: $ 386.00 USD $ 454.00 CAD
Single wide wood windows (30″ x 39″) deduct: $ 286.00 USD $ 337.00 CAD
Single wide wood entry door (32″ x 80″) deduct: $ 386.00 USD $ 454.00 CAD
