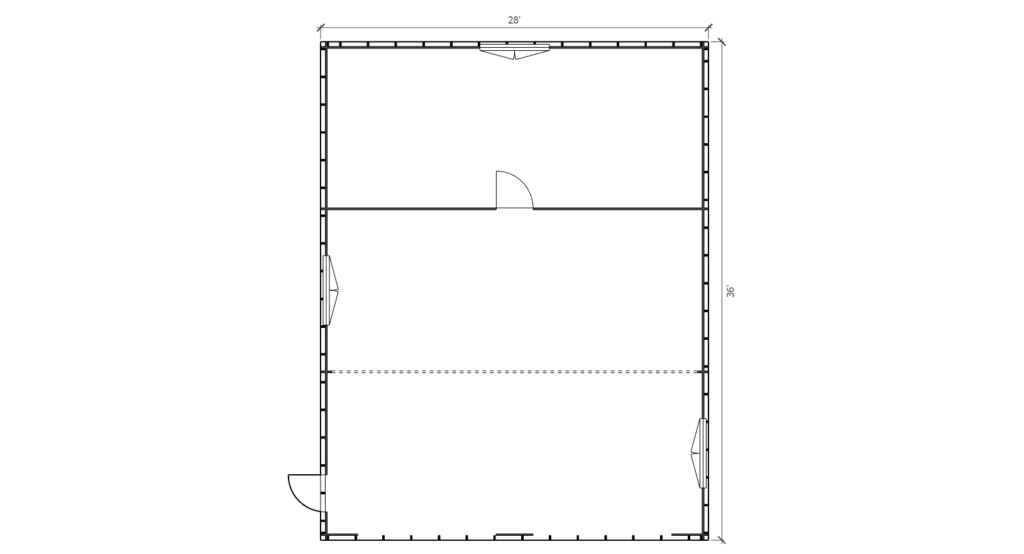

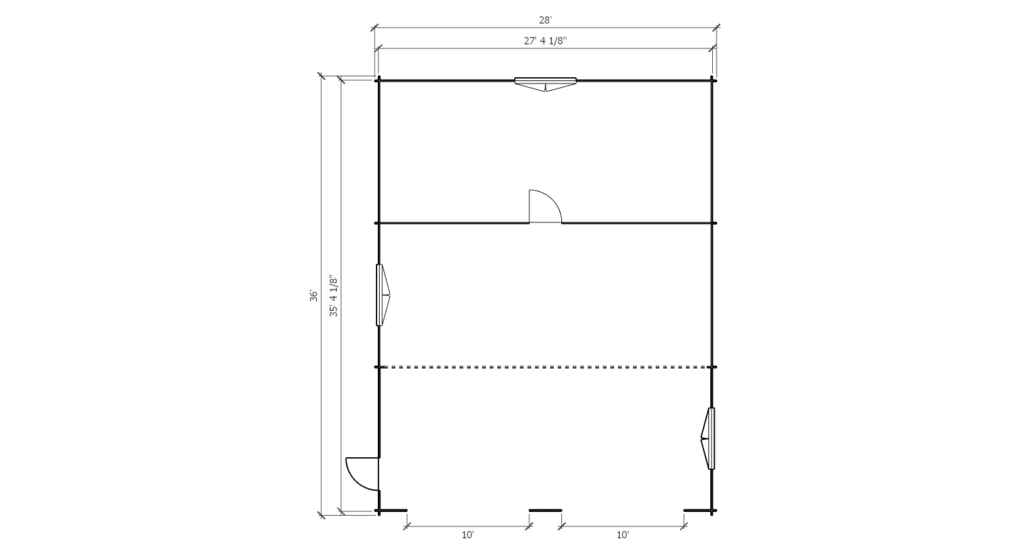

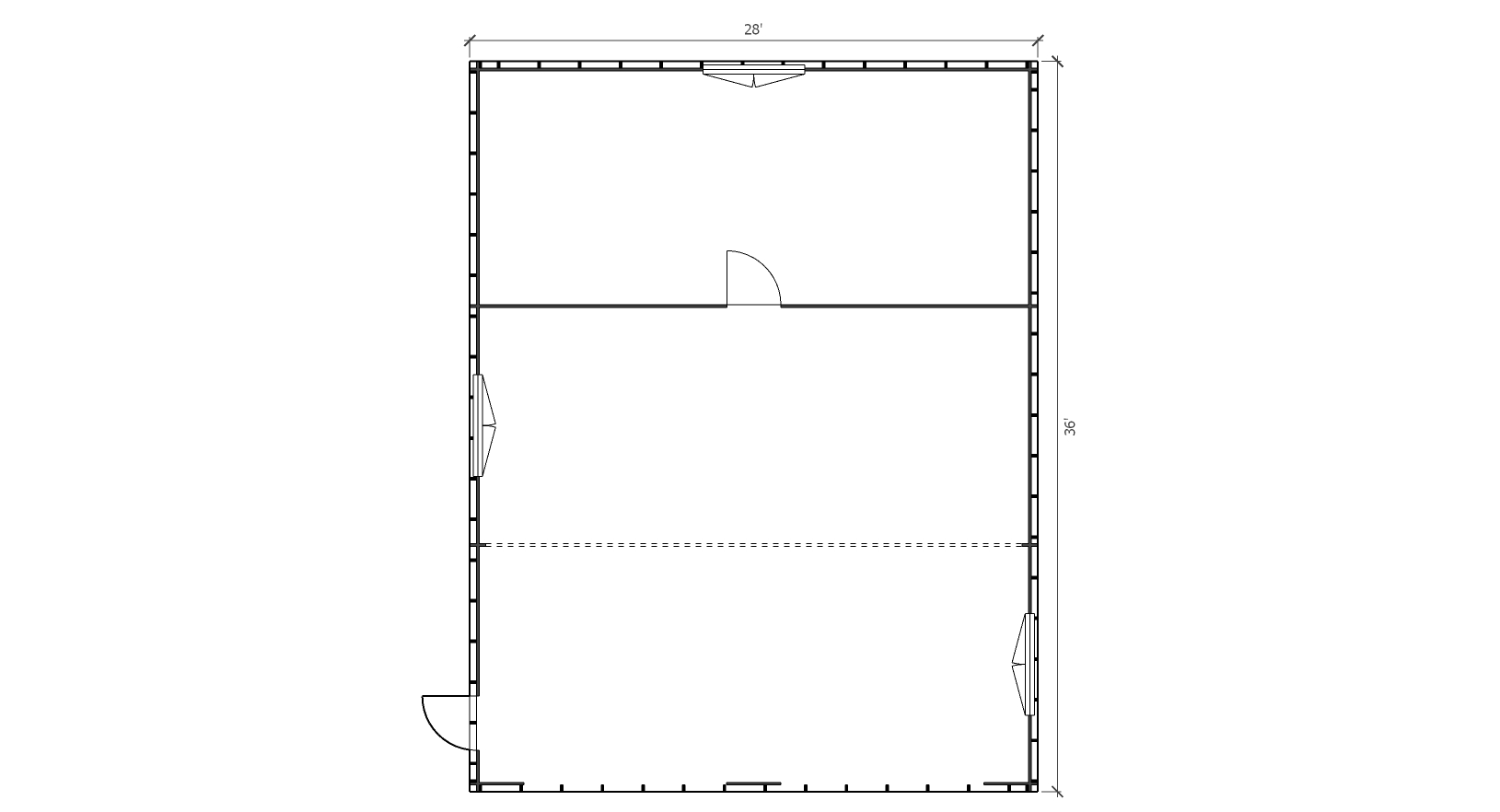

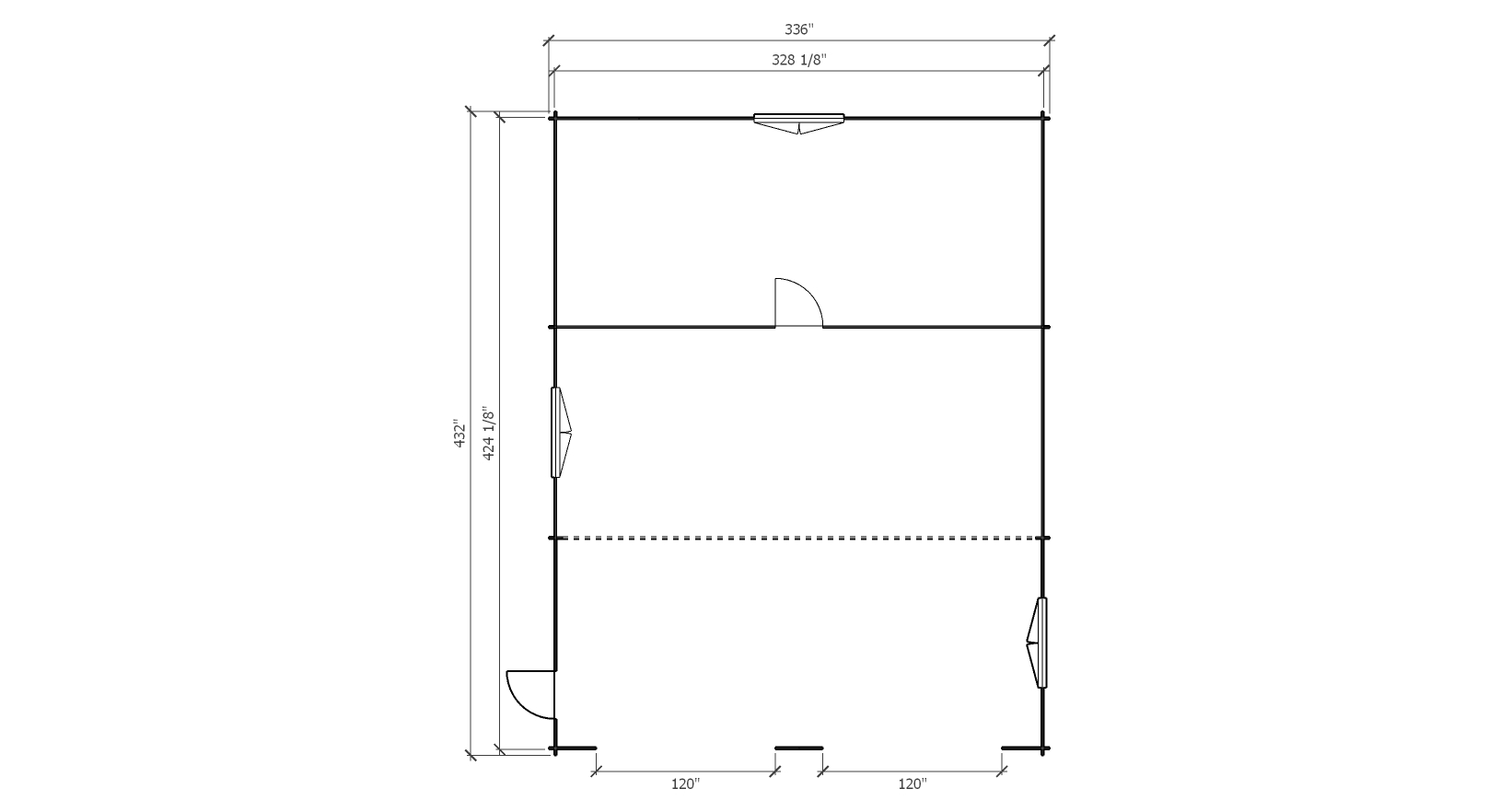

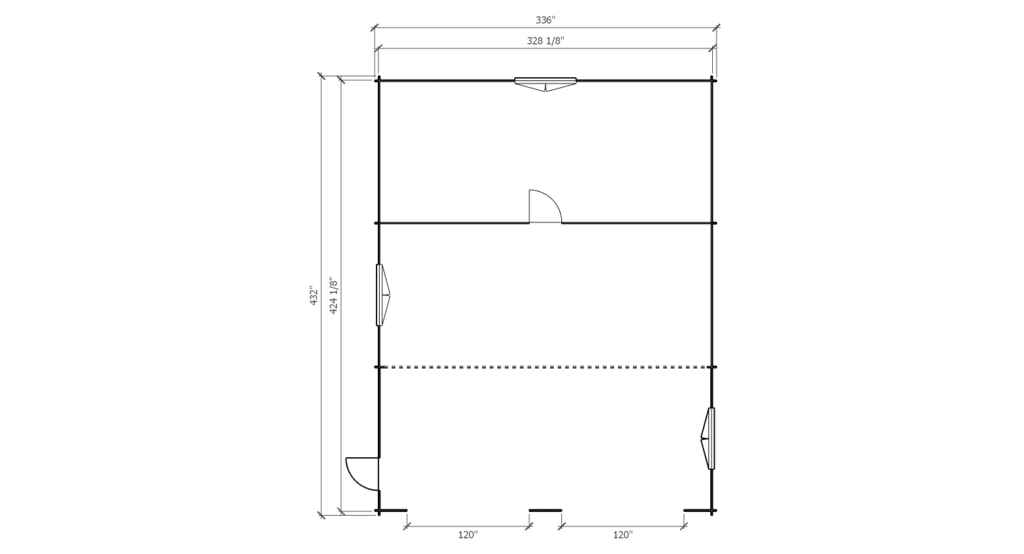

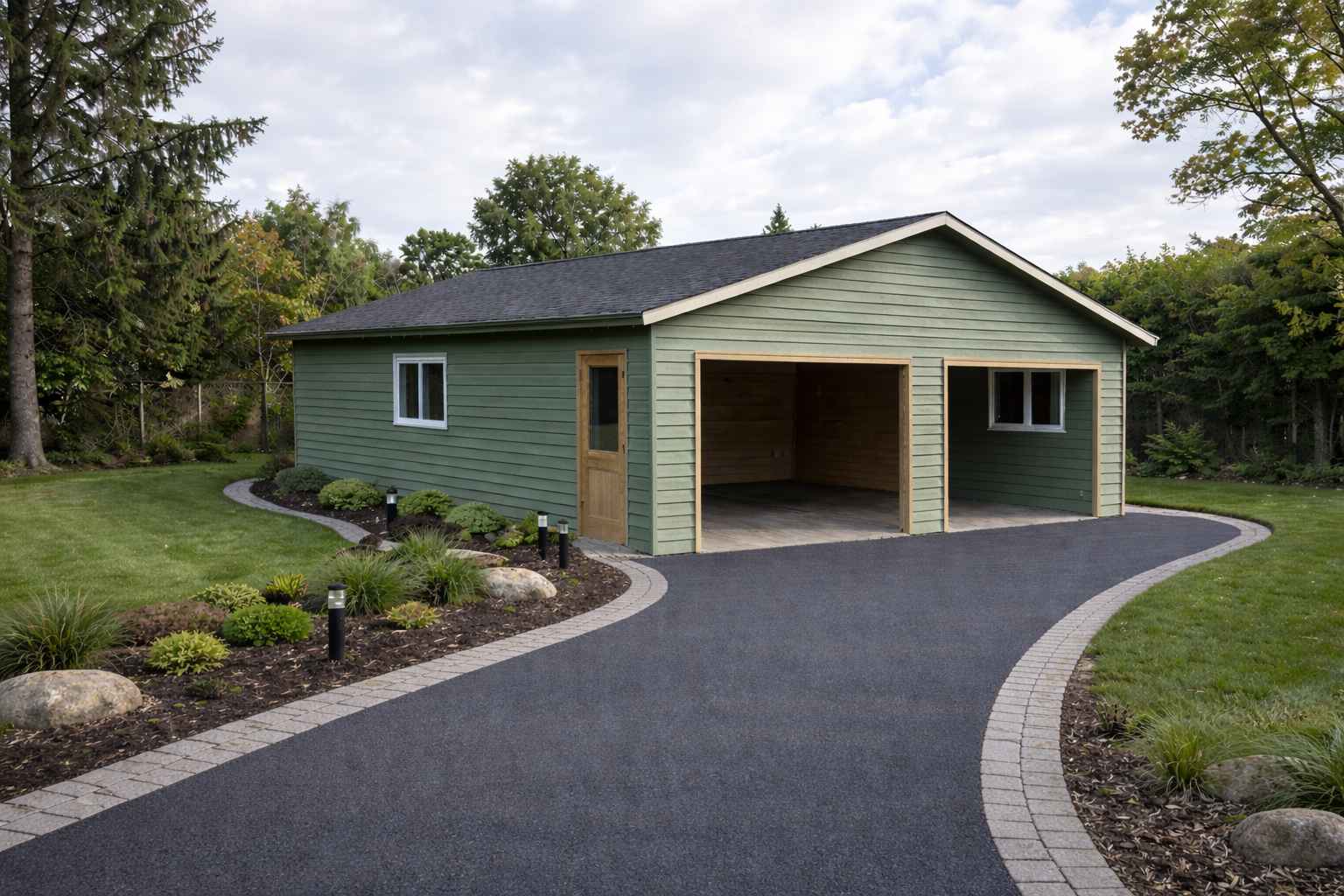

Garage 2836 is a double car garage plus a separate workshop area. (see floor plans) The interior is solid wood walls using 1-5/8″ x 4-3/8″ (40mm x 113mm) components. To insulate the building, studs, insulation & siding can be applied to the exterior. We offer 2 types of tongue & groove wood siding plus an extruded PVC maintenance free siding. The main feature of our garages is the all wood interior with vaulted/cathedral ceilings, ready to hang your tools
Kit includes:
- ready to assemble on a concrete slab
- treated starter plate 1-5/8″ x 5-1/8″ (40mm x 129mm)
- 1-5/8” x 4-3/8″ (40mm x 113mm) tongue & groove logs
- pre-cut, numbered exterior walls
- pre-cut, numbered interior walls
- pre-cut, numbered gable components

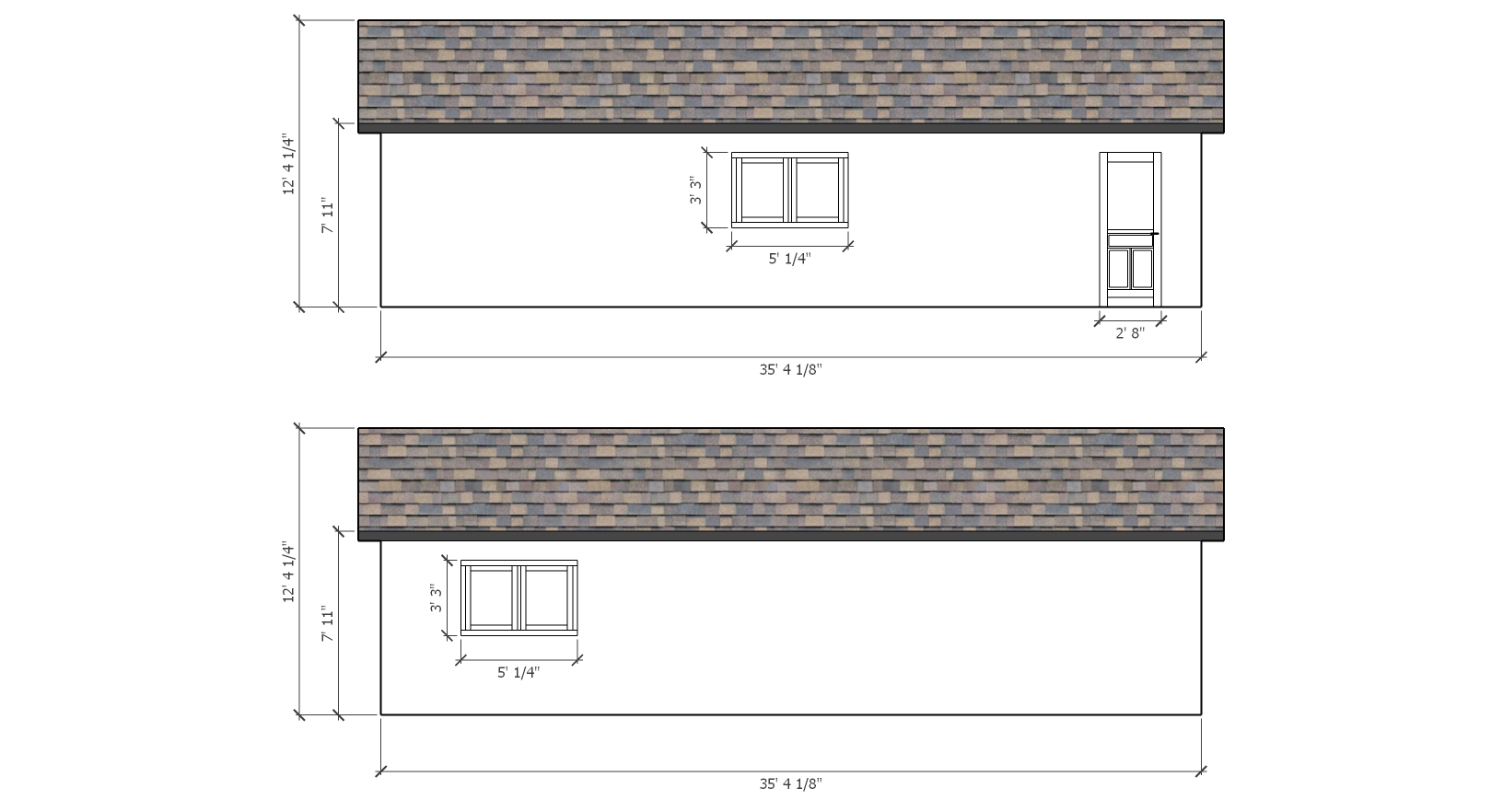

- sidewall height 95″ (2413mm)
- 2-3/4” x 9-1/4” (70mm x 235mm) glulam roof purlins/beams, spaced 22″ (558mm) or less
- vaulted, cathedral ceilings
- roof pitch 4/12 (18 degrees)
- roof overhang 12” (300mm)
- center gable
- metal joist/purlin hangers for center gable
- pre-cut, numbered ¾″ (18mm) tongue & groove roof boards
- pre-cut, numbered fascia boards
- 1 interior door 32″x80″ (812mm x 2040mm), hardware
- 3 – double wide wood windows 60″x39″ (1530mm x 990mm)
- 1 – entry door 1/2 glass tempered 32″ x 80″ (813mm x 2033mm)
- 1459 total sq’ of wall area
- 1114 sq’ of exterior wall surface
- 153 lineal’ per row
- 1,500 – 6″ log screws to connect each row, gable components, purlins
- GARAGE OVERHEAD DOORS NOT INCLUDED
- STAMPED STRUCTURAL ENGINEERING INCLUDED
SIDING OPTIONS (click here for more information on siding)
Choose from 3 types of EZ Log siding to cover the exterior of your home. Our siding installs over the exterior studs, without the need for plywood. Each kit includes siding, corner blocks, trims
Option 1) Max semi D-Log wood siding 3/4″ x 5-1/8″ (18mm x 130mm) Add – $ 6,539.00 USD | $ 5,425.00 CAD
Option 2) Otoczak full D-Log wood siding 1-1/8″ x 5-1/8″ (28mm x 130mm) Add – $ 10,694.00 USD | $ 8,878.00 CAD
Option 3) Vox extruded maintenence free PVC polymer siding 5/16″ x 13″ (7mm x 330mm) Add – $ 16,320.00 USD | $ 19,662.00 CAD
Window & Door Options:
If you prefer to use locally supplied windows and entry doors deduct the following:
Double wide wood windows (60″ x 39″) deduct: $ 386.00 USD $ 454.00 CAD
Single wide wood windows (30″ x 39″) deduct: $ 286.00 USD $ 337.00 CAD
Single wide wood entry door (32″ x 80″) deduct: $ 386.00 USD $ 454.00 CAD
