Kit Includes:
- ready to assemble on a concrete slab or wood foundation
- pre-cut, numbered exterior walls
- pre-cut, numbered interior walls
- pre-cut, numbered gable components
- 7/12 roof pitch (30 degrees)
- vaulted, cathedral ceilings
- pre-cut, 100mm x 200mm (4″x8″) numbered glulam roof purlins/beams, spaced 558mm (22″) or less
- pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
- pre-cut, numbered fascia boards
- pre-cut 100mm x 200mm (4″x8″) numbered glulam floor beams, spaced 558mm (22″) or less
- pre-cut loft floor boards 28mm (1-18″)

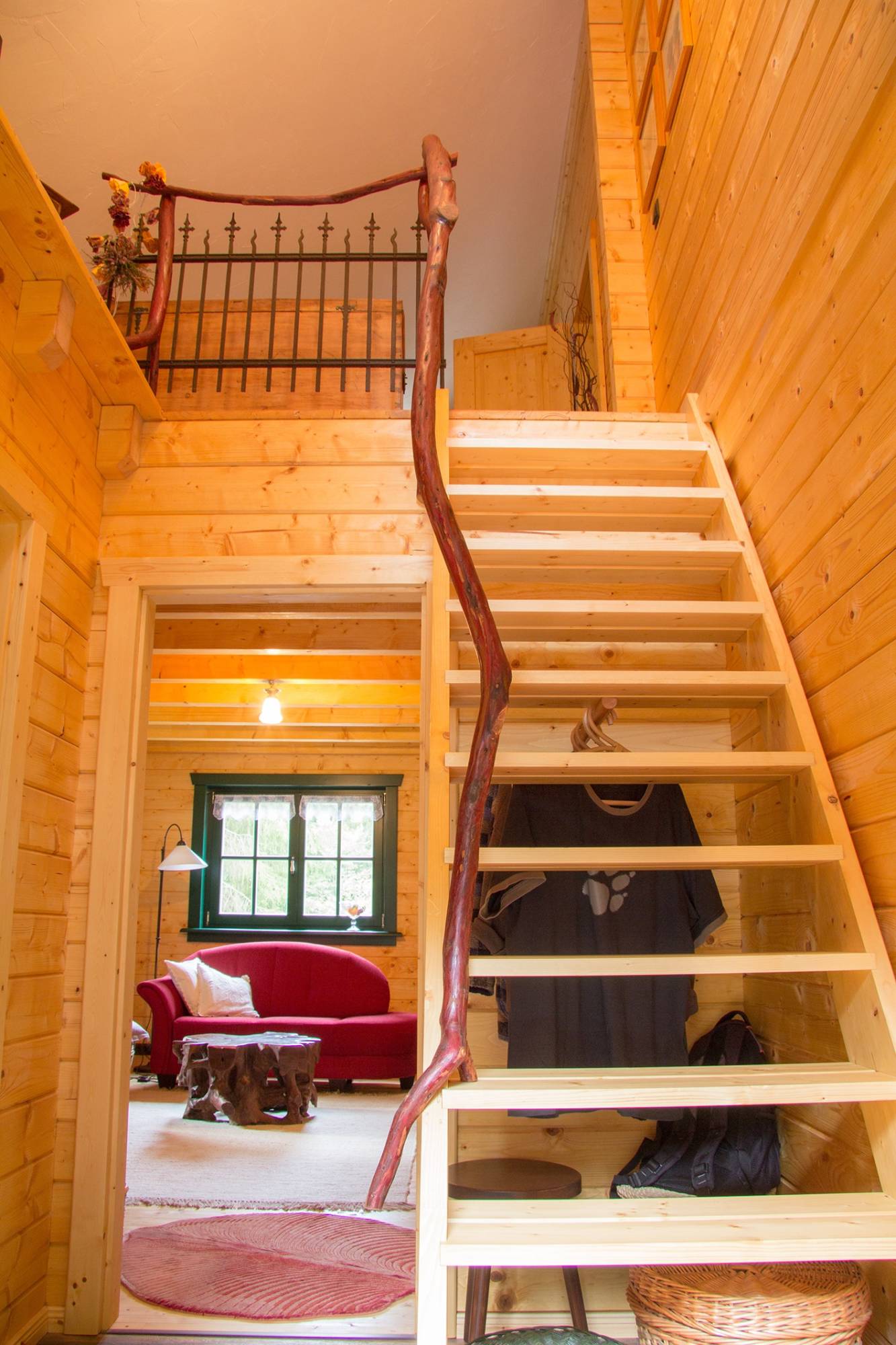

- stairs, handrails, built to meet codes
- 1797 total sq’ of wall area
- 1108 sq’ of exterior wall surface
- 150 lineal’ per row
- 4 interior doors 812mm x 2040mm (32″x80″)
- 4 single wide wood windows 765mm x 990mm (30″x39″)
- 6 double wide wood windows 1530mm x 990mm (60″x39″)
- 1 exterior doors 914mm x 2040mm (36″x80″) 1/2 glass tempered, multi locking
- 2 spare wall logs/spare roof boards
- 2,200 – 8″ log screws to connect each row, gable components, purlins
- packaged/wrapped and marked for sequence of assembly
- FREE SHIPPING

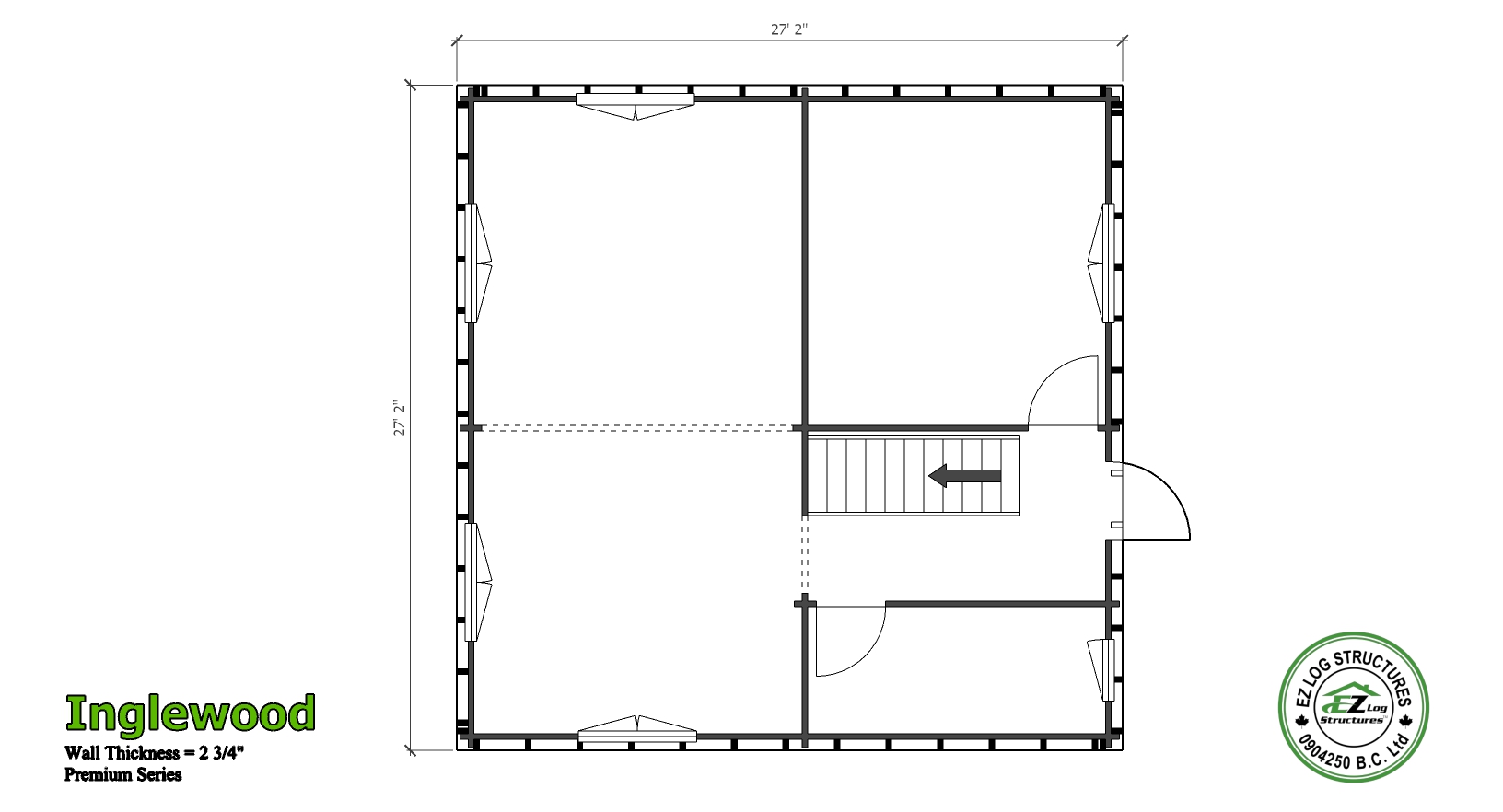

- FOUNDATION SIZE DRAWING
- STAMPED STRUCTURAL ENGINEERING
NOTE: Kits include residential grade, double glazed wood windows & doors. Rough openings can be created to accommodate locally purchased windows & doors
EXTERIOR SIDING KITS
Choose from 3 types of siding to cover the exterior of your home. Semi D-Log 3/4″ tongue & groove wood siding, Full D-Log 1-1/8″ tongue & groove wood siding or heavy duty maintenance free extruded PVC polymer siding
Each kit includes: siding, corner blocks, trims
1) ADD 10% – Semi D-Log siding (Max) 3/4″ x 5-1/8″ (18mm x 130mm)
2) ADD 14% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)
3) ADD 20% – Vox extruded prefinished PVC polymer siding 5/16″ x 13″ (7mm x 330mm)
PVC siding can be applied horizontally or vertically
Window Options:
1) Kit includes double glazed residential grade wood windows. To upgrade all windows to triple glazed/Low E/Argon gas filled (16 sash)
Add – $ 1,926.00 USD
Add – $ 2,240.00 CAD
OR
2) Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)
Add – $ 4,128.00 USD
Add – $ 4,800.00 CAD
