Omaha 2

205 sq ft
Premium Model
$16,270.00 USD
$20,859.00 CAD
FREE SHIPPING
Bedrooms1
Cabin size193" x 153"
Roof pitch5/12 - 23D
Roof boards3/4"

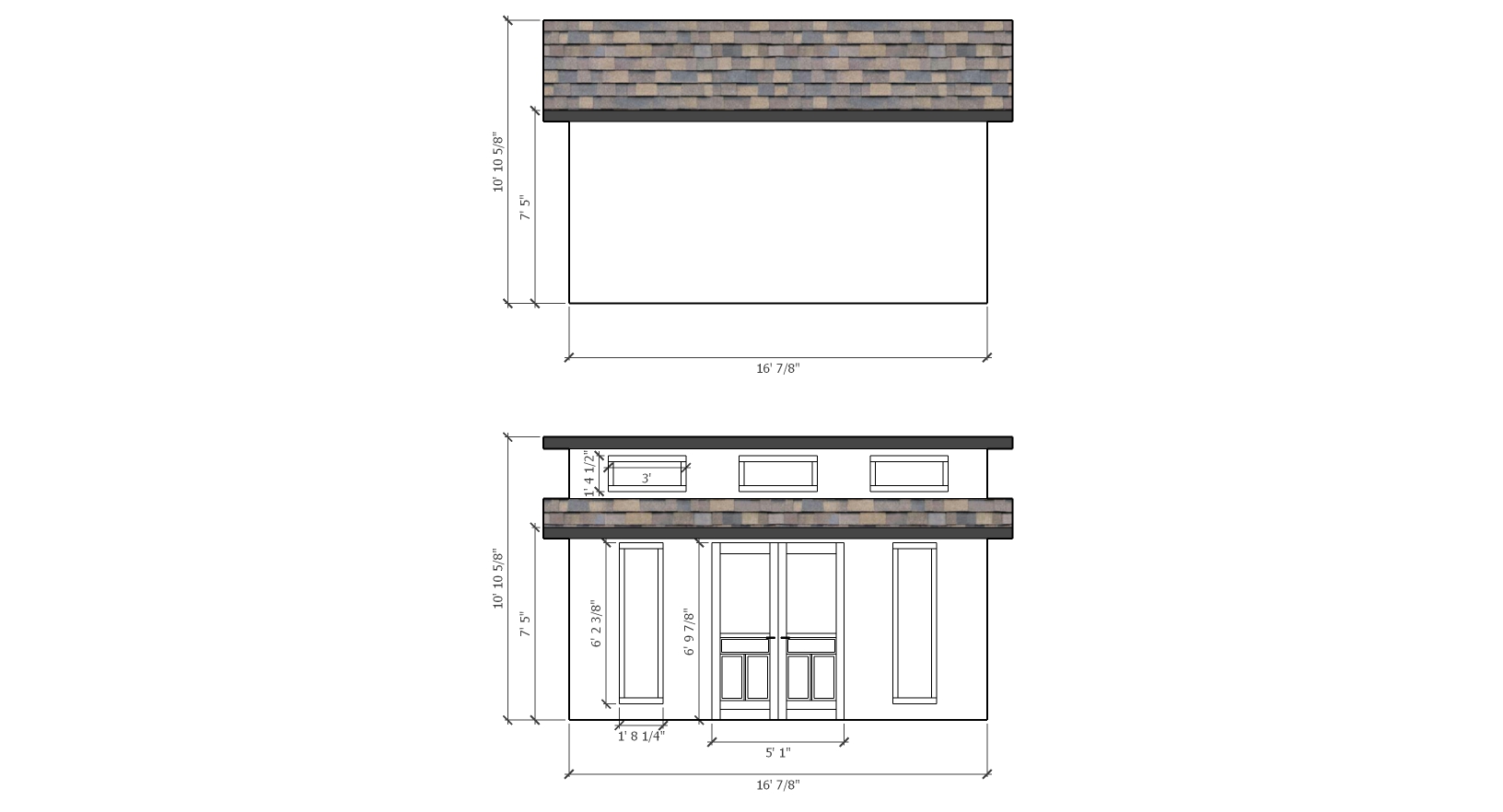

Wall height89"
Ridge height139"
Wall thickness2-3/4”

Model Documentation

FREE SHIPPING – some exceptions apply

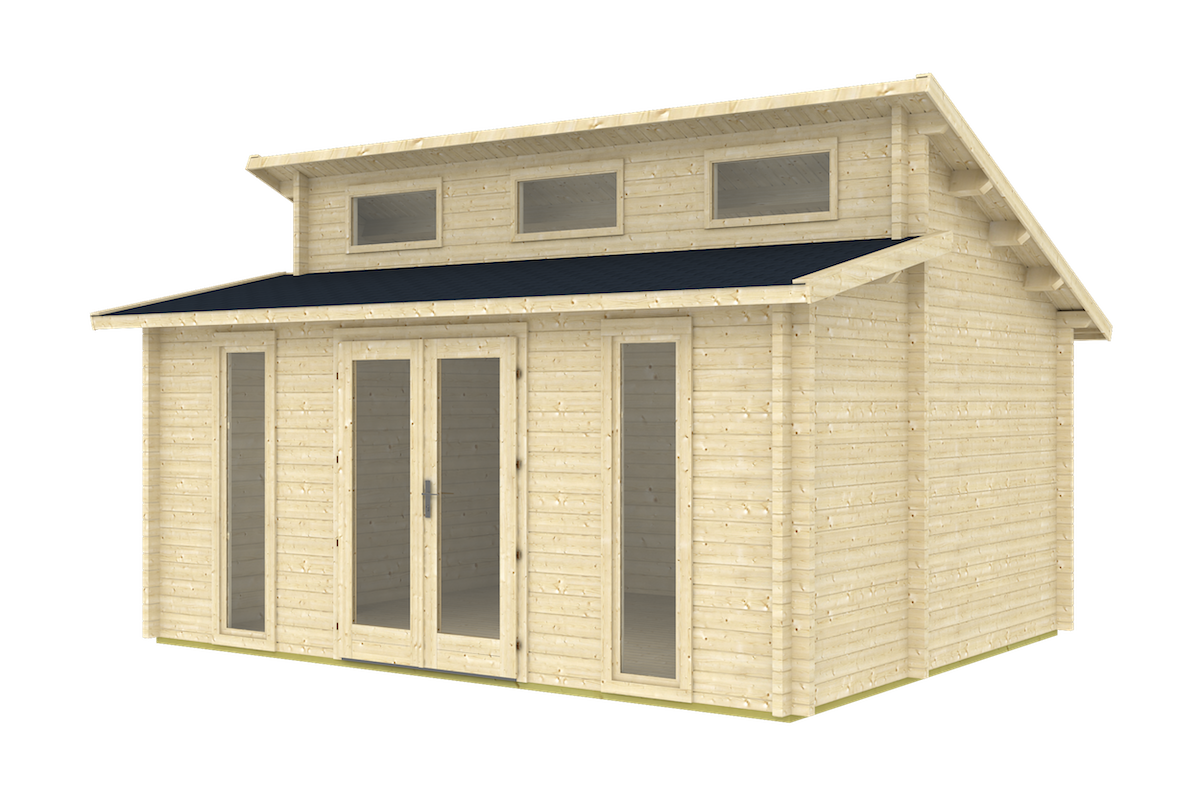

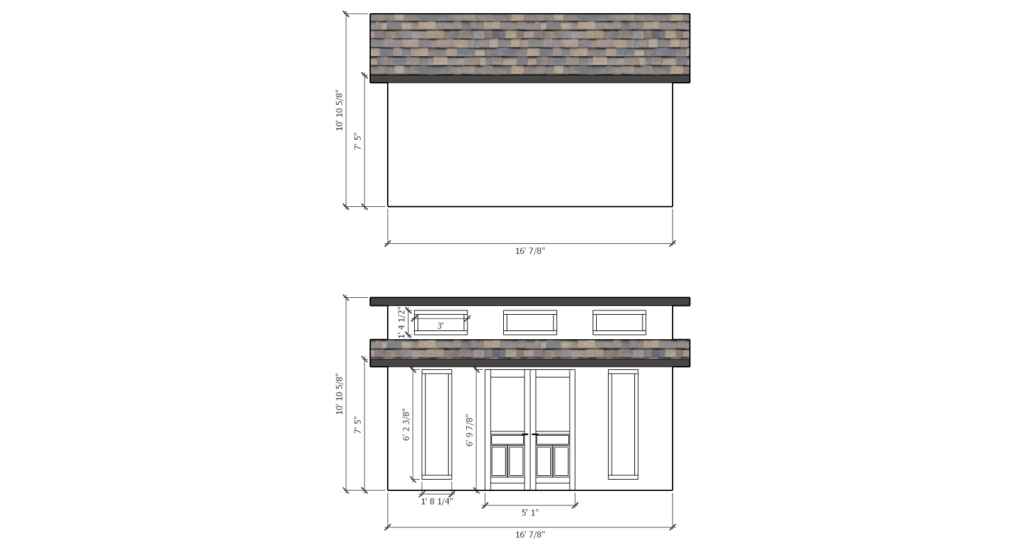

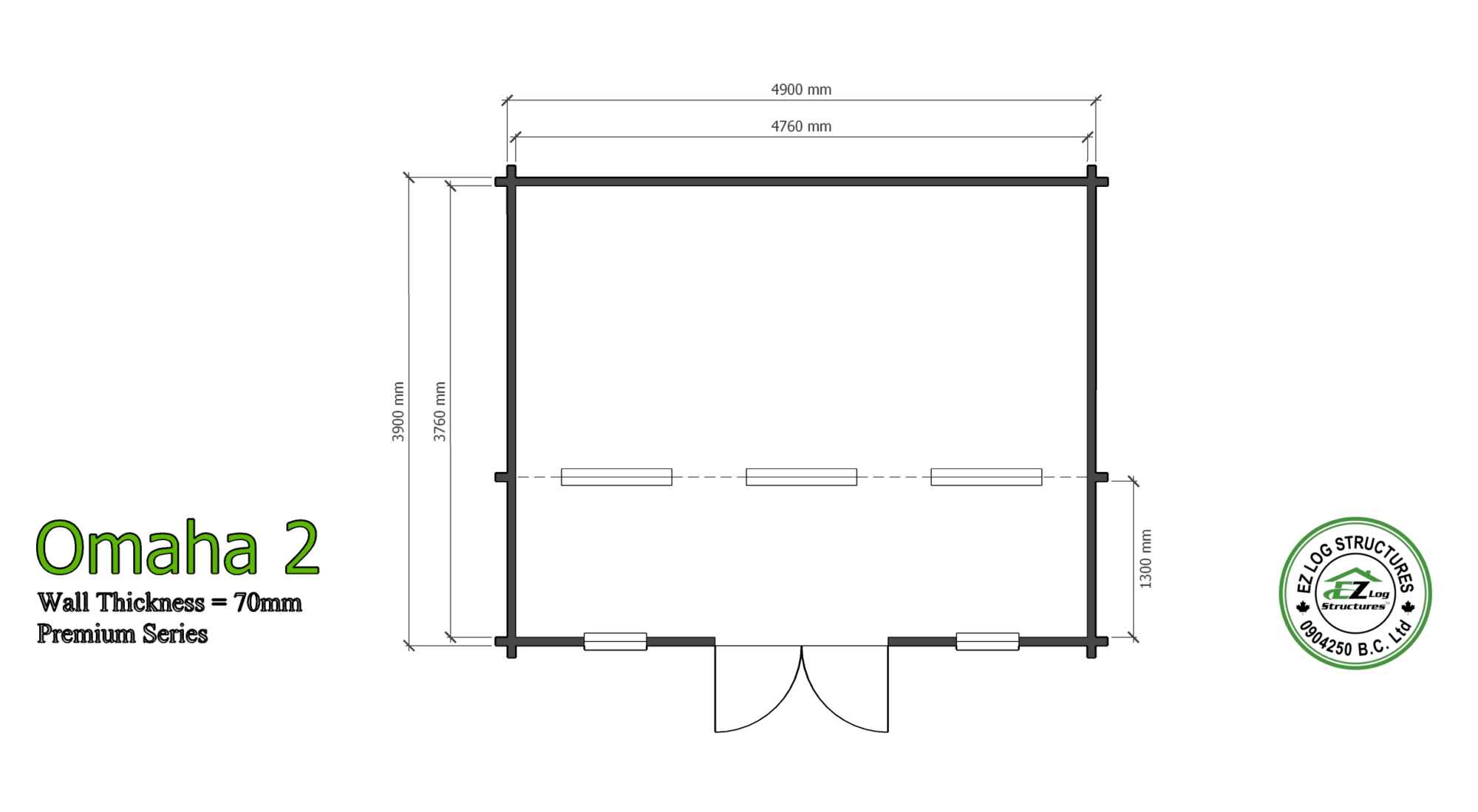

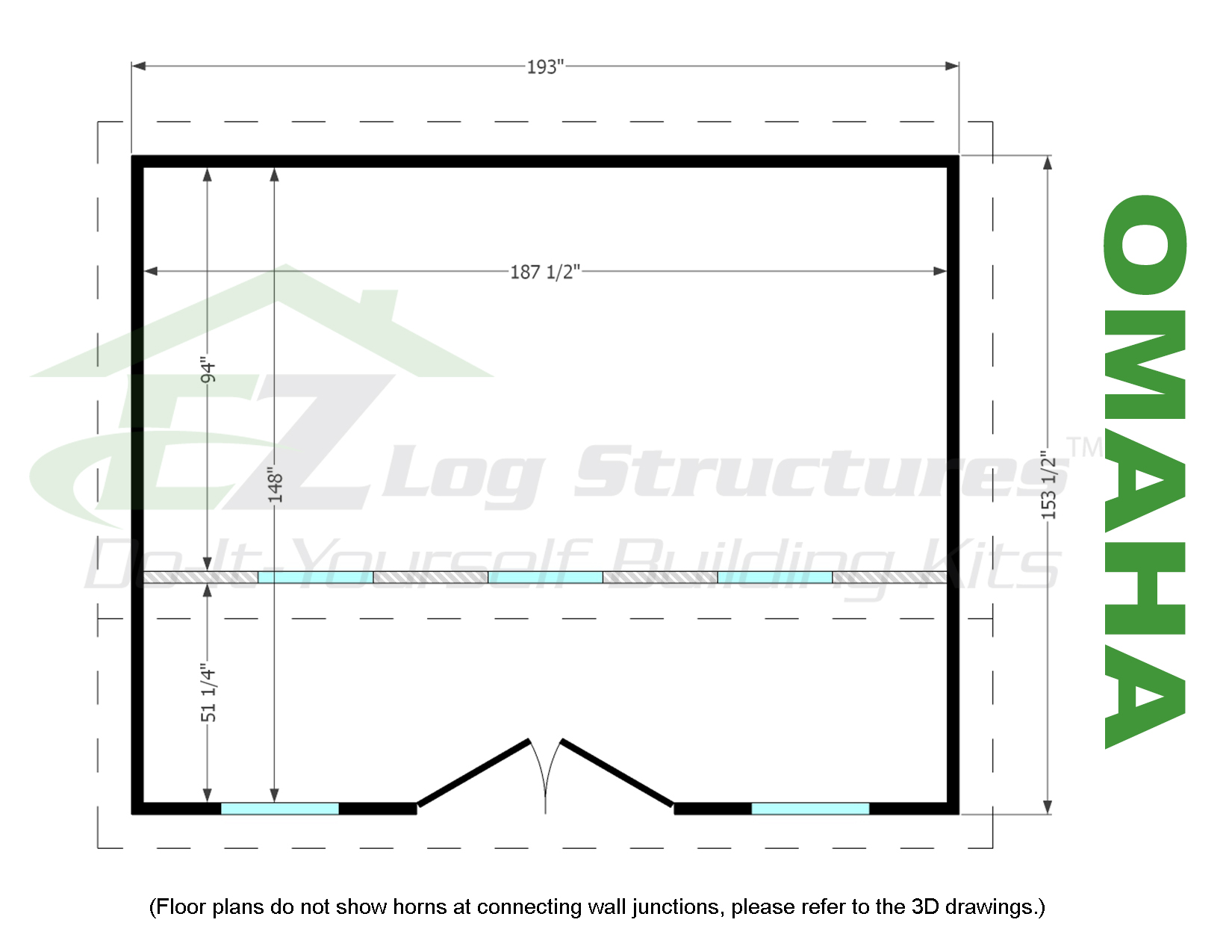

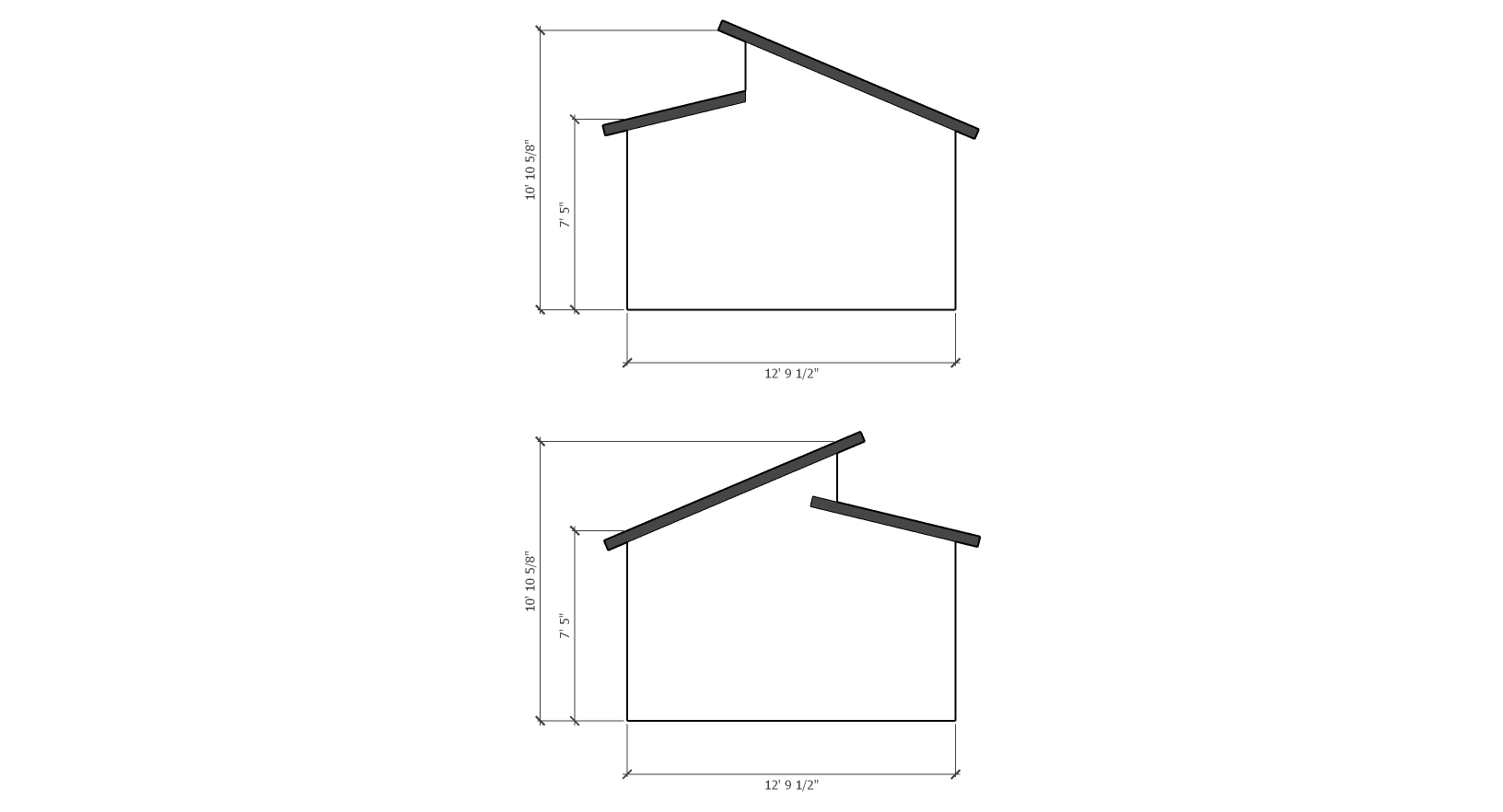

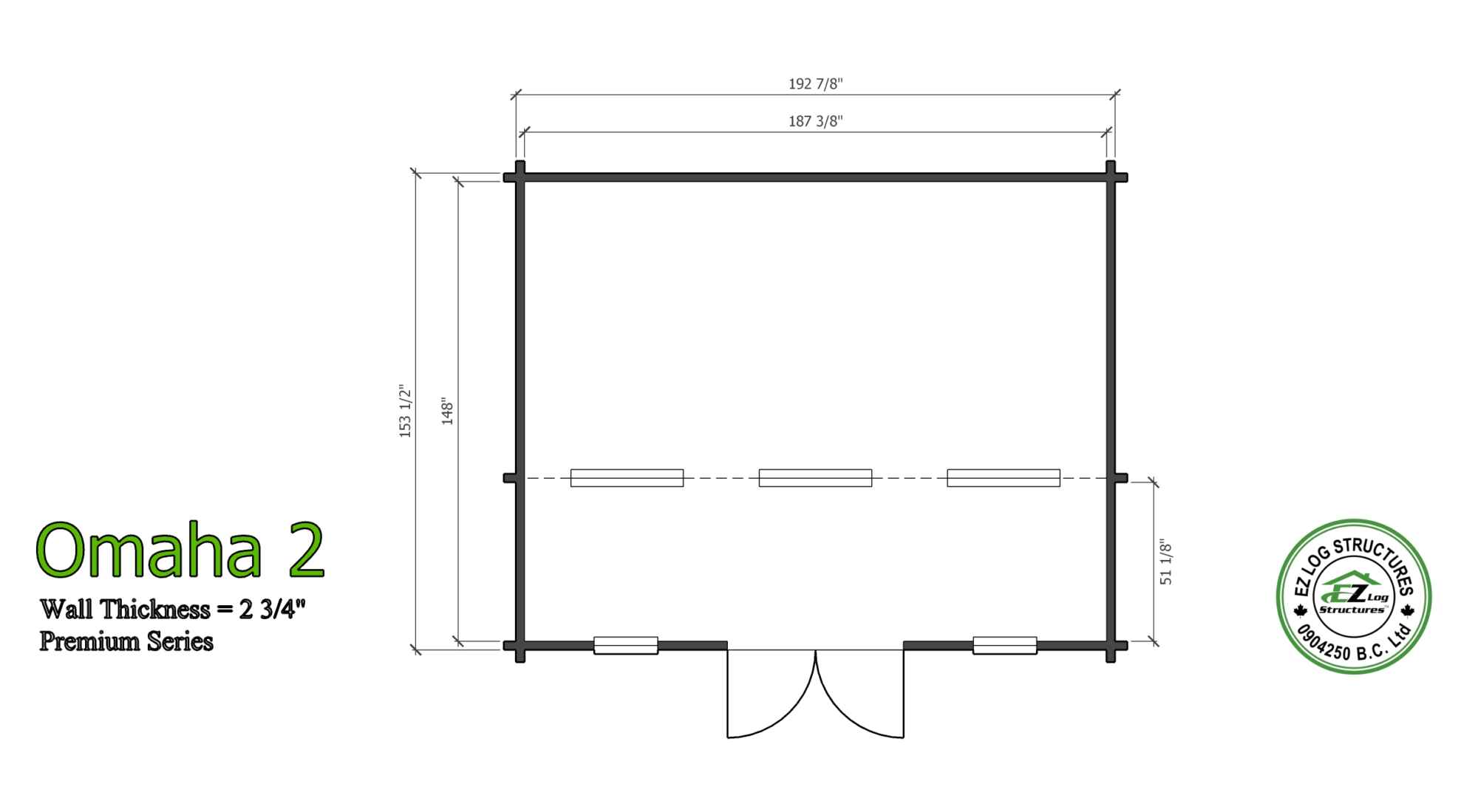

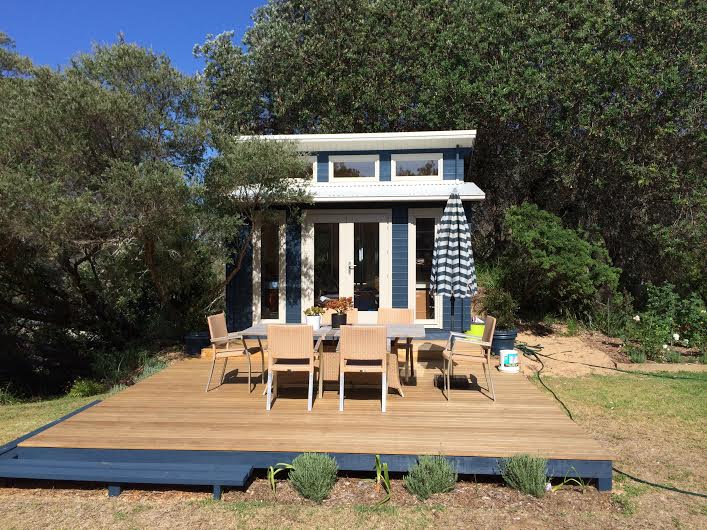

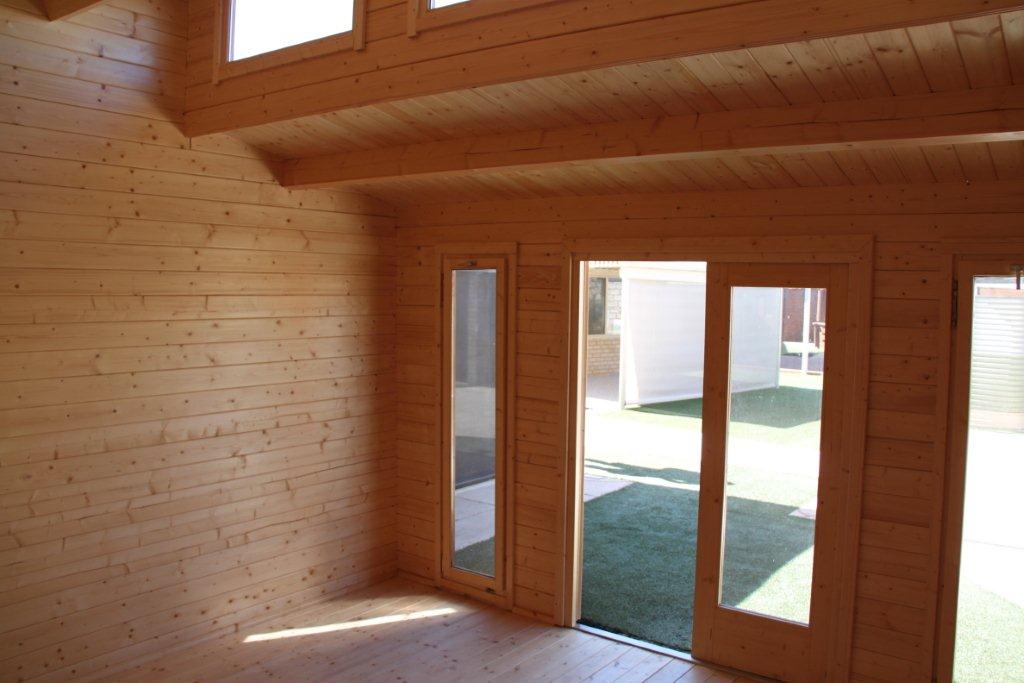

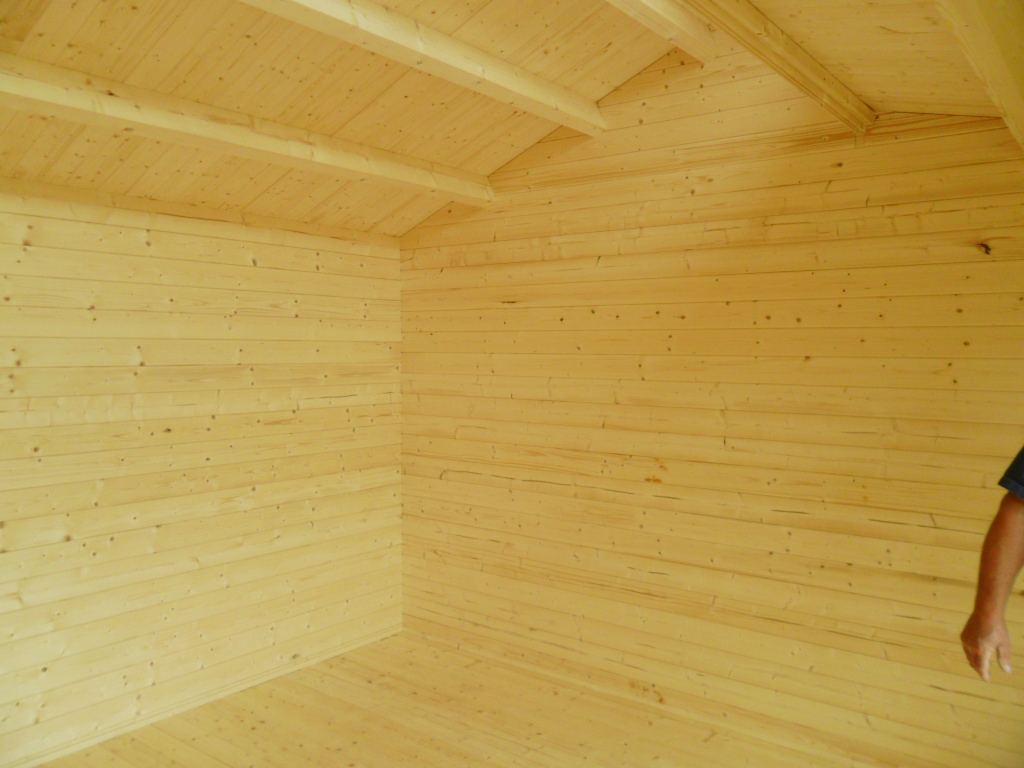

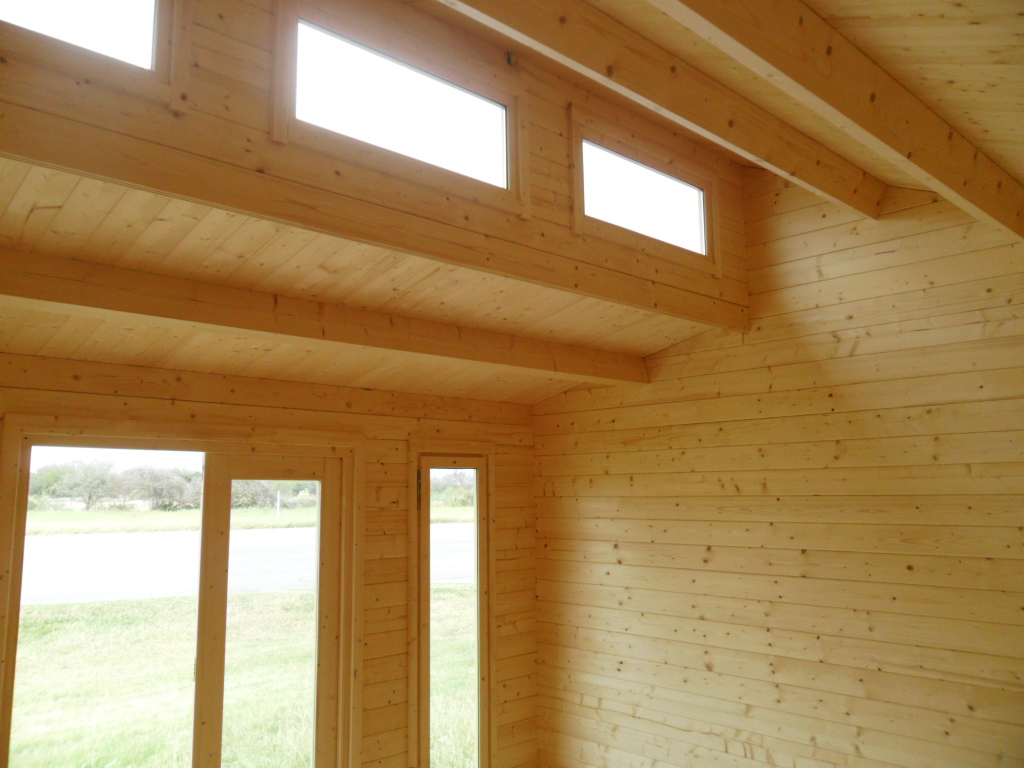

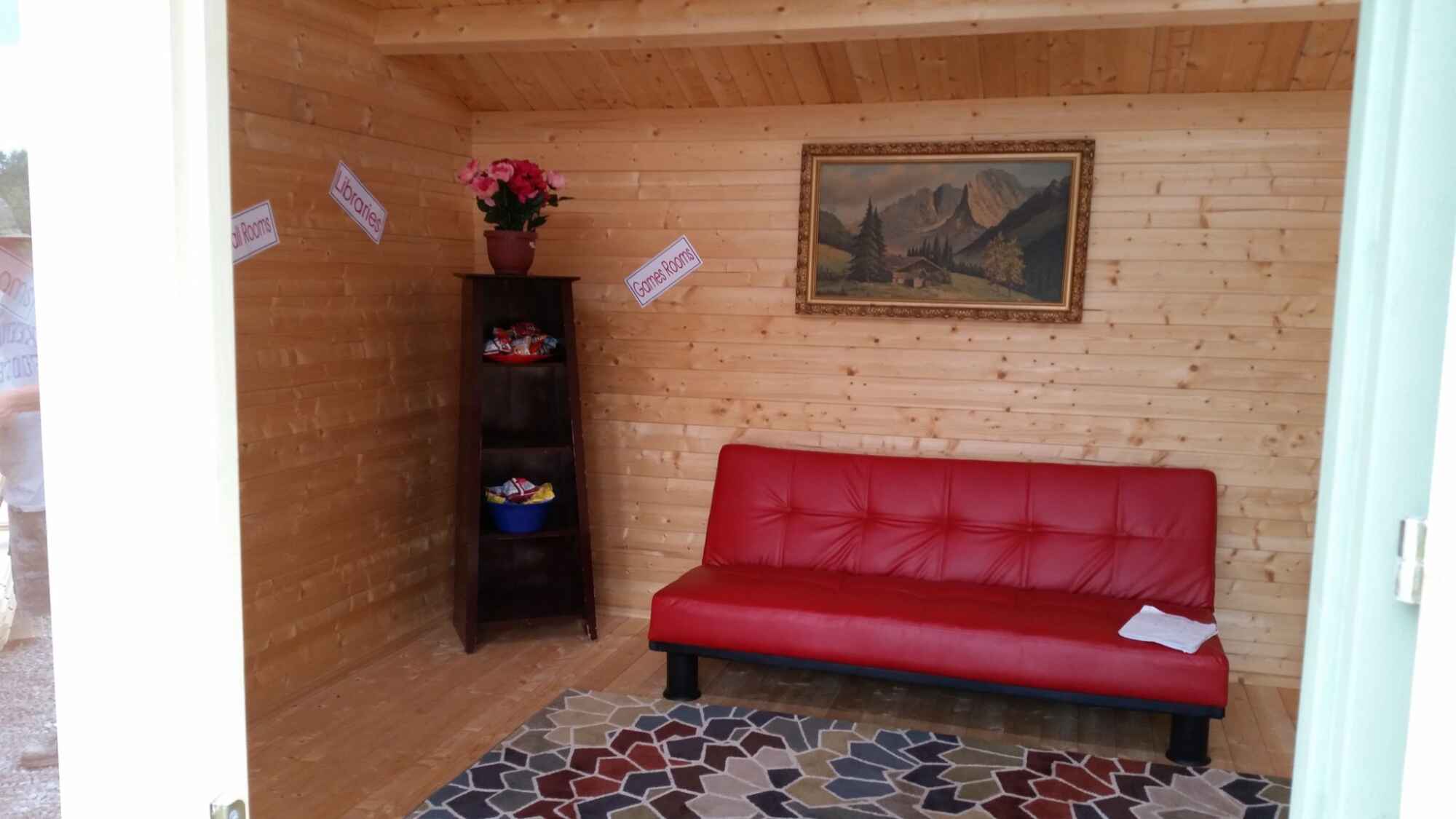

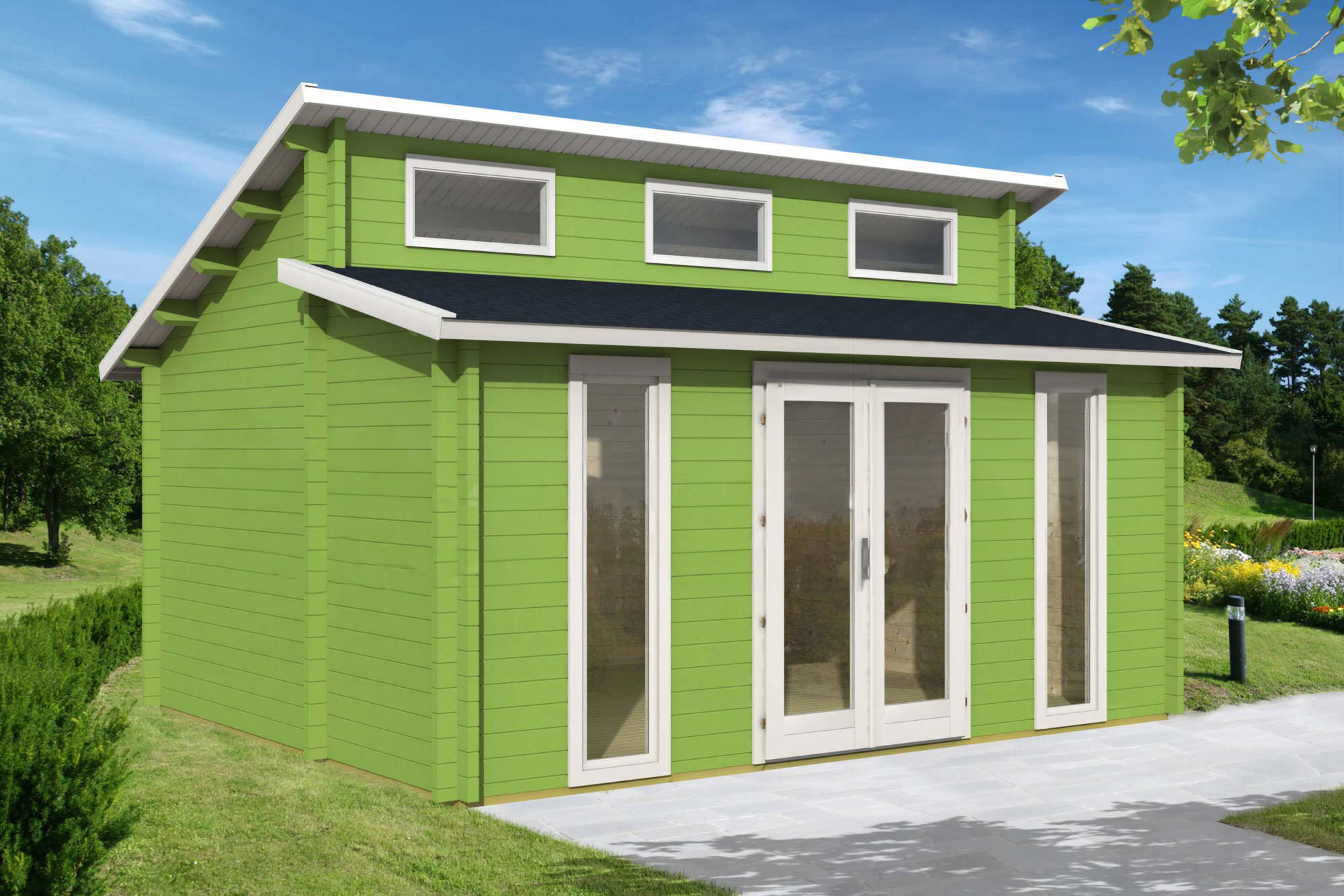

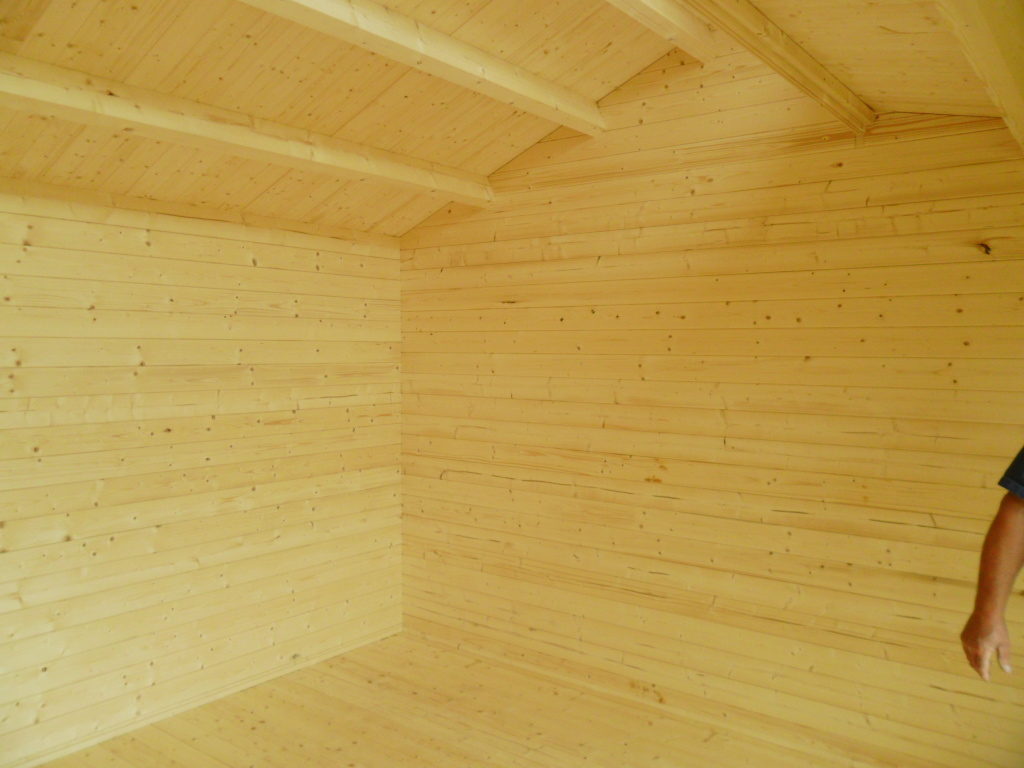

Omaha 2 is a 1 room cabin, ideal for the lake property, office or guest cabin in the yard. The main living space has vaulted/cathedral ceilings. The front wall height is 89″ and the total height is 139″.  (sq footage is based the total footprint, living space could be less, see floor plans)

FREE STAMPED STRUCTURAL ENGINEERING – PREMIUM models include site specific stamped engineering drawings for structural integrity.  Drawings are reviewed, approved and stamped by a licensed engineering firm to ensure the building meets local requirements for roof and wind loads. Additional engineering services are available on request



WALL INSULATING KIT: Add 10% for the wall insulating kit including 2×4 studs, metal stud brackets plus 3/4″ wall cover boards for interior or exterior application. When insulating on the exterior the foundation must be larger

INTERIOR              EXTERIOR        Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

Energy efficiency:  Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the overall thermal and comfort benefits

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Insulating the roof: Apply locally supplied materials to add rafters over the tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof. These added rafters also increase the roof load capacity

OPTION A: Upgrade wood windows to triple glazed / Low E / Argon filled glass

  • USD regular price $ 468.00
  • CAD regular price $ 600.00



OPTION B: Upgrade wood windows to maintenance free white PVC windows with triple glazed / Low E / Argon filled glass. NOTE: Exterior rolling shutters are NOT available on this model

  • USD regular price $ 858.00
  • CAD regular price $ 1,100.00



Assembly: The model can be assembled in approximately 4 days with 2 people

Tip: House wraps & vapor barriers are required in most regions when insulating

Building Codes: Premium series homes & cabins are manufactured to meet all structural requirements for building codes including, California Title 24, earthquake, heavy snow load regions and hurricane zones

Kit includes:

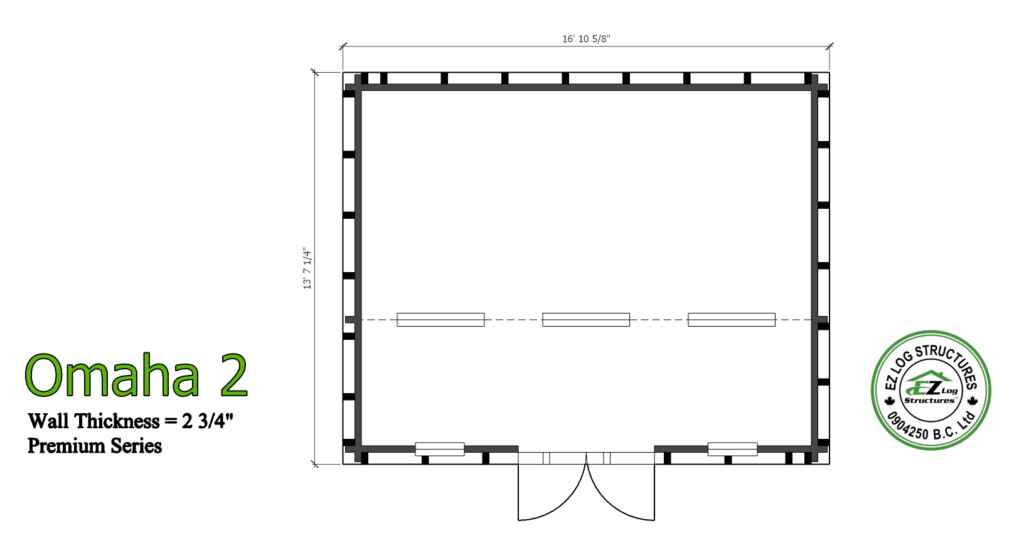

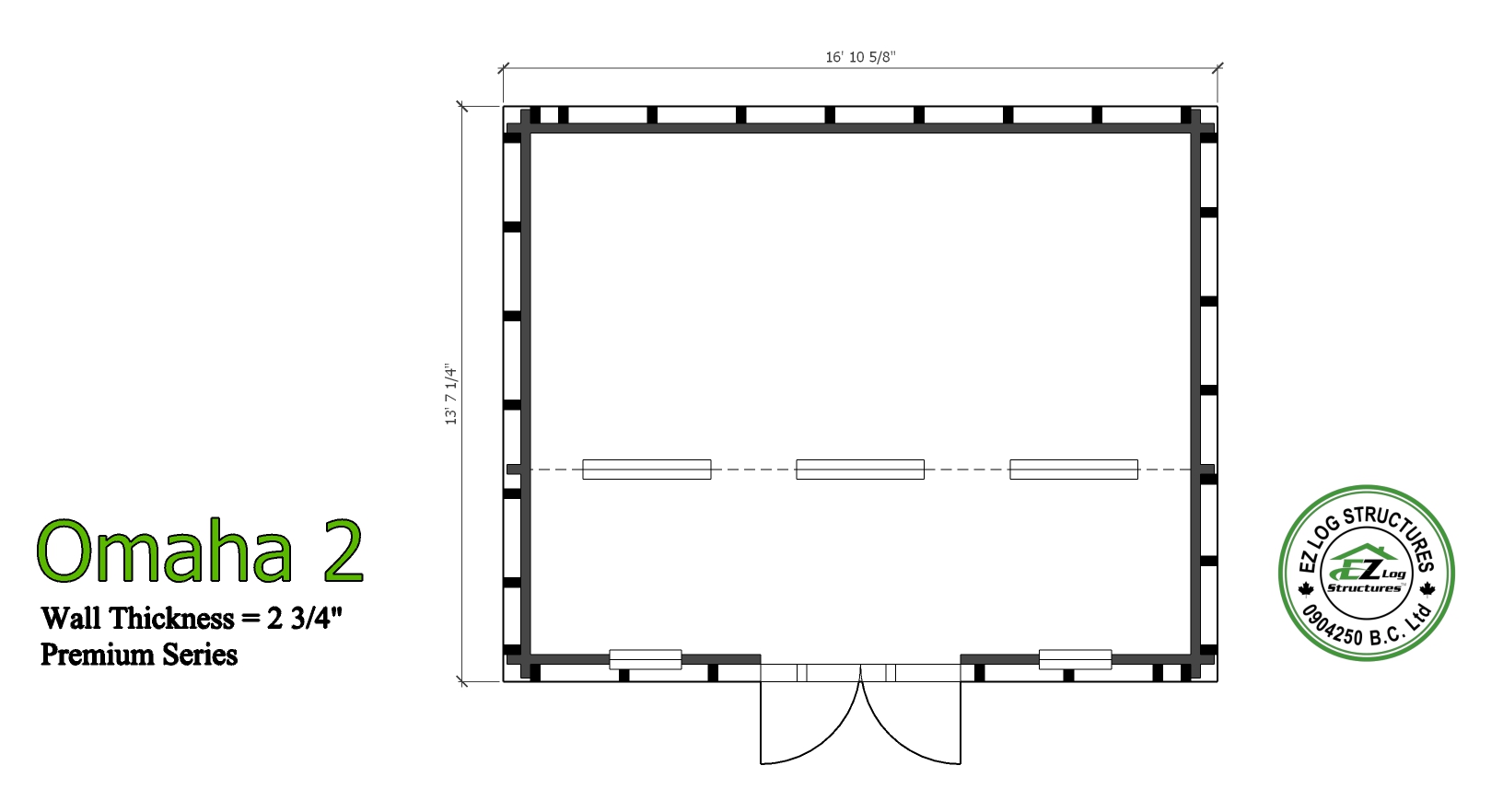

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 5/12 roof pitch (23 degrees)
  • vaulted, cathedral ceilings
  • pre-cut 100mm x 200mm (4″x8″) numbered glulam floor beams, spaced 558mm (22″) or less
  • pre-cut loft floor boards 28mm (1-18″)
  • pre-cut, numbered fascia boards
  • 3 single wide wood windows  (opening) 915mm x 420mm (36″ x 17″)
  • 2 single wide wood windows 515mm x 1890mm (20″x 74″)
  • 1 exterior double door 1550mm x 2040mm (61″ x 80″) full glass tempered, multi locking hardware
  • hardware for doors & windows
  • threaded steel storm rods for perimeter wall junctions
  • 2 spare wall logs/spare roof boards
  • 100 – 8″ log torque head log screws to connect first 2 rows,  top row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
