Wall insulating kit: includes metal brackets & 3/4″ tongue & groove wall cover boards made of matching wood. Install studs using the brackets and then apply the interior wall cover boards over the studs. Add 10% to the selling price.
Tip: Mineral wool insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly
Exceptional energy efficiency: 2-3/4″ solid wood walls have a tested thermal mass rating of R-12 and add R-15 mineral wool insulation to achieve R-27 in the walls
Insulating the roof: This is done using locally supplied materials over the supplied tongue & groove roof boards. Build up to the required depth to house insulation and install metal roofing or shingles. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof
Assembly: This model can be assembled in 20 days or less with 3 people.
Building Codes: Passes structural codes in USA and Canada. No additional charges if upgrades are needed for earthquake, heavy snow load regions or hurricane zones
Tip: House wraps & vapor barriers are required when insulating. Vapor barriers are installed on the warm side of walls, IE: interior of the studs for cold climates, exterior of studs for hot climates
Structural Engineering: Kit includes in-house structural engineering, some regions may require a local engineer to stamp drawings
Kit includes:
- IN-HOUSE STRUCTURAL ENGINEERING
- FREE SHIPPING in USA (Except HI & AK)

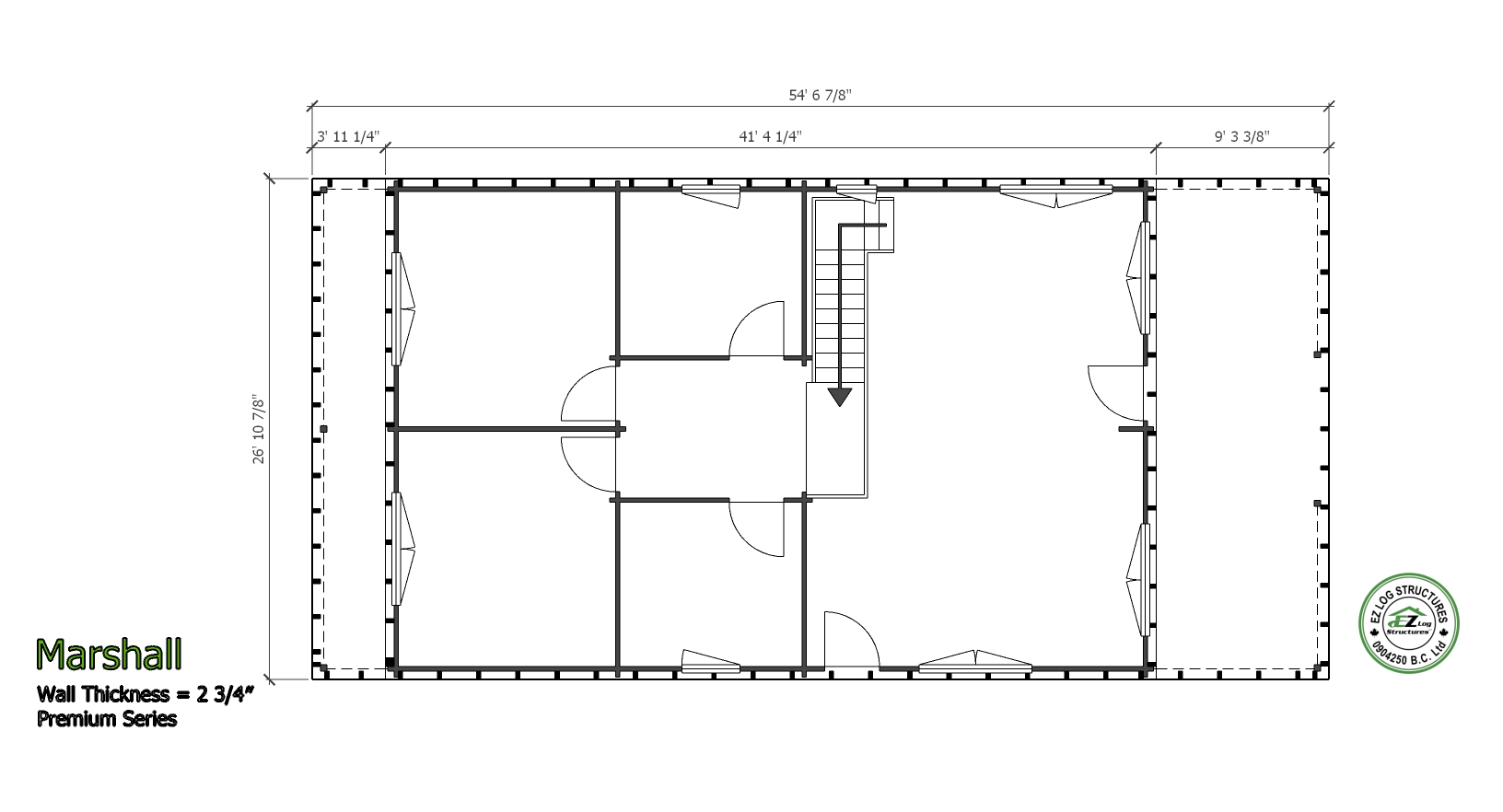

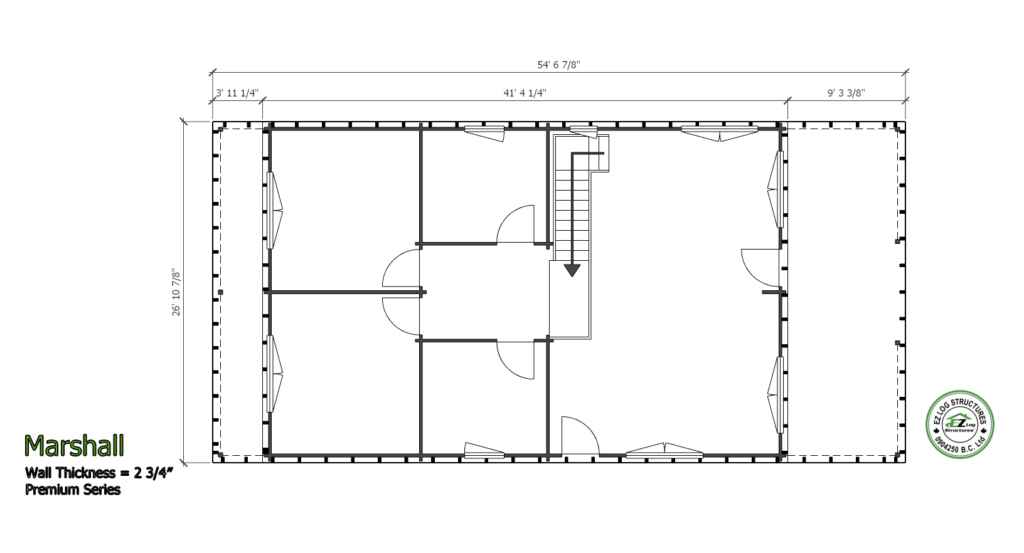

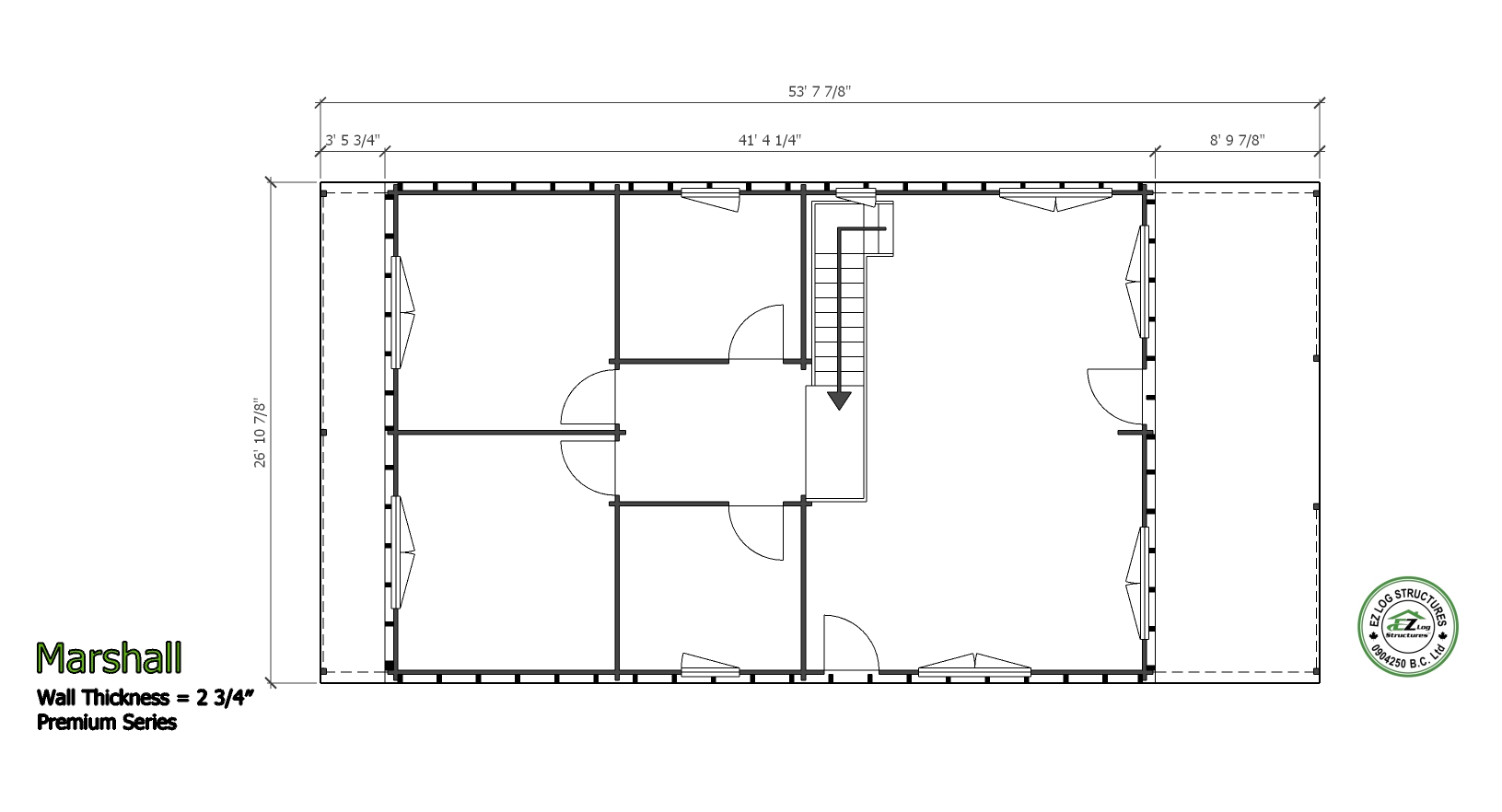

- no floor ready to assemble on a concrete slab, wood floor over piers, crawl space or basement
- pre-cut, numbered exterior walls
- pre-cut, numbered interior walls
- pre-cut, numbered gable components
- vaulted, cathedral ceilings
- pre-cut, numbered roof purlins, beams
- pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
- pre-cut, numbered floor beams for second level
- pre-cut, numbered 28mm (1-1/8′) tongue & groove floor boards
- pre-cut/numbered fascia boards
- stairs, landings, railings
- prebuilt sectional deck railings, vertical balustrades, handrail, adjustable posts on front and rear deck
- multi locking double glazed wood windows, trims
- entry doors, locks, deadbolts, keys, trims
- interior doors, hardware, trims
- threaded steel storm rods for perimeter wall junctions
- 2 spare wall logs, spare roof boards
- 600 – 8″ log screws to connect first 2 rows, gable components, purlins
