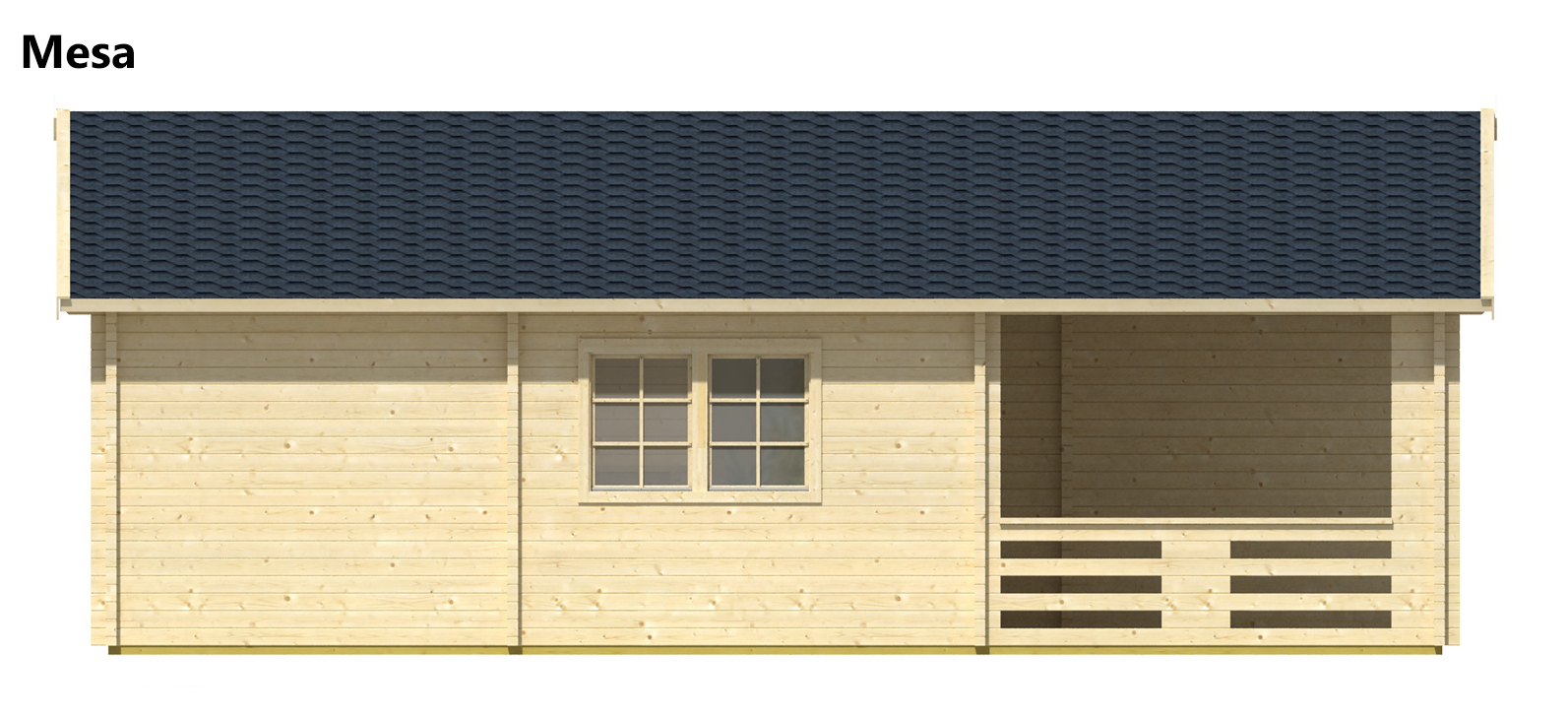

Mesa

733 sq ft
Premium Model
$40,730.00 USD
$52,217.00 CAD
Rooms
Bedrooms2
Bathrooms1
Cabin sizes

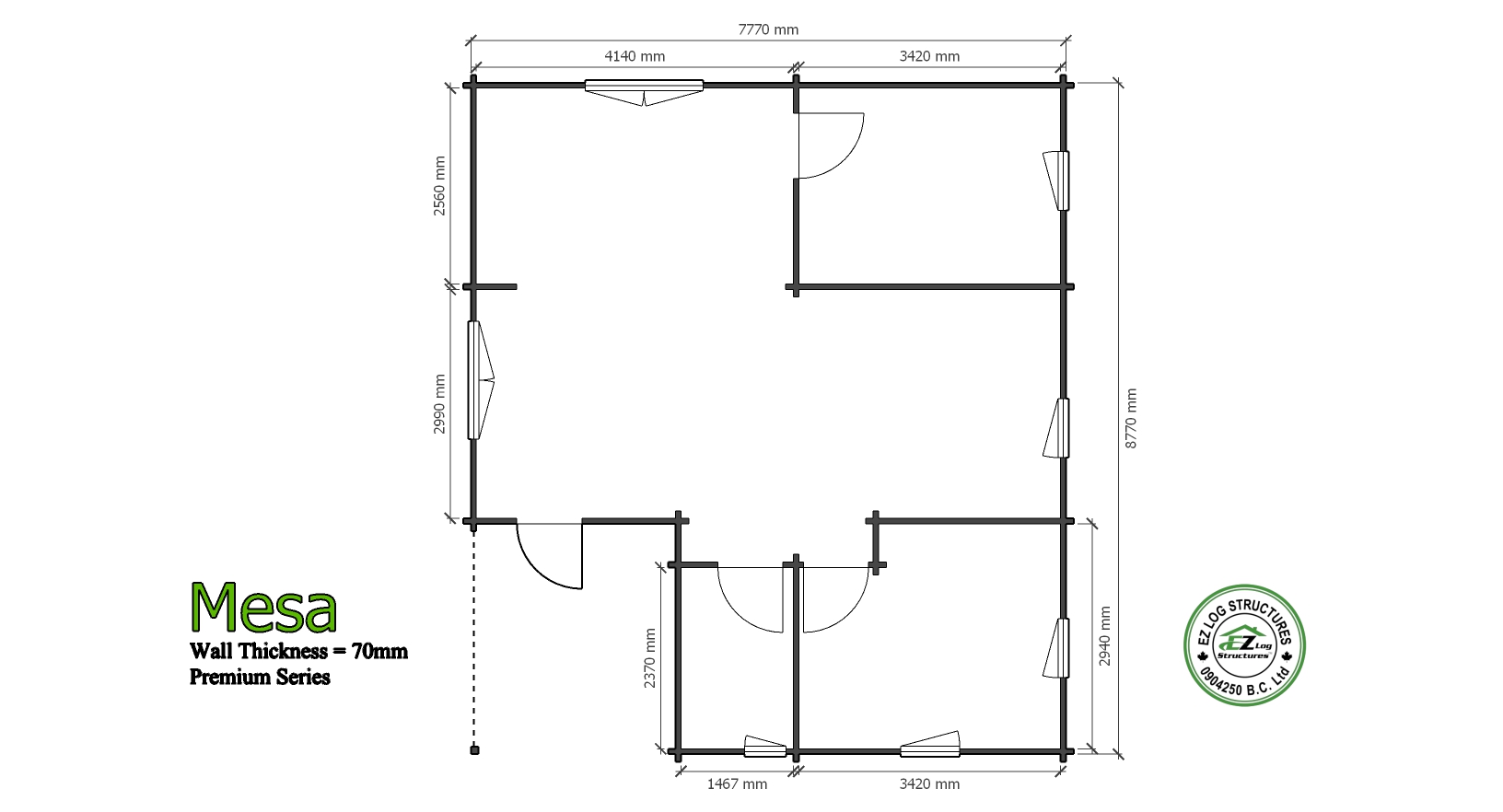

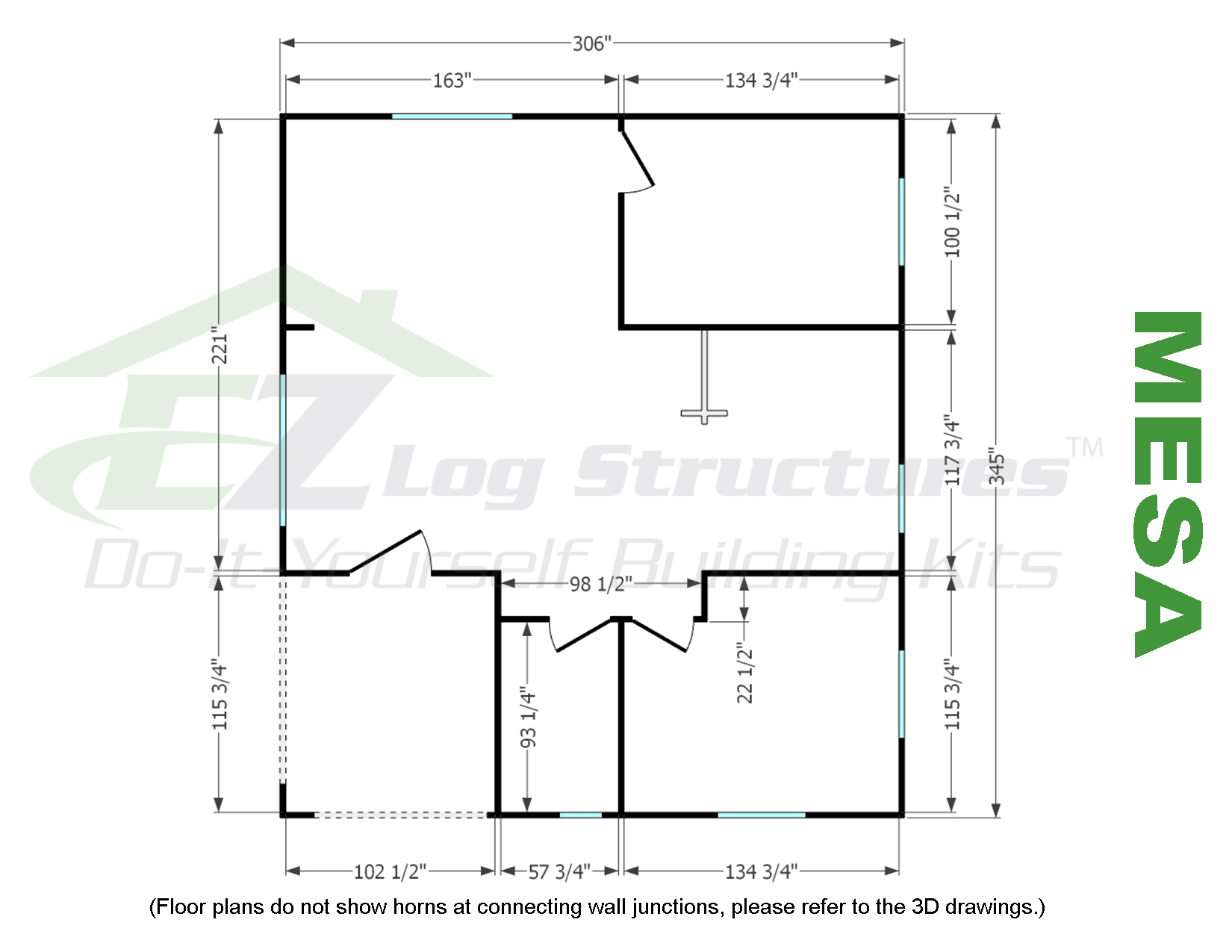

Cabin size306" x 345"
Roof & floor
Roof pitch3/12 - 14D
Roof boards3/4"
Package, area, vol ect.
Size (sq ft)733
Volume1394

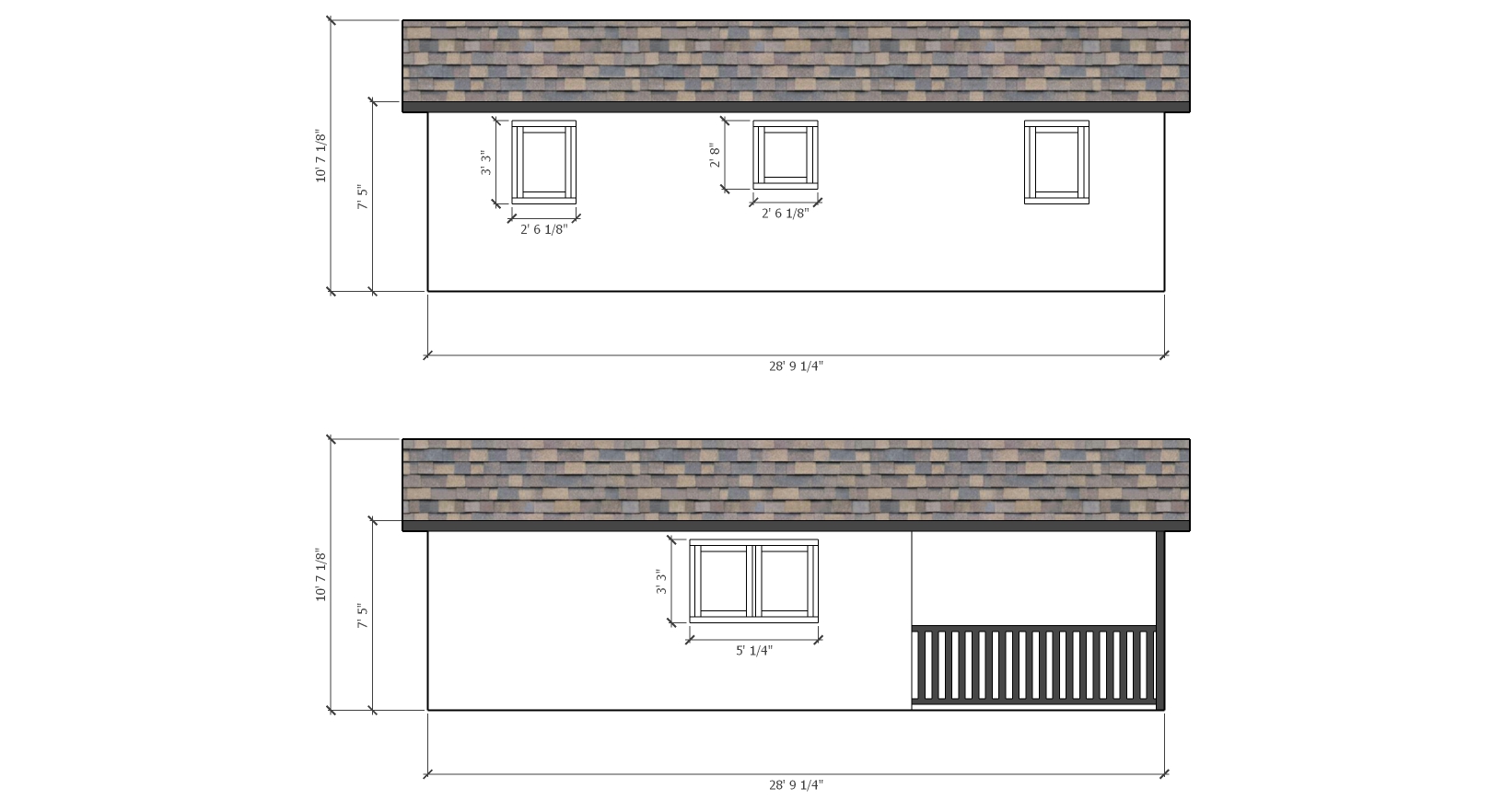

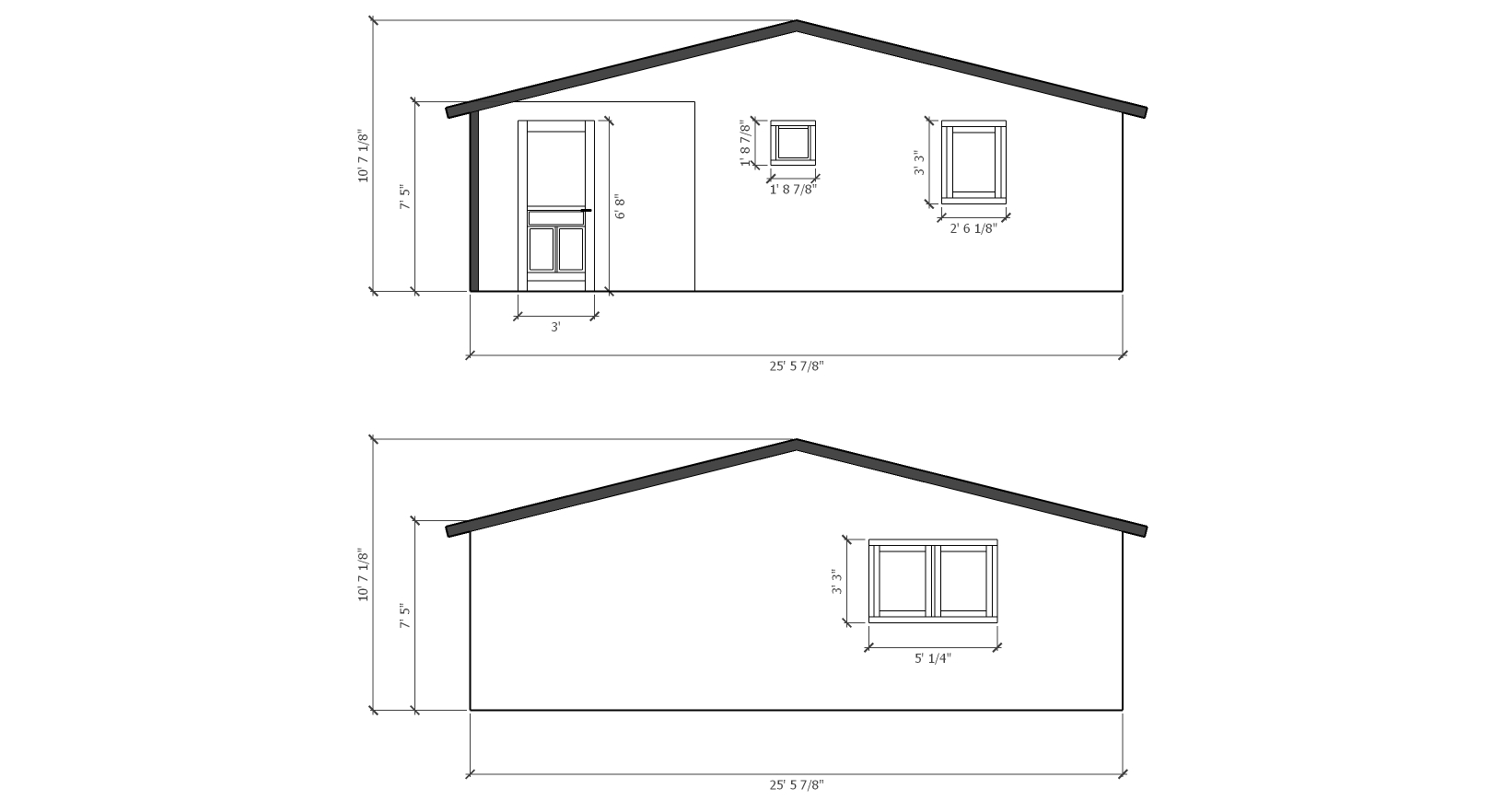

Wall height89"
Ridge height126"
Wall thickness2-3/4”
Contact Us

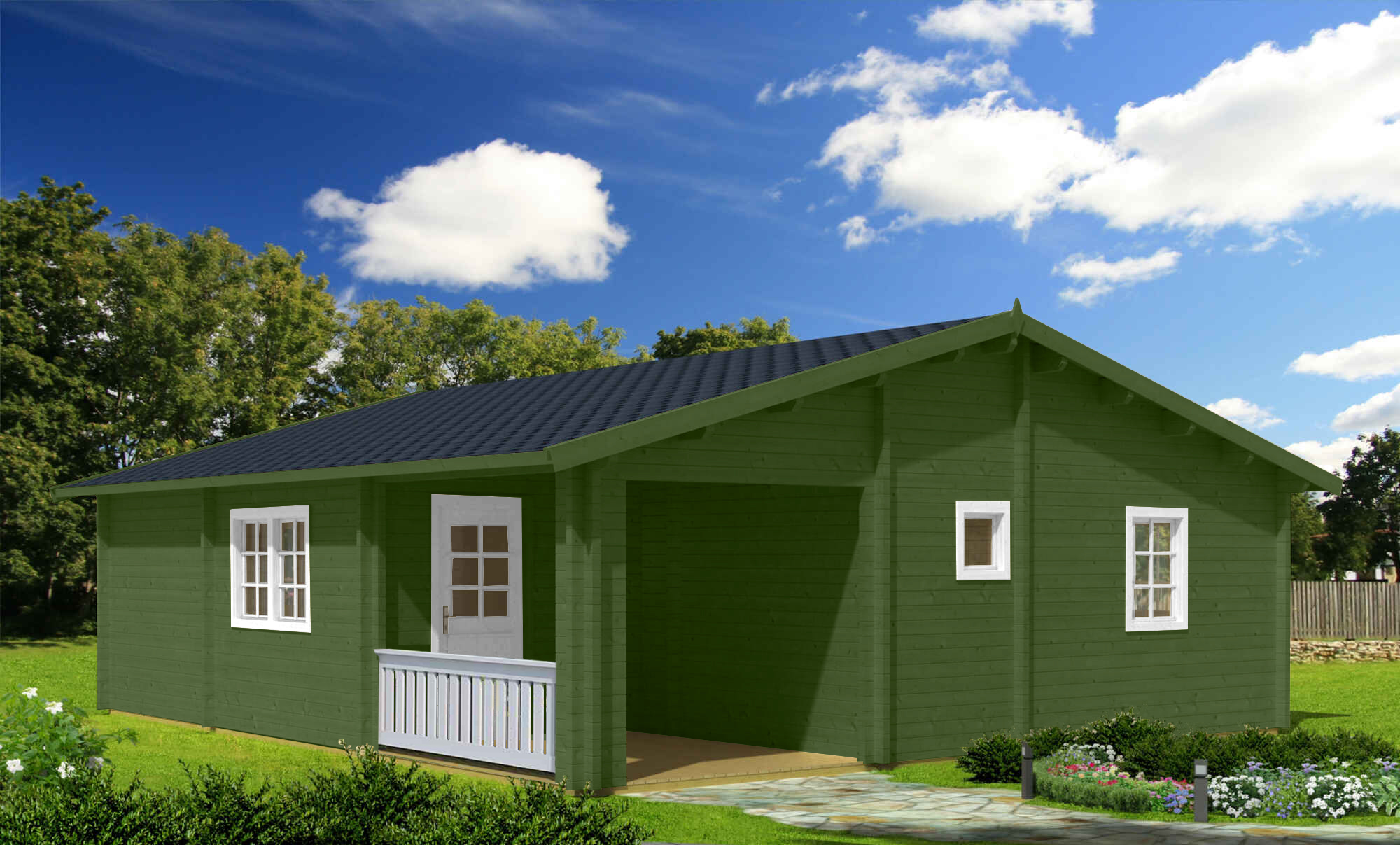

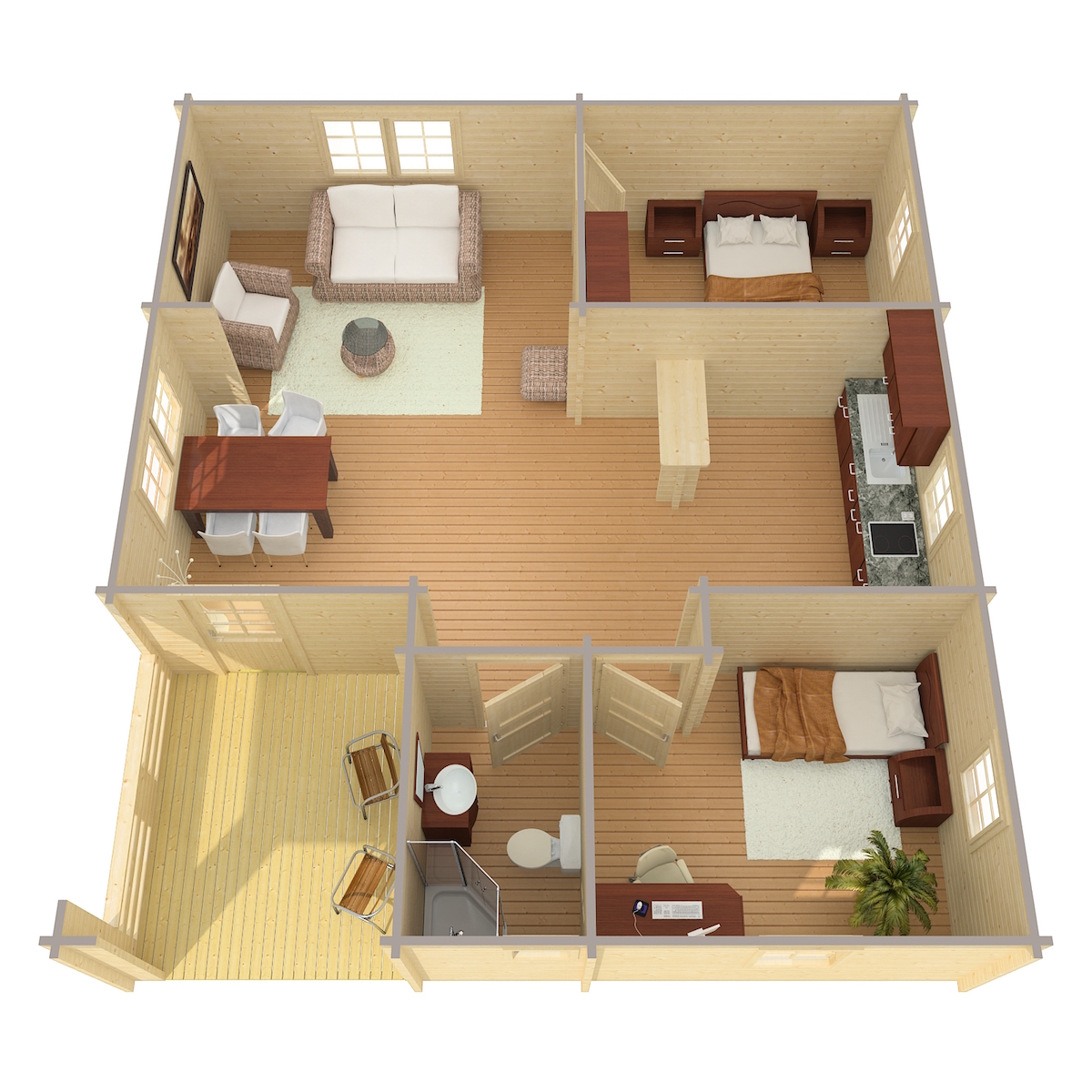

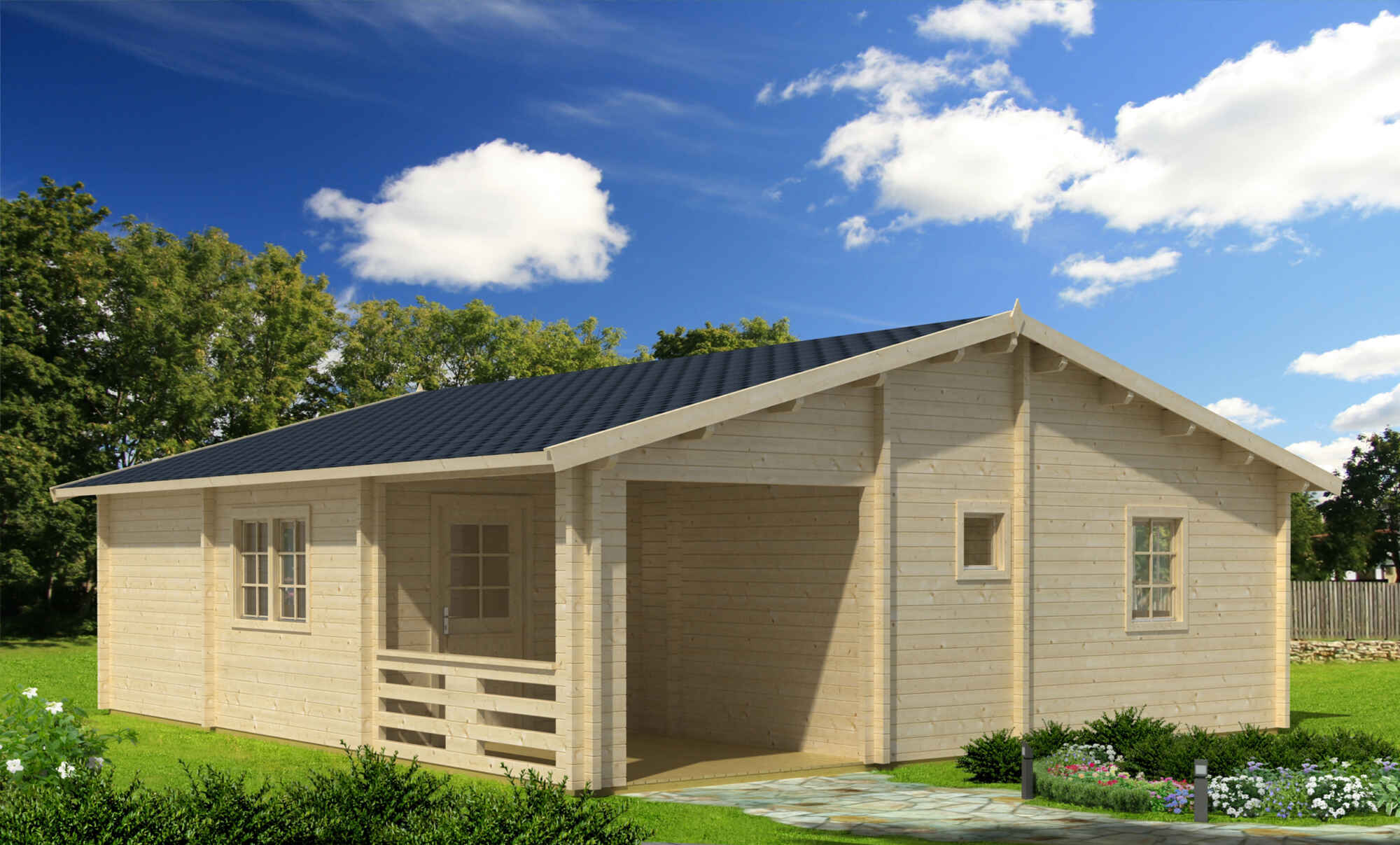

Mesa is a 2 bedroom, 1 bath home or cabin. Like all our models it can be customized to fit your personal needs. Once the main kit has been assembled the exterior has studs applied, insulation and then covered with wood siding, composite siding, stucco, brick or even stone.  The main kit can be assembled by 3 people in 6 days

Kit includes:
  • ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 3/12 roof pitch (14 degrees)
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 1394 total sq’ of wall area
  • 917 sq’ of exterior wall surface
  • 156 lineal’ per row
  • 3 interior doors 812mm x 2040mm (32″x80″)
  • 1 single wide wood windows 530mm x 530mm (21″x 21″)
  • 2 double wide wood windows 1530mm x 990mm (60″x 39″)
  • 4 single wide wood window 765mm x 990mm (30″x 39″)
  • 1 exterior door 990mm x 2040mm (36″x80″) 1/2 glass tempered, multi locking hardware
  • deck railings with vertical balustrades
  • adjustable posts
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • SHIPPING request a quote

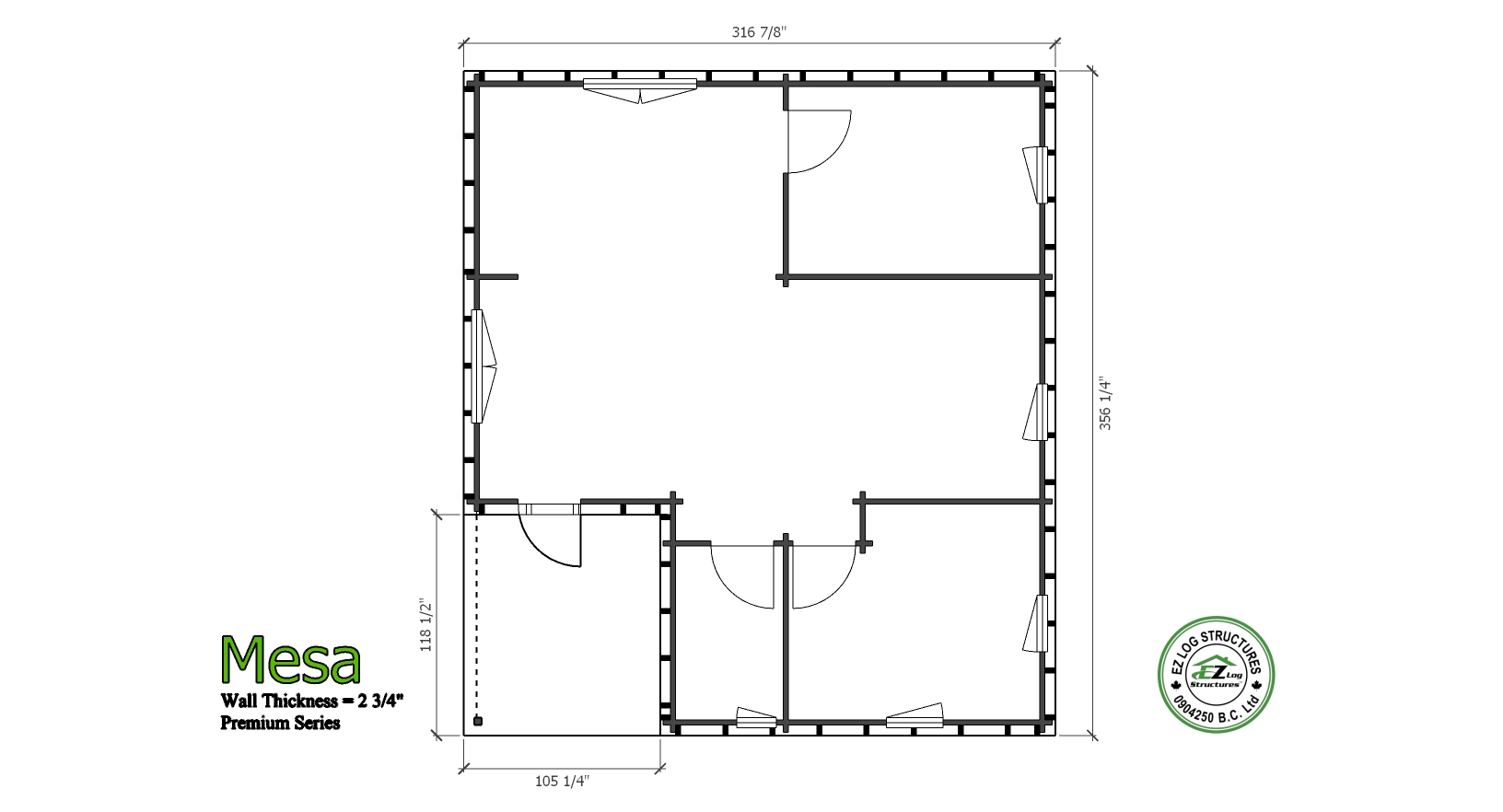

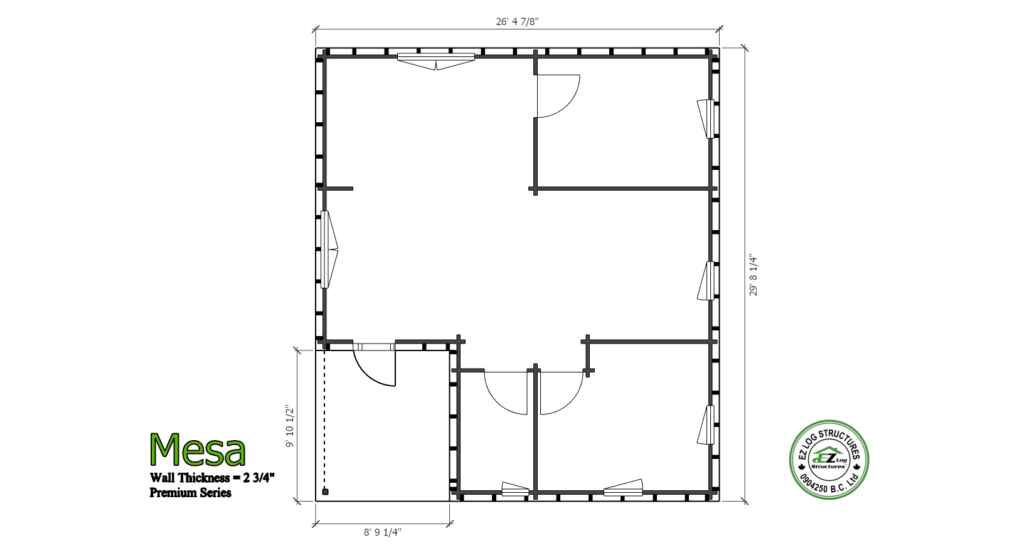

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING





EXTERIOR STUD & SIDING KITS

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.



We offer 3 types of siding kits to cover the exterior of the home or cabin: EZ Log Semi D-Log tongue & groove wood siding, EZ Log Full D-Log tongue & groove wood siding & a heavy duty maintenance free extruded PVC polymer siding



Each kit includes: 2×6 studs, stud screws, siding, corner blocks, trims & extending the roof overhang 12″













1) ADD 10% – Semi D-Log siding (Max)  3/4″ x 5-1/8″ (18mm x 130mm)

































2) ADD 14% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)

































3) ADD 20% – Vox extruded prefinished PVC polymer siding 3/8″ x 8″ (8.3mm x 200mm)




















Window Options:

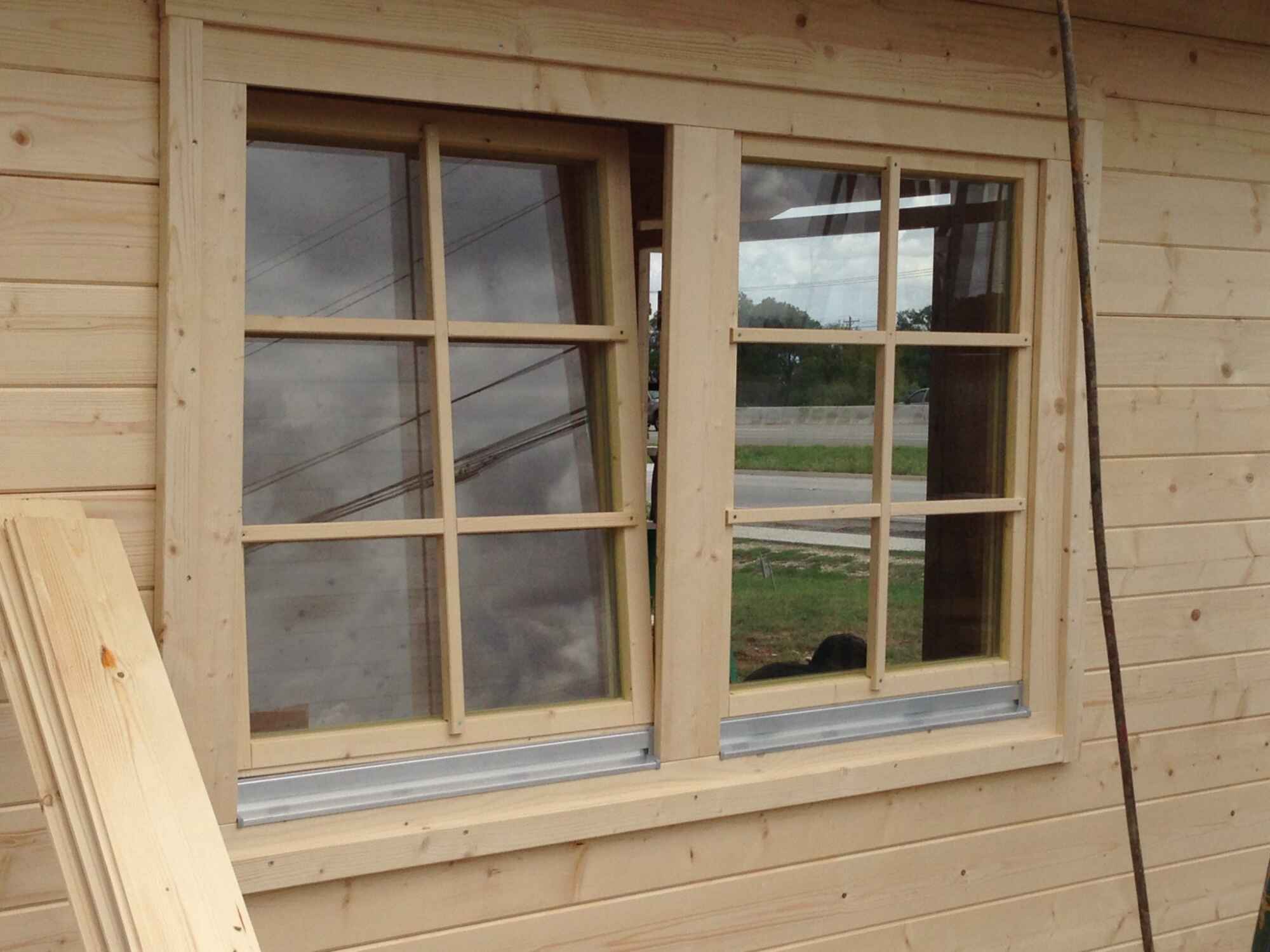

1) Kit includes double glazed residential grade wood windows. To upgrade all windows to triple glazed/Low E/Argon gas filled (9 sash)


Add – $ 982.00 USD


Add – $ 1,260.00 CAD














OR





PVC window - white frame. PVC window with built-in external shutters. Shutter window.





2) Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)


Add – $ 2,106.00 USD


Add – $ 2,700.00 CAD
