Muskoka 2.

1556 sq ft
Premium Model
$79,384.00 USD
$101,775.00 CAD
FREE SHIPPING
Bedrooms2
Bathrooms1
Cabin size281" x 399"

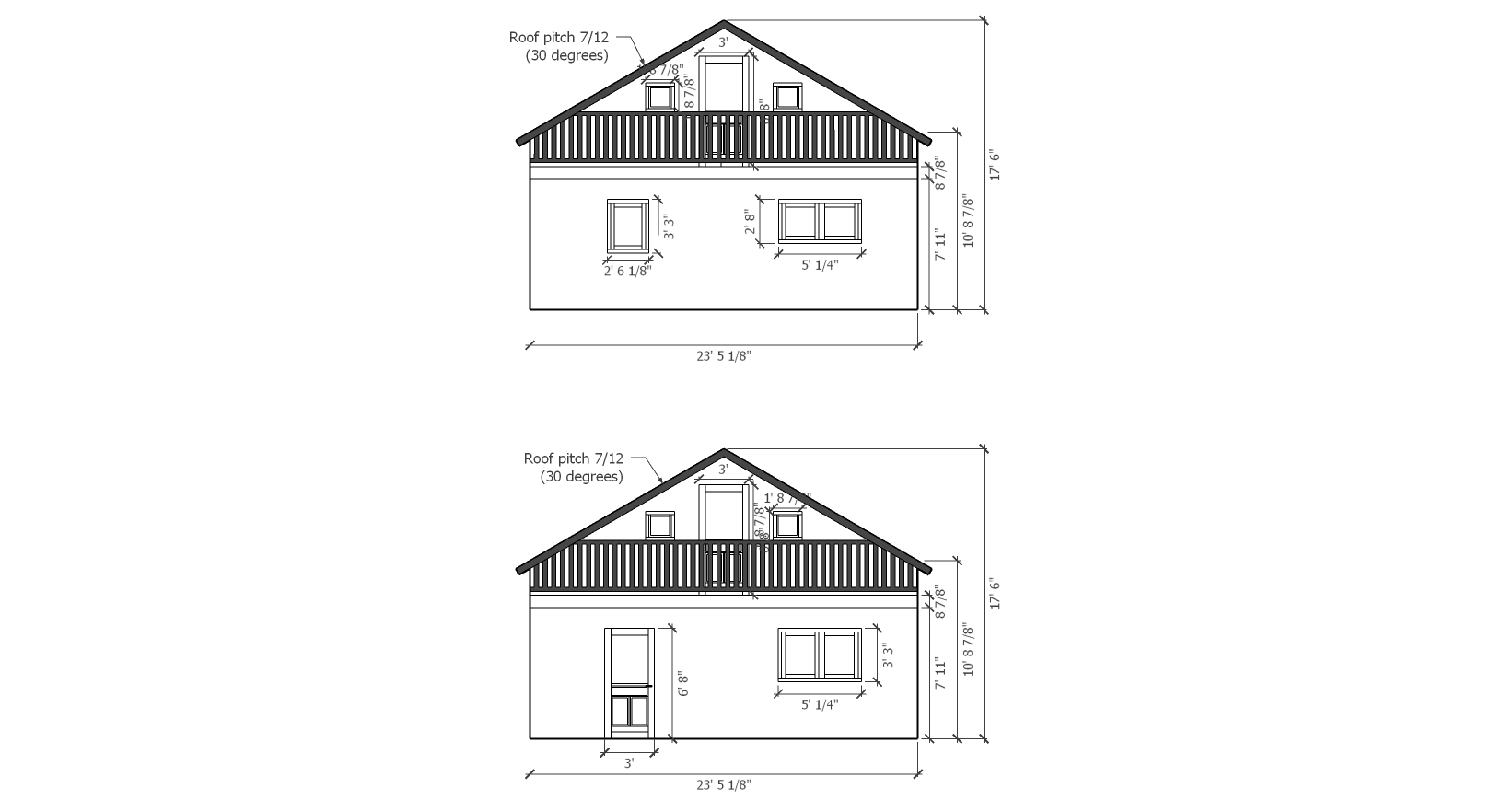

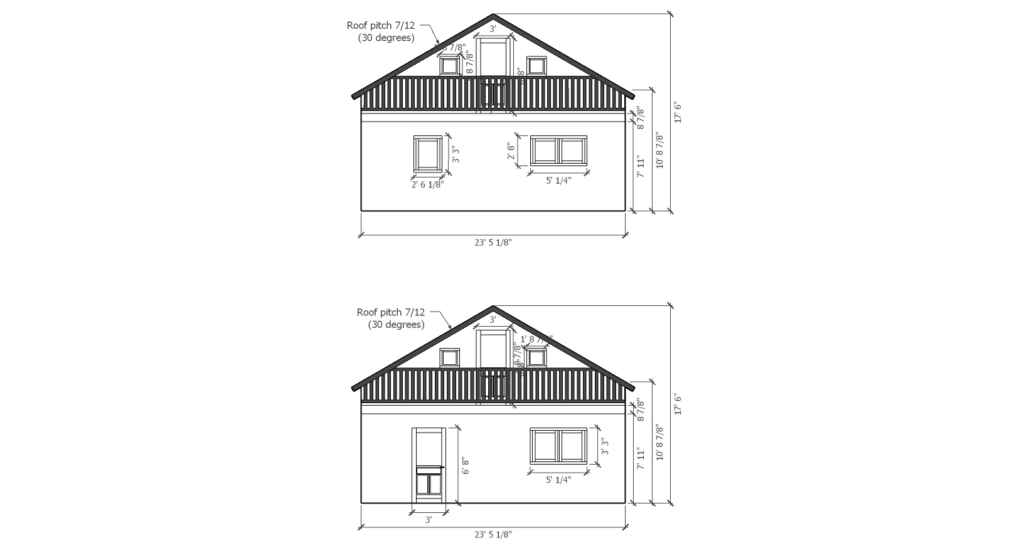

Roof pitch7/12 - 30D
Roof boards3/4"
Size (sq ft)778
Size (sq ft)778
Wall height95"
Ridge height210"
Wall thickness2-3/4"

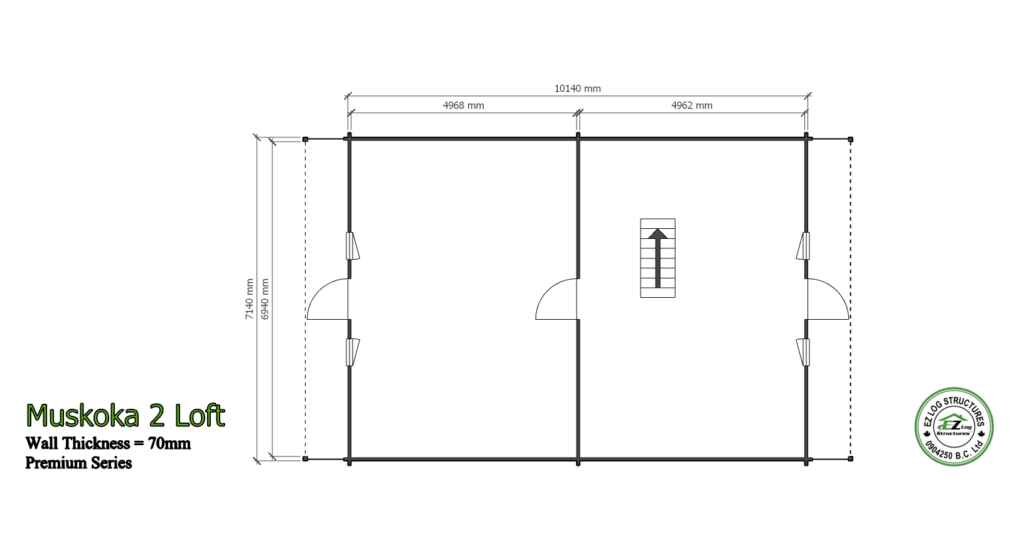

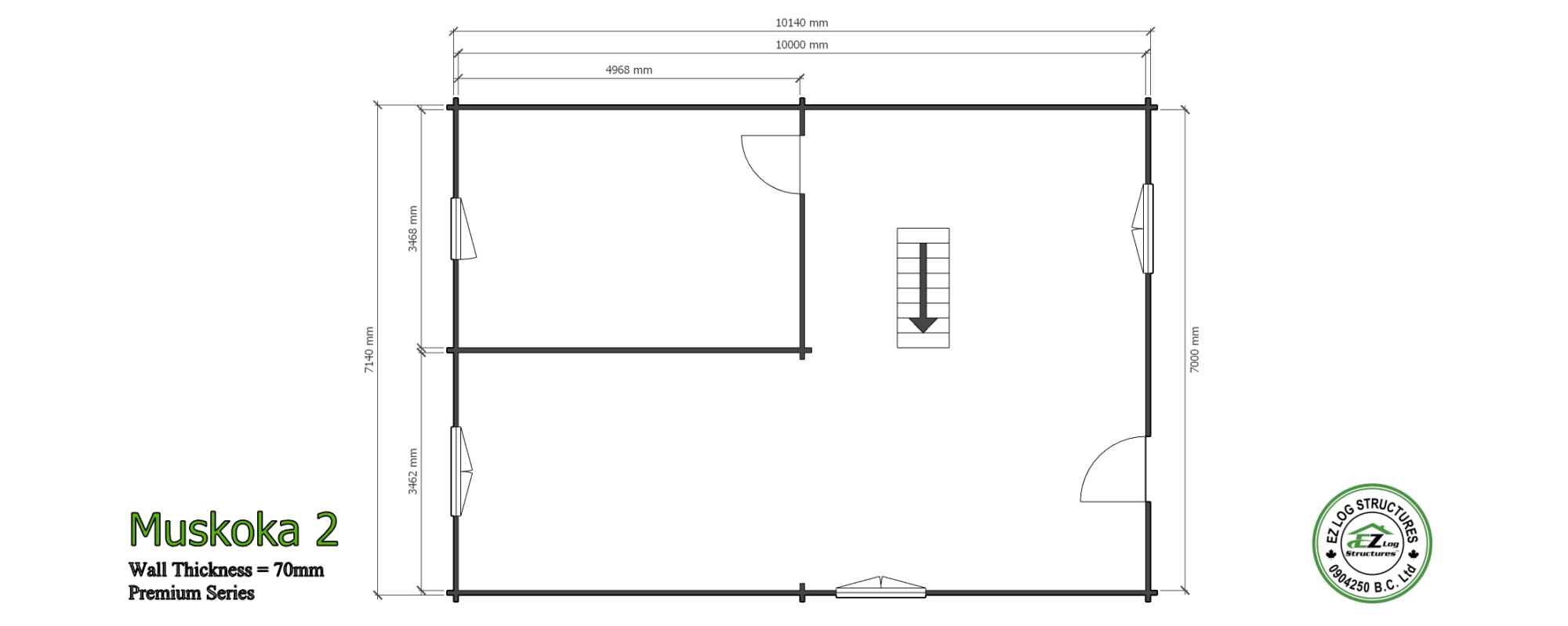

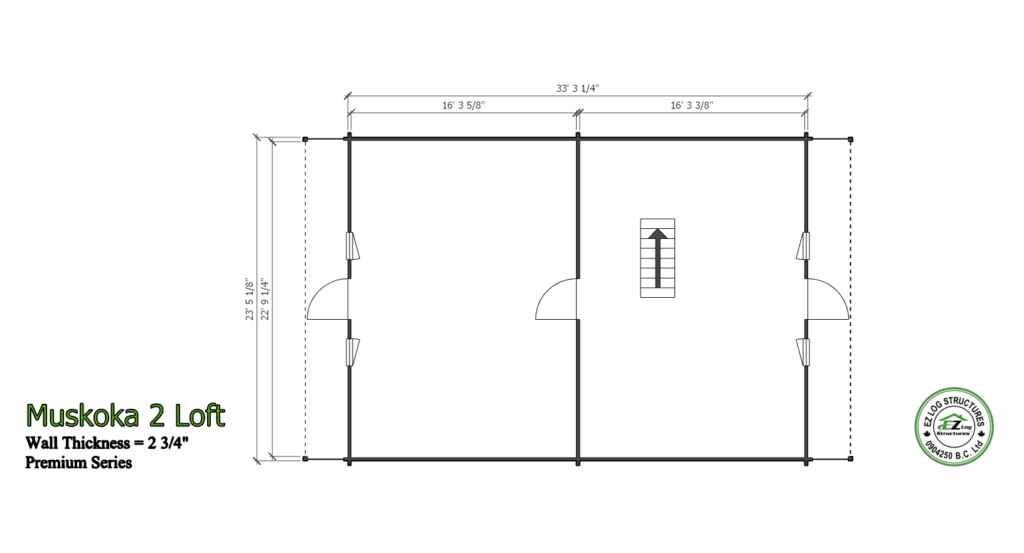

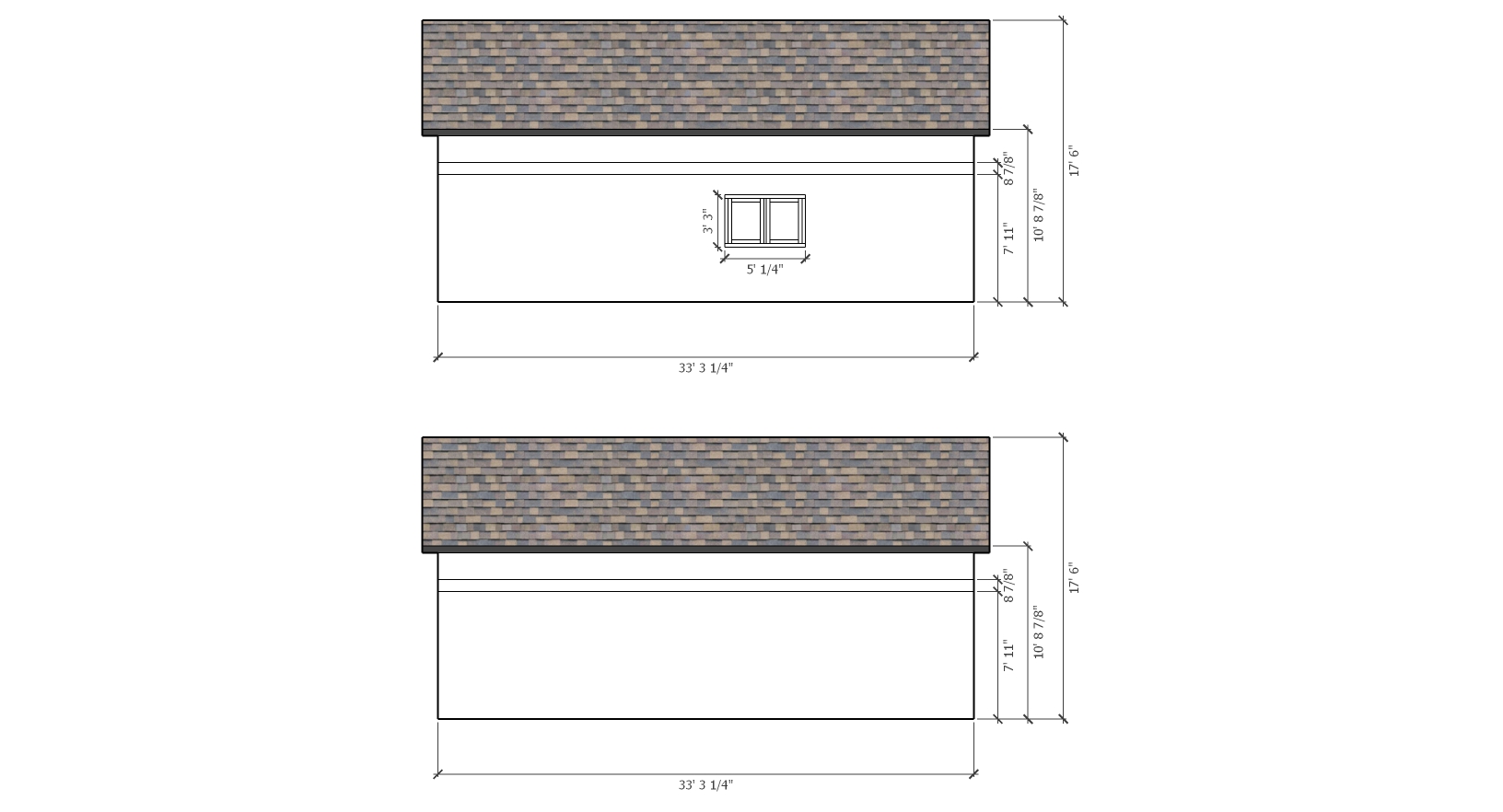

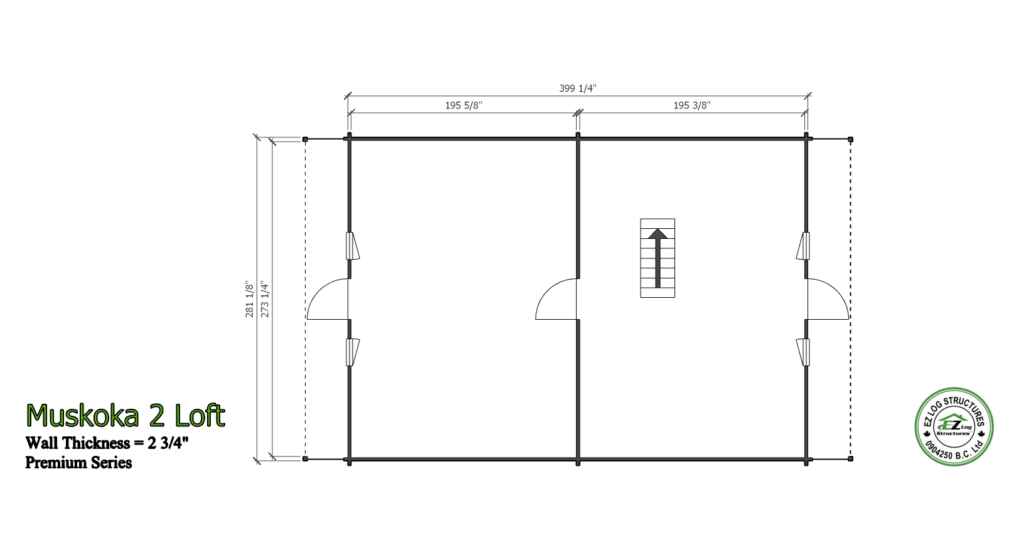

Model Documentation

FREE SHIPPING – some exceptions apply

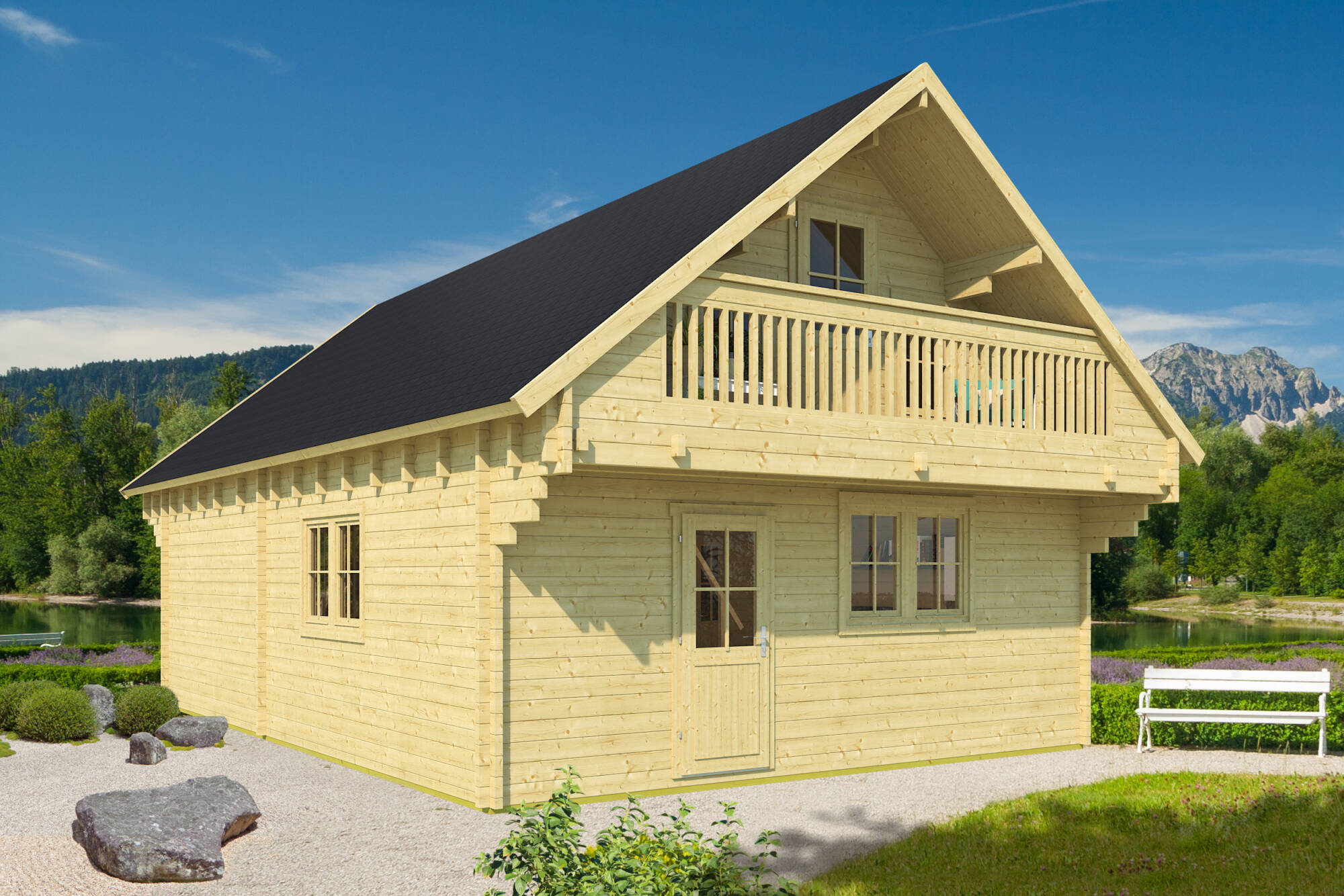

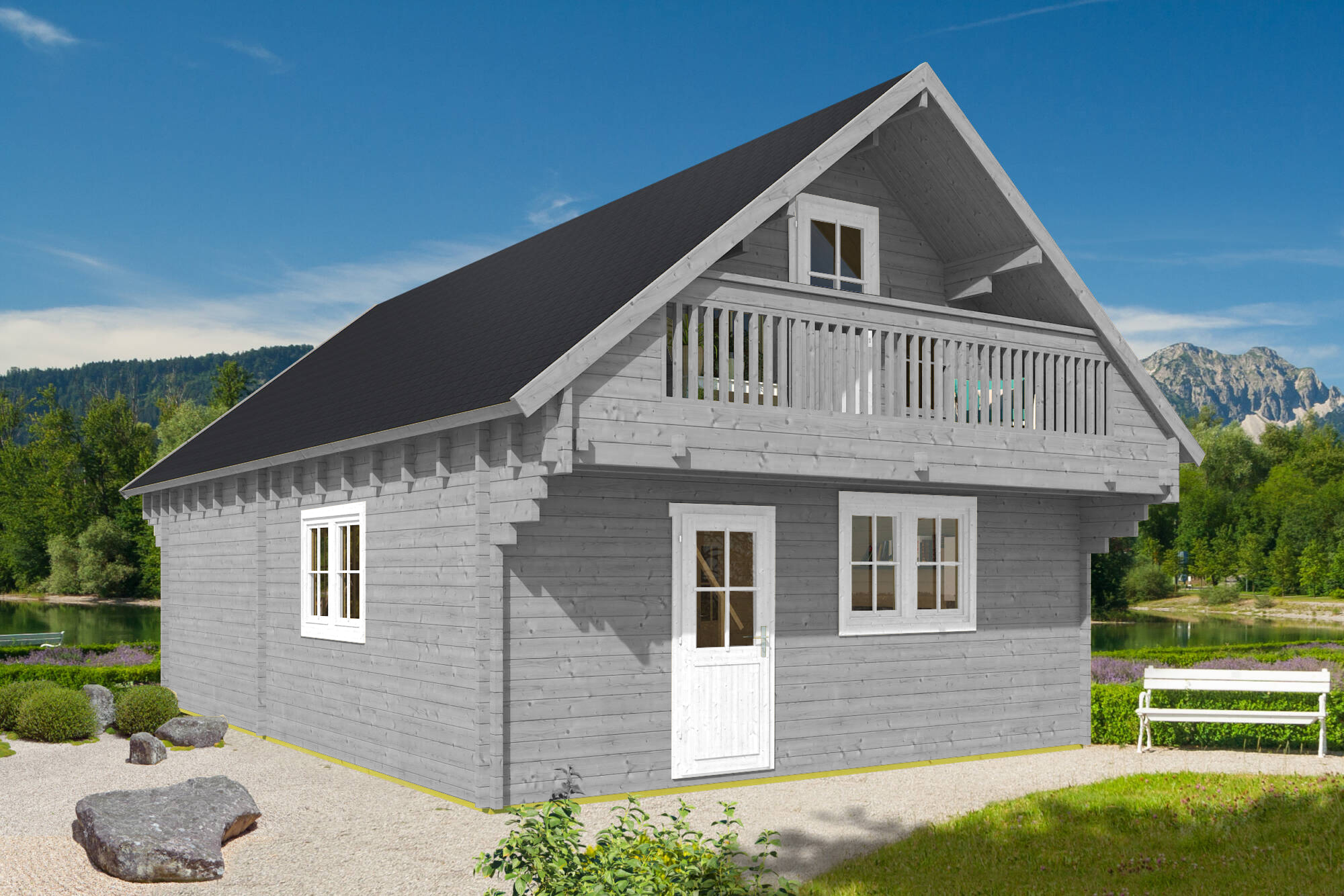

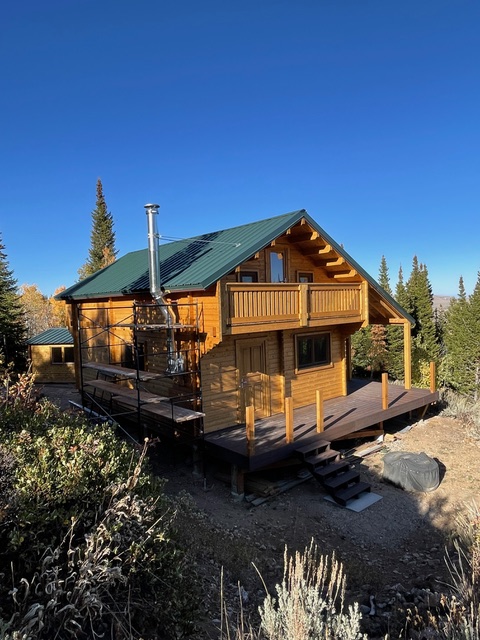

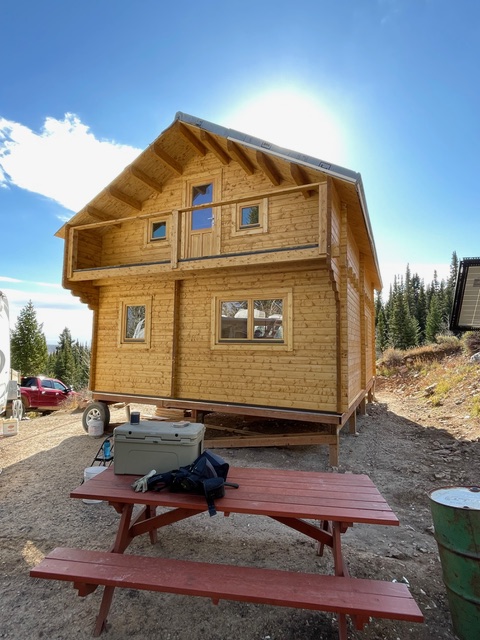

Muskoka 2 is a PREMIUM manufactured home with 70mm (2-3/4″) thick wall logs.  Just over 1540 sq’ total in 2 levels, includes 2 decks on he upper floor

Wall insulating kit: Add 10%for the wall insulating kit including 2×4 studs, metal stud brackets plus 3/4″ wall cover boards for interior or exterior application. When insulating on the exterior the foundation must be larger



Energy efficiency:   Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the overall thermal and comfort benefits

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Insulating the roof: Apply locally supplied materials to add rafters over the tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof. These added rafters also increase the roof load capacity



OPTION A: Upgrade wood windows to triple glazed / Low E / Argon filled glass

  • USD regular price $ 1,029.00
  • CAD regular price $ 1,320.00



OPTION B: Upgrade wood windows to our exclusive maintenance free white PVC/Shutter windows with triple glazed / Low E / Argon filled glass plus exterior rolling shutters that are controlled from the interior. These unique windows provide added comfort and security. They improve the overall energy efficiency be keeping the heat out during the summer and the cold out in the winter. They also reduce outside noise levels and provide complete darkness for daytime sleepers. (See the video on the video section)

  • USD regular price $ 2,145.00
  • CAD regular price $ 2,750.00



Assembly: The model can be assembled in approximately 10 days or less with 3 people

Tip: House wraps & vapor barriers are required in most regions when insulating. Vapor barriers are installed on the warm side of walls, interior of the studs for cold climates and exterior of studs for hot climates

Building Codes: Premium series homes & cabins are manufactured to meet all structural requirements for building codes including, California Title 24, earthquake, heavy snow load regions and hurricane zones

Kit Includes:

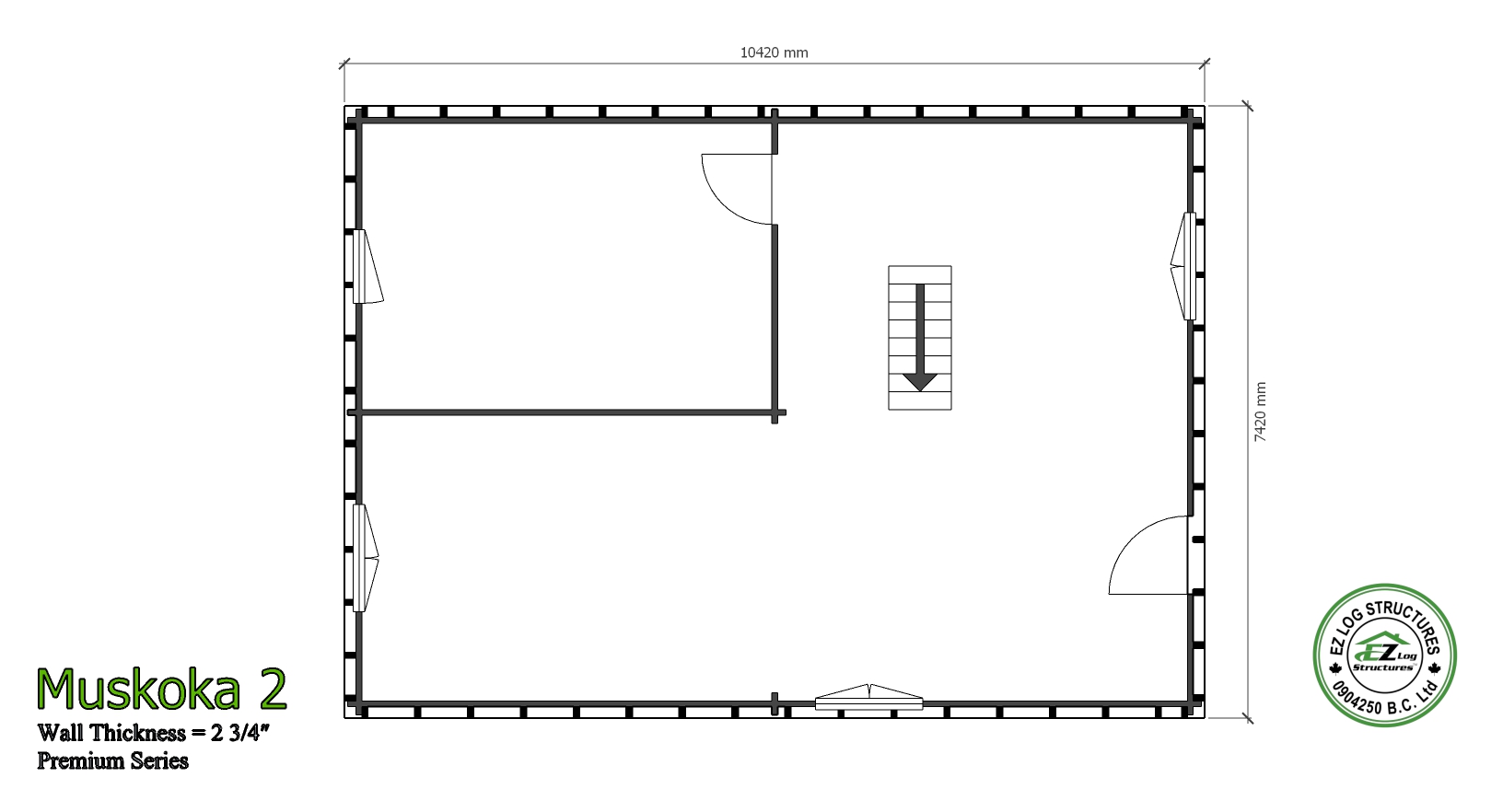

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) numbered glulam roof purlins/beams, spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • pre-cut 100mm x 200mm (4″x8″) numbered glulam floor beams, spaced 558mm (22″) or less
  • pre-cut loft floor boards 28mm (1-18″)
  • stairs, handrails, built to meet codes
  • 2  interior doors 900mm x 2040mm (36″x80″)
  • 5 single wide wood windows 765mm x 990mm (30″x39″)
  • 3 double wide wood windows 1530mm x 990mm (60″x39″)
  • 3 exterior doors 812mm x 2040mm (32″x80″) 1/2 glass tempered
  • 2 covered decks on loft floor
  • 4 adjustable posts – 2 under each covered deck
  • prebuilt deck railings with vertical balustrades
  • hardware for doors & windows
  • threaded steel storm rods for perimeter wall junctions
  • 2 spare wall logs/spare roof boards
  • 600 – 8″ log torque head log screws to connect first 2 rows,  top row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
