Nebraska Lofted

960 sq ft
Premium Model
$54,599.00 USD$72,930.00 USD
$69,999.00 CAD$93,501.00 CAD
FREE SHIPPING
Bedrooms2
Bathrooms1
Cabin size288" x 480"
Roof pitch7/12 - 30D
Roof boards3/4"
Size (sq ft)960
Size (sq ft)291
Attic92"
Wall height95"
Ridge height196"
Wall thickness2-3/4"

Model Documentation

FREE SHIPPING – some exceptions apply
SALE PRICE valid to July 31, 2024
INCLUDES: Stamped Structural Engineering by a licensed engineering firm
FREE UPGRADE – OAK COLORED DOUBLE GLAZED PVC/SHUTTER WINDOWS

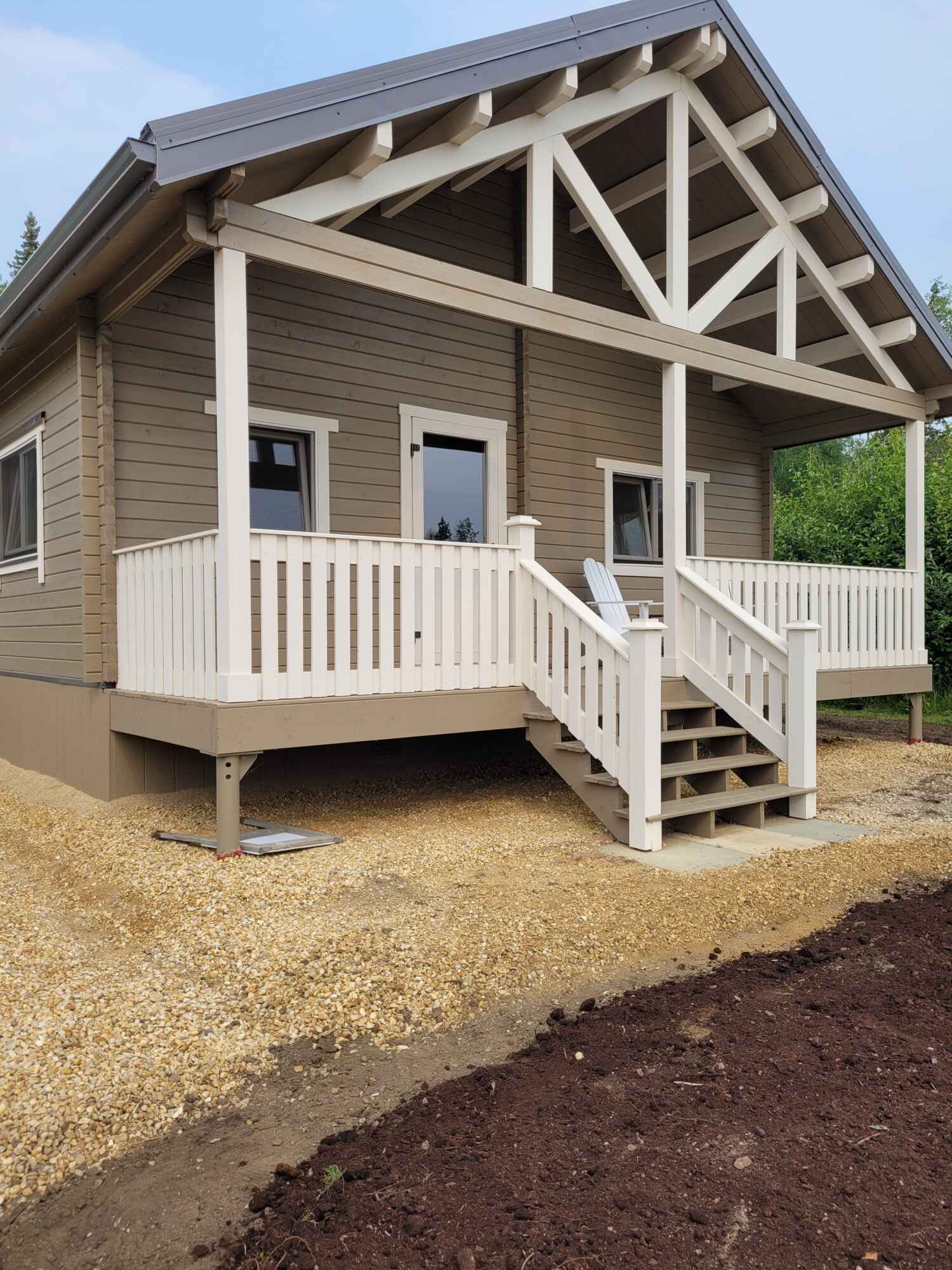

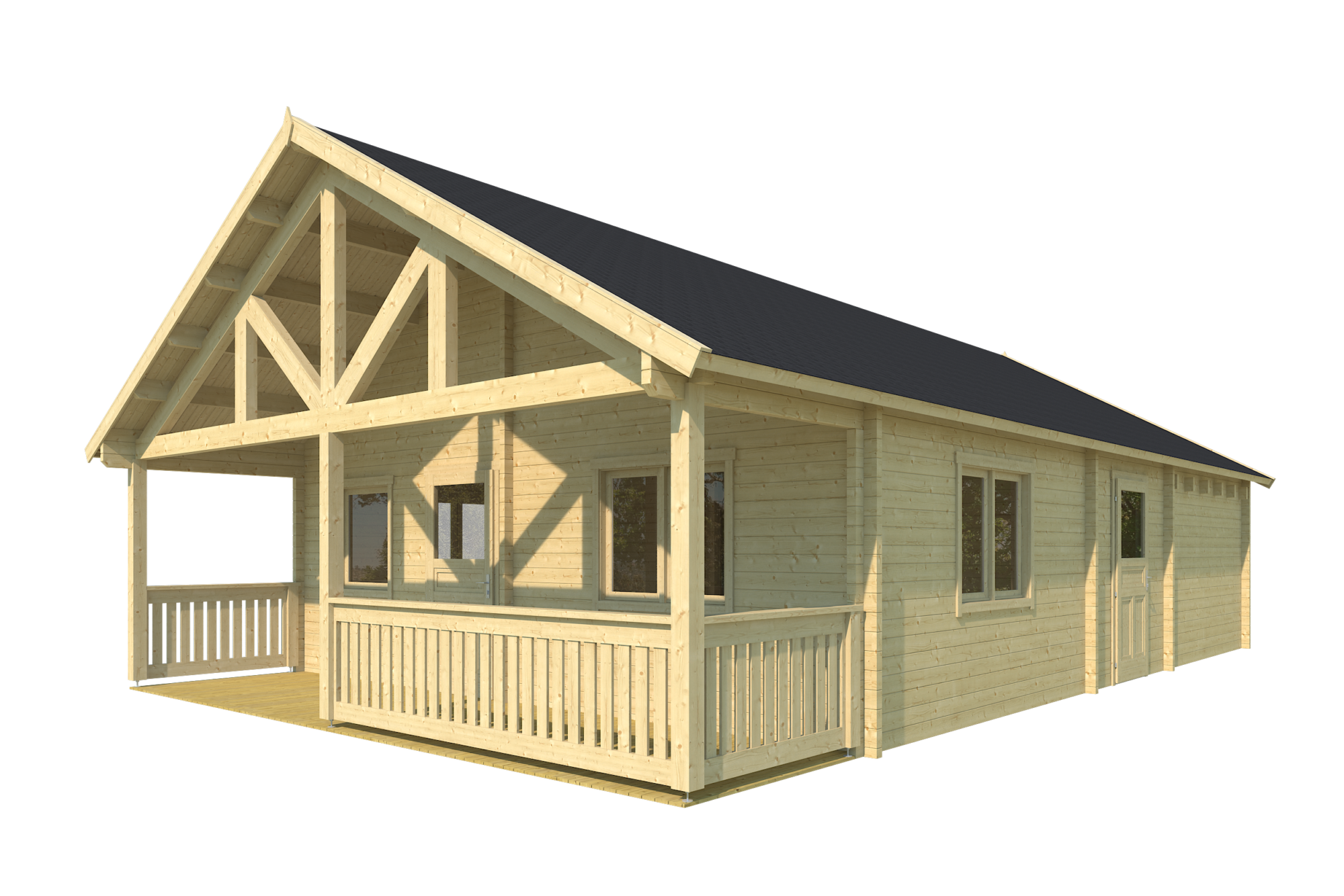

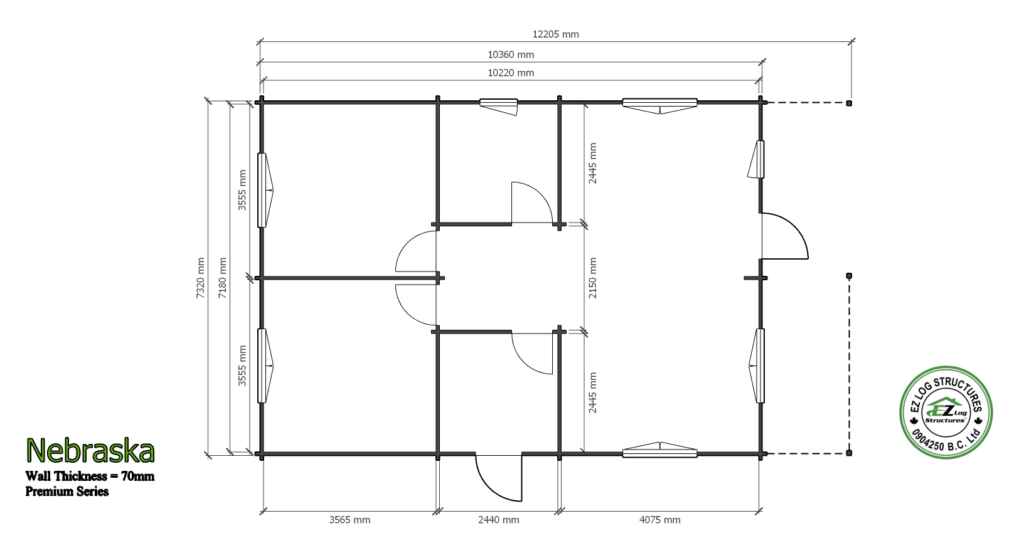

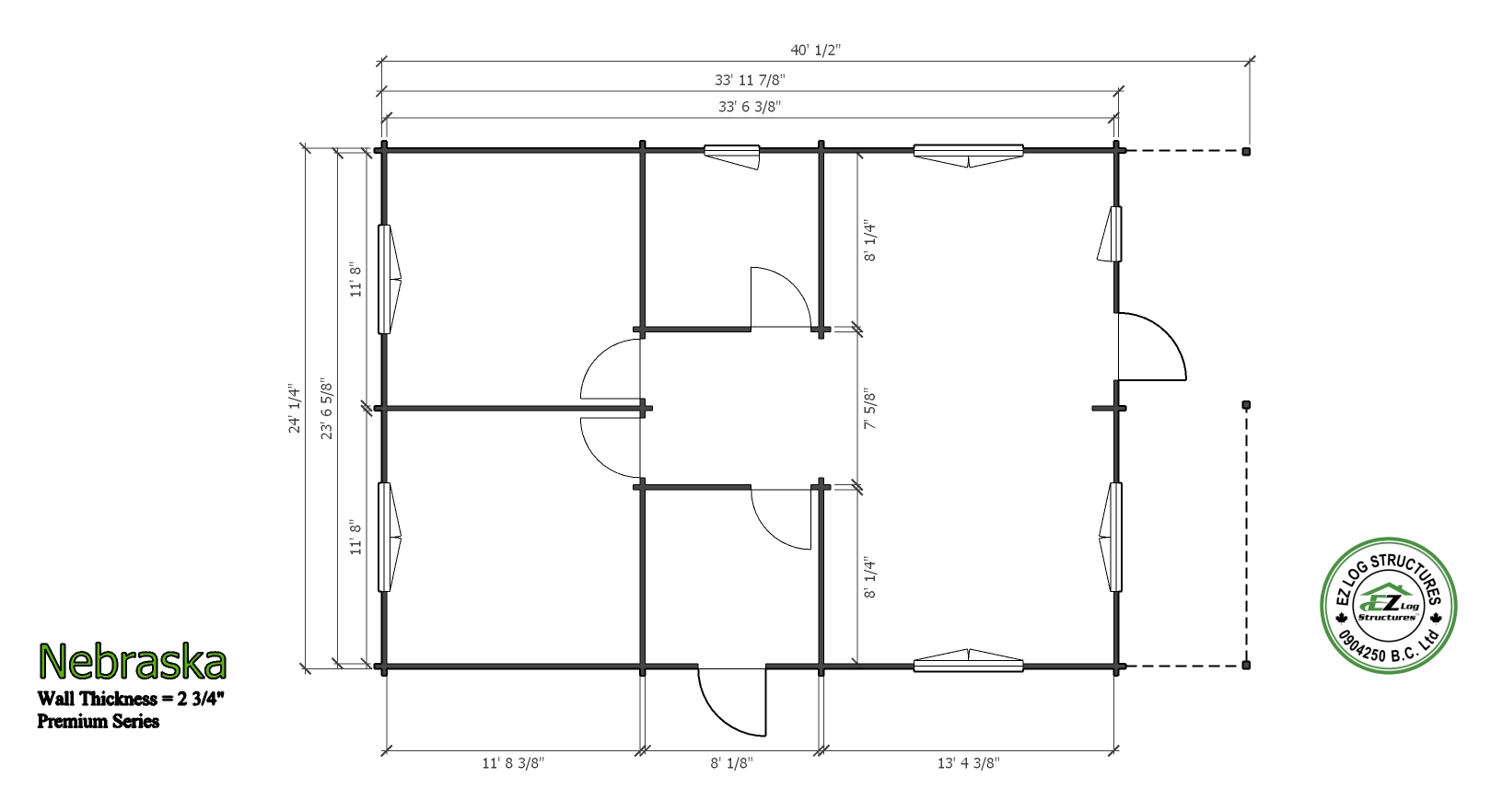

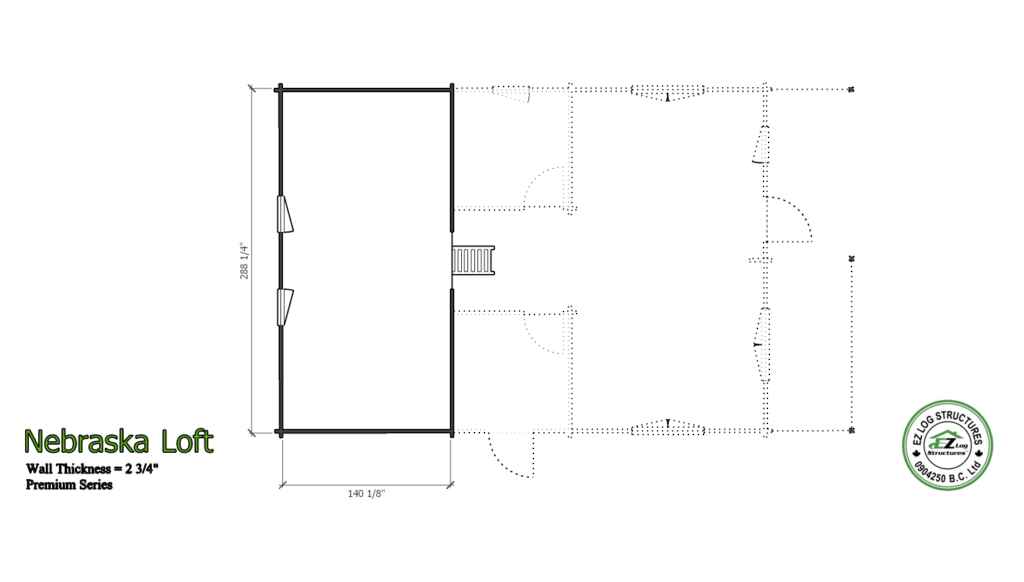

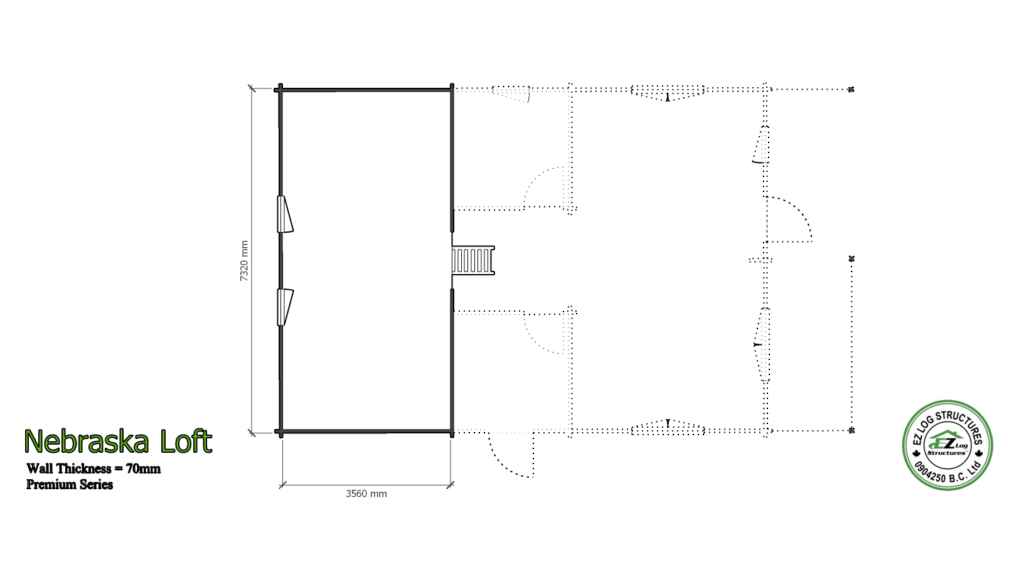

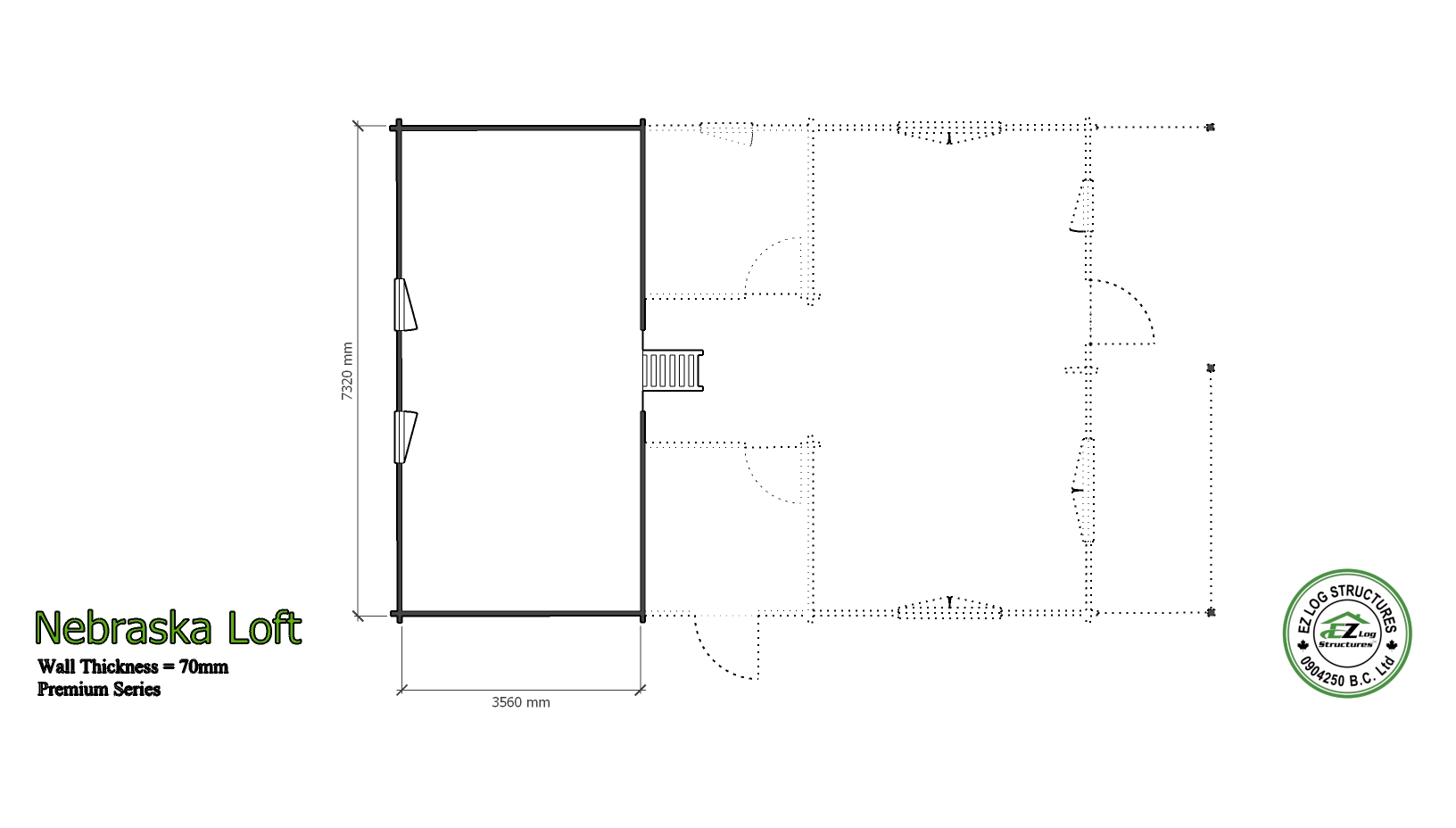

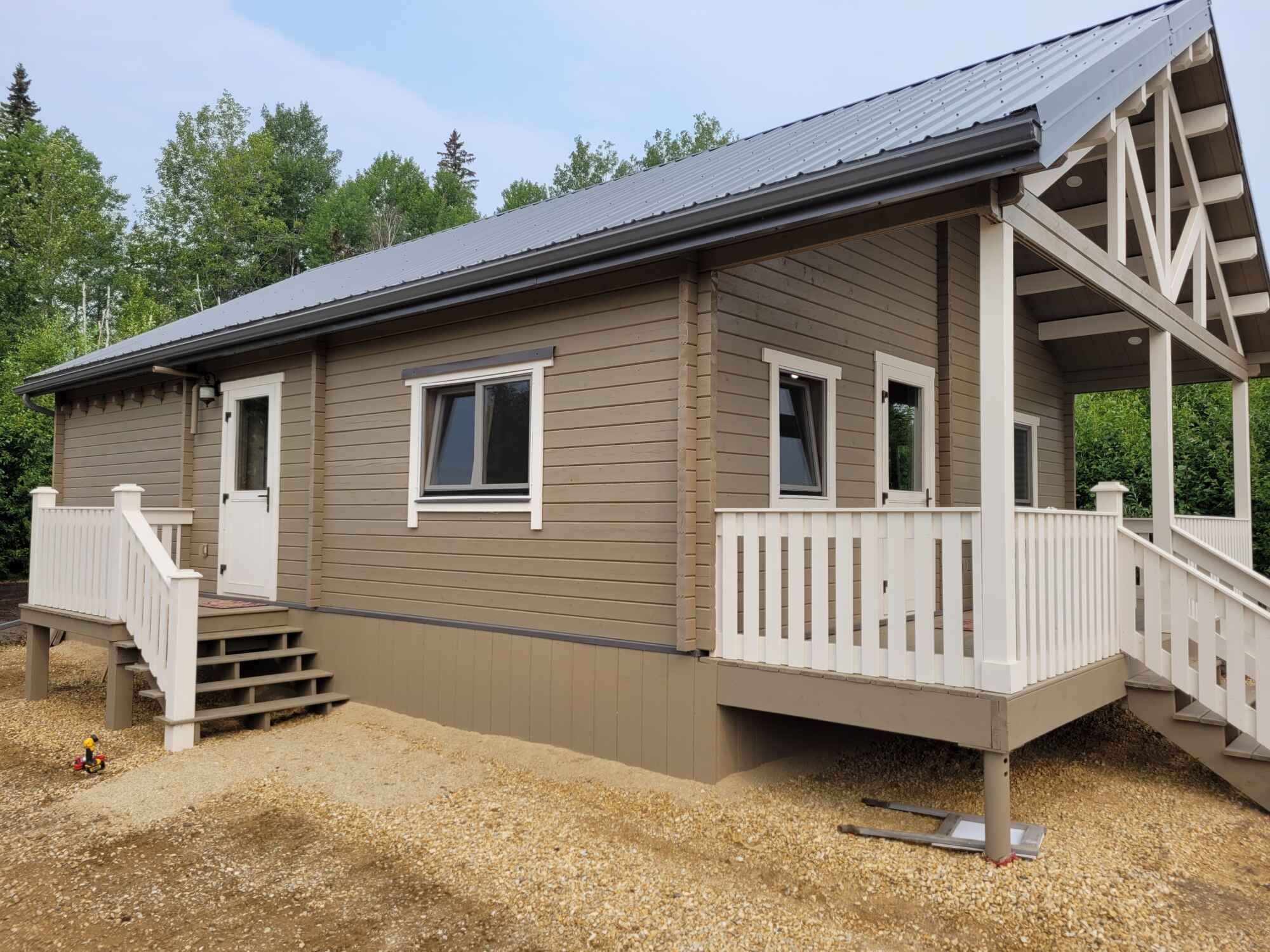

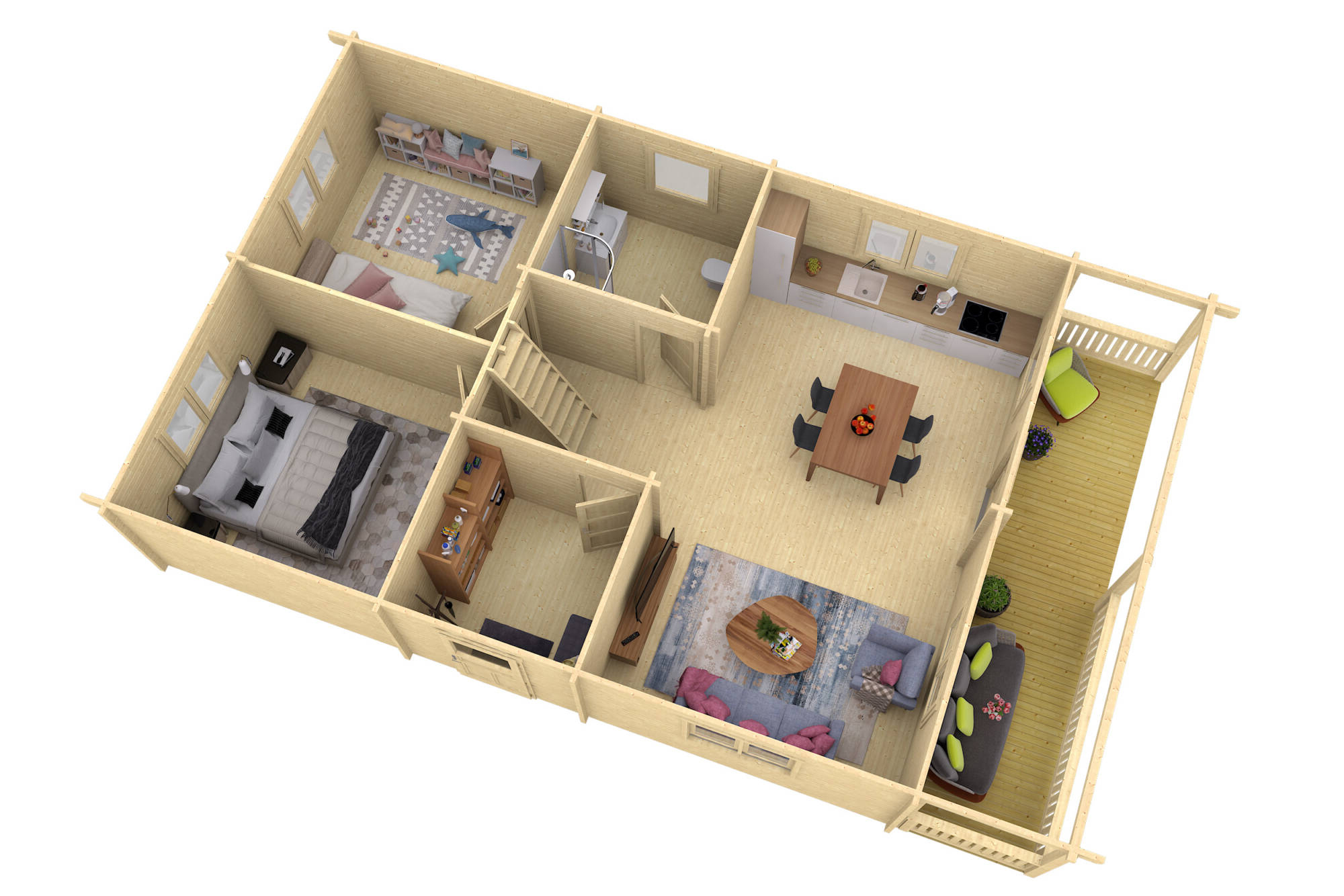

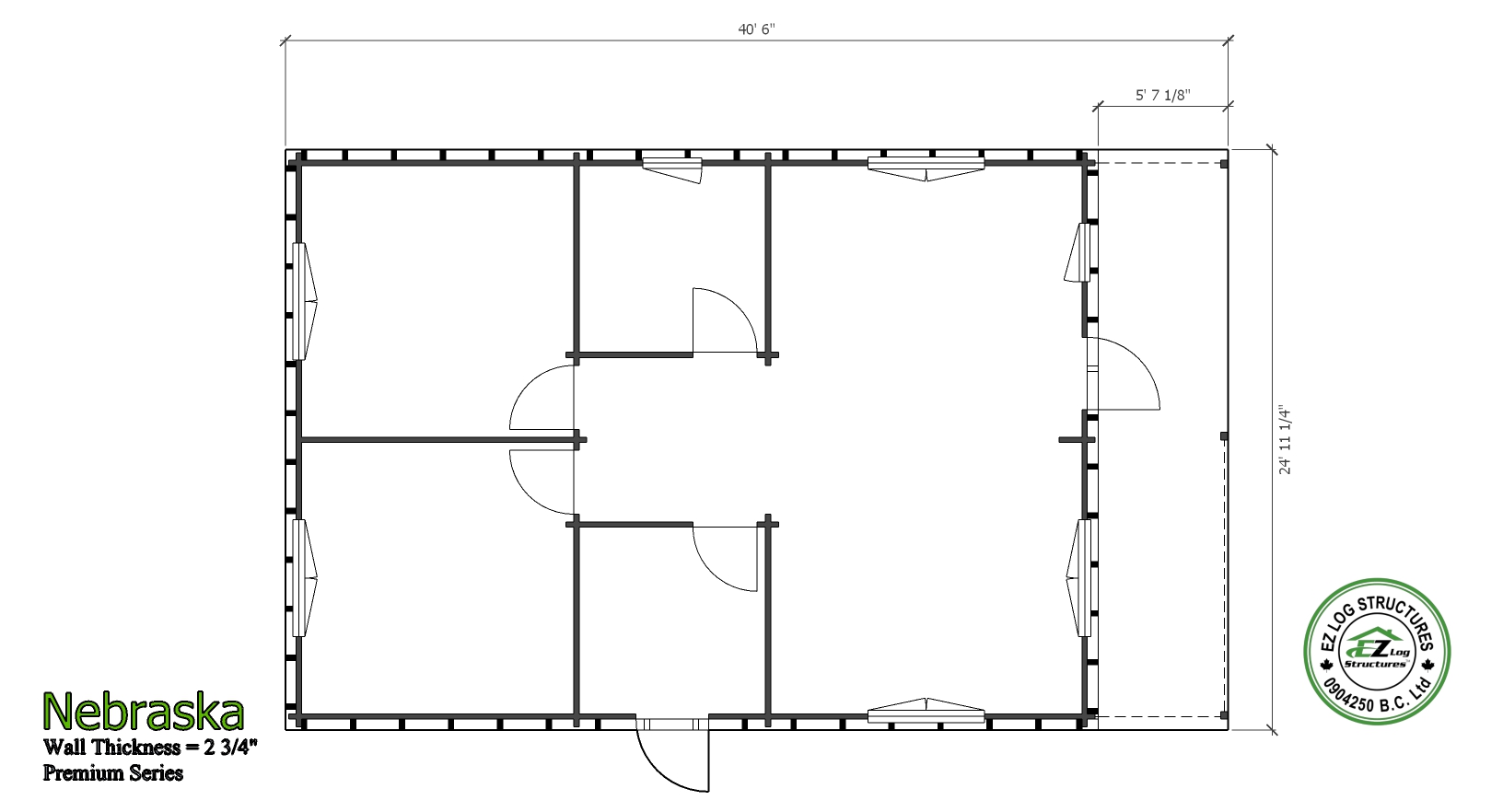

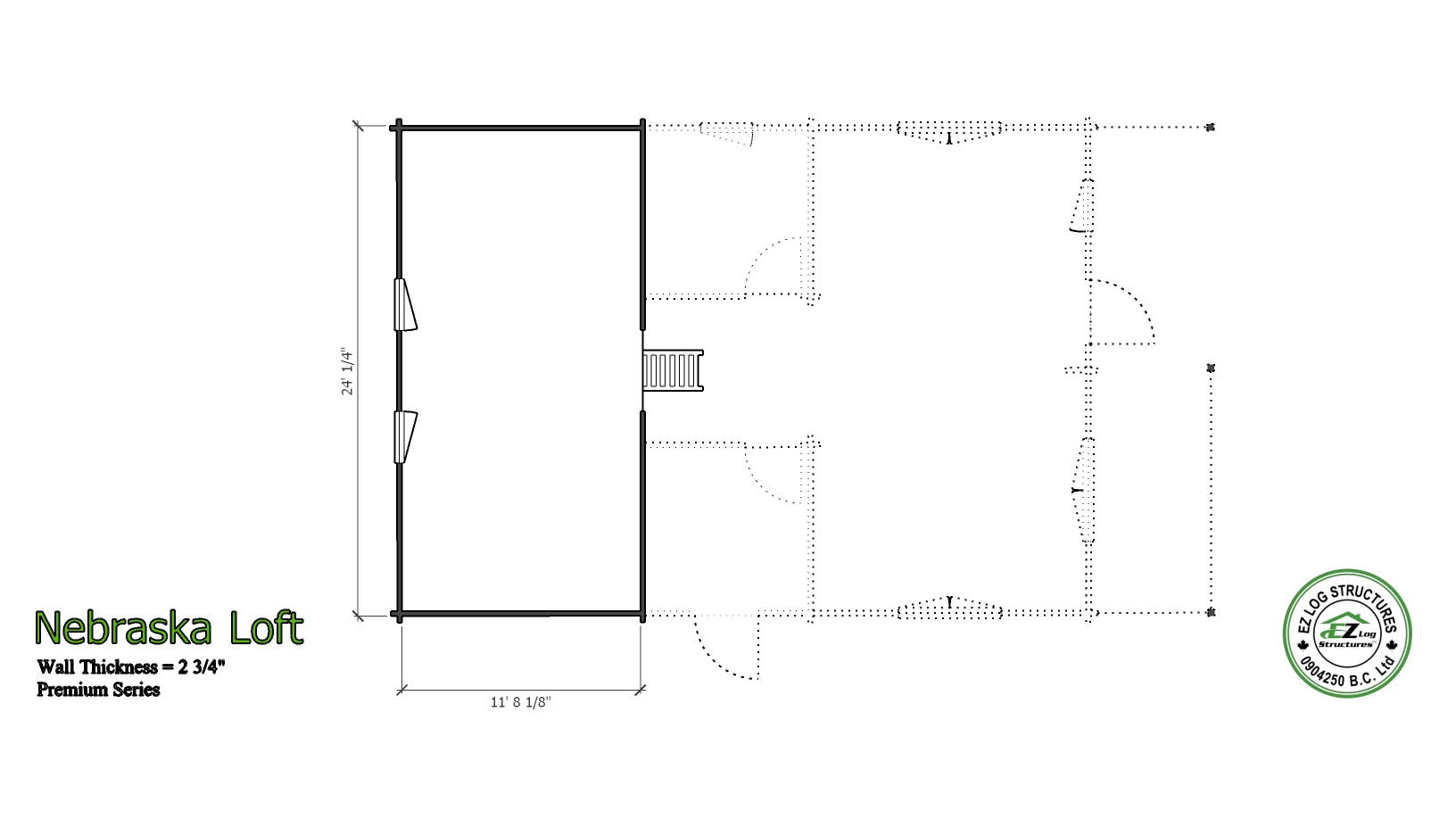

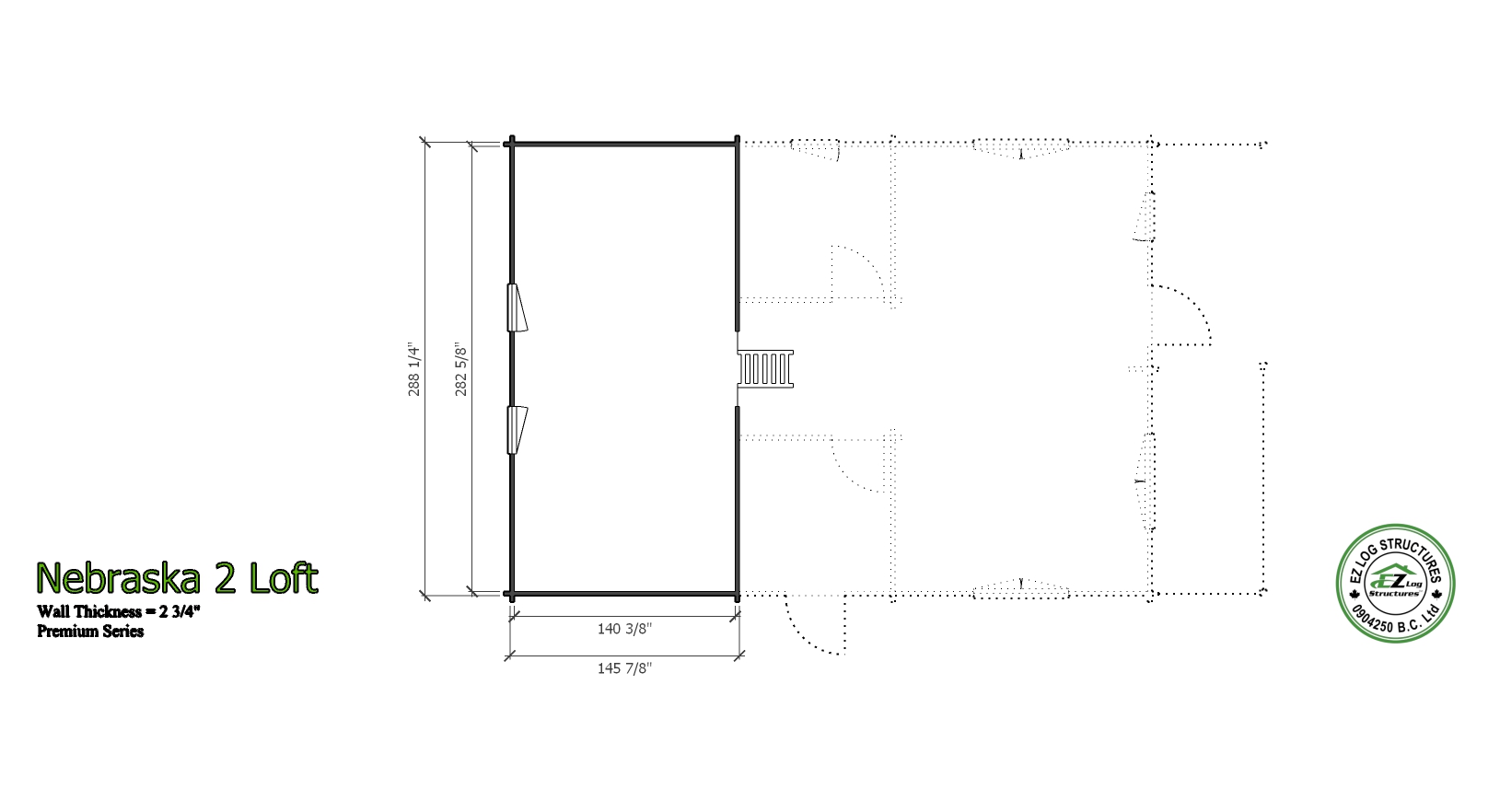

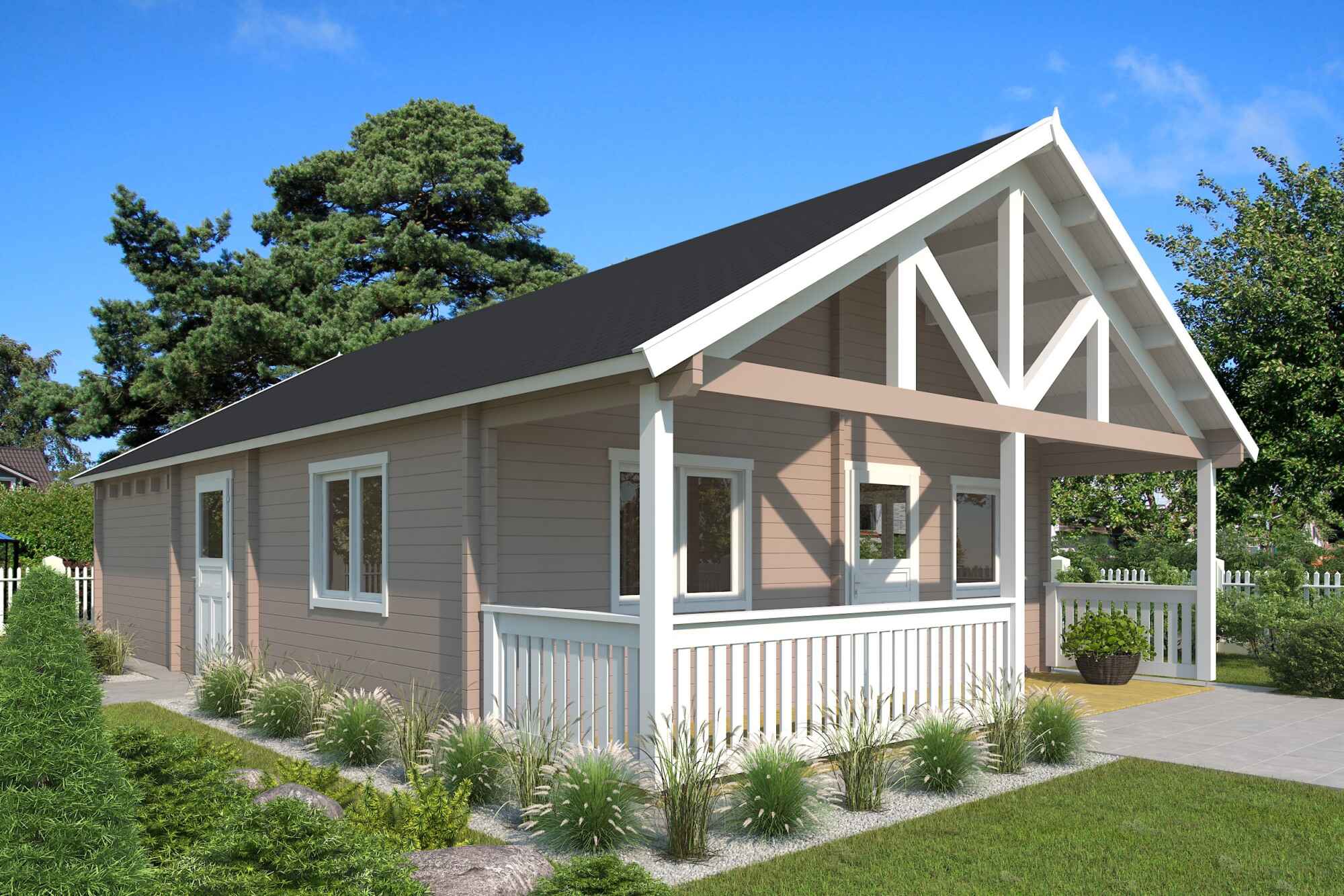

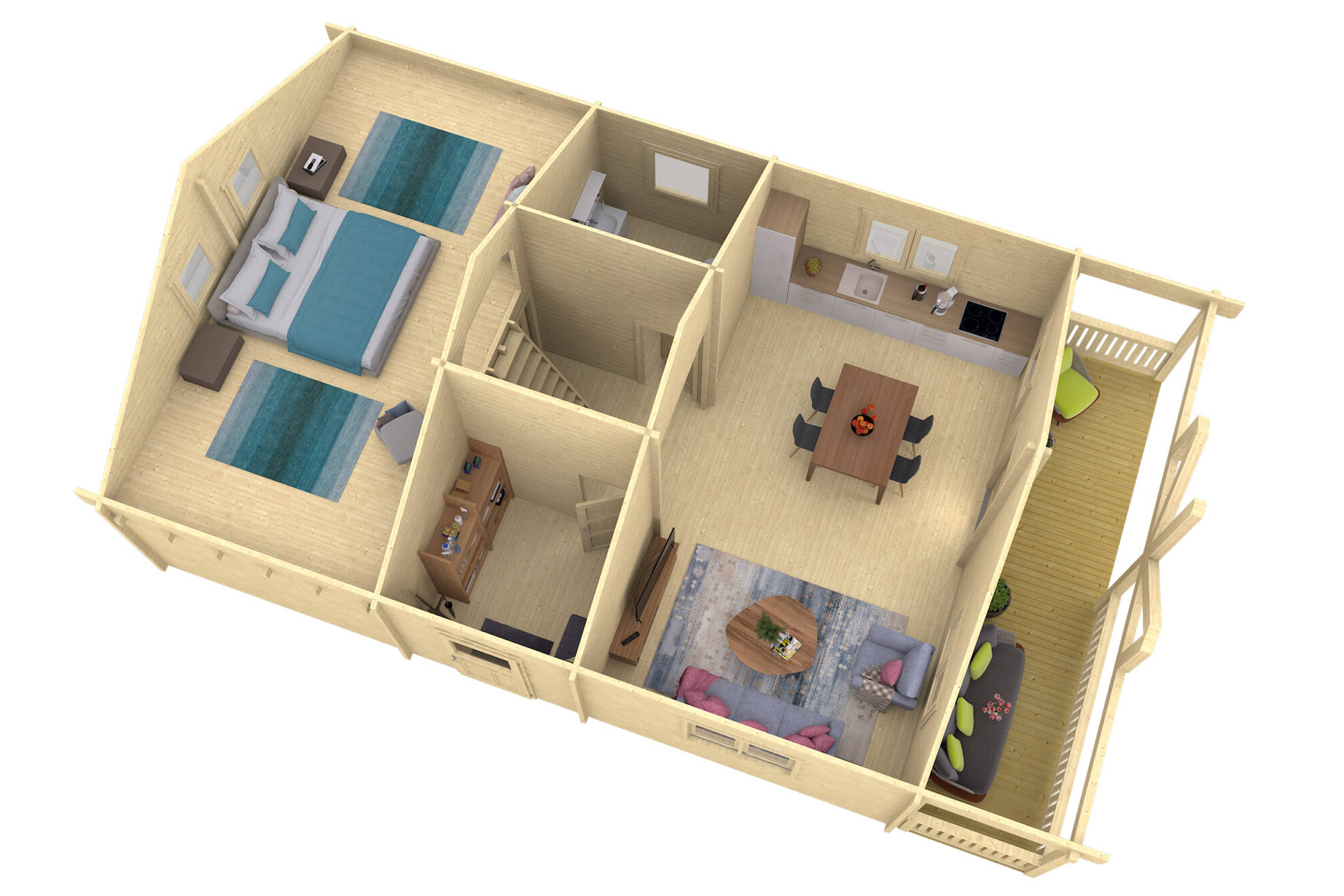

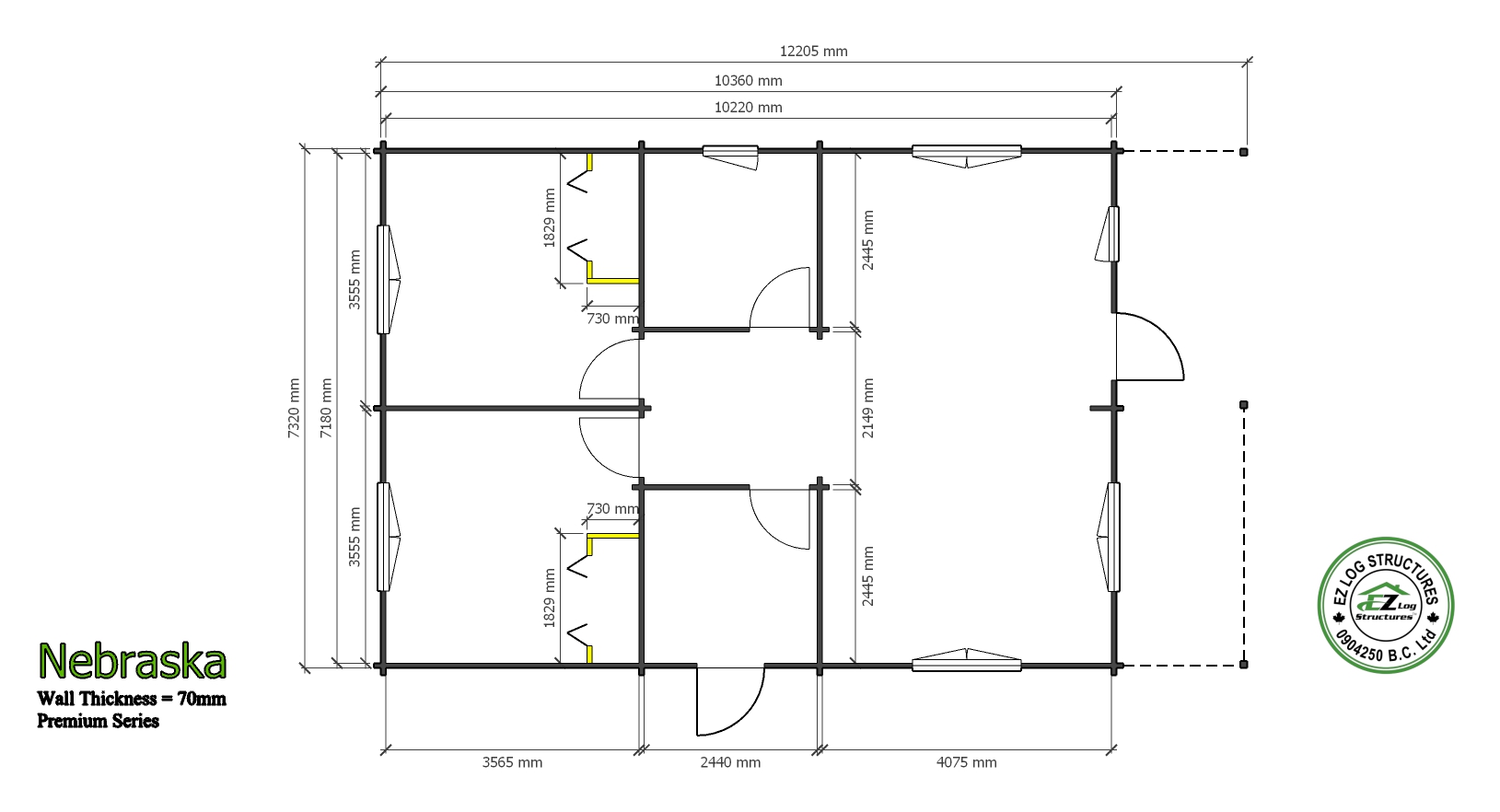

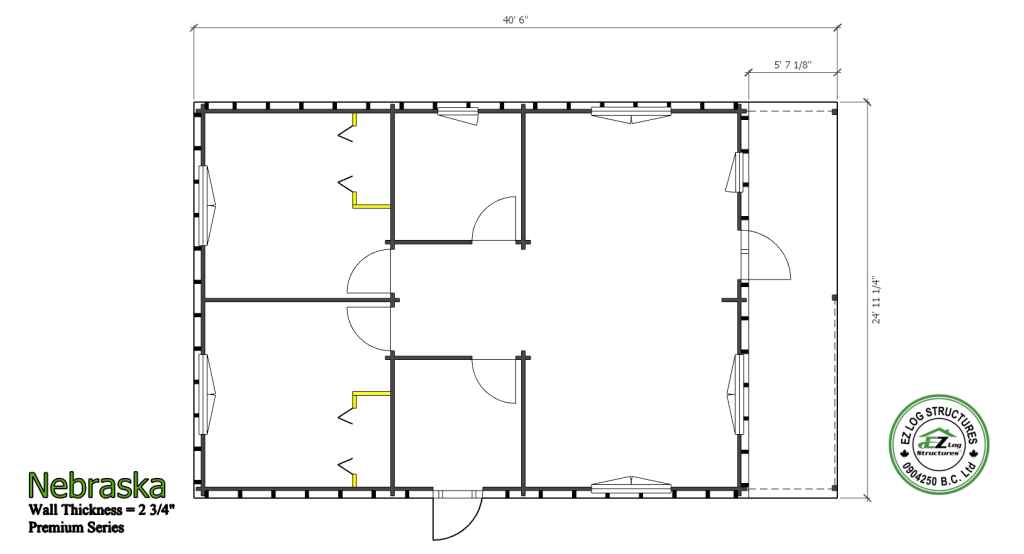

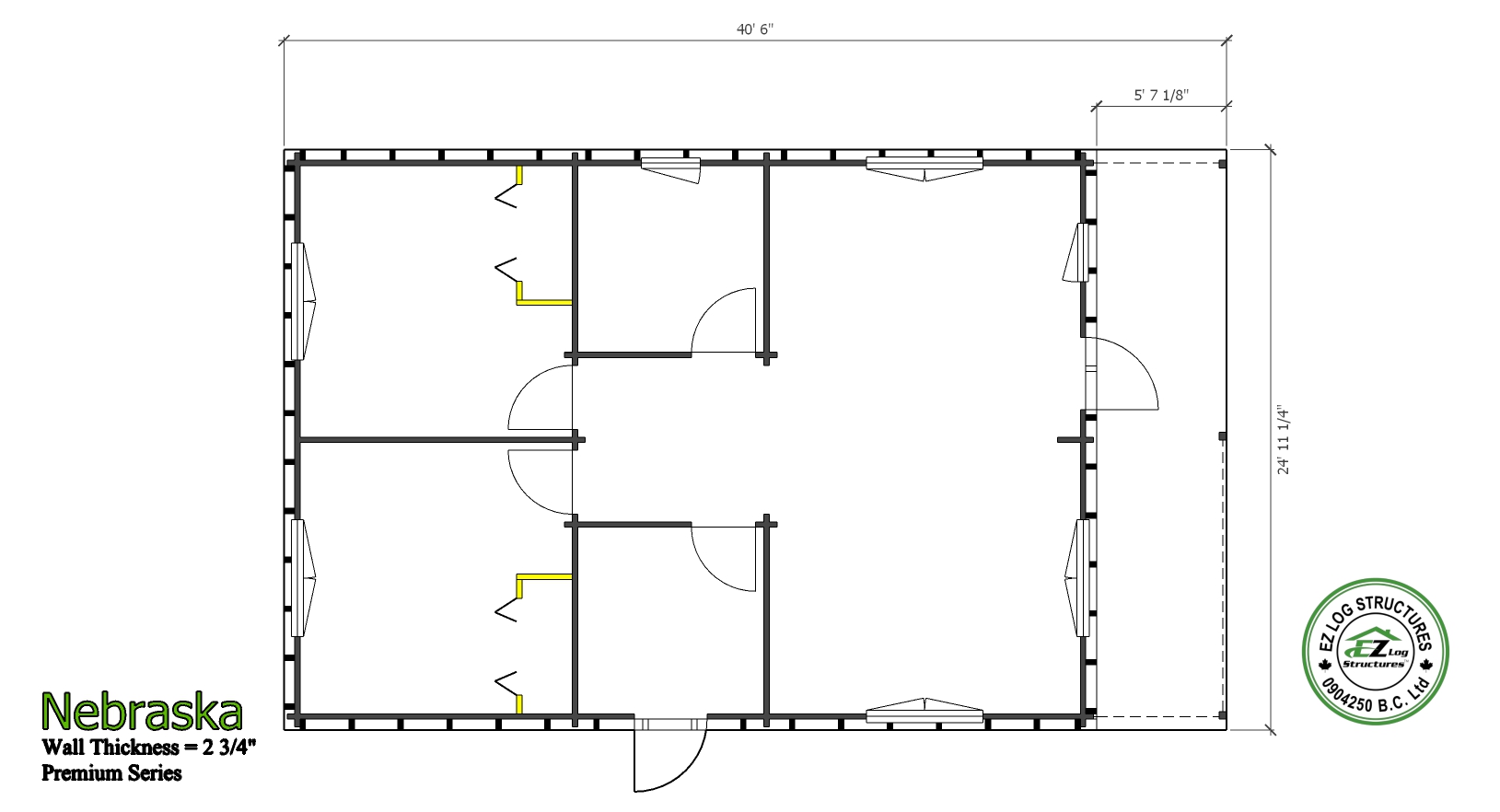

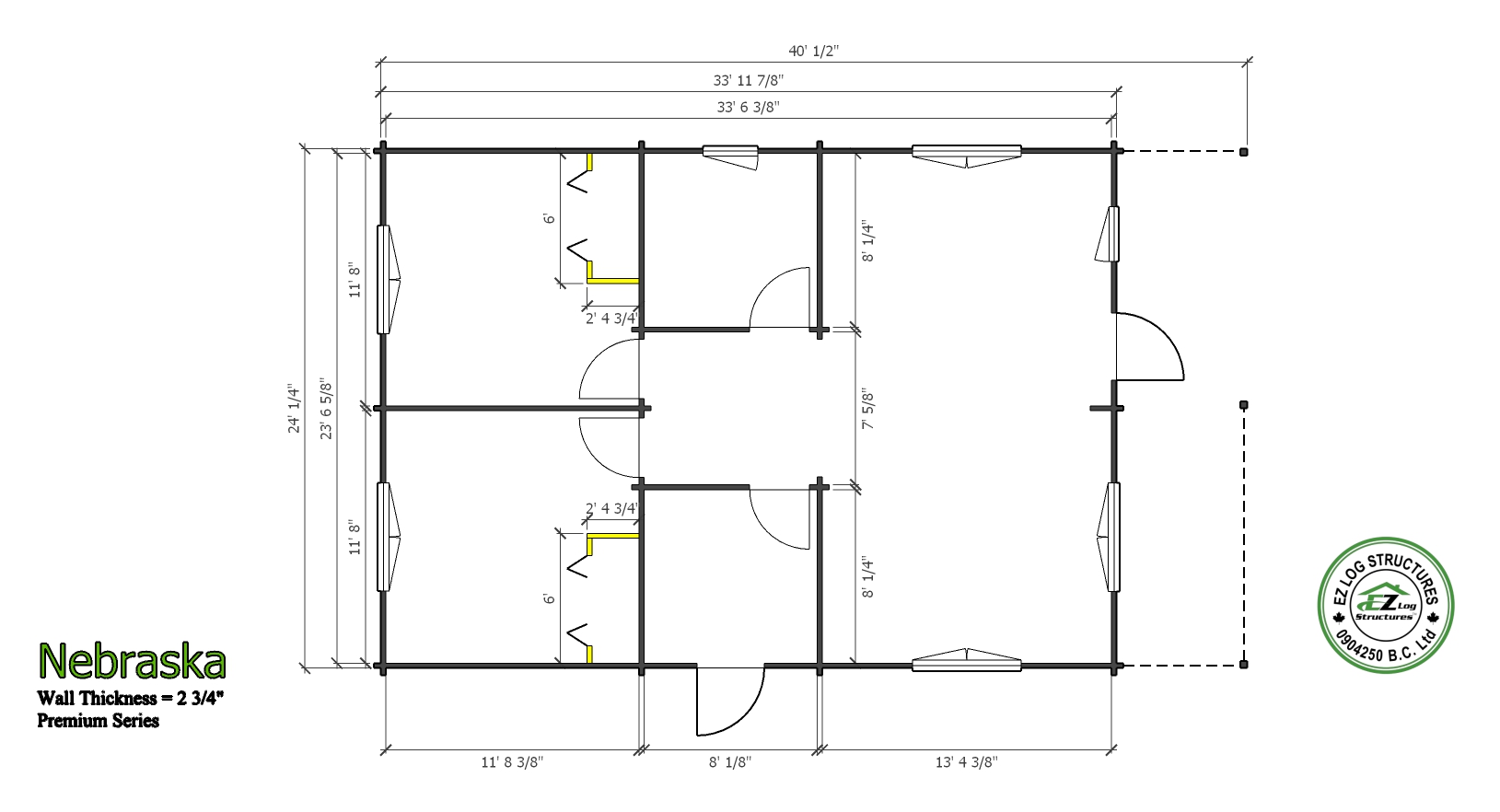

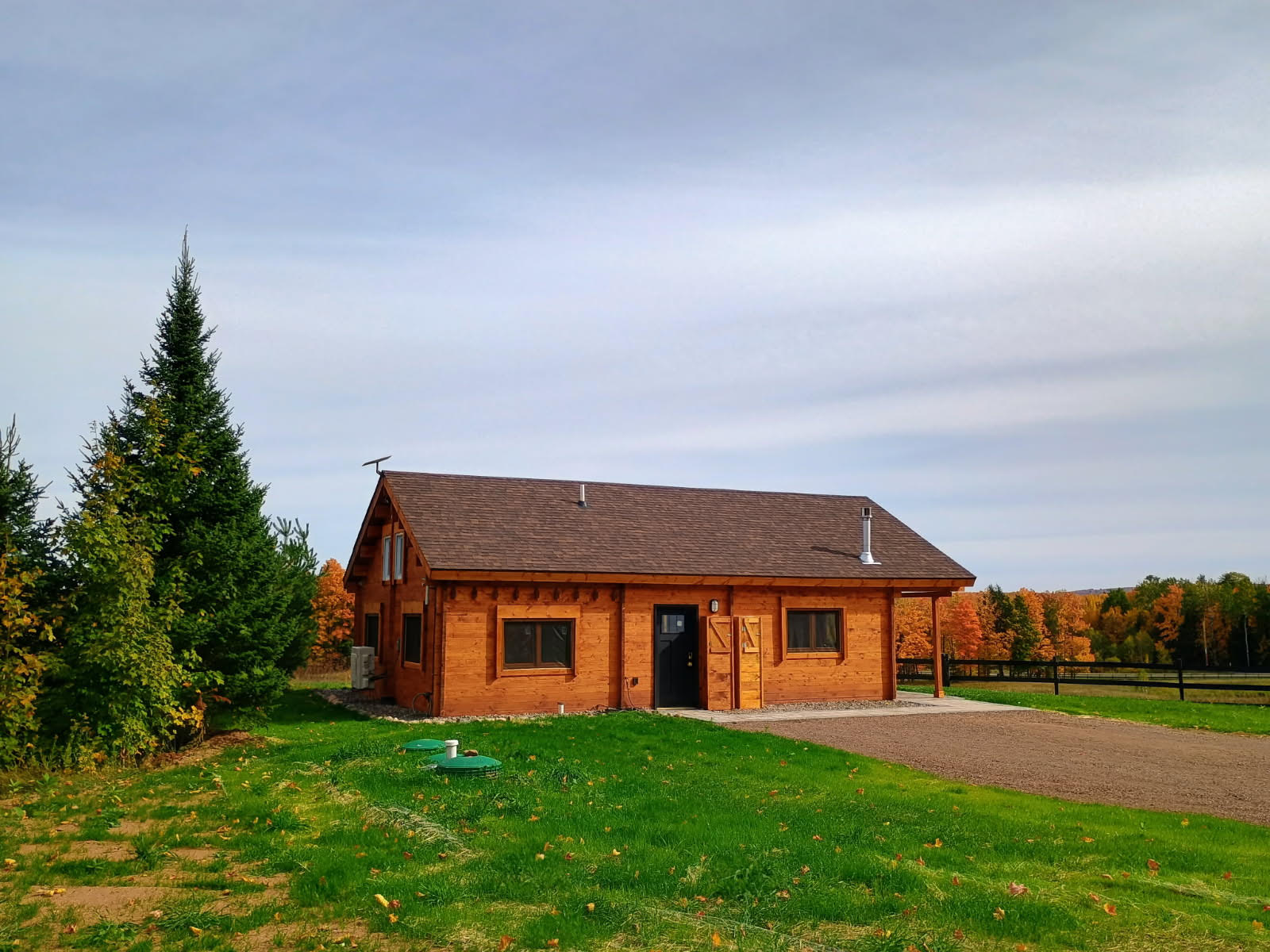

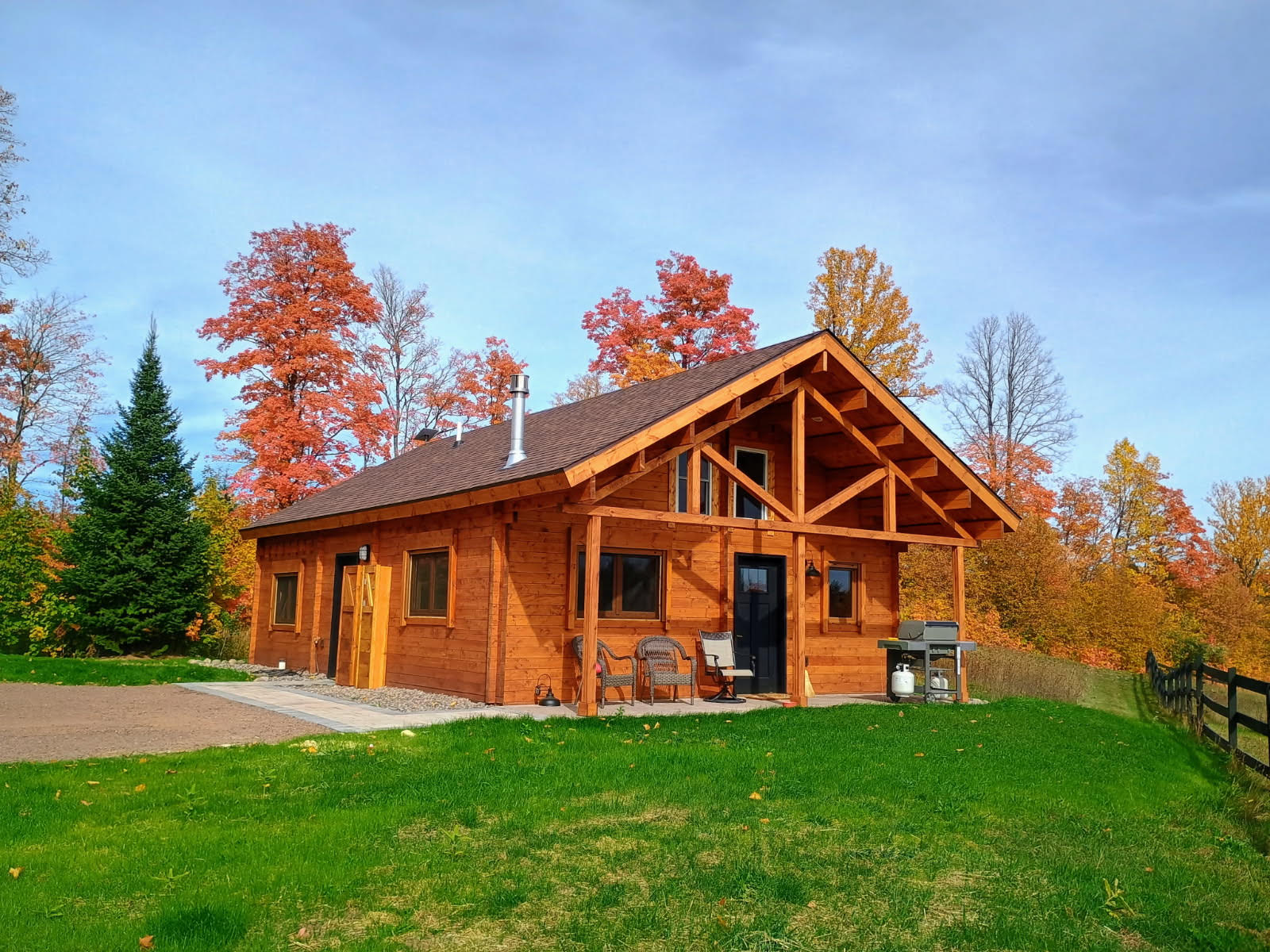

NEBRASKA is a 2 bedroom lofted home or cabin with 70mm (2-3/4″) thick wall logs and is one of our most popular models. All Premium models now include upgrades for 2024, including 4″ x 8″ glulam roof beams & floor beams, 32″ or 36″ x 80″ interior doors, and the wall height under the loft has been increased to 95″. The total footprint is 24′ x 40′,  960 sq’ which includes the 6′ covered deck area.  The main floor  interior is 24′ x 34′, with 816 sq’ plus a 280 sq’ loft over the 2 bedrooms.  The main living area has 14′ high vaulted/cathedral ceiling creating a very open living space. The loft floor joists/beams are 4″x 8″ with 1-1/8″ T&G flooring. The loft has a floor to peak height of 92″ providing plenty of headroom. (sq footage is based the total footprint, living space could be less, see floor plans)

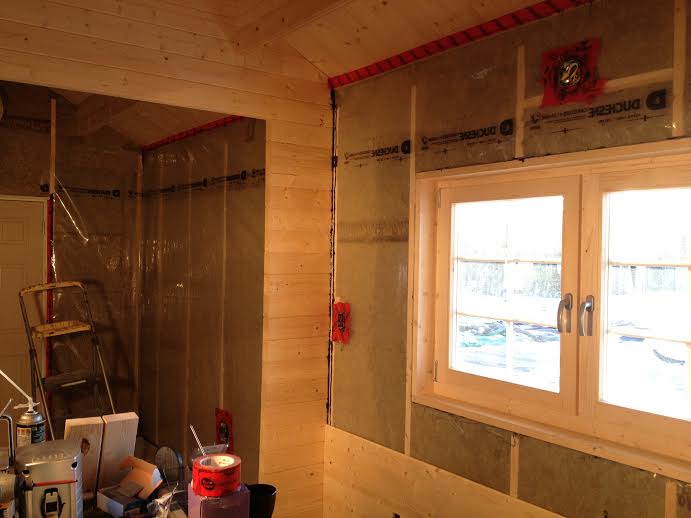

Wall insulating kit: Add 10%for the wall insulating kit including 2×4 studs, metal stud brackets plus 3/4″ wall cover boards for interior or exterior application. When insulating on the exterior the foundation must be larger

INTERIOR              EXTERIOR        Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

Energy efficiency:   Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the overall thermal and comfort benefits

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Insulating the roof: Apply locally supplied materials to add rafters over the tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof. These added rafters also increase the roof load capacity



OPTION A: Upgrade wood windows to triple glazed / Low E / Argon filled glass

  • USD regular price $ 1,310.00       Sale price $ 1,179.00
  • CAD regular price $ 1,680.00      Sale price $ 1,512.00



OPTION B: Upgrade wood windows to our exclusive maintenance free white PVC/Shutter windows with triple glazed / Low E / Argon filled glass plus exterior rolling shutters that are controlled from the interior. These unique windows provide added comfort and security. They improve the overall energy efficiency be keeping the heat out during the summer and the cold out in the winter. They also reduce outside noise levels and provide complete darkness for daytime sleepers. (See our Videos page)

  • USD regular price $ 2,730.00    Sale price $ 2,457.00
  • CAD regular price $ 3,500.00   Sale price $ 3,150.00

Assembly: The model can be assembled in approximately 10 days or less with 3 people

Tip: House wraps & vapor barriers are required in most regions when insulating. Vapor barriers are installed on the warm side of walls, interior of the studs for cold climates and exterior of studs for hot climates

Building Codes: Premium series homes & cabins are manufactured to meet all structural requirements for building codes including, California Title 24, earthquake, heavy snow load regions and hurricane zones

Kit Includes:

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 7/12 roof pitch (30 degrees)
  • vaulted, cathedral ceilings
  • roof pitch 7/12 (30 degrees)

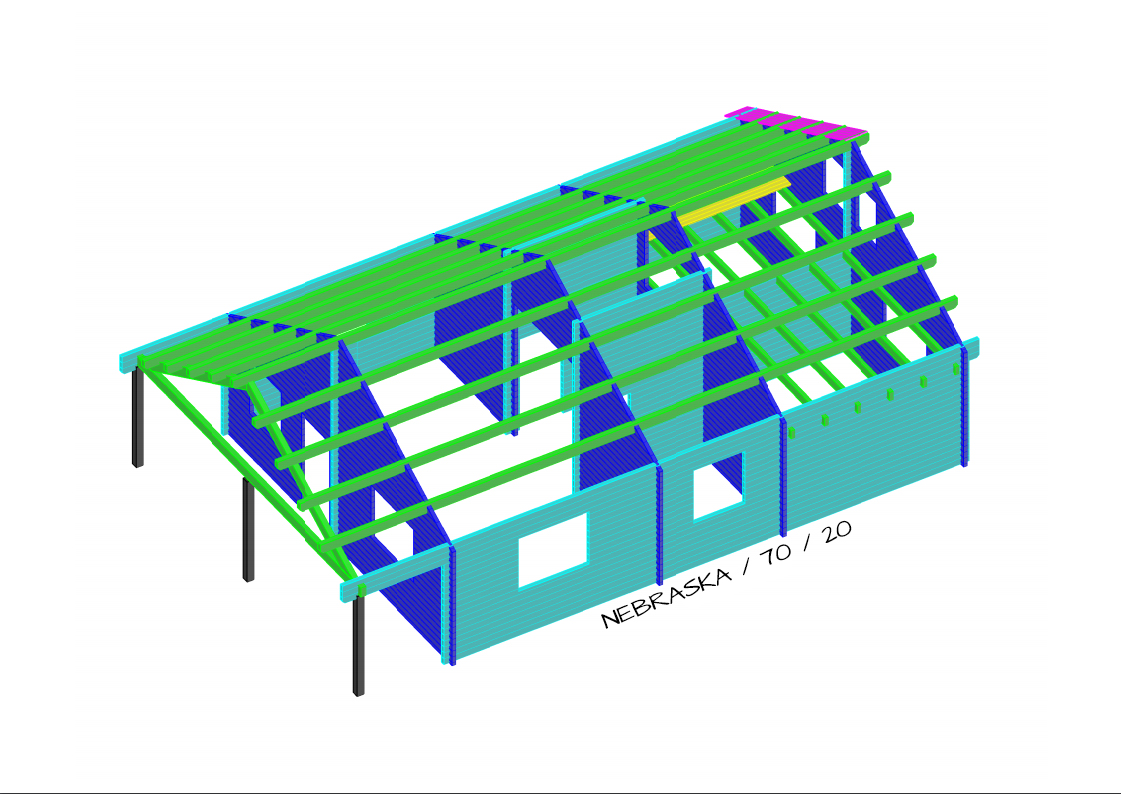

  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • pre-cut 100mm x 200mm (4″x8″) glulam floor beams spaced 558mm (22″) or less
  • pre-cut loft floor boards 28mm (1-18″)
  • loft ladder
  • 4 interior doors 900mm x 2040mm (36″x80″)
  • 4 single wide wood windows 765mm x 990mm (30″x39″)
  • 5 double wide wood windows 1530mm x 990mm (60″x39″)
  • 2 exterior doors 990mm x 2040mm (36″x80″) 1/2 glass tempered
  • adjustable posts
  • prebuilt deck railings with vertical balustrades
  • hardware for doors & windows
  • threaded steel storm rods for perimeter wall junctions
  • 2 spare wall logs/spare roof boards
  • 400 – 8″ log torque head log screws to connect first 2 rows, top row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
