Nova

1943 sq ft
Premium Model
$77,792.00 USD$102,097.00 USD
$93,325.00 CAD$130,894.00 CAD
FREE SHIPPING
Bedrooms4
Bathrooms2

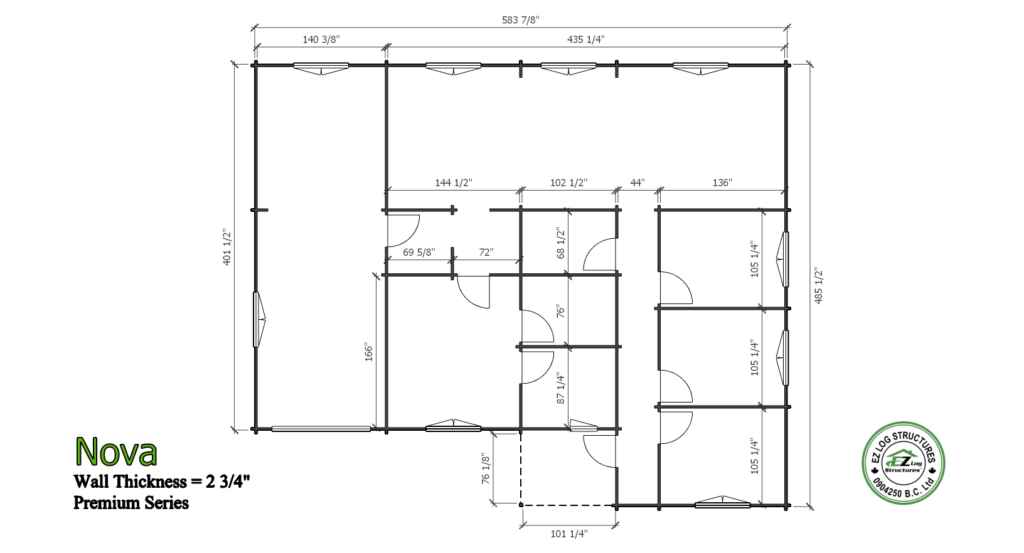

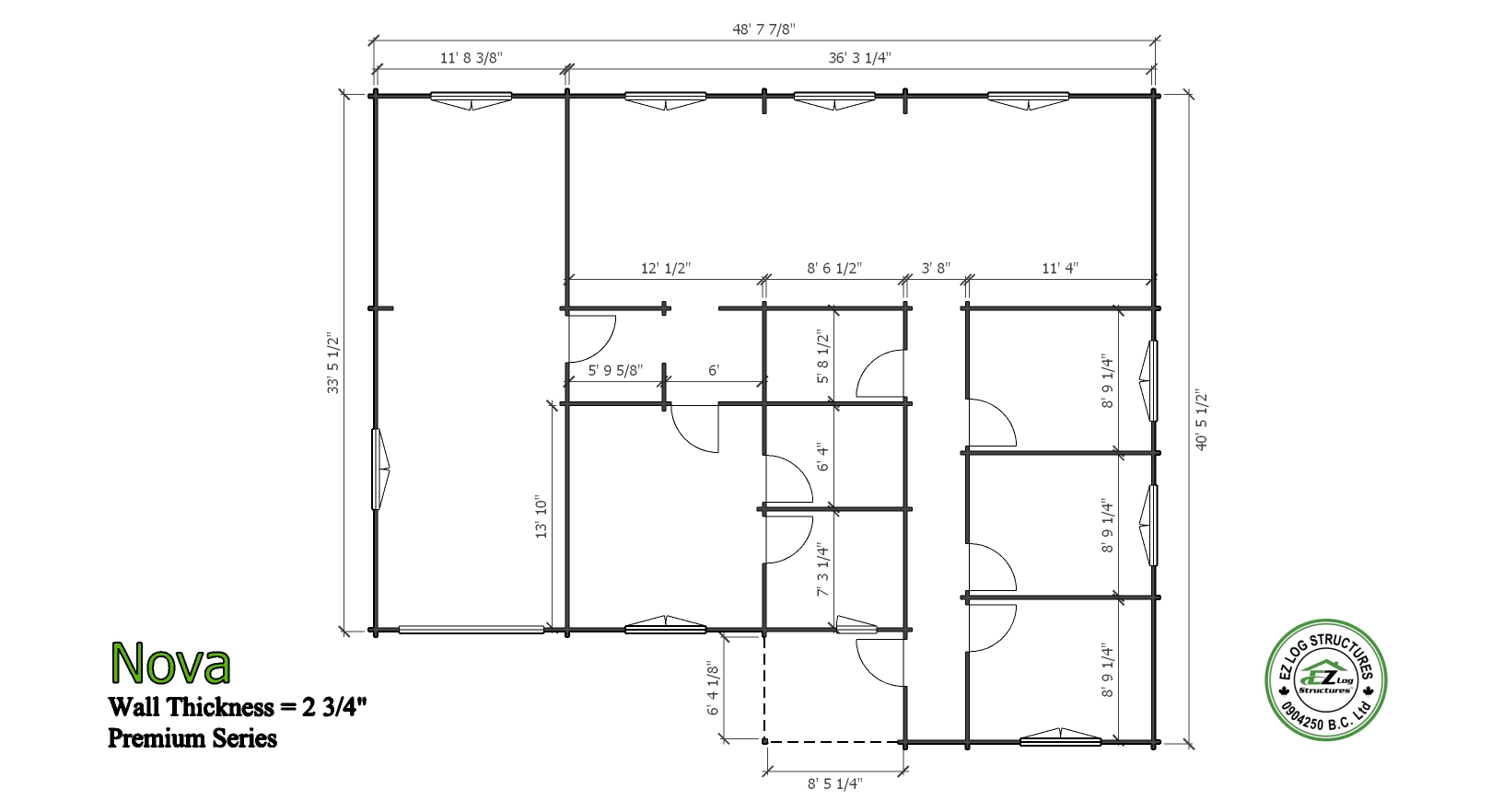

Cabin size583" x 485"

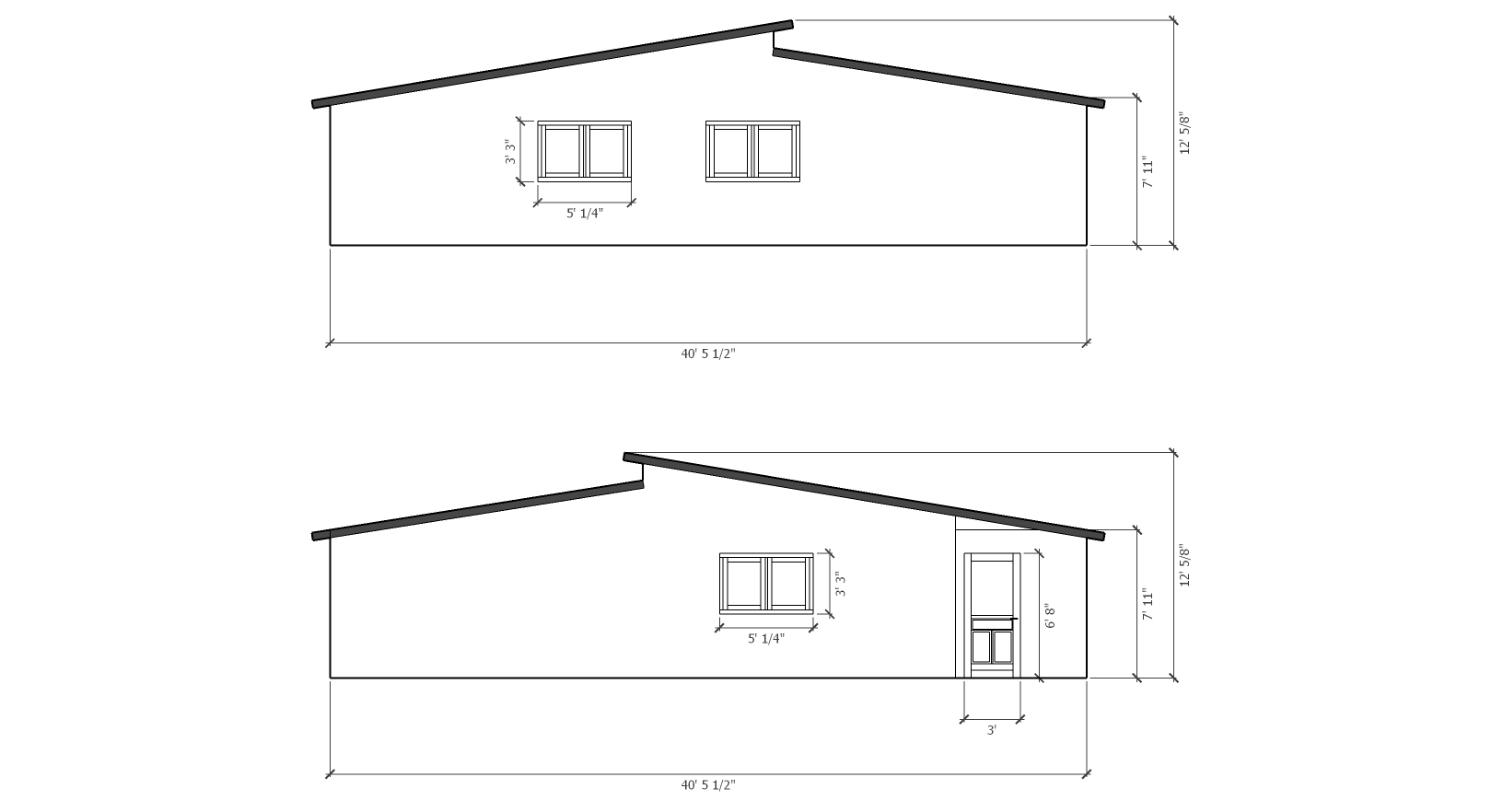

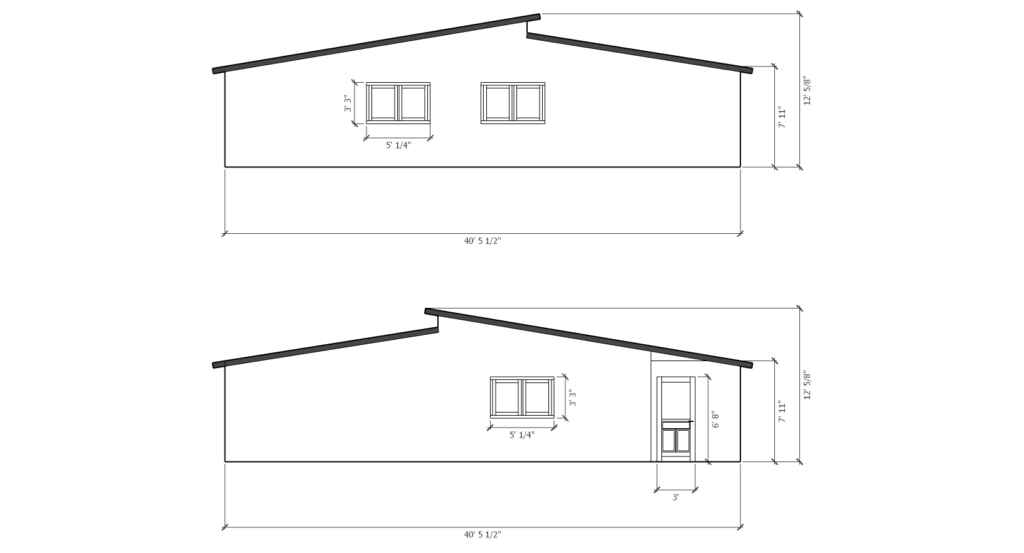

Roof pitch2/12 - 9.5D
Roof boards3/4"
Size (sq ft)1943

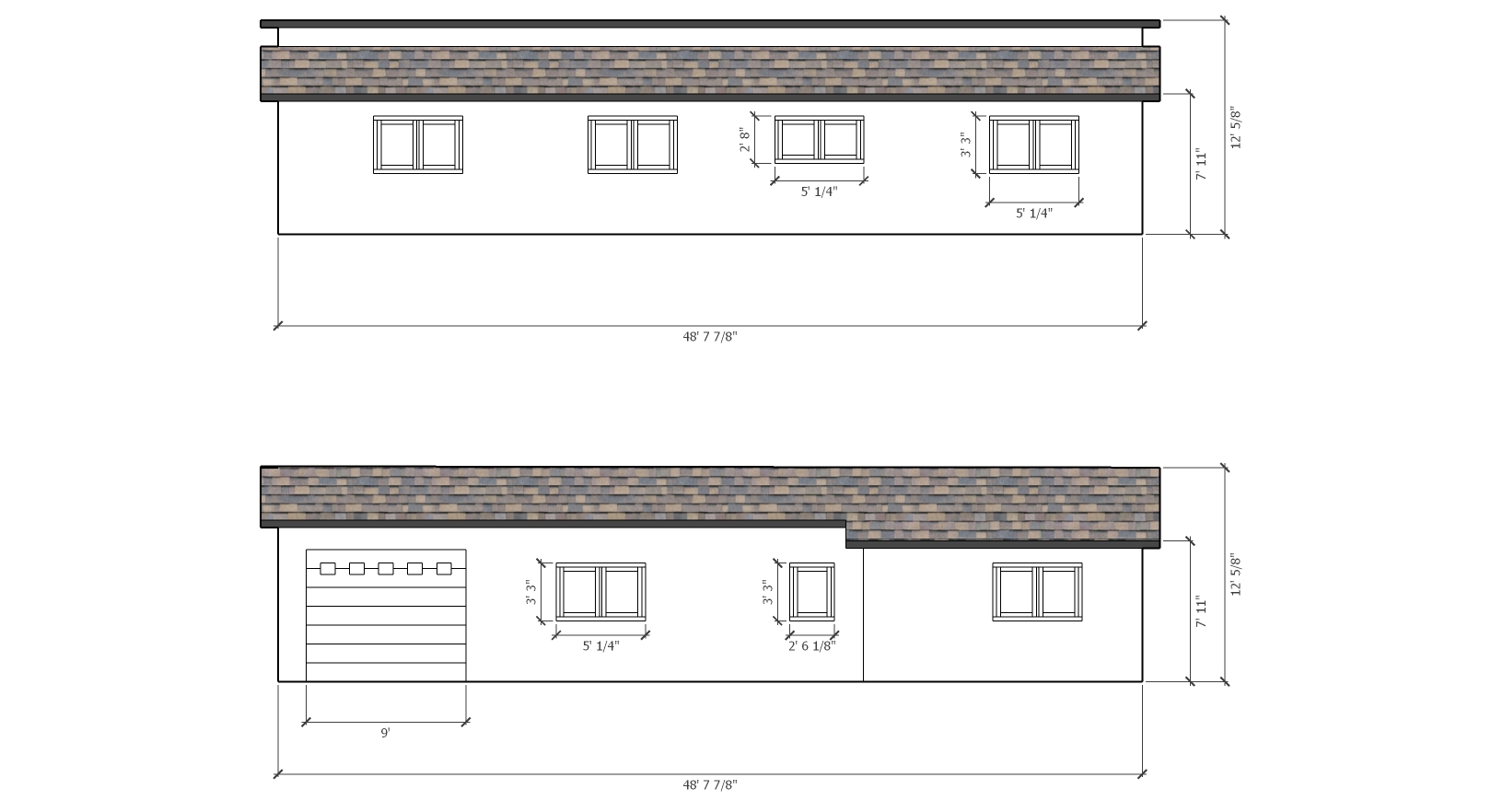

Wall height95"
Ridge height146"

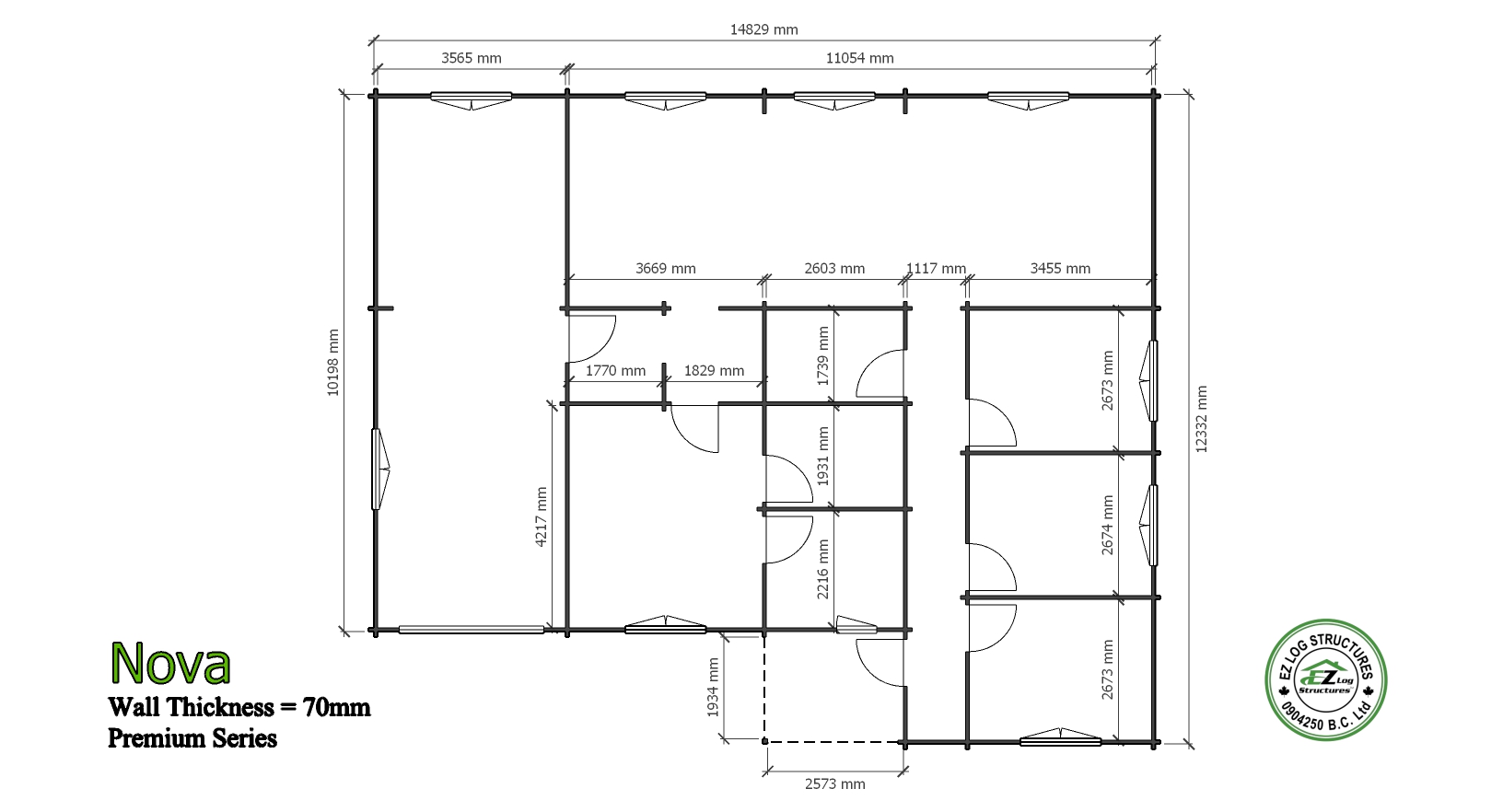

Wall thickness2-3/4"

Model Documentation

Sale pricing valid to March 31, 2025
INCLUDES SHIPPING & STRUCTURAL ENGINEERING
(some exceptions may apply for shipping to remote locations)

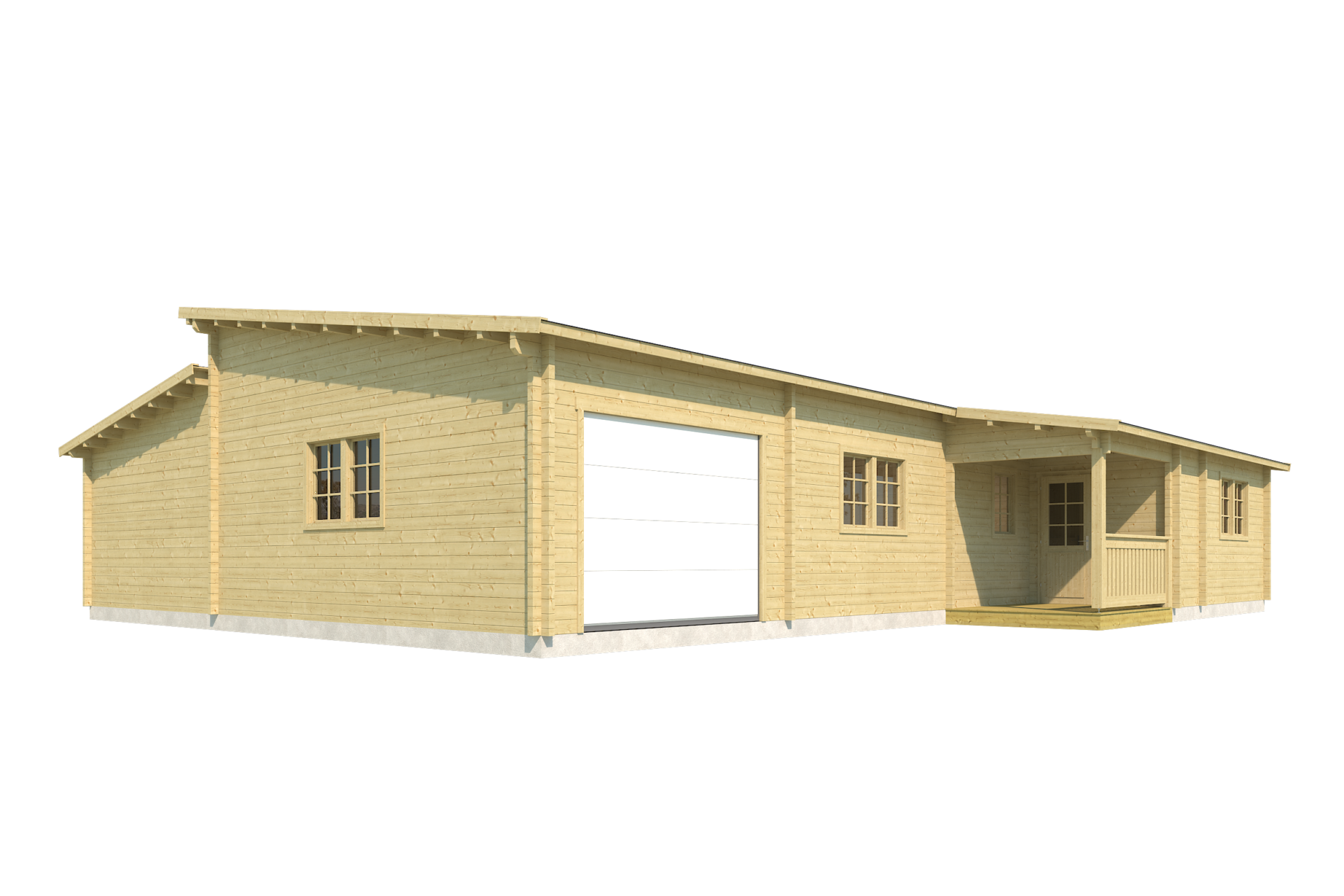

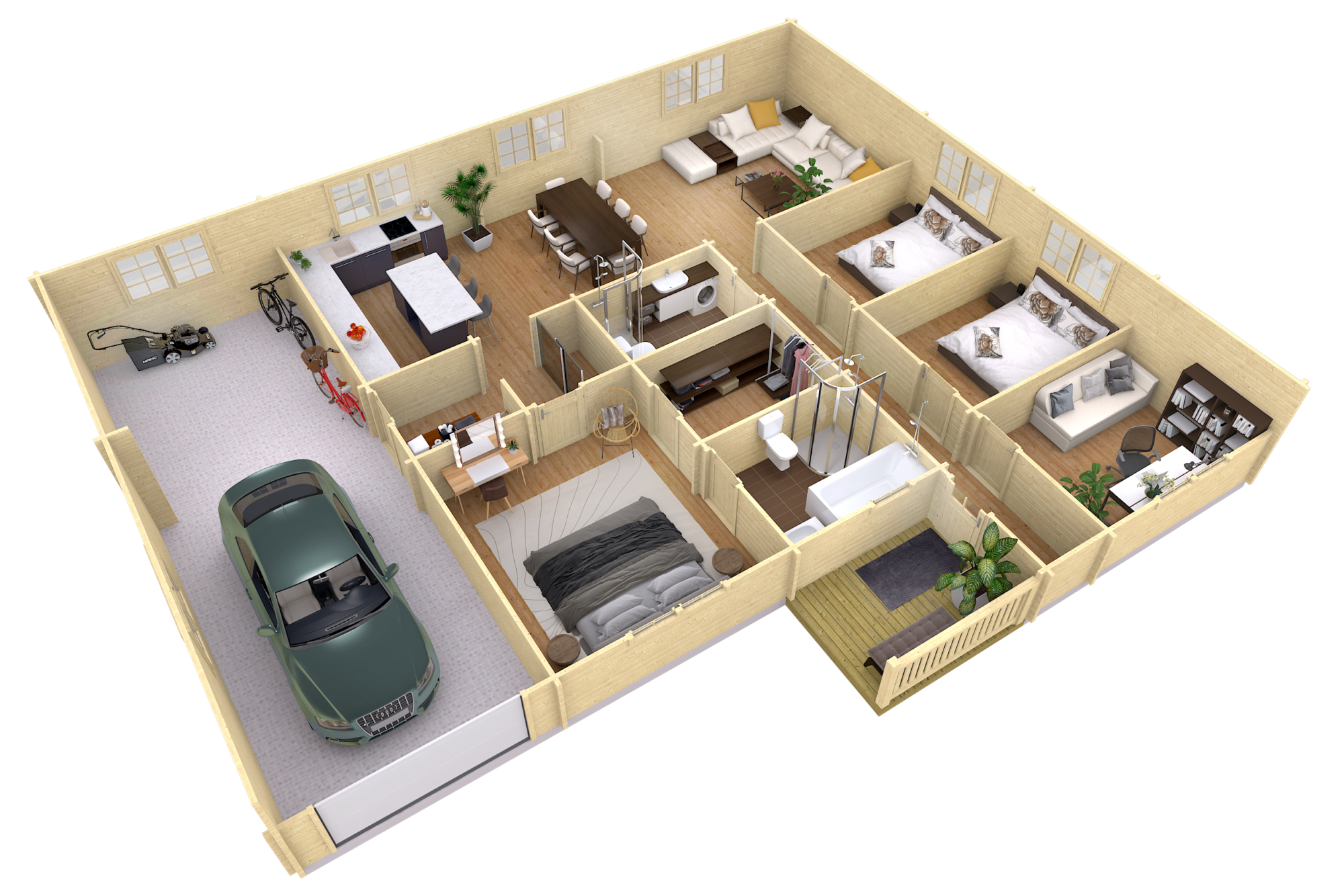

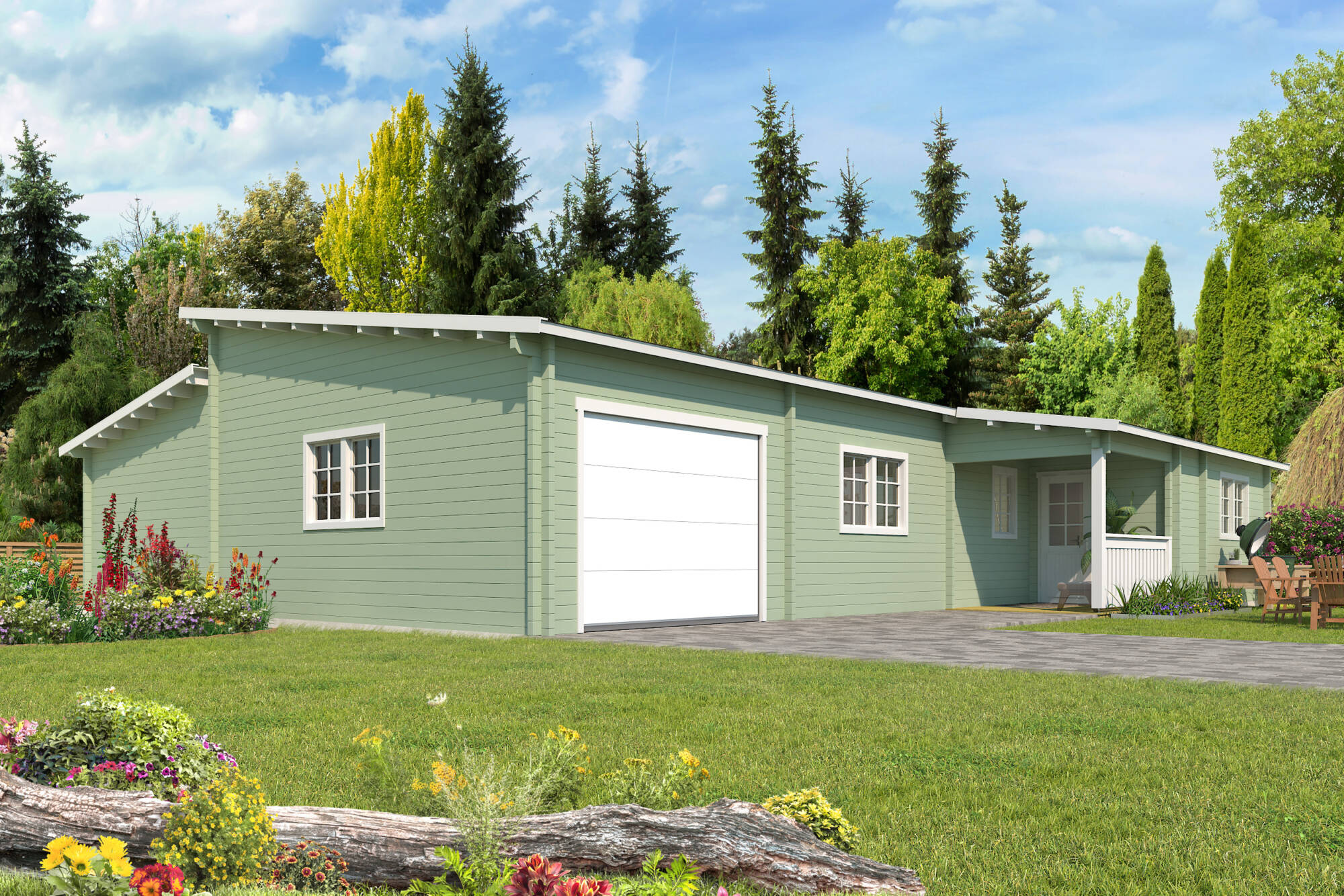

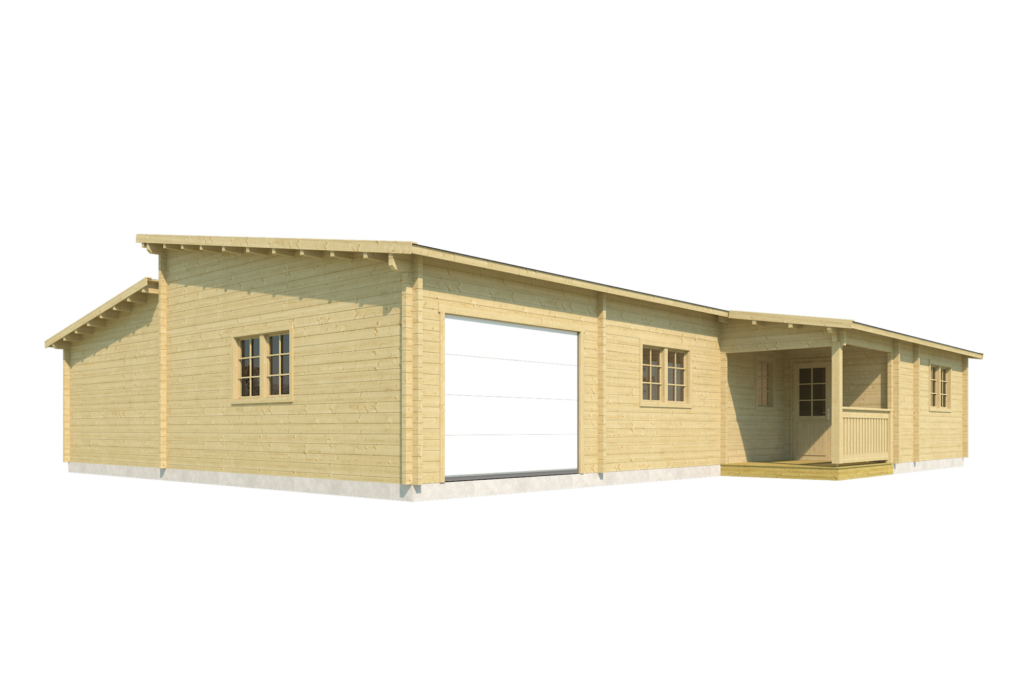

Nova is a solid wood kit home using 70mm (2-3/4″) thick solid walls. This 1775 sq’ modern design has a two level flat sloped roof with vaulted/cathedral ceilings, 4 bedrooms, 2 bathrooms, master bedroom includes a walk-in closet with a master bath, utility room, large open living area & an attached garage. Can be assembled by 3 people in 10 days.

Kit includes:
  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • sidewall height 95″ (2413mm)
  • vaulted, cathedral ceilings
  • roof pitch 2/12 (9.5 degrees)
  • pre-cut 4″ x 8″ (100mm x 200mm) glulam roof purlins/beams, spaced 22″ (558mm) or less
  • pre-cut, numbered 3/4″ (18mm) tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 9 interior doors 32″x80″ (812mm x 2040mm) or  36″ x 80″ (914mm x 2040mm), hardware
  • 1 single wide wood window 21″ x 21″ (530mm x 530mm)
  • 1 double wide wood window 60″ x 32″ (1530mm x 812mm) over counter top
  • 8 double wide wood window 60″x39″ (1530mm x 990mm)
  • 2 exterior doors 36″x80″ (990mm x 2040mm) 1/2 glass tempered, multi locking hardware
  • deck posts, railing with vertical balustrades
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped for sequence of assembly
  • NOTE: overhead garage door not included
  • FREE SHIPPING

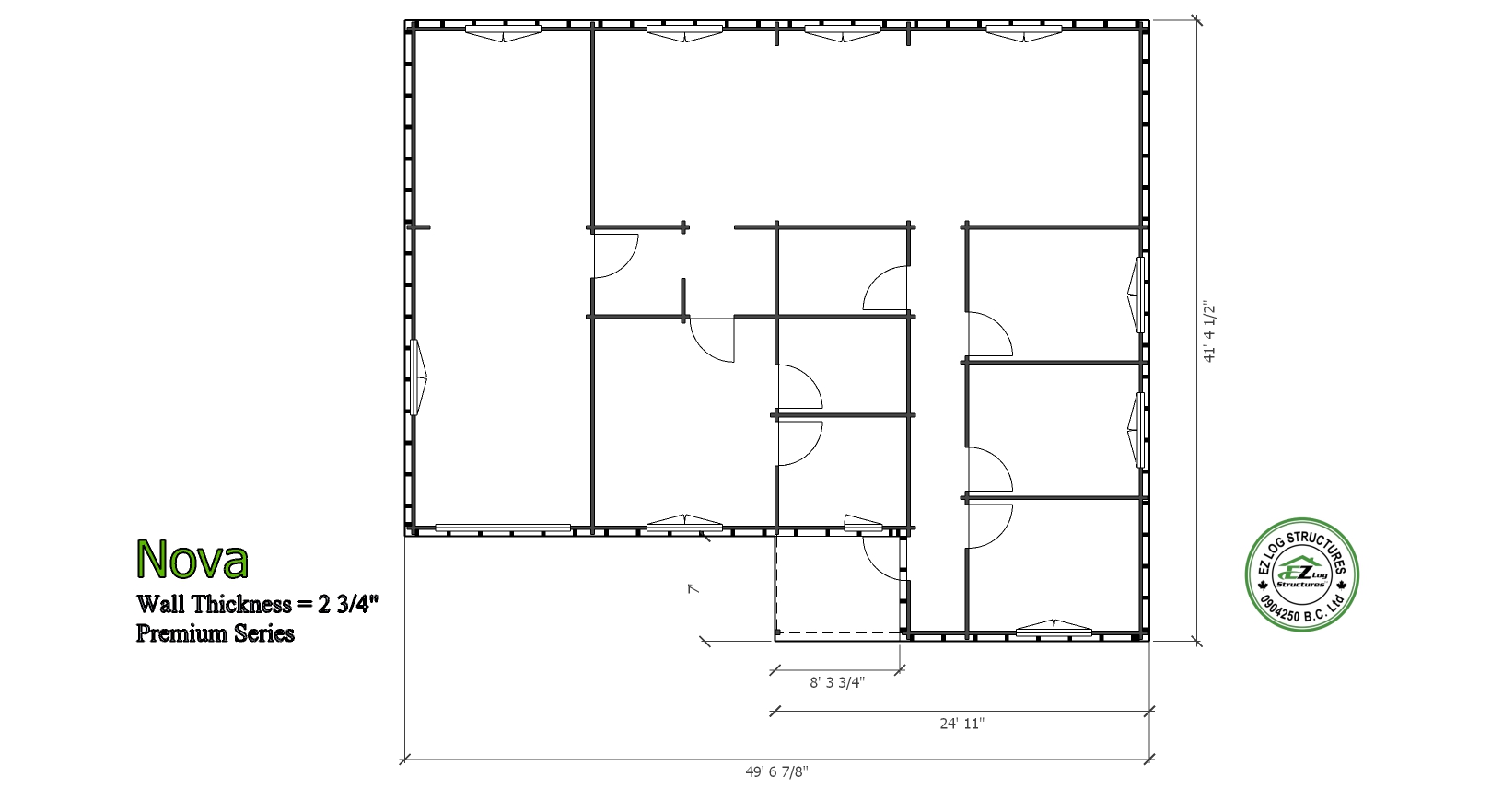

  • FOUNDATION DRAWINGS
  • STAMPED STRUCTURAL ENGINEERING manufactured to meet structural requirements for codes including California Title 24, earthquake, heavy snow load regions & hurricane zones

Exterior Stud & Siding Options:
Exterior stud & siding kits include: 2×4 or 2×6 studs, stud screws, wood siding, corner blocks

Add 14%  – Otoczak Full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm)

Add 10%  – Max Semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm)

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

Window Options:

Upgrade all the wood windows to triple glazed/Low E/Argon filled glass

Add – $ 1,778.00 USD

Add – $ 2,280 CAD

OR

Upgrade all wood window to our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass plus exterior rolling shutters that are controlled from the interior. Add comfort and security, improve the energy efficiency, reduce outside noise levels & provide complete darkness for daytime sleepers. (See the video on the video section)

Add – $ 3,705.00 USD

Add – $ 4,750.00 CAD



Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly. Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the thermal & comfort benefits

Insulating the roof: Apply locally supplied materials to add rafters over the supplied tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness and water proof. These added rafters also increase the roof load capacity
