Redding.

635 sq ft
Premium Model
$49,097.00 USD
$62,946.00 CAD
FREE SHIPPING

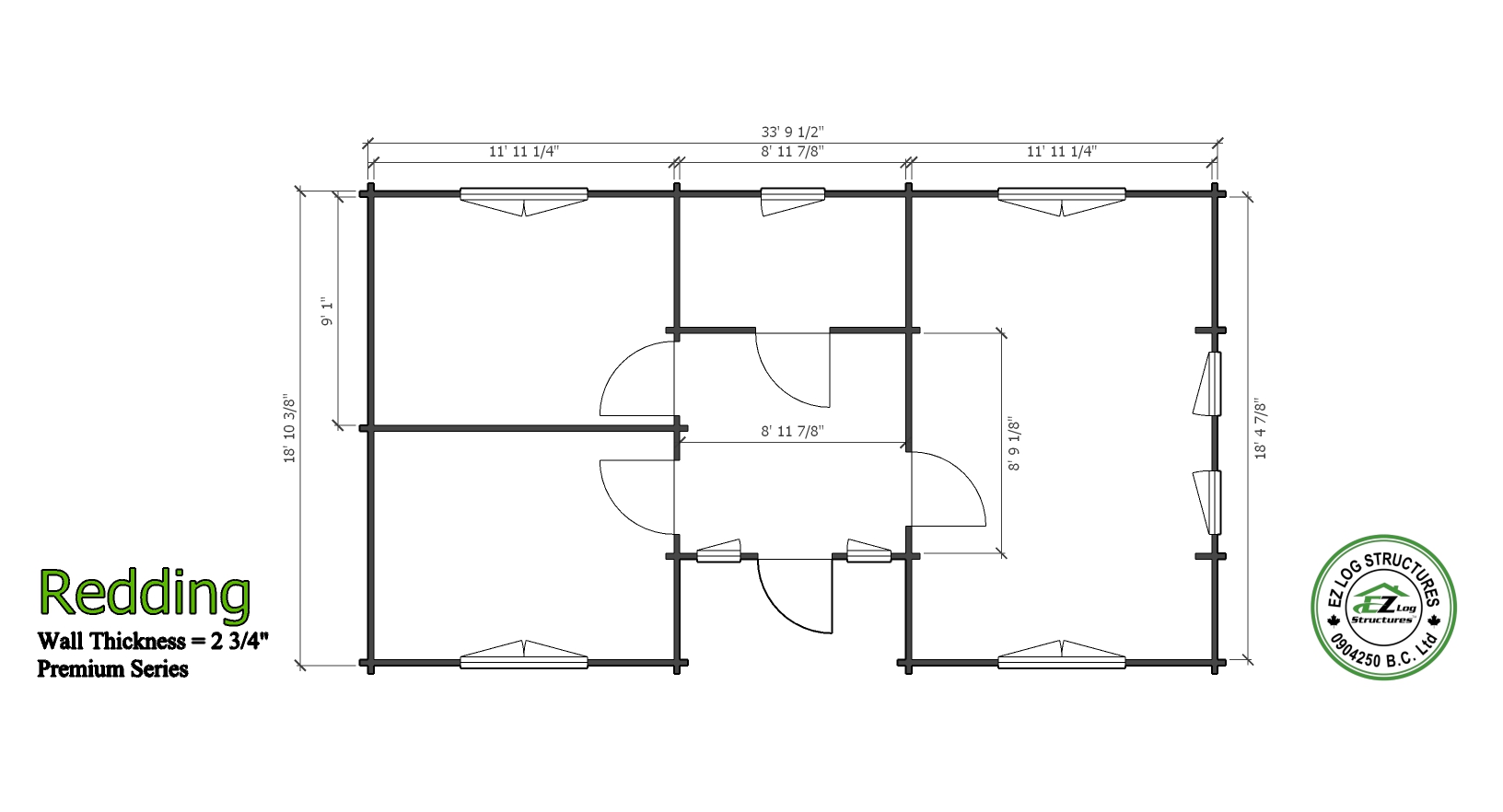

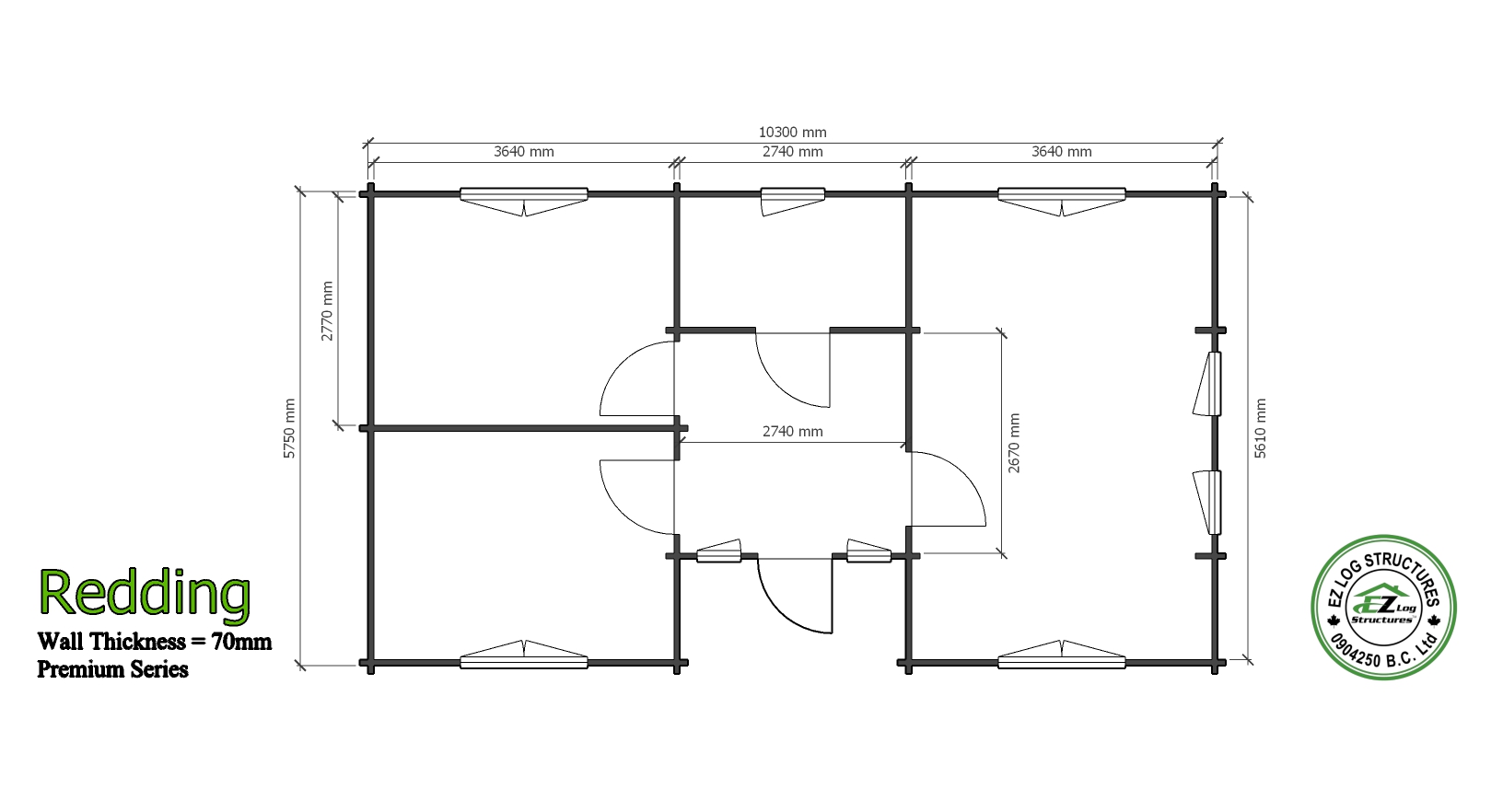

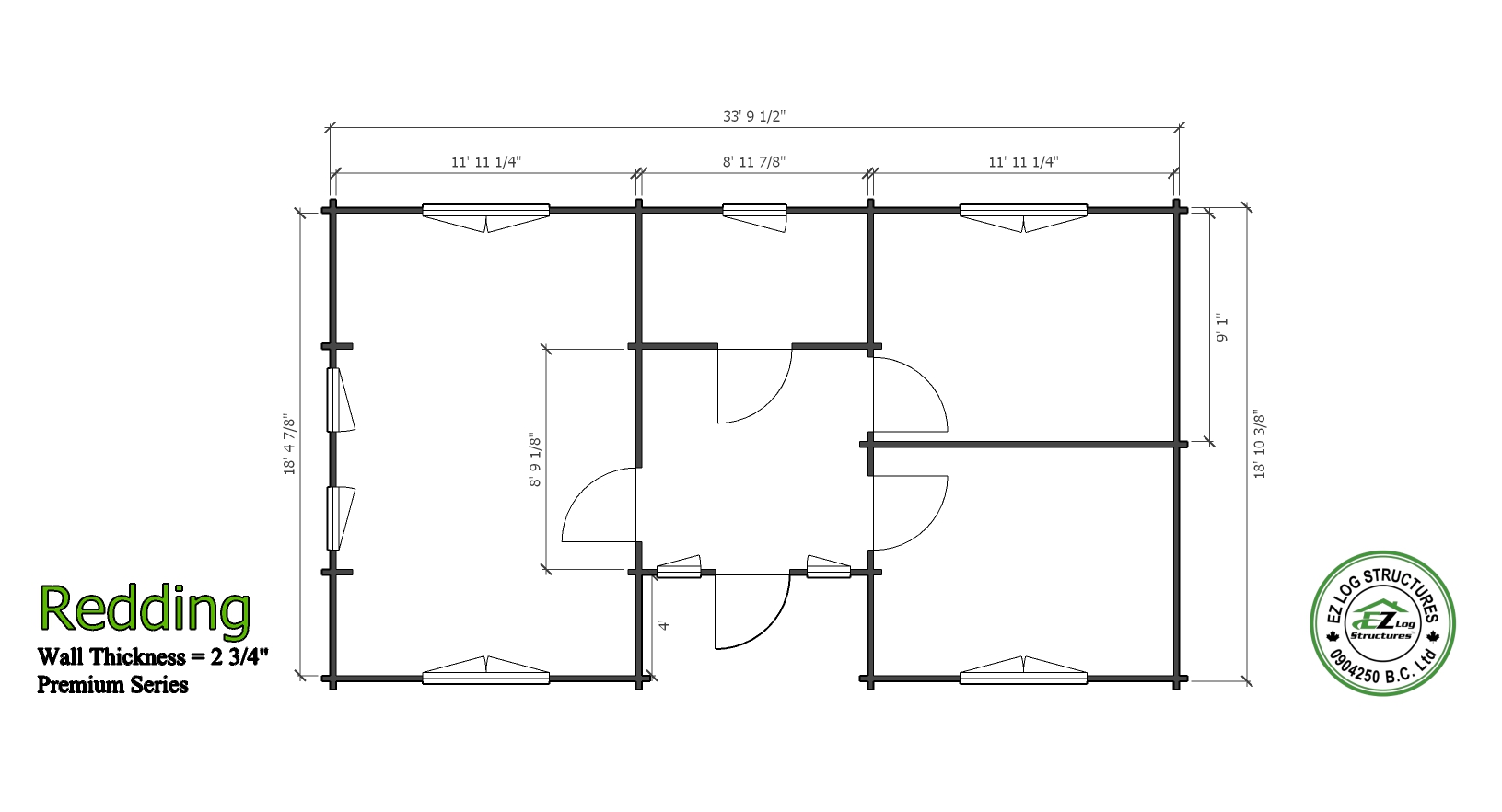

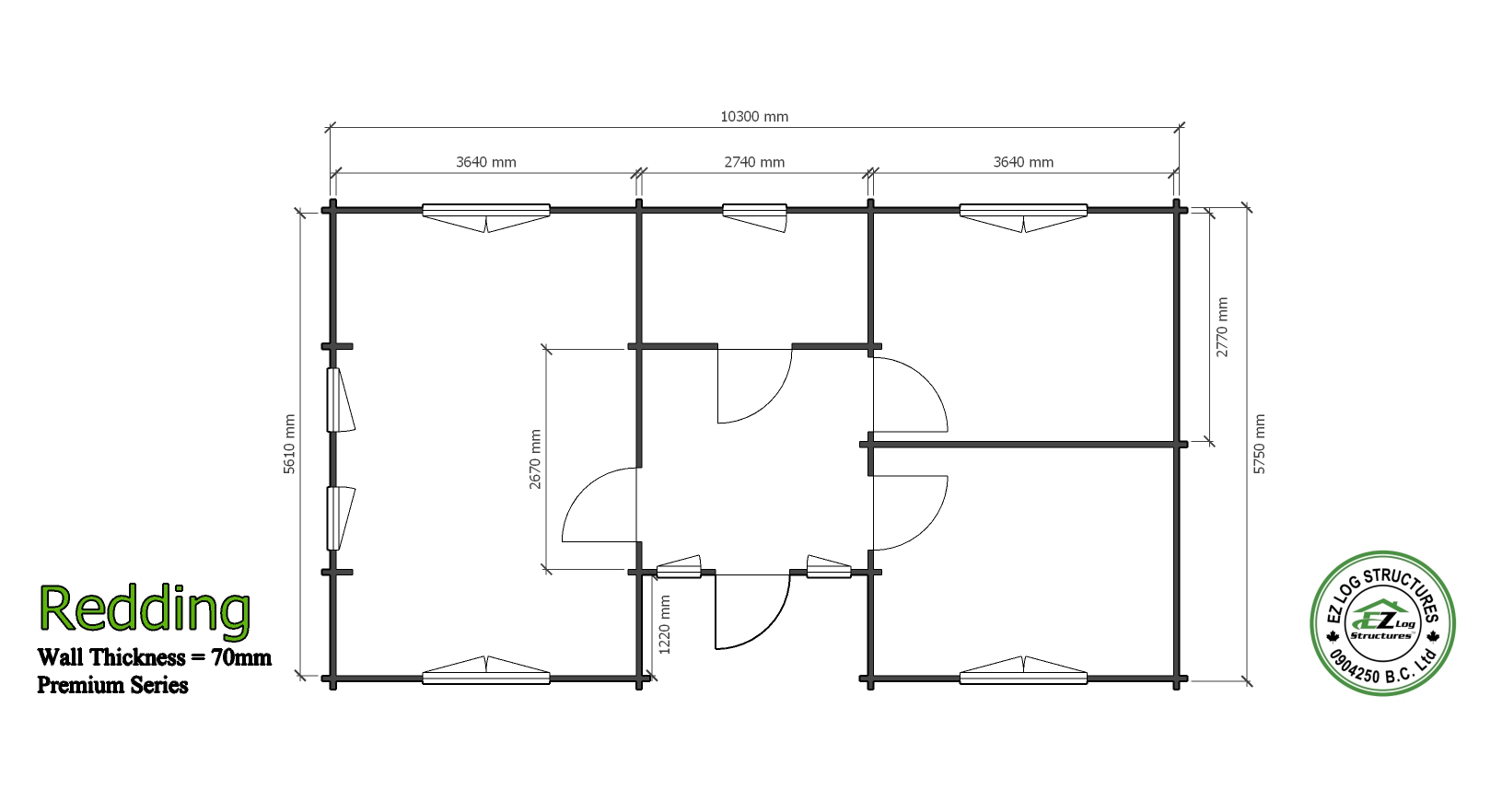

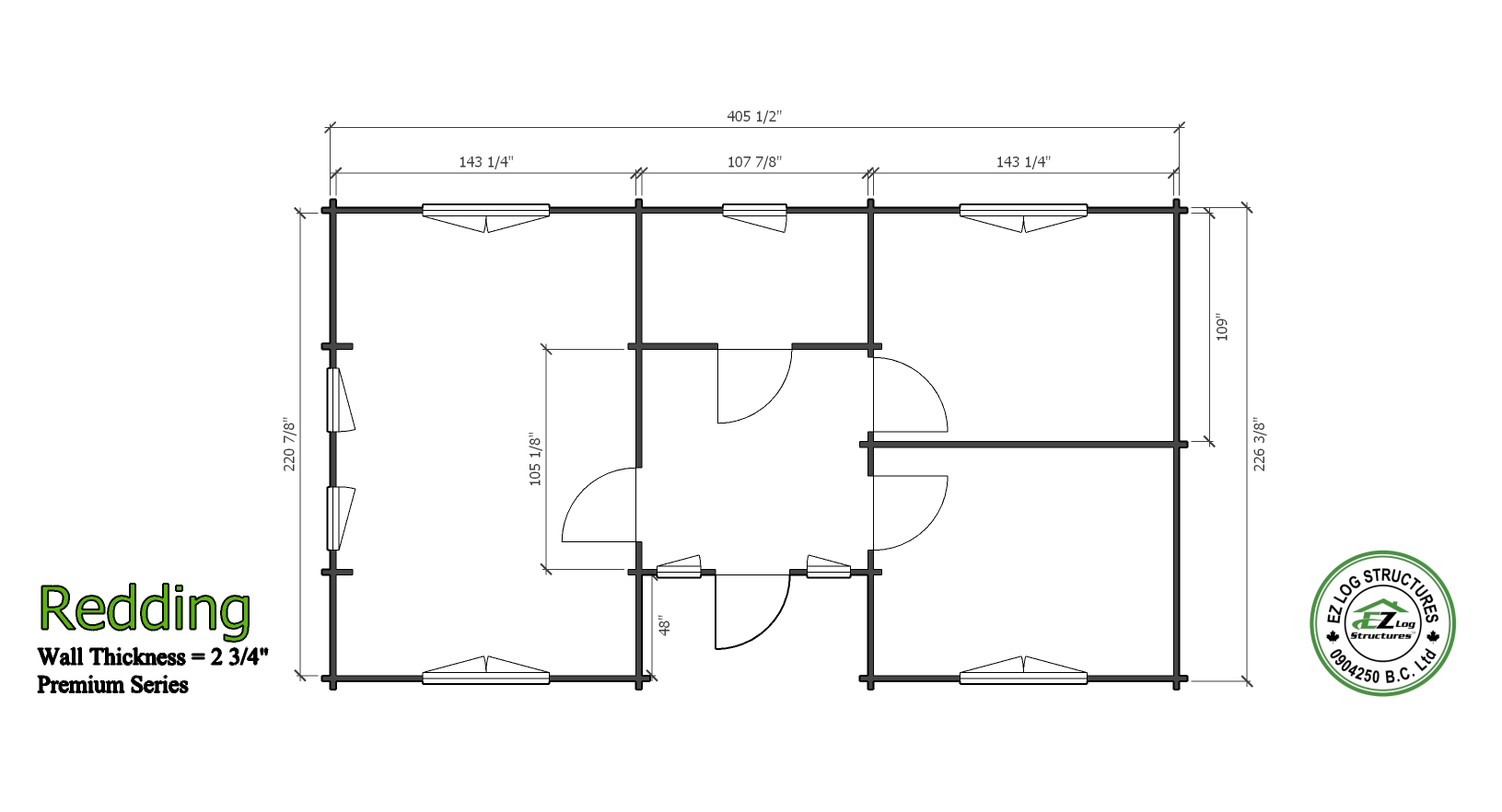

Cabin size405" x 226"
Roof pitch2.5/12
Roof boards3/4"

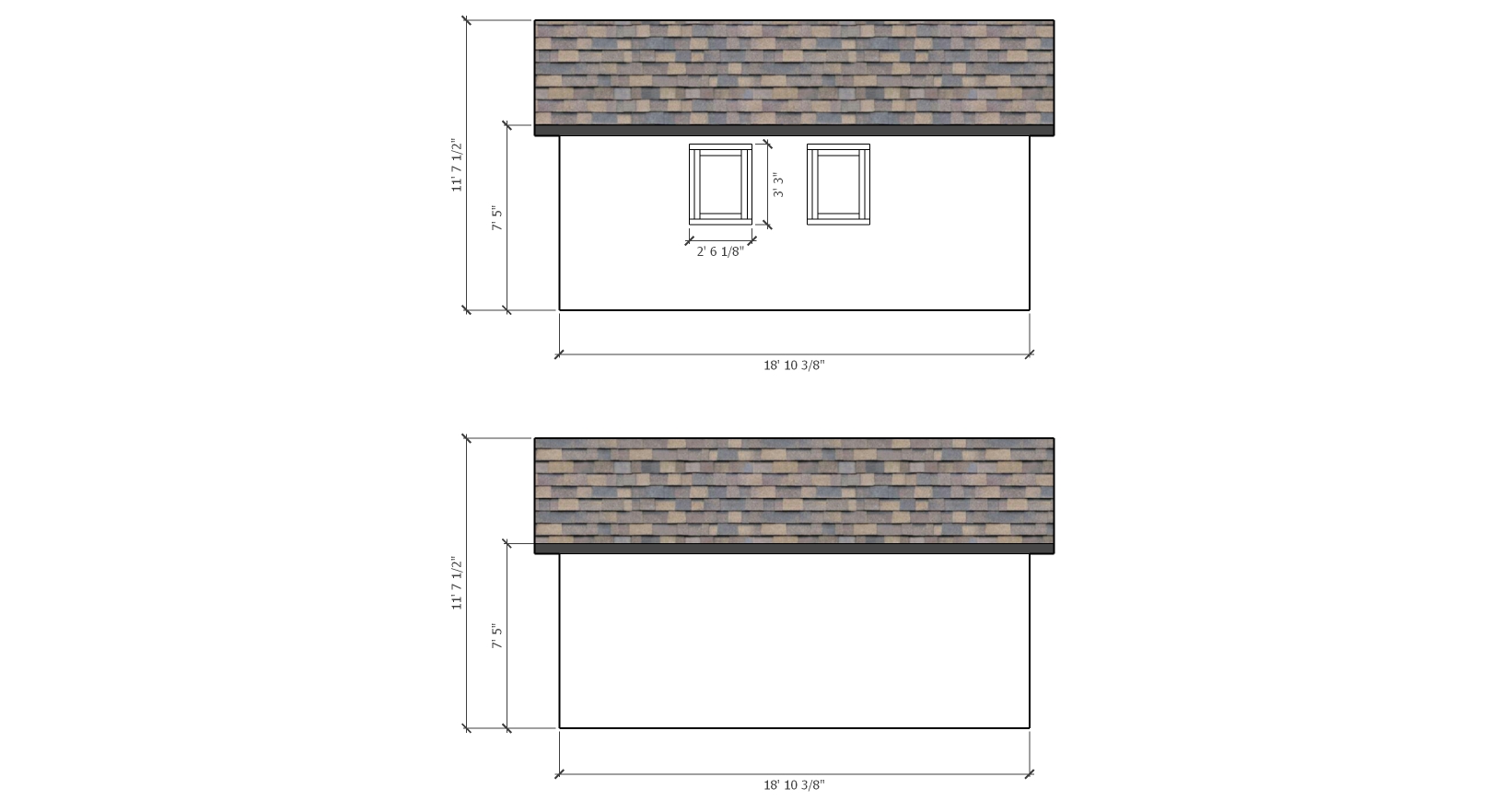

Wall height89"
Ridge height128"
Wall thickness2 3/4”

Model Documentation

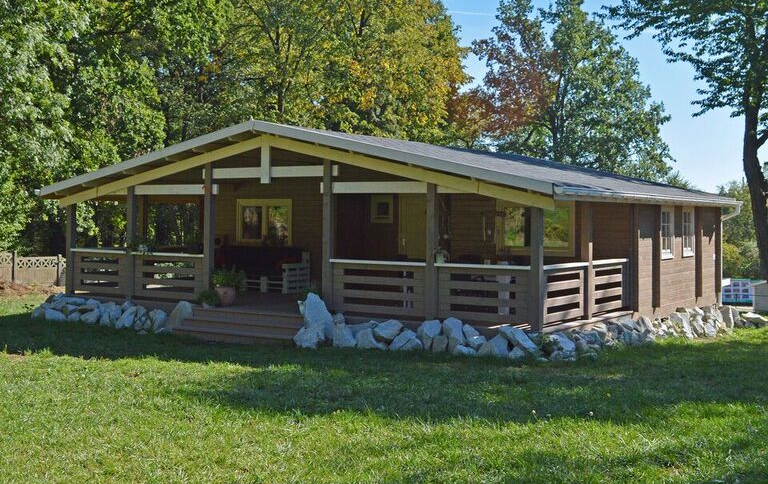

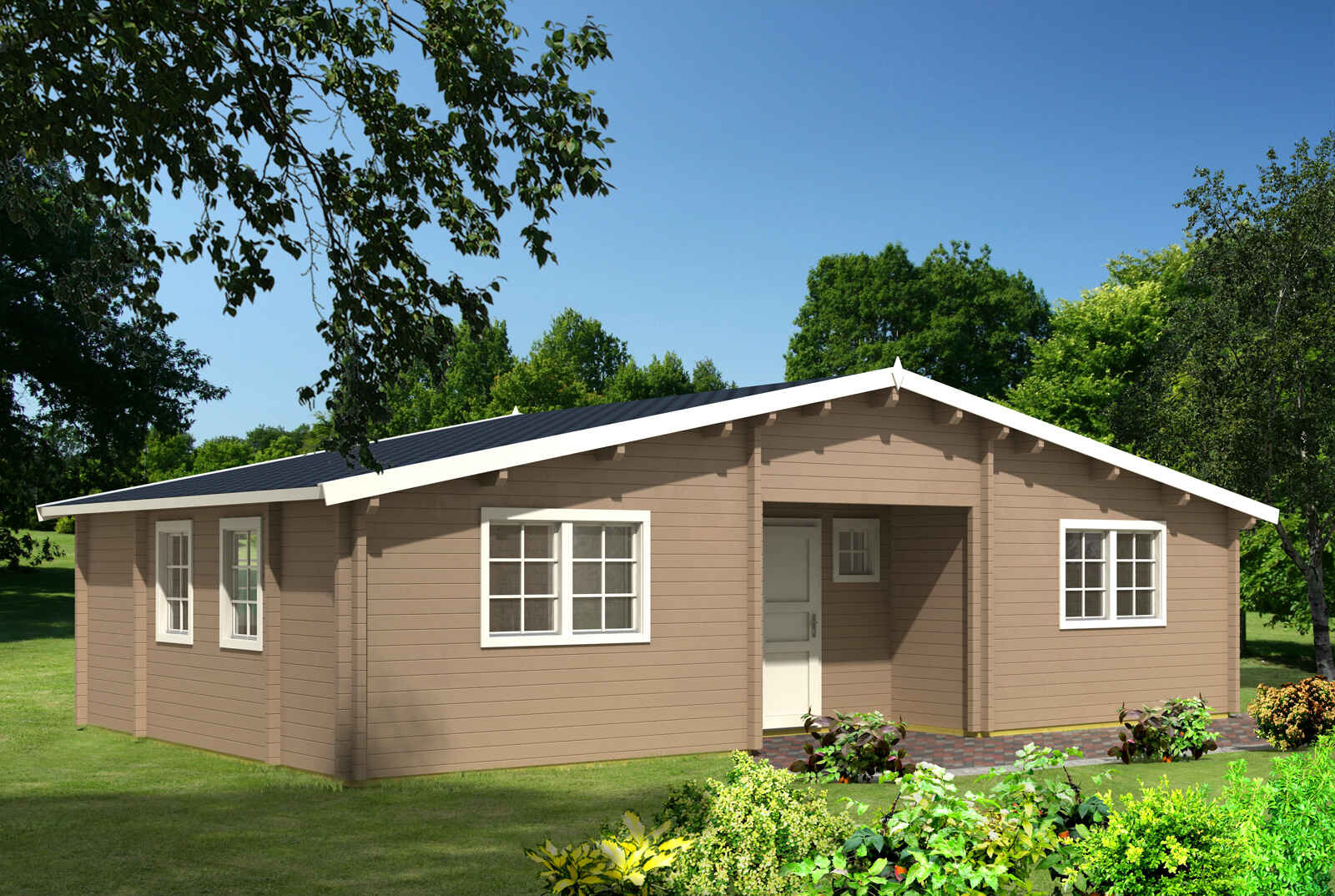

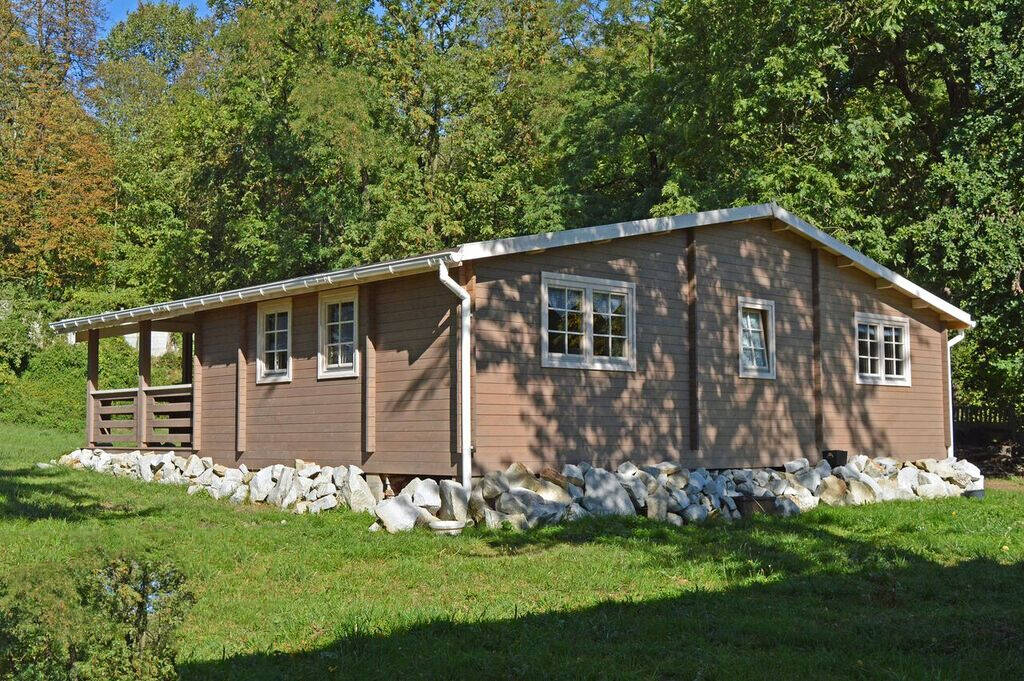

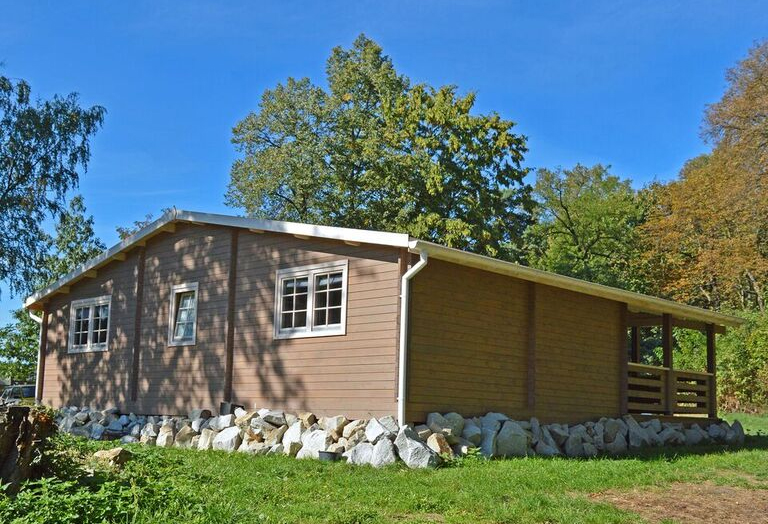

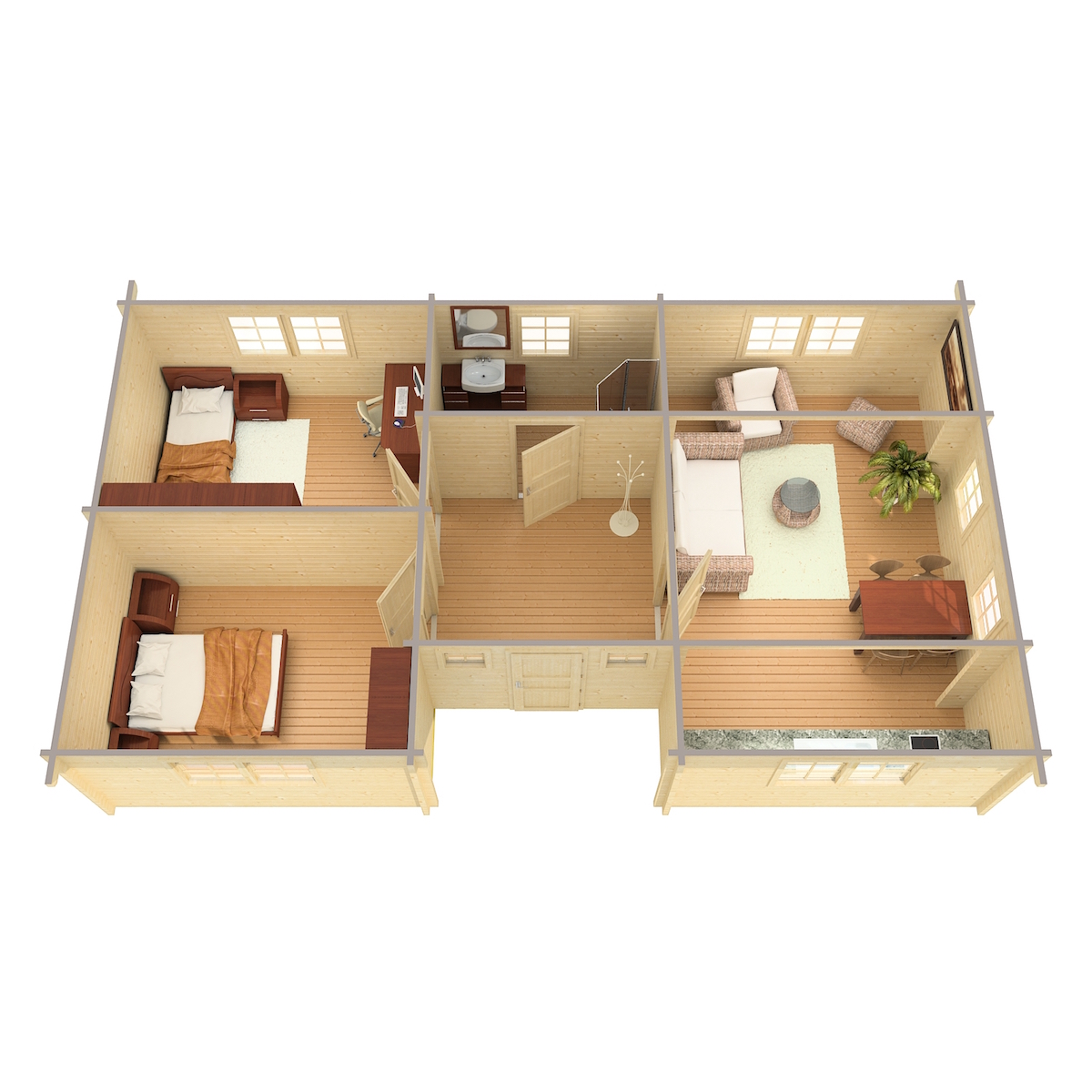

The Redding  is a PREMIUM manufactured home with 70mm (2-3/4″) thick wall logs.  This model is a comfortable 2 bedroom home with vaulted ceilings throughout

Wall insulating kit: Add 10% to sale price, includes metal stud brackets with 3/4″ tongue & groove wall cover boards

Energy efficiency:  2×4 or 2×6 studs are be used to install insulation of your choice. Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the overall thermal and comfort benefits

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Insulating the roof: Apply locally supplied materials to add rafters over the tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof. These added rafters also increase the roof load capacity

Assembly: The model can be assembled in approximately 12 days with 3 people

Tip: House wraps & vapor barriers are required in most regions when insulating. Vapor barriers are installed on the warm side of walls, interior of the studs for cold climates and exterior of studs for hot climates

Building Codes: Premium series homes & cabins are manufactured to meet all structural requirements for building codes including, California Title 24, earthquake, heavy snow load regions and hurricane zones

Kit includes:

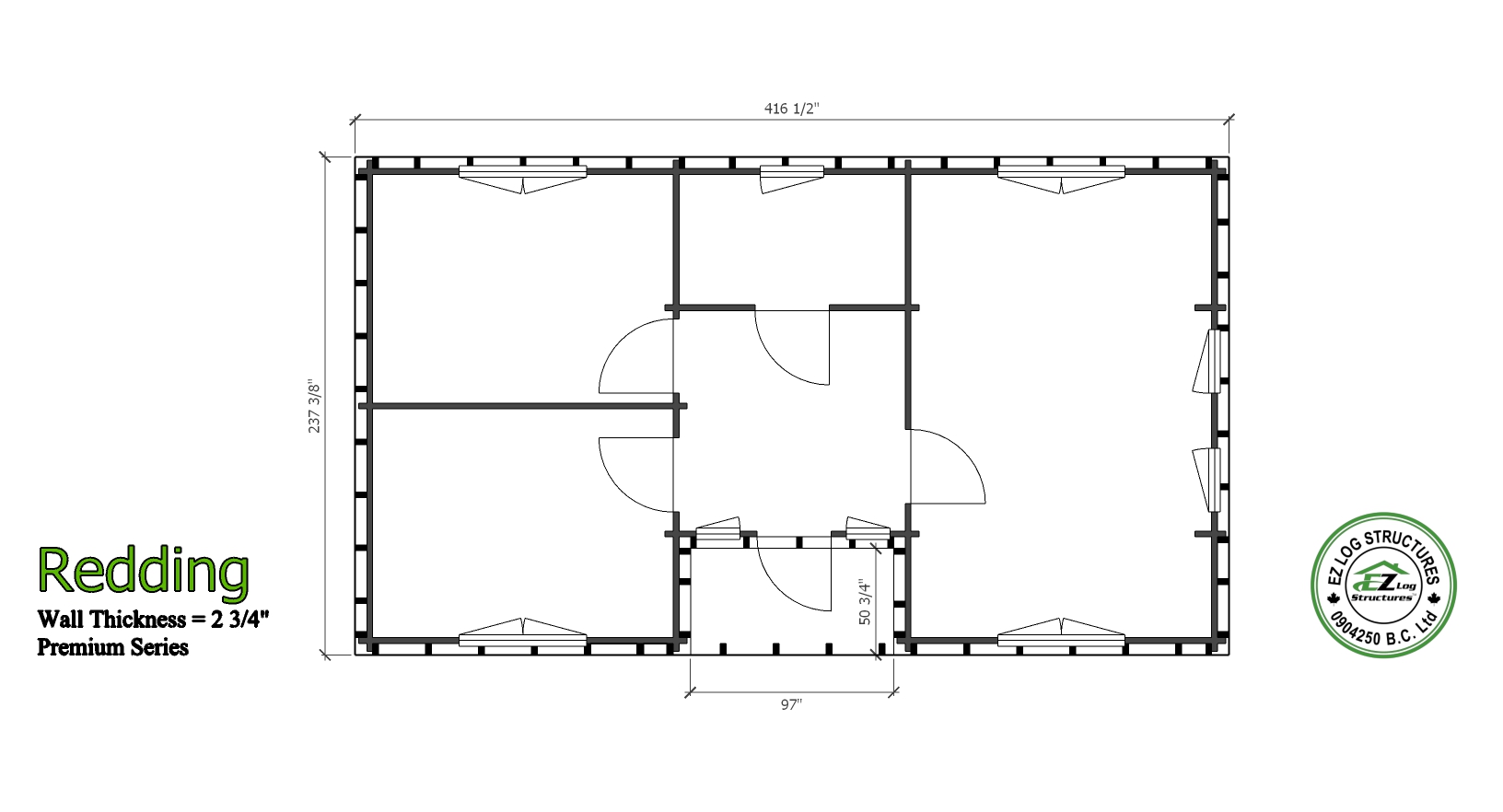

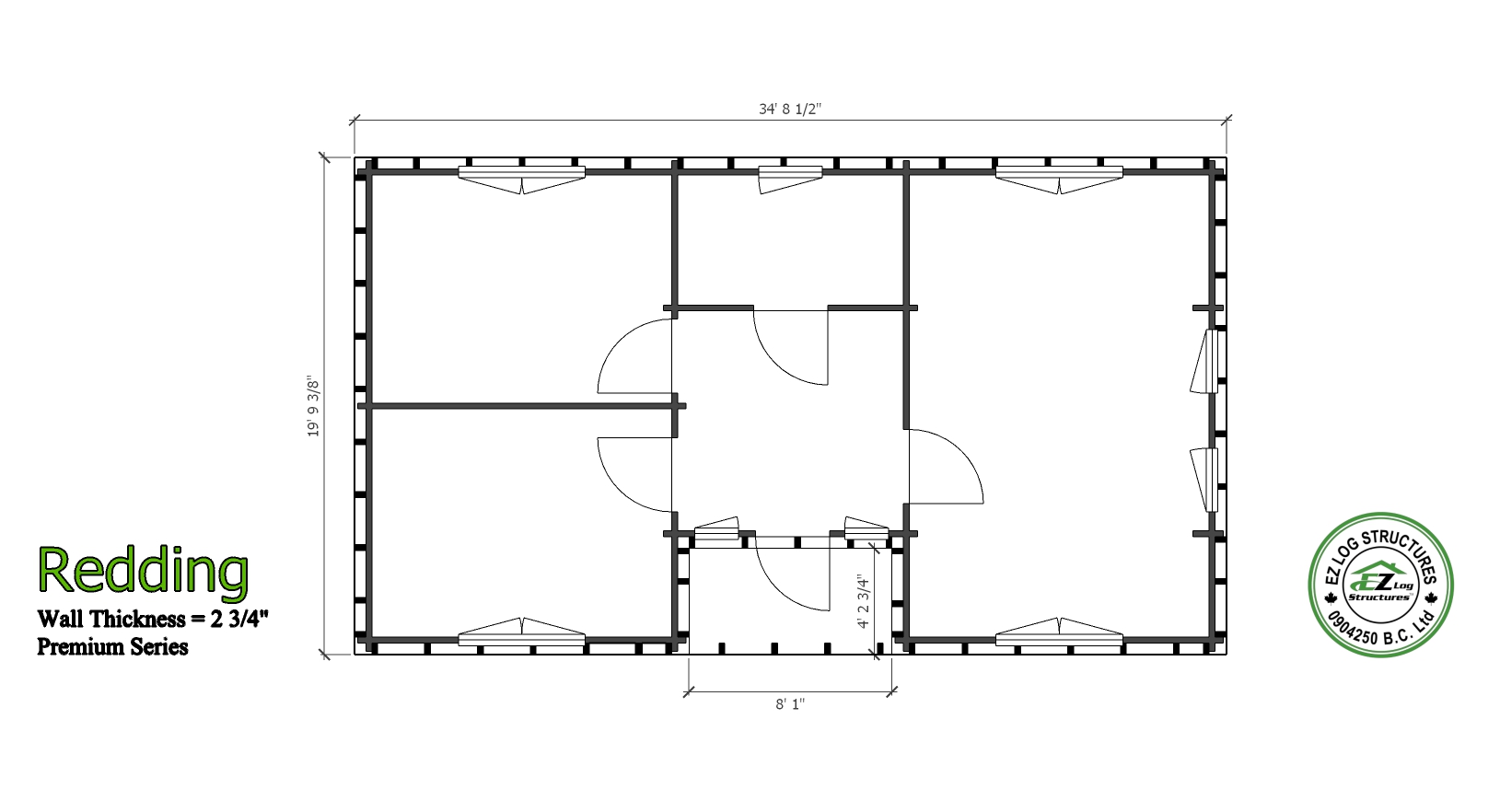

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) numbered roof purlins, beams, spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 4  interior doors 900mm x 2040mm (36″x80″)
  • 4 double wide wood windows 1530mm x 990mm (60″x 39″)
  • 4 single wide wood windows 765mm x 990mm (30″x39″)
  • 3 single wide wood windows 530 x 530 (21″x 21″)
  • 1 exterior door 990mm x 2040mm (36″x80″) 1/2 glass tempered
  • hardware for doors & windows
  • threaded steel storm rods for perimeter wall junctions
  • 2 spare wall logs/spare roof boards
  • 400 – 8″ log screws to connect first 2 rows,  gable components, purlins
