Request A Quote

Seattle

1440 sq ft
Premium Model
$93,234.00 USD
$119,530.00 CAD
FREE SHIPPING
Rooms
Bedrooms4
Bathrooms2
Cabin sizes
Cabin size540" x 384"
Roof & floor
Roof pitch4/12 - 18D
Roof boards3/4"
Package, area, vol ect.
Size (sq ft)1440
Volume3194
Wall height95"
Ridge height160"
Wall thickness2-3/4”
Contact Us
LOADING & UNLOADING
ASSEMBLY & INSULATING
TIPS FOR ASSEMBLY

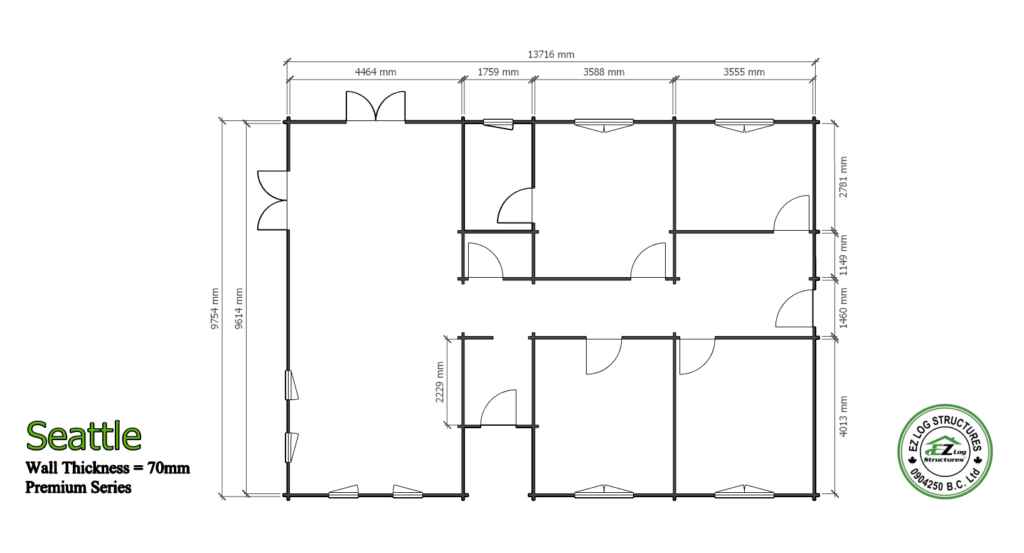

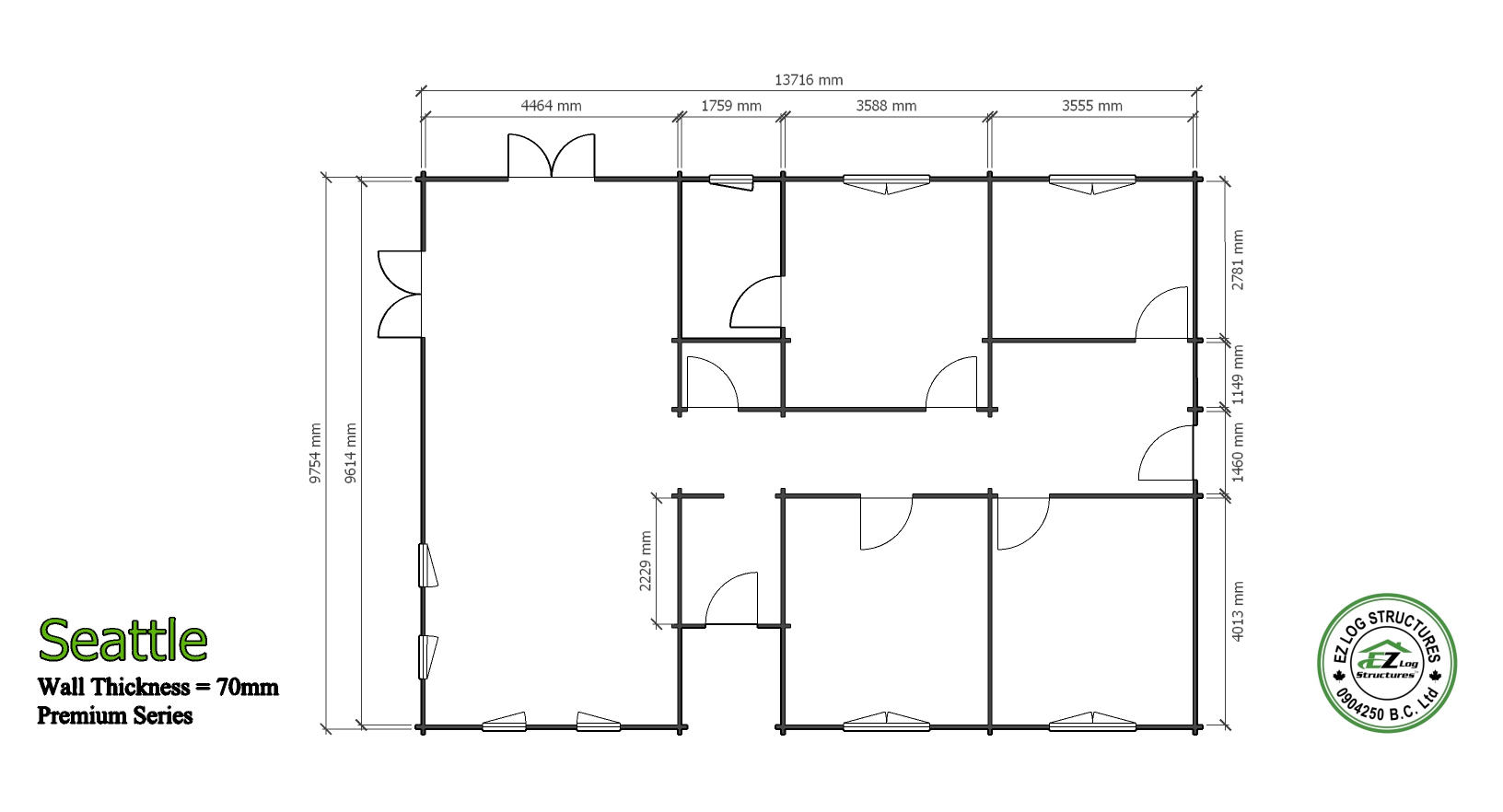

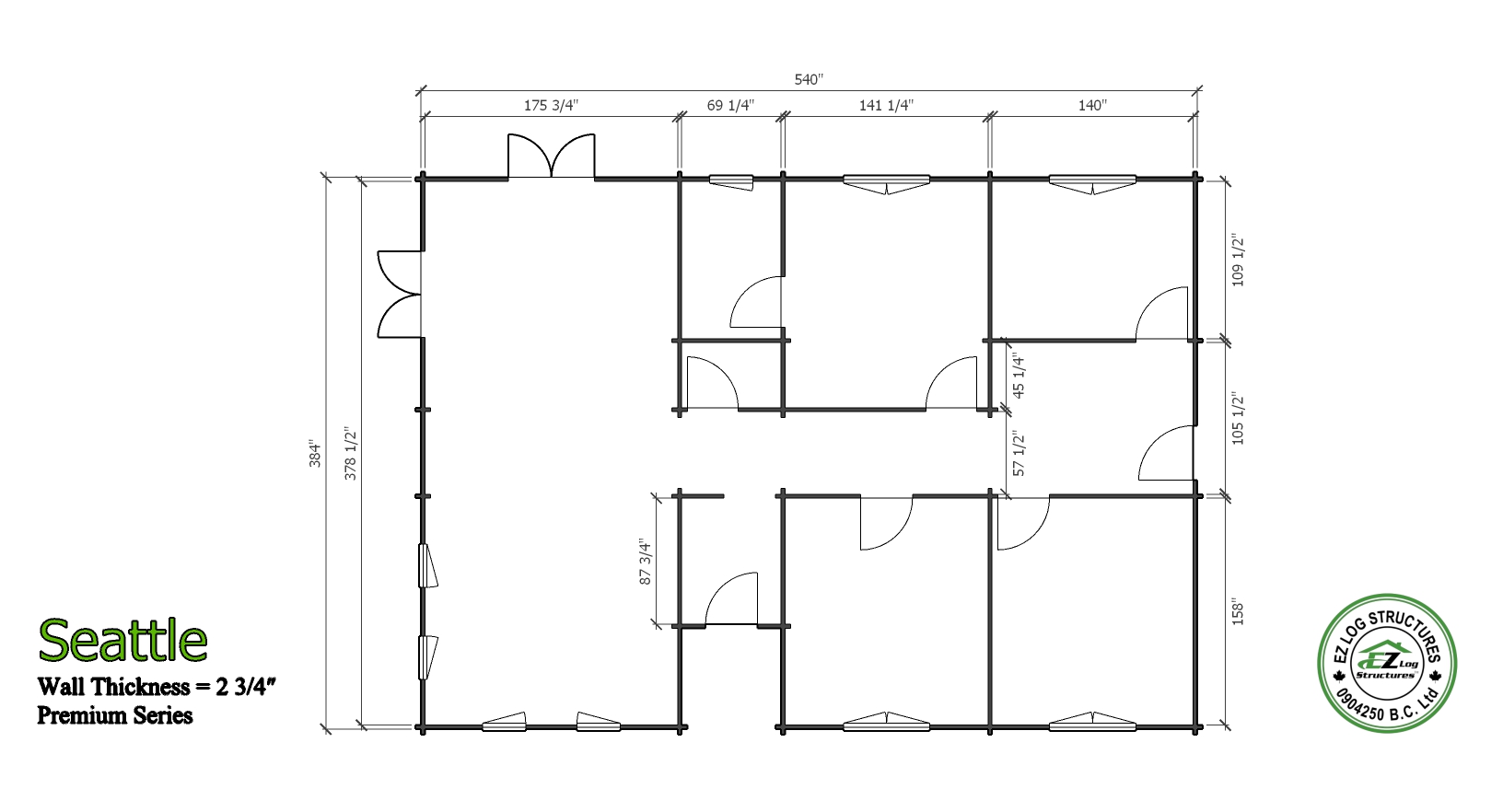

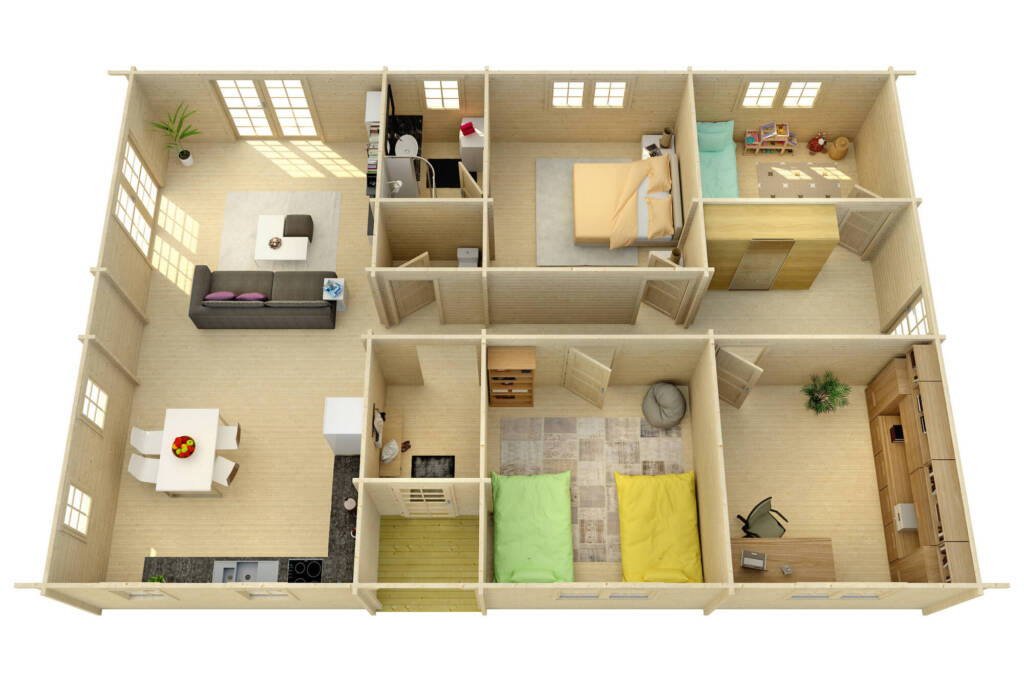

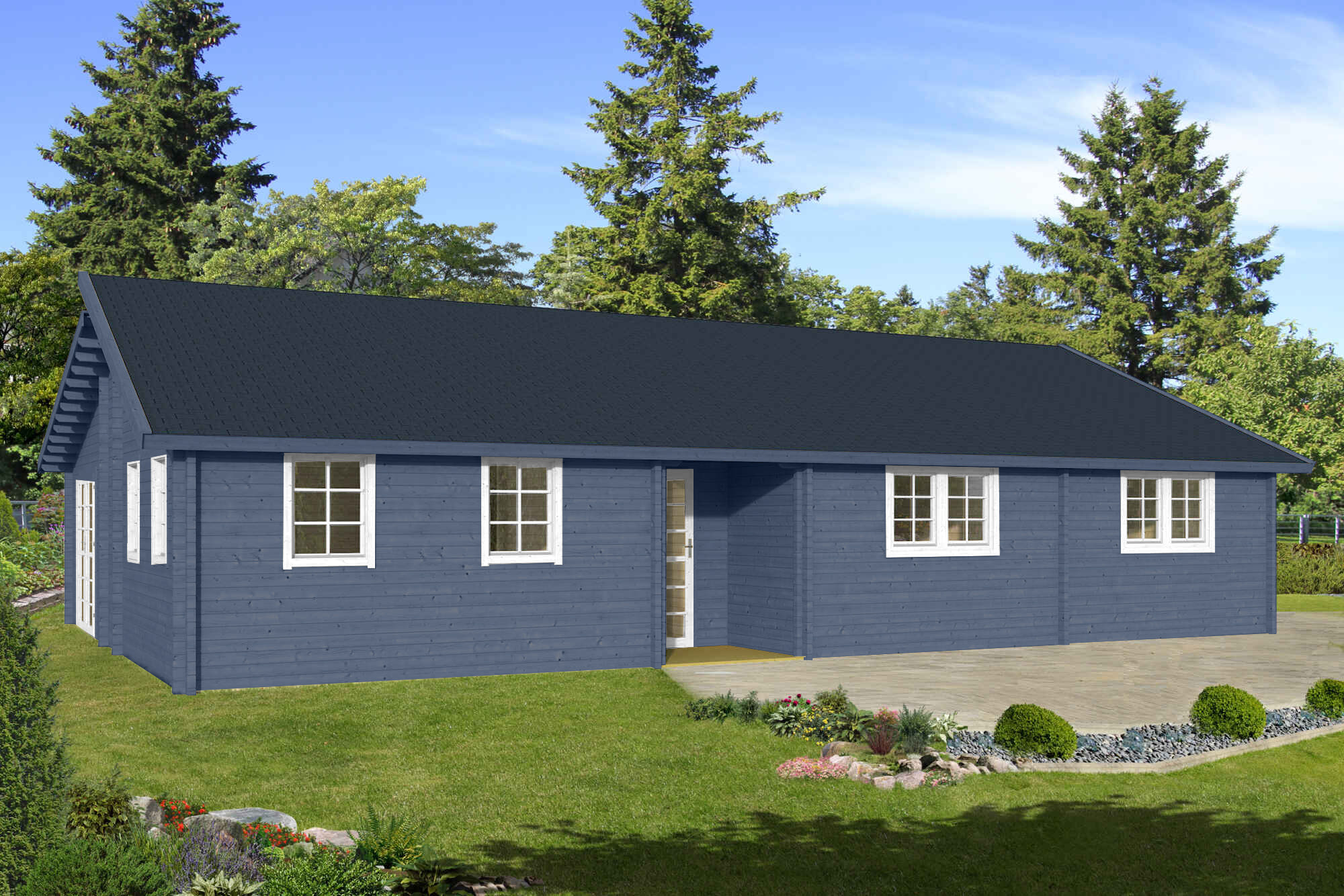

Seattle home is 45′ x 30′ for a total of 1350 sq’ and 4 bedrooms. It has a 4′ wide hallway with vaulted ceilings over 13′ high. This larger model, like all of our premium models can be modified to fit personal needs. Can be assembled in approximately 9 days with 3 people

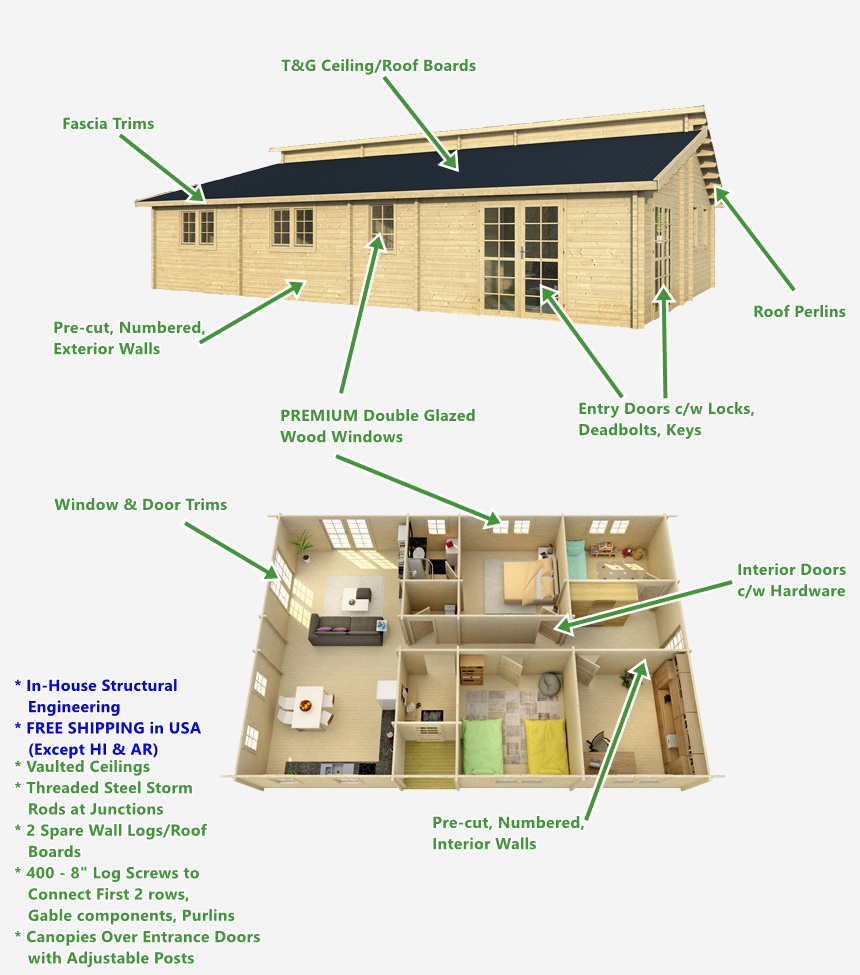

Kit includes:
  • ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 4/12 roof pitch (18 degrees)
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 3194 total sq’ of wall area
  • 1481 sq’ of exterior wall surface
  • 325 lineal’ per row
  • 6 interior doors 812mm x 2040mm (32″x80″)
  • 5 single wide wood windows 765mm x 990mm (30″x 39″)
  • 4 double wide wood windows 1530mm x 990mm (60″x 39″)
  • 2 exterior doors with multi locking hardware 1/2 glass tempered 990mm x 2040mm (36″x80″), multi locking hardware
  • 2 exterior double doors 1550mm x 2040mm (61″ x 80″) full glass tempered, multi locking hardware
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped for sequence of assembly
  • FREE SHIPPING

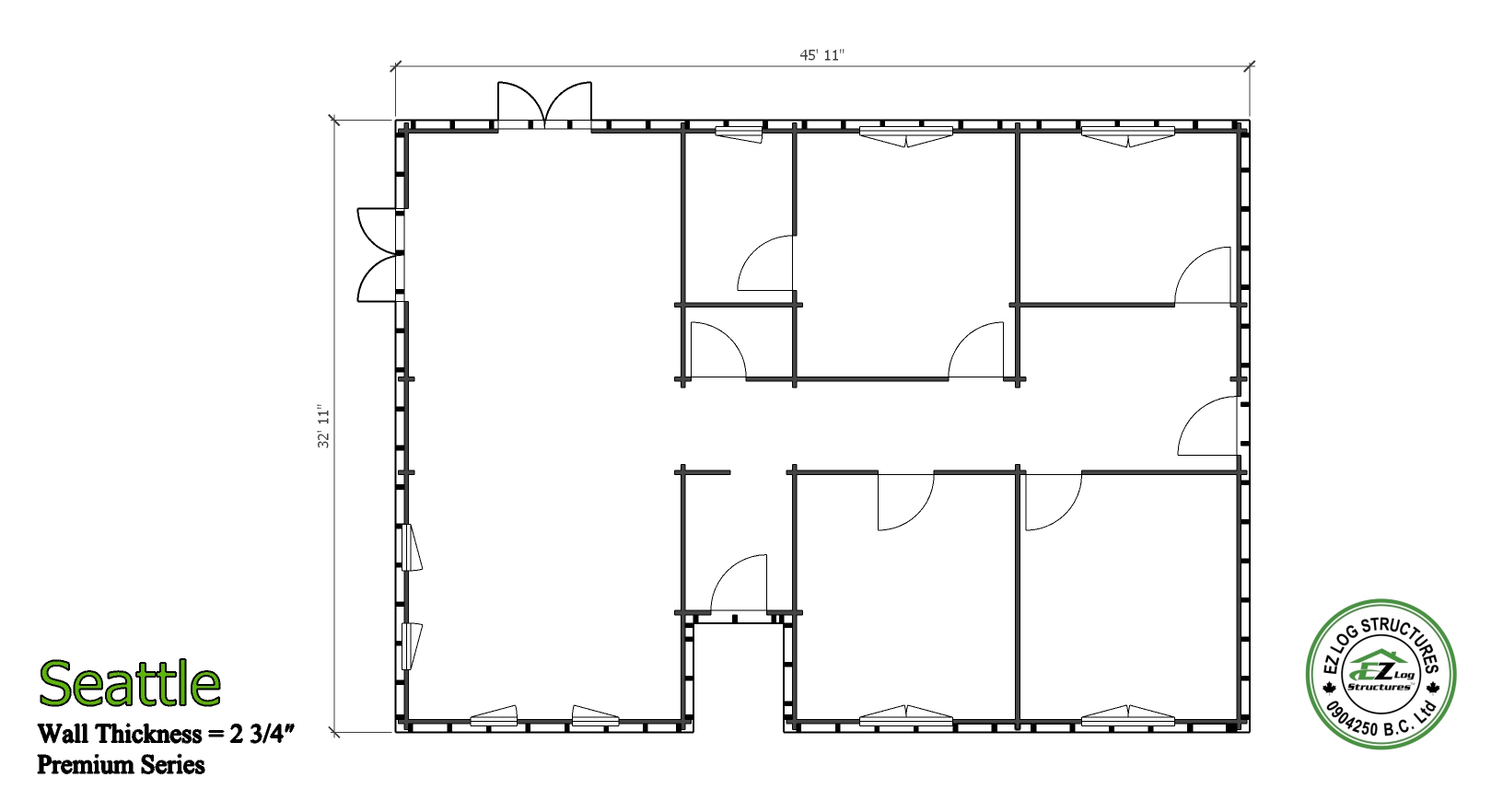

  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING

EXTERIOR STUD & SIDING KITS

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.



We offer 3 types of siding kits to cover the exterior of the home or cabin: EZ Log Semi D-Log tongue & groove wood siding, EZ Log Full D-Log tongue & groove wood siding & a heavy duty maintenance free extruded PVC polymer siding



Each kit includes: 2×6 studs, stud screws, siding, corner blocks, trims & extending the roof overhang 12″













1) ADD 10% – Semi D-Log siding (Max)  3/4″ x 5-1/8″ (18mm x 130mm)

































2) ADD 14% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)










































































Elevation siding in three options: brown wood imitation, gray wood imitation, and beige wood imitation, offering a variety of finishes that replicate the look of natural wood. PVC polymer siding.













3) ADD 20% – Vox extruded prefinished PVC polymer siding 5/16″ x 13″ (7mm x 330mm)





























































































































PVC siding can be applied horizontally or vertically












Window Options:
































































1) Kit includes double glazed residential grade wood windows. To upgrade all windows to triple glazed/Low E/Argon gas filled (13 sash)


Add – $ 1,420.00 USD


Add – $ 1,820.00 CAD














OR





PVC window - white frame. PVC window with built-in external shutters. Shutter window.





2) Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)


Add – $ 3,042.00 USD


Add – $ 3,900.00 CAD
