Sequoia

960 sq ft
Premium Model
$71,813.00 USD
$92,069.00 CAD
FREE SHIPPING
Bedrooms3
Bathrooms2
Cabin size288" x 480"
Roof pitch2/12 - 9.4D
Roof boards3/4"
Size (sq ft)960
Wall height95"
Ridge height119"
Wall thickness2-3/4"

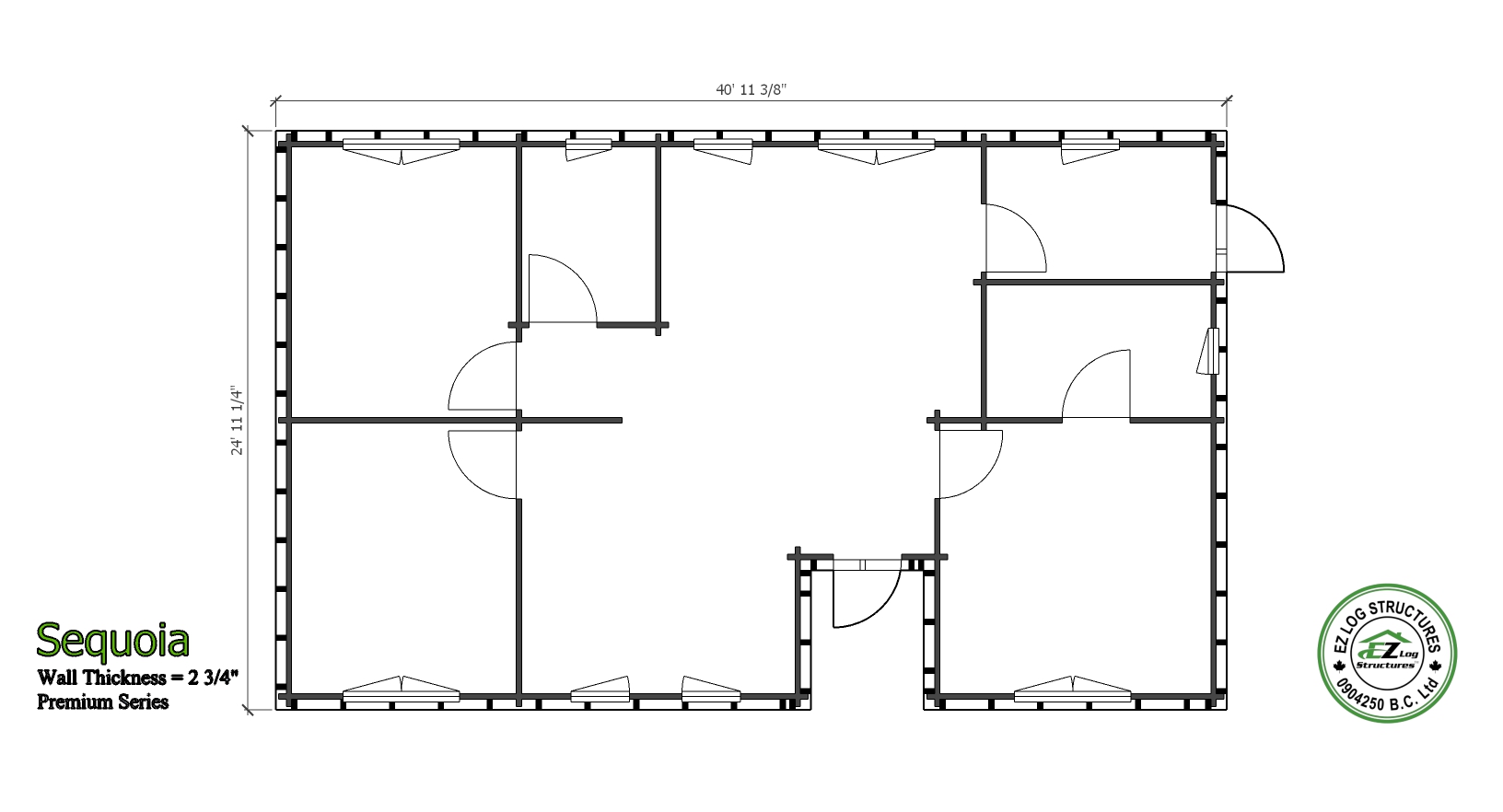

Model Documentation

FREE SHIPPING – some exceptions apply

The

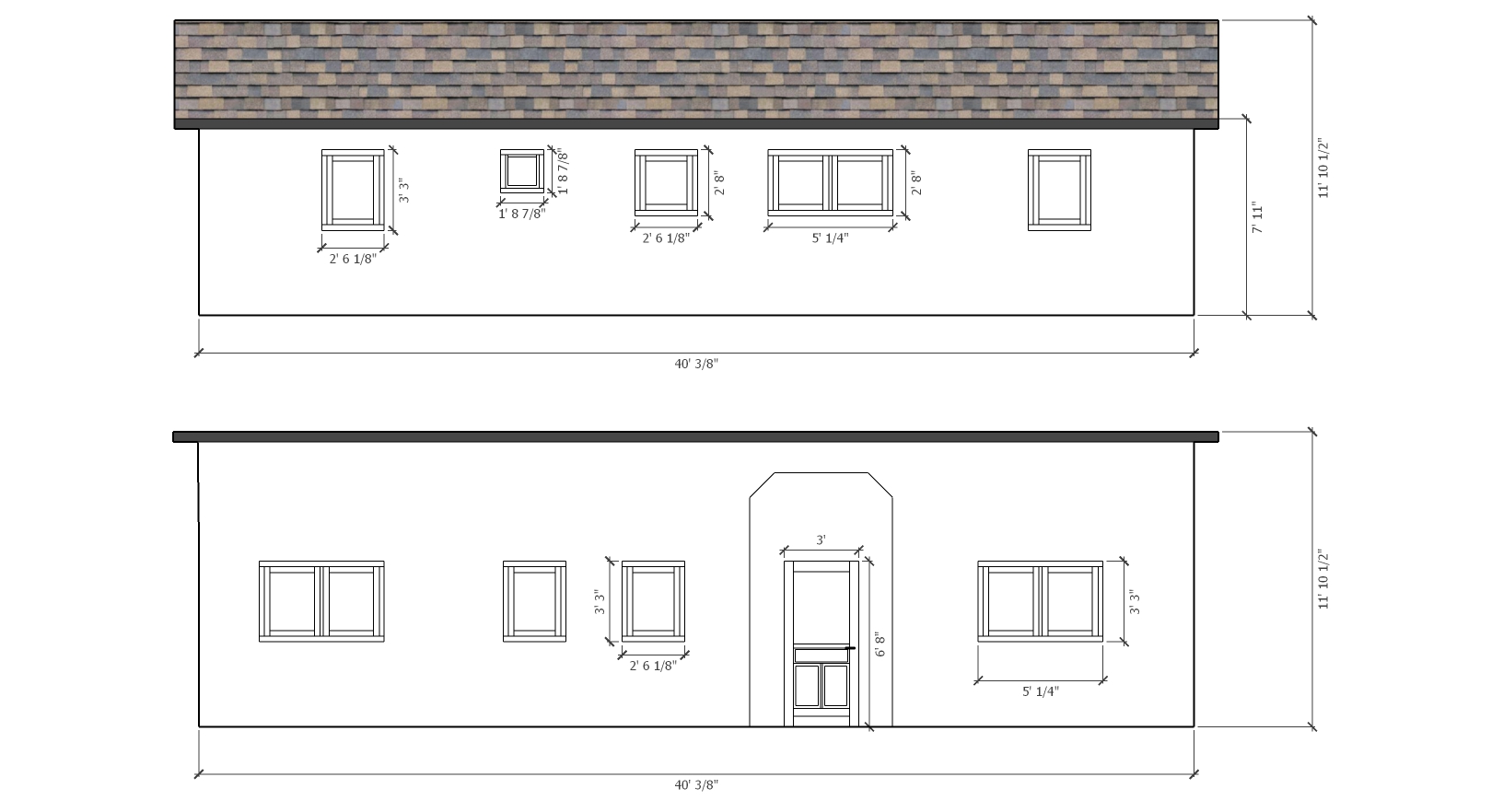

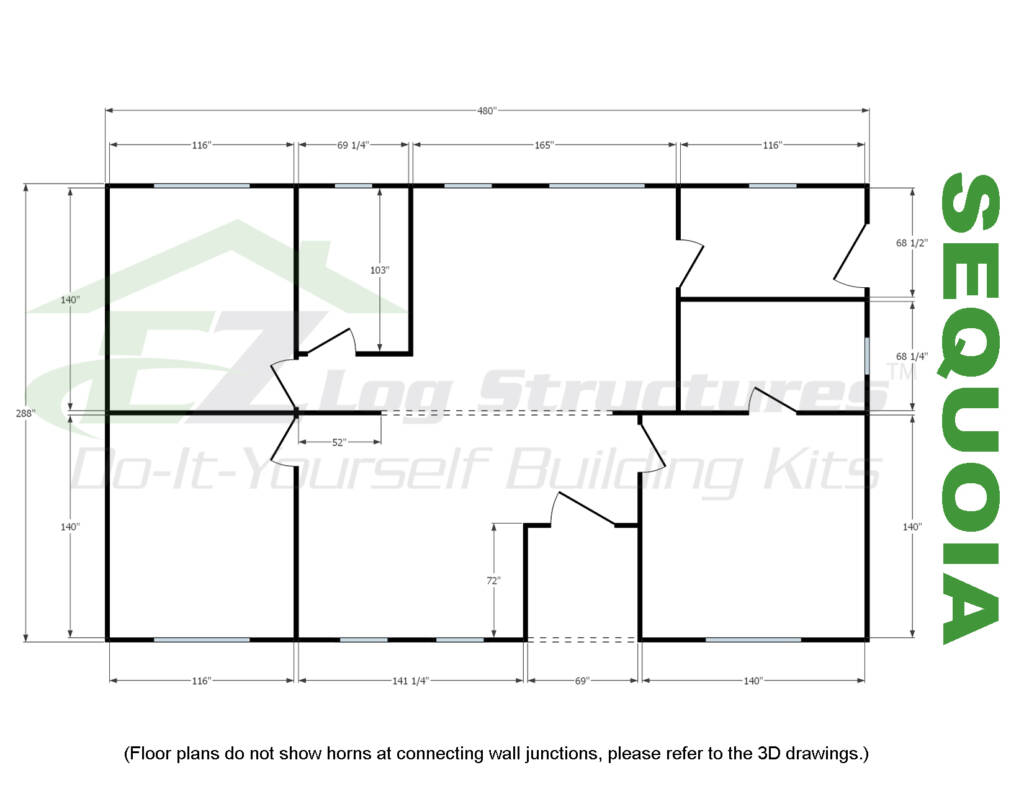

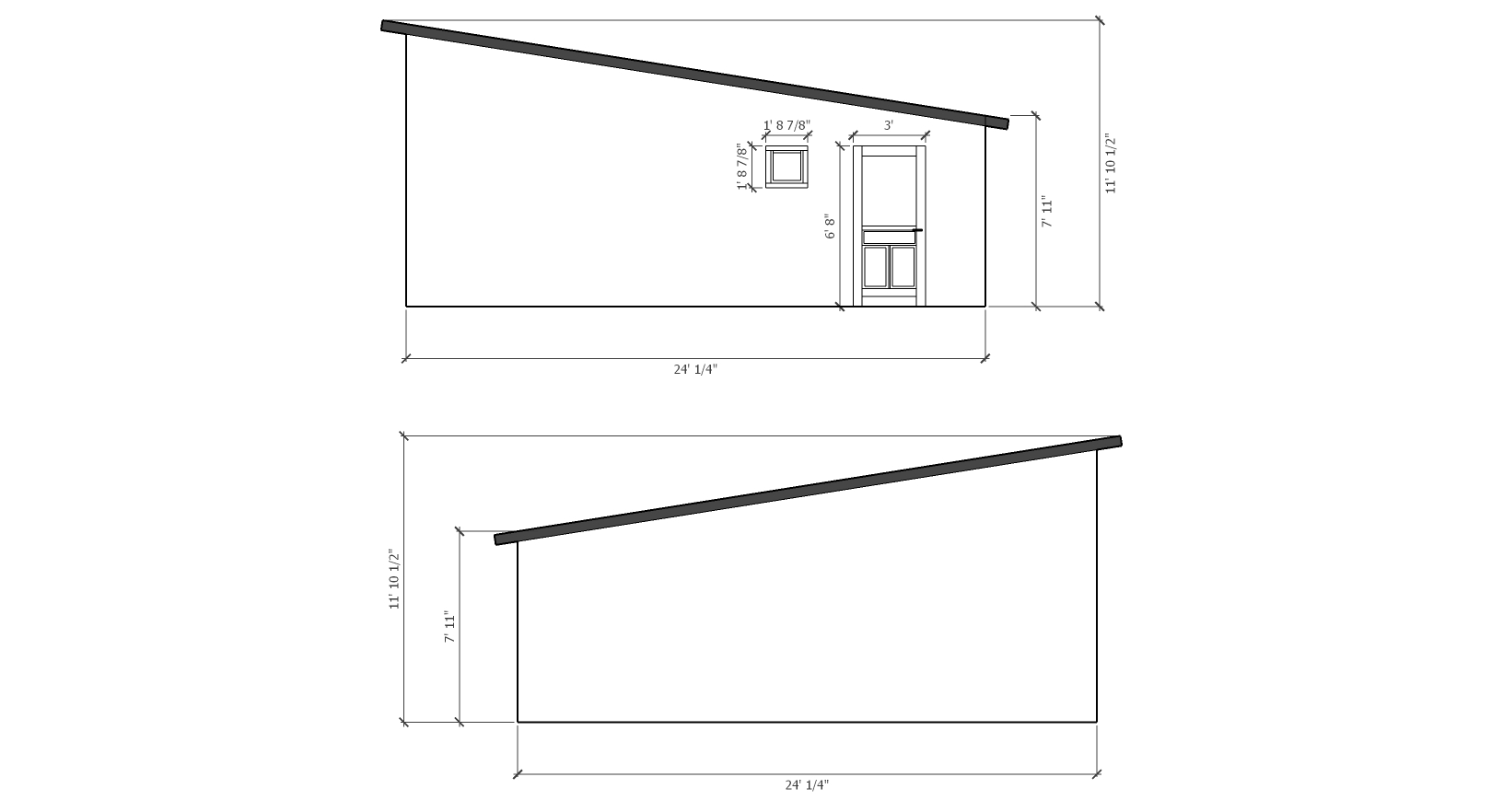

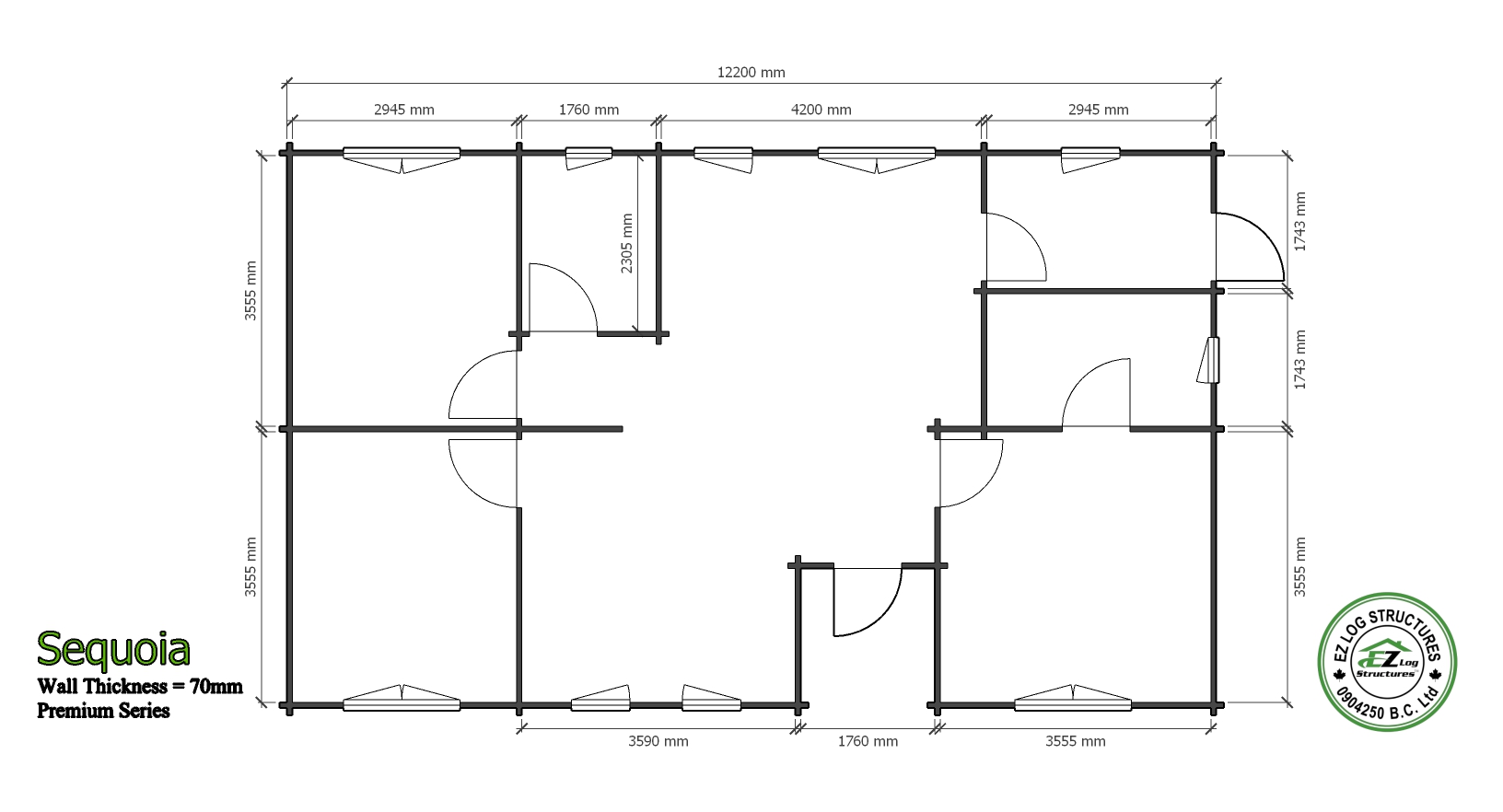

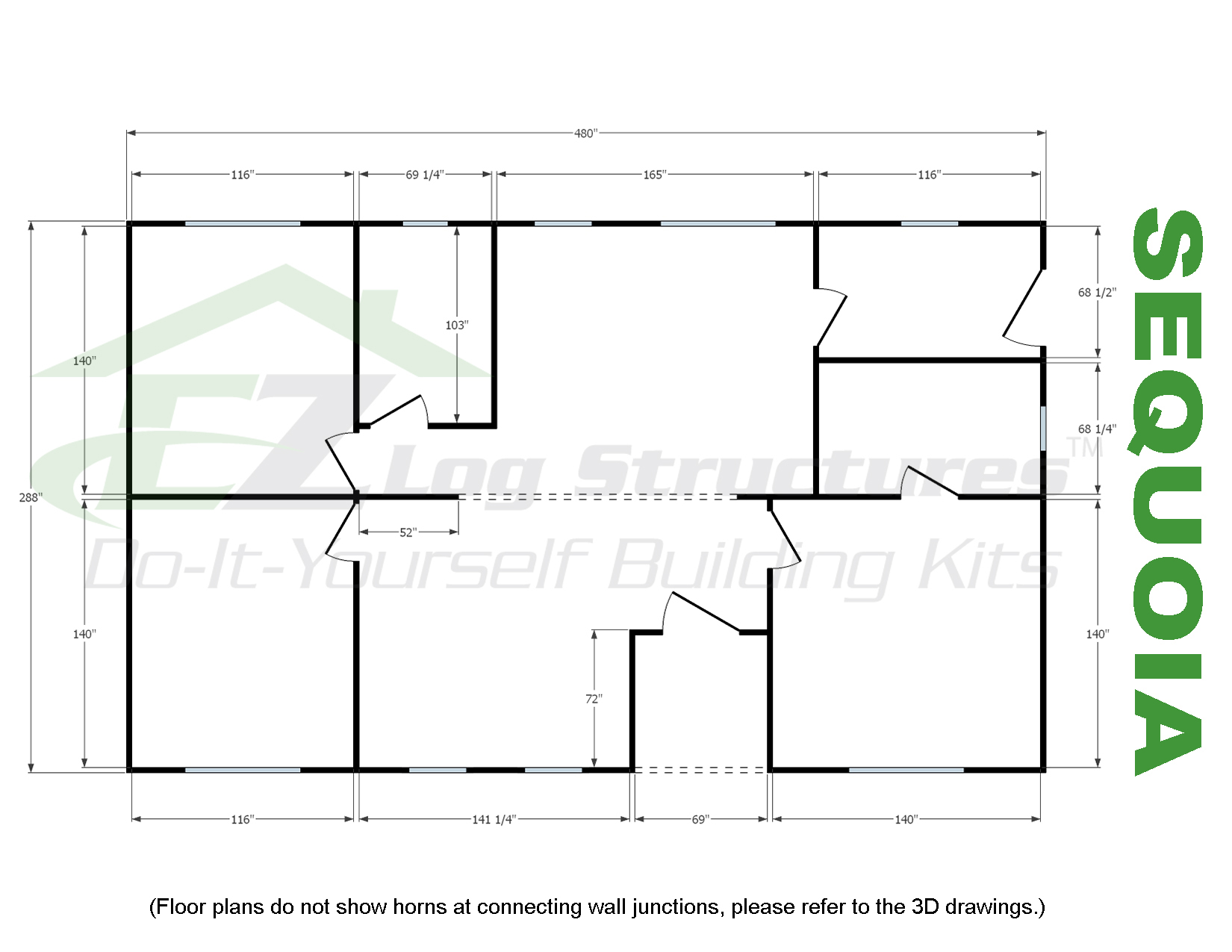

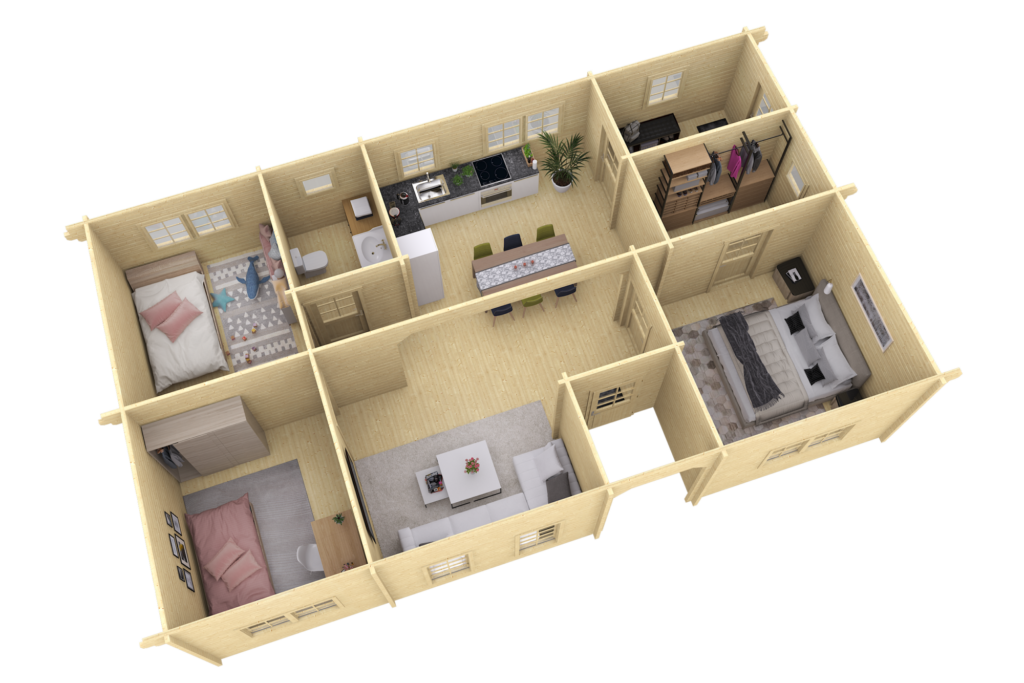

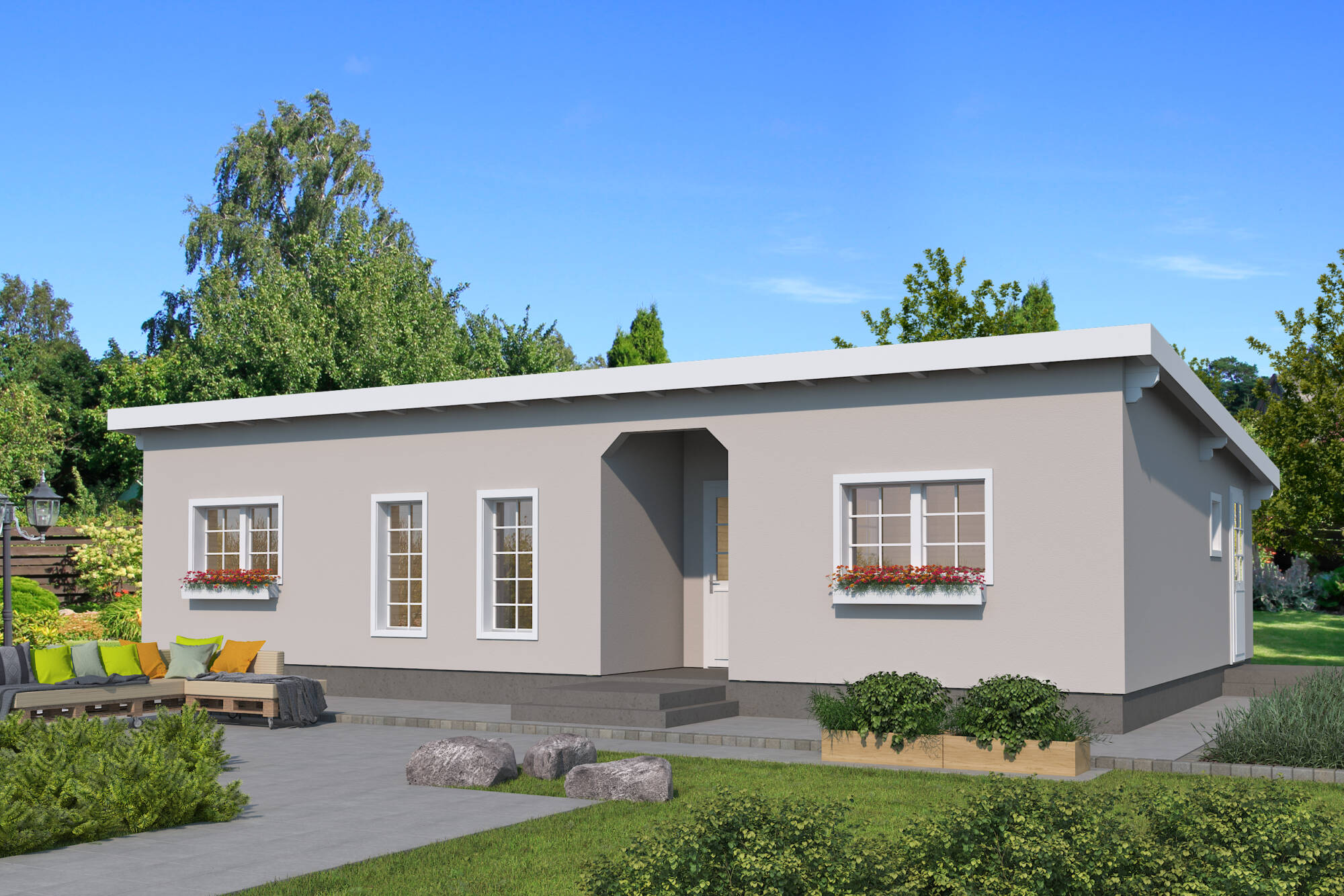

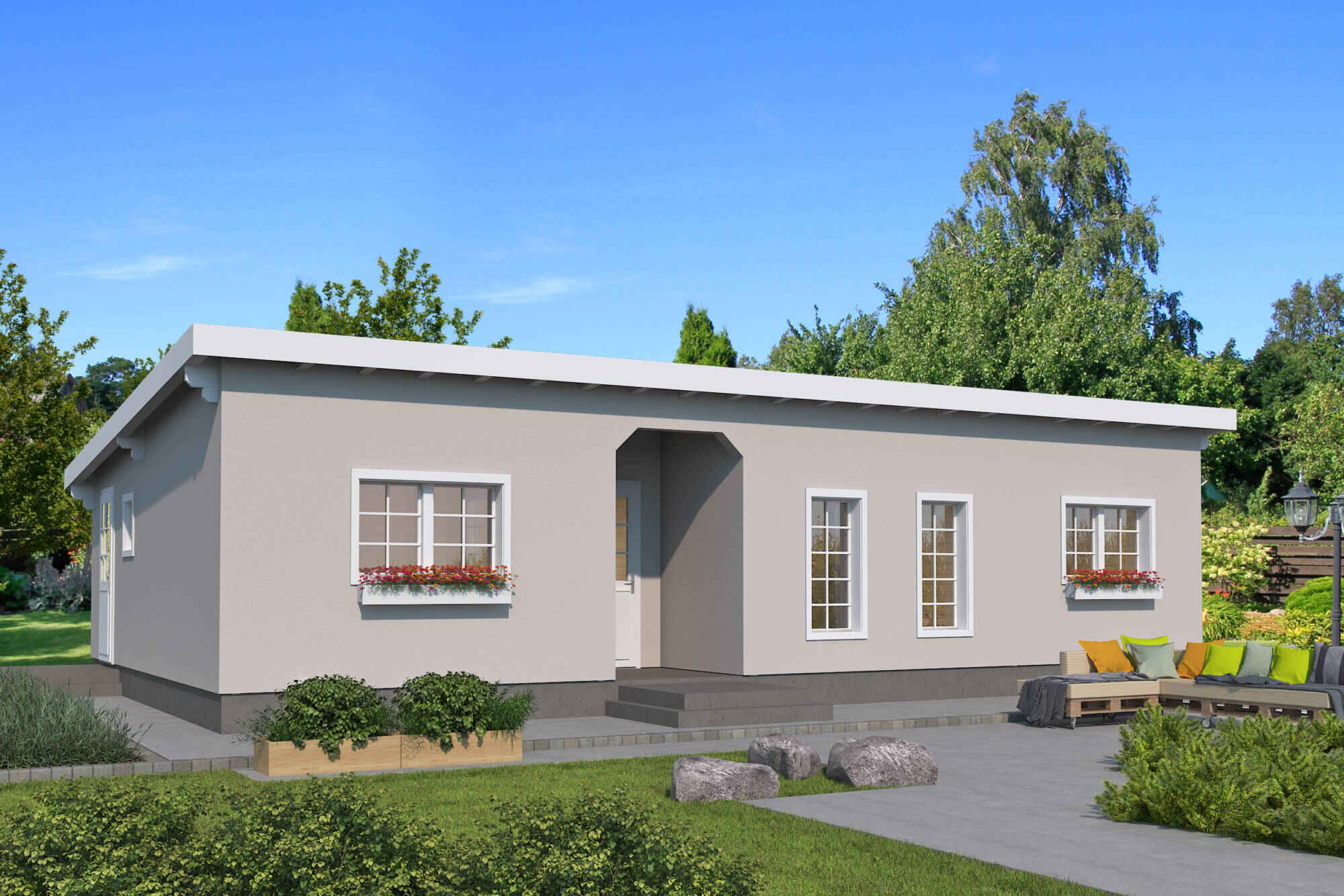

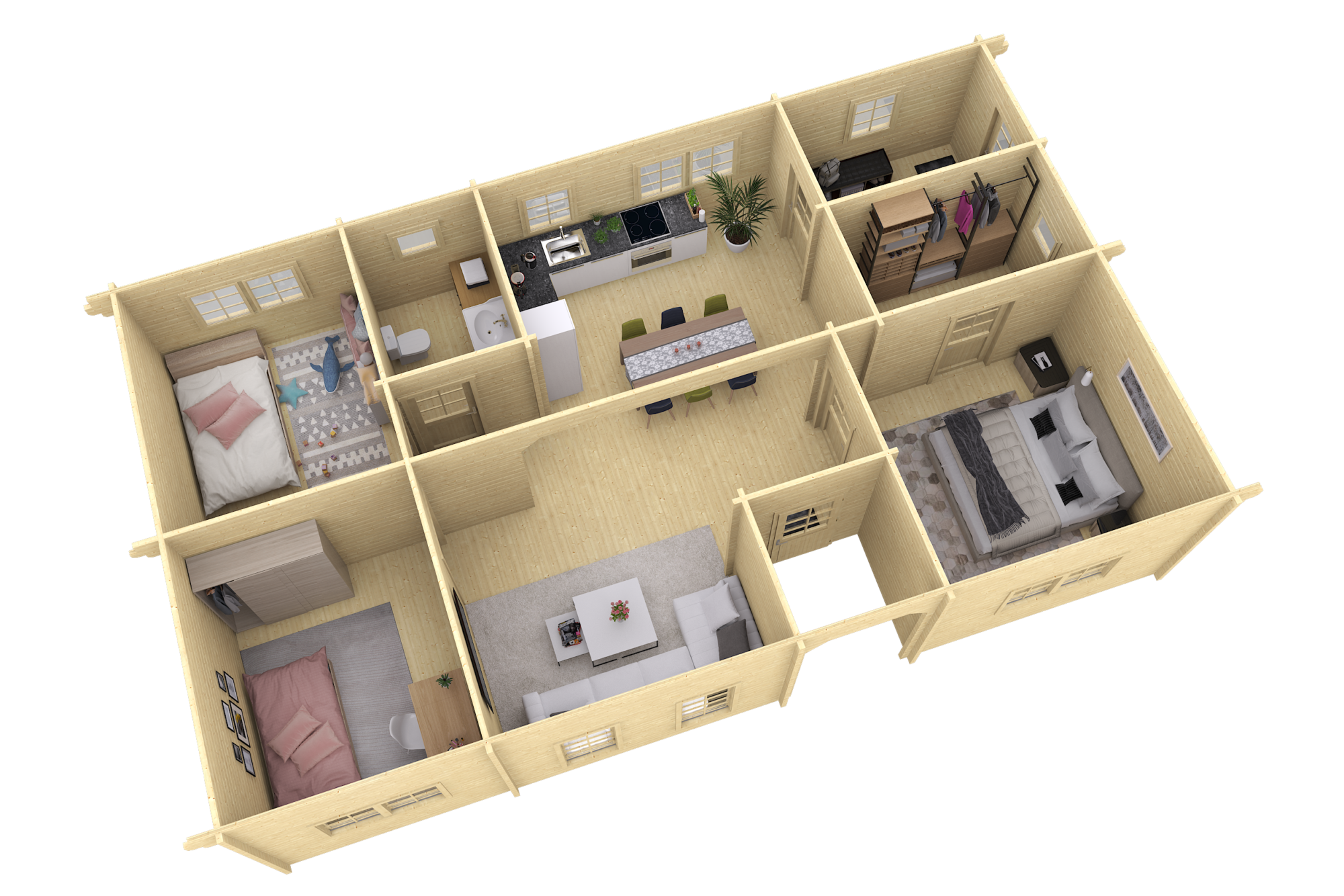

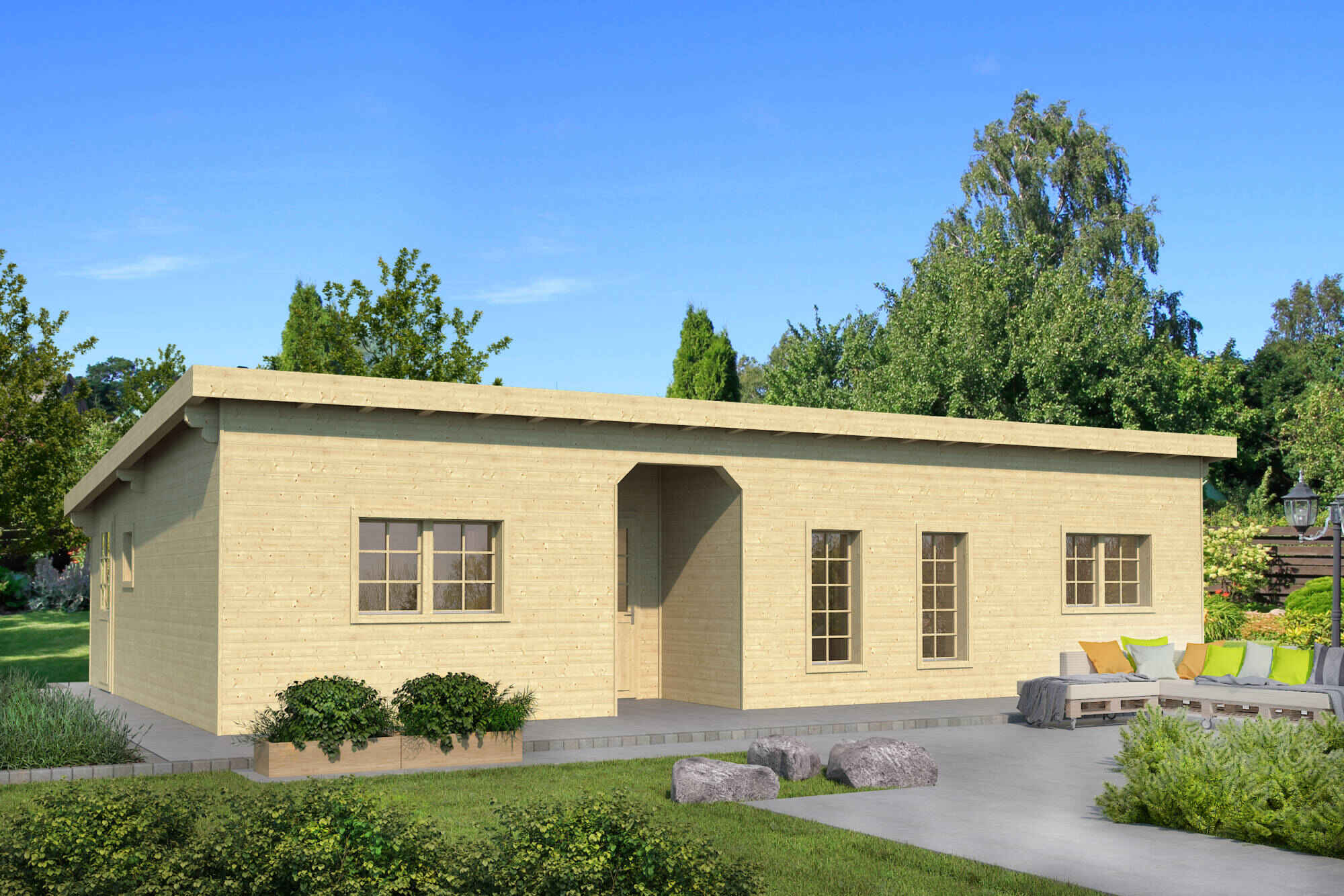

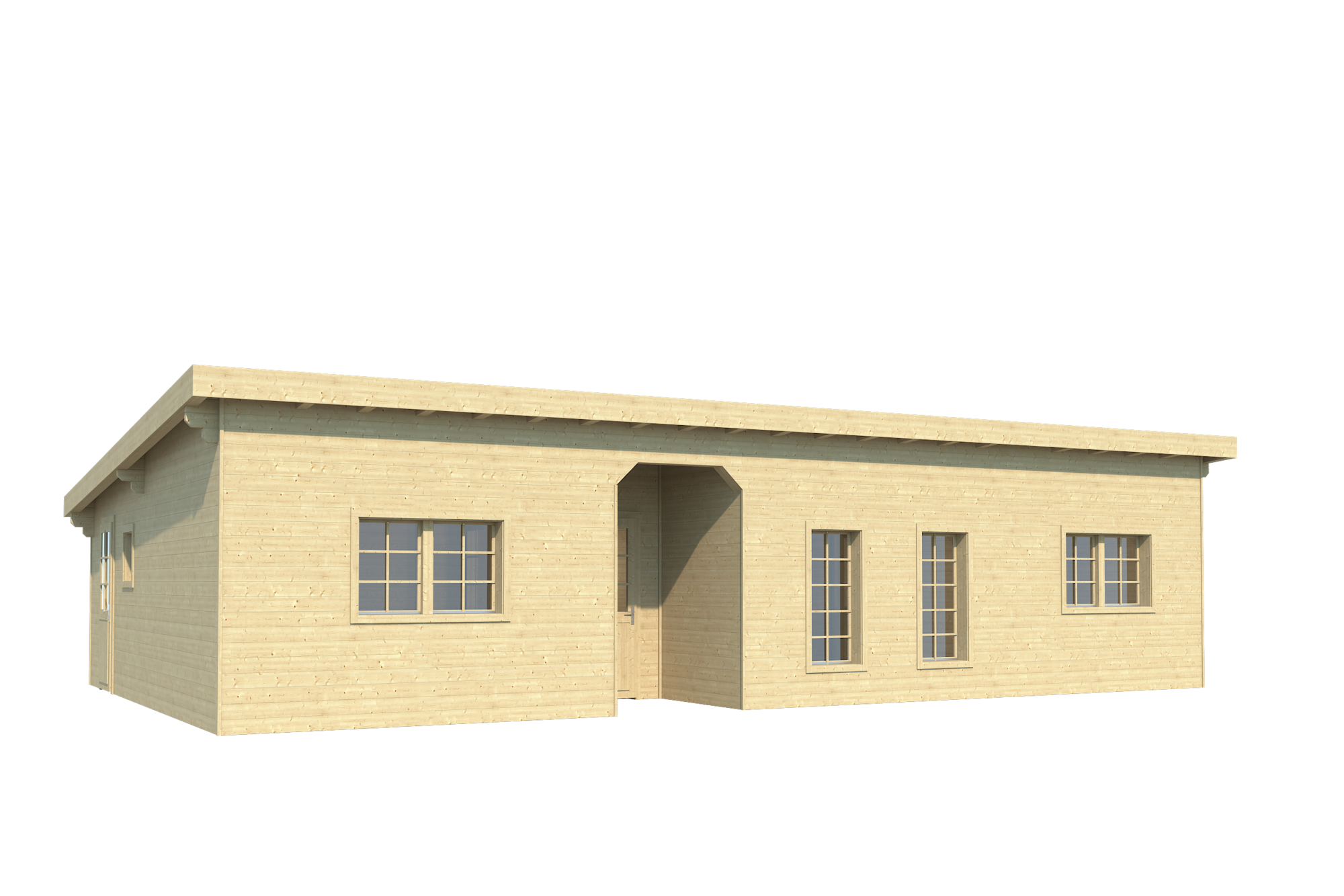

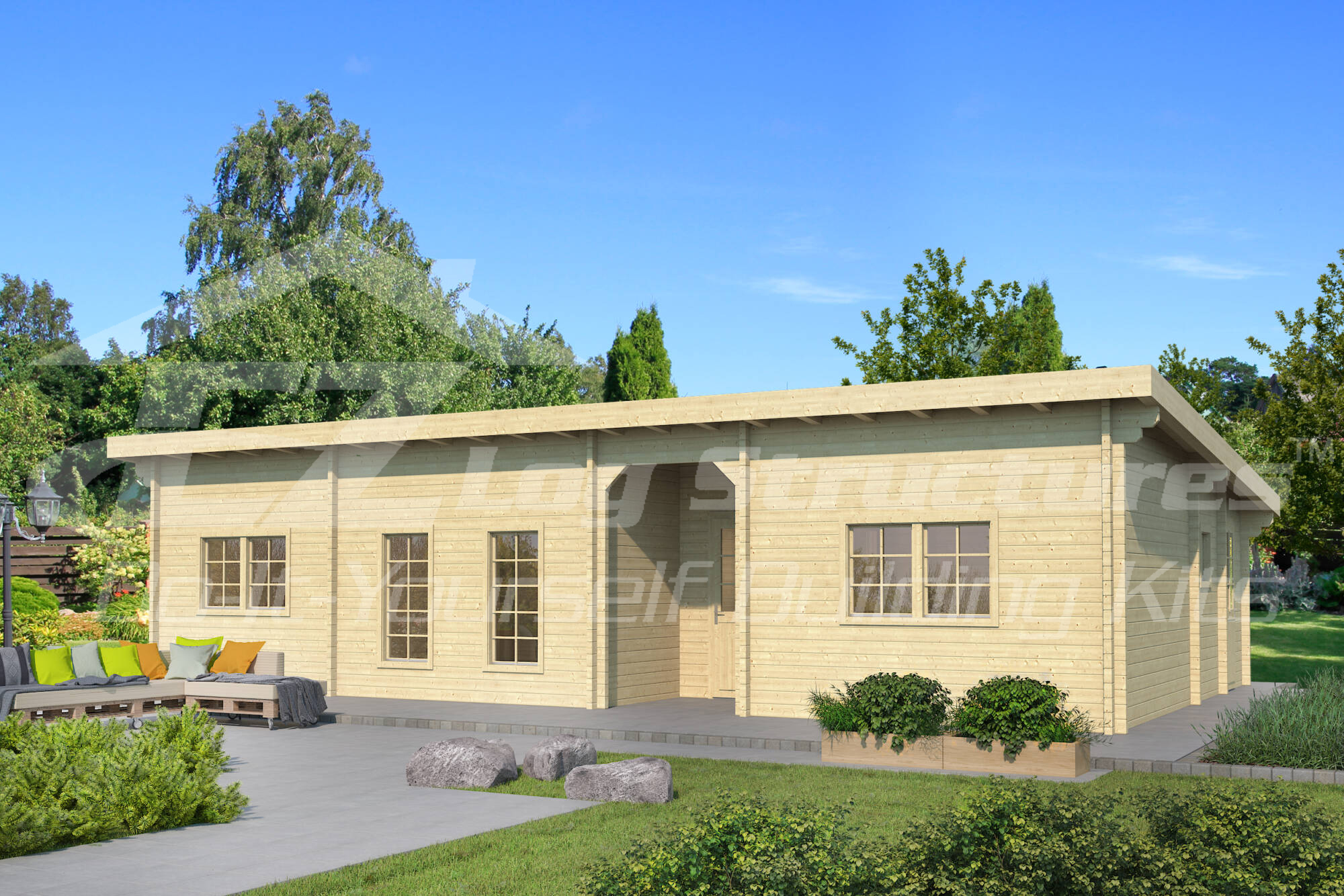

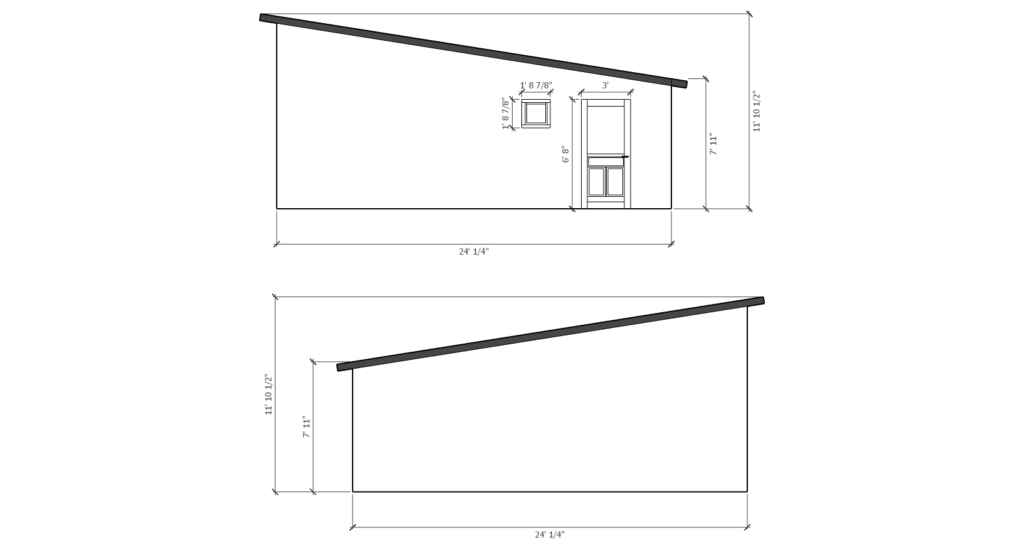

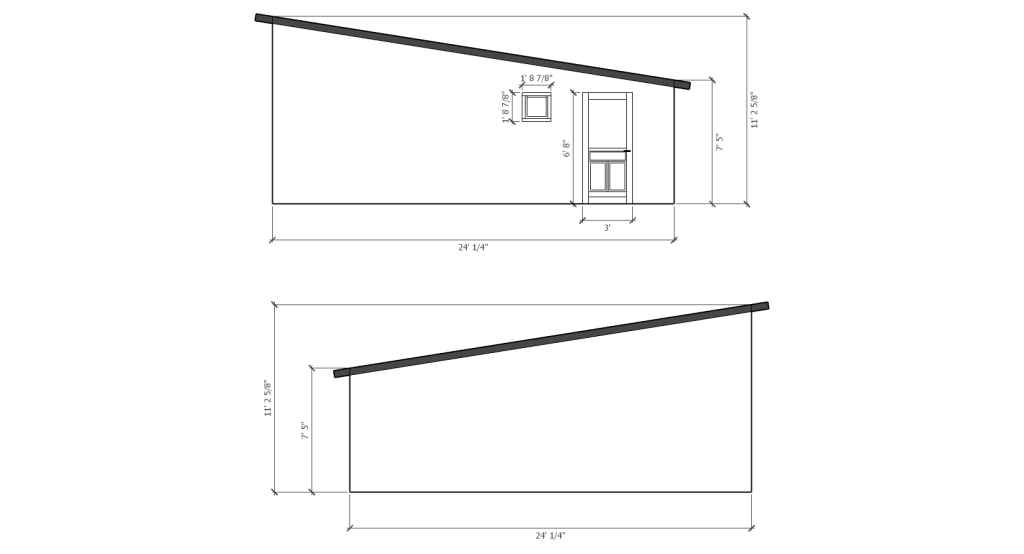

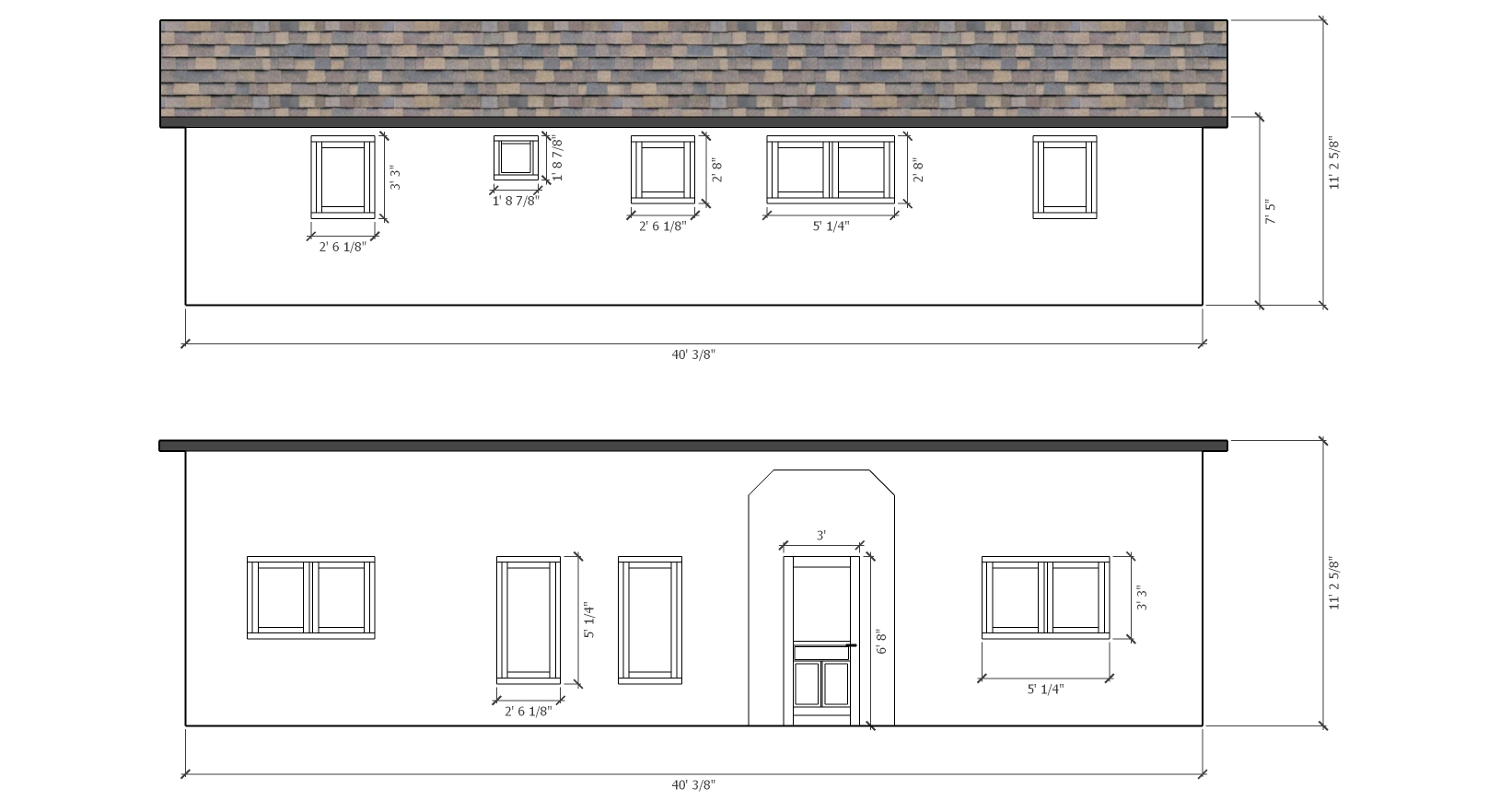

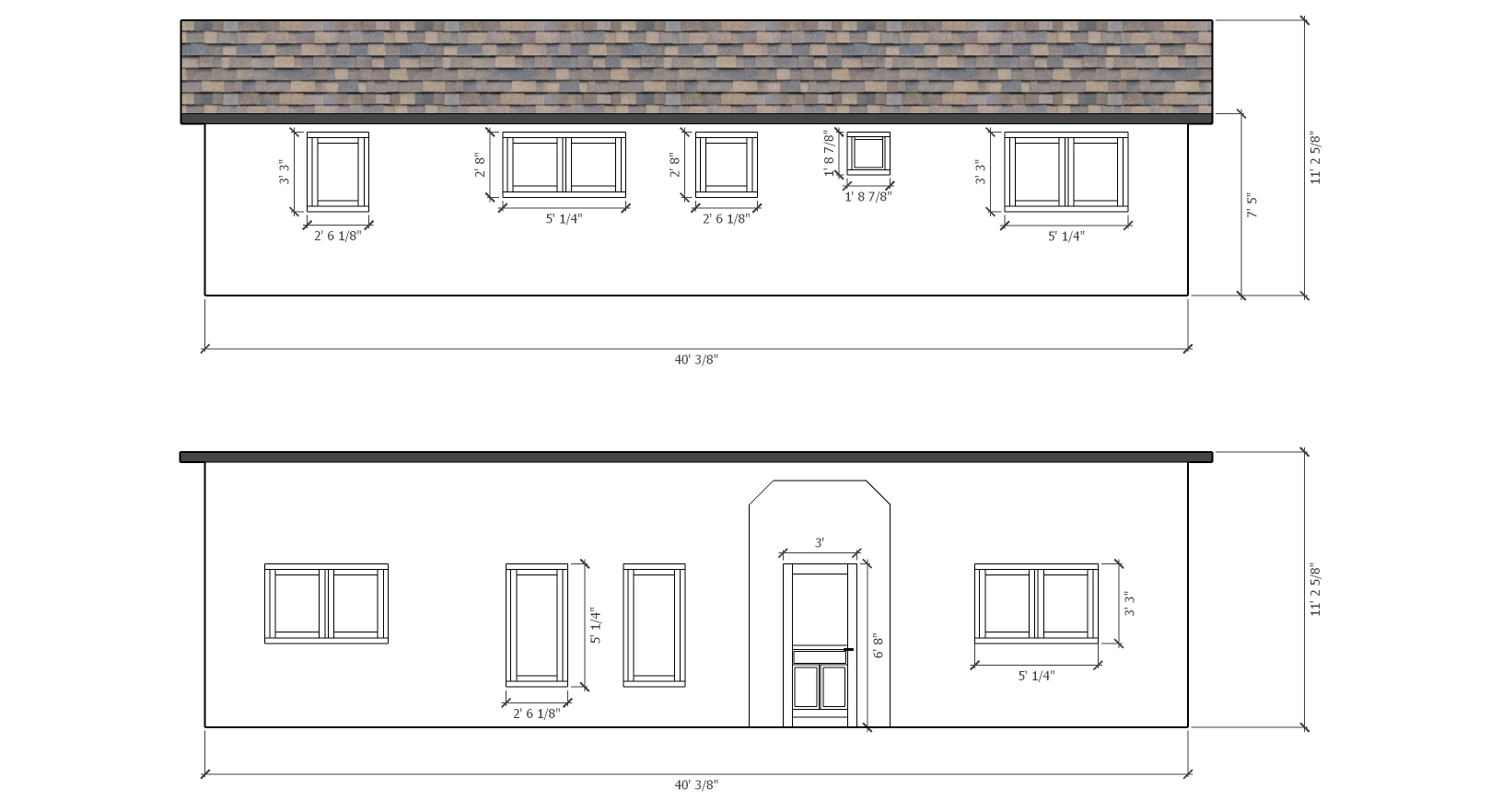

Sequoia has a modern flat sloped roof design with a footprint is 24′ x 40′ (960 sq’) with an open living space a kitchen, 3 bedrooms, 2 bath home. The front wall height is 119″ tapering down to 95″‘ at the back wall with an vaulted/cathedral ceiling throughout.

FREE STRUCTURAL ENGINEERING

PREMIUM models include site specific engineering stamped by a licensed engineering firm for roof and wind loads.

Exterior Stud & Siding Options:
Exterior build out kits include: 2×4 or 2×6 studs, stud fasteners, wood siding, corner blocks
(Foundations must be larger to accommodate build out)
Semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm)
Add 10% to sale price
Full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm) Add 14% to sale price

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

Energy efficiency:  Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the overall thermal and comfort benefits

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Insulating the roof: Apply locally supplied materials to add rafters over the tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof. These added rafters also increase the roof load capacity

OPTION A: Upgrade wood windows to triple glazed / Low E / Argon filled glass

  • USD regular price $ 1,310.00
  • CAD regular price $ 1,680.00



OPTION B: Upgrade wood windows to our exclusive maintenance free white PVC/Shutter windows with triple glazed / Low E / Argon filled glass plus exterior rolling shutters that are controlled from the interior. These unique windows provide added comfort and security. They improve the overall energy efficiency by keeping the heat out during the summer and the cold out in the winter. They also reduce outside noise levels and provide complete darkness for daytime sleepers. (See our Videos page)

  • USD regular price $ 2,730.00
  • CAD regular price $ 3,500.00

Assembly: The model can be assembled in approximately 9 days with 3 people

Tip: House wraps & vapor barriers are required in most regions when insulating

Building Codes: Premium series homes & cabins are manufactured to meet all structural requirements for building codes including, California Title 24, earthquake, heavy snow load regions and hurricane zones

Kit includes:

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins, beams, spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 6  interior doors 812mm x 2040mm (32″x80″)
  • 4 single wide wood windows 765mm x 990mm (30″x 39″)
  • 4 double wide wood windows 1530mm x 990mm (60″x 39″)
  • 2 single wide wood windows 530 x 530 (21″x 21″)
  • 2 exterior door 990mm x 2040mm (36″x80″) 1/2 glass tempered
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped for sequence of assembly
