Sudbury 2

327 sq ft
Premium Model
$24,738.00 USD
$31,716.00 CAD
FREE SHIPPING
Cabin size277" x 170"
Roof pitch3/12 - 14D
Roof boards3/4"
Size (sq ft)327
Wall height89"
Ridge height110"
Wall thickness2-3/4”

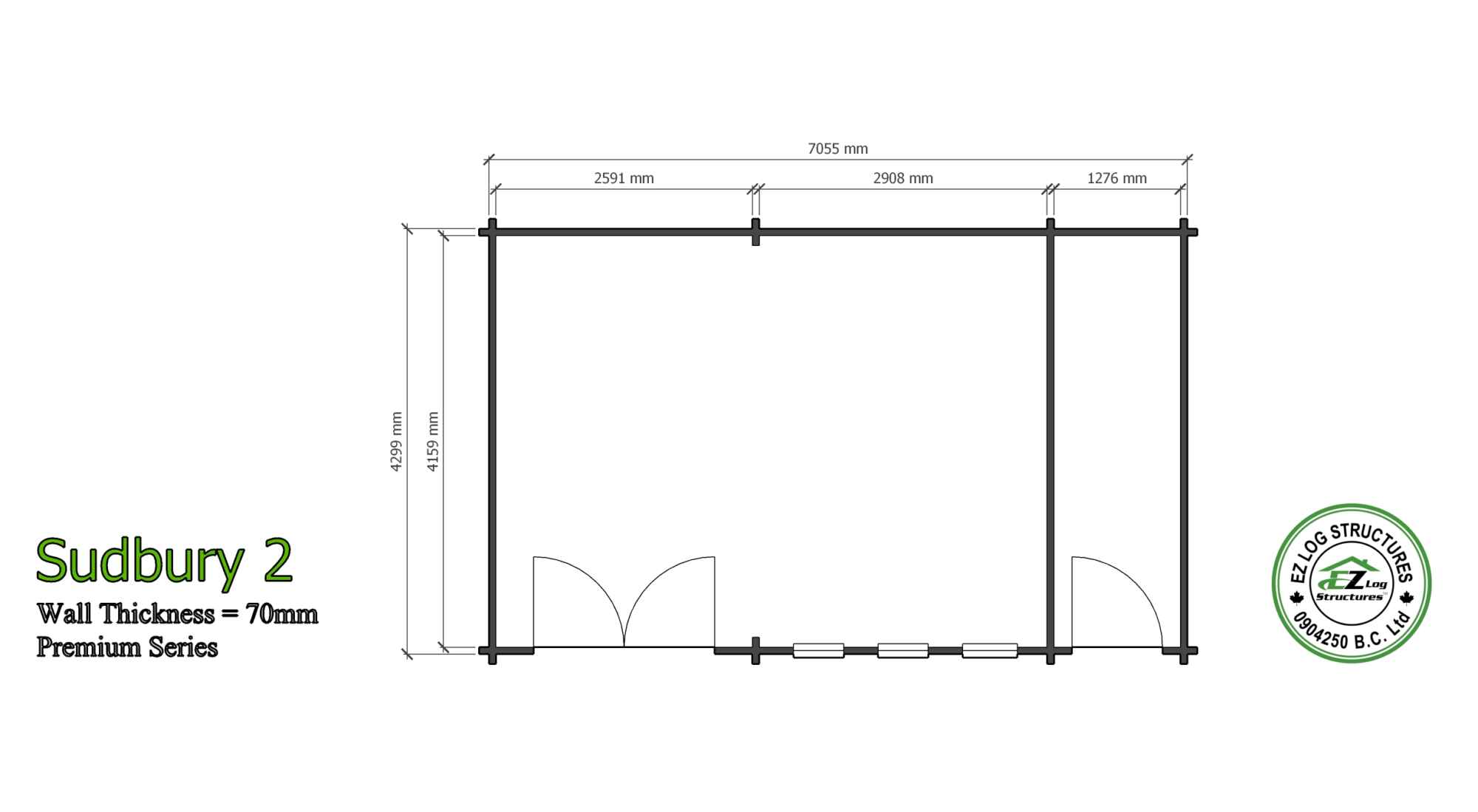

Model Documentation

FREE SHIPPING – some exceptions apply

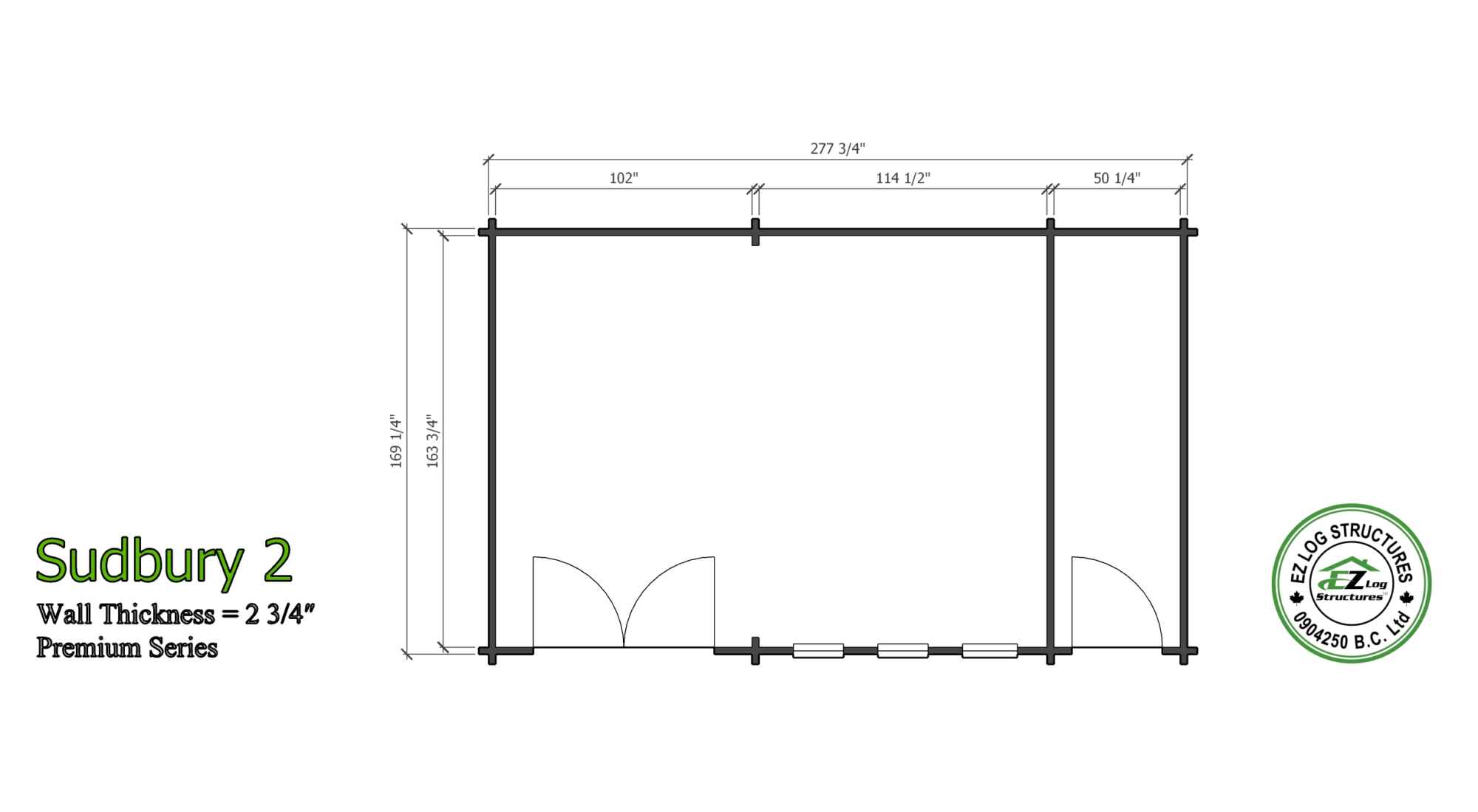

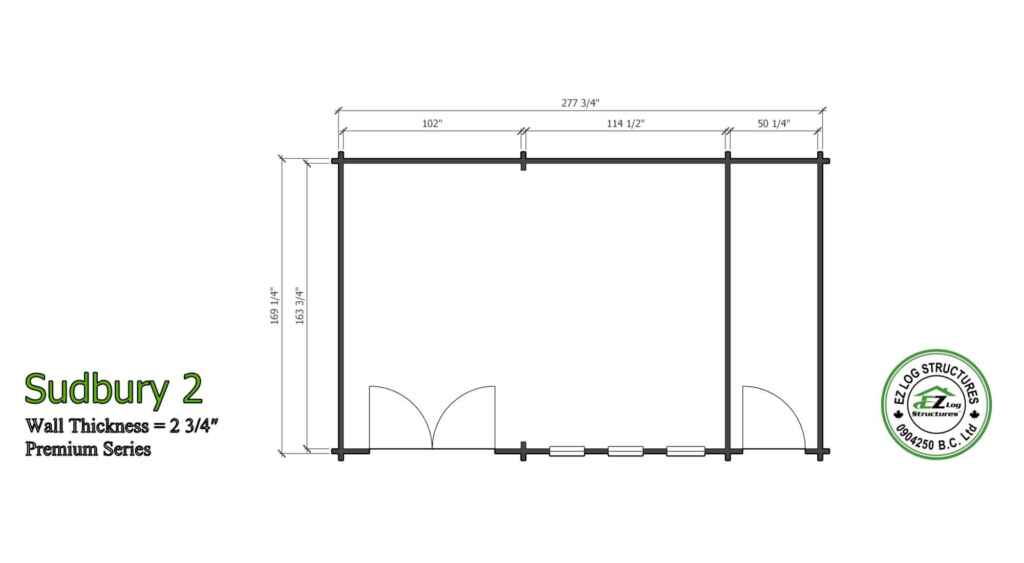

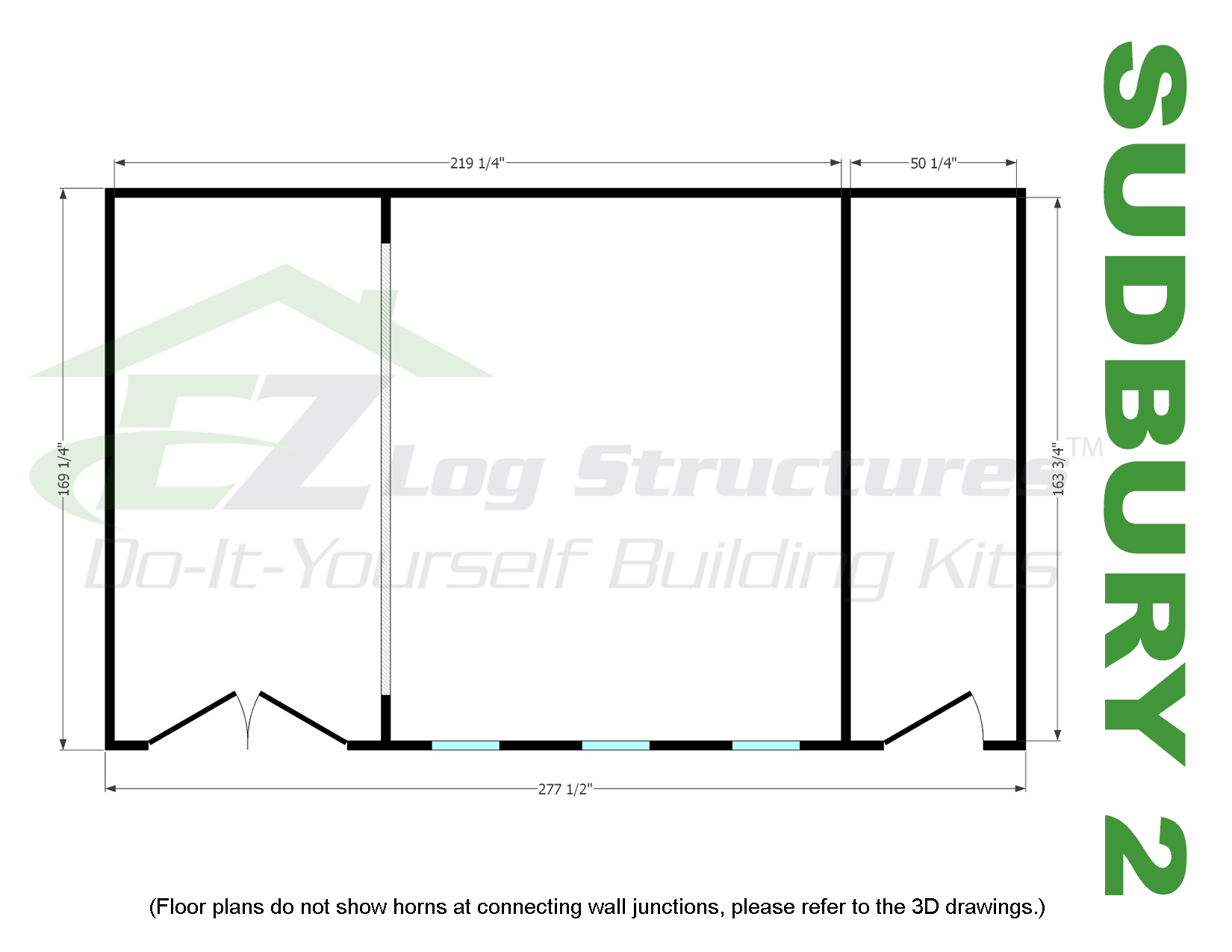

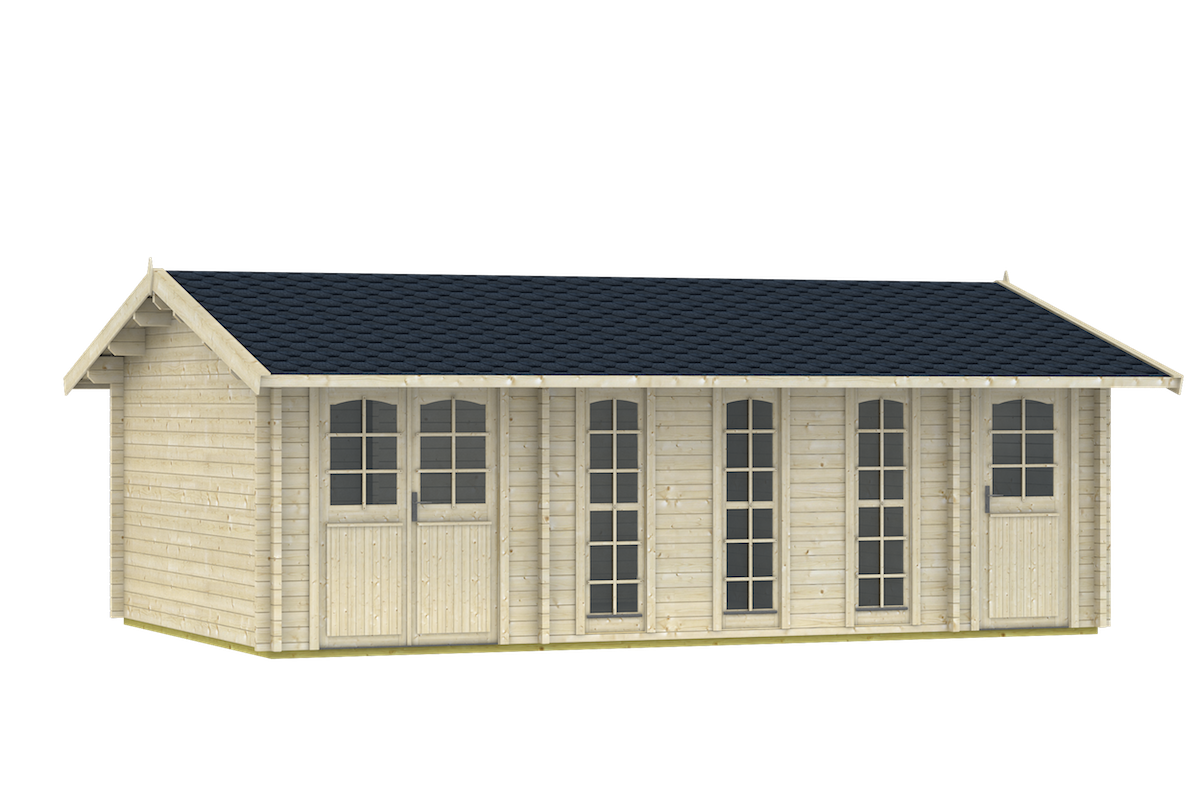

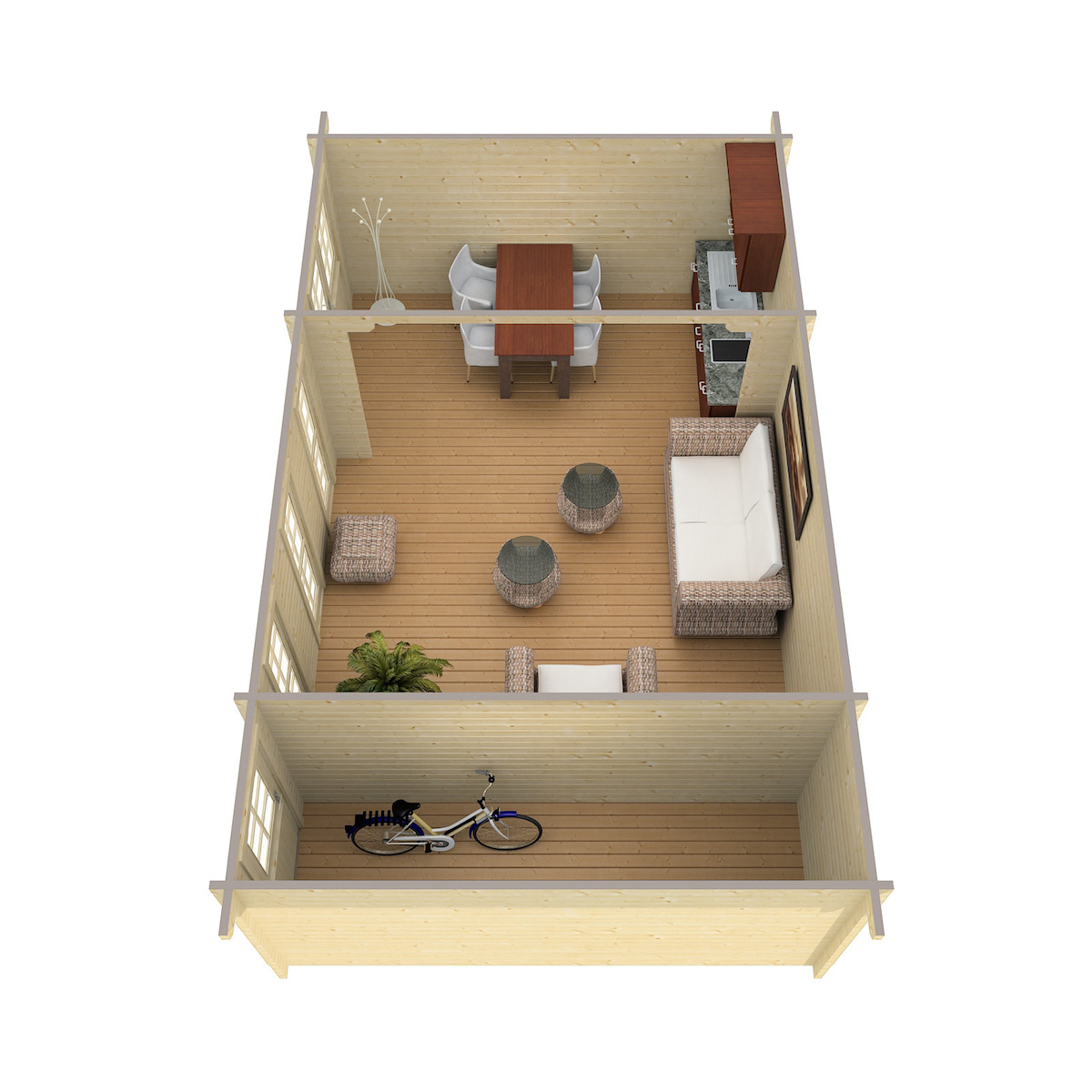

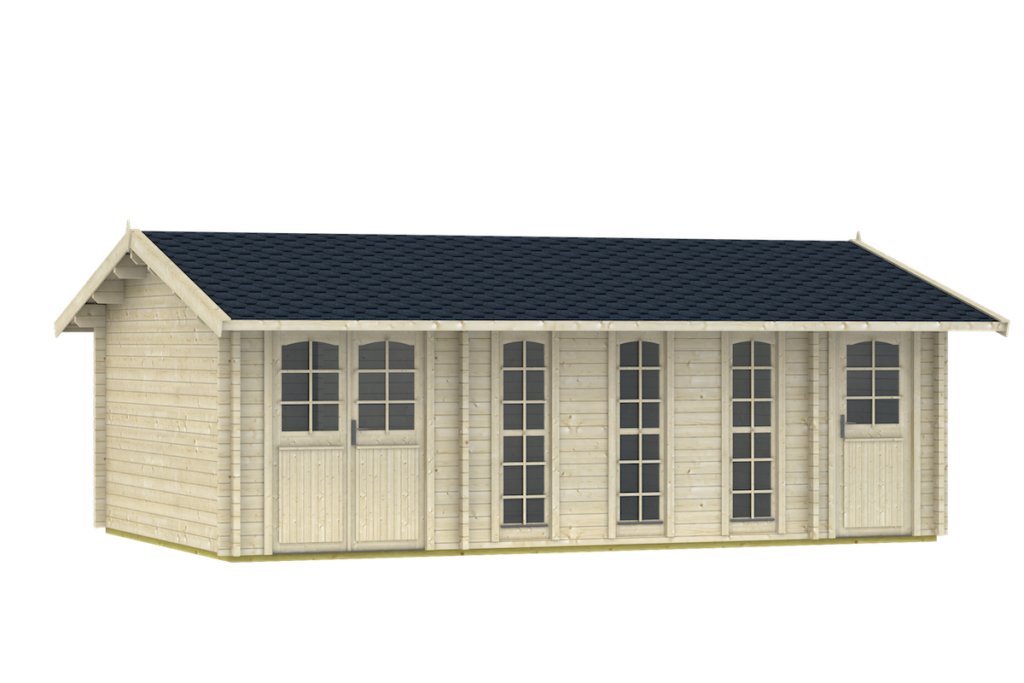

The Sudbury 2 is the ideal backyard office or cabin. This 2 room unit is a total of 326 sq’ and be modified to suit your needs.  (sq footage is based the total footprint, living space could be less, see floor plans)

FREE STRUCTURAL ENGINEERING – PREMIUM models include site specific engineering stamped by a licensed engineering firm for roof and wind loads. Additional engineering services are available on request

Exterior insulating kit with semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm) Add 10% to sale price

Exterior insulating kit with full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm) Add 14% to sale price

Insulating kit includes: 2×4 or 2×6 studs, stud fasteners, wood siding, corner blocks, side overhangs of roof are increased by 6″  (Foundations must be made larger to allow for 2×4 or 2×6 studs)

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

Energy efficiency:  Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the overall thermal and comfort benefits

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Insulating the roof: Apply locally supplied materials to add rafters over the tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof. These added rafters also increase the roof load capacity



OPTION A: Upgrade wood windows to triple glazed / Low E / Argon filled glass

  • USD regular price $ 281.00
  • CAD regular price $ 360.00



OPTION B: Upgrade wood windows to our exclusive maintenance free white PVC/Shutter windows with triple glazed / Low E / Argon filled glass plus exterior rolling shutters that are controlled from the interior. These unique windows provide added comfort and security. They improve the overall energy efficiency keeping the heat out during the summer and the cold out in the winter. They also reduce outside noise levels and provide complete darkness for daytime sleepers. (See our Videos page)

  • USD regular price $ 585.00
  • CAD regular price $ 750.00

Assembly: The model can be assembled in approximately 2 days or less with 2 people

Tip: House wraps & vapor barriers are required in most regions when insulating

Building Codes: Premium series homes & cabins are manufactured to meet all structural requirements for building codes including, California Title 24, earthquake, heavy snow load regions and hurricane zones

Kit includes:

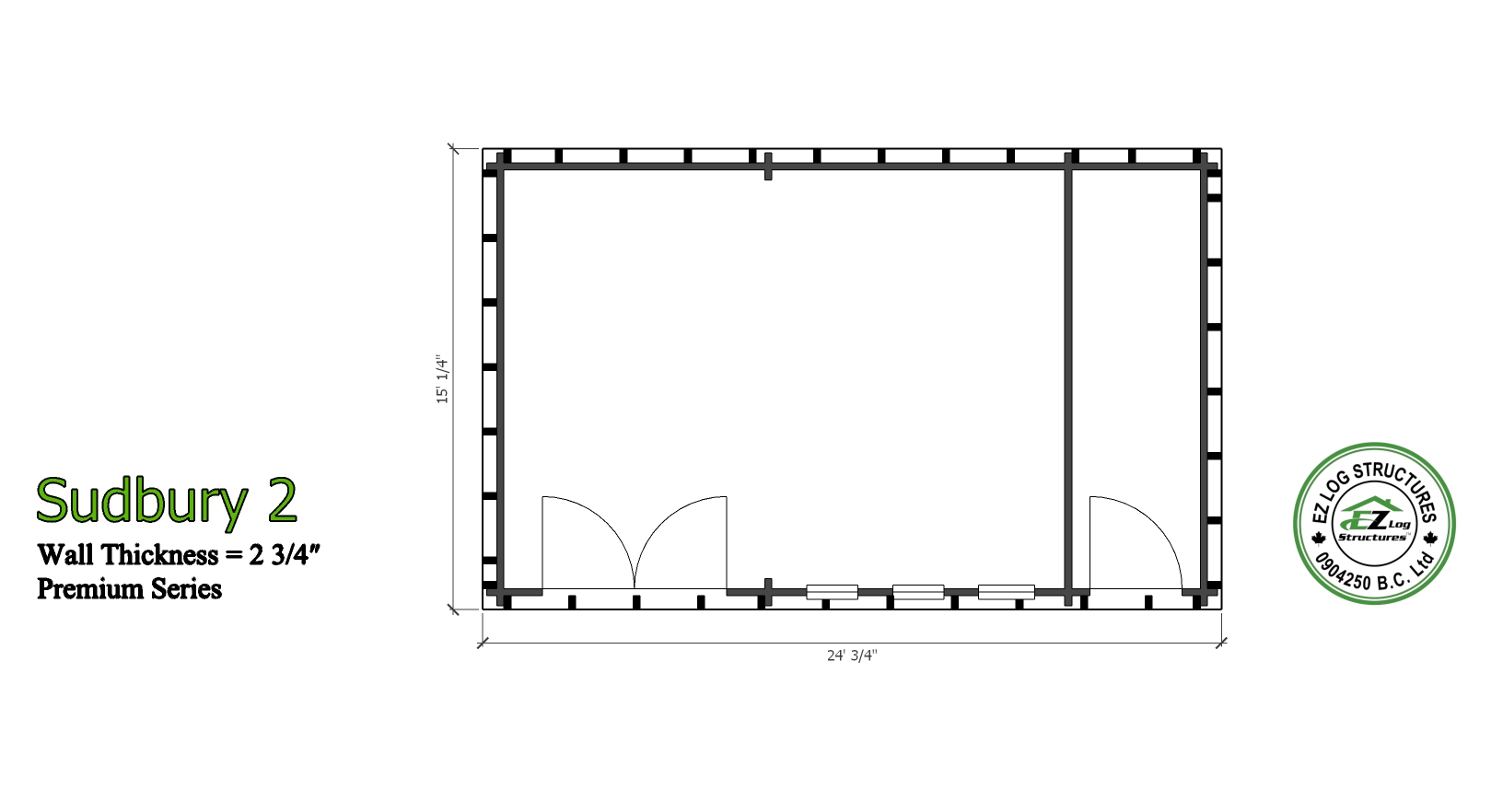

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 3/12 roof pitch (14 degrees)
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 3single wide wood windows 765mm x 1530mm (30″x 60″)
  • 1 exterior door 990mm x 2040mm (36″x80″) 1/2 glass tempered, multi locking hardware
  • 1 exterior door 1550mm x 2040mm (61″ x 80″) 1/2 glass tempered, multi locking hardware
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
