Toledo E Lofted

960 sq ft
Premium Model
$55,458.00 USD
$71,100.00 CAD
FREE SHIPPING
Rooms
Bedrooms2
Bathrooms1
Cabin sizes
Cabin size288" x 480"
Roof & floor
Roof pitch4/12 - 18D
Roof boards3/4"
Package, area, vol ect.
Size (sq ft)960
Size (sq ft)277
Volume1875
Attic56"
Wall height95"
Ridge height161"
Wall thickness2-3/4"
Contact Us

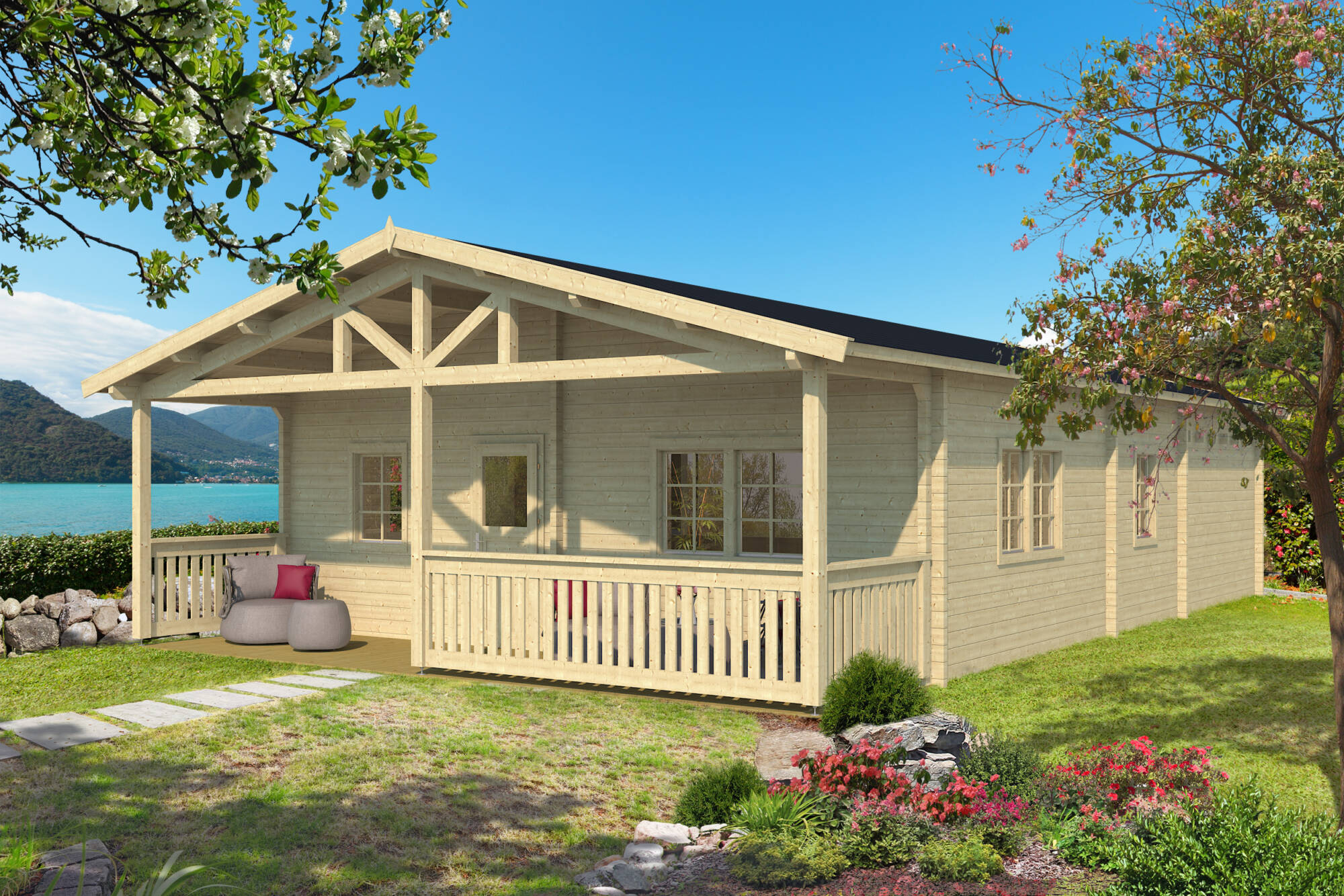

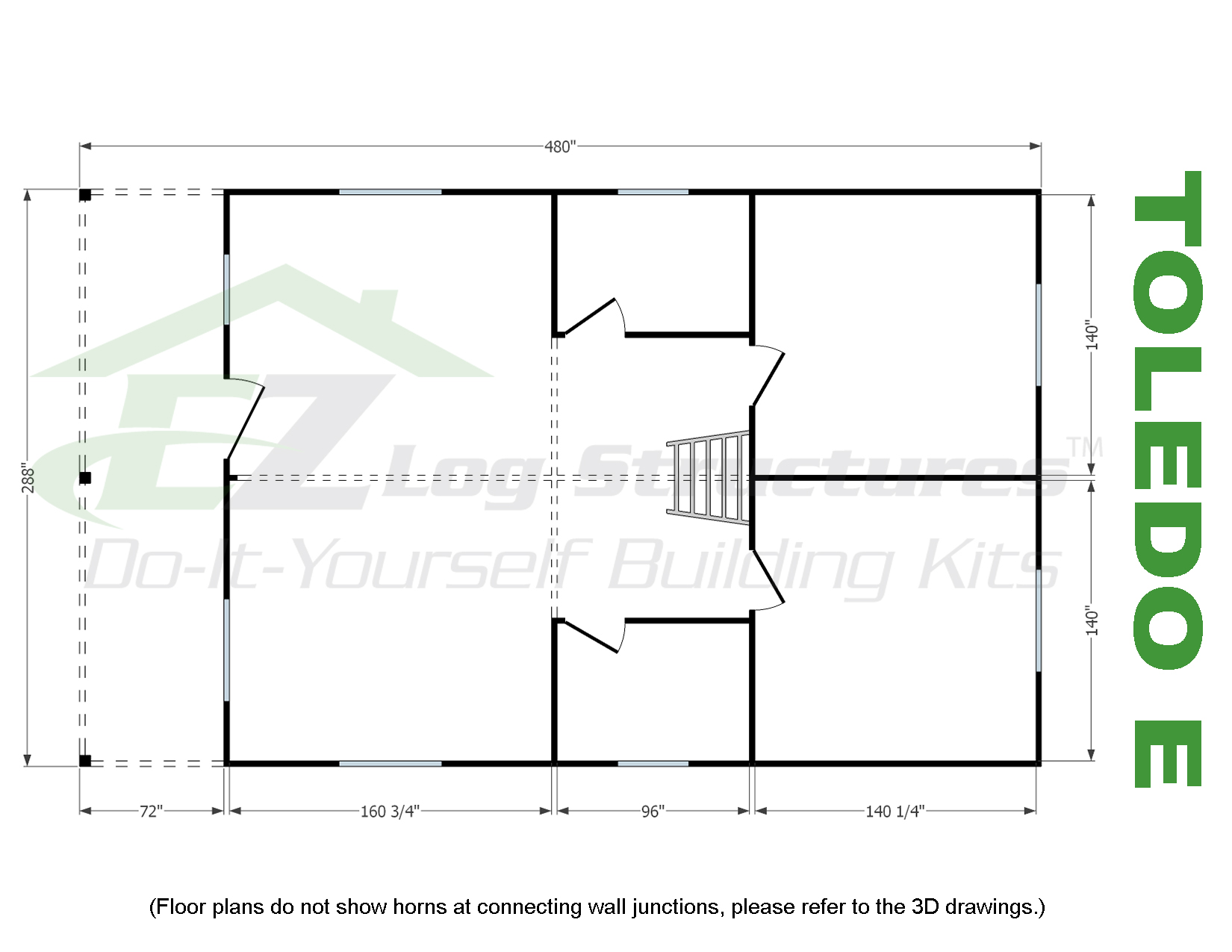

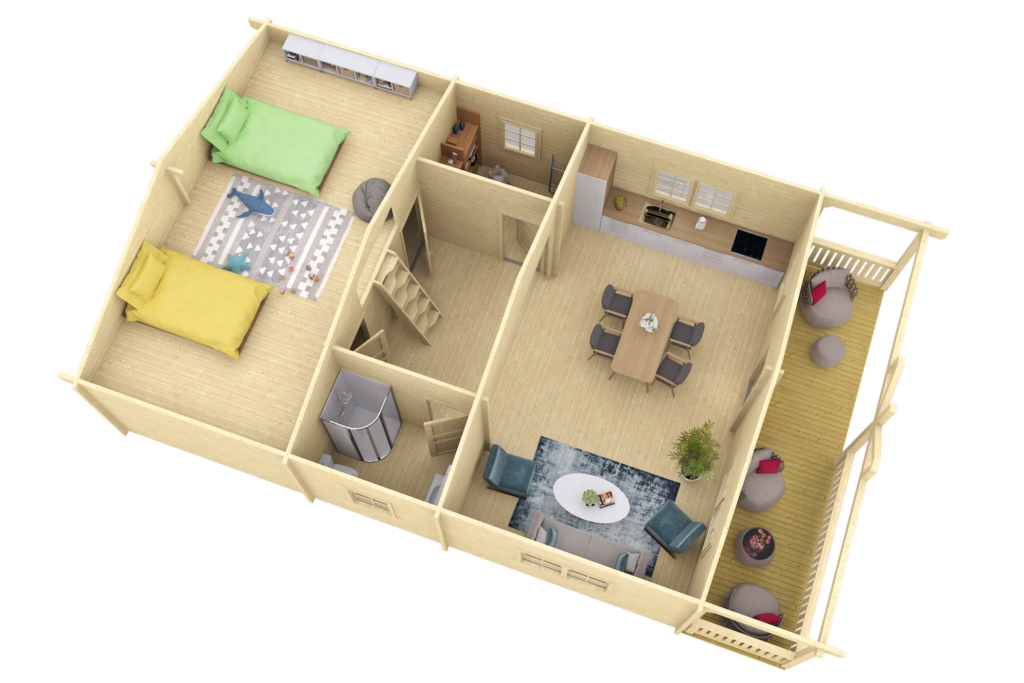

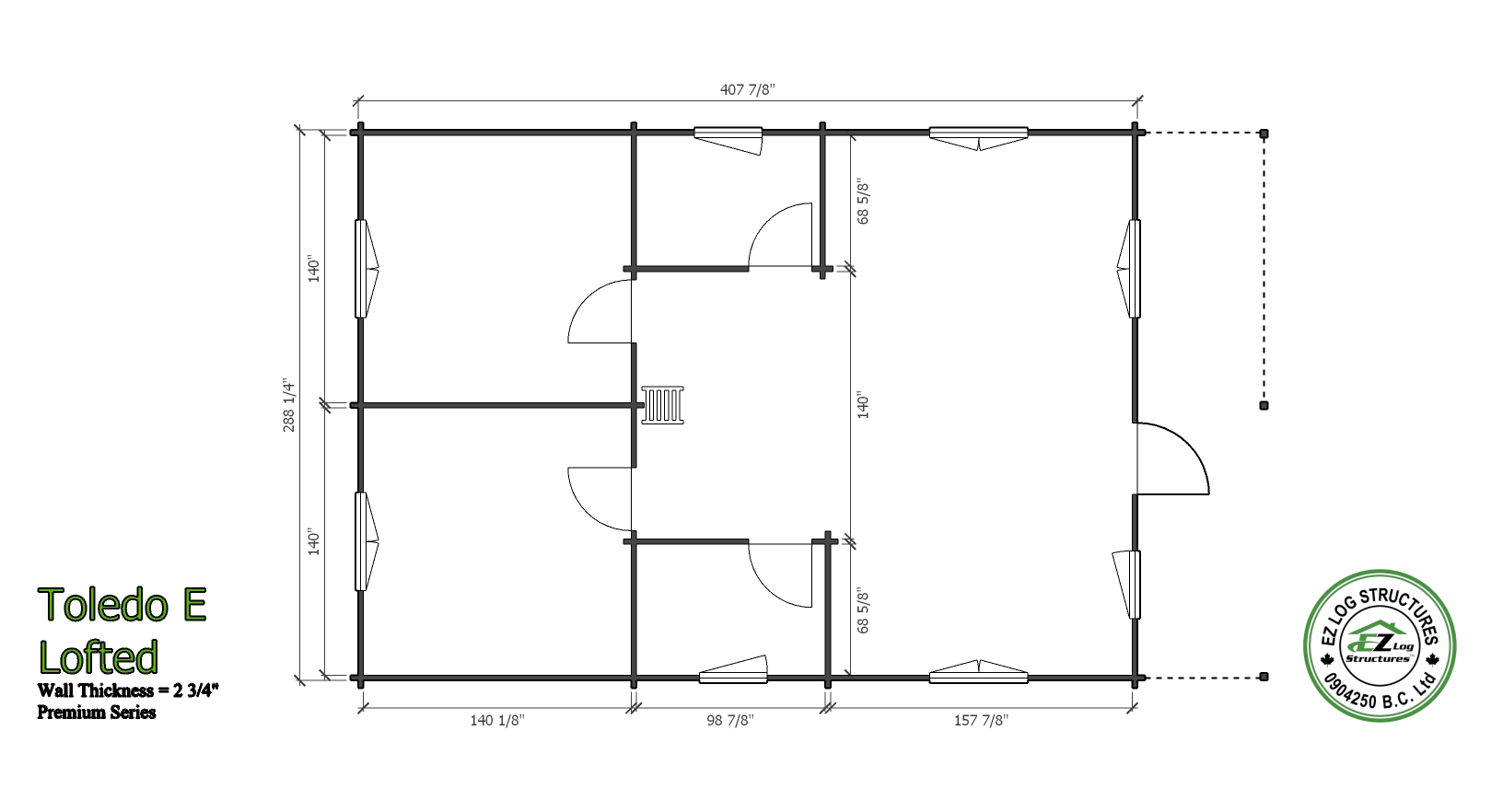

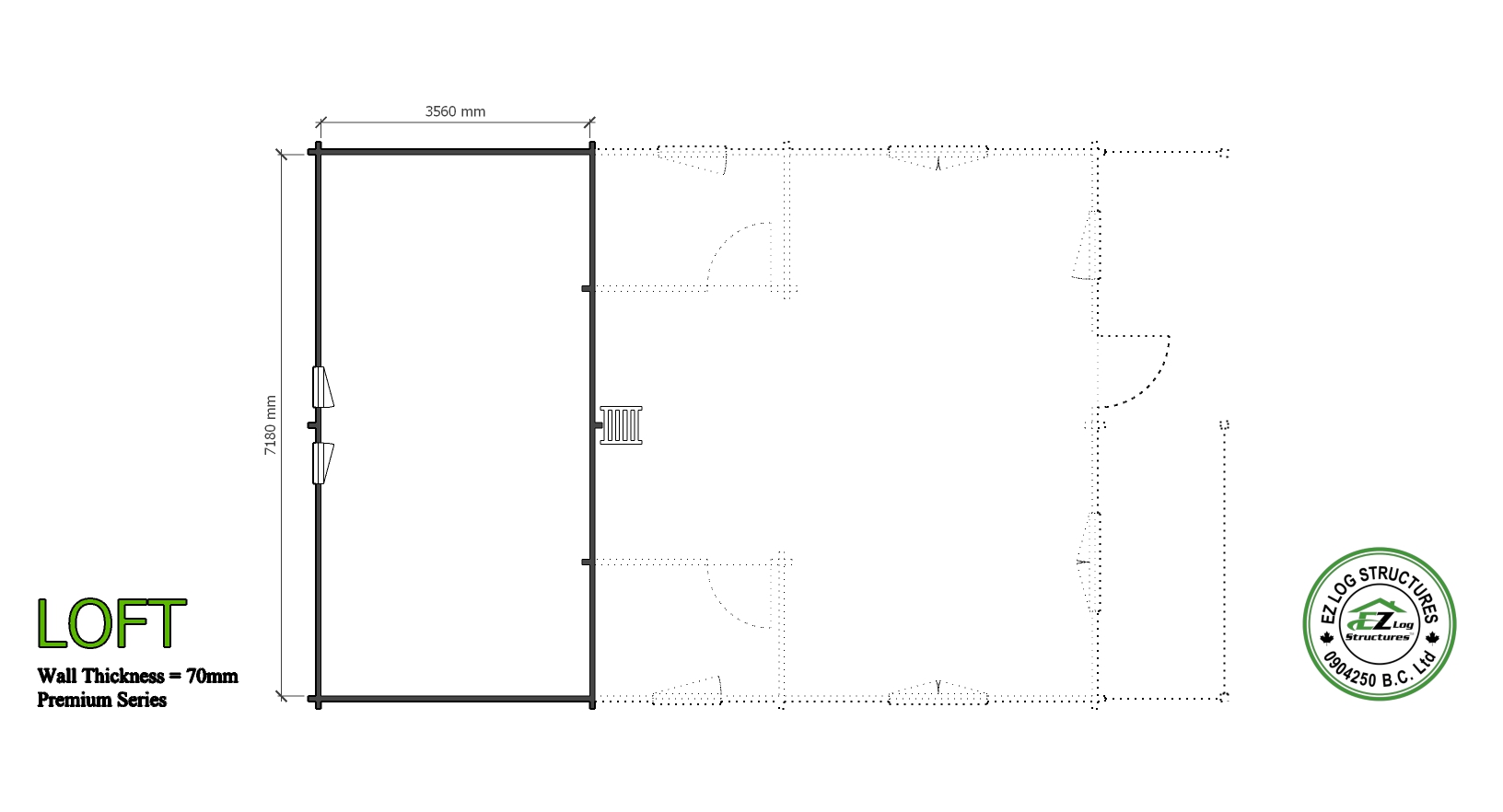

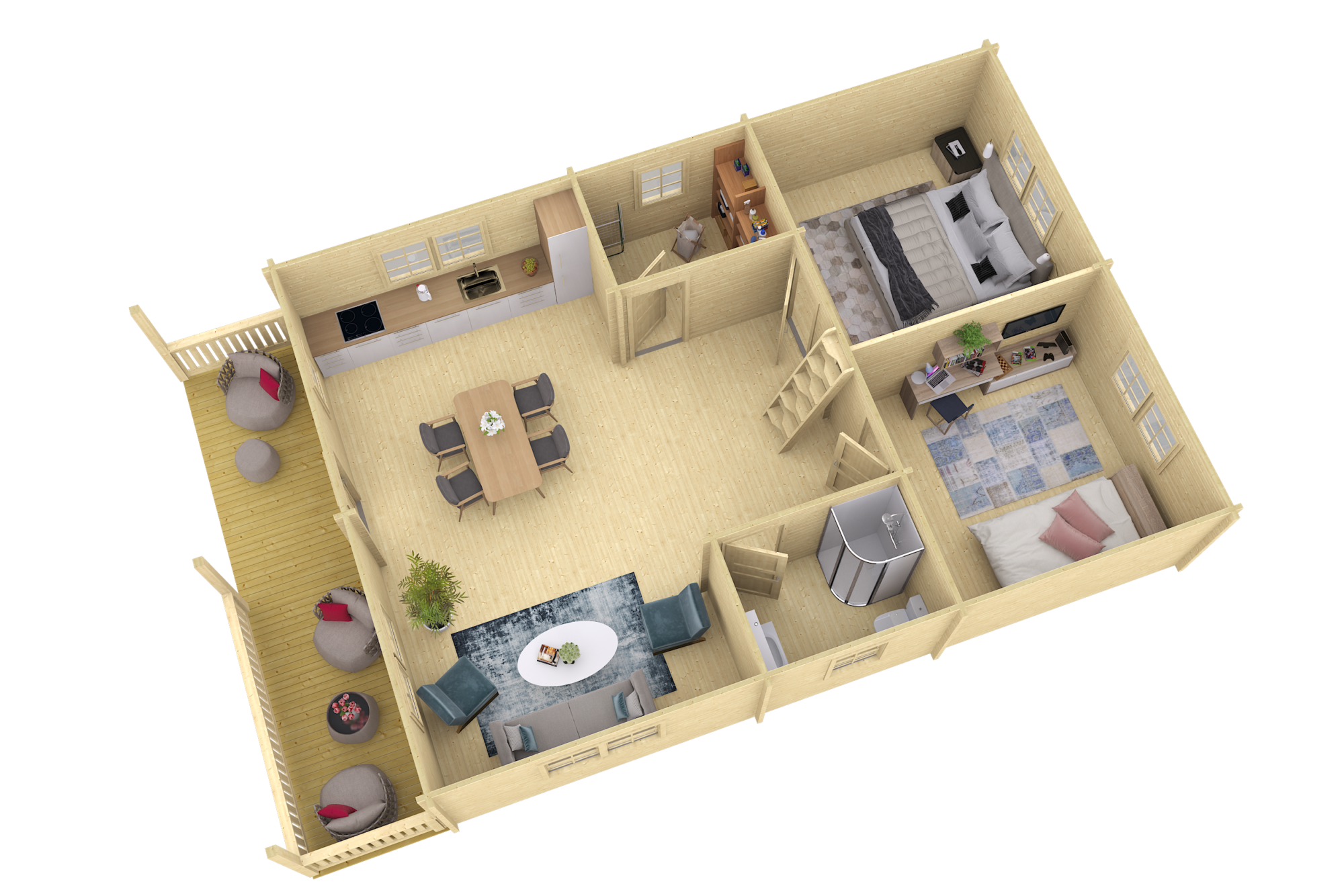

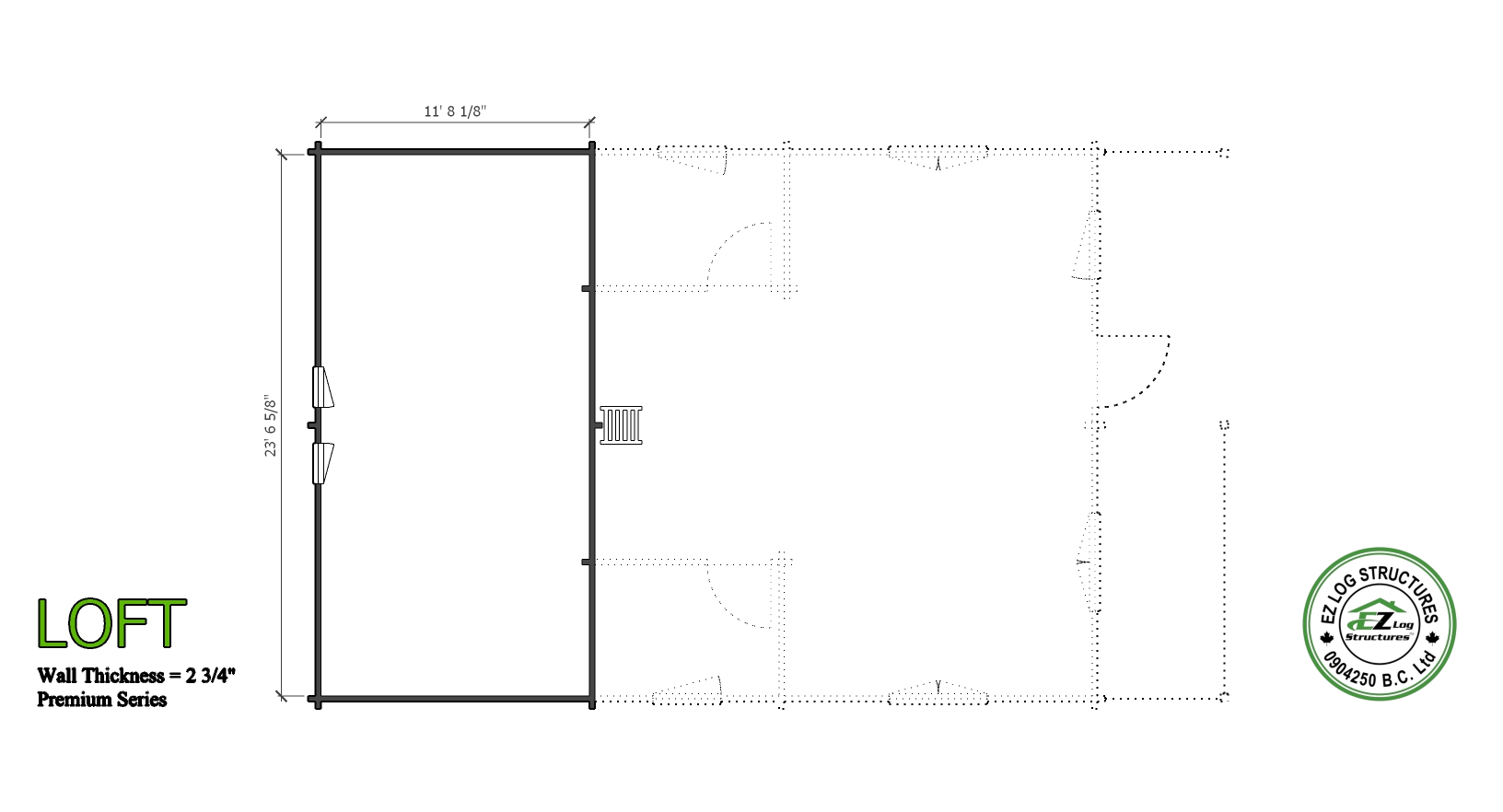

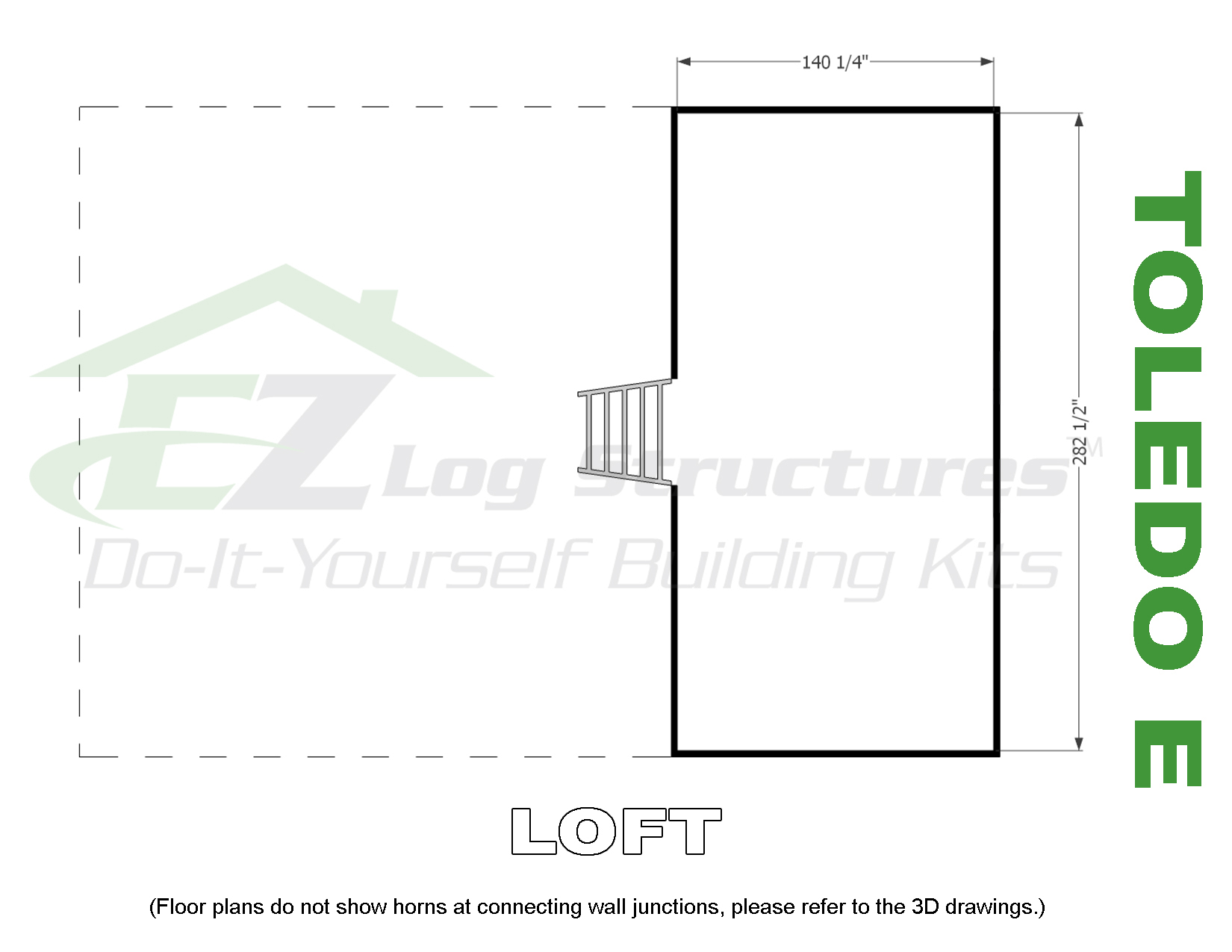

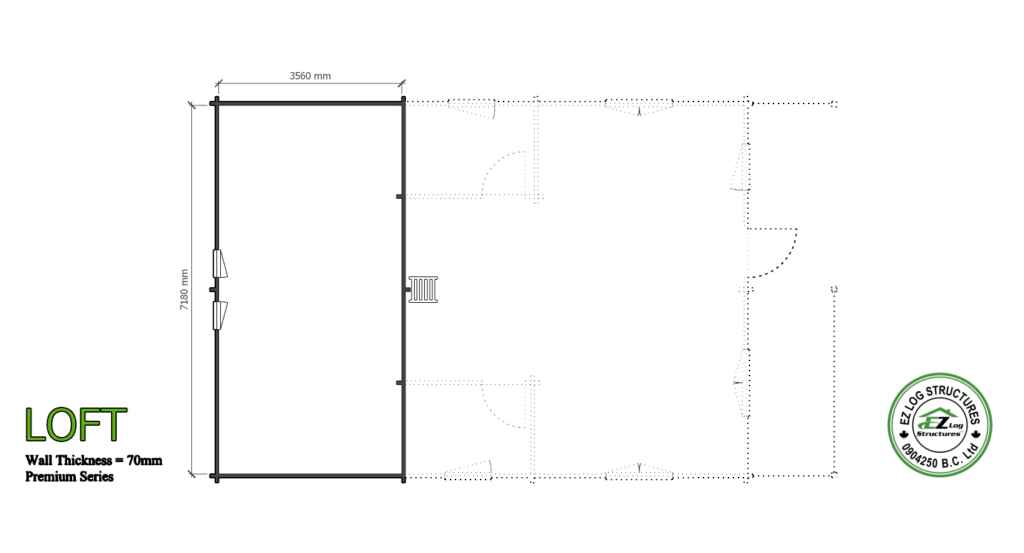

TOLEDO E is an affordable 2 bedroom home with a footprint is 24′ x 40′ (960 sq’). The interior is 24′ x 34′ with a covered deck of 24′ x 6′ and there is a loft with 277 sq’ over the 2 bedrooms. Like all models the interior is very open due to the vaulted/cathedral ceilings. (sq footage is based the total footprint, living space could be less, see floor plans)

Kit includes:

  • ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • 4/12 roof pitch (18 degrees)
  • vaulted, cathedral ceilings
  • loft ladder
  • pre-cut 100mm x 200mm (4″x8″) numbered glulam floor beams, spaced 558mm (22″) or less
  • pre-cut loft floor boards 28mm (1-18″)
  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 1875 total sq’ of wall area
  • 1197 sq’ of exterior wall surface
  • 179 lineal’ per row
  • 4 interior doors 812mm x 2040mm (32″x80″)
  • 3 single wide wood windows 765mm x 990mm (30″x 39″)
  • 5 double wide wood windows 1530mm x 990mm (60″x 39″)
  • 1 exterior door with multi locking hardware 1/2 glass tempered 990mm x 2040mm (36″x80″)
  • pre-built deck railings with vertical balustrades
  • adjustable posts
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
  • FREE SHIPPING
  • FOUNDATION SIZE DRAWING
  • STAMPED STRUCTURAL ENGINEERING





    EXTERIOR STUD & SIDING KITS

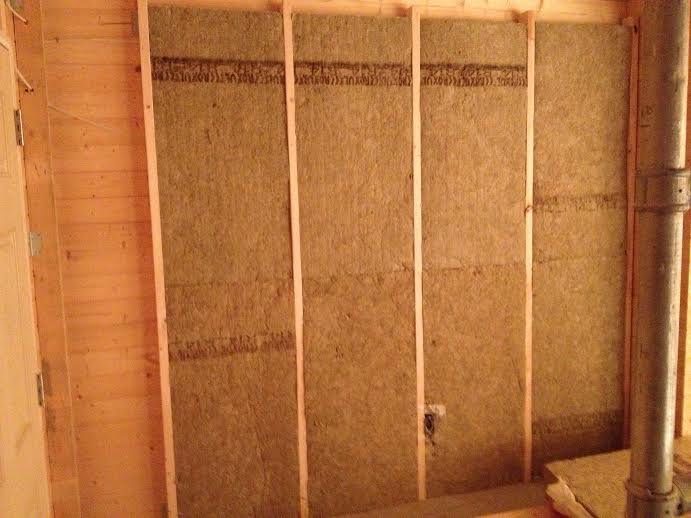

    Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.



    We offer 3 types of siding kits to cover the exterior of the home or cabin: EZ Log Semi D-Log tongue & groove wood siding, EZ Log Full D-Log tongue & groove wood siding & a heavy duty maintenance free extruded PVC polymer siding



    Each kit includes: 2×6 studs, stud screws, siding, corner blocks, trims & extending the roof overhang 12″













    1) ADD 10% – Semi D-Log siding (Max)  3/4″ x 5-1/8″ (18mm x 130mm)

































    2) ADD 14% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)

































    3) ADD 20% – Vox extruded prefinished PVC polymer siding 3/8″ x 8″ (8.3mm x 200mm)




















    Window Options:










    1) Kit includes double glazed residential grade wood windows. To upgrade all windows to triple glazed/Low E/Argon gas filled (15 sash)


    Add – $ 1,638.00 USD


    Add – $ 2,100.00 CAD














    OR





    PVC window - white frame. PVC window with built-in external shutters. Shutter window.





    2) Replace all wood windows with our exclusive white PVC/Shutter windows, triple glazed/Low E/ Argon filled glass. Includes exterior insulated rolling shutters that are controlled from the interior. Added comfort, security, improved energy efficiency, reduced outside noise & complete darkness for daytime sleepers (See the video on the video section)


    Add – $ 3,510.00 USD


    Add – $ 4,500.00 CAD























    •
