Topeka

1540 sq ft
Premium Model
$100,119.00 USD
$128,357.00 CAD
FREE SHIPPING
Bedrooms3
Bathrooms1
Cabin size300" x 480"
Roof pitch7/12 - 30D
Roof boards3/4"
Size (sq ft)1000
Size (sq ft)540
Attic118"
Wall height95"
Ridge height209"
Wall thickness2-3/4"

Model Documentation

FREE SHIPPING – some exceptions apply

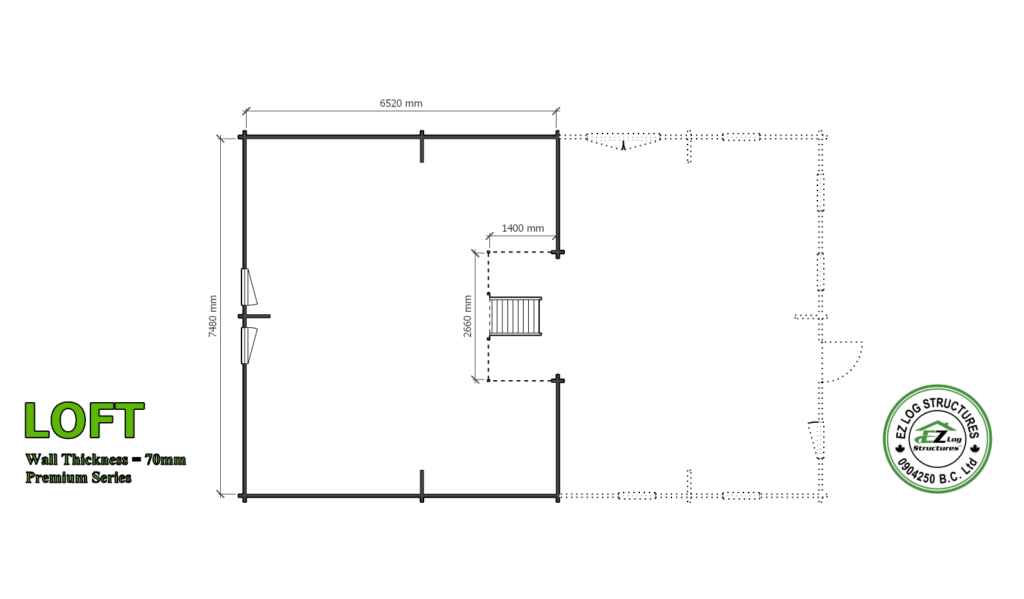

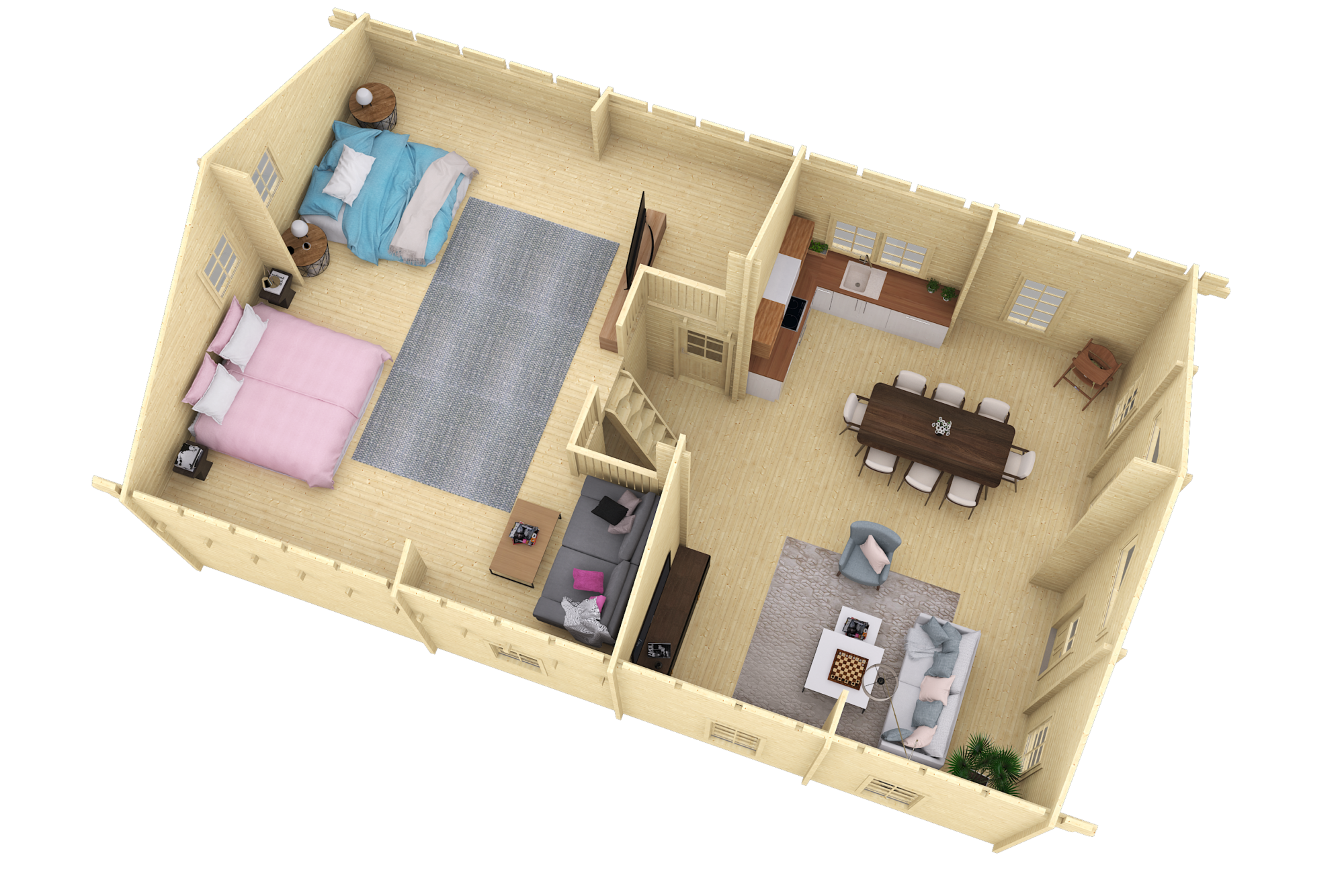

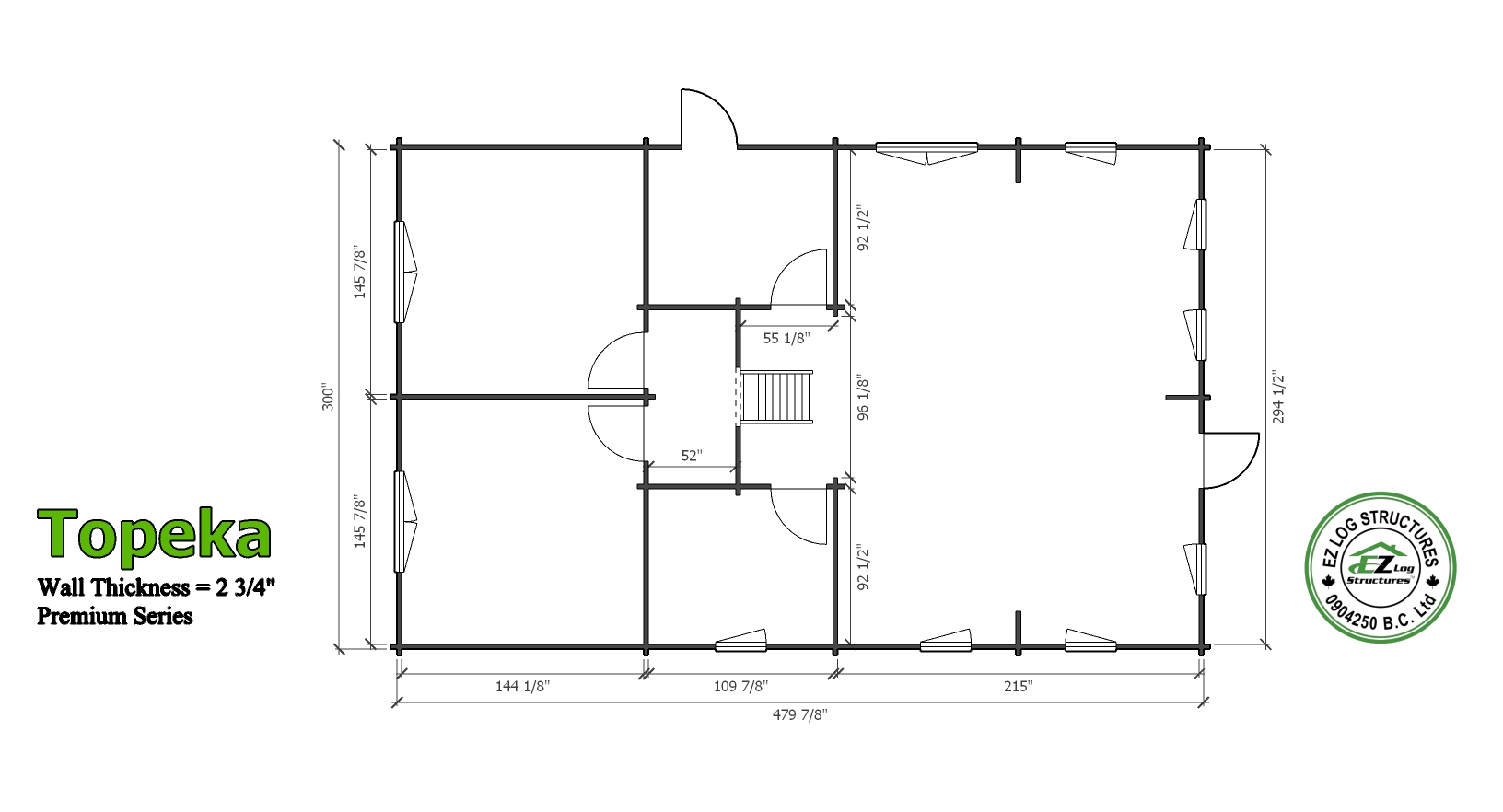

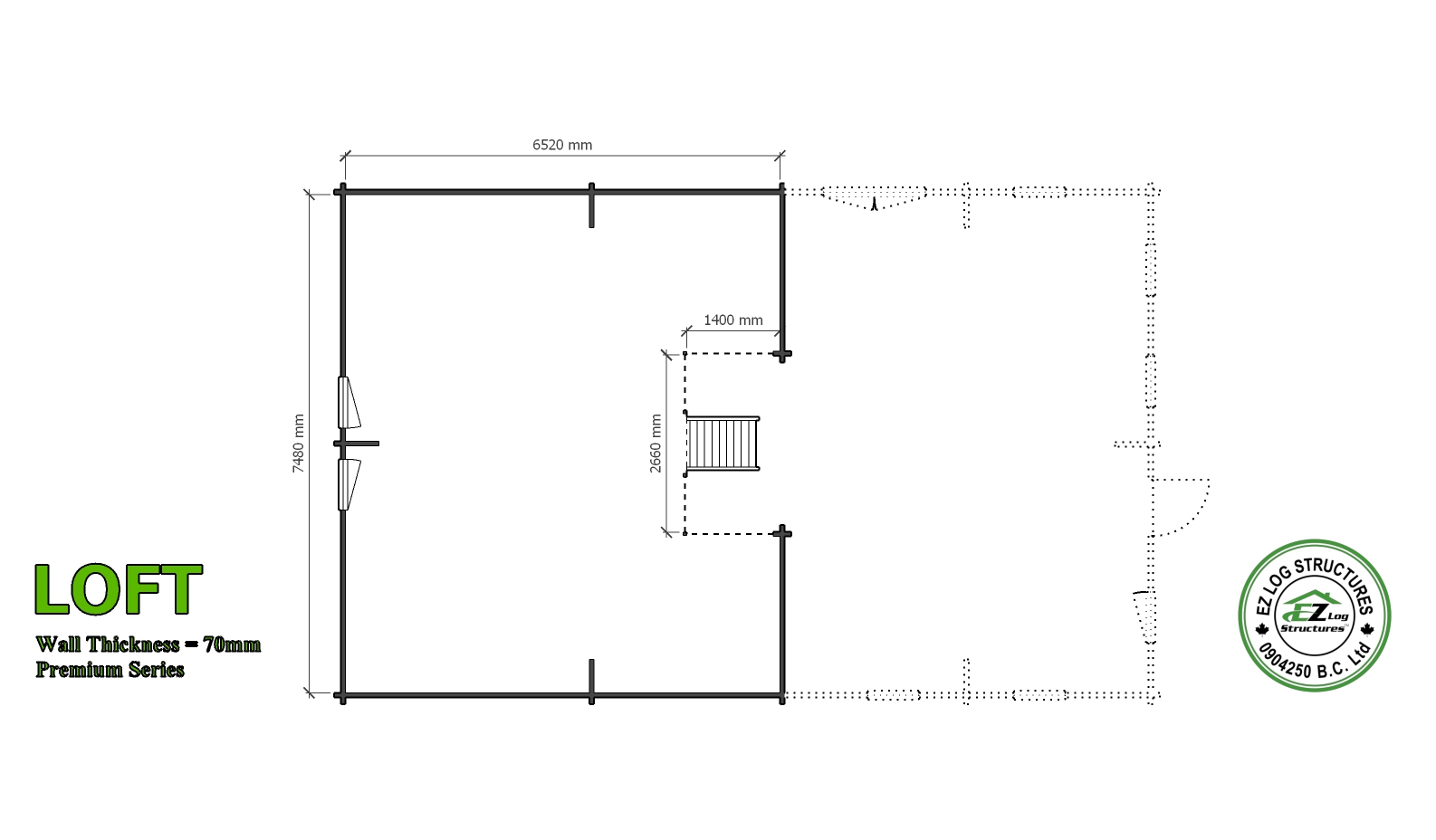

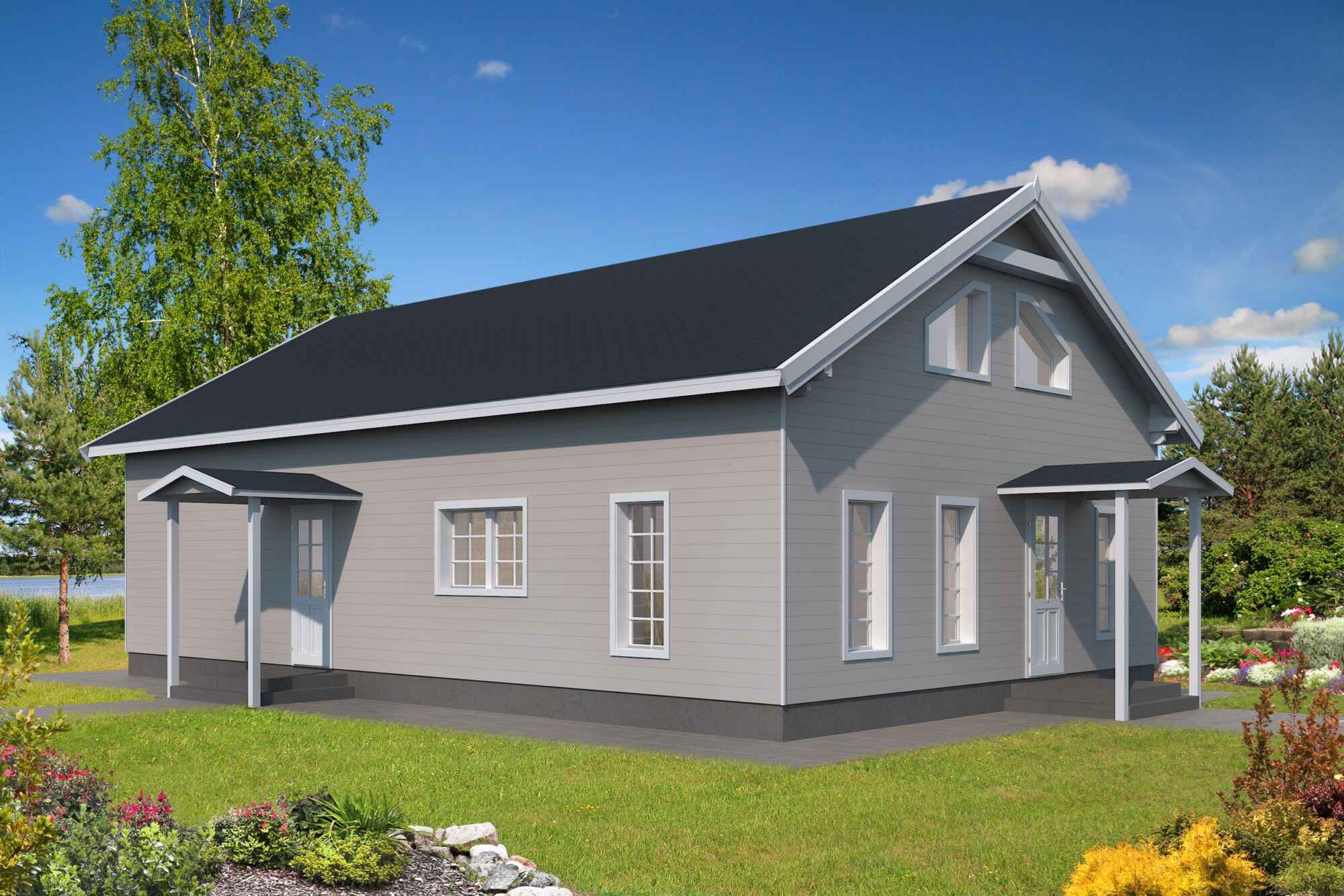

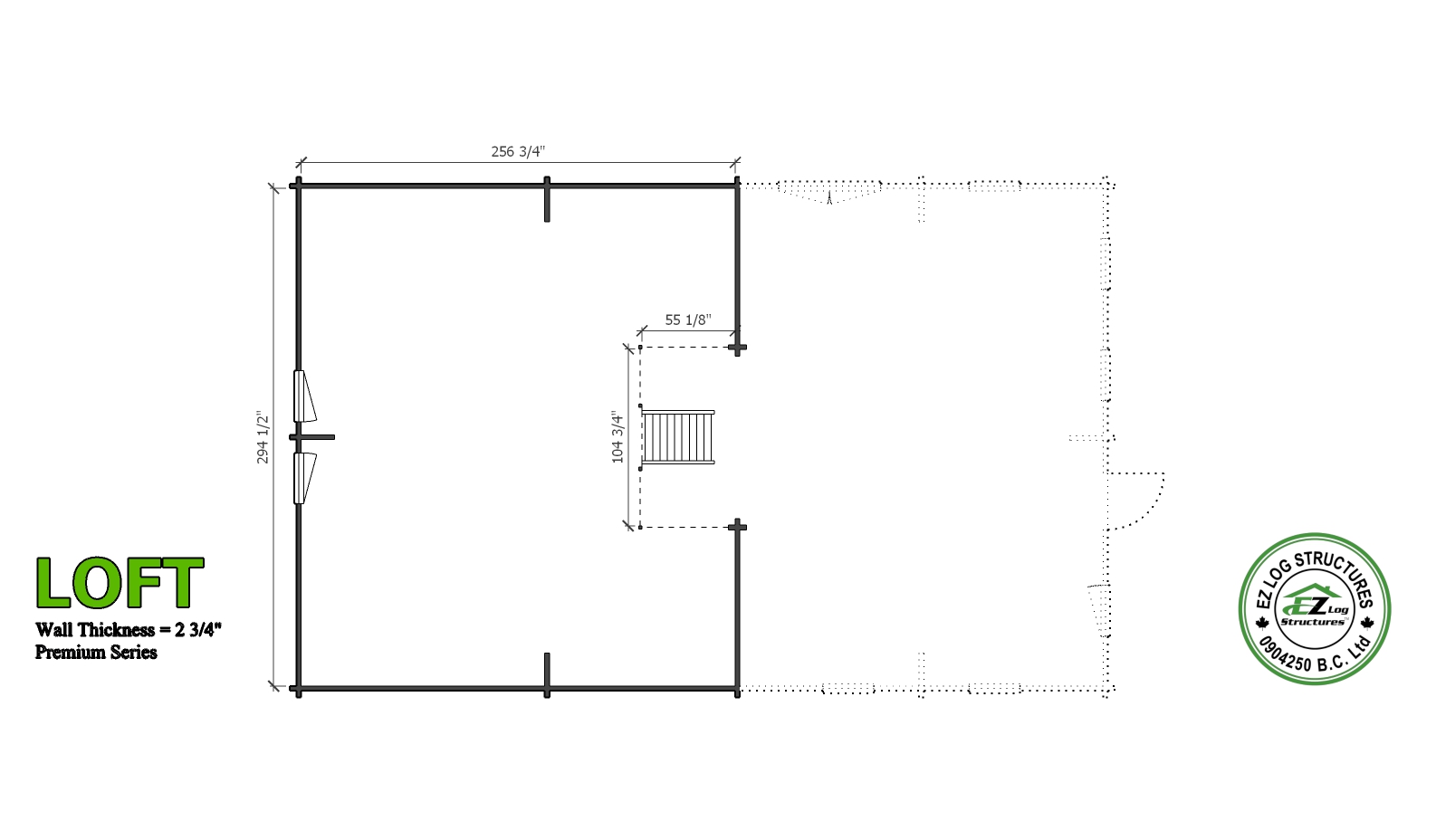

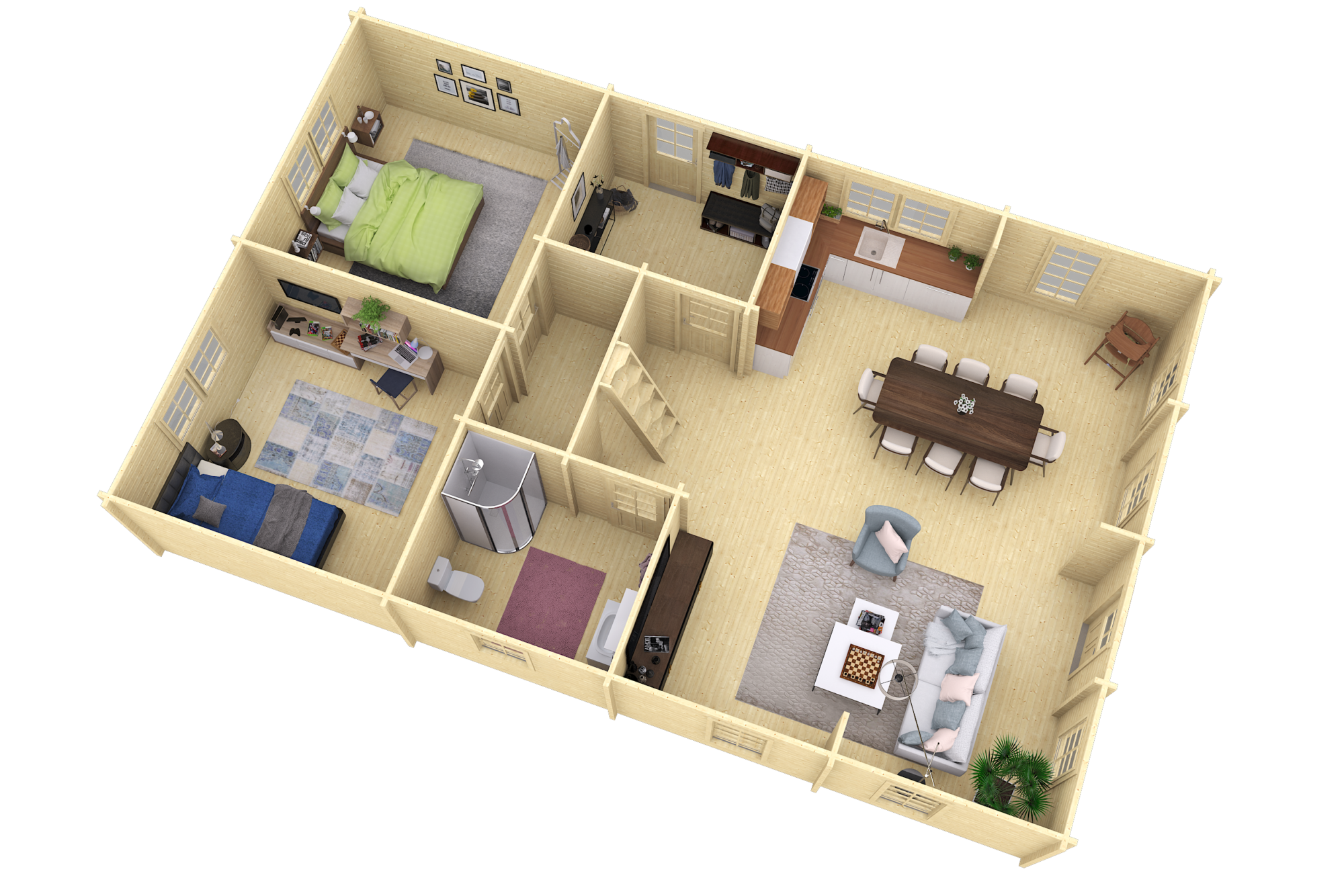

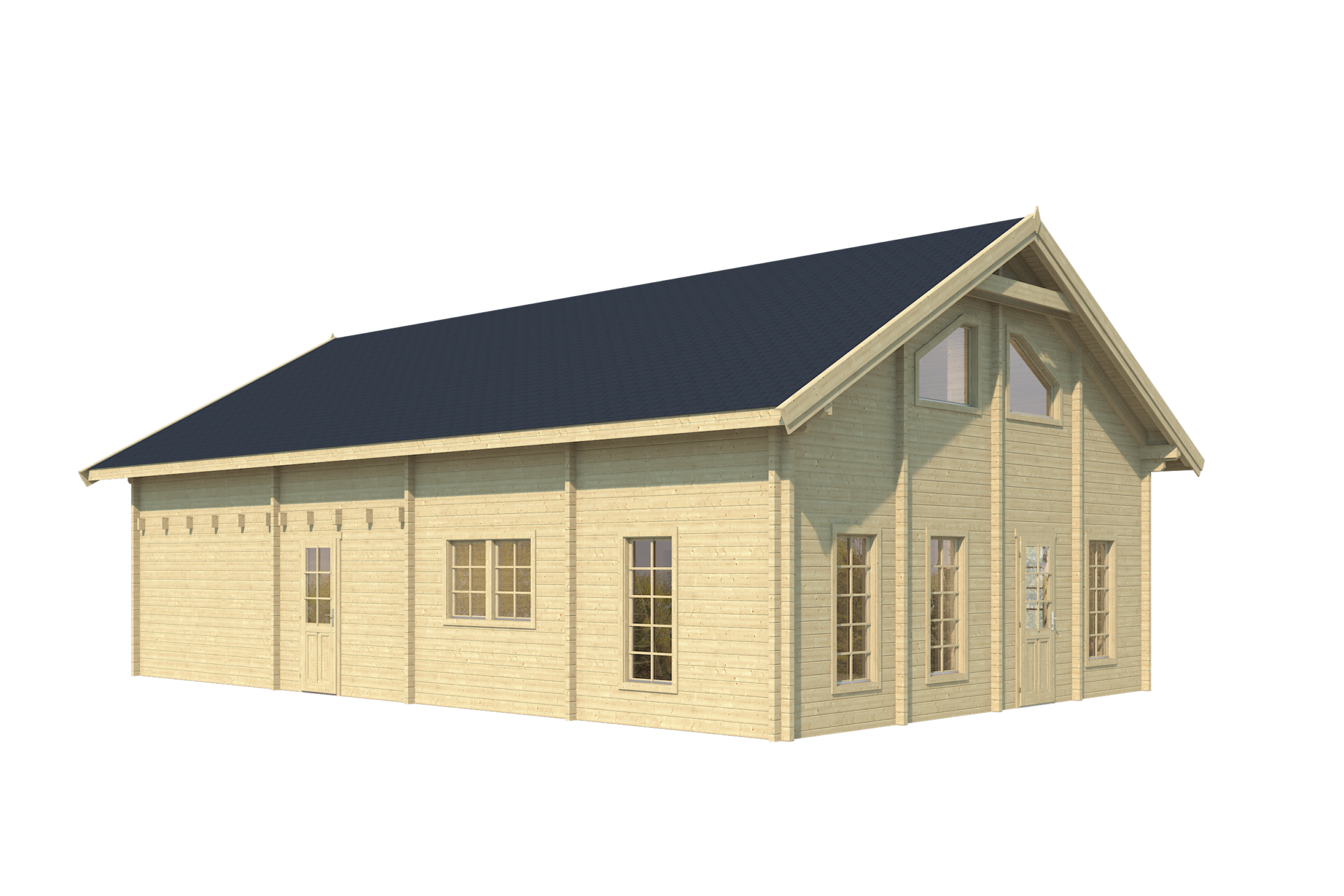

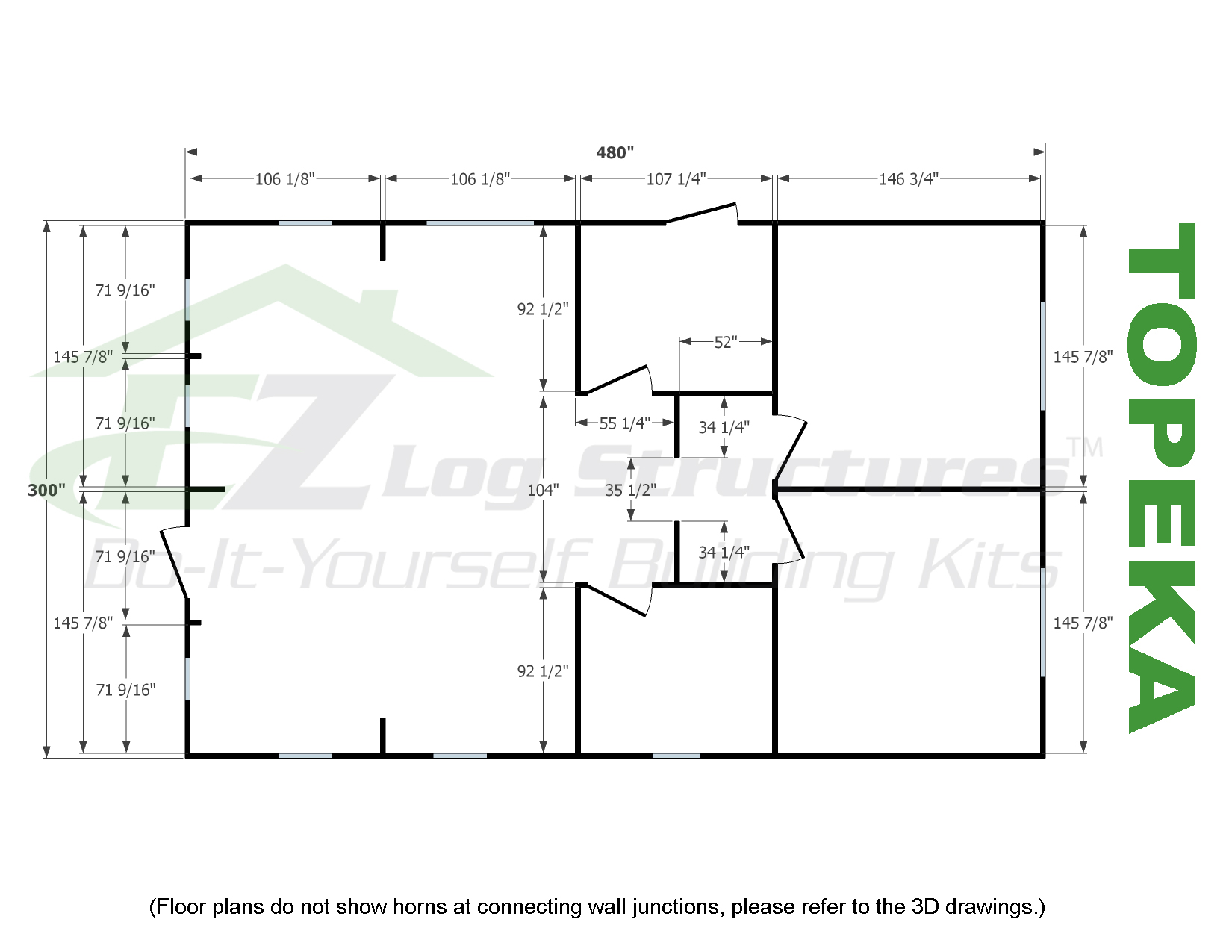

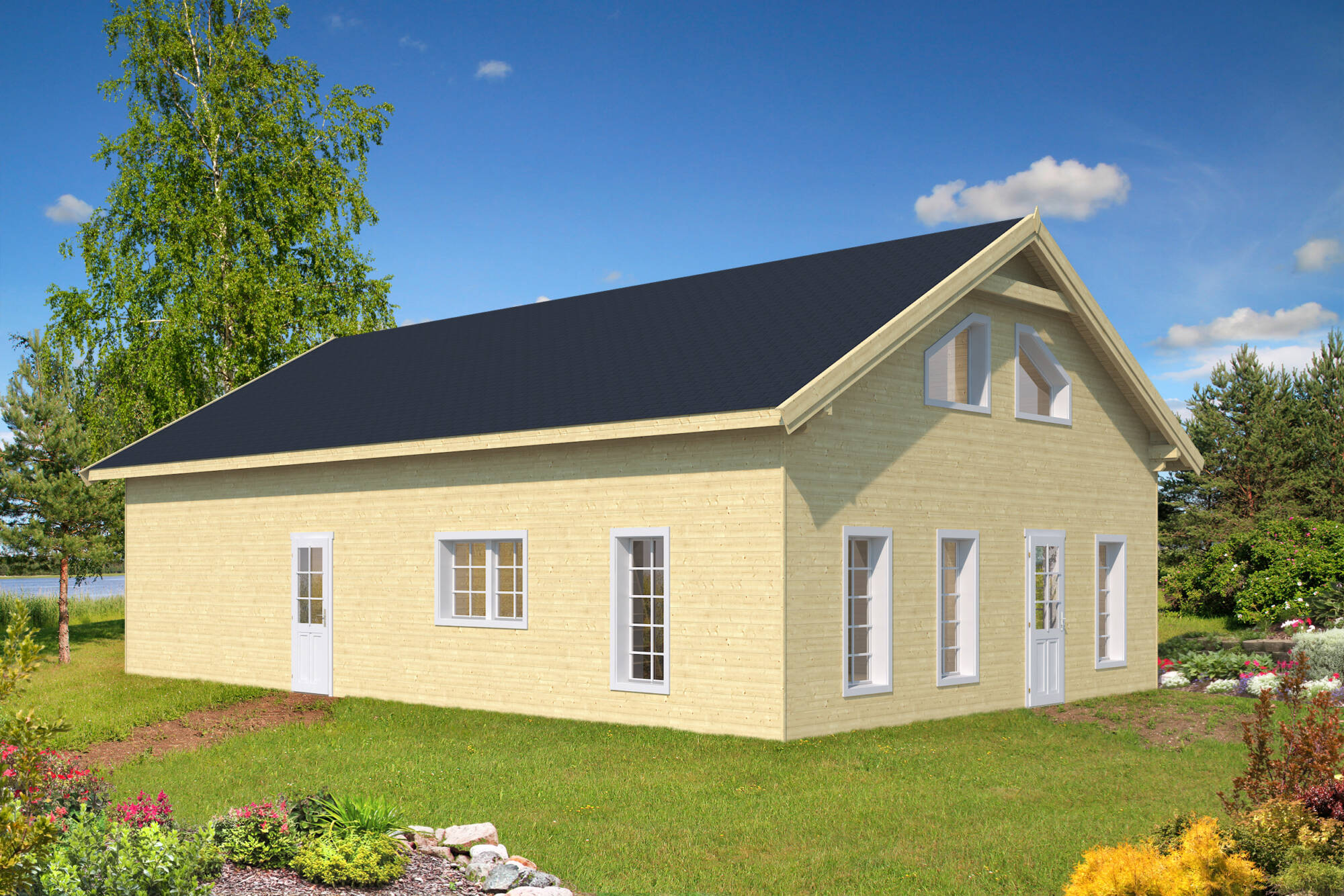

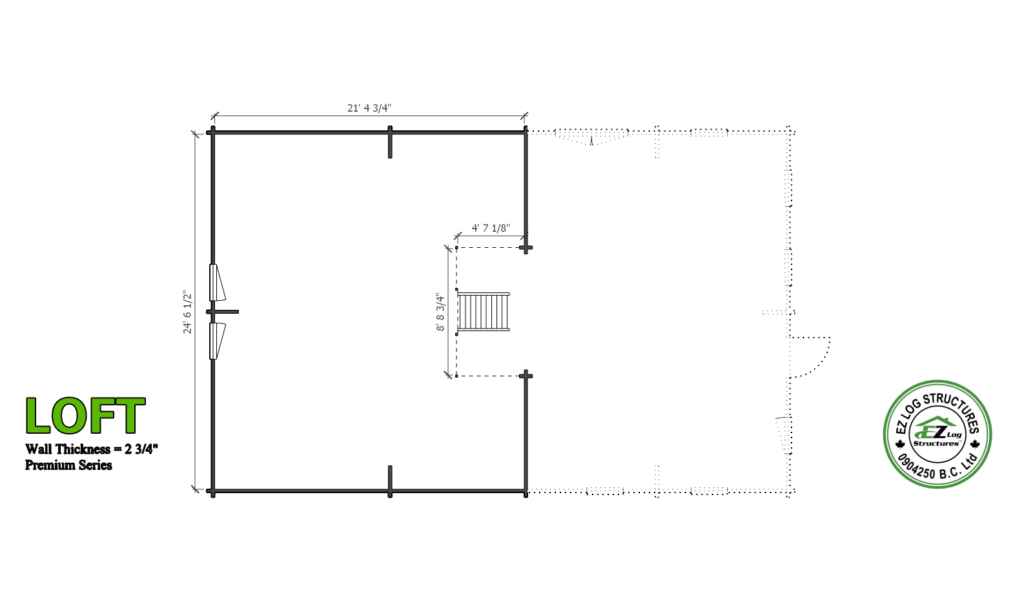

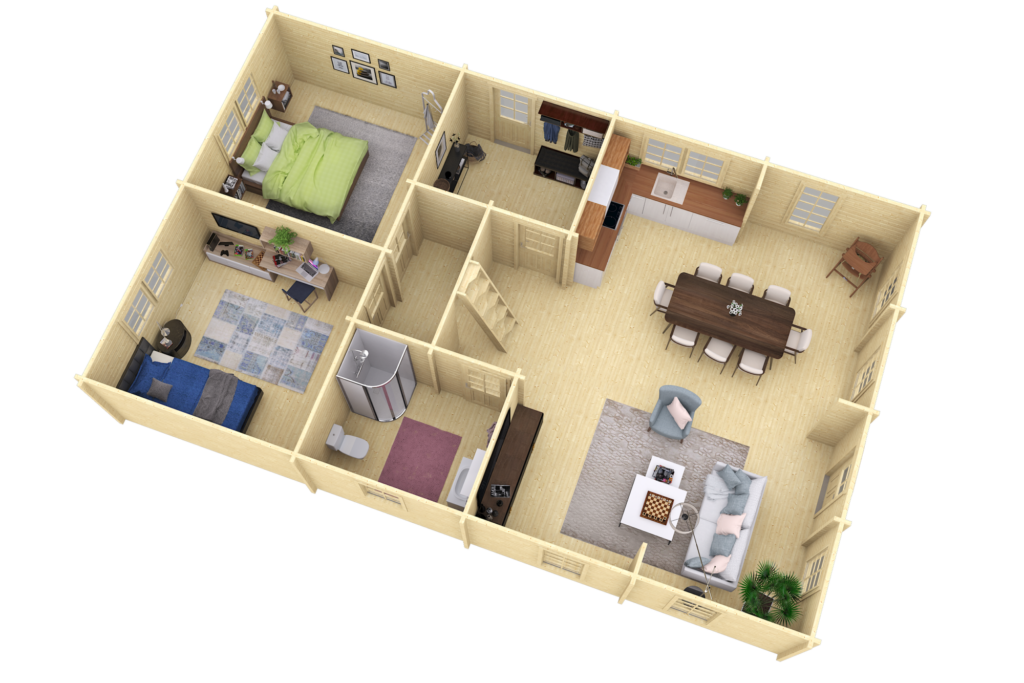

The Topeka is a premium manufactured model with 70mm (2-3/4″) thick walls. This salt box design has a main floor 25′ x 40′ = 1000 sq’ with a lofted area of 21′ x 25′ = 525 sq’ for a total of 1525 sq’.  The living room has a vaulted ceiling of 17′, kitchen, 2 or 3 bedrooms,  bath, utility room. Includes stairs and railings.  (sq footage is based the total footprint, living space could be less, see floor plans)

FREE STRUCTURAL ENGINEERING – PREMIUM models include site specific engineering stamped by a licensed engineering firm for roof and wind loads. Additional engineering services are available on request

Exterior insulating kit with semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm) Add 10% to sale price

Exterior insulating kit with full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm) Add 14% to sale price

Insulating kit includes: 2×4 or 2×6 studs, stud fasteners, wood siding, corner blocks, side overhangs of roof are increased by 6″  (Foundations must be made larger to allow for 2×4 or 2×6 studs)

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

Energy efficiency:   Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the overall thermal and comfort benefits

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Insulating the roof: Apply locally supplied materials to add rafters over the tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof. These added rafters also increase the roof load capacity



OPTION A: Upgrade wood windows to triple glazed / Low E / Argon filled glass

  • USD regular price $ 1,591.00
  • CAD regular price $ 2,040.00



OPTION B: Upgrade wood windows to our exclusive maintenance free white PVC/Shutter windows with triple glazed / Low E / Argon filled glass plus exterior rolling shutters that are controlled from the interior. These unique windows provide added comfort and security. They improve the overall energy efficiency by keeping the heat out during the summer and the cold out in the winter. They also reduce outside noise levels and provide complete darkness for daytime sleepers. (See our Videos page)

  • USD regular price $ 2,925.00
  • CAD regular price $ 3,750.00

Assembly: The model can be assembled in approximately 16 days or less with 3 people

Tip: House wraps & vapor barriers are required in most regions when insulating. Vapor barriers are installed on the warm side of walls, interior of the studs for cold climates and exterior of studs for hot climates

Building Codes: Premium series homes & cabins are manufactured to meet all structural requirements for building codes including, California Title 24, earthquake, heavy snow load regions and hurricane zones

Kit Includes:

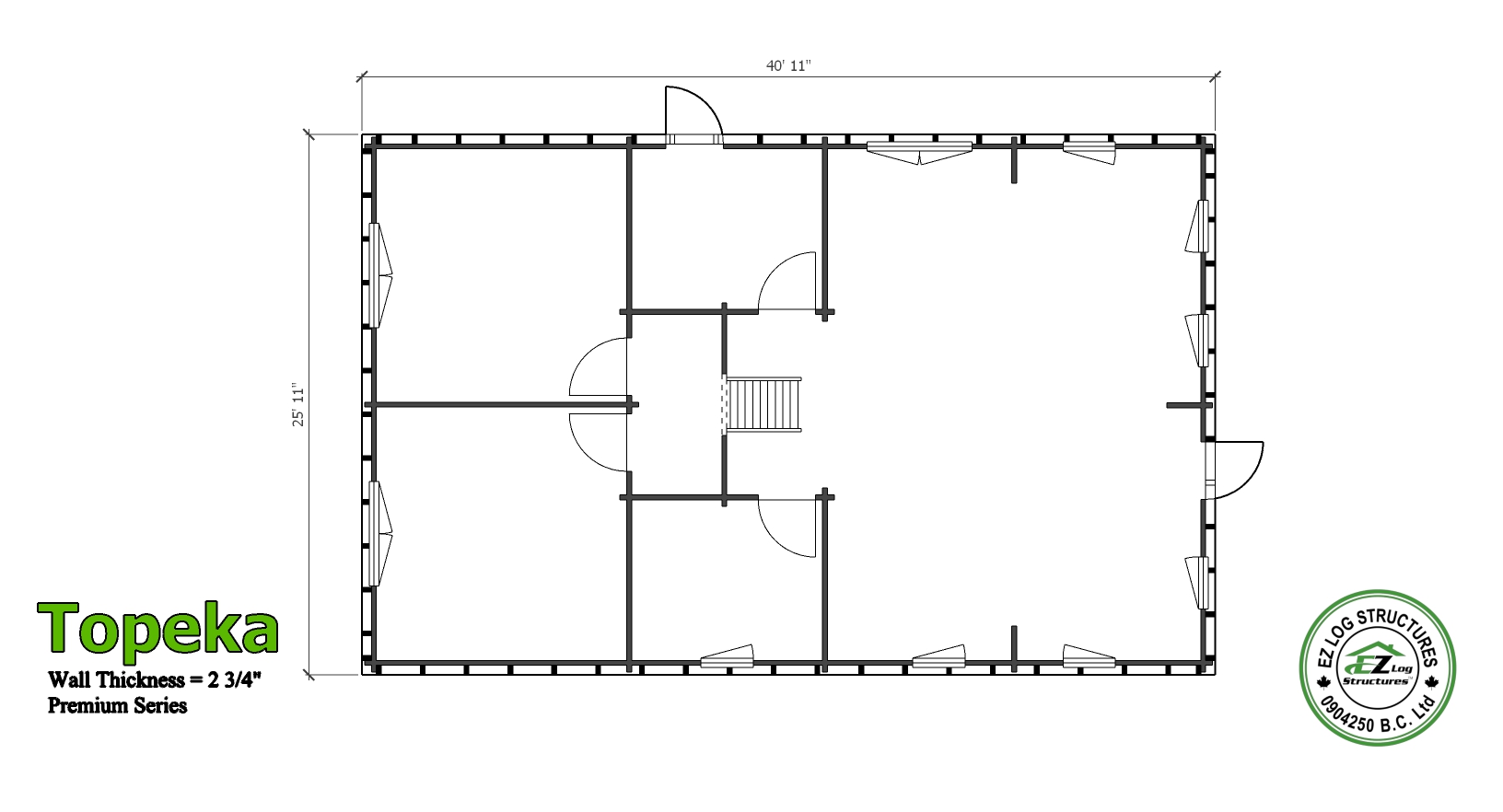

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components

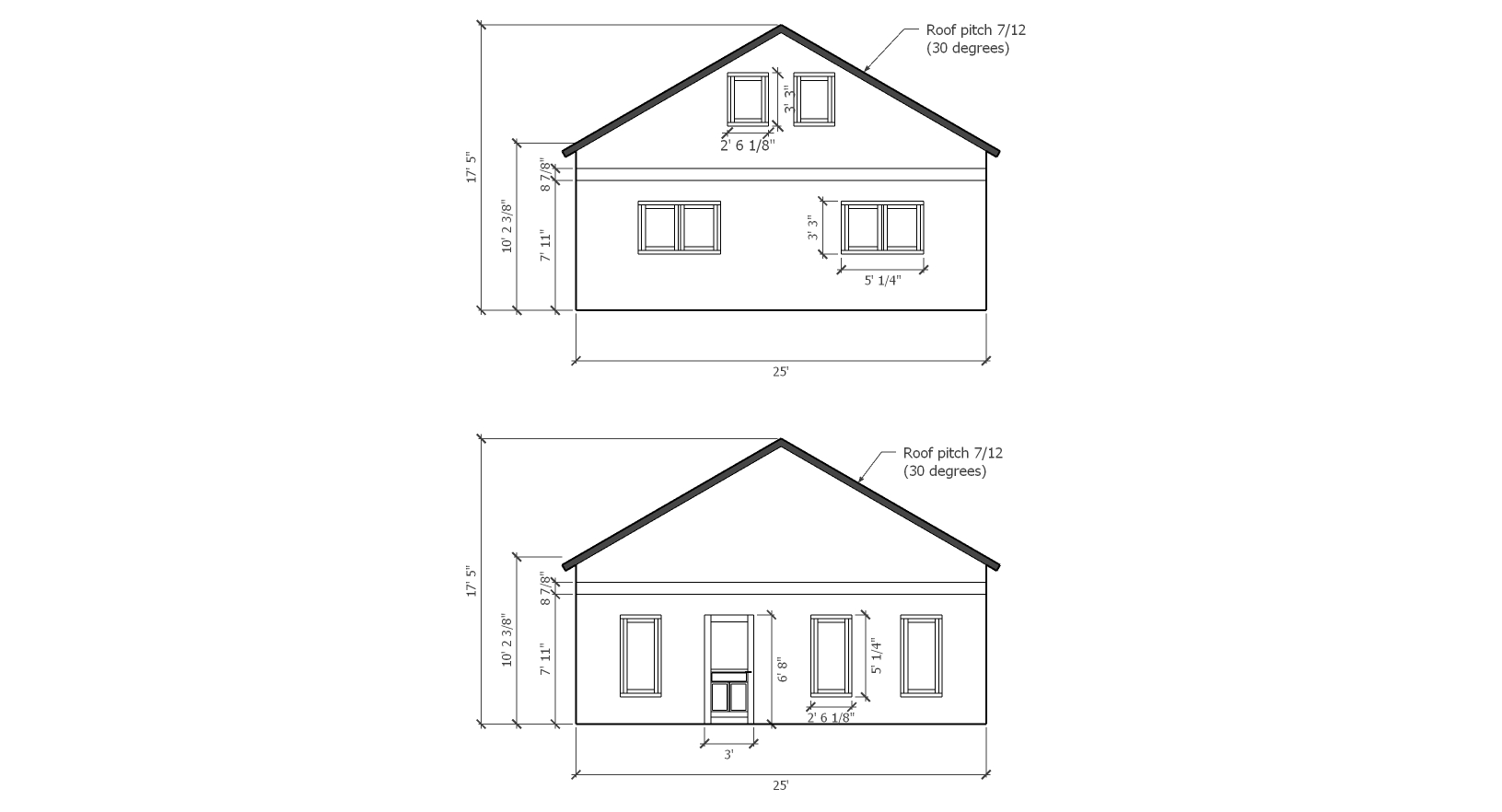

  • 7/12 roof pitch (30 degrees)
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) numbered glulam roof purlins/beams, spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • pre-cut 100mm x 200mm (4″x8″) numbered glulam floor beams, spaced 558mm (22″) or less
  • pre-cut loft floor boards 28mm (1-18″)
  • stairs, handrails, landing built to meet codes
  • 4 interior doors 900mm x 2040mm (36″x80″)
  • 3 single wide wood windows 765mm x 990mm (30″x39″)
  • 3 double wide wood windows 1530mm x 990mm (60″x39″)
  • 6 single wide wood windows 765mm x 1530mm(30″ x 60″)
  • 2 exterior doors 990mm x 2040mm (36″x80″) 1/2 glass tempered
  • 2 covered canopies with adjustable posts
  • hardware for doors & windows
  • 2 spare wall logs/spare roof boards
  • 8″ log screws to connect each row, gable components, purlins
  • packaged/wrapped and marked for sequence of assembly
