Washington

840 sq ft
Premium Model
$61,120.00 USD
$78,359.00 CAD
FREE SHIPPING
Bedrooms2
Bathrooms1
Cabin size28' x 30'
Roof pitch4/12 - 18D
Roof boards3/4"
Size (sq ft)840
Wall height95"
Ridge height151"
Wall thickness2-3/4"

Model Documentation

FREE SHIPPING – some exceptions apply

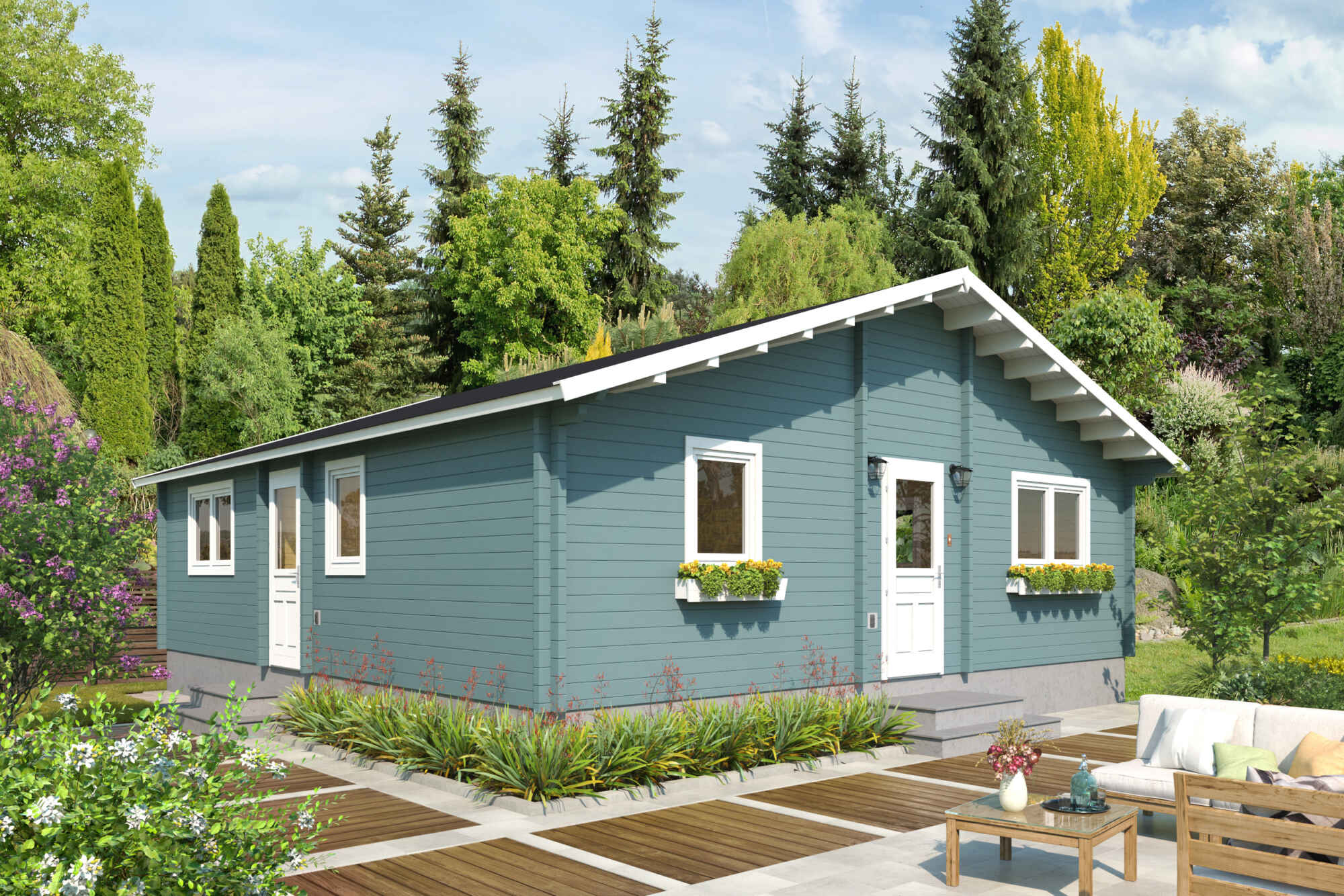

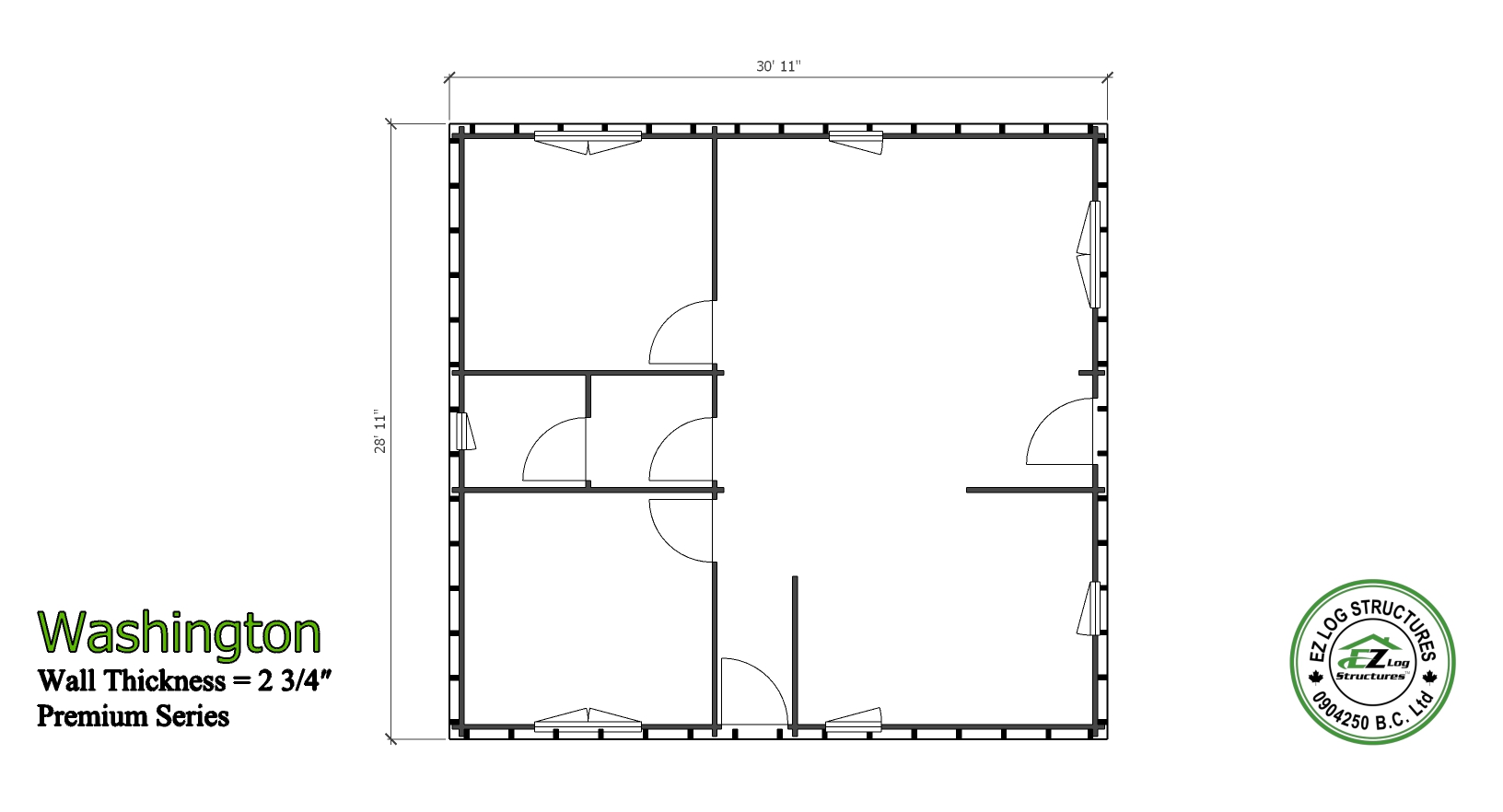

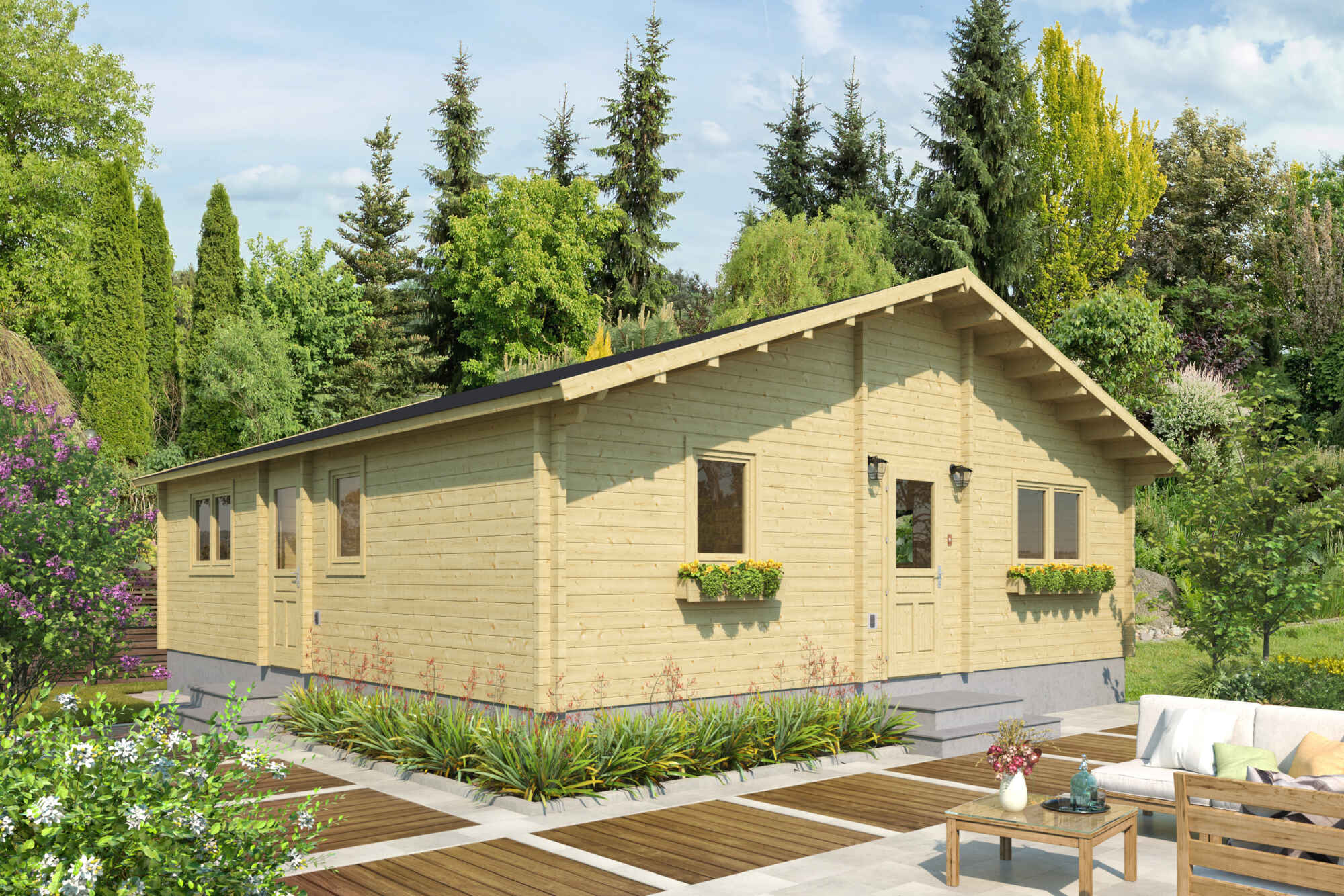

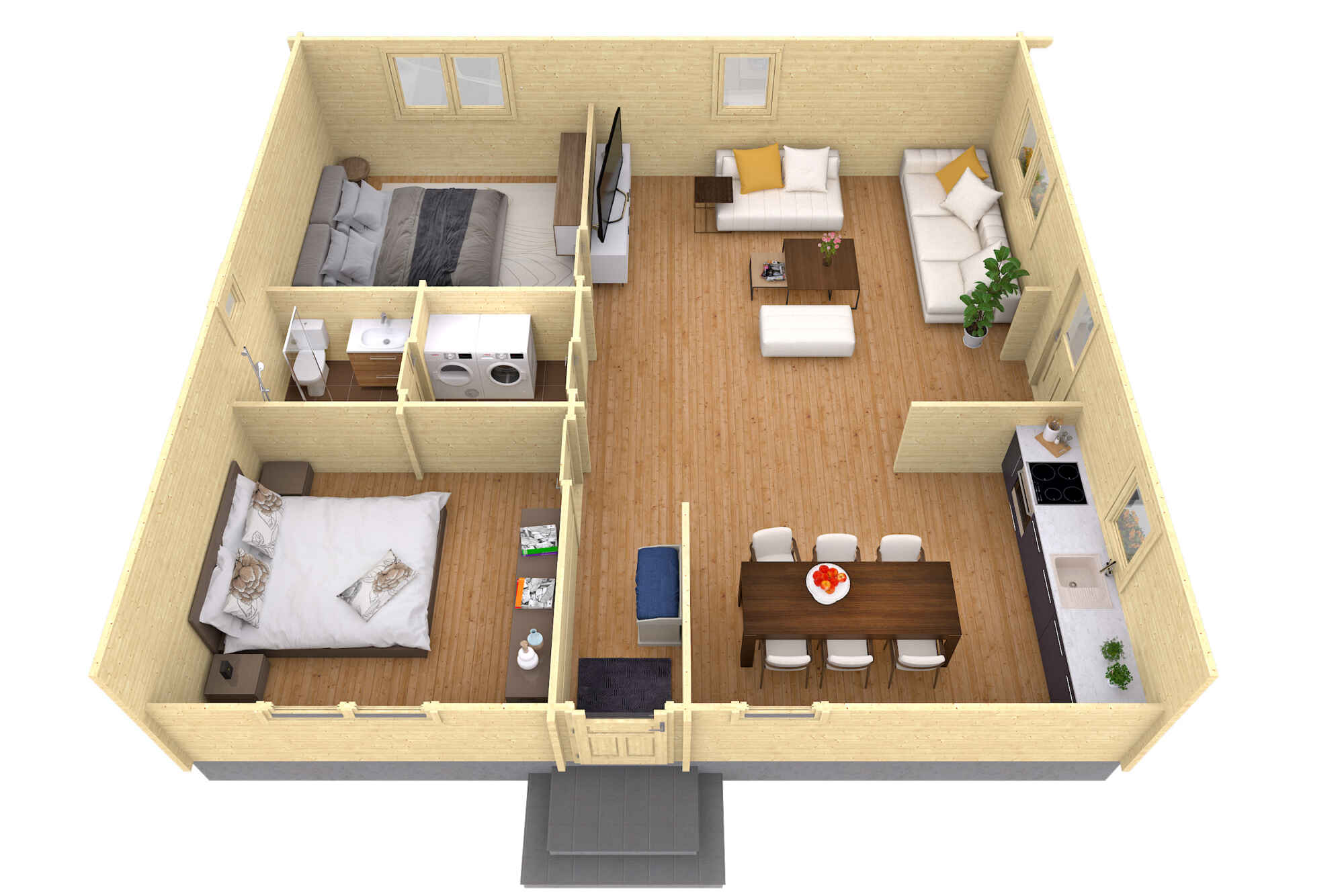

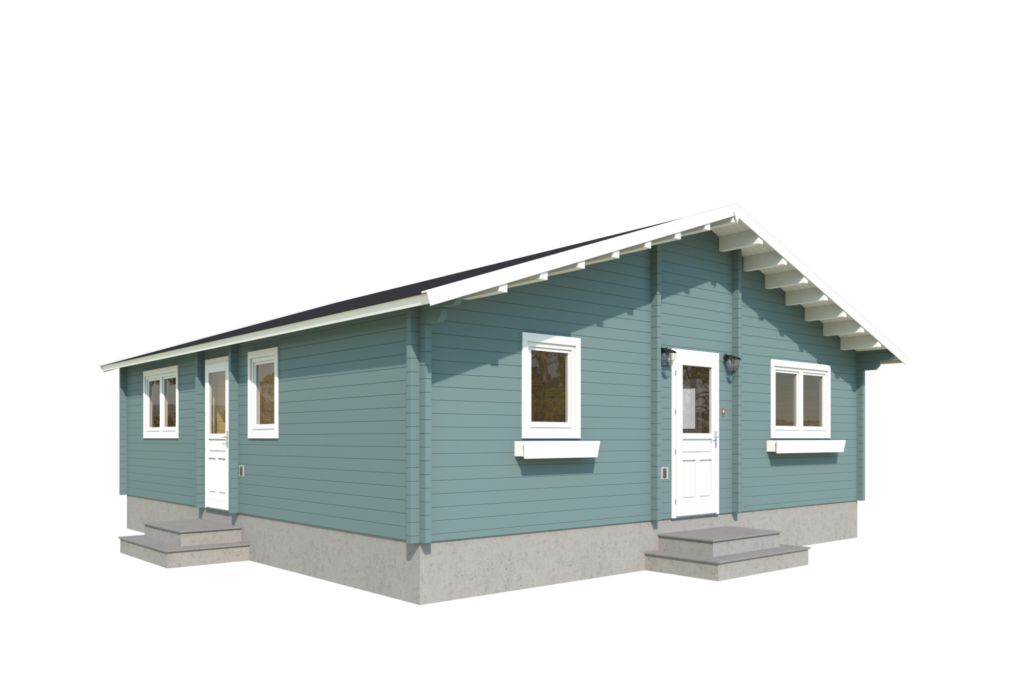

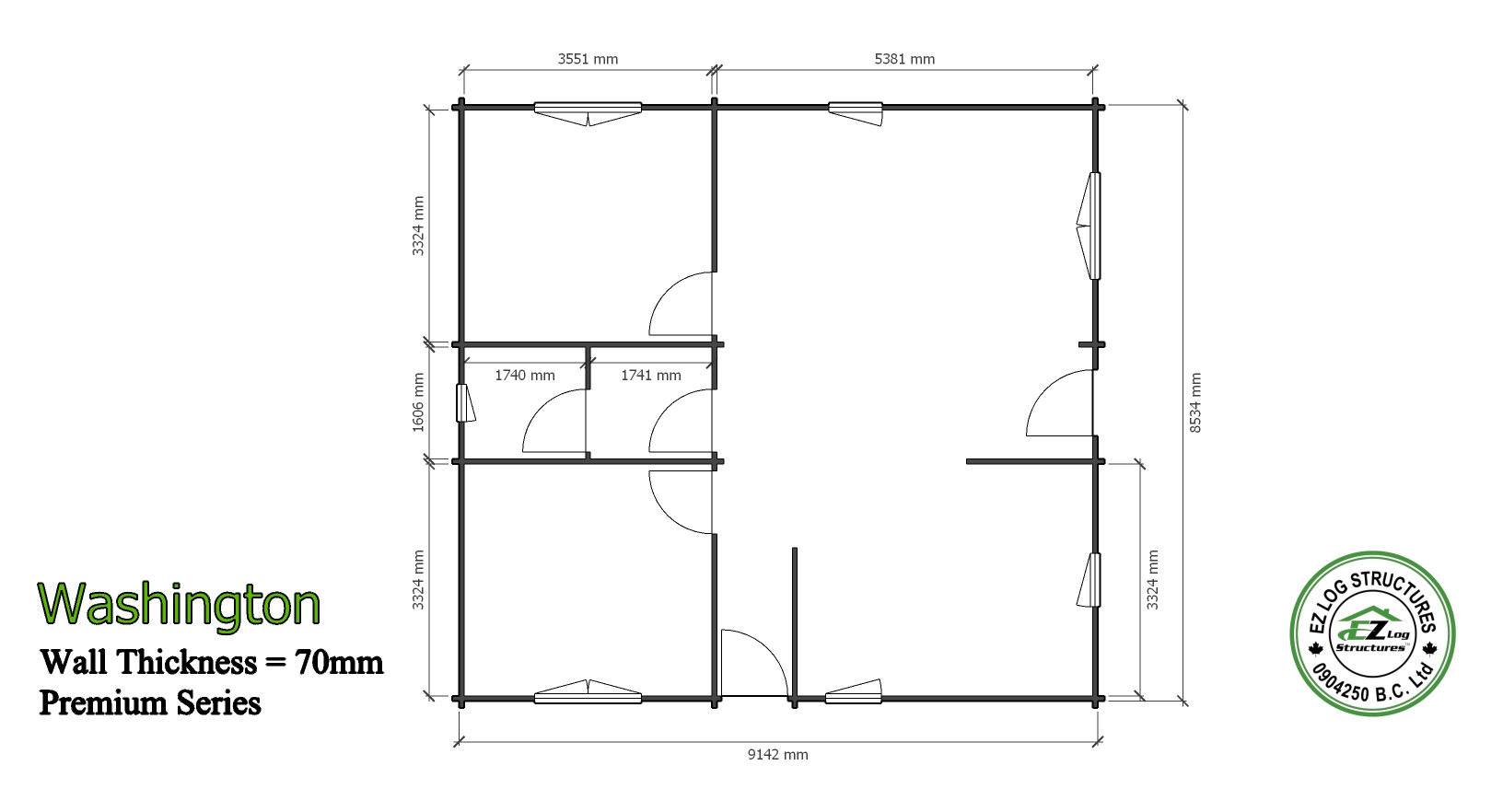

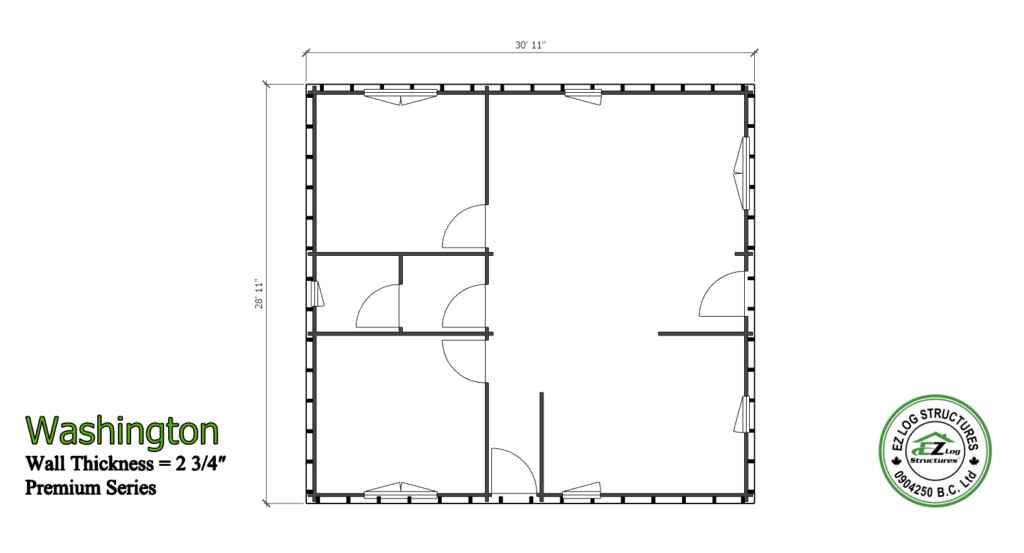

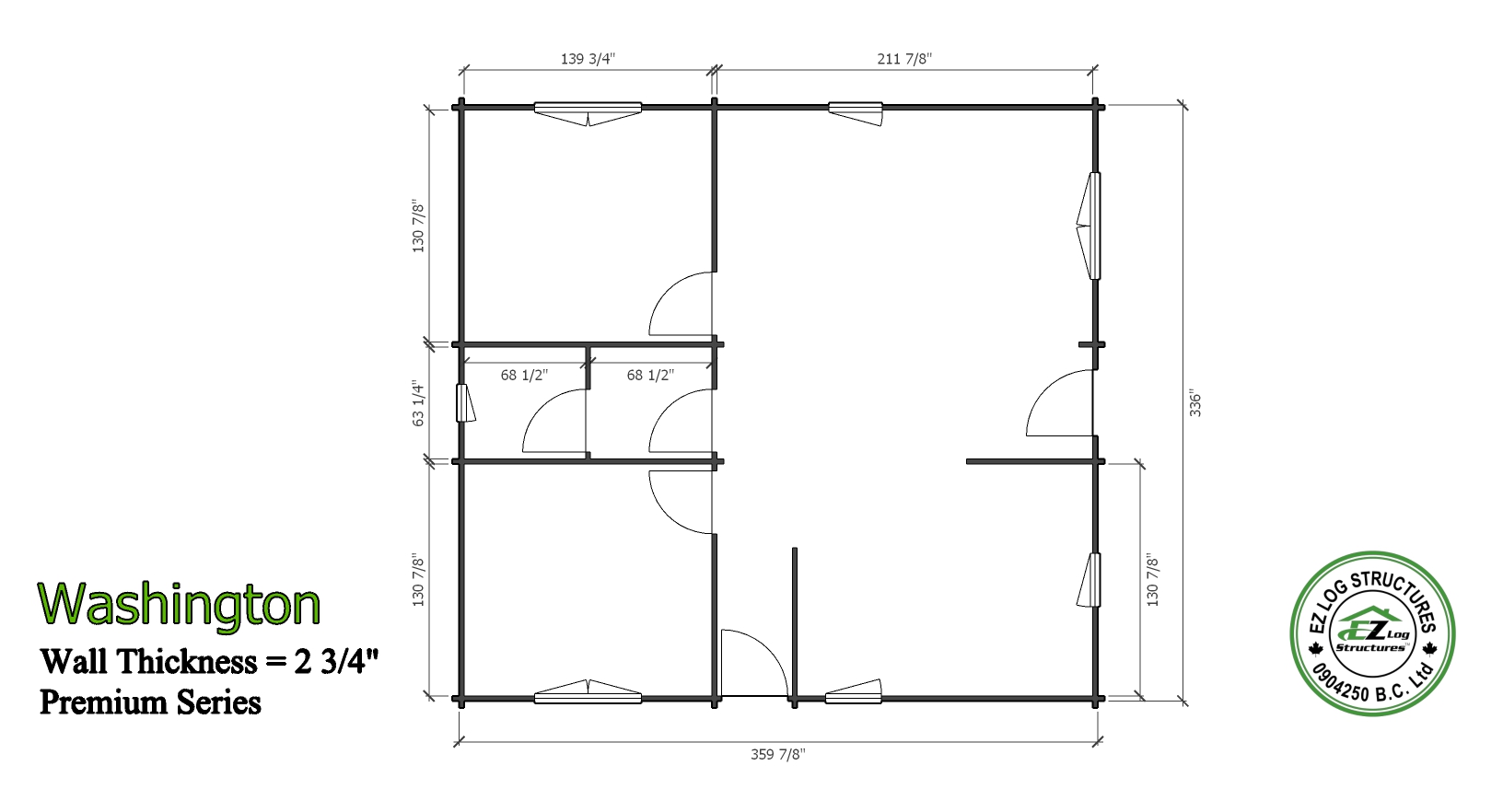

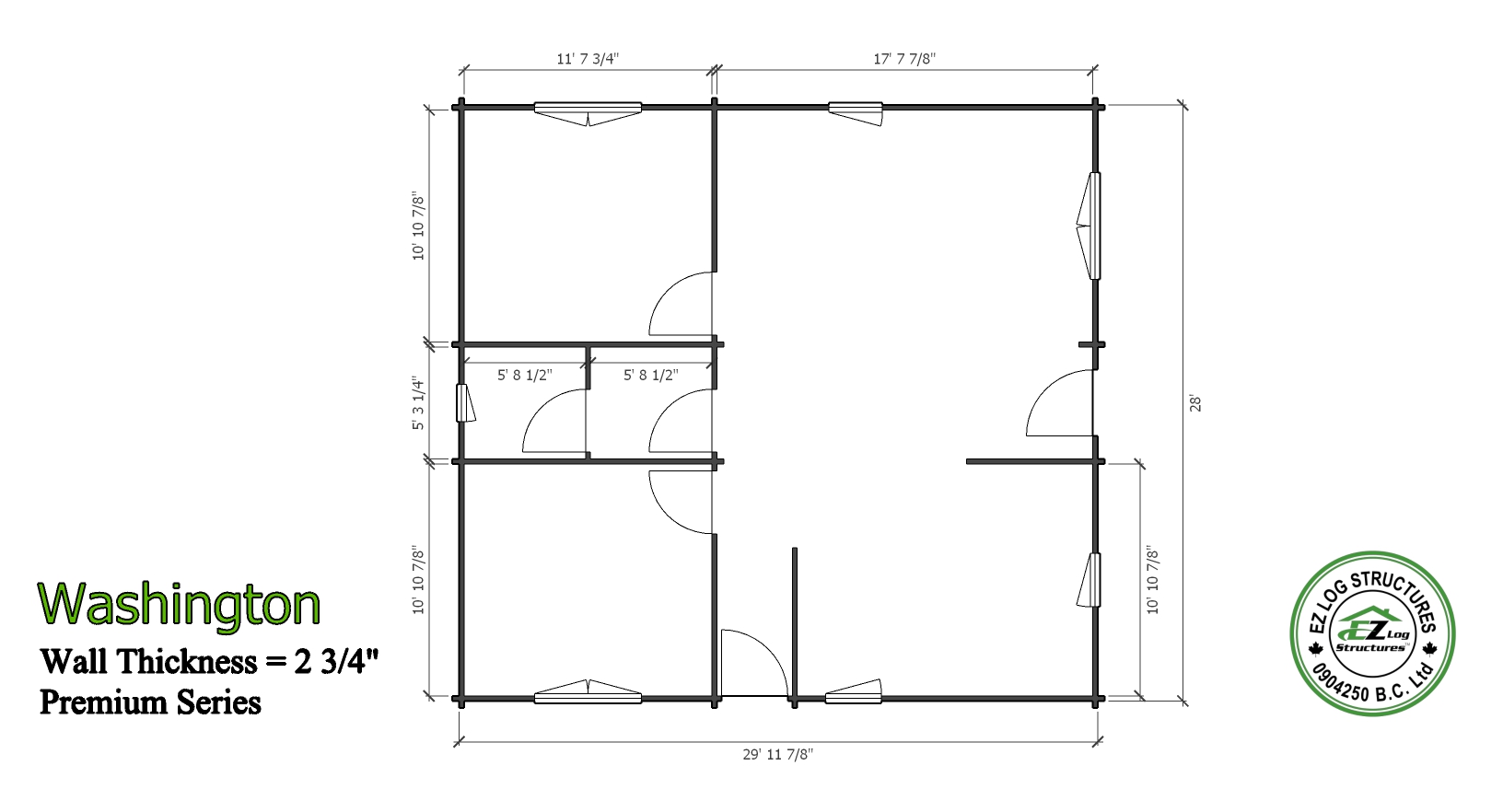

The Washington is a new model effective July 2023 and we are offering this comfortable 2 bedroom unit at an exceptional opening price. This tiny home has 2 bedrooms, 1 bathroom with an opening living space. The front wall and side walls can be reversed during assembly to allow the side entry door on the left or right.  The walls are solid wood using 70mm (2-3/4″) thick wall logs with 4″ x 8″ roof beams. The total footprint is 28′ x 30′  for 840 sq’ of space. (sq footage is based the total footprint, living space could be less, see floor plans)

FREE STAMPED STRUCTURAL ENGINEERING – PREMIUM models include site specific stamped engineering drawings for structural integrity.  Drawings are reviewed, approved and stamped by a licensed engineering firm to ensure the building meets local requirements for roof and wind loads. Additional engineering services are available on request

Exterior insulating kit with semi D-Log siding 3/4″ x 5-1/8″ (18mm x 130mm) Add 10% to sale price

Exterior insulating kit with full D-Log siding 1-1/8″ x 5-1/8″ (28mm x 130mm) Add 14% to sale price

Insulating kit includes: 2×4 or 2×6 studs, stud fasteners, wood siding, corner blocks, side overhangs of roof are increased by 6″  (Foundations must be made larger to allow for 2×4 or 2×6 studs)

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.

Energy efficiency:  Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the overall thermal and comfort benefits

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Insulating the roof: Apply locally supplied materials to add rafters over the tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof. These added rafters also increase the roof load capacity

OPTION A: Upgrade wood windows to triple glazed / Low E / Argon filled glass

  • USD regular price $ 936.00
  • CAD regular price $ 1,200.00



OPTION B: Upgrade wood windows to our exclusive maintenance free white PVC/Shutter windows with triple glazed / Low E / Argon filled glass plus exterior rolling shutters that are controlled from the interior. These unique windows provide added comfort and security. They improve the overall energy efficiency by keeping the heat out during the summer and the cold out in the winter. They also reduce outside noise levels and provide complete darkness for daytime sleepers. (See our Videos page)

  • USD regular price $ 1,950.00
  • CAD regular price $ 2,500.00

Assembly: The model can be assembled in approximately 9 days with 3 people

Tip: House wraps & vapor barriers are required in most regions when insulating

Building Codes: Premium series homes & cabins are manufactured to meet all structural requirements for building codes including, California Title 24, earthquake, heavy snow load regions and hurricane zones



Kit includes:

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4″x8″) glulam roof purlins, beams, spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 4 interior doors 812mm x 2040mm (32″x80″)
  • 1 single wide wood window 530mm x 530mm (21″x 21″)
  • 3 single wide wood window 765mm x 990mm (30″x 39″)
  • 3 double wide wood windows 1530mm x 990mm (60″x 39″)
  • 2 exterior doors 950mm x 2080mm (36″x80″) 1/2 glass tempered
  • hardware for doors & windows
  • threaded steel storm rods for perimeter wall junctions
  • 2 spare wall logs/spare roof boards
  • 400 – 8″ log torque head log screws to connect first 2 rows,  top row, gable components, purlins
  • packaged/wrapped for sequence of assembly
