Windcrest *

1408 sq ft
Premium Model
$63,741.00 USD$87,607.00 USD
$84,998.00 CAD$116,810.00 CAD
Cabin size32'X44'
Roof pitch3/12
Roof boards3/4"
Size (sq ft)1408

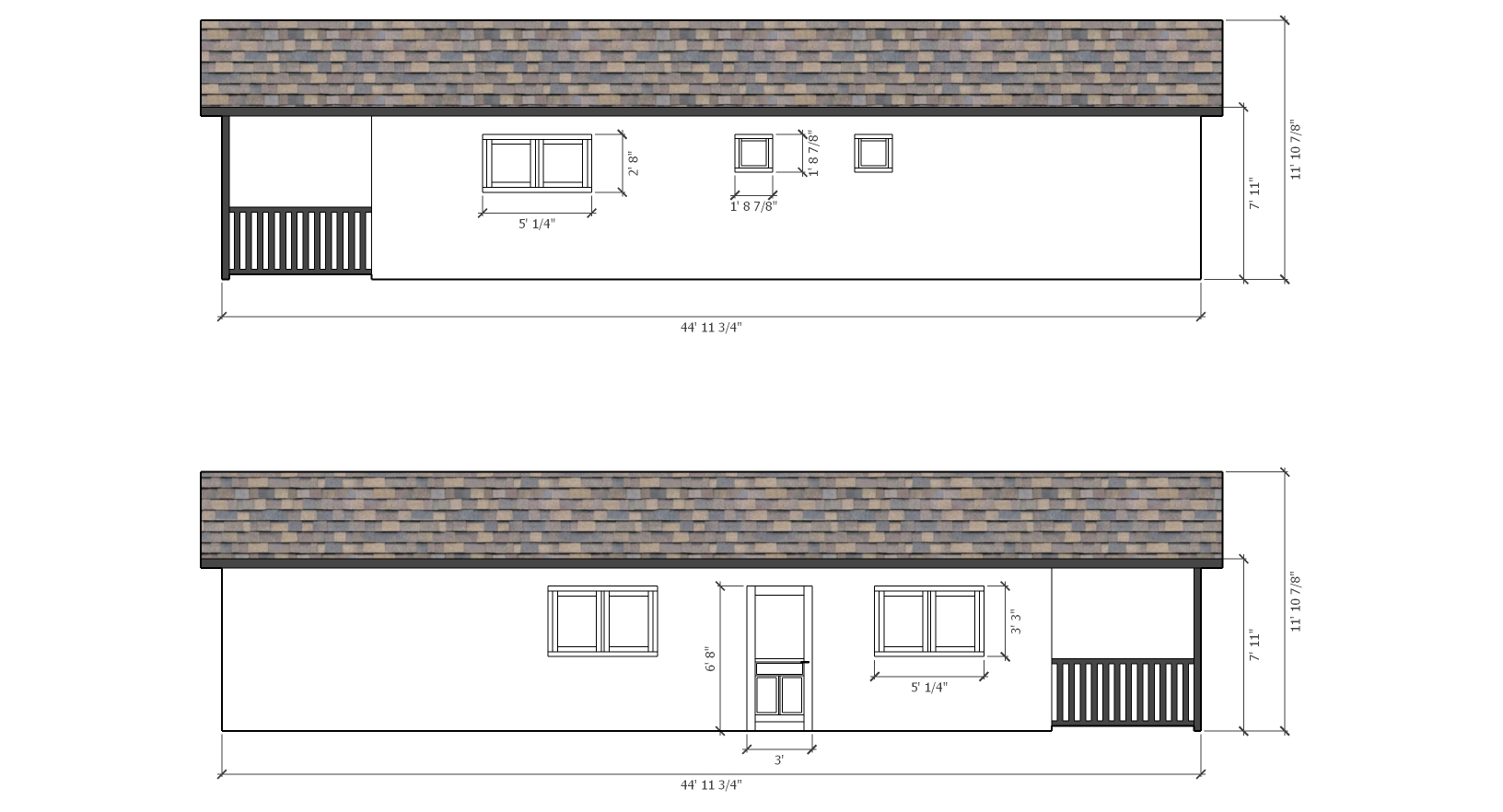

Wall height95"

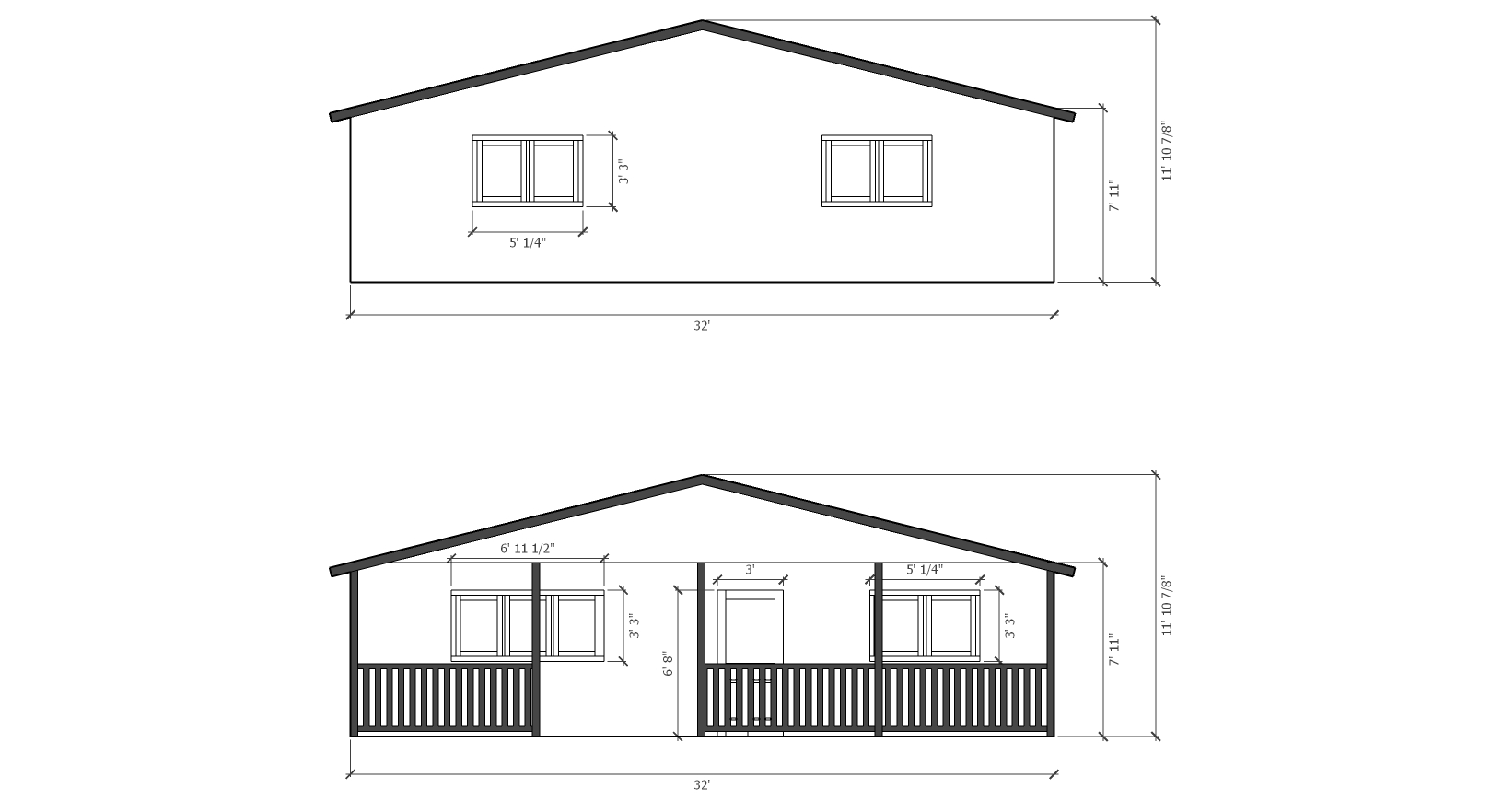

Ridge height144"
Wall thickness2-3/4"

Model Documentation

Sale price valid to Sept 30, 2023

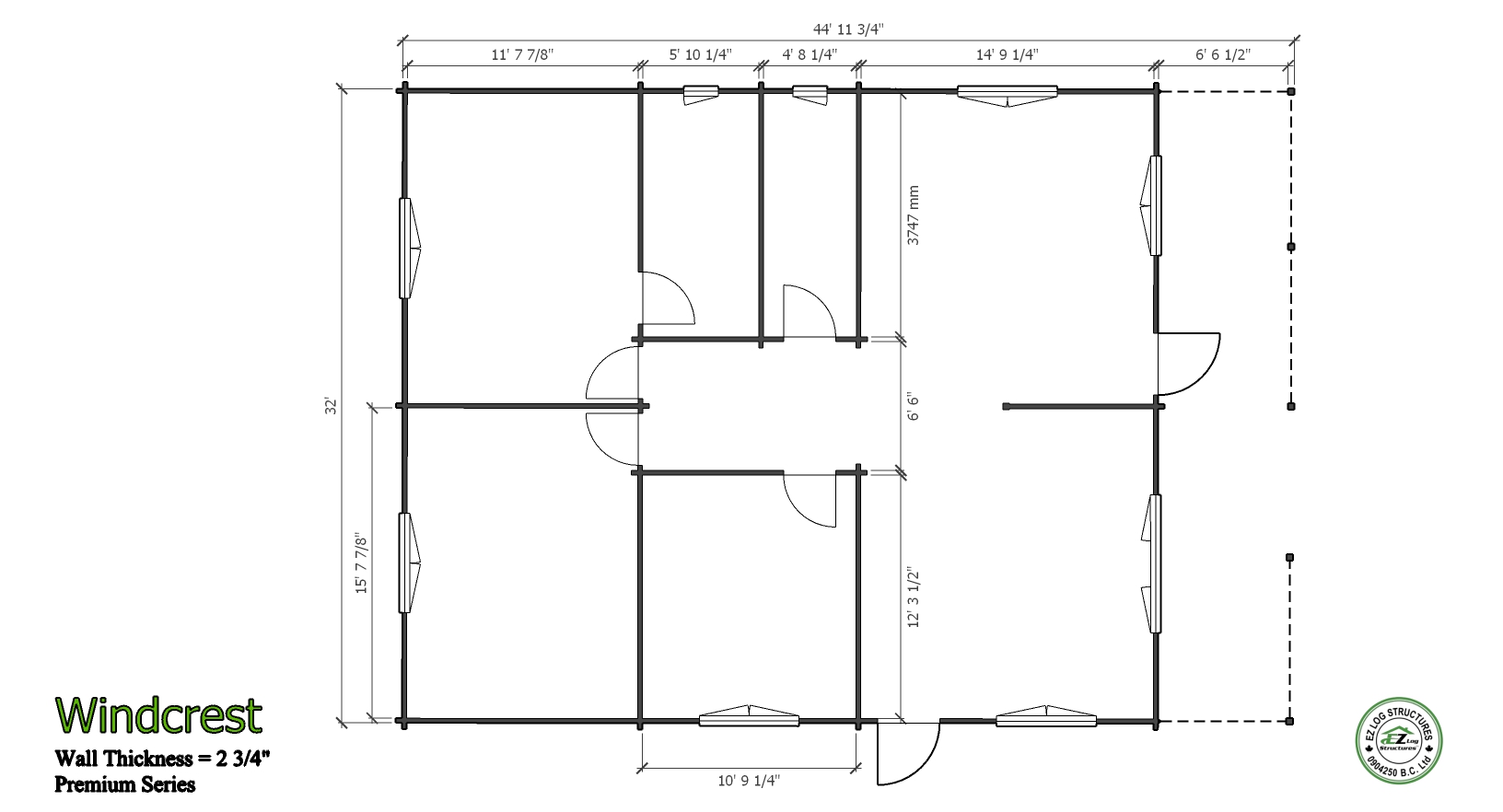

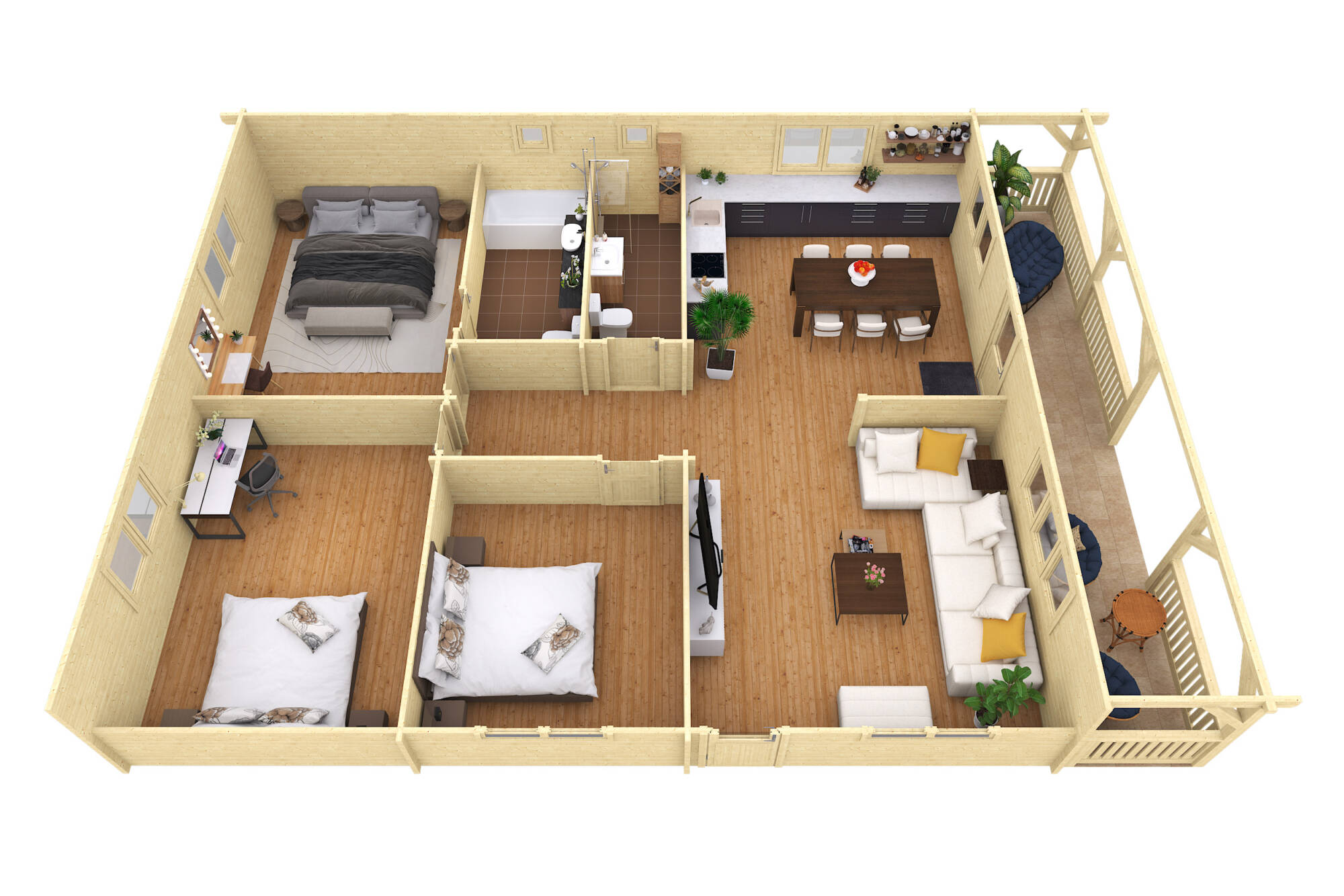

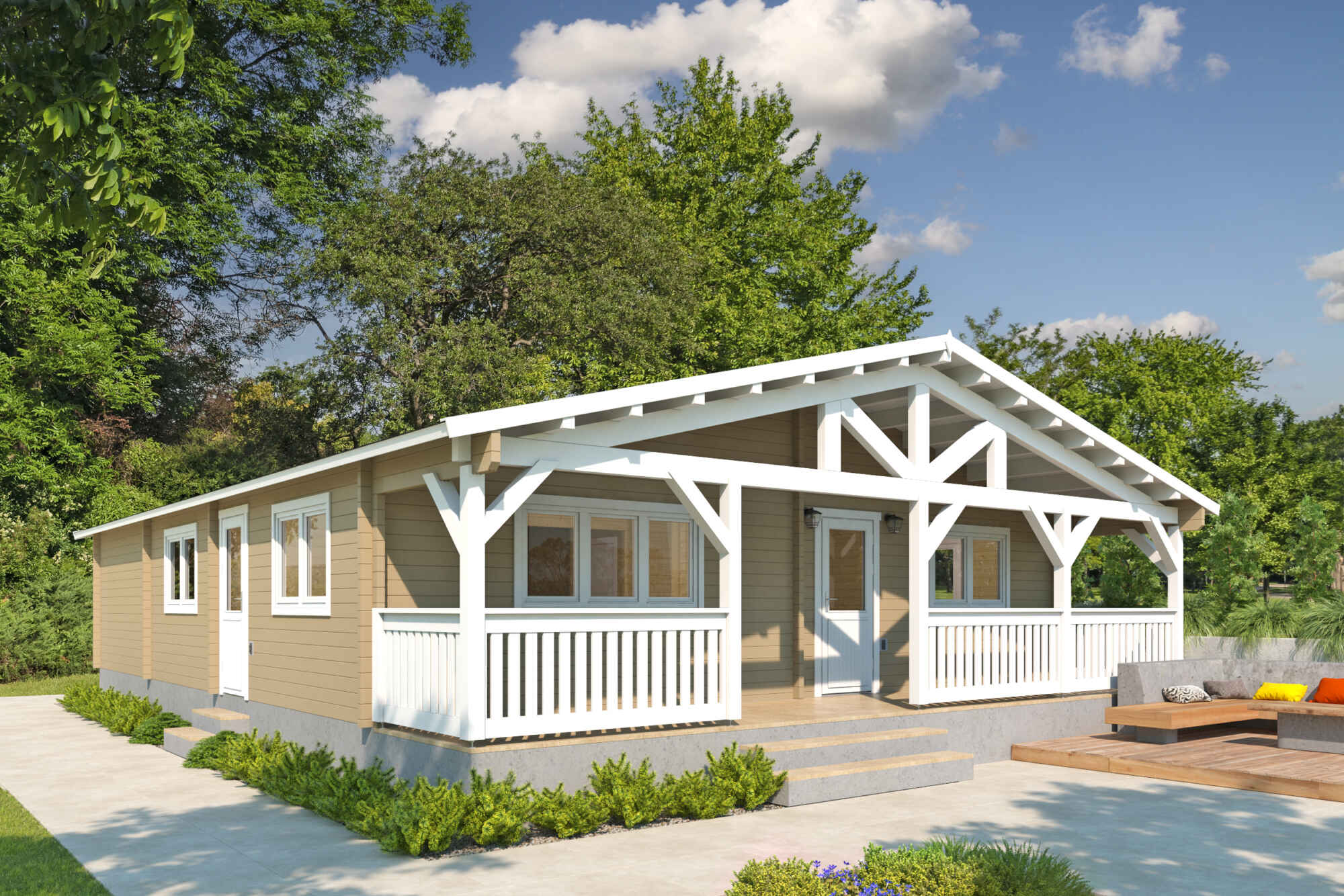

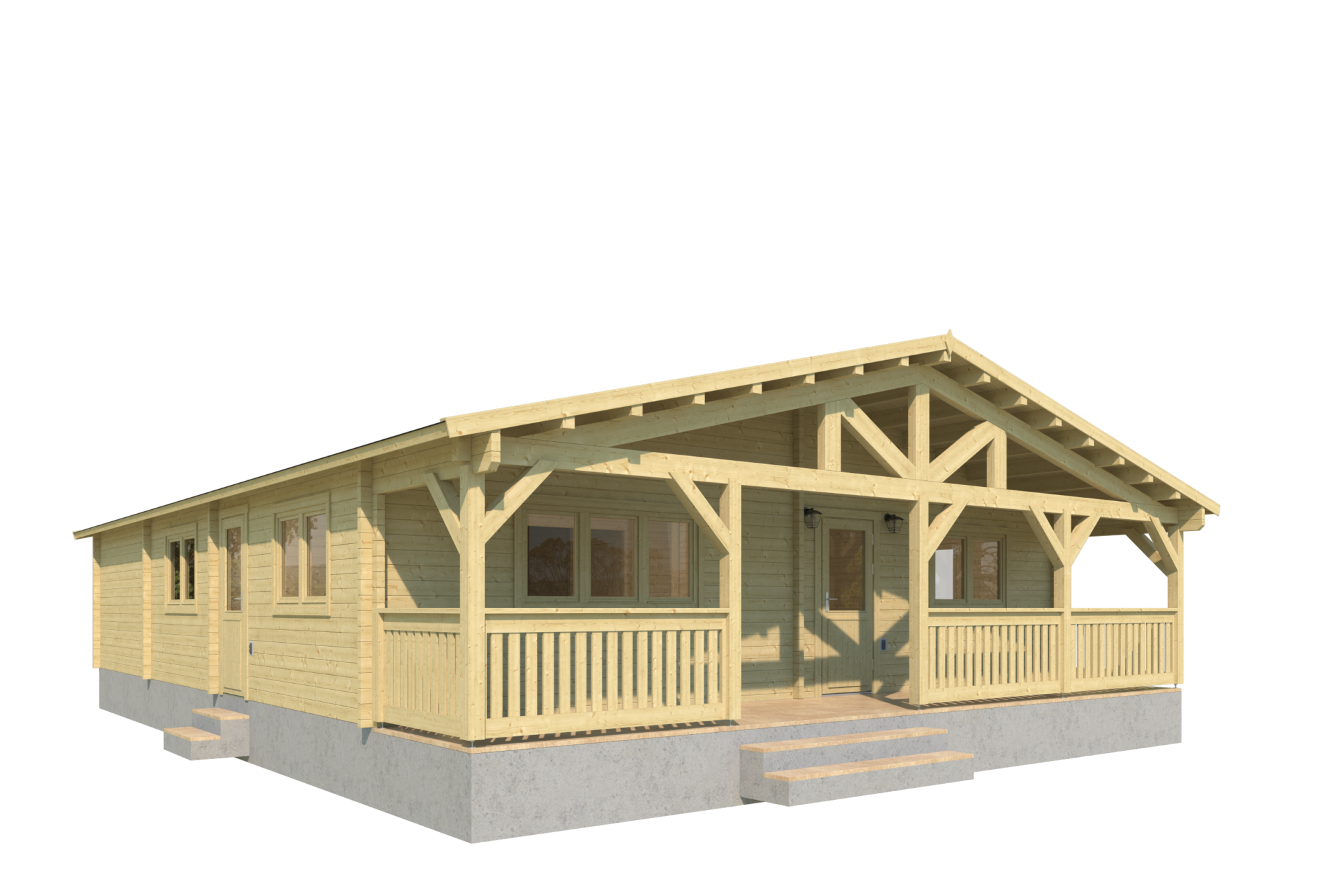

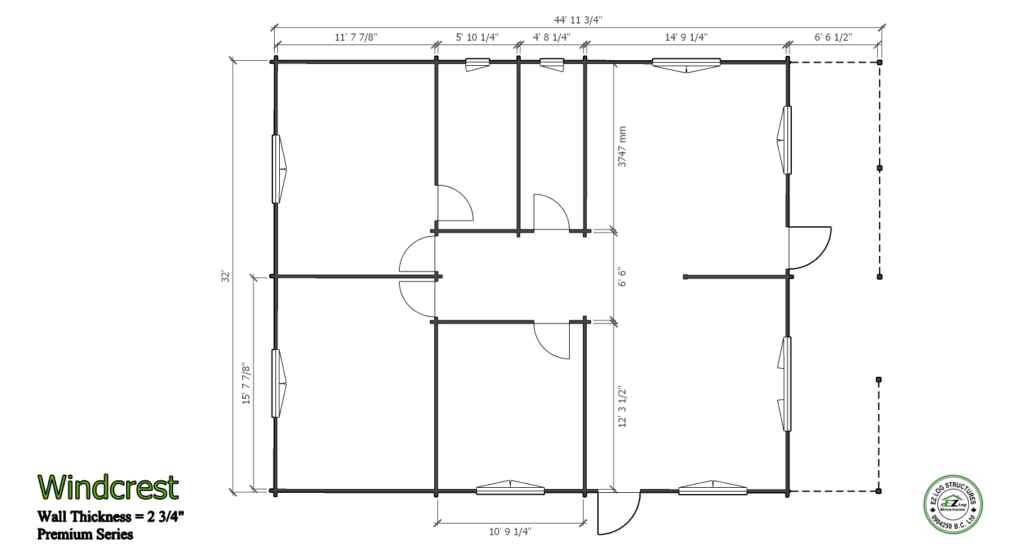

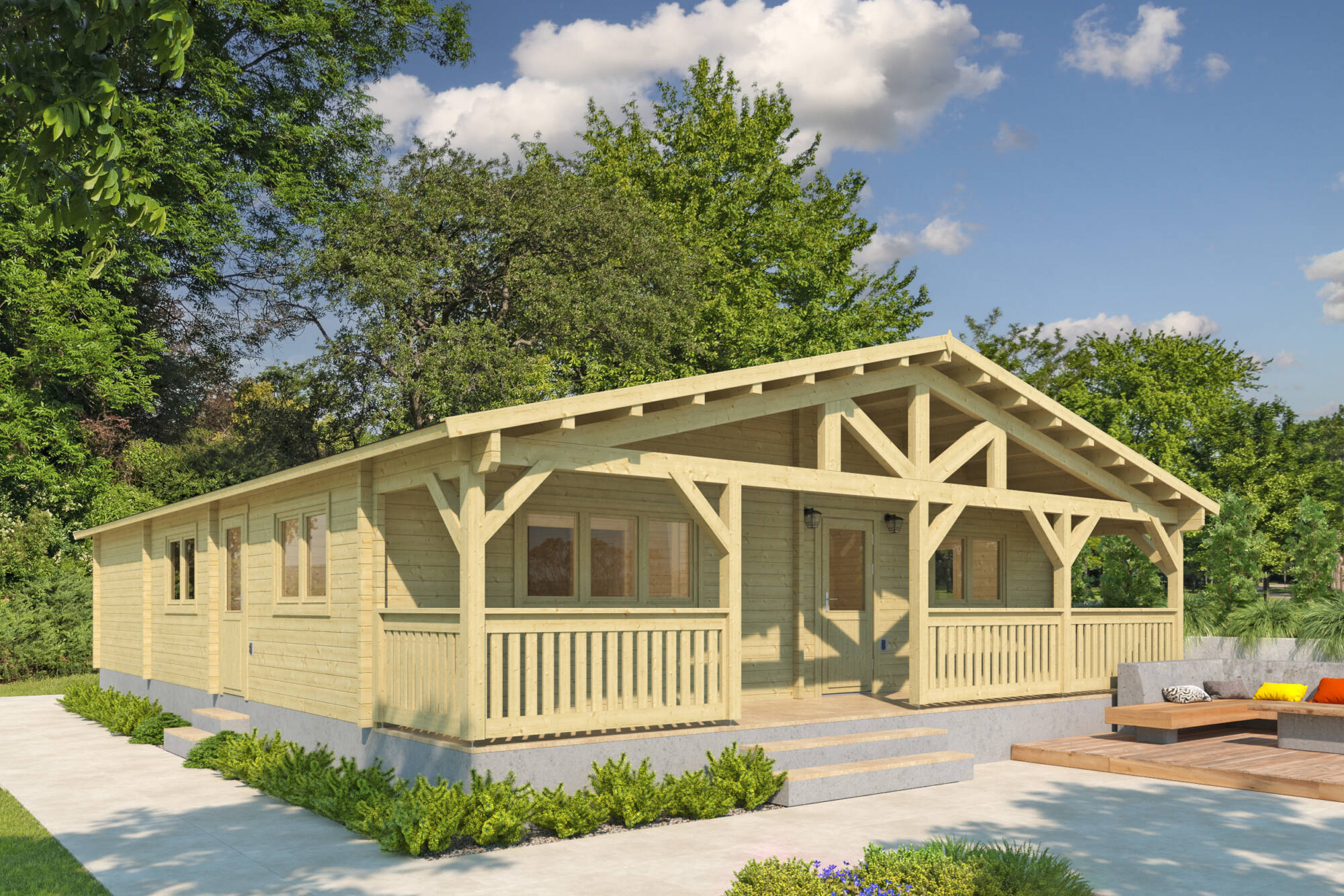

The Windcrest is a comfortable open concept 3 bedroom, 2 bath home with vaulted ceilings throughout. Built with our unique solid wood stacked system using 70mm (2-3/4″) thick wall logs, this home is solid and energy efficient. The roof beams are 4″x 9″ solid wood, spaced 24″ on center or less. The total footprint including the covered deck is 1408 sq’ with 1184 sq’ of interior living space.  The front wall can be reversed during assembly placing the kitchen on the right and the side entry door can be moved to the right.  Like all our models the Windcrest can be customized to fit your personal needs.

Wall insulating kit: Add 10% to sale price, includes metal stud brackets with 3/4″ tongue & groove wall cover boards

Energy efficiency:  2×4 or 2×6 studs are be used to install insulation of your choice. Our solid wood walls add an additional R 4.4 and have virtually no heat or cold transfer, increasing the overall thermal and comfort benefits.

Tip: Mineral wool  insulation is recommended for log construction. It’s impervious to moisture with a higher R-value per inch than fiberglass, reduces noise levels & is environmentally friendly

Insulating the roof: Apply locally supplied materials to add rafters over the tongue & groove roof boards. The build up depth is determined by the required R-value in the ceiling to meet local building codes. High density spray foam provides maximum benefits, highest R-value for thickness & is water proof. These added rafters also increase the roof load capacity

Assembly: The model can be assembled in approximately 10 days or less with 3 people

Tip: House wraps & vapor barriers are required in most regions when insulating. Vapor barriers are installed on the warm side of walls, interior of the studs for cold climates and exterior of studs for hot climates

Building Codes: Premium series homes & cabins are manufactured to meet all structural requirements for building codes including, California Title 24, earthquake, heavy snow load regions and hurricane zones

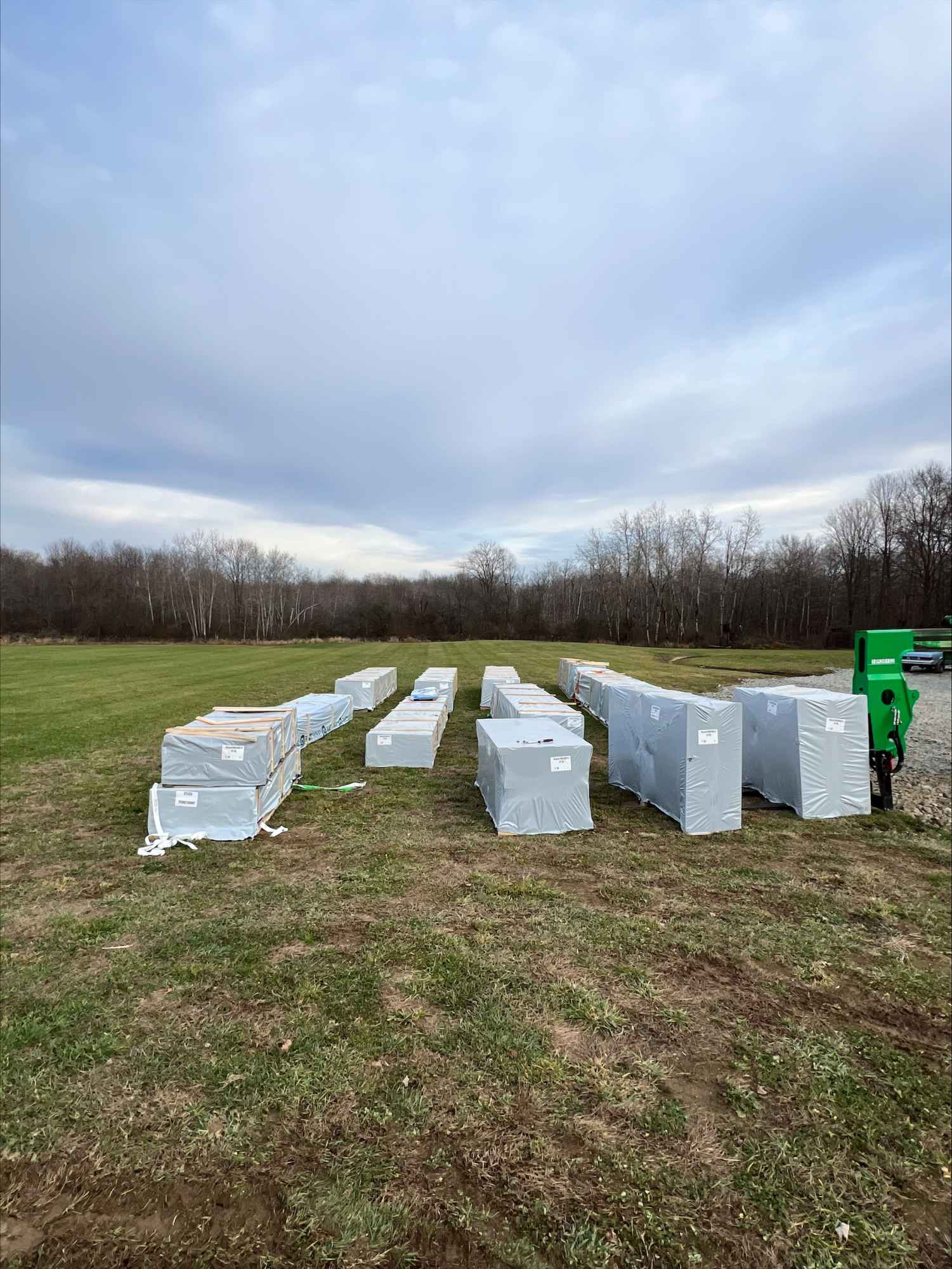

Kit includes:

  • FREE SHIPPING in USA (Except HI & AK)

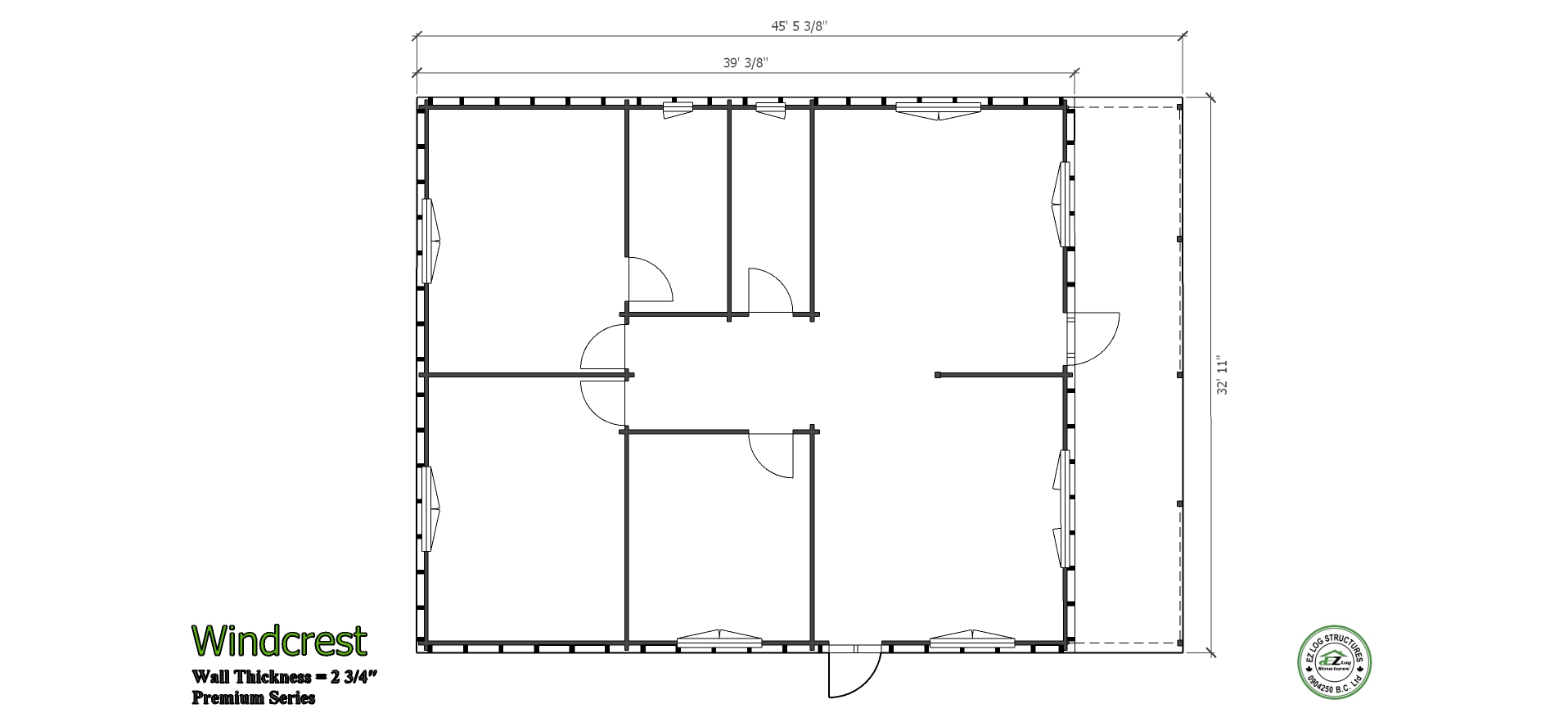

  • no floor, ready to assemble on a concrete slab or wood foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable components
  • vaulted, cathedral ceilings
  • pre-cut, 100mm x 200mm (4’x8′) numbered roof purlins, beams, spaced 558mm (22″) or less
  • pre-cut, numbered (18mm) 3/4″ tongue & groove roof boards
  • pre-cut, numbered fascia boards
  • 5  interior doors 900mm x 2040mm (36″x80″)
  • 2 single wide wood windows 530mm x 530mm (21″x 21″)
  • 6 double wide wood windows 1530mm x 990mm (60″x 39″)
  • 1 triple wide wood window 2120mm x 990mm (90″x39″)
  • 2 exterior doors 990mm x 2040mm (36″x80″) 1/2 glass tempered
  • deck railings with vertical balustrades
  • adjustable posts
  • hardware for all doors & windows
  • threaded steel storm rods for perimeter wall junctions
  • 2 spare wall logs/spare roof boards
  • 400 – 8″ log screws to connect first 2 rows,  gable components, purlins
